PX544

价格:1000元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Addgene
载体名称: PX544 或 PX544 SpCas9(del1098-1368)
质粒类型: CRISPR-Cas9载体;基因敲除载体;哺乳动物细胞载体
高拷贝/低拷贝: 高拷贝
插入位点: 限制性内切酶,多克隆位点
启动子: Cbh
载体大小: 7434 bp
5' 测序引物及序列: --
3' 测序引物及序列: BGH Reverse:TAGAAGGCACAGTCGAGG
载体标签: 3XFLAG (N ter)
载体抗性: 氨苄青霉素
筛选标记: --
克隆菌株: Stbl3
宿主细胞(系): 哺乳动物细胞
备注: Truncated form of SpCas9 without C' domain
产品目录号: #58889
稳定性: 瞬表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

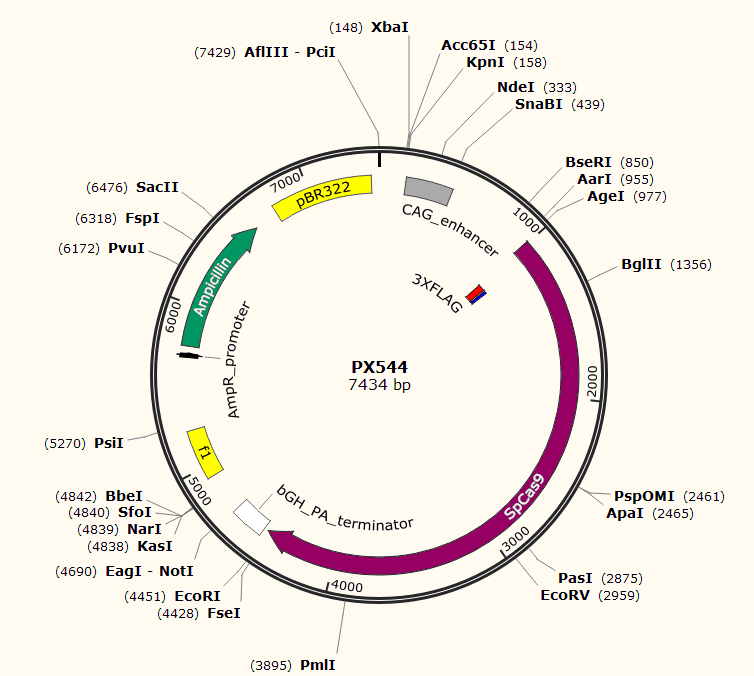

PX544载体图谱



载体简介

载体序列

LOCUS       PX544 SpCas9(del1098-1368)	7434 bp 	DNA	SYN
DEFINITION  PX544 SpCas9(del1098-1368)
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..7434
                     /organism="PX544 SpCas9(del1098-1368)"
                     /mol_type="other DNA"
     misc_feature    164..451
                     /label="CAG_enhancer"
     CDS             complement(968..3625)
                     /label="ORF frame 3"
                     /translation="MVHIVVGQPVDVQFLVHVHIPPILQVVQVQLLVLQLGVFHGVFF
                     QDLAAQLFDALFDPLHSLAAVLLSLLGGLVLSGHFDHDVLGLVPAHHFHELVHHLHCL
                     QDALLNGGAAGQIGNVLVQAIALAGHLGFLDVLFKGQAVVVDQLHEVSVGEAVGLQEI
                     QDCLAGLLVPDAVDQLPAQPAPAGVSPPLQLLHHFVVEQVGIGFQPFLDHLSVLKQCQ
                     GQHDIFQNVLVFLIVQEVLVLDNFQQIVVCAQGGVEPIFHAGDFHGVEALDFLEVVLF
                     QLLHGHFPVGLEQQVHDGLFLLAAQEGGLSHSLGHVFHFGQLVIHGEVLVQQAVLGQH
                     LLVGQVLIEVGHPLDEALGGSALVHHFLEVPGGDGFLALSGHPGESAVSPGQRAHVVG
                     DAEGQDLLDLFPVVLQEWVKIFLPPQNGVQLSQVDLVGDAAVVEGPLLPQQVLSVQLH
                     EQFLGAVHLFQDGLDELVELFLAGSAVNVAGVAVLALVEENLFVLLRQLLPHESFQQG
                     QVLVVLVVSLDHRGAQGGLGDLGVHSQDVAQQDGVGQVLGGQKQVGVLVADLGQQVVQ
                     VVVVGVLAQLQFGILGQVEVALEVGGQAQAQGNQVSEQAILLLAGQLGDQIFQPSALA
                     QSGRQDGLGVHAAGVDGVFLEQLVVGLHQLDEQLVHVAVVGVQVALDQEVAPELDHVG
                     QGQIDQPQVGLVGAVHQFLSQVVDGGVLLVVGHLVHDVAEDGVPLVLLILFHQEGLFQ
                     SVEEAVVHLGHLVAEDLLQIADPVLPSGVSSSGGSLQPGGLGCFAAVEQQGSDQVLLD
                     AVPVGVAQHLEFLAGHLVLVGDHGPAHRVGADVQADAVLLVGCWDSVDTDLPLLLWGH
                     LIVIVFVINIMILVVSVVVLIVHGGTGPT*"
     CDS             989..4450
                     /label="ORF frame 2"
                     /translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
                     SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
                     LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
                     IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
                     DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
                     FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
                     LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
                     QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
                     HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
                     EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
                     KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
                     RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
                     DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
                     LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
                     VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
                     NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
                     VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
                     ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
                     VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
                     GQAKKKK*"
     misc_feature    992..1012
                     /label="FLAG"
                     /translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
                     SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
                     LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
                     IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
                     DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
                     FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
                     LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
                     QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
                     HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
                     EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
                     KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
                     RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
                     DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
                     LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
                     VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
                     NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
                     VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
                     ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
                     VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
                     GQAKKKK*"
     misc_feature    1013..1033
                     /label="FLAG"
                     /translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
                     SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
                     LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
                     IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
                     DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
                     FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
                     LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
                     QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
                     HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
                     EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
                     KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
                     RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
                     DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
                     LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
                     VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
                     NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
                     VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
                     ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
                     VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
                     GQAKKKK*"
     misc_feature    1034..1057
                     /label="FLAG"
                     /translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
                     SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
                     LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
                     IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
                     DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
                     FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
                     LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
                     QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
                     HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
                     EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
                     KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
                     RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
                     DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
                     LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
                     VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
                     NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
                     VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
                     ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
                     VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
                     GQAKKKK*"
     misc_feature    1064..1084
                     /label="SV40 NLS"
                     /translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
                     SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
                     LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
                     IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
                     DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
                     FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
                     LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
                     QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
                     HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
                     EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
                     KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
                     RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
                     DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
                     LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
                     VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
                     NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
                     VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
                     ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
                     VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
                     GQAKKKK*"
     misc_feature    1064..1087
                     /label="SV40 NLS"
                     /translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
                     SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
                     LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
                     IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
                     DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
                     FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
                     LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
                     QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
                     HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
                     EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
                     KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
                     RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
                     DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
                     LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
                     VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
                     NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
                     VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
                     ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
                     VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
                     GQAKKKK*"
     misc_feature    1070..1084
                     /label="NLS"
                     /translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
                     SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
                     LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
                     IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
                     DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
                     FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
                     LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
                     QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
                     HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
                     EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
                     KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
                     RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
                     DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
                     LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
                     VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
                     NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
                     VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
                     ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
                     VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
                     GQAKKKK*"
     misc_feature    complement(4475..4492)
                     /label="BGH_rev_primer"
                     /translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
                     SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
                     LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
                     IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
                     DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
                     FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
                     LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
                     QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
                     HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
                     EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
                     KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
                     RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
                     DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
                     LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
                     VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
                     NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
                     VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
                     ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
                     VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
                     GQAKKKK*"
     terminator      4478..4681
                     /label="bGH_PA_terminator"
                     /translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
                     SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
                     LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
                     IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
                     DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
                     FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
                     LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
                     QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
                     HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
                     EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
                     KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
                     RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
                     DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
                     LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
                     VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
                     NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
                     VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
                     ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
                     VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
                     GQAKKKK*"
     rep_origin      4929..5235
                     /label="f1_origin"
                     /translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
                     SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
                     LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
                     IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
                     DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
                     FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
                     LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
                     QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
                     HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
                     EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
                     KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
                     RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
                     DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
                     LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
                     VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
                     NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
                     VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
                     ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
                     VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
                     GQAKKKK*"
     misc_feature    5503..5525
                     /label="pGEX_3_primer"
                     /translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
                     SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
                     LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
                     IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
                     DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
                     FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
                     LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
                     QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
                     HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
                     EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
                     KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
                     RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
                     DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
                     LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
                     VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
                     NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
                     VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
                     ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
                     VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
                     GQAKKKK*"
     promoter        5684..5712
                     /label="AmpR_promoter"
                     /translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
                     SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
                     LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
                     IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
                     DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
                     FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
                     LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
                     QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
                     HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
                     EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
                     KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
                     RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
                     DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
                     LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
                     VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
                     NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
                     VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
                     ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
                     VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
                     GQAKKKK*"
     gene            5754..6614
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
                     SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
                     LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
                     IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
                     DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
                     FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
                     LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
                     QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
                     HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
                     EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
                     KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
                     RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
                     DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
                     LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
                     VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
                     NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
                     VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
                     ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
                     VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
                     GQAKKKK*"
     CDS             5754..6614
                     /label="ORF frame 3"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      6769..7388
                     /label="pBR322_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 cctgcaggca gctgcgcgct cgctcgctca ctgaggccgc ccgggcaaag cccgggcgtc
   61 gggcgacctt tggtcgcccg gcctcagtga gcgagcgagc gcgcagagag ggagtggcca
  121 actccatcac taggggttcc tgcggcctct agaggtaccc gttacataac ttacggtaaa
  181 tggcccgcct ggctgaccgc ccaacgaccc ccgcccattg acgtcaataa tgacgtatgt
  241 tcccatagta acgccaatag ggactttcca ttgacgtcaa tgggtggagt atttacggta
  301 aactgcccac ttggcagtac atcaagtgta tcatatgcca agtacgcccc ctattgacgt
  361 caatgacggt aaatggcccg cctggcatta tgcccagtac atgaccttat gggactttcc
  421 tacttggcag tacatctacg tattagtcat cgctattacc atggtcgagg tgagccccac
  481 gttctgcttc actctcccca tctccccccc ctccccaccc ccaattttgt atttatttat
  541 tttttaatta ttttgtgcag cgatgggggc gggggggggg ggggggcgcg cgccaggcgg
  601 ggcggggcgg ggcgaggggc ggggcggggc gaggcggaga ggtgcggcgg cagccaatca
  661 gagcggcgcg ctccgaaagt ttccttttat ggcgaggcgg cggcggcggc ggccctataa
  721 aaagcgaagc gcgcggcggg cgggagtcgc tgcgacgctg ccttcgcccc gtgccccgct
  781 ccgccgccgc ctcgcgccgc ccgccccggc tctgactgac cgcgttactc ccacaggtga
  841 gcgggcggga cggcccttct cctccgggct gtaattagct gagcaagagg taagggttta
  901 agggatggtt ggttggtggg gtattaatgt ttaattacct ggagcacctg cctgaaatca
  961 ctttttttca ggttGGACCG GTGCCACCAT GGACTATAAG GACCACGACG GAGACTACAA
 1021 GGATCATGAT ATTGATTACA AAGACGATGA CGATAAGATG GCCCCAAAGA AGAAGCGGAA
 1081 GGTCGGTATC CACGGAGTCC CAGCAGCCGA CAAGAAGTAC AGCATCGGCC TGGACATCGG
 1141 CACCAACTCT GTGGGCTGGG CCGTGATCAC CGACGAGTAC AAGGTGCCCA GCAAGAAATT
 1201 CAAGGTGCTG GGCAACACCG ACCGGCACAG CATCAAGAAG AACCTGATCG GAGCCCTGCT
 1261 GTTCGACAGC GGCGAAACAG CCGAGGCCAC CCGGCTGAAG AGAACCGCCA GAAGAAGATA
 1321 CACCAGACGG AAGAACCGGA TCTGCTATCT GCAAGAGATC TTCAGCAACG AGATGGCCAA
 1381 GGTGGACGAC AGCTTCTTCC ACAGACTGGA AGAGTCCTTC CTGGTGGAAG AGGATAAGAA
 1441 GCACGAGCGG CACCCCATCT TCGGCAACAT CGTGGACGAG GTGGCCTACC ACGAGAAGTA
 1501 CCCCACCATC TACCACCTGA GAAAGAAACT GGTGGACAGC ACCGACAAGG CCGACCTGCG
 1561 GCTGATCTAT CTGGCCCTGG CCCACATGAT CAAGTTCCGG GGCCACTTCC TGATCGAGGG
 1621 CGACCTGAAC CCCGACAACA GCGACGTGGA CAAGCTGTTC ATCCAGCTGG TGCAGACCTA
 1681 CAACCAGCTG TTCGAGGAAA ACCCCATCAA CGCCAGCGGC GTGGACGCCA AGGCCATCCT
 1741 GTCTGCCAGA CTGAGCAAGA GCAGACGGCT GGAAAATCTG ATCGCCCAGC TGCCCGGCGA
 1801 GAAGAAGAAT GGCCTGTTCG GAAACCTGAT TGCCCTGAGC CTGGGCCTGA CCCCCAACTT
 1861 CAAGAGCAAC TTCGACCTGG CCGAGGATGC CAAACTGCAG CTGAGCAAGG ACACCTACGA
 1921 CGACGACCTG GACAACCTGC TGGCCCAGAT CGGCGACCAG TACGCCGACC TGTTTCTGGC
 1981 CGCCAAGAAC CTGTCCGACG CCATCCTGCT GAGCGACATC CTGAGAGTGA ACACCGAGAT
 2041 CACCAAGGCC CCCCTGAGCG CCTCTATGAT CAAGAGATAC GACGAGCACC ACCAGGACCT
 2101 GACCCTGCTG AAAGCTCTCG TGCGGCAGCA GCTGCCTGAG AAGTACAAAG AGATTTTCTT
 2161 CGACCAGAGC AAGAACGGCT ACGCCGGCTA CATTGACGGC GGAGCCAGCC AGGAAGAGTT
 2221 CTACAAGTTC ATCAAGCCCA TCCTGGAAAA GATGGACGGC ACCGAGGAAC TGCTCGTGAA
 2281 GCTGAACAGA GAGGACCTGC TGCGGAAGCA GCGGACCTTC GACAACGGCA GCATCCCCCA
 2341 CCAGATCCAC CTGGGAGAGC TGCACGCCAT TCTGCGGCGG CAGGAAGATT TTTACCCATT
 2401 CCTGAAGGAC AACCGGGAAA AGATCGAGAA GATCCTGACC TTCCGCATCC CCTACTACGT
 2461 GGGCCCTCTG GCCAGGGGAA ACAGCAGATT CGCCTGGATG ACCAGAAAGA GCGAGGAAAC
 2521 CATCACCCCC TGGAACTTCG AGGAAGTGGT GGACAAGGGC GCTTCCGCCC AGAGCTTCAT
 2581 CGAGCGGATG ACCAACTTCG ATAAGAACCT GCCCAACGAG AAGGTGCTGC CCAAGCACAG
 2641 CCTGCTGTAC GAGTACTTCA CCGTGTATAA CGAGCTGACC AAAGTGAAAT ACGTGACCGA
 2701 GGGAATGAGA AAGCCCGCCT TCCTGAGCGG CGAGCAGAAA AAGGCCATCG TGGACCTGCT
 2761 GTTCAAGACC AACCGGAAAG TGACCGTGAA GCAGCTGAAA GAGGACTACT TCAAGAAAAT
 2821 CGAGTGCTTC GACTCCGTGG AAATCTCCGG CGTGGAAGAT CGGTTCAACG CCTCCCTGGG
 2881 CACATACCAC GATCTGCTGA AAATTATCAA GGACAAGGAC TTCCTGGACA ATGAGGAAAA
 2941 CGAGGACATT CTGGAAGATA TCGTGCTGAC CCTGACACTG TTTGAGGACA GAGAGATGAT
 3001 CGAGGAACGG CTGAAAACCT ATGCCCACCT GTTCGACGAC AAAGTGATGA AGCAGCTGAA
 3061 GCGGCGGAGA TACACCGGCT GGGGCAGGCT GAGCCGGAAG CTGATCAACG GCATCCGGGA
 3121 CAAGCAGTCC GGCAAGACAA TCCTGGATTT CCTGAAGTCC GACGGCTTCG CCAACAGAAA
 3181 CTTCATGCAG CTGATCCACG ACGACAGCCT GACCTTTAAA GAGGACATCC AGAAAGCCCA
 3241 GGTGTCCGGC CAGGGCGATA GCCTGCACGA GCACATTGCC AATCTGGCCG GCAGCCCCGC
 3301 CATTAAGAAG GGCATCCTGC AGACAGTGAA GGTGGTGGAC GAGCTCGTGA AAGTGATGGG
 3361 CCGGCACAAG CCCGAGAACA TCGTGATCGA AATGGCCAGA GAGAACCAGA CCACCCAGAA
 3421 GGGACAGAAG AACAGCCGCG AGAGAATGAA GCGGATCGAA GAGGGCATCA AAGAGCTGGG
 3481 CAGCCAGATC CTGAAAGAAC ACCCCGTGGA AAACACCCAG CTGCAGAACG AGAAGCTGTA
 3541 CCTGTACTAC CTGCAGAATG GGCGGGATAT GTACGTGGAC CAGGAACTGG ACATCAACCG
 3601 GCTGTCCGAC TACGATGTGG ACCATATCGT GCCTCAGAGC TTTCTGAAGG ACGACTCCAT
 3661 CGACAACAAG GTGCTGACCA GAAGCGACAA GAACCGGGGC AAGAGCGACA ACGTGCCCTC
 3721 CGAAGAGGTC GTGAAGAAGA TGAAGAACTA CTGGCGGCAG CTGCTGAACG CCAAGCTGAT
 3781 TACCCAGAGA AAGTTCGACA ATCTGACCAA GGCCGAGAGA GGCGGCCTGA GCGAACTGGA
 3841 TAAGGCCGGC TTCATCAAGA GACAGCTGGT GGAAACCCGG CAGATCACAA AGCACGTGGC
 3901 ACAGATCCTG GACTCCCGGA TGAACACTAA GTACGACGAG AATGACAAGC TGATCCGGGA
 3961 AGTGAAAGTG ATCACCCTGA AGTCCAAGCT GGTGTCCGAT TTCCGGAAGG ATTTCCAGTT
 4021 TTACAAAGTG CGCGAGATCA ACAACTACCA CCACGCCCAC GACGCCTACC TGAACGCCGT
 4081 CGTGGGAACC GCCCTGATCA AAAAGTACCC TAAGCTGGAA AGCGAGTTCG TGTACGGCGA
 4141 CTACAAGGTG TACGACGTGC GGAAGATGAT CGCCAAGAGC GAGCAGGAAA TCGGCAAGGC
 4201 TACCGCCAAG TACTTCTTCT ACAGCAACAT CATGAACTTT TTCAAGACCG AGATTACCCT
 4261 GGCCAACGGC GAGATCCGGA AGCGGCCTCT GATCGAGACA AACGGCGAAA CCGGGGAGAT
 4321 CGTGTGGGAT AAGGGCCGGG ATTTTGCCAC CGTGCGGAAA GTGCTGAGCA TGCCCCAAGT
 4381 GAATATCGTG AAAAAGACCA AAAGGCCGGC GGCCACGAAA AAGGCCGGCC AGGCAAAAAA
 4441 GAAAAAGtaa gaattcCTAG AGCTCGCTGA TCAGCCTCGA CTGTGCCTTC TAGTTGCCAG
 4501 CCATCTGTTG TTTGCCCCTC CCCCGTGCCT TCCTTGACCC TGGAAGGTGC CACTCCCACT
 4561 GTCCTTTCCT AATAAAATGA GGAAATTGCA TCGCATTGTC TGAGTAGGTG TCATTCTATT
 4621 CTGGGGGGTG GGGTGGGGCA GGACAGCAAG GGGGAGGATT GGGAAGAgAA TAGCAGGCAT
 4681 GCTGGGGAgc ggccgcagga acccctagtg atggagttgg ccactccctc tctgcgcgct
 4741 cgctcgctca ctgaggccgg gcgaccaaag gtcgcccgac gcccgggctt tgcccgggcg
 4801 gcctcagtga gcgagcgagc gcgcagctgc ctgcaggggc gcctgatgcg gtattttctc
 4861 cttacgcatc tgtgcggtat ttcacaccgc atacgtcaaa gcaaccatag tacgcgccct
 4921 gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg cagcgtgacc gctacacttg
 4981 ccagcgccct agcgcccgct cctttcgctt tcttcccttc ctttctcgcc acgttcgccg
 5041 gctttccccg tcaagctcta aatcgggggc tccctttagg gttccgattt agtgctttac
 5101 ggcacctcga ccccaaaaaa cttgatttgg gtgatggttc acgtagtggg ccatcgccct
 5161 gatagacggt ttttcgccct ttgacgttgg agtccacgtt ctttaatagt ggactcttgt
 5221 tccaaactgg aacaacactc aaccctatct cgggctattc ttttgattta taagggattt
 5281 tgccgatttc ggcctattgg ttaaaaaatg agctgattta acaaaaattt aacgcgaatt
 5341 ttaacaaaat attaacgttt acaattttat ggtgcactct cagtacaatc tgctctgatg
 5401 ccgcatagtt aagccagccc cgacacccgc caacacccgc tgacgcgccc tgacgggctt
 5461 gtctgctccc ggcatccgct tacagacaag ctgtgaccgt ctccgggagc tgcatgtgtc
 5521 agaggttttc accgtcatca ccgaaacgcg cgagacgaaa gggcctcgtg atacgcctat
 5581 ttttataggt taatgtcatg ataataatgg tttcttagac gtcaggtggc acttttcggg
 5641 gaaatgtgcg cggaacccct atttgtttat ttttctaaat acattcaaat atgtatccgc
 5701 tcatgagaca ataaccctga taaatgcttc aataatattg aaaaaggaag agtatgagta
 5761 ttcaacattt ccgtgtcgcc cttattccct tttttgcggc attttgcctt cctgtttttg
 5821 ctcacccaga aacgctggtg aaagtaaaag atgctgaaga tcagttgggt gcacgagtgg
 5881 gttacatcga actggatctc aacagcggta agatccttga gagttttcgc cccgaagaac
 5941 gttttccaat gatgagcact tttaaagttc tgctatgtgg cgcggtatta tcccgtattg
 6001 acgccgggca agagcaactc ggtcgccgca tacactattc tcagaatgac ttggttgagt
 6061 actcaccagt cacagaaaag catcttacgg atggcatgac agtaagagaa ttatgcagtg
 6121 ctgccataac catgagtgat aacactgcgg ccaacttact tctgacaacg atcggaggac
 6181 cgaaggagct aaccgctttt ttgcacaaca tgggggatca tgtaactcgc cttgatcgtt
 6241 gggaaccgga gctgaatgaa gccataccaa acgacgagcg tgacaccacg atgcctgtag
 6301 caatggcaac aacgttgcgc aaactattaa ctggcgaact acttactcta gcttcccggc
 6361 aacaattaat agactggatg gaggcggata aagttgcagg accacttctg cgctcggccc
 6421 ttccggctgg ctggtttatt gctgataaat ctggagccgg tgagcgtgga agccgcggta
 6481 tcattgcagc actggggcca gatggtaagc cctcccgtat cgtagttatc tacacgacgg
 6541 ggagtcaggc aactatggat gaacgaaata gacagatcgc tgagataggt gcctcactga
 6601 ttaagcattg gtaactgtca gaccaagttt actcatatat actttagatt gatttaaaac
 6661 ttcattttta atttaaaagg atctaggtga agatcctttt tgataatctc atgaccaaaa
 6721 tcccttaacg tgagttttcg ttccactgag cgtcagaccc cgtagaaaag atcaaaggat
 6781 cttcttgaga tccttttttt ctgcgcgtaa tctgctgctt gcaaacaaaa aaaccaccgc
 6841 taccagcggt ggtttgtttg ccggatcaag agctaccaac tctttttccg aaggtaactg
 6901 gcttcagcag agcgcagata ccaaatactg tccttctagt gtagccgtag ttaggccacc
 6961 acttcaagaa ctctgtagca ccgcctacat acctcgctct gctaatcctg ttaccagtgg
 7021 ctgctgccag tggcgataag tcgtgtctta ccgggttgga ctcaagacga tagttaccgg
 7081 ataaggcgca gcggtcgggc tgaacggggg gttcgtgcac acagcccagc ttggagcgaa
 7141 cgacctacac cgaactgaga tacctacagc gtgagctatg agaaagcgcc acgcttcccg
 7201 aagggagaaa ggcggacagg tatccggtaa gcggcagggt cggaacagga gagcgcacga
 7261 gggagcttcc agggggaaac gcctggtatc tttatagtcc tgtcgggttt cgccacctct
 7321 gacttgagcg tcgatttttg tgatgctcgt caggggggcg gagcctatgg aaaaacgcca
 7381 gcaacgcggc ctttttacgg ttcctggcct tttgctggcc ttttgctcac atgt

//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
欢迎您的访问和咨询....
