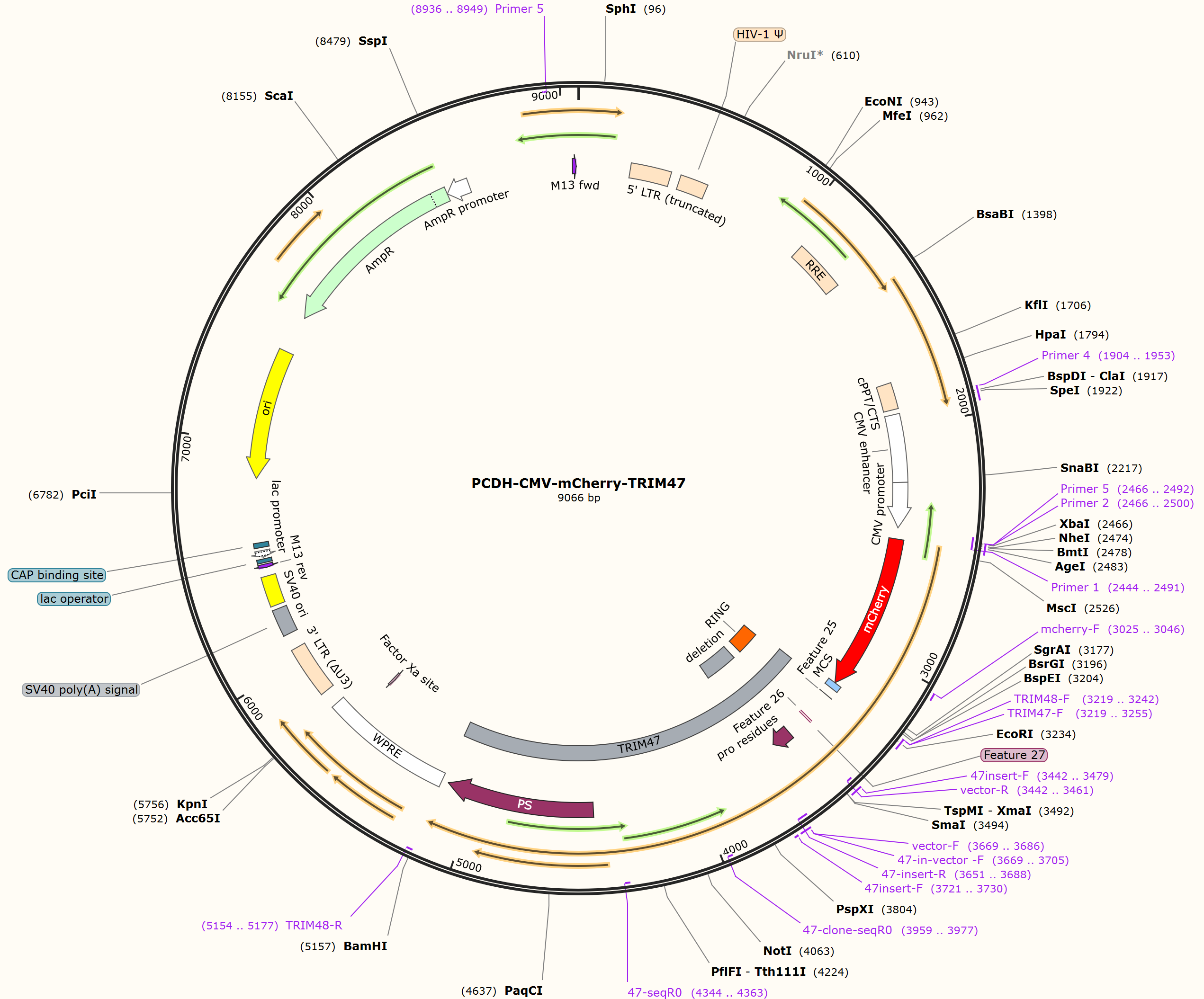

PCDH-CMV-mCherry-TRIM47

LOCUS       PCDH-CMV-mCherry-TRIM47               9066 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9066)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 10, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..9066
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3219..3255
                     /label=TRIM47-F
     primer_bind     3219..3242
                     /label=TRIM48-F
     misc_feature    3240..5156
                     /label=TRIM47
     misc_feature    3264..3410
                     /label=RING
     misc_feature    3270..3272
                     /label=Feature 25
     CDS             3399..3401
                     /codon_start=1
                     /label=Feature 26
                     /translation="C"
     CDS             3408..3410
                     /codon_start=1
                     /label=Feature 27
                     /translation="C"
     primer_bind     3442..3479
                     /label=47insert-F
     primer_bind     complement(3442..3461)
                     /label=vector-R
     misc_feature    3462..3668
                     /label=deletion
     CDS             3507..3596
                     /codon_start=1
                     /label=pro residues
                     /translation="GPAPALAPEPSAPSALPSVPEPSAPCAPEP"
     primer_bind     complement(3651..3688)
                     /label=47-insert-R
     primer_bind     3669..3705
                     /label=47-in-vector -F
     primer_bind     3669..3686
                     /label=vector-F
     primer_bind     3721..3730
                     /label=47insert-F
     primer_bind     complement(3959..3977)
                     /label=47-clone-seqR0
     primer_bind     complement(4344..4363)
                     /label=47-seqR0
     CDS             4467..5132
                     /codon_start=1
                     /label=PS
                     /translation="STNLLESEAPRDYFLKFAYIVDLDSDTADKFLQLFGTKGVKRVLC
                     PINYPLSPTRFTHCEQVLGEGALDRGTYYWEVEIIEGWVSMGVMAEDFSPQEPYDRGRL
                     GRNAHSCCLQWNGRSFSVWFHGLEAPLPHPFSPTVGVCLEYADRALAFYAVRDGKMSLL
                     RRLKASRPRRGGIPASPIDPFQSRLDSHFAGLFTHRLKPAFFLESVDAHLQIGPLKKSC
                     "
     primer_bind     complement(5154..5177)
                     /label=TRIM48-R
     misc_feature    5163..5750
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5634..5645)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5823..6056
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    6128..6249
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      6268..6403
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6441..6457)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6465..6481
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6489..6519)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6534..6555
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6843..7431)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7602..8462)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8463..8567)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8936..8949)
                     /label=Primer 5
     primer_bind     9041..9057
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggacggcag tggacccttc agctgcccca tctgcctaga gccactccgg gagccggtga
     3301 cgctgccctg cggccacaac ttctgtctcg cctgcctggg cgcgctctgg ccgcatcgtg
     3361 gcgcgagtgg agccggcgga cccggaggcg cggcccgctg cccgctgtgc caggagccct
     3421 tccccgacgg ccttcagctc cgcaagaacc acacgctgtc cgagctgctg cagctccgcc
     3481 agggctcggg ccccgggtcc ggccccggcc cggcccctgc cctggccccg gagccctcgg
     3541 cacccagcgc gctgcccagt gtcccggagc cgtcggcccc ctgcgctccc gagccgtggc
     3601 ccgcgggcga agagccagtg cgctgcgacg cgtgccccga gggcgcggcc ctgcccgccg
     3661 cgctgtcctg cctctcctgc ctcgcctcct tttgccccgc gcacctgggc ccgcacgagc
     3721 gcagccccgc cctccgcgga caccgcctgg tgccgccgct gcgccggcta gaggagagcc
     3781 tgtgcccgcg ccacctacgg ccgctcgagc gctactgccg cgcggagcgc gtgtgtctgt
     3841 gcgaggcctg cgccgcacag gagcaccgcg gccacgagct ggtgccgctg gagcaggagc
     3901 gcgcgcttca ggaggctgag cagtccaaag tcctgagcgc cgtggaggac cgcatggacg
     3961 agctgggtgc tggcattgca cagtccaggc gcacagtggc cctcatcaag agtgcagccg
     4021 tagcagagcg ggagagggtg agccggctgt ttgcagatgc tgcggccgcc ctgcagggct
     4081 tccagaccca ggtgctgggc ttcatcgagg agggggaagc tgccatgcta ggccgctccc
     4141 agggtgacct gcggcgacag gaggaacagc gcagccgcct gagccgagcc cgccagaatc
     4201 tcagccaggt ccctgaagct gactcagtca gcttcctgca ggagctgctg gcactaaggc
     4261 tggccctgga ggatgggtgt ggccctgggc ctggaccccc gagggagctc agcttcacca
     4321 aatcatccca agctgtccgt gcagtgagag acatgctggc cgtggcctgc gtcaaccagt
     4381 gggagcagct gagggggccg ggtggcaacg aggatgggcc acagaagctg gactcggaag
     4441 ctgatgctga gccccaagac ctcgagagta cgaacctctt ggagagtgaa gctcccaggg
     4501 actatttcct caagtttgcc tatattgtgg atttggacag cgacacagca gacaagttcc
     4561 tgcagctgtt tggaaccaaa ggtgtcaaga gggtgctgtg tcctatcaac taccccttgt
     4621 cgcccacccg cttcacccat tgtgagcagg tgctgggcga gggtgccctg gaccgaggca
     4681 cctactactg ggaggtggag attatcgagg gctgggtcag catgggggtc atggccgaag
     4741 acttctcccc acaagagccc tacgaccgcg gccggctggg ccgcaacgcc cactcctgct
     4801 gcctgcagtg gaatggacgc agcttctccg tctggtttca tgggctggag gctcccctgc
     4861 cccacccctt ctcgcccacg gttggggtct gcctggaata cgctgaccgt gccttggcct
     4921 tctatgctgt acgggacggc aagatgagcc tcctgcggag gctgaaggcc tcccggcccc
     4981 gccggggtgg catcccggcc tcccccattg accccttcca gagccgcctg gacagtcact
     5041 ttgcggggct cttcacccac agactcaagc ctgccttctt cctggagagt gtggacgccc
     5101 acttgcagat cgggcccctc aagaagtcct gcatatccgt gctgaagagg aggtgaggat
     5161 ccaatcaacc tctggattac aaaatttgtg aaagattgac tggtattctt aactatgttg
     5221 ctccttttac gctatgtgga tacgctgctt taatgccttt gtatcatgct attgcttccc
     5281 gtatggcttt cattttctcc tccttgtata aatcctggtt gctgtctctt tatgaggagt
     5341 tgtggcccgt tgtcaggcaa cgtggcgtgg tgtgcactgt gtttgctgac gcaaccccca
     5401 ctggttgggg cattgccacc acctgtcagc tcctttccgg gactttcgct ttccccctcc
     5461 ctattgccac ggcggaactc atcgccgcct gccttgcccg ctgctggaca ggggctcggc
     5521 tgttgggcac tgacaattcc gtggtgttgt cggggaagct gacgtccttt ccatggctgc
     5581 tcgcctgtgt tgccacctgg attctgcgcg ggacgtcctt ctgctacgtc ccttcggccc
     5641 tcaatccagc ggaccttcct tcccgcggcc tgctgccggc tctgcggcct cttccgcgtc
     5701 tccgccttcg ccctcagacg agtcggatct ccctttggcc gcctccccgc cggtaccttt
     5761 aagaccaatg acttacaagg cagctgtaga tcttagccac tttttaaaag aaaagggggg
     5821 actggaaggg ctaattcact cccaacgaaa ataagatctg ctttttgctt gtactgggtc
     5881 tctctggtta gaccagatct gagcctggga gctctctggc taactaggga acccactgct
     5941 taagcctcaa taaagcttgc cttgagtgct tcaagtagtg tgtgcccgtc tgttgtgtga
     6001 ctctggtaac tagagatccc tcagaccctt ttagtcagtg tggaaaatct ctagcagtag
     6061 tagttcatgt catcttatta ttcagtattt ataacttgca aagaaatgaa tatcagagag
     6121 tgagaggaac ttgtttattg cagcttataa tggttacaaa taaagcaata gcatcacaaa
     6181 tttcacaaat aaagcatttt tttcactgca ttctagttgt ggtttgtcca aactcatcaa
     6241 tgtatcttat catgtctggc tctagctatc ccgcccctaa ctccgcccag ttccgcccat
     6301 tctccgcccc atggctgact aatttttttt atttatgcag aggccgaggc cgcctcggcc
     6361 tctgagctat tccagaagta gtgaggaggc ttttttggag gcctagactt ttgcagagac
     6421 ggcccaaatt cgtaatcatg gtcatagctg tttcctgtgt gaaattgtta tccgctcaca
     6481 attccacaca acatacgagc cggaagcata aagtgtaaag cctggggtgc ctaatgagtg
     6541 agctaactca cattaattgc gttgcgctca ctgcccgctt tccagtcggg aaacctgtcg
     6601 tgccagctgc attaatgaat cggccaacgc gcggggagag gcggtttgcg tattgggcgc
     6661 tcttccgctt cctcgctcac tgactcgctg cgctcggtcg ttcggctgcg gcgagcggta
     6721 tcagctcact caaaggcggt aatacggtta tccacagaat caggggataa cgcaggaaag
     6781 aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg
     6841 tttttccata ggctccgccc ccctgacgag catcacaaaa atcgacgctc aagtcagagg
     6901 tggcgaaacc cgacaggact ataaagatac caggcgtttc cccctggaag ctccctcgtg
     6961 cgctctcctg ttccgaccct gccgcttacc ggatacctgt ccgcctttct cccttcggga
     7021 agcgtggcgc tttctcatag ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc
     7081 tccaagctgg gctgtgtgca cgaacccccc gttcagcccg accgctgcgc cttatccggt
     7141 aactatcgtc ttgagtccaa cccggtaaga cacgacttat cgccactggc agcagccact
     7201 ggtaacagga ttagcagagc gaggtatgta ggcggtgcta cagagttctt gaagtggtgg
     7261 cctaactacg gctacactag aaggacagta tttggtatct gcgctctgct gaagccagtt
     7321 accttcggaa aaagagttgg tagctcttga tccggcaaac aaaccaccgc tggtagcggt
     7381 ggtttttttg tttgcaagca gcagattacg cgcagaaaaa aaggatctca agaagatcct
     7441 ttgatctttt ctacggggtc tgacgctcag tggaacgaaa actcacgtta agggattttg
     7501 gtcatgagat tatcaaaaag gatcttcacc tagatccttt taaattaaaa atgaagtttt
     7561 aaatcaatct aaagtatata tgagtaaact tggtctgaca gttaccaatg cttaatcagt
     7621 gaggcaccta tctcagcgat ctgtctattt cgttcatcca tagttgcctg actccccgtc
     7681 gtgtagataa ctacgatacg ggagggctta ccatctggcc ccagtgctgc aatgataccg
     7741 cgagacccac gctcaccggc tccagattta tcagcaataa accagccagc cggaagggcc
     7801 gagcgcagaa gtggtcctgc aactttatcc gcctccatcc agtctattaa ttgttgccgg
     7861 gaagctagag taagtagttc gccagttaat agtttgcgca acgttgttgc cattgctaca
     7921 ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat tcagctccgg ttcccaacga
     7981 tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag cggttagctc cttcggtcct
     8041 ccgatcgttg tcagaagtaa gttggccgca gtgttatcac tcatggttat ggcagcactg
     8101 cataattctc ttactgtcat gccatccgta agatgctttt ctgtgactgg tgagtactca
     8161 accaagtcat tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata
     8221 cgggataata ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg aaaacgttct
     8281 tcggggcgaa aactctcaag gatcttaccg ctgttgagat ccagttcgat gtaacccact
     8341 cgtgcaccca actgatcttc agcatctttt actttcacca gcgtttctgg gtgagcaaaa
     8401 acaggaaggc aaaatgccgc aaaaaaggga ataagggcga cacggaaatg ttgaatactc
     8461 atactcttcc tttttcaata ttattgaagc atttatcagg gttattgtct catgagcgga
     8521 tacatatttg aatgtattta gaaaaataaa caaatagggg ttccgcgcac atttccccga
     8581 aaagtgccac ctgacgtcta agaaaccatt attatcatga cattaaccta taaaaatagg
     8641 cgtatcacga ggccctttcg tctcgcgcgt ttcggtgatg acggtgaaaa cctctgacac
     8701 atgcagctcc cggagacggt cacagcttgt ctgtaagcgg atgccgggag cagacaagcc
     8761 cgtcagggcg cgtcagcggg tgttggcggg tgtcggggct ggcttaacta tgcggcatca
     8821 gagcagattg tactgagagt gcaccatatg cggtgtgaaa taccgcacag atgcgtaagg
     8881 agaaaatacc gcatcaggcg ccattcgcca ttcaggctgc gcaactgttg ggaagggcga
     8941 tcggtgcggg cctcttcgct attacgccag ctggcgaaag ggggatgtgc tgcaaggcga
     9001 ttaagttggg taacgccagg gttttcccag tcacgacgtt gtaaaacgac ggccagtgcc
     9061 aagctg
//
