pYSJ22

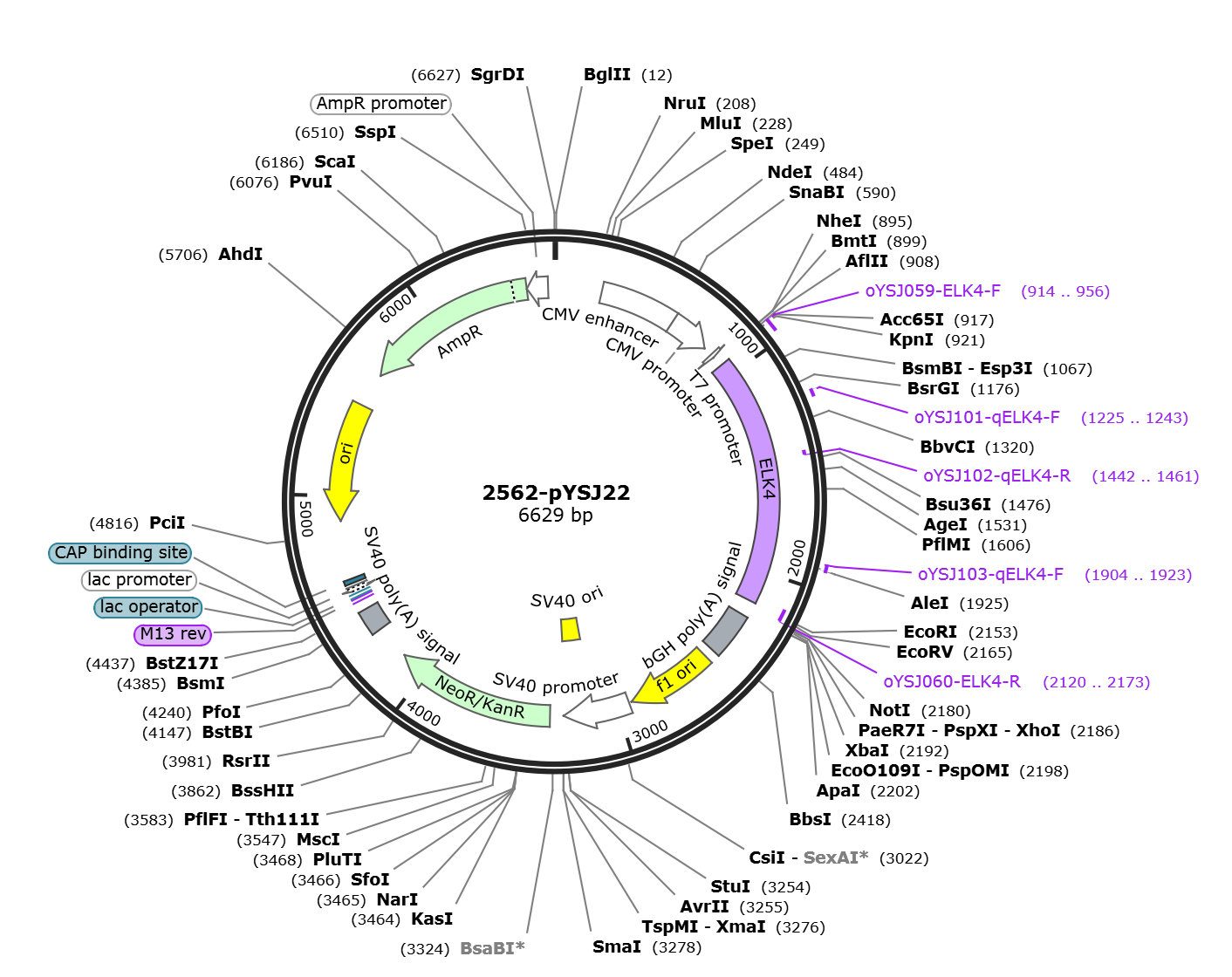

LOCUS       pYSJ22            6629 bp DNA     circular SYN 05-DEC-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6629)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 5, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6629
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..956
                     /label=oYSJ059-ELK4-F
     misc_feature    935..2152
                     /label=ELK4
     primer_bind     1225..1243
                     /label=oYSJ101-qELK4-F
     primer_bind     complement(1442..1461)
                     /label=oYSJ102-qELK4-R
     primer_bind     1904..1923
                     /label=oYSJ103-qELK4-F
     primer_bind     complement(2120..2173)
                     /label=oYSJ060-ELK4-R
     polyA_signal    2229..2453
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2499..2927
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2941..3270
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3121..3256
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3337..4131
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4305..4426
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4475..4491)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4499..4515
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4523..4553)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4568..4589
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4877..5462)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5633..6493)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6494..6598)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatggac agtgctatca ccctgtggca
      961 gttccttctt cagctcctgc agaagcctca gaacaagcac atgatctgtt ggacctctaa
     1021 tgatgggcag tttaagcttt tgcaggcaga agaggtggct cgtctctggg ggattcgcaa
     1081 gaacaagcct aacatgaatt atgacaaact cagccgagcc ctcagatact attatgtaaa
     1141 gaatatcatc aaaaaagtga atggtcagaa gtttgtgtac aagtttgtct cttatccaga
     1201 gattttgaac atggatccaa tgacagtggg caggattgag ggtgactgtg aaagtttaaa
     1261 cttcagtgaa gtcagcagca gttccaaaga tgtggagaat ggagggaaag ataaaccacc
     1321 tcagcctggt gccaagacct ctagccgcaa tgactacata cactctggct tatattcttc
     1381 atttactctc aactctttga actcctccaa tgtaaagctt ttcaaattga taaagactga
     1441 gaatccagcc gagaaactgg cagagaaaaa atctcctcag gagcccacac catctgtcat
     1501 caaatttgtc acgacacctt ccaaaaagcc accggttgaa cctgttgctg ccaccatttc
     1561 aattggccca agtatttctc catcttcaga agaaactatc caagctttgg agacattggt
     1621 ttccccaaaa ctgccttccc tggaagcccc aacctctgcc tctaacgtaa tgactgcttt
     1681 tgccaccaca ccacccattt cgtccatacc ccctttgcag gaacctccca gaacaccttc
     1741 accaccactg agttctcacc cagacatcga cacagacatt gattcagtgg cttctcagcc
     1801 aatggaactt ccagagaatt tgtcactgga gcctaaagac caggattcag tcttgctaga
     1861 aaaggacaaa gtaaataatt catcaagatc caagaaaccc aaagggttag aactggcacc
     1921 cacccttgtg atcacgagca gtgatccaag cccactggga atactgagcc catctctccc
     1981 tacagcttct cttacaccag catttttttc acaggtagct tgctcgctct ttatggtgtc
     2041 accattgctt tcatttattt gcccttttaa gcaaatccag aatttataca ctcaagtttg
     2101 ctttctgtta cttaggtttg tcttagaaag gttatgtgtg actgtcatgt gagaattctg
     2161 cagatatcca gcacagtggc ggccgctcga gtctagaggg cccgtttaaa cccgctgatc
     2221 agcctcgact gtgccttcta gttgccagcc atctgttgtt tgcccctccc ccgtgccttc
     2281 cttgaccctg gaaggtgcca ctcccactgt cctttcctaa taaaatgagg aaattgcatc
     2341 gcattgtctg agtaggtgtc attctattct ggggggtggg gtggggcagg acagcaaggg
     2401 ggaggattgg gaagacaata gcaggcatgc tggggatgcg gtgggctcta tggcttctga
     2461 ggcggaaaga accagctggg gctctagggg gtatccccac gcgccctgta gcggcgcatt
     2521 aagcgcggcg ggtgtggtgg ttacgcgcag cgtgaccgct acacttgcca gcgccctagc
     2581 gcccgctcct ttcgctttct tcccttcctt tctcgccacg ttcgccggct ttccccgtca
     2641 agctctaaat cgggggctcc ctttagggtt ccgatttagt gctttacggc acctcgaccc
     2701 caaaaaactt gattagggtg atggttcacg tagtgggcca tcgccctgat agacggtttt
     2761 tcgccctttg acgttggagt ccacgttctt taatagtgga ctcttgttcc aaactggaac
     2821 aacactcaac cctatctcgg tctattcttt tgatttataa gggattttgc cgatttcggc
     2881 ctattggtta aaaaatgagc tgatttaaca aaaatttaac gcgaattaat tctgtggaat
     2941 gtgtgtcagt tagggtgtgg aaagtcccca ggctccccag caggcagaag tatgcaaagc
     3001 atgcatctca attagtcagc aaccaggtgt ggaaagtccc caggctcccc agcaggcaga
     3061 agtatgcaaa gcatgcatct caattagtca gcaaccatag tcccgcccct aactccgccc
     3121 atcccgcccc taactccgcc cagttccgcc cattctccgc cccatggctg actaattttt
     3181 tttatttatg cagaggccga ggccgcctct gcctctgagc tattccagaa gtagtgagga
     3241 ggcttttttg gaggcctagg cttttgcaaa aagctcccgg gagcttgtat atccattttc
     3301 ggatctgatc aagagacagg atgaggatcg tttcgcatga ttgaacaaga tggattgcac
     3361 gcaggttctc cggccgcttg ggtggagagg ctattcggct atgactgggc acaacagaca
     3421 atcggctgct ctgatgccgc cgtgttccgg ctgtcagcgc aggggcgccc ggttcttttt
     3481 gtcaagaccg acctgtccgg tgccctgaat gaactgcagg acgaggcagc gcggctatcg
     3541 tggctggcca cgacgggcgt tccttgcgca gctgtgctcg acgttgtcac tgaagcggga
     3601 agggactggc tgctattggg cgaagtgccg gggcaggatc tcctgtcatc tcaccttgct
     3661 cctgccgaga aagtatccat catggctgat gcaatgcggc ggctgcatac gcttgatccg
     3721 gctacctgcc cattcgacca ccaagcgaaa catcgcatcg agcgagcacg tactcggatg
     3781 gaagccggtc ttgtcgatca ggatgatctg gacgaagagc atcaggggct cgcgccagcc
     3841 gaactgttcg ccaggctcaa ggcgcgcatg cccgacggcg aggatctcgt cgtgacccat
     3901 ggcgatgcct gcttgccgaa tatcatggtg gaaaatggcc gcttttctgg attcatcgac
     3961 tgtggccggc tgggtgtggc ggaccgctat caggacatag cgttggctac ccgtgatatt
     4021 gctgaagagc ttggcggcga atgggctgac cgcttcctcg tgctttacgg tatcgccgct
     4081 cccgattcgc agcgcatcgc cttctatcgc cttcttgacg agttcttctg agcgggactc
     4141 tggggttcga aatgaccgac caagcgacgc ccaacctgcc atcacgagat ttcgattcca
     4201 ccgccgcctt ctatgaaagg ttgggcttcg gaatcgtttt ccgggacgcc ggctggatga
     4261 tcctccagcg cggggatctc atgctggagt tcttcgccca ccccaacttg tttattgcag
     4321 cttataatgg ttacaaataa agcaatagca tcacaaattt cacaaataaa gcattttttt
     4381 cactgcattc tagttgtggt ttgtccaaac tcatcaatgt atcttatcat gtctgtatac
     4441 cgtcgacctc tagctagagc ttggcgtaat catggtcata gctgtttcct gtgtgaaatt
     4501 gttatccgct cacaattcca cacaacatac gagccggaag cataaagtgt aaagcctggg
     4561 gtgcctaatg agtgagctaa ctcacattaa ttgcgttgcg ctcactgccc gctttccagt
     4621 cgggaaacct gtcgtgccag ctgcattaat gaatcggcca acgcgcgggg agaggcggtt
     4681 tgcgtattgg gcgctcttcc gcttcctcgc tcactgactc gctgcgctcg gtcgttcggc
     4741 tgcggcgagc ggtatcagct cactcaaagg cggtaatacg gttatccaca gaatcagggg
     4801 ataacgcagg aaagaacatg tgagcaaaag gccagcaaaa ggccaggaac cgtaaaaagg
     4861 ccgcgttgct ggcgtttttc cataggctcc gcccccctga cgagcatcac aaaaatcgac
     4921 gctcaagtca gaggtggcga aacccgacag gactataaag ataccaggcg tttccccctg
     4981 gaagctccct cgtgcgctct cctgttccga ccctgccgct taccggatac ctgtccgcct
     5041 ttctcccttc gggaagcgtg gcgctttctc atagctcacg ctgtaggtat ctcagttcgg
     5101 tgtaggtcgt tcgctccaag ctgggctgtg tgcacgaacc ccccgttcag cccgaccgct
     5161 gcgccttatc cggtaactat cgtcttgagt ccaacccggt aagacacgac ttatcgccac
     5221 tggcagcagc cactggtaac aggattagca gagcgaggta tgtaggcggt gctacagagt
     5281 tcttgaagtg gtggcctaac tacggctaca ctagaagaac agtatttggt atctgcgctc
     5341 tgctgaagcc agttaccttc ggaaaaagag ttggtagctc ttgatccggc aaacaaacca
     5401 ccgctggtag cggttttttt gtttgcaagc agcagattac gcgcagaaaa aaaggatctc
     5461 aagaagatcc tttgatcttt tctacggggt ctgacgctca gtggaacgaa aactcacgtt
     5521 aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac ctagatcctt ttaaattaaa
     5581 aatgaagttt taaatcaatc taaagtatat atgagtaaac ttggtctgac agttaccaat
     5641 gcttaatcag tgaggcacct atctcagcga tctgtctatt tcgttcatcc atagttgcct
     5701 gactccccgt cgtgtagata actacgatac gggagggctt accatctggc cccagtgctg
     5761 caatgatacc gcgagaccca cgctcaccgg ctccagattt atcagcaata aaccagccag
     5821 ccggaagggc cgagcgcaga agtggtcctg caactttatc cgcctccatc cagtctatta
     5881 attgttgccg ggaagctaga gtaagtagtt cgccagttaa tagtttgcgc aacgttgttg
     5941 ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg tatggcttca ttcagctccg
     6001 gttcccaacg atcaaggcga gttacatgat cccccatgtt gtgcaaaaaa gcggttagct
     6061 ccttcggtcc tccgatcgtt gtcagaagta agttggccgc agtgttatca ctcatggtta
     6121 tggcagcact gcataattct cttactgtca tgccatccgt aagatgcttt tctgtgactg
     6181 gtgagtactc aaccaagtca ttctgagaat agtgtatgcg gcgaccgagt tgctcttgcc
     6241 cggcgtcaat acgggataat accgcgccac atagcagaac tttaaaagtg ctcatcattg
     6301 gaaaacgttc ttcggggcga aaactctcaa ggatcttacc gctgttgaga tccagttcga
     6361 tgtaacccac tcgtgcaccc aactgatctt cagcatcttt tactttcacc agcgtttctg
     6421 ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg aataagggcg acacggaaat
     6481 gttgaatact catactcttc ctttttcaat attattgaag catttatcag ggttattgtc
     6541 tcatgagcgg atacatattt gaatgtattt agaaaaataa acaaataggg gttccgcgca
     6601 catttccccg aaaagtgcca cctgacgtc
//
