| 质粒名称: | pAAV-CAG-H2B-LSSmScarlet2 |
|---|---|
| 出品公司: | Wekwikgene |
| 目录编号: | 0000168 |
| 产品用途: | Expresses the H2B-LSSmScarlet2 fusion of chemically stable red fluorescent protein with a large Stock's shift in the nuclei of mammalian cells |
| 存储实验室: | Laboratory of Molecular Design |
|
载体骨架基本信息 |
|
| 载体名称: | pAAV |
| 表达系统: | 腺病毒，哺乳动物表达 |
| 启动子: | CAG |
| 拷贝数: | 低拷贝 |
| 载体抗性: | 氨苄霉素 |
| 生长温度: | 37 ℃ |
| 宿主菌: | Mach1 |
|
插入基因信息 |
|
| 插入基因名称: | H2B-LSSmScarlet2 |
| 物种来源: | Synthetic |
| 密码子优化: | 细菌表达优化 |
|
文献引用方法 |
|
| 参考文献部分: |
LSSmScarlet2 and LSSmScarlet3, Chemically Stable Genetically Encoded Red Fluorescent Proteins with a Large Stokes' Shift
Subach O.M., Vlaskina A.V., Agapova Y.K., Piatkevich K.D., Patrushev M.V., Samygina V.R., Subach F.V.
Int. J. Mol. Sci. 23, 11051 (2022)
|
买家导航
pAAV-CAG-H2B-LSSmScarlet2载体质粒基本信息

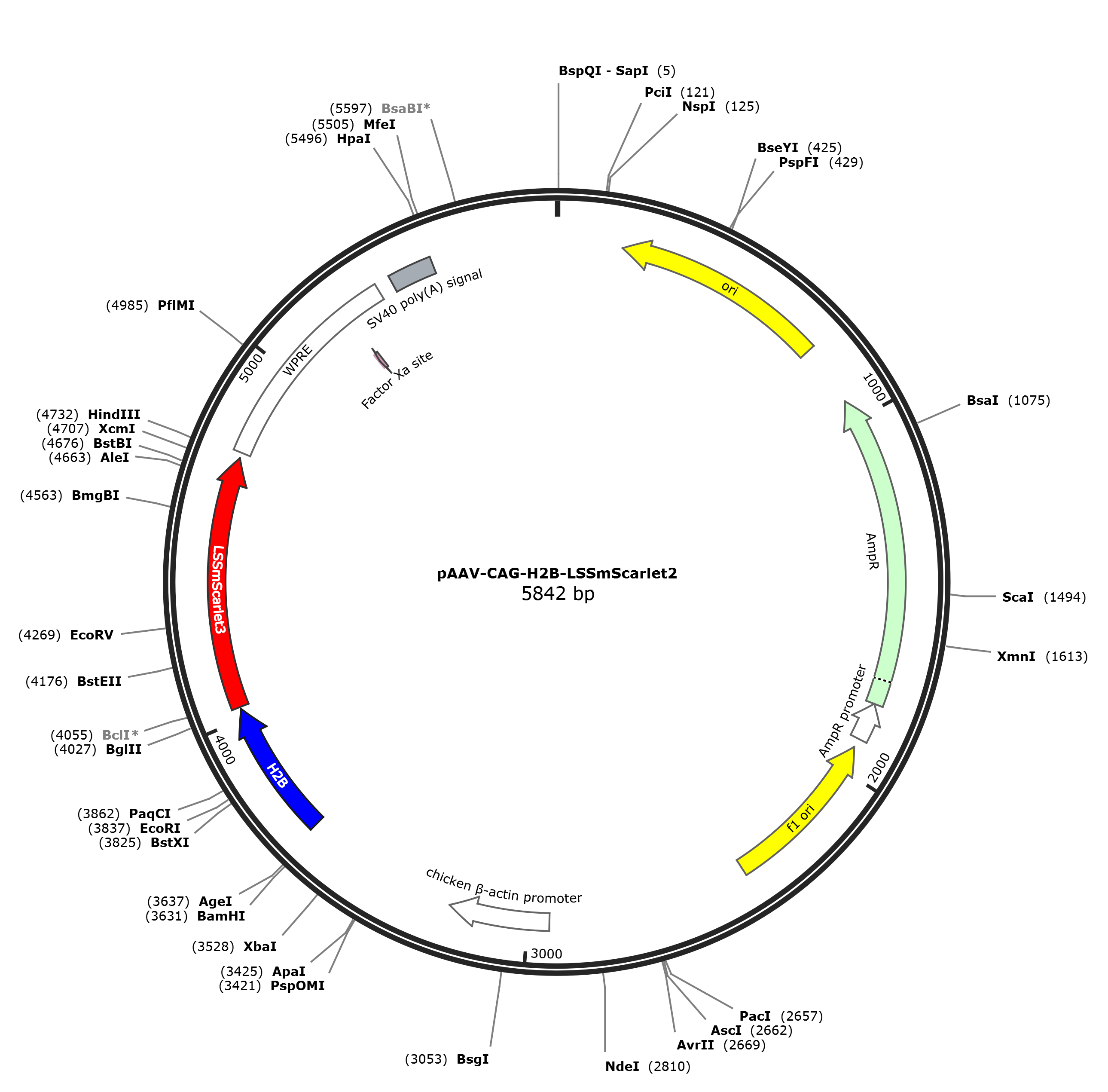

pAAV-CAG-H2B-LSSmScarlet2质粒图谱载体图谱和pAAV-CAG-H2B-LSSmScarlet2载体序列质粒序列多克隆位点信息
pAAV-CAG-H2B-LSSmScarlet2质粒载体简介
pAAV-CAG-H2B-LSSmScarlet2质粒序列载体序列
LOCUS pAAV-CAG-H2B-LSSmScarlet2 5842 bp DNA circular SYN 22-APR-2023
DEFINITION synthetic circular DNA
ACCESSION .
VERSION .
KEYWORDS .
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 5842)
AUTHORS .
TITLE Direct Submission
JOURNAL Exported Apr 28, 2026 from SnapGene 6.0.2
https://www.biofeng.com
FEATURES Location/Qualifiers
source 1..5842
/mol_type="other DNA"
/organism="synthetic DNA construct"
rep_origin complement(182..770)
/direction=LEFT
/label=ori
/note="high-copy-number colE1/pMB1/pBR322/pUC origin of
replication"
CDS complement(941..1801)
/codon_start=1
/gene="bla"
/product="beta-lactamase"
/label=AmpR
/note="confers resistance to ampicillin, carbenicillin, and
related antibiotics"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
LIKHW"
promoter complement(1802..1906)
/gene="bla"
/label=AmpR promoter
rep_origin complement(1932..2387)
/direction=LEFT
/label=f1 ori
/note="f1 bacteriophage origin of replication; arrow
indicates direction of (+) strand synthesis"
promoter 2942..3219
/label=chicken beta-actin promoter
CDS 3649..4026
/codon_start=1
/label=H2B
/translation="MPEPAKSAPAPKKGSKKAVTKAQKKGGKKRKRSRKESYSIYVYKV
LKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLP
GELAKHAVSEGTKAITKYTSAK"
CDS 4033..4728
/codon_start=1
/label=LSSmScarlet3
/translation="MVSKGEAVIKEFMRFKVHMEGSMNGHEFEIEGEGEGRPYEGTQTA
KLKVTKGGPLPFSWDILSPQFMYGSRAFTKHPADIPDYHKQSFPEGFKWERVMNFEDGG
AVTVTQDTSLEDGTLIYEVKLRGTNFPPDGPVMQKKTMGLEADTERLYPEDGVLKGDIK
MALRLKGGGRYLAHVRTTYKAKKPVLMPGAYNVDRKLDITSHNEDYTVVEQFERSEGRH
STGDMDELYK"
misc_feature 4744..5332
/label=WPRE
/note="woodchuck posttranscriptional regulatory element"
CDS complement(5215..5226)
/codon_start=1
/product="Factor Xa recognition and cleavage site"
/label=Factor Xa site
/translation="IEGR"
polyA_signal 5375..5496
/label=SV40 poly(A) signal
/note="SV40 polyadenylation signal"
ORIGIN
1 cttccgcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat
61 cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga
121 acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt
181 ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt
241 ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc
301 gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa
361 gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct
421 ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta
481 actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg
541 gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc
601 ctaactacgg ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta
661 ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtg
721 gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt
781 tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg
841 tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta
901 aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg
961 aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg
1021 tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc
1081 gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg
1141 agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg
1201 aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag
1261 gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat
1321 caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc
1381 cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc
1441 ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa
1501 ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac
1561 gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt
1621 cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc
1681 gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa
1741 caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca
1801 tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat
1861 acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa
1921 aagtgccacc taaattgtaa gcgttaatat tttgttaaaa ttcgcgttaa atttttgtta
1981 aatcagctca ttttttaacc aataggccga aatcggcaaa atcccttata aatcaaaaga
2041 atagaccgag atagggttga gtgttgttcc agtttggaac aagagtccac tattaaagaa
2101 cgtggactcc aacgtcaaag ggcgaaaaac cgtctatcag ggcgatggcc cactacgtga
2161 accatcaccc taatcaagtt ttttggggtc gaggtgccgt aaagcactaa atcggaaccc
2221 taaagggagc ccccgattta gagcttgacg gggaaagccg gcgaacgtgg cgagaaagga
2281 agggaagaaa gcgaaaggag cgggcgctag ggcgctggca agtgtagcgg tcacgctgcg
2341 cgtaaccacc acacccgccg cgcttaatgc gccgctacag ggcgcgtccc attcgccatt
2401 caggctgcgc aactgttggg aagggcgatc ggtgcgggcc tcttcgctat tacgccagct
2461 gcgcgctcgc tcgctcactg aggccgcccg ggcaaagccc gggcgtcggg cgacctttgg
2521 tcgcccggcc tcagtgagcg agcgagcgcg cagagaggga gtggccaact ccatcactag
2581 gggttccttg tagttaatga ttaacccgcc atgctactta tctacgtagc catgctctag
2641 gaagatcgta ggttaattaa ggcgcgcccc taggggagat ggccagccag cccattgacg
2701 tcaataatga cgtatgttcc catagtaacg ccaataggga ctttccattg acgtcaatgg
2761 gtggagtatt tacggtaaac tgcccacttg gcagtacatc aagtgtatca tatgccaagt
2821 acgcccccta ttgacgtcaa tgacggtaaa tggcccgcct ggcattatgc ccagtacatg
2881 accttatggg actttcctac ttggcagtac atctacgtat tagtcatcgc tattaccatg
2941 gtcgaggtga gccccacgtt ctgcttcact ctccccatct cccccccctc cccaccccca
3001 attttgtatt tatttatttt ttaattattt tgtgcagcga tgggggcggg gggggggggg
3061 gggcgcgcgc caggcggggc ggggcggggc gaggggcggg gcggggcgag gcggagaggt
3121 gcggcggcag ccaatcagag cggcgcgctc cgaaagtttc cttttatggc gaggcggcgg
3181 cggcggcggc cctataaaaa gcgaagcgcg cggcgggcgg gagtcgctgc gacgctgcct
3241 tcgccccgtg ccccgctccg ccgccgcctc gcgccgcccg ccccggctct gactgaccgc
3301 gttactccca caggtgagcg ggcgggacgg cccttctcct ccgggctgta attagcgctt
3361 ggtttaatga cggcttgttt cttttctgtg gctgcgtgaa agccttgagg ggctccggga
3421 gggccctttg tgcgggggga gcggctcggg gctgtccgcg gggggacggc tgccttcggg
3481 ggggacgggg cagggcgggg ttcggcttct ggcgtgtgac cggcggctct agagcctctg
3541 ctaaccatgt tcatgccttc ttctttttcc tacagctcct gggcaacgtg ctggttattg
3601 tgctgtctca tcattttggc aaagaattgg ggatccaccg gtgacaccat gccagagcca
3661 gcgaagtctg ctcccgcccc gaaaaagggc tccaagaagg cggtgactaa ggcgcagaag
3721 aaaggcggca agaagcgcaa gcgcagccgc aaggagagct attccatcta tgtgtacaag
3781 gttctgaagc aggtccaccc tgacaccggc atttcgtcca aggccatggg catcatgaat
3841 tcgtttgtga acgacatttt cgagcgcatc gcaggtgagg cttcccgcct ggcgcattac
3901 aacaagcgct cgaccatcac ctccagggag atccagacgg ccgtgcgcct gctgctgcct
3961 ggggagttgg ccaagcacgc cgtgtccgag ggtactaagg ccatcaccaa gtacaccagc
4021 gctaagagat ctatggtgag caagggcgag gcagtgatca aggagttcat gcggttcaag
4081 gtgcacatgg agggctccat gaacggccac gagttcgaga tcgagggcga gggcgagggc
4141 cgcccctacg agggcaccca gaccgccaag ctgaaggtga ccaagggtgg tccactgccc
4201 ttctcctggg acatcctgtc ccctcagttc atgtacggct ccagggcctt caccaagcac
4261 cccgccgata tccccgacta ccataagcag tccttccccg agggcttcaa gtgggagcgc
4321 gtgatgaact tcgaggacgg cggcgccgtg accgtgaccc aggacacctc cctggaggac
4381 ggcaccctga tctacgaggt gaagctccgc ggcaccaact tccctcctga cggccccgta
4441 atgcagaaga agactatggg cttggaagcg gacaccgagc ggttgtaccc cgaggacggc
4501 gtgctgaagg gcgacattaa gatggccctg cgcctgaagg gcggcggccg ctacctggca
4561 cacgtcagga ccacctacaa ggccaagaag cccgtgttga tgcccggcgc ctacaacgtc
4621 gaccgcaagt tggacatcac ctcccacaac gaggactaca ccgtggtgga acagttcgaa
4681 cgctccgagg gccgccactc caccggcgac atggacgagc tgtacaagta aaagcttatc
4741 gataatcaac ctctggatta caaaatttgt gaaagattga ctggtattct taactatgtt
4801 gctcctttta cgctatgtgg atacgctgct ttaatgcctt tgtatcatgc tattgcttcc
4861 cgtatggctt tcattttctc ctccttgtat aaatcctggt tgctgtctct ttatgaggag
4921 ttgtggcccg ttgtcaggca acgtggcgtg gtgtgcactg tgtttgctga cgcaaccccc
4981 actggttggg gcattgccac cacctgtcag ctcctttccg ggactttcgc tttccccctc
5041 cctattgcca cggcggaact catcgccgcc tgccttgccc gctgctggac aggggctcgg
5101 ctgttgggca ctgacaattc cgtggtgttg tcggggaaat catcgtcctt tccttggctg
5161 ctcgcctgtg ttgccacctg gattctgcgc gggacgtcct tctgctacgt cccttcggcc
5221 ctcaatccag cggaccttcc ttcccgcggc ctgctgccgg ctctgcggcc tcttccgcgt
5281 cttcgccttc gccctcagac gagtcggatc tccctttggg ccgcctcccc gcatcgatac
5341 cgtcgacccg ggcggccgct tcgagcagac atgataagat acattgatga gtttggacaa
5401 accacaacta gaatgcagtg aaaaaaatgc tttatttgtg aaatttgtga tgctattgct
5461 ttatttgtaa ccattataag ctgcaataaa caagttaaca acaacaattg cattcatttt
5521 atgtttcagg ttcaggggga gatgtgggag gttttttaaa gcaagtaaaa cctctacaaa
5581 tgtggtaaaa tcgataagga tcttcctaga gcatggctac gtagataagt agcatggcgg
5641 gttaatcatt aactacaagg aacccctagt gatggagttg gccactccct ctctgcgcgc
5701 tcgctcgctc actgaggccg ggcgaccaaa ggtcgcccga cgcccgggct ttgcccgggc
5761 ggcctcagtg agcgagcgag cgcgcagctg cattaatgaa tcggccaacg cgcggggaga
5821 ggcggtttgc gtattgggcg ct
//
pAAV-CAG-H2B-LSSmScarlet2载体图谱质粒图谱pdf版和pAAV-CAG-H2B-LSSmScarlet2载体序列质粒序列等相关资料下载
pAAV-CAG-H2B-LSSmScarlet2质粒载体应用举例
