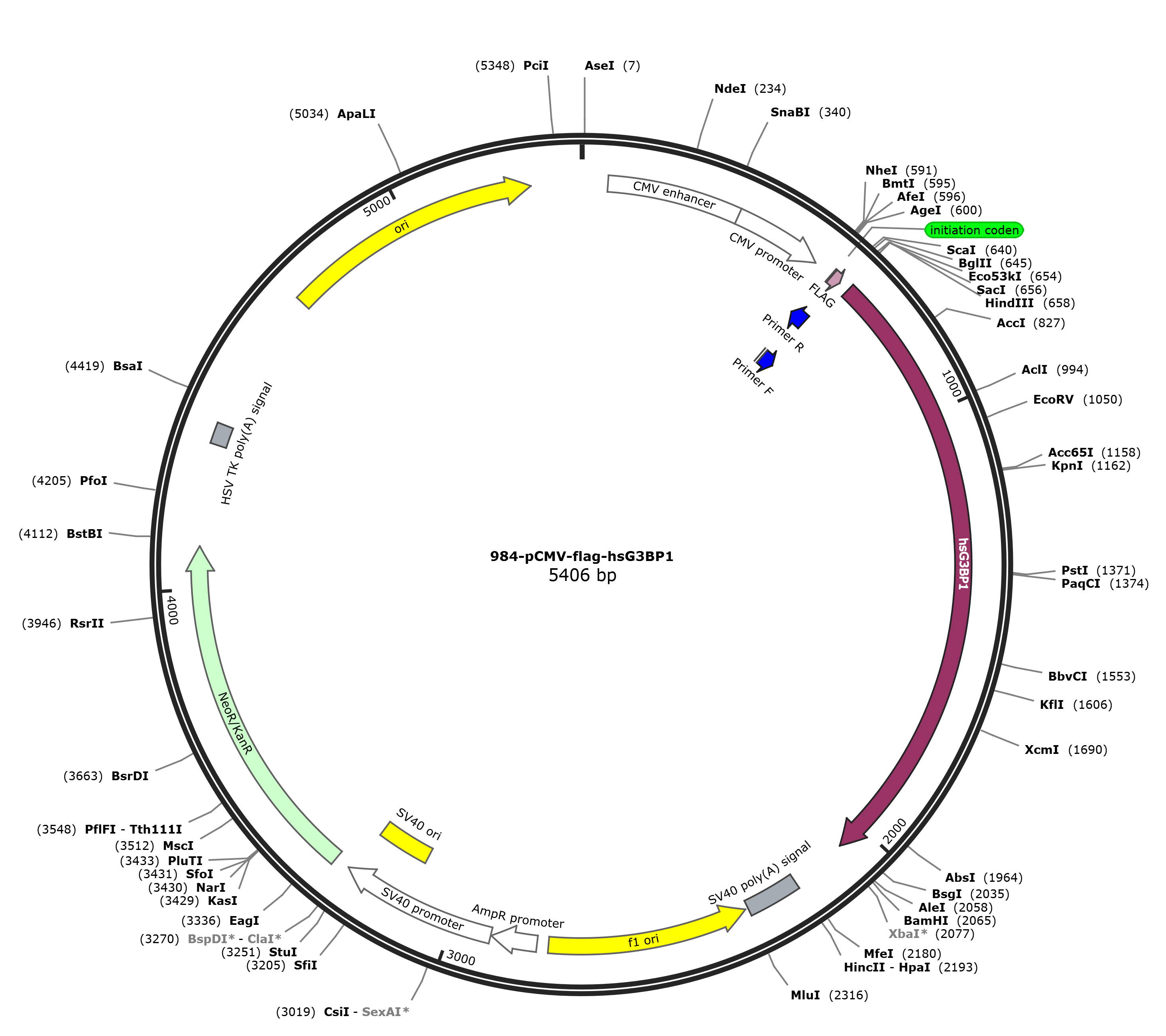

pCMV-Flag-hsG3BP1

LOCUS       pCMV-Flag-hsG3BP1                5406 bp DNA     circular SYN 18-FEB-2022
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5406)
  AUTHORS   Triple Threat
  TITLE     Direct Submission
  JOURNAL   Exported Aug 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5406
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     misc_feature    complement(597..639)
                     /label=Primer R
     regulatory      607..615
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             613..615
                     /codon_start=1
                     /product="enhanced GFP with monomerizing A206K mutation
                     (Zacharias et al., 2002)"
                     /label=initiation coden
                     /note="mammalian codon-optimized"
                     /translation="M"
     misc_feature    616..658
                     /label=Primer F
     CDS             616..639
                     /codon_start=1
                     /product="FLAG(R) epitope tag, followed by an enterokinase
                     cleavage site"
                     /label=FLAG
                     /translation="DYKDDDDK"
     CDS             664..2064
                     /codon_start=1
                     /label=hsG3BP1
                     /translation="MVMEKPSPLLVGREFVRQYYTLLNQAPDMLHRFYGKNSSYVHGGL
                     DSNGKPADAVYGQKEIHRKVMSQNFTNCHTKIRHVDAHATLNDGVVVQVMGLLSNNNQA
                     LRRFMQTFVLAPEGSVANKFYVHNDIFRYQDEVFGGFVTEPQEESEEEVEEPEERQQTP
                     EVVPDDSGTFYDQAVVSNDMEEHLEEPVAEPEPDPEPEPEQEPVSEIQEEKPEPVLEET
                     APEDAQKSSSPAPADIAQTVQEDLRTFSWASVTSKNLPPSGAVPVTGIPPHVVKVPASQ
                     PRPESKPESQIPPQRPQRDQRVREQRINIPPQRGPRPIREAGEQGDIEPRRMVRHPDSH
                     QLFIGNLPHEVDKSELKDFFQSYGNVVELRINSGGKLPNFGFVVFDDSEPVQKVLSNRP
                     IMFRGEVRLNVEEKKTRAAREGDRRDNRLRGPGGPRGGLGGGMRGPPRGGMVQKPGFGV
                     GRGLAPRQ"
     polyA_signal    2194..2315
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(2322..2777)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2804..2908
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2910..3267
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3118..3253
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3302..4096
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4328..4375
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4704..5292
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggtcgcca ccatggatta caaggacgac gatgacaagt actcagatct cgagctcaag
      661 cttatggtga tggagaagcc tagtcccctg ctggtcgggc gggaatttgt gagacagtat
      721 tacacactgc tgaaccaggc cccagacatg ctgcatagat tttatggaaa gaactcttct
      781 tatgtccatg ggggattgga ttcaaatgga aagccagcag atgcagtcta cggacagaaa
      841 gaaatccaca ggaaagtgat gtcacaaaac ttcaccaact gccacaccaa gattcgccat
      901 gttgatgctc atgccacgct aaatgatggt gtggtagtcc aggtgatggg gcttctctct
      961 aacaacaacc aggctttgag gagattcatg caaacgtttg tccttgctcc tgaggggtct
     1021 gttgcaaata aattctatgt tcacaatgat atcttcagat accaagatga ggtctttggt
     1081 gggtttgtca ctgagcctca ggaggagtct gaagaagaag tagaggaacc tgaagaaaga
     1141 cagcaaacac ctgaggtggt acctgatgat tctggaactt tctatgatca ggcagttgtc
     1201 agtaatgaca tggaagaaca tttagaggag cctgttgctg aaccagagcc tgatcctgaa
     1261 ccagaaccag aacaagaacc tgtatctgaa atccaagagg aaaagcctga gccagtatta
     1321 gaagaaactg cccctgagga tgctcagaag agttcttctc cagcacctgc agacatagct
     1381 cagacagtac aggaagactt gaggacattt tcttgggcat ctgtgaccag taagaatctt
     1441 ccacccagtg gagctgttcc agttactggg ataccacctc atgttgttaa agtaccagct
     1501 tcacagcccc gtccagagtc taagcctgaa tctcagattc caccacaaag acctcagcgg
     1561 gatcaaagag tgcgagaaca acgaataaat attcctcccc aaaggggacc cagaccaatc
     1621 cgtgaggctg gtgagcaagg tgacattgaa ccccgaagaa tggtgagaca ccctgacagt
     1681 caccaactct tcattggcaa cctgcctcat gaagtggaca aatcagagct taaagatttc
     1741 tttcaaagtt atggaaacgt ggtggagttg cgcattaaca gtggtgggaa attacccaat
     1801 tttggttttg ttgtgtttga tgattctgag cctgttcaga aagtccttag caacaggccc
     1861 atcatgttca gaggtgaggt ccgtctgaat gtcgaagaga agaagactcg agctgccagg
     1921 gaaggcgacc gacgagataa tcgccttcgg ggacctggag gccctcgagg tgggctgggt
     1981 ggtggaatga gaggccctcc ccgtggaggc atggtgcaga aaccaggatt tggagtggga
     2041 agggggcttg cgccacggca gtgaggatcc accggatcta gataactgat cataatcagc
     2101 cataccacat ttgtagaggt tttacttgct ttaaaaaacc tcccacacct ccccctgaac
     2161 ctgaaacata aaatgaatgc aattgttgtt gttaacttgt ttattgcagc ttataatggt
     2221 tacaaataaa gcaatagcat cacaaatttc acaaataaag catttttttc actgcattct
     2281 agttgtggtt tgtccaaact catcaatgta tcttaacgcg taaattgtaa gcgttaatat
     2341 tttgttaaaa ttcgcgttaa atttttgtta aatcagctca ttttttaacc aataggccga
     2401 aatcggcaaa atcccttata aatcaaaaga atagaccgag atagggttga gtgttgttcc
     2461 agtttggaac aagagtccac tattaaagaa cgtggactcc aacgtcaaag ggcgaaaaac
     2521 cgtctatcag ggcgatggcc cactacgtga accatcaccc taatcaagtt ttttggggtc
     2581 gaggtgccgt aaagcactaa atcggaaccc taaagggagc ccccgattta gagcttgacg
     2641 gggaaagccg gcgaacgtgg cgagaaagga agggaagaaa gcgaaaggag cgggcgctag
     2701 ggcgctggca agtgtagcgg tcacgctgcg cgtaaccacc acacccgccg cgcttaatgc
     2761 gccgctacag ggcgcgtcag gtggcacttt tcggggaaat gtgcgcggaa cccctatttg
     2821 tttatttttc taaatacatt caaatatgta tccgctcatg agacaataac cctgataaat
     2881 gcttcaataa tattgaaaaa ggaagagtcc tgaggcggaa agaaccagct gtggaatgtg
     2941 tgtcagttag ggtgtggaaa gtccccaggc tccccagcag gcagaagtat gcaaagcatg
     3001 catctcaatt agtcagcaac caggtgtgga aagtccccag gctccccagc aggcagaagt
     3061 atgcaaagca tgcatctcaa ttagtcagca accatagtcc cgcccctaac tccgcccatc
     3121 ccgcccctaa ctccgcccag ttccgcccat tctccgcccc atggctgact aatttttttt
     3181 atttatgcag aggccgaggc cgcctcggcc tctgagctat tccagaagta gtgaggaggc
     3241 ttttttggag gcctaggctt ttgcaaagat cgatcaagag acaggatgag gatcgtttcg
     3301 catgattgaa caagatggat tgcacgcagg ttctccggcc gcttgggtgg agaggctatt
     3361 cggctatgac tgggcacaac agacaatcgg ctgctctgat gccgccgtgt tccggctgtc
     3421 agcgcagggg cgcccggttc tttttgtcaa gaccgacctg tccggtgccc tgaatgaact
     3481 gcaagacgag gcagcgcggc tatcgtggct ggccacgacg ggcgttcctt gcgcagctgt
     3541 gctcgacgtt gtcactgaag cgggaaggga ctggctgcta ttgggcgaag tgccggggca
     3601 ggatctcctg tcatctcacc ttgctcctgc cgagaaagta tccatcatgg ctgatgcaat
     3661 gcggcggctg catacgcttg atccggctac ctgcccattc gaccaccaag cgaaacatcg
     3721 catcgagcga gcacgtactc ggatggaagc cggtcttgtc gatcaggatg atctggacga
     3781 agagcatcag gggctcgcgc cagccgaact gttcgccagg ctcaaggcga gcatgcccga
     3841 cggcgaggat ctcgtcgtga cccatggcga tgcctgcttg ccgaatatca tggtggaaaa
     3901 tggccgcttt tctggattca tcgactgtgg ccggctgggt gtggcggacc gctatcagga
     3961 catagcgttg gctacccgtg atattgctga agagcttggc ggcgaatggg ctgaccgctt
     4021 cctcgtgctt tacggtatcg ccgctcccga ttcgcagcgc atcgccttct atcgccttct
     4081 tgacgagttc ttctgagcgg gactctgggg ttcgaaatga ccgaccaagc gacgcccaac
     4141 ctgccatcac gagatttcga ttccaccgcc gccttctatg aaaggttggg cttcggaatc
     4201 gttttccggg acgccggctg gatgatcctc cagcgcgggg atctcatgct ggagttcttc
     4261 gcccacccta gggggaggct aactgaaaca cggaaggaga caataccgga aggaacccgc
     4321 gctatgacgg caataaaaag acagaataaa acgcacggtg ttgggtcgtt tgttcataaa
     4381 cgcggggttc ggtcccaggg ctggcactct gtcgataccc caccgagacc ccattggggc
     4441 caatacgccc gcgtttcttc cttttcccca ccccaccccc caagttcggg tgaaggccca
     4501 gggctcgcag ccaacgtcgg ggcggcaggc cctgccatag cctcaggtta ctcatatata
     4561 ctttagattg atttaaaact tcatttttaa tttaaaagga tctaggtgaa gatccttttt
     4621 gataatctca tgaccaaaat cccttaacgt gagttttcgt tccactgagc gtcagacccc
     4681 gtagaaaaga tcaaaggatc ttcttgagat cctttttttc tgcgcgtaat ctgctgcttg
     4741 caaacaaaaa aaccaccgct accagcggtg gtttgtttgc cggatcaaga gctaccaact
     4801 ctttttccga aggtaactgg cttcagcaga gcgcagatac caaatactgt ccttctagtg
     4861 tagccgtagt taggccacca cttcaagaac tctgtagcac cgcctacata cctcgctctg
     4921 ctaatcctgt taccagtggc tgctgccagt ggcgataagt cgtgtcttac cgggttggac
     4981 tcaagacgat agttaccgga taaggcgcag cggtcgggct gaacgggggg ttcgtgcaca
     5041 cagcccagct tggagcgaac gacctacacc gaactgagat acctacagcg tgagctatga
     5101 gaaagcgcca cgcttcccga agggagaaag gcggacaggt atccggtaag cggcagggtc
     5161 ggaacaggag agcgcacgag ggagcttcca gggggaaacg cctggtatct ttatagtcct
     5221 gtcgggtttc gccacctctg acttgagcgt cgatttttgt gatgctcgtc aggggggcgg
     5281 agcctatgga aaaacgccag caacgcggcc tttttacggt tcctggcctt ttgctggcct
     5341 tttgctcaca tgttctttcc tgcgttatcc cctgattctg tggataaccg tattaccgcc
     5401 atgcat
//
