| 质粒名称: | pGGA008 |
|---|---|
| 出品公司: | 爱迪基因 |
| 目录编号: | 48817 |
| 存储实验室: | Jan Lohmann |
|
载体骨架基本信息 |
|
| 载体名称: | pUC19 |
| 载体出品公司: | -- |
| 载体抗性: | 氨苄青霉素 |
| 空载体大小: | 2686 bp |
| 完整质粒大小: | -- |
| 载体修饰: | -- |
| 载体类型: | Golden Gate compatible cloning vector |
| 筛选标记: | -- |
| 高拷贝/低拷贝: | 高拷贝 |
| 生长条件: | 37 ℃ |
|
插入基因信息 |
|
| 插入基因名称: | alcA promoter |
| 物种来源: | Synthetic |
| 插入大小: | 246 bp |
| 基因突变: | -- |
| GenBank编号 | -- |
| 启动子 | -- |
| 标签/融合蛋白: | -- |
| 克隆方法: | -- |
| 5' 克隆位点: | -- |
| 3' 克隆位点: | -- |
| 5' 测序引物 | -- |
| 3' 测序引物 | -- |
|
文献引用方法 |
|
| 材料和方法部分: | pGGA008 was a gift from Jan Lohmann (Addgene plasmid # 48817 ; http://n2t.net/addgene:48817 ; RRID:Addgene_48817) |
| 参考文献部分: | GreenGate - A Novel, Versatile, and Efficient Cloning System for Plant Transgenesis. Lampropoulos A, Sutikovic Z, Wenzl C, Maegele I, Lohmann JU, Forner J. PLoS One. 2013 Dec 20;8(12):e83043. doi: 10.1371/journal.pone.0083043. PubMed 24376629 |
买家导航
pGGA008载体质粒基本信息

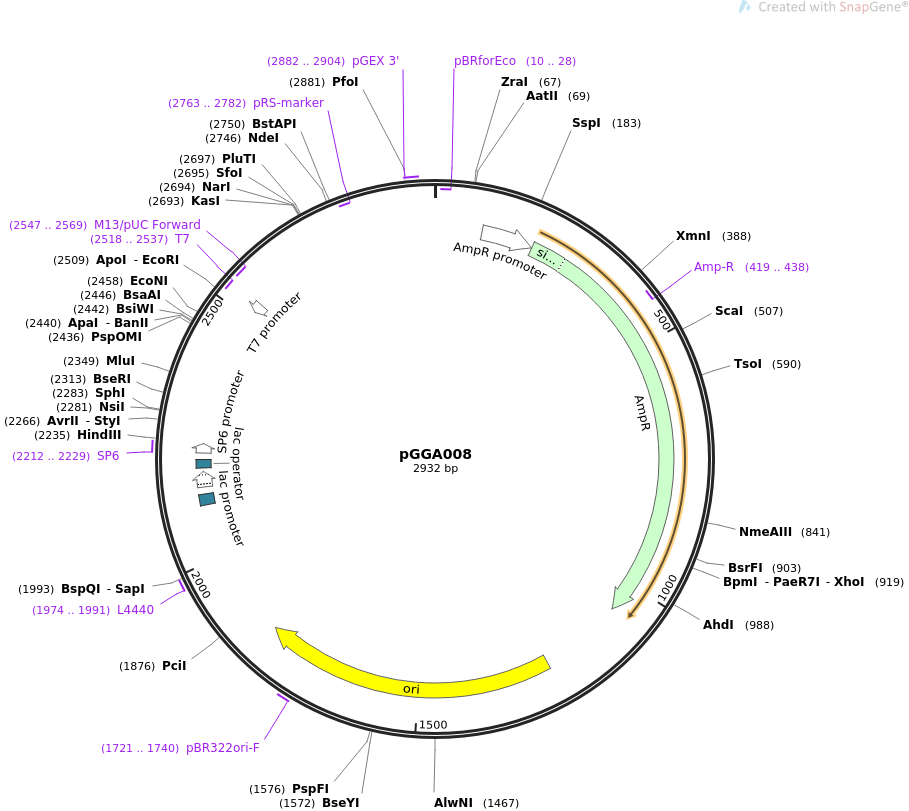

pGGA008质粒图谱载体图谱和pGGA008载体序列质粒序列多克隆位点信息
pGGA008质粒载体简介
pGGA008质粒序列载体序列
LOCUS pGGA008 2932 bp ds-DNA circular SYN 06-AUG-2018
DEFINITION Provides the alcA promoter as GreenGate module..
ACCESSION .
VERSION .
KEYWORDS pGGA008
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 2932)
AUTHORS Lampropoulos A, Sutikovic Z, Wenzl C, Maegele I, Lohmann JU, Forner
J
TITLE GreenGate - A Novel, Versatile, and Efficient Cloning System for
Plant Transgenesis.
JOURNAL PLoS One. 2013 Dec 20;8(12):e83043. doi:
10.1371/journal.pone.0083043.
PUBMED 24376629
REFERENCE 2 (bases 1 to 2932)
AUTHORS .
TITLE Direct Submission
JOURNAL Exported Aug 6, 2018 from SnapGene Server 1.1.58
http://www.snapgene.com
FEATURES Location/Qualifiers
source 1..2932
/organism="synthetic DNA construct"
/mol_type="other DNA"
primer_bind complement(10..28)
/label=pBRforEco
/note="pBR322 vectors, upsteam of EcoRI site, forward
primer"
promoter 96..200
/gene="bla"
/label=AmpR promoter
CDS 201..1061
/codon_start=1
/gene="bla"
/product="beta-lactamase"
/label=AmpR
/note="confers resistance to ampicillin, carbenicillin, and
related antibiotics"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
LIKHW"
primer_bind complement(419..438)
/label=Amp-R
/note="Ampicillin resistance gene, reverse primer"
rep_origin 1232..1820
/direction=RIGHT
/label=ori
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
primer_bind 1721..1740
/label=pBR322ori-F
/note="pBR322 origin, forward primer"
primer_bind 1974..1991
/label=L4440
/note="L4440 vector, forward primer"
protein_bind 2108..2129
/label=CAP binding site
/bound_moiety="E. coli catabolite activator protein"
/note="CAP binding activates transcription in the presence
of cAMP."
promoter 2144..2174
/label=lac promoter
/note="promoter for the E. coli lac operon"
protein_bind 2182..2198
/label=lac operator
/bound_moiety="lac repressor encoded by lacI"
/note="The lac repressor binds to the lac operator to
inhibit transcription in E. coli. This inhibition can be
relieved by adding lactose or
isopropyl-beta-D-thiogalactopyranoside (IPTG)."
promoter 2212..2230
/label=SP6 promoter
/note="promoter for bacteriophage SP6 RNA polymerase"
primer_bind 2212..2229
/label=SP6
/note="SP6 promoter, forward primer"
primer_bind complement(2518..2537)
/label=T7
/note="T7 promoter, forward primer"
promoter complement(2519..2537)
/label=T7 promoter
/note="promoter for bacteriophage T7 RNA polymerase"
primer_bind complement(2547..2569)
/label=M13/pUC Forward
/note="In lacZ gene"
primer_bind complement(2763..2782)
/label=pRS-marker
/note="pRS vectors, use to sequence yeast selectable
marker"
primer_bind 2882..2904
/label=pGEX 3'
/note="pGEX vectors, reverse primer"
ORIGIN
1 gacgaaaggg cctcgtgata cgcctatttt tataggttaa tgtcatgata ataatggttt
61 cttagacgtc aggtggcact tttcggggaa atgtgcgcgg aacccctatt tgtttatttt
121 tctaaataca ttcaaatatg tatccgctca tgagacaata accctgataa atgcttcaat
181 aatattgaaa aaggaagagt atgagtattc aacatttccg tgtcgccctt attccctttt
241 ttgcggcatt ttgccttcct gtttttgctc acccagaaac gctggtgaaa gtaaaagatg
301 ctgaagatca gttgggtgca cgagtgggtt acatcgaact ggatctcaac agcggtaaga
361 tccttgagag ttttcgcccc gaagaacgtt ttccaatgat gagcactttt aaagttctgc
421 tatgtggcgc ggtattatcc cgtattgacg ccgggcaaga gcaactcggt cgccgcatac
481 actattctca gaatgacttg gttgagtact caccagtcac agaaaagcat cttacggatg
541 gcatgacagt aagagaatta tgcagtgctg ccataaccat gagtgataac actgcggcca
601 acttacttct gacaacgatc ggaggaccga aggagctaac cgcttttttg cacaacatgg
661 gggatcatgt aactcgcctt gatcgttggg aaccggagct gaatgaagcc ataccaaacg
721 acgagcgtga caccacgatg cctgtagcaa tggcaacaac gttgcgcaaa ctattaactg
781 gcgaactact tactctagct tcccggcaac aattaataga ctggatggag gcggataaag
841 ttgcaggacc acttctgcgc tcggcccttc cggctggctg gtttattgct gataaatctg
901 gagccggtga gcgtggctct cgaggtatca ttgcagcact ggggccagat ggtaagccct
961 cccgtatcgt agttatctac acgacgggga gtcaggcaac tatggatgaa cgaaatagac
1021 agatcgctga gataggtgcc tcactgatta agcattggta actgtcagac caagtttact
1081 catatatact ttagattgat ttaaaacttc atttttaatt taaaaggatc taggtgaaga
1141 tcctttttga taatctcatg accaaaatcc cttaacgtga gttttcgttc cactgagcgt
1201 cagaccccgt agaaaagatc aaaggatctt cttgagatcc tttttttctg cgcgtaatct
1261 gctgcttgca aacaaaaaaa ccaccgctac cagcggtggt ttgtttgccg gatcaagagc
1321 taccaactct ttttccgaag gtaactggct tcagcagagc gcagatacca aatactgttc
1381 ttctagtgta gccgtagtta ggccaccact tcaagaactc tgtagcaccg cctacatacc
1441 tcgctctgct aatcctgtta ccagtggctg ctgccagtgg cgataagtcg tgtcttaccg
1501 ggttggactc aagacgatag ttaccggata aggcgcagcg gtcgggctga acggggggtt
1561 cgtgcacaca gcccagcttg gagcgaacga cctacaccga actgagatac ctacagcgtg
1621 agctatgaga aagcgccacg cttcccgaag ggagaaaggc ggacaggtat ccggtaagcg
1681 gcagggtcgg aacaggagag cgcacgaggg agcttccagg gggaaacgcc tggtatcttt
1741 atagtcctgt cgggtttcgc cacctctgac ttgagcgtcg atttttgtga tgctcgtcag
1801 gggggcggag cctatggaaa aacgccagca acgcggcctt tttacggttc ctggcctttt
1861 gctggccttt tgctcacatg ttctttcctg cgttatcccc tgattctgtg gataaccgta
1921 ttaccgcctt tgagtgagct gataccgctc gccgcagccg aacgaccgag cgcagcgagt
1981 cagtgagcga ggaagcggaa gagcgcccaa tacgcaaacc gcctctcccc gcgcgttggc
2041 cgattcatta atgcagctgg cacgacaggt ttcccgactg gaaagcgggc agtgagcgca
2101 acgcaattaa tgtgagttag ctcactcatt aggcacccca ggctttacac tttatgcttc
2161 cggctcgtat gttgtgtgga attgtgagcg gataacaatt tcacacgagc tatttaggtg
2221 acactataga agtgaagctt ggtctcaacc tcgggatagt tccgacctag gattggatgc
2281 atgcggaacc gcacgagggc ggggcggaaa ttgacacacc actcctctcc acgcaccgtt
2341 caagaggtac gcgtatagag ccgtatagag cagagacgga gcactttctg gtactgtccg
2401 cacgggatgt ccgcacggag agccacaaac gagcggggcc ccgtacgtgc tctcctaccc
2461 caggatcgca tccccgcata gctgaacatc tatataaaac atgagaccga attctcgccc
2521 tatagtgagt cgtattacct ggccgtcgtt ttacaacgtc gtgactggga aaaccctggc
2581 gttacccaac ttaatcgcct tgcagcacat ccccctttcg ccagctggcg taatagcgaa
2641 gaggcccgca ccgatcgccc ttcccaacag ttgcgcagcc tgaatggcga atggcgcctg
2701 atgcggtatt ttctccttac gcatctgtgc ggtatttcac accgcatatg gtgcactctc
2761 agtacaatct gctctgatgc cgcatagtta agccagcccc gacacccgcc aacacccgct
2821 gacgcgccct gacgggcttg tctgctcccg gcatccgctt acagacaagc tgtgaccgtc
2881 tccgggagct gcatgtgtca gaggttttca ccgtcatcac cgaaacgcgc ga
//
pGGA008载体图谱质粒图谱pdf版和pGGA008载体序列质粒序列等相关资料下载
pGGA008质粒载体应用举例
