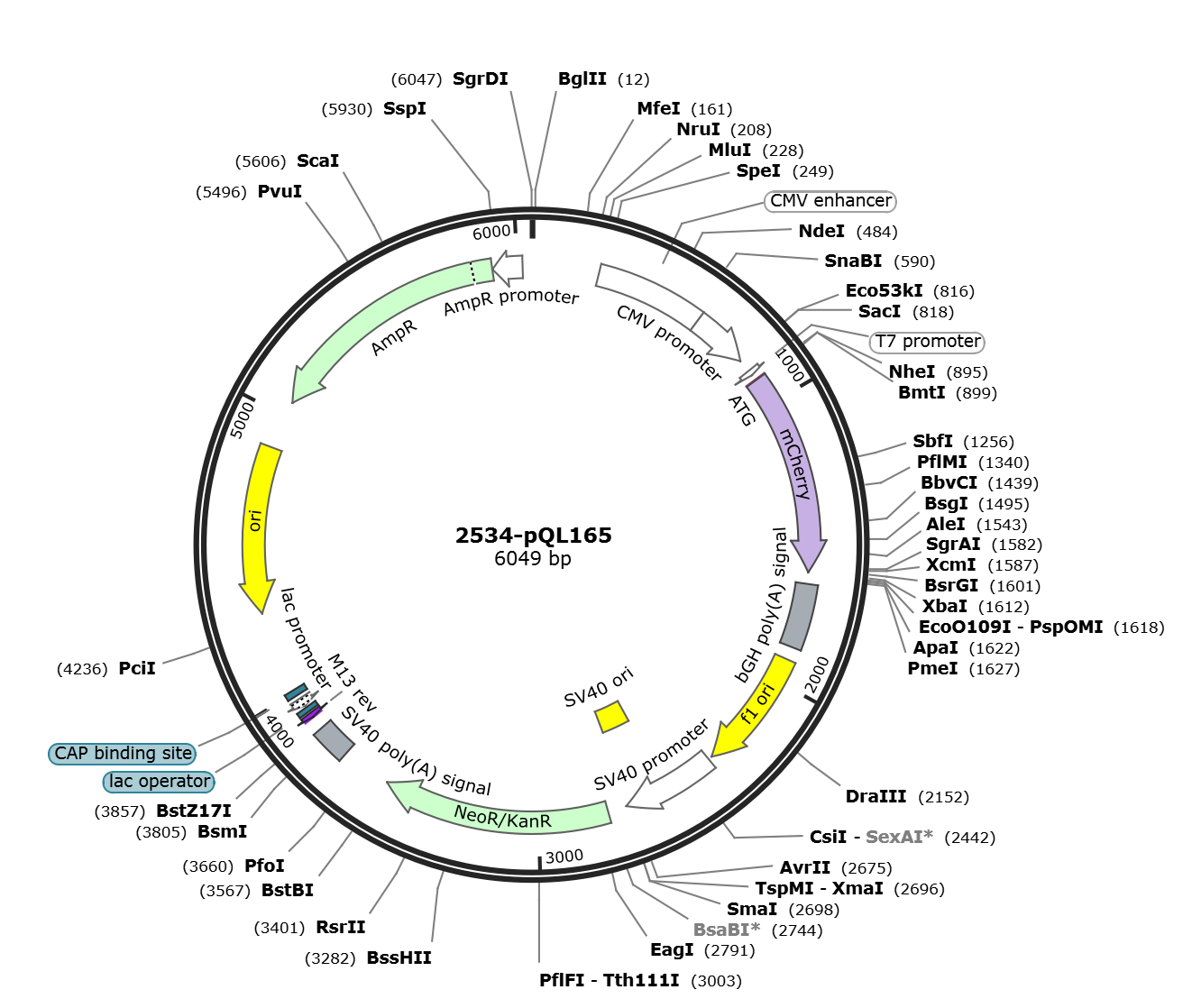

pQL165

LOCUS       pQL165           6049 bp DNA     circular SYN 08-APR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6049)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 3, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6049
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     primer_bind     235..278
                     /label=oQZ313
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(827..852)
                     /label=oQZ314
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     880..919
                     /label=QL 429-F
     primer_bind     900..920
                     /label=QL 431-F
     CDS             901
                     /codon_start=1
                     /product="start codon"
                     /label=ATG
                     /translation=""
     CDS             904..1608
                     /codon_start=1
                     /label=mCherry
                     /translation="VSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEGT
                     QTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNFE
                     DGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALKG
                     EIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERAE
                     GRHSTGGMDELYK"
     primer_bind     complement(1591..1611)
                     /label=QL144-R
     primer_bind     complement(1592..1631)
                     /label=QL 430-R
     polyA_signal    1649..1873
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(1870..1892)
                     /label=oQZ312
     primer_bind     1878..1892
                     /label=oQZ313
     rep_origin      1919..2347
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2361..2690
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2541..2676
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2757..3551
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3725..3846
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3895..3911)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    3919..3935
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3943..3973)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3988..4009
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4297..4882)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5053..5913)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5914..6018)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 atggtgagca agggcgagga ggataacatg gccatcatca aggagttcat gcgcttcaag
      961 gtgcacatgg agggctccgt gaacggccac gagttcgaga tcgagggcga gggcgagggc
     1021 cgcccctacg agggcaccca gaccgccaag ctgaaggtga ccaagggtgg ccccctgccc
     1081 ttcgcctggg acatcctgtc ccctcagttc atgtacggct ccaaggccta cgtgaagcac
     1141 cccgccgaca tccccgacta cttgaagctg tccttccccg agggcttcaa gtgggagcgc
     1201 gtgatgaact tcgaggacgg cggcgtggtg accgtgaccc aggactcctc cctgcaggac
     1261 ggcgagttca tctacaaggt gaagctgcgc ggcaccaact tcccctccga cggccccgta
     1321 atgcagaaga agaccatggg ctgggaggcc tcctccgagc ggatgtaccc cgaggacggc
     1381 gccctgaagg gcgagatcaa gcagaggctg aagctgaagg acggcggcca ctacgacgct
     1441 gaggtcaaga ccacctacaa ggccaagaag cccgtgcagc tgcccggcgc ctacaacgtc
     1501 aacatcaagt tggacatcac ctcccacaac gaggactaca ccatcgtgga acagtacgaa
     1561 cgcgccgagg gccgccactc caccggcggc atggacgagc tgtacaagta atctagaggg
     1621 cccgtttaaa cccgctgatc agcctcgact gtgccttcta gttgccagcc atctgttgtt
     1681 tgcccctccc ccgtgccttc cttgaccctg gaaggtgcca ctcccactgt cctttcctaa
     1741 taaaatgagg aaattgcatc gcattgtctg agtaggtgtc attctattct ggggggtggg
     1801 gtggggcagg acagcaaggg ggaggattgg gaagacaata gcaggcatgc tggggatgcg
     1861 gtgggctcta tggcttctga ggcggaaaga accagctggg gctctagggg gtatccccac
     1921 gcgccctgta gcggcgcatt aagcgcggcg ggtgtggtgg ttacgcgcag cgtgaccgct
     1981 acacttgcca gcgccctagc gcccgctcct ttcgctttct tcccttcctt tctcgccacg
     2041 ttcgccggct ttccccgtca agctctaaat cgggggctcc ctttagggtt ccgatttagt
     2101 gctttacggc acctcgaccc caaaaaactt gattagggtg atggttcacg tagtgggcca
     2161 tcgccctgat agacggtttt tcgccctttg acgttggagt ccacgttctt taatagtgga
     2221 ctcttgttcc aaactggaac aacactcaac cctatctcgg tctattcttt tgatttataa
     2281 gggattttgc cgatttcggc ctattggtta aaaaatgagc tgatttaaca aaaatttaac
     2341 gcgaattaat tctgtggaat gtgtgtcagt tagggtgtgg aaagtcccca ggctccccag
     2401 caggcagaag tatgcaaagc atgcatctca attagtcagc aaccaggtgt ggaaagtccc
     2461 caggctcccc agcaggcaga agtatgcaaa gcatgcatct caattagtca gcaaccatag
     2521 tcccgcccct aactccgccc atcccgcccc taactccgcc cagttccgcc cattctccgc
     2581 cccatggctg actaattttt tttatttatg cagaggccga ggccgcctct gcctctgagc
     2641 tattccagaa gtagtgagga ggcttttttg gaggcctagg cttttgcaaa aagctcccgg
     2701 gagcttgtat atccattttc ggatctgatc aagagacagg atgaggatcg tttcgcatga
     2761 ttgaacaaga tggattgcac gcaggttctc cggccgcttg ggtggagagg ctattcggct
     2821 atgactgggc acaacagaca atcggctgct ctgatgccgc cgtgttccgg ctgtcagcgc
     2881 aggggcgccc ggttcttttt gtcaagaccg acctgtccgg tgccctgaat gaactgcagg
     2941 acgaggcagc gcggctatcg tggctggcca cgacgggcgt tccttgcgca gctgtgctcg
     3001 acgttgtcac tgaagcggga agggactggc tgctattggg cgaagtgccg gggcaggatc
     3061 tcctgtcatc tcaccttgct cctgccgaga aagtatccat catggctgat gcaatgcggc
     3121 ggctgcatac gcttgatccg gctacctgcc cattcgacca ccaagcgaaa catcgcatcg
     3181 agcgagcacg tactcggatg gaagccggtc ttgtcgatca ggatgatctg gacgaagagc
     3241 atcaggggct cgcgccagcc gaactgttcg ccaggctcaa ggcgcgcatg cccgacggcg
     3301 aggatctcgt cgtgacccat ggcgatgcct gcttgccgaa tatcatggtg gaaaatggcc
     3361 gcttttctgg attcatcgac tgtggccggc tgggtgtggc ggaccgctat caggacatag
     3421 cgttggctac ccgtgatatt gctgaagagc ttggcggcga atgggctgac cgcttcctcg
     3481 tgctttacgg tatcgccgct cccgattcgc agcgcatcgc cttctatcgc cttcttgacg
     3541 agttcttctg agcgggactc tggggttcga aatgaccgac caagcgacgc ccaacctgcc
     3601 atcacgagat ttcgattcca ccgccgcctt ctatgaaagg ttgggcttcg gaatcgtttt
     3661 ccgggacgcc ggctggatga tcctccagcg cggggatctc atgctggagt tcttcgccca
     3721 ccccaacttg tttattgcag cttataatgg ttacaaataa agcaatagca tcacaaattt
     3781 cacaaataaa gcattttttt cactgcattc tagttgtggt ttgtccaaac tcatcaatgt
     3841 atcttatcat gtctgtatac cgtcgacctc tagctagagc ttggcgtaat catggtcata
     3901 gctgtttcct gtgtgaaatt gttatccgct cacaattcca cacaacatac gagccggaag
     3961 cataaagtgt aaagcctggg gtgcctaatg agtgagctaa ctcacattaa ttgcgttgcg
     4021 ctcactgccc gctttccagt cgggaaacct gtcgtgccag ctgcattaat gaatcggcca
     4081 acgcgcgggg agaggcggtt tgcgtattgg gcgctcttcc gcttcctcgc tcactgactc
     4141 gctgcgctcg gtcgttcggc tgcggcgagc ggtatcagct cactcaaagg cggtaatacg
     4201 gttatccaca gaatcagggg ataacgcagg aaagaacatg tgagcaaaag gccagcaaaa
     4261 ggccaggaac cgtaaaaagg ccgcgttgct ggcgtttttc cataggctcc gcccccctga
     4321 cgagcatcac aaaaatcgac gctcaagtca gaggtggcga aacccgacag gactataaag
     4381 ataccaggcg tttccccctg gaagctccct cgtgcgctct cctgttccga ccctgccgct
     4441 taccggatac ctgtccgcct ttctcccttc gggaagcgtg gcgctttctc atagctcacg
     4501 ctgtaggtat ctcagttcgg tgtaggtcgt tcgctccaag ctgggctgtg tgcacgaacc
     4561 ccccgttcag cccgaccgct gcgccttatc cggtaactat cgtcttgagt ccaacccggt
     4621 aagacacgac ttatcgccac tggcagcagc cactggtaac aggattagca gagcgaggta
     4681 tgtaggcggt gctacagagt tcttgaagtg gtggcctaac tacggctaca ctagaagaac
     4741 agtatttggt atctgcgctc tgctgaagcc agttaccttc ggaaaaagag ttggtagctc
     4801 ttgatccggc aaacaaacca ccgctggtag cggttttttt gtttgcaagc agcagattac
     4861 gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca
     4921 gtggaacgaa aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac
     4981 ctagatcctt ttaaattaaa aatgaagttt taaatcaatc taaagtatat atgagtaaac
     5041 ttggtctgac agttaccaat gcttaatcag tgaggcacct atctcagcga tctgtctatt
     5101 tcgttcatcc atagttgcct gactccccgt cgtgtagata actacgatac gggagggctt
     5161 accatctggc cccagtgctg caatgatacc gcgagaccca cgctcaccgg ctccagattt
     5221 atcagcaata aaccagccag ccggaagggc cgagcgcaga agtggtcctg caactttatc
     5281 cgcctccatc cagtctatta attgttgccg ggaagctaga gtaagtagtt cgccagttaa
     5341 tagtttgcgc aacgttgttg ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg
     5401 tatggcttca ttcagctccg gttcccaacg atcaaggcga gttacatgat cccccatgtt
     5461 gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt gtcagaagta agttggccgc
     5521 agtgttatca ctcatggtta tggcagcact gcataattct cttactgtca tgccatccgt
     5581 aagatgcttt tctgtgactg gtgagtactc aaccaagtca ttctgagaat agtgtatgcg
     5641 gcgaccgagt tgctcttgcc cggcgtcaat acgggataat accgcgccac atagcagaac
     5701 tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga aaactctcaa ggatcttacc
     5761 gctgttgaga tccagttcga tgtaacccac tcgtgcaccc aactgatctt cagcatcttt
     5821 tactttcacc agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg
     5881 aataagggcg acacggaaat gttgaatact catactcttc ctttttcaat attattgaag
     5941 catttatcag ggttattgtc tcatgagcgg atacatattt gaatgtattt agaaaaataa
     6001 acaaataggg gttccgcgca catttccccg aaaagtgcca cctgacgtc
//
