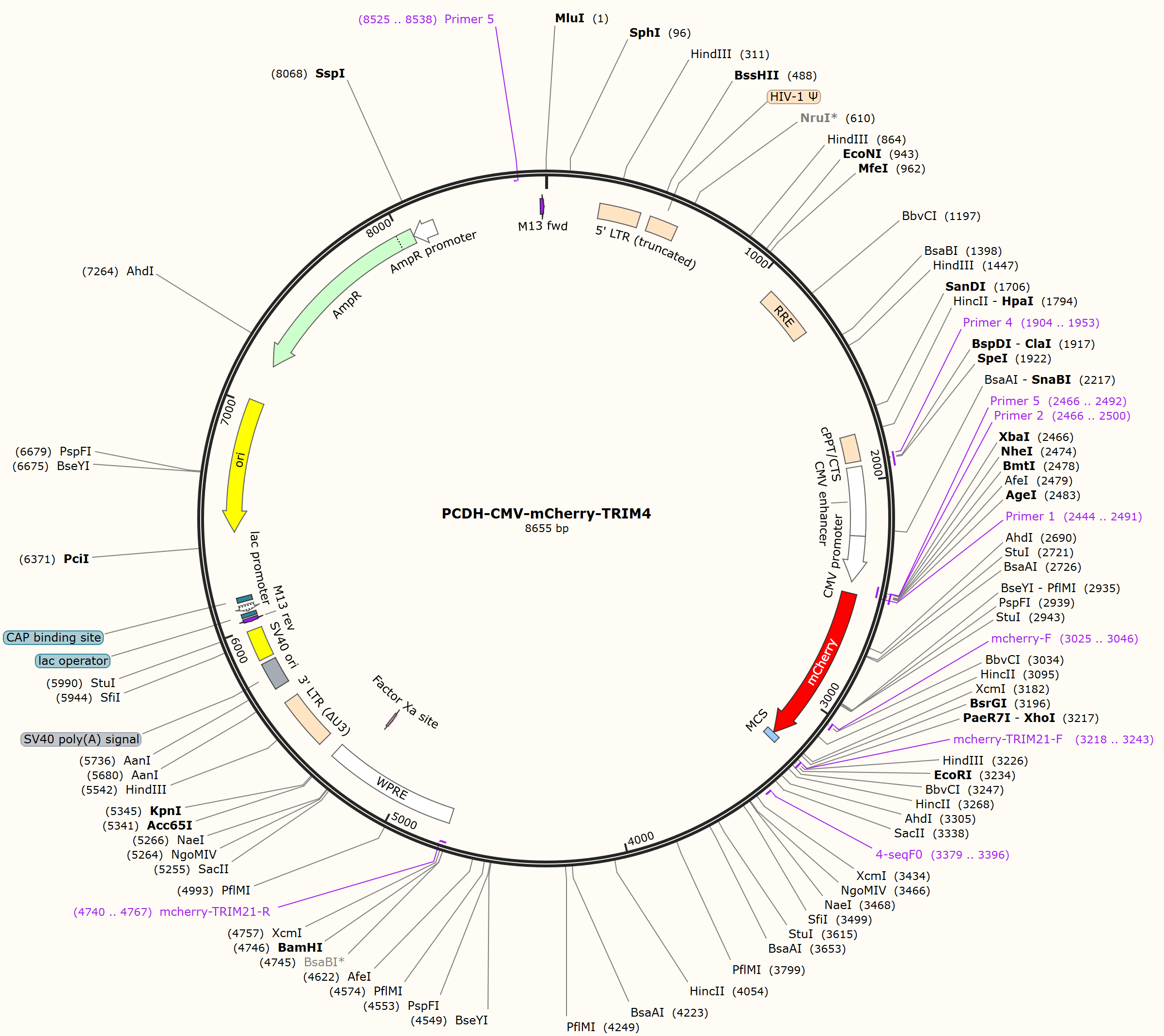

PCDH-CMV-mCherry-TRIM4

LOCUS      PCDH-CMV-mCherry-TRIM4              8655 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8655)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8655
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3218..3243
                     /label=mcherry-TRIM21-F
     primer_bind     3379..3396
                     /label=4-seqF0
     primer_bind     complement(4740..4767)
                     /label=mcherry-TRIM21-R
     misc_feature    4752..5339
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5223..5234)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5412..5645
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5717..5838
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5857..5992
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6030..6046)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6054..6070
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6078..6108)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6123..6144
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6432..7020)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7191..8051)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8052..8156)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8525..8538)
                     /label=Primer 5
     primer_bind     8630..8646
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggaagctga ggacatccag gaggagttga cctgccccat ctgcctggac tatttccagg
     3301 acccggtgtc catcgagtgc ggccacaact tctgccgcgg ctgcctgcac cgcaactggg
     3361 cgccgggcgg cggcccgttc ccctgccccg aatgtcggca cccatcggcg cccgccgcgc
     3421 tgcgacccaa ctgggccctg gccaggctga ctgagaagac gcagcgccgg cgcctgggcc
     3481 ccgtgccccc gggcctgtgc ggccgccact gggagccgct gcggctcttc tgcgaggacg
     3541 accagcggcc agtgtgcctg gtgtgcaggg agtcccagga gcaccagact cacgccatgg
     3601 cacccatcga cgaggccttc gagagctacc ggacaggtaa ctttgacatc cacgtggatg
     3661 aatggaagag aagactaatt aggctgctct tgtaccattt taagcaggag gagaaacttc
     3721 ttaagtctca gcgtaatctc gtggccaaga tgaagaaagt catgcattta caggatgtag
     3781 aagtgaagaa cgccacacag tggaaggata agataaagag tcagcgaatg agaatcagca
     3841 cggagttttc aaagctgcac aacttcctgg ttgaagaaga ggacctgttt cttcagagat
     3901 tgaacaaaga agaagaagag acgaagaaga agctgaatga gaacacgtta aaactcaatc
     3961 aaactatcgc ttcattgaag aagctcatct tagaggtggg ggagaagagc caggctccca
     4021 ccctggagct gcttcagaat ccaaaagaag tgttgaccag gagtgagatc caggatgtga
     4081 actattctct tgaagctgta aaggtgaaga cagtgtgcca gataccattg atgaaggaaa
     4141 tgctaaagcg attccaagtg gctgtaaacc tagctgaaga cacagctcat cccaaactcg
     4201 tcttctccca ggaagggaga tacgtgaaaa atacagcatc agccagttct tggccagtgt
     4261 tttcttcagc atggaactac tttgctggat ggaggaatcc tcagaagact gcttttgtag
     4321 agagatttca gcacttaccc tgtgttctgg gaaaaaacgt tttcacctca gggaaacatt
     4381 actgggaagt tgagagtaga gatagtctgg aggttgctgt tggggtgtgt cgggaggacg
     4441 tcatgggaat tactgatcgt tcaaaaatgt ccccagatgt gggcatctgg gcgatttatt
     4501 ggagtgctgc tggctattgg cccttgatag gcttccctgg aactcccacc cagcaagagc
     4561 cagctctcca ccgagtgggg gtttacctgg atcgtgggac tgggaatgtc tccttctaca
     4621 gcgctgtgga cggagtgcac ctgcacacct tttcttgttc ttctgtctca cgcctccggc
     4681 catttttttg gttgagtcca ttagcatctt tagtcattcc accagtgact gataggaaat
     4741 gatagggatc caatcaacct ctggattaca aaatttgtga aagattgact ggtattctta
     4801 actatgttgc tccttttacg ctatgtggat acgctgcttt aatgcctttg tatcatgcta
     4861 ttgcttcccg tatggctttc attttctcct ccttgtataa atcctggttg ctgtctcttt
     4921 atgaggagtt gtggcccgtt gtcaggcaac gtggcgtggt gtgcactgtg tttgctgacg
     4981 caacccccac tggttggggc attgccacca cctgtcagct cctttccggg actttcgctt
     5041 tccccctccc tattgccacg gcggaactca tcgccgcctg ccttgcccgc tgctggacag
     5101 gggctcggct gttgggcact gacaattccg tggtgttgtc ggggaagctg acgtcctttc
     5161 catggctgct cgcctgtgtt gccacctgga ttctgcgcgg gacgtccttc tgctacgtcc
     5221 cttcggccct caatccagcg gaccttcctt cccgcggcct gctgccggct ctgcggcctc
     5281 ttccgcgtct ccgccttcgc cctcagacga gtcggatctc cctttggccg cctccccgcc
     5341 ggtaccttta agaccaatga cttacaaggc agctgtagat cttagccact ttttaaaaga
     5401 aaagggggga ctggaagggc taattcactc ccaacgaaaa taagatctgc tttttgcttg
     5461 tactgggtct ctctggttag accagatctg agcctgggag ctctctggct aactagggaa
     5521 cccactgctt aagcctcaat aaagcttgcc ttgagtgctt caagtagtgt gtgcccgtct
     5581 gttgtgtgac tctggtaact agagatccct cagacccttt tagtcagtgt ggaaaatctc
     5641 tagcagtagt agttcatgtc atcttattat tcagtattta taacttgcaa agaaatgaat
     5701 atcagagagt gagaggaact tgtttattgc agcttataat ggttacaaat aaagcaatag
     5761 catcacaaat ttcacaaata aagcattttt ttcactgcat tctagttgtg gtttgtccaa
     5821 actcatcaat gtatcttatc atgtctggct ctagctatcc cgcccctaac tccgcccagt
     5881 tccgcccatt ctccgcccca tggctgacta atttttttta tttatgcaga ggccgaggcc
     5941 gcctcggcct ctgagctatt ccagaagtag tgaggaggct tttttggagg cctagacttt
     6001 tgcagagacg gcccaaattc gtaatcatgg tcatagctgt ttcctgtgtg aaattgttat
     6061 ccgctcacaa ttccacacaa catacgagcc ggaagcataa agtgtaaagc ctggggtgcc
     6121 taatgagtga gctaactcac attaattgcg ttgcgctcac tgcccgcttt ccagtcggga
     6181 aacctgtcgt gccagctgca ttaatgaatc ggccaacgcg cggggagagg cggtttgcgt
     6241 attgggcgct cttccgcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg
     6301 cgagcggtat cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac
     6361 gcaggaaaga acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg
     6421 ttgctggcgt ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca
     6481 agtcagaggt ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc
     6541 tccctcgtgc gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc
     6601 ccttcgggaa gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag
     6661 gtcgttcgct ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc
     6721 ttatccggta actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca
     6781 gcagccactg gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg
     6841 aagtggtggc ctaactacgg ctacactaga aggacagtat ttggtatctg cgctctgctg
     6901 aagccagtta ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct
     6961 ggtagcggtg gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa
     7021 gaagatcctt tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa
     7081 gggattttgg tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa
     7141 tgaagtttta aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc
     7201 ttaatcagtg aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga
     7261 ctccccgtcg tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca
     7321 atgataccgc gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc
     7381 ggaagggccg agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat
     7441 tgttgccggg aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc
     7501 attgctacag gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt
     7561 tcccaacgat caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc
     7621 ttcggtcctc cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg
     7681 gcagcactgc ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt
     7741 gagtactcaa ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg
     7801 gcgtcaatac gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga
     7861 aaacgttctt cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg
     7921 taacccactc gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg
     7981 tgagcaaaaa caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt
     8041 tgaatactca tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc
     8101 atgagcggat acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca
     8161 tttccccgaa aagtgccacc tgacgtctaa gaaaccatta ttatcatgac attaacctat
     8221 aaaaataggc gtatcacgag gccctttcgt ctcgcgcgtt tcggtgatga cggtgaaaac
     8281 ctctgacaca tgcagctccc ggagacggtc acagcttgtc tgtaagcgga tgccgggagc
     8341 agacaagccc gtcagggcgc gtcagcgggt gttggcgggt gtcggggctg gcttaactat
     8401 gcggcatcag agcagattgt actgagagtg caccatatgc ggtgtgaaat accgcacaga
     8461 tgcgtaagga gaaaataccg catcaggcgc cattcgccat tcaggctgcg caactgttgg
     8521 gaagggcgat cggtgcgggc ctcttcgcta ttacgccagc tggcgaaagg gggatgtgct
     8581 gcaaggcgat taagttgggt aacgccaggg ttttcccagt cacgacgttg taaaacgacg
     8641 gccagtgcca agctg
//
