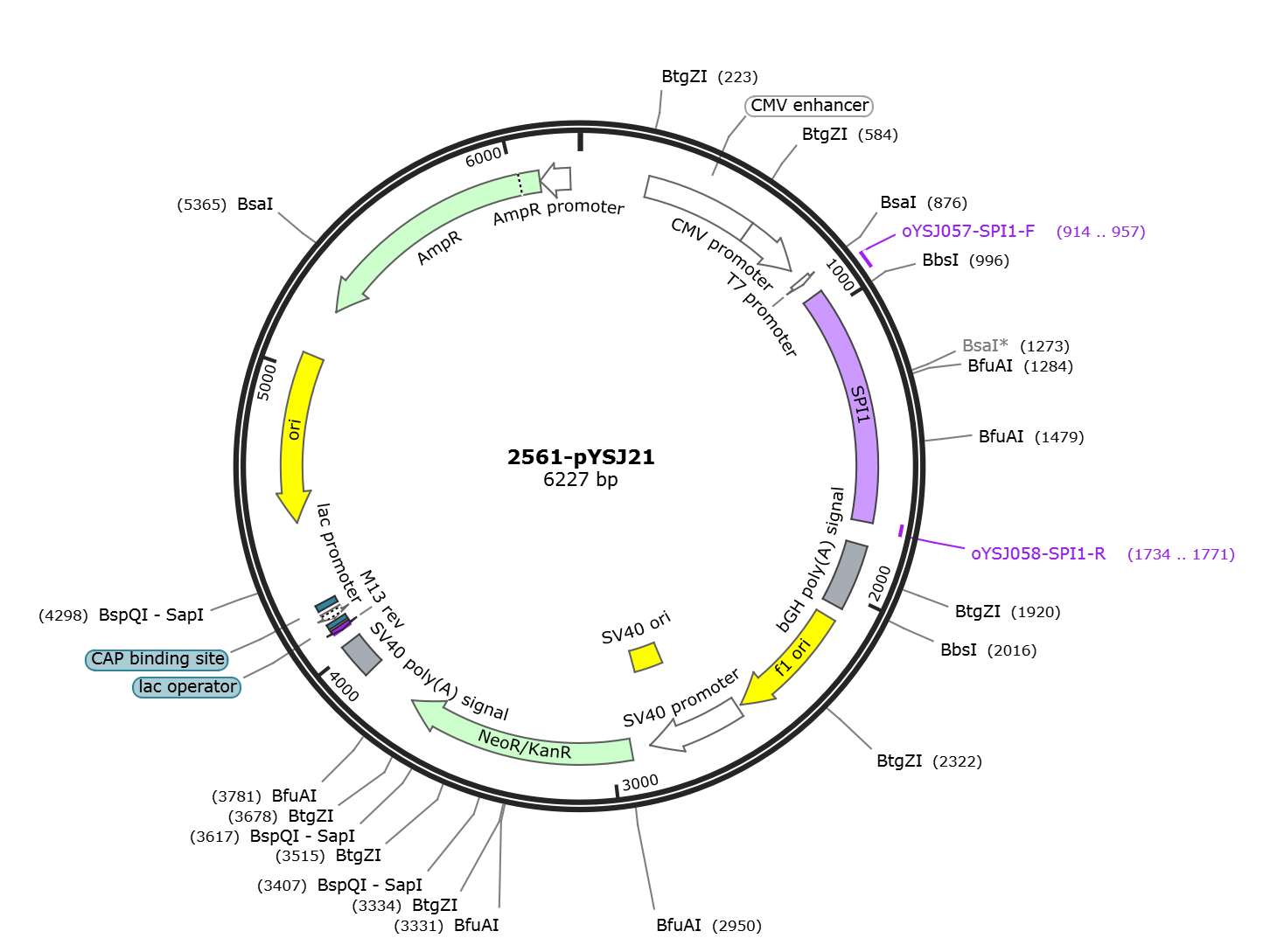

pYSJ21

LOCUS       pYSJ21            6227 bp DNA     circular SYN 22-SEP-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6227)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 5, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6227
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..957
                     /label=oYSJ057-SPI1-F
     misc_feature    935..1747
                     /label=SPI1
     primer_bind     complement(1734..1771)
                     /label=oYSJ058-SPI1-R
     polyA_signal    1827..2051
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2097..2525
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2539..2868
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2719..2854
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2935..3729
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3903..4024
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4073..4089)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4097..4113
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4121..4151)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4166..4187
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4475..5060)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5231..6091)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6092..6196)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatgtta caggcgtgca aaatggaagg
      961 gtttcccctc gtcccccctc agccatcaga agacctggtg ccctatgaca cggatctata
     1021 ccaacgccaa acgcacgagt attaccccta tctcagcagt gatggggaga gccatagcga
     1081 ccattactgg gacttccacc cccaccacgt gcacagcgag ttcgagagct tcgccgagaa
     1141 caacttcacg gagctccaga gcgtgcagcc cccgcagctg cagcagctct accgccacat
     1201 ggagctggag cagatgcacg tcctcgatac ccccatggtg ccaccccatc ccagtcttgg
     1261 ccaccaggtc tcctacctgc cccggatgtg cctccagtac ccatccctgt ccccagccca
     1321 gcccagctca gatgaggagg agggcgagcg gcagagcccc ccactggagg tgtctgacgg
     1381 cgaggcggat ggcctggagc ccgggcctgg gctcctgcct ggggagacag gcagcaagaa
     1441 gaagatccgc ctgtaccagt tcctgttgga cctgctccgc agcggcgaca tgaaggacag
     1501 catctggtgg gtggacaagg acaagggcac cttccagttc tcgtccaagc acaaggaggc
     1561 gctggcgcac cgctggggca tccagaaggg caaccgcaag aagatgacct accagaagat
     1621 ggcgcgcgcg ctgcgcaact acggcaagac gggcgaggtc aagaaggtga agaagaagct
     1681 cacctaccag ttcagcggcg aagtgctggg ccgcgggggc ctggccgagc ggcgccaccc
     1741 gccccactaa gaattctgca gatatccagc acagtggcgg ccgctcgagt ctagagggcc
     1801 cgtttaaacc cgctgatcag cctcgactgt gccttctagt tgccagccat ctgttgtttg
     1861 cccctccccc gtgccttcct tgaccctgga aggtgccact cccactgtcc tttcctaata
     1921 aaatgaggaa attgcatcgc attgtctgag taggtgtcat tctattctgg ggggtggggt
     1981 ggggcaggac agcaaggggg aggattggga agacaatagc aggcatgctg gggatgcggt
     2041 gggctctatg gcttctgagg cggaaagaac cagctggggc tctagggggt atccccacgc
     2101 gccctgtagc ggcgcattaa gcgcggcggg tgtggtggtt acgcgcagcg tgaccgctac
     2161 acttgccagc gccctagcgc ccgctccttt cgctttcttc ccttcctttc tcgccacgtt
     2221 cgccggcttt ccccgtcaag ctctaaatcg ggggctccct ttagggttcc gatttagtgc
     2281 tttacggcac ctcgacccca aaaaacttga ttagggtgat ggttcacgta gtgggccatc
     2341 gccctgatag acggtttttc gccctttgac gttggagtcc acgttcttta atagtggact
     2401 cttgttccaa actggaacaa cactcaaccc tatctcggtc tattcttttg atttataagg
     2461 gattttgccg atttcggcct attggttaaa aaatgagctg atttaacaaa aatttaacgc
     2521 gaattaattc tgtggaatgt gtgtcagtta gggtgtggaa agtccccagg ctccccagca
     2581 ggcagaagta tgcaaagcat gcatctcaat tagtcagcaa ccaggtgtgg aaagtcccca
     2641 ggctccccag caggcagaag tatgcaaagc atgcatctca attagtcagc aaccatagtc
     2701 ccgcccctaa ctccgcccat cccgccccta actccgccca gttccgccca ttctccgccc
     2761 catggctgac taattttttt tatttatgca gaggccgagg ccgcctctgc ctctgagcta
     2821 ttccagaagt agtgaggagg cttttttgga ggcctaggct tttgcaaaaa gctcccggga
     2881 gcttgtatat ccattttcgg atctgatcaa gagacaggat gaggatcgtt tcgcatgatt
     2941 gaacaagatg gattgcacgc aggttctccg gccgcttggg tggagaggct attcggctat
     3001 gactgggcac aacagacaat cggctgctct gatgccgccg tgttccggct gtcagcgcag
     3061 gggcgcccgg ttctttttgt caagaccgac ctgtccggtg ccctgaatga actgcaggac
     3121 gaggcagcgc ggctatcgtg gctggccacg acgggcgttc cttgcgcagc tgtgctcgac
     3181 gttgtcactg aagcgggaag ggactggctg ctattgggcg aagtgccggg gcaggatctc
     3241 ctgtcatctc accttgctcc tgccgagaaa gtatccatca tggctgatgc aatgcggcgg
     3301 ctgcatacgc ttgatccggc tacctgccca ttcgaccacc aagcgaaaca tcgcatcgag
     3361 cgagcacgta ctcggatgga agccggtctt gtcgatcagg atgatctgga cgaagagcat
     3421 caggggctcg cgccagccga actgttcgcc aggctcaagg cgcgcatgcc cgacggcgag
     3481 gatctcgtcg tgacccatgg cgatgcctgc ttgccgaata tcatggtgga aaatggccgc
     3541 ttttctggat tcatcgactg tggccggctg ggtgtggcgg accgctatca ggacatagcg
     3601 ttggctaccc gtgatattgc tgaagagctt ggcggcgaat gggctgaccg cttcctcgtg
     3661 ctttacggta tcgccgctcc cgattcgcag cgcatcgcct tctatcgcct tcttgacgag
     3721 ttcttctgag cgggactctg gggttcgaaa tgaccgacca agcgacgccc aacctgccat
     3781 cacgagattt cgattccacc gccgccttct atgaaaggtt gggcttcgga atcgttttcc
     3841 gggacgccgg ctggatgatc ctccagcgcg gggatctcat gctggagttc ttcgcccacc
     3901 ccaacttgtt tattgcagct tataatggtt acaaataaag caatagcatc acaaatttca
     3961 caaataaagc atttttttca ctgcattcta gttgtggttt gtccaaactc atcaatgtat
     4021 cttatcatgt ctgtataccg tcgacctcta gctagagctt ggcgtaatca tggtcatagc
     4081 tgtttcctgt gtgaaattgt tatccgctca caattccaca caacatacga gccggaagca
     4141 taaagtgtaa agcctggggt gcctaatgag tgagctaact cacattaatt gcgttgcgct
     4201 cactgcccgc tttccagtcg ggaaacctgt cgtgccagct gcattaatga atcggccaac
     4261 gcgcggggag aggcggtttg cgtattgggc gctcttccgc ttcctcgctc actgactcgc
     4321 tgcgctcggt cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt
     4381 tatccacaga atcaggggat aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg
     4441 ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca taggctccgc ccccctgacg
     4501 agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga ctataaagat
     4561 accaggcgtt tccccctgga agctccctcg tgcgctctcc tgttccgacc ctgccgctta
     4621 ccggatacct gtccgccttt ctcccttcgg gaagcgtggc gctttctcat agctcacgct
     4681 gtaggtatct cagttcggtg taggtcgttc gctccaagct gggctgtgtg cacgaacccc
     4741 ccgttcagcc cgaccgctgc gccttatccg gtaactatcg tcttgagtcc aacccggtaa
     4801 gacacgactt atcgccactg gcagcagcca ctggtaacag gattagcaga gcgaggtatg
     4861 taggcggtgc tacagagttc ttgaagtggt ggcctaacta cggctacact agaagaacag
     4921 tatttggtat ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt
     4981 gatccggcaa acaaaccacc gctggtagcg gtttttttgt ttgcaagcag cagattacgc
     5041 gcagaaaaaa aggatctcaa gaagatcctt tgatcttttc tacggggtct gacgctcagt
     5101 ggaacgaaaa ctcacgttaa gggattttgg tcatgagatt atcaaaaagg atcttcacct
     5161 agatcctttt aaattaaaaa tgaagtttta aatcaatcta aagtatatat gagtaaactt
     5221 ggtctgacag ttaccaatgc ttaatcagtg aggcacctat ctcagcgatc tgtctatttc
     5281 gttcatccat agttgcctga ctccccgtcg tgtagataac tacgatacgg gagggcttac
     5341 catctggccc cagtgctgca atgataccgc gagacccacg ctcaccggct ccagatttat
     5401 cagcaataaa ccagccagcc ggaagggccg agcgcagaag tggtcctgca actttatccg
     5461 cctccatcca gtctattaat tgttgccggg aagctagagt aagtagttcg ccagttaata
     5521 gtttgcgcaa cgttgttgcc attgctacag gcatcgtggt gtcacgctcg tcgtttggta
     5581 tggcttcatt cagctccggt tcccaacgat caaggcgagt tacatgatcc cccatgttgt
     5641 gcaaaaaagc ggttagctcc ttcggtcctc cgatcgttgt cagaagtaag ttggccgcag
     5701 tgttatcact catggttatg gcagcactgc ataattctct tactgtcatg ccatccgtaa
     5761 gatgcttttc tgtgactggt gagtactcaa ccaagtcatt ctgagaatag tgtatgcggc
     5821 gaccgagttg ctcttgcccg gcgtcaatac gggataatac cgcgccacat agcagaactt
     5881 taaaagtgct catcattgga aaacgttctt cggggcgaaa actctcaagg atcttaccgc
     5941 tgttgagatc cagttcgatg taacccactc gtgcacccaa ctgatcttca gcatctttta
     6001 ctttcaccag cgtttctggg tgagcaaaaa caggaaggca aaatgccgca aaaaagggaa
     6061 taagggcgac acggaaatgt tgaatactca tactcttcct ttttcaatat tattgaagca
     6121 tttatcaggg ttattgtctc atgagcggat acatatttga atgtatttag aaaaataaac
     6181 aaataggggt tccgcgcaca tttccccgaa aagtgccacc tgacgtc
//
