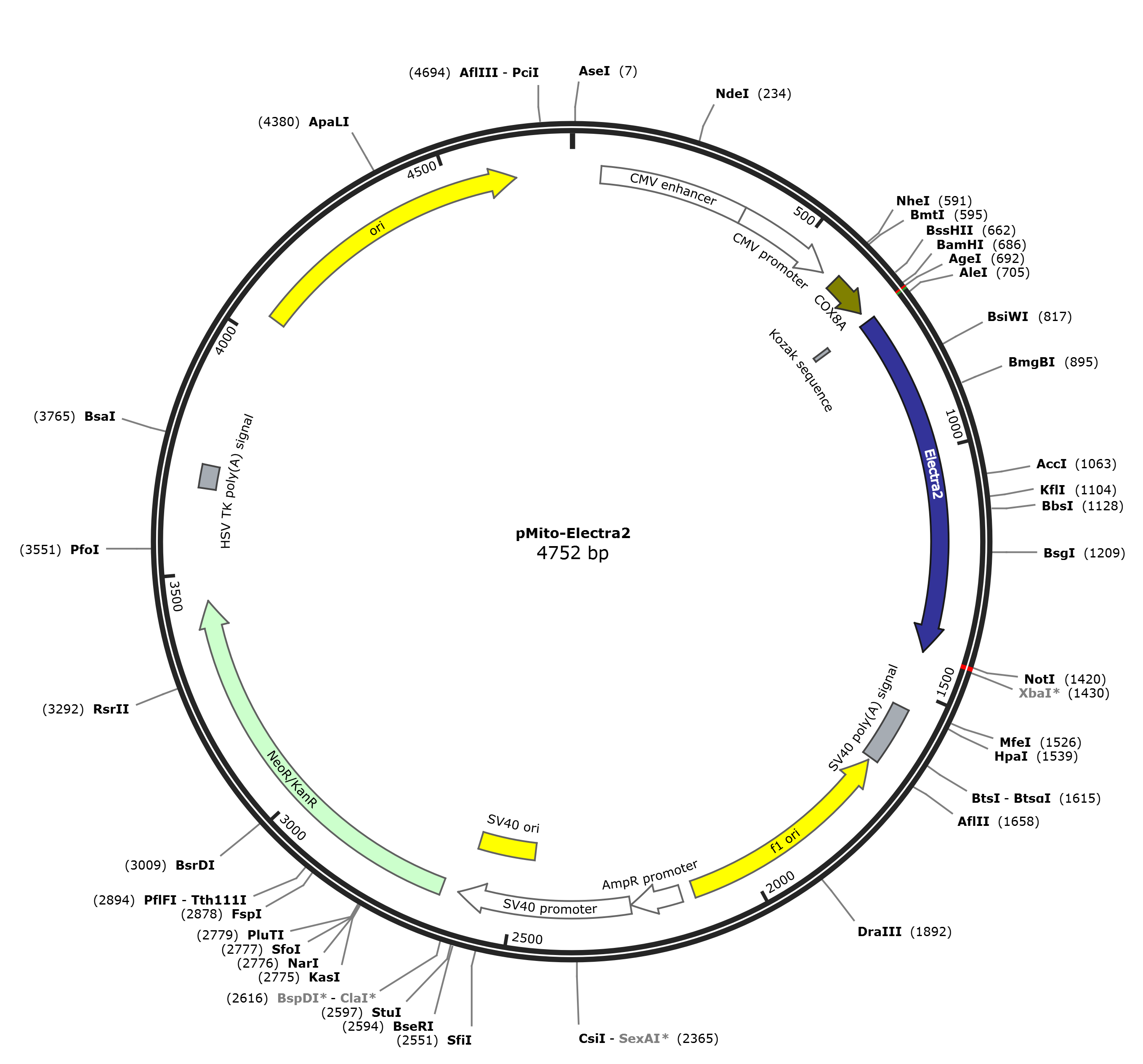

pMito-Electra2

LOCUS       pMito-Electra2               4752 bp DNA     circular SYN 29-MAY-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4752)
  AUTHORS   Shcherbakova DM, Verkhusha VV
  TITLE     Near-infrared fluorescent proteins for multicolor in vivo imaging.
  JOURNAL   Nat Methods. 2013 Jun 16. doi: 10.1038/nmeth.2521.
  PUBMED    23770755
REFERENCE   2  (bases 1 to 4752)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jun 30, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; journalName: "Nat
            Methods. 2013 Jun 16. doi: 10.1038/nmeth.2521."
FEATURES             Location/Qualifiers
     source          1..4752
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     519..539
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     CDS             597..683
                     /codon_start=1
                     /label=COX8A
                     /translation="MSVLTPLLLRGLTGSARRLPVPRAKIHSL"
     regulatory      699..708
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             705..1418
                     /codon_start=1
                     /label=Electra2
                     /translation="MVSKGEELIEENMRMKVVMEGSVNGHQFKCTGEGEGRPYEGVQTM
                     RIKVIEGGPLPFAFDILATSFLFGSKTFIKYPADIPDFFEQSFPEGFTWERVTRYEDGG
                     VVTVTQDTSLEDGGLVYNVKVRGVNFHSKGPVMQKKTEGWEPFTEMMYPADGGLRGYTD
                     IALKVDGGGHLHANIVTTYRSKKTVGNIKMPGVHAVDYRLERIEESDNETYVVLREVAV
                     AKYSNLGGGMDELFK"
     polyA_signal    1540..1661
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(1577..1596)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     1631..1650
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(1668..2123)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(1805..1826)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2017..2036
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        2150..2254
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2256..2613
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(2279..2299)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      2464..2599
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2526..2545
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     complement(2549..2560)
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2648..3442
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2702..2721)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3312..3331
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(3630..3649)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    3674..3721
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4050..4638
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     4539..4558
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcatgt
      601 ccgtcctgac gccgctgctg ctgcggggct tgacaggctc ggcccggcgg ctcccagtgc
      661 cgcgcgccaa gatccattcg ttgggggatc caccggtcgc caccatggtg tctaagggcg
      721 aagagctgat cgaggaaaat atgcgtatga aggtggtcat ggaaggttcg gtcaacggcc
      781 accaattcaa atgcacaggt gaaggagaag gcagaccgta cgagggagtg caaaccatga
      841 ggatcaaagt catcgaggga ggacccctgc catttgcctt tgacattctt gccacgtcgt
      901 tcctgttcgg cagcaagacc tttatcaagt acccggccga catccctgat ttcttcgaac
      961 agtcctttcc tgagggcttt acttgggaaa gagttacgag atacgaagat ggtggagtag
     1021 tcaccgtcac gcaggacacc agccttgagg atggtgggct cgtctacaac gtcaaggtca
     1081 gaggggtaaa ctttcactcc aagggtcccg tgatgcagaa gaagaccgag ggttgggagc
     1141 ctttcacaga gatgatgtat ccagcagatg gtggtctgag aggatatacc gacatcgcac
     1201 tgaaagttga tggtggtggc catctgcacg ccaacatcgt gacaacttac aggtcaaaaa
     1261 agaccgtcgg gaacatcaag atgcccggtg tccatgccgt tgattaccgc ctggaaagga
     1321 tcgaagagag tgacaatgaa acctacgtag tgctaagaga agtggcagtt gccaaataca
     1381 gcaaccttgg tggtggcatg gacgagctgt tcaagtaagc ggccgcgact ctagatcata
     1441 atcagccata ccacatttgt agaggtttta cttgctttaa aaaacctccc acacctcccc
     1501 ctgaacctga aacataaaat gaatgcaatt gttgttgtta acttgtttat tgcagcttat
     1561 aatggttaca aataaagcaa tagcatcaca aatttcacaa ataaagcatt tttttcactg
     1621 cattctagtt gtggtttgtc caaactcatc aatgtatctt aaggcgtaaa ttgtaagcgt
     1681 taatattttg ttaaaattcg cgttaaattt ttgttaaatc agctcatttt ttaaccaata
     1741 ggccgaaatc ggcaaaatcc cttataaatc aaaagaatag accgagatag ggttgagtgt
     1801 tgttccagtt tggaacaaga gtccactatt aaagaacgtg gactccaacg tcaaagggcg
     1861 aaaaaccgtc tatcagggcg atggcccact acgtgaacca tcaccctaat caagtttttt
     1921 ggggtcgagg tgccgtaaag cactaaatcg gaaccctaaa gggagccccc gatttagagc
     1981 ttgacgggga aagccggcga acgtggcgag aaaggaaggg aagaaagcga aaggagcggg
     2041 cgctagggcg ctggcaagtg tagcggtcac gctgcgcgta accaccacac ccgccgcgct
     2101 taatgcgccg ctacagggcg cgtcaggtgg cacttttcgg ggaaatgtgc gcggaacccc
     2161 tatttgttta tttttctaaa tacattcaaa tatgtatccg ctcatgagac aataaccctg
     2221 ataaatgctt caataatatt gaaaaaggaa gagtcctgag gcggaaagaa ccagctgtgg
     2281 aatgtgtgtc agttagggtg tggaaagtcc ccaggctccc cagcaggcag aagtatgcaa
     2341 agcatgcatc tcaattagtc agcaaccagg tgtggaaagt ccccaggctc cccagcaggc
     2401 agaagtatgc aaagcatgca tctcaattag tcagcaacca tagtcccgcc cctaactccg
     2461 cccatcccgc ccctaactcc gcccagttcc gcccattctc cgccccatgg ctgactaatt
     2521 ttttttattt atgcagaggc cgaggccgcc tcggcctctg agctattcca gaagtagtga
     2581 ggaggctttt ttggaggcct aggcttttgc aaagatcgat caagagacag gatgaggatc
     2641 gtttcgcatg attgaacaag atggattgca cgcaggttct ccggccgctt gggtggagag
     2701 gctattcggc tatgactggg cacaacagac aatcggctgc tctgatgccg ccgtgttccg
     2761 gctgtcagcg caggggcgcc cggttctttt tgtcaagacc gacctgtccg gtgccctgaa
     2821 tgaactgcaa gacgaggcag cgcggctatc gtggctggcc acgacgggcg ttccttgcgc
     2881 agctgtgctc gacgttgtca ctgaagcggg aagggactgg ctgctattgg gcgaagtgcc
     2941 ggggcaggat ctcctgtcat ctcaccttgc tcctgccgag aaagtatcca tcatggctga
     3001 tgcaatgcgg cggctgcata cgcttgatcc ggctacctgc ccattcgacc accaagcgaa
     3061 acatcgcatc gagcgagcac gtactcggat ggaagccggt cttgtcgatc aggatgatct
     3121 ggacgaagag catcaggggc tcgcgccagc cgaactgttc gccaggctca aggcgagcat
     3181 gcccgacggc gaggatctcg tcgtgaccca tggcgatgcc tgcttgccga atatcatggt
     3241 ggaaaatggc cgcttttctg gattcatcga ctgtggccgg ctgggtgtgg cggaccgcta
     3301 tcaggacata gcgttggcta cccgtgatat tgctgaagag cttggcggcg aatgggctga
     3361 ccgcttcctc gtgctttacg gtatcgccgc tcccgattcg cagcgcatcg ccttctatcg
     3421 ccttcttgac gagttcttct gagcgggact ctggggttcg aaatgaccga ccaagcgacg
     3481 cccaacctgc catcacgaga tttcgattcc accgccgcct tctatgaaag gttgggcttc
     3541 ggaatcgttt tccgggacgc cggctggatg atcctccagc gcggggatct catgctggag
     3601 ttcttcgccc accctagggg gaggctaact gaaacacgga aggagacaat accggaagga
     3661 acccgcgcta tgacggcaat aaaaagacag aataaaacgc acggtgttgg gtcgtttgtt
     3721 cataaacgcg gggttcggtc ccagggctgg cactctgtcg ataccccacc gagaccccat
     3781 tggggccaat acgcccgcgt ttcttccttt tccccacccc accccccaag ttcgggtgaa
     3841 ggcccagggc tcgcagccaa cgtcggggcg gcaggccctg ccatagcctc aggttactca
     3901 tatatacttt agattgattt aaaacttcat ttttaattta aaaggatcta ggtgaagatc
     3961 ctttttgata atctcatgac caaaatccct taacgtgagt tttcgttcca ctgagcgtca
     4021 gaccccgtag aaaagatcaa aggatcttct tgagatcctt tttttctgcg cgtaatctgc
     4081 tgcttgcaaa caaaaaaacc accgctacca gcggtggttt gtttgccgga tcaagagcta
     4141 ccaactcttt ttccgaaggt aactggcttc agcagagcgc agataccaaa tactgtcctt
     4201 ctagtgtagc cgtagttagg ccaccacttc aagaactctg tagcaccgcc tacatacctc
     4261 gctctgctaa tcctgttacc agtggctgct gccagtggcg ataagtcgtg tcttaccggg
     4321 ttggactcaa gacgatagtt accggataag gcgcagcggt cgggctgaac ggggggttcg
     4381 tgcacacagc ccagcttgga gcgaacgacc tacaccgaac tgagatacct acagcgtgag
     4441 ctatgagaaa gcgccacgct tcccgaaggg agaaaggcgg acaggtatcc ggtaagcggc
     4501 agggtcggaa caggagagcg cacgagggag cttccagggg gaaacgcctg gtatctttat
     4561 agtcctgtcg ggtttcgcca cctctgactt gagcgtcgat ttttgtgatg ctcgtcaggg
     4621 gggcggagcc tatggaaaaa cgccagcaac gcggcctttt tacggttcct ggccttttgc
     4681 tggccttttg ctcacatgtt ctttcctgcg ttatcccctg attctgtgga taaccgtatt
     4741 accgccatgc at
//
