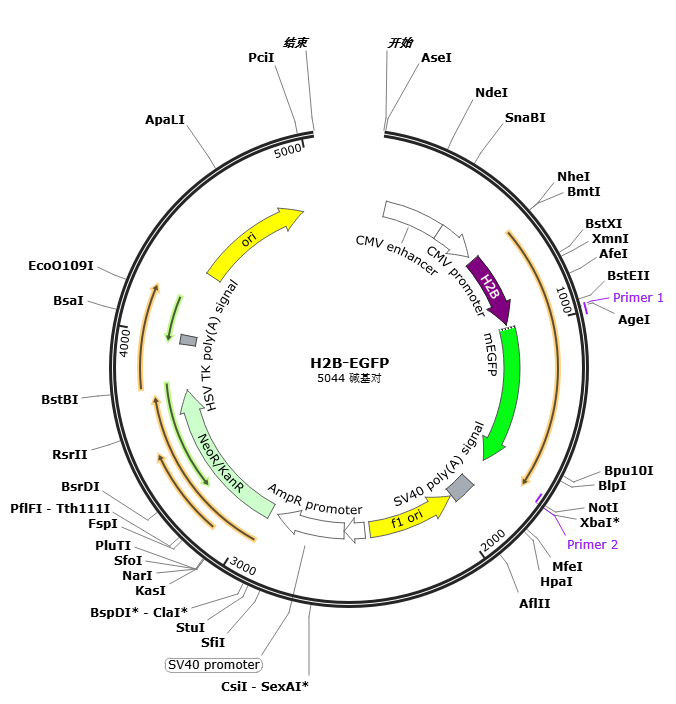

pH2B-mEGFP

LOCUS       pH2B-mEGFP               5044 bp DNA     circular SYN 19-AUG-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5044)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 10, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5044
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             597..974
                     /codon_start=1
                     /label=H2B
                     /translation="MPEPAKSAPAPKKGSKKAVTKAQKKDGKKRKRSRKESYSIYVYKV
                     LKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLP
                     GELAKHAVSEGTKAVTKYTSSK"
     primer_bind     972..1007
                     /label=Primer 1
     primer_bind     975..1010
                     /label=0830-CYT-EGFP-F
     CDS             990..1706
                     /codon_start=1
                     /product="monomeric enhanced GFP"
                     /label=mEGFP
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(1686..1723)
                     /label=Primer 2
     primer_bind     complement(1687..1738)
                     /label=0830-CYT-EGFP-R
     polyA_signal    1832..1953
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1960..2415)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2442..2546
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2548..2905
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2756..2891
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2940..3734
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3966..4013
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4342..4930
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcatgc
      601 ctgaaccggc aaaatccgct ccggccccta aaaagggctc caagaaagcc gtcaccaaag
      661 cccagaagaa agacggcaag aagcgcaagc gcagccgcaa agagagctac tccatctacg
      721 tgtacaaggt gctgaagcag gtccaccccg acaccggcat ctcgtccaag gccatgggca
      781 tcatgaactc cttcgtcaac gacatcttcg agcgcatcgc gggagaggct tcccgcctgg
      841 cgcactacaa caagcgctcc accatcacat cccgcgagat ccagacggcc gtgcgcctgc
      901 tgctgcccgg cgagctggcc aagcacgccg tgtccgaggg caccaaggcg gtcaccaagt
      961 acaccagctc caagccaccg gtcgccacca tggtgagcaa gggcgaggag ctgttcaccg
     1021 gggtggtgcc catcctggtc gagctggacg gcgacgtaaa cggccacaag ttcagcgtgt
     1081 ccggcgaggg cgagggcgat gccacctacg gcaagctgac cctgaagttc atctgcacca
     1141 ccggcaagct gcccgtgccc tggcccaccc tcgtgaccac cctgacctac ggcgtgcagt
     1201 gcttcagccg ctaccccgac cacatgaagc agcacgactt cttcaagtcc gccatgcccg
     1261 aaggctacgt ccaggagcgc accatcttct tcaaggacga cggcaactac aagacccgcg
     1321 ccgaggtgaa gttcgagggc gacaccctgg tgaaccgcat cgagctgaag ggcatcgact
     1381 tcaaggagga cggcaacatc ctggggcaca agctggagta caactacaac agccacaacg
     1441 tctatatcat ggccgacaag cagaagaacg gcatcaaggt gaacttcaag atccgccaca
     1501 acatcgagga cggcagcgtg cagctcgccg accactacca gcagaacacc cccatcggcg
     1561 acggccccgt gctgctgccc gacaaccact acctgagcac ccagtccaag ctgagcaaag
     1621 accccaacga gaagcgcgat cacatggtcc tgctggagtt cgtgaccgcc gccgggatca
     1681 ctctcggcat ggacgagctg tacaagtaaa gcggccgcga ctctagatca taatcagcca
     1741 taccacattt gtagaggttt tacttgcttt aaaaaacctc ccacacctcc ccctgaacct
     1801 gaaacataaa atgaatgcaa ttgttgttgt taacttgttt attgcagctt ataatggtta
     1861 caaataaagc aatagcatca caaatttcac aaataaagca tttttttcac tgcattctag
     1921 ttgtggtttg tccaaactca tcaatgtatc ttaaggcgta aattgtaagc gttaatattt
     1981 tgttaaaatt cgcgttaaat ttttgttaaa tcagctcatt ttttaaccaa taggccgaaa
     2041 tcggcaaaat cccttataaa tcaaaagaat agaccgagat agggttgagt gttgttccag
     2101 tttggaacaa gagtccacta ttaaagaacg tggactccaa cgtcaaaggg cgaaaaaccg
     2161 tctatcaggg cgatggccca ctacgtgaac catcacccta atcaagtttt ttggggtcga
     2221 ggtgccgtaa agcactaaat cggaacccta aagggagccc ccgatttaga gcttgacggg
     2281 gaaagccggc gaacgtggcg agaaaggaag ggaagaaagc gaaaggagcg ggcgctaggg
     2341 cgctggcaag tgtagcggtc acgctgcgcg taaccaccac acccgccgcg cttaatgcgc
     2401 cgctacaggg cgcgtcaggt ggcacttttc ggggaaatgt gcgcggaacc cctatttgtt
     2461 tatttttcta aatacattca aatatgtatc cgctcatgag acaataaccc tgataaatgc
     2521 ttcaataata ttgaaaaagg aagagtcctg aggcggaaag aaccagctgt ggaatgtgtg
     2581 tcagttaggg tgtggaaagt ccccaggctc cccagcaggc agaagtatgc aaagcatgca
     2641 tctcaattag tcagcaacca ggtgtggaaa gtccccaggc tccccagcag gcagaagtat
     2701 gcaaagcatg catctcaatt agtcagcaac catagtcccg cccctaactc cgcccatccc
     2761 gcccctaact ccgcccagtt ccgcccattc tccgccccat ggctgactaa ttttttttat
     2821 ttatgcagag gccgaggccg cctcggcctc tgagctattc cagaagtagt gaggaggctt
     2881 ttttggaggc ctaggctttt gcaaagatcg atcaagagac aggatgagga tcgtttcgca
     2941 tgattgaaca agatggattg cacgcaggtt ctccggccgc ttgggtggag aggctattcg
     3001 gctatgactg ggcacaacag acaatcggct gctctgatgc cgccgtgttc cggctgtcag
     3061 cgcaggggcg cccggttctt tttgtcaaga ccgacctgtc cggtgccctg aatgaactgc
     3121 aagacgaggc agcgcggcta tcgtggctgg ccacgacggg cgttccttgc gcagctgtgc
     3181 tcgacgttgt cactgaagcg ggaagggact ggctgctatt gggcgaagtg ccggggcagg
     3241 atctcctgtc atctcacctt gctcctgccg agaaagtatc catcatggct gatgcaatgc
     3301 ggcggctgca tacgcttgat ccggctacct gcccattcga ccaccaagcg aaacatcgca
     3361 tcgagcgagc acgtactcgg atggaagccg gtcttgtcga tcaggatgat ctggacgaag
     3421 agcatcaggg gctcgcgcca gccgaactgt tcgccaggct caaggcgagc atgcccgacg
     3481 gcgaggatct cgtcgtgacc catggcgatg cctgcttgcc gaatatcatg gtggaaaatg
     3541 gccgcttttc tggattcatc gactgtggcc ggctgggtgt ggcggaccgc tatcaggaca
     3601 tagcgttggc tacccgtgat attgctgaag agcttggcgg cgaatgggct gaccgcttcc
     3661 tcgtgcttta cggtatcgcc gctcccgatt cgcagcgcat cgccttctat cgccttcttg
     3721 acgagttctt ctgagcggga ctctggggtt cgaaatgacc gaccaagcga cgcccaacct
     3781 gccatcacga gatttcgatt ccaccgccgc cttctatgaa aggttgggct tcggaatcgt
     3841 tttccgggac gccggctgga tgatcctcca gcgcggggat ctcatgctgg agttcttcgc
     3901 ccaccctagg gggaggctaa ctgaaacacg gaaggagaca ataccggaag gaacccgcgc
     3961 tatgacggca ataaaaagac agaataaaac gcacggtgtt gggtcgtttg ttcataaacg
     4021 cggggttcgg tcccagggct ggcactctgt cgatacccca ccgagacccc attggggcca
     4081 atacgcccgc gtttcttcct tttccccacc ccacccccca agttcgggtg aaggcccagg
     4141 gctcgcagcc aacgtcgggg cggcaggccc tgccatagcc tcaggttact catatatact
     4201 ttagattgat ttaaaacttc atttttaatt taaaaggatc taggtgaaga tcctttttga
     4261 taatctcatg accaaaatcc cttaacgtga gttttcgttc cactgagcgt cagaccccgt
     4321 agaaaagatc aaaggatctt cttgagatcc tttttttctg cgcgtaatct gctgcttgca
     4381 aacaaaaaaa ccaccgctac cagcggtggt ttgtttgccg gatcaagagc taccaactct
     4441 ttttccgaag gtaactggct tcagcagagc gcagatacca aatactgtcc ttctagtgta
     4501 gccgtagtta ggccaccact tcaagaactc tgtagcaccg cctacatacc tcgctctgct
     4561 aatcctgtta ccagtggctg ctgccagtgg cgataagtcg tgtcttaccg ggttggactc
     4621 aagacgatag ttaccggata aggcgcagcg gtcgggctga acggggggtt cgtgcacaca
     4681 gcccagcttg gagcgaacga cctacaccga actgagatac ctacagcgtg agctatgaga
     4741 aagcgccacg cttcccgaag ggagaaaggc ggacaggtat ccggtaagcg gcagggtcgg
     4801 aacaggagag cgcacgaggg agcttccagg gggaaacgcc tggtatcttt atagtcctgt
     4861 cgggtttcgc cacctctgac ttgagcgtcg atttttgtga tgctcgtcag gggggcggag
     4921 cctatggaaa aacgccagca acgcggcctt tttacggttc ctggcctttt gctggccttt
     4981 tgctcacatg ttctttcctg cgttatcccc tgattctgtg gataaccgta ttaccgccat
     5041 gcat
//
