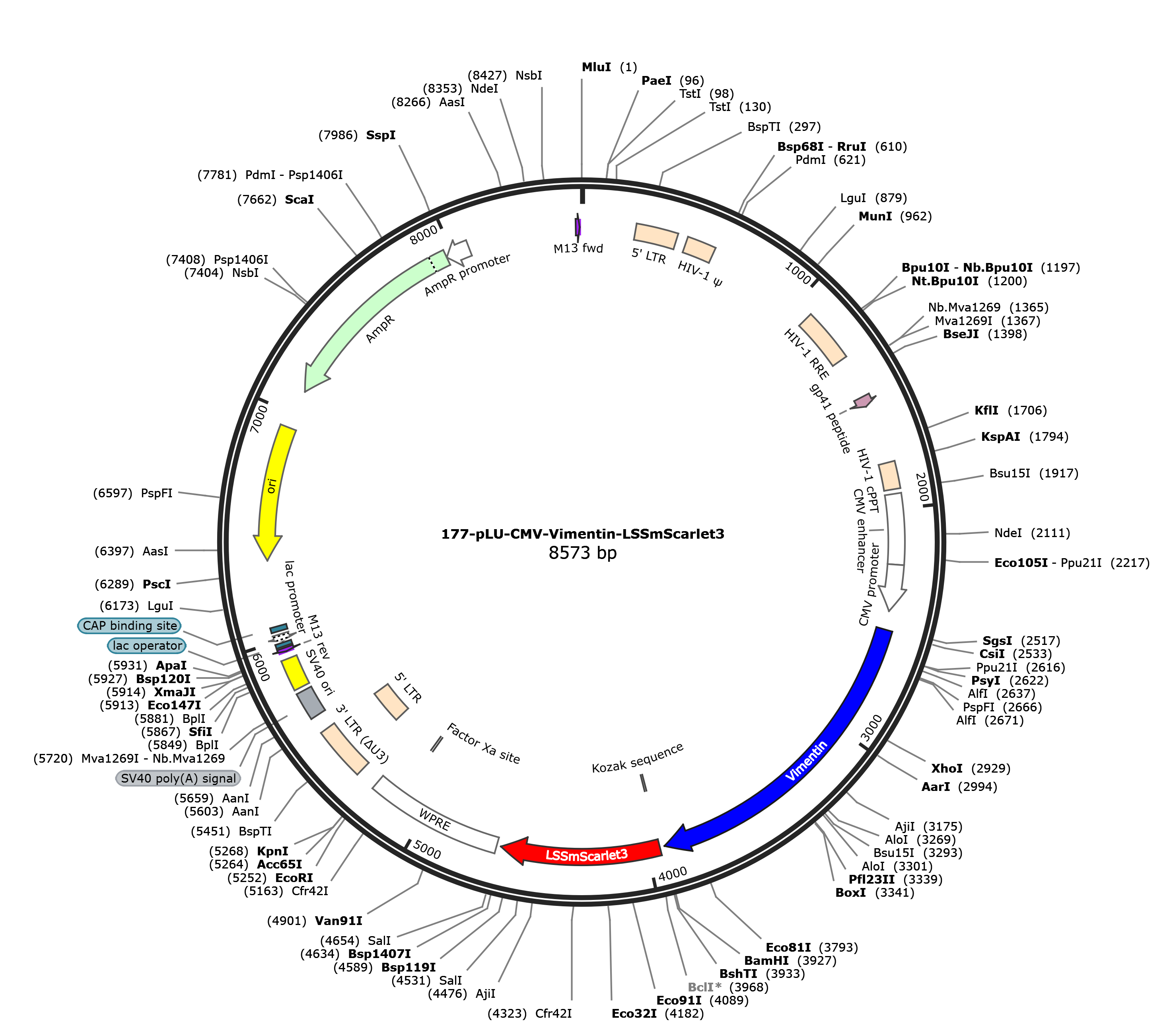

pLU-CMV-vimentin-LSSmScarlet3

LOCUS      pLU-CMV-vimentin-LSSmScarlet3              8573 bp DNA     circular SYN 09-DEC-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8573)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jun 29, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8573
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=HIV-1 RRE
                     /note="The Rev response element (RRE) of human
                     immunodeficiency virus type 1 allows for Rev-dependent mRNA
                     export from the nucleus to the cytoplasm."
     CDS             1493..1537
                     /codon_start=1
                     /product="antigenic peptide corresponding to amino acids
                     655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik
                     et al., 2013)"
                     /label=gp41 peptide
                     /note="recognized by the 2H10 single-chain llama nanobody"
                     /translation="KNEQELLELDKWASL"
     misc_feature    1798..1915
                     /label=HIV-1 cPPT
                     /note="central polypurine tract from pol gene of human
                     immunodeficiency virus type 1"
     enhancer        1936..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             2527..3924
                     /codon_start=1
                     /label=Vimentin
                     /translation="MSTRSVSSSSYRRMFGGPGTASRPSSSRSYVTTSTRTYSLGSALR
                     PSTSRSLYASSPGGVYATRSSAVRLRSSVPGVRLLQDSVDFSLADAINTEFKNTRTNEK
                     VELQELNDRFANYIDKVRFLEQQNKILLAELEQLKGQGKSRLGDLYEEEMRELRRQVDQ
                     LTNDKARVEVERDNLAEDIMRLREKLQEEMLQREEAENTLQSFRQDVDNASLARLDLER
                     KVESLQEEIAFLKKLHEEEIQELQAQIQEQHVQIDVDVSKPDLTAALRDVRQQYESVAA
                     KNLQEAEEWYKSKFADLSEAANRNNDALRQAKQESTEYRRQVQSLTCEVDALKGTNESL
                     ERQMREMEENFAVEAANYQDTIGRLQDEIQNMKEEMARHLREYQDLLNVKMALDIEIAT
                     YRKLLEGEESRISLPLPNFSSLNLRETNLDSLPLVDTHSKRTLLIKTVETRDGQVINET
                     SQHHDDLE"
     primer_bind     3039..3058
                     /label=Vimentin-F
     regulatory      3940..3949
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             3946..4641
                     /codon_start=1
                     /label=LSSmScarlet3
                     /translation="MVSKGEAVIKEFMRFKVHMEGSMNGHEFEIEGEGEGRPYEGTQTA
                     KLKVTKGGPLPFSWDILSPQFMYGSRAFTKHPADIPDYHKQSFPEGFKWERVMNFEDGG
                     AVTVTQDTSLEDGTLIYEVKLRGTNFPPDGPVMQKKTMGLEADTERLYPEDGVLKGDIK
                     MALRLKDGGRYLAHVRTTYKAKKPVLMPGAYNVDRKLDITSHNEDYTVVEQFERSEGRH
                     STGDMDELYK"
     misc_feature    4660..5248
                     /label=WPRE
                     /note="woodchuck posttranscriptional regulatory element"
     CDS             complement(5131..5142)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5335..5568
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     LTR             5388..5568
                     /label=5' LTR
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     polyA_signal    5640..5761
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5780..5915
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5948..5964)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5972..5988
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5996..6026)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6041..6062
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6350..6938)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number colE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7109..7969)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7970..8074)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     8548..8564
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccgctga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 taagcttggg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctcgttt agtgaaccgt
     2461 cagatcgcct ggagacgcca tccacgctgt tttgacctcc atagaagaca ccgacggcgc
     2521 gccaccatgt ccaccaggtc cgtgtcctcg tcctcctacc gcaggatgtt cggcggcccg
     2581 ggcaccgcga gccggccgag ctccagccgg agctacgtga ctacgtccac ccgcacctac
     2641 agcctgggca gcgcgctgcg ccccagcacc agccgcagcc tctacgcctc gtccccgggc
     2701 ggcgtgtatg ccacgcgctc ctctgccgtg cgcctgcgga gcagcgtgcc cggggtgcgg
     2761 ctcctgcagg actcggtgga cttctcgctg gccgacgcca tcaacaccga gttcaagaac
     2821 acccgcacca acgagaaggt ggagctgcag gagctgaatg accgcttcgc caactacatc
     2881 gacaaggtgc gcttcctgga gcagcagaat aagatcctgc tggccgagct cgagcagctc
     2941 aagggccaag gcaagtcgcg cctgggggac ctctacgagg aggagatgcg ggagctgcgc
     3001 cggcaggtgg accagctaac caacgacaaa gcccgcgtcg aggtggagcg cgacaacctg
     3061 gccgaggaca tcatgcgcct ccgggagaaa ttgcaggagg agatgcttca gagagaggaa
     3121 gccgaaaaca ccctgcaatc tttcagacag gatgttgaca atgcgtctct ggcacgtctt
     3181 gaccttgaac gcaaagtgga atctttgcaa gaagagattg cctttttgaa gaaactccac
     3241 gaagaggaaa tccaggagct gcaggctcag attcaggaac agcatgtcca aatcgatgtg
     3301 gatgtttcca agcctgacct cacggctgcc ctgcgtgacg tacgtcagca atatgaaagt
     3361 gtggctgcca agaacctgca ggaggcagaa gaatggtaca aatccaagtt tgctgacctc
     3421 tctgaggctg ccaaccggaa caatgacgcc ctgcgccagg caaagcagga gtccactgag
     3481 taccggagac aggtgcagtc cctcacctgt gaagtggatg cccttaaagg aaccaatgag
     3541 tccctggaac gccagatgcg tgaaatggaa gagaactttg ccgttgaagc tgctaactac
     3601 caagacacta ttggccgcct gcaggatgag attcagaata tgaaggagga aatggctcgt
     3661 caccttcgtg aataccaaga cctgctcaat gttaagatgg cccttgacat tgagattgcc
     3721 acctacagga agctgctgga aggcgaggag agcaggattt ctctgcctct tccaaacttt
     3781 tcctccctga acctgaggga aactaatctg gattcactcc ctctggttga tacccactca
     3841 aaaaggacac ttctgattaa gacggttgaa actagagatg gacaggttat caacgaaact
     3901 tctcagcatc acgatgacct tgaaggggat ccaccggtcg ccaccatggt gagcaagggc
     3961 gaggcagtga tcaaggagtt catgcggttc aaggtgcaca tggagggctc catgaacggc
     4021 cacgagttcg agatcgaggg cgagggcgag ggccgcccct acgagggcac ccagaccgcc
     4081 aagctgaagg tgaccaaggg tggtccactg cccttctcct gggacatcct gtcccctcag
     4141 ttcatgtacg gctccagggc cttcaccaag caccccgccg atatccccga ctaccataag
     4201 cagtccttcc ccgagggctt caagtgggag cgcgtgatga acttcgagga cggcggcgcc
     4261 gtgaccgtga cccaggacac ctccctggag gacggcaccc tgatctacga ggtgaagctc
     4321 cgcggcacca acttccctcc tgacggcccc gtaatgcaga agaagactat gggcttggaa
     4381 gcggacaccg agcggttgta ccccgaggac ggcgtgctga agggcgacat taagatggcc
     4441 ctgcgcctga aggacggcgg ccgctacctg gcacacgtca ggaccaccta caaggccaag
     4501 aagcccgtgt tgatgcccgg cgcctacaac gtcgaccgca agttggacat cacctcccac
     4561 aacgaggact acaccgtggt ggaacagttc gaacgctccg agggccgcca ctccaccggc
     4621 gacatggacg agctgtacaa gtaaagcggc cgcgtcgaca atcaacctct ggattacaaa
     4681 atttgtgaaa gattgactgg tattcttaac tatgttgctc cttttacgct atgtggatac
     4741 gctgctttaa tgcctttgta tcatgctatt gcttcccgta tggctttcat tttctcctcc
     4801 ttgtataaat cctggttgct gtctctttat gaggagttgt ggcccgttgt caggcaacgt
     4861 ggcgtggtgt gcactgtgtt tgctgacgca acccccactg gttggggcat tgccaccacc
     4921 tgtcagctcc tttccgggac tttcgctttc cccctcccta ttgccacggc ggaactcatc
     4981 gccgcctgcc ttgcccgctg ctggacaggg gctcggctgt tgggcactga caattccgtg
     5041 gtgttgtcgg ggaagctgac gtcctttcca tggctgctcg cctgtgttgc cacctggatt
     5101 ctgcgcggga cgtccttctg ctacgtccct tcggccctca atccagcgga ccttccttcc
     5161 cgcggcctgc tgccggctct gcggcctctt ccgcgtcttc gccttcgccc tcagacgagt
     5221 cggatctccc tttgggccgc ctccccgcct ggaattcgag ctcggtacct ttaagaccaa
     5281 tgacttacaa ggcagctgta gatcttagcc actttttaaa agaaaagggg ggactggaag
     5341 ggctaattca ctcccaacga agacaagatc tgctttttgc ttgtactggg tctctctggt
     5401 tagaccagat ctgagcctgg gagctctctg gctaactagg gaacccactg cttaagcctc
     5461 aataaagctt gccttgagtg cttcaagtag tgtgtgcccg tctgttgtgt gactctggta
     5521 actagagatc cctcagaccc ttttagtcag tgtggaaaat ctctagcagt agtagttcat
     5581 gtcatcttat tattcagtat ttataacttg caaagaaatg aatatcagag agtgagagga
     5641 acttgtttat tgcagcttat aatggttaca aataaagcaa tagcatcaca aatttcacaa
     5701 ataaagcatt tttttcactg cattctagtt gtggtttgtc caaactcatc aatgtatctt
     5761 atcatgtctg gctctagcta tcccgcccct aactccgccc agttccgccc attctccgcc
     5821 ccatggctga ctaatttttt ttatttatgc agaggccgag gccgcctcgg cctctgagct
     5881 attccagaag tagtgaggag gcttttttgg aggcctaggc ttttgcgggc ccaaattcgt
     5941 aatcatggtc atagctgttt cctgtgtgaa attgttatcc gctcacaatt ccacacaaca
     6001 tacgagccgg aagcataaag tgtaaagcct ggggtgccta atgagtgagc taactcacat
     6061 taattgcgtt gcgctcactg cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt
     6121 aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat tgggcgctct tccgcttcct
     6181 cgctcactga ctcgctgcgc tcggtcgttc ggctgcggcg agcggtatca gctcactcaa
     6241 aggcggtaat acggttatcc acagaatcag gggataacgc aggaaagaac atgtgagcaa
     6301 aaggccagca aaaggccagg aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc
     6361 tccgcccccc tgacgagcat cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga
     6421 caggactata aagataccag gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc
     6481 cgaccctgcc gcttaccgga tacctgtccg cctttctccc ttcgggaagc gtggcgcttt
     6541 ctcatagctc acgctgtagg tatctcagtt cggtgtaggt cgttcgctcc aagctgggct
     6601 gtgtgcacga accccccgtt cagcccgacc gctgcgcctt atccggtaac tatcgtcttg
     6661 agtccaaccc ggtaagacac gacttatcgc cactggcagc agccactggt aacaggatta
     6721 gcagagcgag gtatgtaggc ggtgctacag agttcttgaa gtggtggcct aactacggct
     6781 acactagaag gacagtattt ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa
     6841 gagttggtag ctcttgatcc ggcaaacaaa ccaccgctgg tagcggtggt ttttttgttt
     6901 gcaagcagca gattacgcgc agaaaaaaag gatctcaaga agatcctttg atcttttcta
     6961 cggggtctga cgctcagtgg aacgaaaact cacgttaagg gattttggtc atgagattat
     7021 caaaaaggat cttcacctag atccttttaa attaaaaatg aagttttaaa tcaatctaaa
     7081 gtatatatga gtaaacttgg tctgacagtt accaatgctt aatcagtgag gcacctatct
     7141 cagcgatctg tctatttcgt tcatccatag ttgcctgact ccccgtcgtg tagataacta
     7201 cgatacggga gggcttacca tctggcccca gtgctgcaat gataccgcga gacccacgct
     7261 caccggctcc agatttatca gcaataaacc agccagccgg aagggccgag cgcagaagtg
     7321 gtcctgcaac tttatccgcc tccatccagt ctattaattg ttgccgggaa gctagagtaa
     7381 gtagttcgcc agttaatagt ttgcgcaacg ttgttgccat tgctacaggc atcgtggtgt
     7441 cacgctcgtc gtttggtatg gcttcattca gctccggttc ccaacgatca aggcgagtta
     7501 catgatcccc catgttgtgc aaaaaagcgg ttagctcctt cggtcctccg atcgttgtca
     7561 gaagtaagtt ggccgcagtg ttatcactca tggttatggc agcactgcat aattctctta
     7621 ctgtcatgcc atccgtaaga tgcttttctg tgactggtga gtactcaacc aagtcattct
     7681 gagaatagtg tatgcggcga ccgagttgct cttgcccggc gtcaatacgg gataataccg
     7741 cgccacatag cagaacttta aaagtgctca tcattggaaa acgttcttcg gggcgaaaac
     7801 tctcaaggat cttaccgctg ttgagatcca gttcgatgta acccactcgt gcacccaact
     7861 gatcttcagc atcttttact ttcaccagcg tttctgggtg agcaaaaaca ggaaggcaaa
     7921 atgccgcaaa aaagggaata agggcgacac ggaaatgttg aatactcata ctcttccttt
     7981 ttcaatatta ttgaagcatt tatcagggtt attgtctcat gagcggatac atatttgaat
     8041 gtatttagaa aaataaacaa ataggggttc cgcgcacatt tccccgaaaa gtgccacctg
     8101 acgtctaaga aaccattatt atcatgacat taacctataa aaataggcgt atcacgaggc
     8161 cctttcgtct cgcgcgtttc ggtgatgacg gtgaaaacct ctgacacatg cagctcccgg
     8221 agacggtcac agcttgtctg taagcggatg ccgggagcag acaagcccgt cagggcgcgt
     8281 cagcgggtgt tggcgggtgt cggggctggc ttaactatgc ggcatcagag cagattgtac
     8341 tgagagtgca ccatatgcgg tgtgaaatac cgcacagatg cgtaaggaga aaataccgca
     8401 tcaggcgcca ttcgccattc aggctgcgca actgttggga agggcgatcg gtgcgggcct
     8461 cttcgctatt acgccagctg gcgaaagggg gatgtgctgc aaggcgatta agttgggtaa
     8521 cgccagggtt ttcccagtca cgacgttgta aaacgacggc cagtgccaag ctg
//
