| 质粒名称: | pAAV-CMV-MCS-noATG-GFP |
|---|---|
| 出品公司: | Wekwikgene |
| 目录编号: | 0001188 |
| 产品用途: | backbone |
| 存储实验室: | Yuxuan Guo Lab |
|
载体骨架基本信息 |
|
| 载体名称: | pAAV |
| 表达系统: | 哺乳动物表达 |
| 启动子: | CMV |
| 拷贝数: | 未拷贝 |
| 载体抗性: | 氨苄霉素 |
| 生长温度: | 37 ℃ |
| 宿主菌: | NEB Stable |
|
插入基因信息 |
|
| 插入基因名称: | none |
| 物种来源: | MUS |
| 密码子优化: | 未优化 |
|
文献引用方法 |
|
| 参考文献部分: |
Neural Organoids Protect Engineered Heart Tissues From Glucolipotoxicity by Transferring Versican in a Co-Culture System.
Bai B., Li J., Wang Z., Yang Y., He J., Chen G., Zhang Y., Qi Y., Wan Z., Cai L., Wang R., Wang K., Zhao D., Zhang J., Huang W., Xu X.R., Sun M., Han X., Liu Y., Zhang D., Zhu W., Liu J., Guo Y.
Cell Prolif. 0, e70070 (2025)
|
pAAV-CMV-MCS-noATG-GFP
价格：元
规格： 2ug质粒（仅用于转化提取） 转染级去内毒素液体即用质粒100μg 转染级去内毒素液体即用质粒500μg 转染级去内毒素液体即用质粒1mg 更大规格-质粒构建-质粒定制-请联系我们
联系方式：I47-825O-882O
买家导航
pAAV-CMV-MCS-noATG-GFP载体质粒基本信息

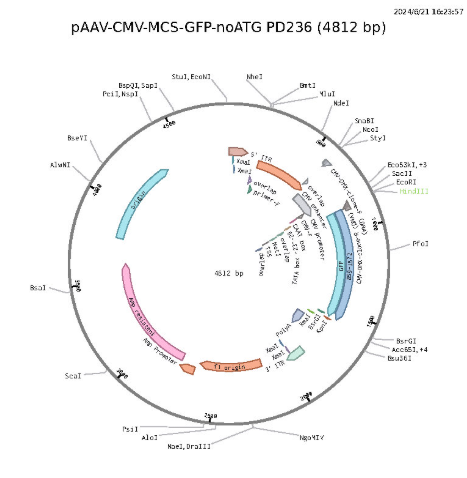

pAAV-CMV-MCS-noATG-GFP质粒图谱载体图谱和pAAV-CMV-MCS-noATG-GFP载体序列质粒序列多克隆位点信息
pAAV-CMV-MCS-noATG-GFP质粒载体简介
pAAV-CMV-MCS-noATG-GFP质粒序列载体序列
LOCUS pAAV-CMV-MCS-noATG-GFP circular 21-JUN-2024
DEFINITION .
COMMENT ^^
FEATURES Location/Qualifiers
misc_feature 1..130
/label="5' ITR"
/ApEinfo_revcolor="#d59687"
/ApEinfo_fwdcolor="#d59687"
misc_feature 29..34
/label="XmaI"
/ApEinfo_revcolor="#85dae9"
/ApEinfo_fwdcolor="#85dae9"
misc_feature 40..45
/label="XmaI"
/ApEinfo_revcolor="#84b0dc"
/ApEinfo_fwdcolor="#84b0dc"
misc_feature 179..201
/label="overlap"
/ApEinfo_revcolor="#c7b0e3"
/ApEinfo_fwdcolor="#c7b0e3"
misc_feature 202..225
/label="primer-F"
/ApEinfo_revcolor="#75c6a9"
/ApEinfo_fwdcolor="#75c6a9"
enhancer 217..596
/label="CMV enhancer"
/ApEinfo_revcolor="#f58a5e"
/ApEinfo_fwdcolor="#f58a5e"
misc_feature 573..592
/label="overlap"
/ApEinfo_revcolor="#c6c9d1"
/ApEinfo_fwdcolor="#c6c9d1"
primer 573..617
/label="CMV-DMX-clone-F"
/note="sequence: gtattagtcatcgctattaccatggtgatgcggttttggcagtac"
/ApEinfo_revcolor="#c6c9d1"
/ApEinfo_fwdcolor="#c6c9d1"
promoter 597..800
/label="CMV promoter"
/ApEinfo_revcolor="#c6c9d1"
/ApEinfo_fwdcolor="#c6c9d1"
primer_bind 751..771
/label="CMV-F"
/ApEinfo_revcolor="#b4abac"
/ApEinfo_fwdcolor="#b4abac"
misc_feature 753..757
/label="CAAT box"
/ApEinfo_revcolor="#ff9ccd"
/ApEinfo_fwdcolor="#ff9ccd"
misc_feature 786..792
/label="TATA box -23~-29"
/ApEinfo_revcolor="#f8d3a9"
/ApEinfo_fwdcolor="#f8d3a9"
misc_feature 801..814
/label="overlap"
/ApEinfo_revcolor="#b7e6d7"
/ApEinfo_fwdcolor="#b7e6d7"
misc_feature 810..817
/label="NotI"
/ApEinfo_revcolor="#b7e6d7"
/ApEinfo_fwdcolor="#b7e6d7"
misc_feature 815..815
/label="TSS"
/ApEinfo_revcolor="#b4abac"
/ApEinfo_fwdcolor="#b4abac"
primer complement(828..878)
/label="CMV-DMX-clone-R"
/note="sequence: AGCTCCTCGCCCTTGCTCACAAGCTTGAATTCGTGAAactagtagtagtcc"
/ApEinfo_revcolor="#b4abac"
/ApEinfo_fwdcolor="#b4abac"
misc_feature 859..878
/label="overlap"
/ApEinfo_revcolor="#9eafd2"
/ApEinfo_fwdcolor="#9eafd2"
CDS 859..1572
/label="GFP"
/ApEinfo_revcolor="#85dae9"
/ApEinfo_fwdcolor="#85dae9"
CDS 859..1572
/label="Translation 859-1572"
/translation="VSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLEFVTAAGITLGMDELYK"
misc_feature 1565..1570
/label="BsrGI"
/ApEinfo_revcolor="#75c6a9"
/ApEinfo_fwdcolor="#75c6a9"
misc_feature 1587..1592
/label="KpnI"
/ApEinfo_revcolor="#f58a5e"
/ApEinfo_fwdcolor="#f58a5e"
misc_feature 1604..1609
/label="XmaI"
/ApEinfo_revcolor="#b1ff67"
/ApEinfo_fwdcolor="#b1ff67"
terminator 1647..1773
/label="PolyA"
/ApEinfo_revcolor="#9eafd2"
/ApEinfo_fwdcolor="#9eafd2"
misc_feature 1862..1991
/label="3' ITR"
/ApEinfo_revcolor="#b7e6d7"
/ApEinfo_fwdcolor="#b7e6d7"
misc_feature 1947..1952
/label="XmaI"
/ApEinfo_revcolor="#c7b0e3"
/ApEinfo_fwdcolor="#c7b0e3"
misc_feature 1958..1963
/label="XmaI"
/ApEinfo_revcolor="#84b0dc"
/ApEinfo_fwdcolor="#84b0dc"
rep_origin 2168..2623
/label="f1 origin"
/ApEinfo_revcolor="#f58a5e"
/ApEinfo_fwdcolor="#f58a5e"
misc_feature 2649..2753
/label="Amp Promoter"
/ApEinfo_revcolor="#f58a5e"
/ApEinfo_fwdcolor="#f58a5e"
misc_feature 2754..3611
/label="Amp resistent"
/ApEinfo_revcolor="#ff9ccd"
/ApEinfo_fwdcolor="#ff9ccd"
rep_origin 3785..4373
/label="origin"
/ApEinfo_revcolor="#85dae9"
/ApEinfo_fwdcolor="#85dae9"
ORIGIN
1 CTGCGCGCTC GCTCGCTCAC TGAGGCCGCC CGGGCAAAGC CCGGGCGTCG GGCGACCTTT
61 GGTCGCCCGG CCTCAGTGAG CGAGCGAGCG CGCAGAGAGG GAGTGGCCAA CTCCATCACT
121 AGGGGTTCCT TGTAGTTAAT GATTAACCCG CCATGCTACT TATCTACCAG GGTAATGGGG
181 ATCCTCTAGA ACTATAGCTA Gccagatata cgcgttgaca ttgattattg actagttatt
241 aatagtaatc aattacgggg tcattagttc atagcccata tatggagttc cgcgttacat
301 aacttacggt aaatggcccg cctggctgac cgcccaacga cccccgccca ttgacgtcaa
361 taatgacgta tgttcccata gtaacgccaa tagggacttt ccattgacgt caatgggtgg
421 agtatttacg gtaaactgcc cacttggcag tacatcaagt gtatcatatg ccaagtacgc
481 cccctattga cgtcaatgac ggtaaatggc ccgcctggca ttatgcccag tacatgacct
541 tatgggactt tcctacttgg cagtacatct acgtattagt catcgctatt accatggtga
601 tgcggttttg gcagtacatc aatgggcgtg gatagcggtt tgactcacgg ggatttccaa
661 gtctccaccc cattgacgtc aatgggagtt tgttttggca ccaaaatcaa cgggactttc
721 caaaatgtcg taacaactcc gccccattga cgcaaatggg cggtaggcgt gtacggtggg
781 aggtctatat aagcagagct CCTCGAGAAG cggccgcact actccgcgga ctactactag
841 tTTCACGAAT TCAAGCTTGT GAGCAAGGGC GAGGAGCTGT TCACCGGGGT GGTGCCCATC
901 CTGGTCGAGC TGGACGGCGA CGTAAACGGC CACAAGTTCA GCGTGTCCGG CGAGGGCGAG
961 GGCGATGCCA CCTACGGCAA GCTGACCCTG AAGTTCATCT GCACCACCGG CAAGCTGCCC
1021 GTGCCCTGGC CCACCCTCGT GACCACCCTG ACCTACGGCG TGCAGTGCTT CAGCCGCTAC
1081 CCCGACCACA TGAAGCAGCA CGACTTCTTC AAGTCCGCCA TGCCCGAAGG CTACGTCCAG
1141 GAGCGCACCA TCTTCTTCAA GGACGACGGC AACTACAAGA CCCGCGCCGA GGTGAAGTTC
1201 GAGGGCGACA CCCTGGTGAA CCGCATCGAG CTGAAGGGCA TCGACTTCAA GGAGGACGGC
1261 AACATCCTGG GGCACAAGCT GGAGTACAAC TACAACAGCC ACAACGTCTA TATCATGGCC
1321 GACAAGCAGA AGAACGGCAT CAAGGTGAAC TTCAAGATCC GCCACAACAT CGAGGACGGC
1381 AGCGTGCAGC TCGCCGACCA CTACCAGCAG AACACCCCCA TCGGCGACGG CCCCGTGCTG
1441 CTGCCCGACA ACCACTACCT GAGCACCCAG TCCGCCCTGA GCAAAGACCC CAACGAGAAG
1501 CGCGATCACA TGGTCCTGCT GGAGTTCGTG ACCGCCGCCG GGATCACTCT CGGCATGGAC
1561 GAGCTGTACA AGTAATAAGC TCGCGTGGTA CCTCTAGAGT CGACCCGGGC GGCCTCGAGG
1621 ACGGGGTGAA CTACGCCTGA GGATCCGATC TTTTTCCCTC TGCCAAAAAT TATGGGGACA
1681 TCATGAAGCC CCTTGAGCAT CTGACTTCTG GCTAATAAAG GAAATTTATT TTCATTGCAA
1741 TAGTGTGTTG GAATTTTTTG TGTCTCTCAC TCGGAAGCAA TTCGTTGATC TGAATTTCGA
1801 CCACCCATAA TACCCATTAC CCTGGTAGAT AAGTAGCATG GCGGGTTAAT CATTAACTAC
1861 AAGGAACCCC TAGTGATGGA GTTGGCCACT CCCTCTCTGC GCGCTCGCTC GCTCACTGAG
1921 GCCGGGCGAC CAAAGGTCGC CCGACGCCCG GGCTTTGCCC GGGCGGCCTC AGTGAGCGAG
1981 CGAGCGCGCA GCCTTAATTA ACCTAATTCA CTGGCCGTCG TTTTACAACG TCGTGACTGG
2041 GAAAACCCTG GCGTTACCCA ACTTAATCGC CTTGCAGCAC ATCCCCCTTT CGCCAGCTGG
2101 CGTAATAGCG AAGAGGCCCG CACCGATCGC CCTTCCCAAC AGTTGCGCAG CCTGAATGGC
2161 GAATGGGACG CGCCCTGTAG CGGCGCATTA AGCGCGGCGG GTGTGGTGGT TACGCGCAGC
2221 GTGACCGCTA CACTTGCCAG CGCCCTAGCG CCCGCTCCTT TCGCTTTCTT CCCTTCCTTT
2281 CTCGCCACGT TCGCCGGCTT TCCCCGTCAA GCTCTAAATC GGGGGCTCCC TTTAGGGTTC
2341 CGATTTAGTG CTTTACGGCA CCTCGACCCC AAAAAACTTG ATTAGGGTGA TGGTTCACGT
2401 AGTGGGCCAT CGCCCTGATA GACGGTTTTT CGCCCTTTGA CGTTGGAGTC CACGTTCTTT
2461 AATAGTGGAC TCTTGTTCCA AACTGGAACA ACACTCAACC CTATCTCGGT CTATTCTTTT
2521 GATTTATAAG GGATTTTGCC GATTTCGGCC TATTGGTTAA AAAATGAGCT GATTTAACAA
2581 AAATTTAACG CGAATTTTAA CAAAATATTA ACGCTTACAA TTTAGGTGGC ACTTTTCGGG
2641 GAAATGTGCG CGGAACCCCT ATTTGTTTAT TTTTCTAAAT ACATTCAAAT ATGTATCCGC
2701 TCATGAGACA ATAACCCTGA TAAATGCTTC AATAATATTG AAAAAGGAAG AGTATGAGTA
2761 TTCAACATTT CCGTGTCGCC CTTATTCCCT TTTTTGCGGC ATTTTGCCTT CCTGTTTTTG
2821 CTCACCCAGA AACGCTGGTG AAAGTAAAAG ATGCTGAAGA TCAGTTGGGT GCACGAGTGG
2881 GTTACATCGA ACTGGATCTC AACAGCGGTA AGATCCTTGA GAGTTTTCGC CCCGAAGAAC
2941 GTTTTCCAAT GATGAGCACT TTTAAAGTTC TGCTATGTGG CGCGGTATTA TCCCGTATTG
3001 ACGCCGGGCA AGAGCAACTC GGTCGCCGCA TACACTATTC TCAGAATGAC TTGGTTGAGT
3061 ACTCACCAGT CACAGAAAAG CATCTTACGG ATGGCATGAC AGTAAGAGAA TTATGCAGTG
3121 CTGCCATAAC CATGAGTGAT AACACTGCGG CCAACTTACT TCTGACAACG ATCGGAGGAC
3181 CGAAGGAGCT AACCGCTTTT TTGCACAACA TGGGGGATCA TGTAACTCGC CTTGATCGTT
3241 GGGAACCGGA GCTGAATGAA GCCATACCAA ACGACGAGCG TGACACCACG ATGCCTGTAG
3301 CAATGGCAAC AACGTTGCGC AAACTATTAA CTGGCGAACT ACTTACTCTA GCTTCCCGGC
3361 AACAATTAAT AGACTGGATG GAGGCGGATA AAGTTGCAGG ACCACTTCTG CGCTCGGCCC
3421 TTCCGGCTGG CTGGTTTATT GCTGATAAAT CTGGAGCCGG TGAGCGTGGG TCTCGCGGTA
3481 TCATTGCAGC ACTGGGGCCA GATGGTAAGC CCTCCCGTAT CGTAGTTATC TACACGACGG
3541 GGAGTCAGGC AACTATGGAT GAACGAAATA GACAGATCGC TGAGATAGGT GCCTCACTGA
3601 TTAAGCATTG GTAACTGTCA GACCAAGTTT ACTCATATAT ACTTTAGATT GATTTAAAAC
3661 TTCATTTTTA ATTTAAAAGG ATCTAGGTGA AGATCCTTTT TGATAATCTC ATGACCAAAA
3721 TCCCTTAACG TGAGTTTTCG TTCCACTGAG CGTCAGACCC CGTAGAAAAG ATCAAAGGAT
3781 CTTCTTGAGA TCCTTTTTTT CTGCGCGTAA TCTGCTGCTT GCAAACAAAA AAACCACCGC
3841 TACCAGCGGT GGTTTGTTTG CCGGATCAAG AGCTACCAAC TCTTTTTCCG AAGGTAACTG
3901 GCTTCAGCAG AGCGCAGATA CCAAATACTG TTCTTCTAGT GTAGCCGTAG TTAGGCCACC
3961 ACTTCAAGAA CTCTGTAGCA CCGCCTACAT ACCTCGCTCT GCTAATCCTG TTACCAGTGG
4021 CTGCTGCCAG TGGCGATAAG TCGTGTCTTA CCGGGTTGGA CTCAAGACGA TAGTTACCGG
4081 ATAAGGCGCA GCGGTCGGGC TGAACGGGGG GTTCGTGCAC ACAGCCCAGC TTGGAGCGAA
4141 CGACCTACAC CGAACTGAGA TACCTACAGC GTGAGCTATG AGAAAGCGCC ACGCTTCCCG
4201 AAGGGAGAAA GGCGGACAGG TATCCGGTAA GCGGCAGGGT CGGAACAGGA GAGCGCACGA
4261 GGGAGCTTCC AGGGGGAAAC GCCTGGTATC TTTATAGTCC TGTCGGGTTT CGCCACCTCT
4321 GACTTGAGCG TCGATTTTTG TGATGCTCGT CAGGGGGGCG GAGCCTATGG AAAAACGCCA
4381 GCAACGCGGC CTTTTTACGG TTCCTGGCCT TTTGCTGGCC TTTTGCTCAC ATGTTCTTTC
4441 CTGCGTTATC CCCTGATTCT GTGGATAACC GTATTACCGC CTTTGAGTGA GCTGATACCG
4501 CTCGCCGCAG CCGAACGACC GAGCGCAGCG AGTCAGTGAG CGAGGAAGCG GAAGAGCGCC
4561 CAATACGCAA ACCGCCTCTC CCCGCGCGTT GGCCGATTCA TTAATGCAGC TGGCACGACA
4621 GGTTTCCCGA CTGGAAAGCG GGCAGTGAGC GCAACGCAAT TAATGTGAGT TAGCTCACTC
4681 ATTAGGCACC CCAGGCTTTA CACTTTATGC TTCCGGCTCG TATGTTGTGT GGAATTGTGA
4741 GCGGATAACA ATTTCACACA GGAAACAGCT ATGACCATGA TTACGCCAGA TTTAATTAAG
4801 GCCTTAATTA GG
//
pAAV-CMV-MCS-noATG-GFP载体图谱质粒图谱pdf版和pAAV-CMV-MCS-noATG-GFP载体序列质粒序列等相关资料下载
pAAV-CMV-MCS-noATG-GFP质粒载体应用举例
