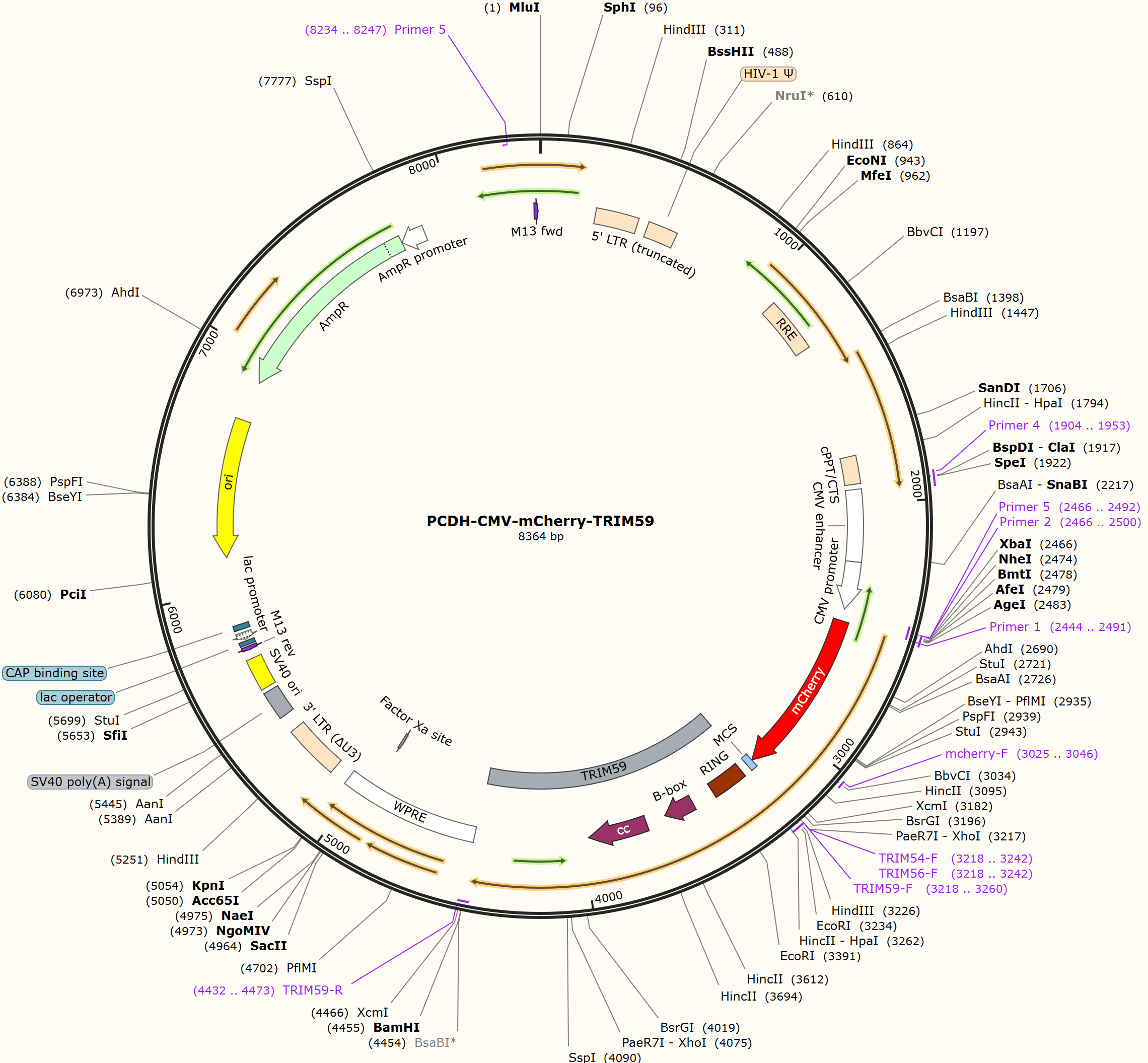

PCDH-CMV-mCherry-TRIM59

LOCUS      PCDH-CMV-mCherry-TRIM59              8364 bp DNA     circular SYN 14-APR-2022
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8364)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 11, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8364
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3218..3260
                     /label=TRIM59-F
     primer_bind     3218..3242
                     /label=TRIM54-F
     primer_bind     3218..3242
                     /label=TRIM56-F
     misc_feature    3240..4451
                     /label=TRIM59
     misc_feature    3267..3416
                     /label=RING
     CDS             3513..3641
                     /codon_start=1
                     /label=B-box
                     /translation="PDIVTCPEHYRQPLNVYCLLDKKLVCGHCLTIGQHHGHPIDDL"
     CDS             3726..3977
                     /codon_start=1
                     /label=cc
                     /translation="LIEKLKEQKSHSEKMIQGDKEAVLQYFKELNDTLEQKKKSFLTAL
                     CDVGNLINQEYTPQIERMKEIREQQLELMALTISLQEES"
     primer_bind     complement(4432..4473)
                     /label=TRIM59-R
     misc_feature    4461..5048
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4932..4943)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5121..5354
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5426..5547
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5566..5701
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5739..5755)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5763..5779
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5787..5817)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5832..5853
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6141..6729)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6900..7760)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7761..7865)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8234..8247)
                     /label=Primer 5
     primer_bind     8339..8355
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tgcacaattt tgaggaagag ttaacttgtc ccatatgtta tagtattttt gaagatcctc
     3301 gtgtactgcc atgctctcat acattttgta gaaattgttt ggaaaacatt cttcaggcat
     3361 ctggtaactt ttatatatgg agacctttac gaattccact caagtgccct aattgcagaa
     3421 gtattactga aattgctcca actggcattg aatctttacc tgttaatttt gcactaaggg
     3481 ctattattga aaagtaccag caagaagacc atccagatat tgtcacctgc cctgaacatt
     3541 acaggcaacc attaaatgtt tactgtctat tagataaaaa attagtttgt ggtcattgcc
     3601 ttaccatagg tcaacatcat ggtcatccta tagatgacct tcaaagtgcc tatttgaaag
     3661 aaaaggacac tcctcaaaaa ctgcttgaac agttgactga cacacactgg acagatctta
     3721 cccatcttat tgaaaagctg aaagaacaaa aatctcattc tgagaaaatg atccaaggcg
     3781 ataaggaagc tgttctccag tattttaagg agcttaatga tacattagaa cagaaaaaaa
     3841 aaagtttcct aacggctctc tgtgatgttg gcaatctaat taatcaagaa tatactccac
     3901 aaattgaaag aatgaaggaa atacgagagc agcagcttga attaatggca ctgacaatat
     3961 ctttacaaga agagtctcca cttaaatttc ttgaaaaagt tgatgatgta cgccagcatg
     4021 tacagatctt gaaacaaaga ccacttcctg aggttcaacc cgttgaaatt tatcctcgag
     4081 taagcaaaat attgaaagaa gaatggagca gaacagaaat tggacaaatt aagaacgttc
     4141 tcattcccaa aatgaaaatt tctccaaaaa ggatgtcatg ttcctggcct ggtaaggatg
     4201 aaaaggaagt tgaattttta aaaattttaa acattgttgt agttacatta atttcagtaa
     4261 tactgatgtc gatactcttt ttcaaccaac acatcataac ctttttaagt gaaatcactt
     4321 taatatggtt ttctgaagcc tctctatctg tttaccaaag tttatctaac agtctgcata
     4381 aggtaaagaa tatactgtgt cacattttct atttgttgaa ggaatttgtg tggaaaatag
     4441 tttcccattg atagggatcc aatcaacctc tggattacaa aatttgtgaa agattgactg
     4501 gtattcttaa ctatgttgct ccttttacgc tatgtggata cgctgcttta atgcctttgt
     4561 atcatgctat tgcttcccgt atggctttca ttttctcctc cttgtataaa tcctggttgc
     4621 tgtctcttta tgaggagttg tggcccgttg tcaggcaacg tggcgtggtg tgcactgtgt
     4681 ttgctgacgc aacccccact ggttggggca ttgccaccac ctgtcagctc ctttccggga
     4741 ctttcgcttt ccccctccct attgccacgg cggaactcat cgccgcctgc cttgcccgct
     4801 gctggacagg ggctcggctg ttgggcactg acaattccgt ggtgttgtcg gggaagctga
     4861 cgtcctttcc atggctgctc gcctgtgttg ccacctggat tctgcgcggg acgtccttct
     4921 gctacgtccc ttcggccctc aatccagcgg accttccttc ccgcggcctg ctgccggctc
     4981 tgcggcctct tccgcgtctc cgccttcgcc ctcagacgag tcggatctcc ctttggccgc
     5041 ctccccgccg gtacctttaa gaccaatgac ttacaaggca gctgtagatc ttagccactt
     5101 tttaaaagaa aaggggggac tggaagggct aattcactcc caacgaaaat aagatctgct
     5161 ttttgcttgt actgggtctc tctggttaga ccagatctga gcctgggagc tctctggcta
     5221 actagggaac ccactgctta agcctcaata aagcttgcct tgagtgcttc aagtagtgtg
     5281 tgcccgtctg ttgtgtgact ctggtaacta gagatccctc agaccctttt agtcagtgtg
     5341 gaaaatctct agcagtagta gttcatgtca tcttattatt cagtatttat aacttgcaaa
     5401 gaaatgaata tcagagagtg agaggaactt gtttattgca gcttataatg gttacaaata
     5461 aagcaatagc atcacaaatt tcacaaataa agcatttttt tcactgcatt ctagttgtgg
     5521 tttgtccaaa ctcatcaatg tatcttatca tgtctggctc tagctatccc gcccctaact
     5581 ccgcccagtt ccgcccattc tccgccccat ggctgactaa ttttttttat ttatgcagag
     5641 gccgaggccg cctcggcctc tgagctattc cagaagtagt gaggaggctt ttttggaggc
     5701 ctagactttt gcagagacgg cccaaattcg taatcatggt catagctgtt tcctgtgtga
     5761 aattgttatc cgctcacaat tccacacaac atacgagccg gaagcataaa gtgtaaagcc
     5821 tggggtgcct aatgagtgag ctaactcaca ttaattgcgt tgcgctcact gcccgctttc
     5881 cagtcgggaa acctgtcgtg ccagctgcat taatgaatcg gccaacgcgc ggggagaggc
     5941 ggtttgcgta ttgggcgctc ttccgcttcc tcgctcactg actcgctgcg ctcggtcgtt
     6001 cggctgcggc gagcggtatc agctcactca aaggcggtaa tacggttatc cacagaatca
     6061 ggggataacg caggaaagaa catgtgagca aaaggccagc aaaaggccag gaaccgtaaa
     6121 aaggccgcgt tgctggcgtt tttccatagg ctccgccccc ctgacgagca tcacaaaaat
     6181 cgacgctcaa gtcagaggtg gcgaaacccg acaggactat aaagatacca ggcgtttccc
     6241 cctggaagct ccctcgtgcg ctctcctgtt ccgaccctgc cgcttaccgg atacctgtcc
     6301 gcctttctcc cttcgggaag cgtggcgctt tctcatagct cacgctgtag gtatctcagt
     6361 tcggtgtagg tcgttcgctc caagctgggc tgtgtgcacg aaccccccgt tcagcccgac
     6421 cgctgcgcct tatccggtaa ctatcgtctt gagtccaacc cggtaagaca cgacttatcg
     6481 ccactggcag cagccactgg taacaggatt agcagagcga ggtatgtagg cggtgctaca
     6541 gagttcttga agtggtggcc taactacggc tacactagaa ggacagtatt tggtatctgc
     6601 gctctgctga agccagttac cttcggaaaa agagttggta gctcttgatc cggcaaacaa
     6661 accaccgctg gtagcggtgg tttttttgtt tgcaagcagc agattacgcg cagaaaaaaa
     6721 ggatctcaag aagatccttt gatcttttct acggggtctg acgctcagtg gaacgaaaac
     6781 tcacgttaag ggattttggt catgagatta tcaaaaagga tcttcaccta gatcctttta
     6841 aattaaaaat gaagttttaa atcaatctaa agtatatatg agtaaacttg gtctgacagt
     6901 taccaatgct taatcagtga ggcacctatc tcagcgatct gtctatttcg ttcatccata
     6961 gttgcctgac tccccgtcgt gtagataact acgatacggg agggcttacc atctggcccc
     7021 agtgctgcaa tgataccgcg agacccacgc tcaccggctc cagatttatc agcaataaac
     7081 cagccagccg gaagggccga gcgcagaagt ggtcctgcaa ctttatccgc ctccatccag
     7141 tctattaatt gttgccggga agctagagta agtagttcgc cagttaatag tttgcgcaac
     7201 gttgttgcca ttgctacagg catcgtggtg tcacgctcgt cgtttggtat ggcttcattc
     7261 agctccggtt cccaacgatc aaggcgagtt acatgatccc ccatgttgtg caaaaaagcg
     7321 gttagctcct tcggtcctcc gatcgttgtc agaagtaagt tggccgcagt gttatcactc
     7381 atggttatgg cagcactgca taattctctt actgtcatgc catccgtaag atgcttttct
     7441 gtgactggtg agtactcaac caagtcattc tgagaatagt gtatgcggcg accgagttgc
     7501 tcttgcccgg cgtcaatacg ggataatacc gcgccacata gcagaacttt aaaagtgctc
     7561 atcattggaa aacgttcttc ggggcgaaaa ctctcaagga tcttaccgct gttgagatcc
     7621 agttcgatgt aacccactcg tgcacccaac tgatcttcag catcttttac tttcaccagc
     7681 gtttctgggt gagcaaaaac aggaaggcaa aatgccgcaa aaaagggaat aagggcgaca
     7741 cggaaatgtt gaatactcat actcttcctt tttcaatatt attgaagcat ttatcagggt
     7801 tattgtctca tgagcggata catatttgaa tgtatttaga aaaataaaca aataggggtt
     7861 ccgcgcacat ttccccgaaa agtgccacct gacgtctaag aaaccattat tatcatgaca
     7921 ttaacctata aaaataggcg tatcacgagg ccctttcgtc tcgcgcgttt cggtgatgac
     7981 ggtgaaaacc tctgacacat gcagctcccg gagacggtca cagcttgtct gtaagcggat
     8041 gccgggagca gacaagcccg tcagggcgcg tcagcgggtg ttggcgggtg tcggggctgg
     8101 cttaactatg cggcatcaga gcagattgta ctgagagtgc accatatgcg gtgtgaaata
     8161 ccgcacagat gcgtaaggag aaaataccgc atcaggcgcc attcgccatt caggctgcgc
     8221 aactgttggg aagggcgatc ggtgcgggcc tcttcgctat tacgccagct ggcgaaaggg
     8281 ggatgtgctg caaggcgatt aagttgggta acgccagggt tttcccagtc acgacgttgt
     8341 aaaacgacgg ccagtgccaa gctg
//
