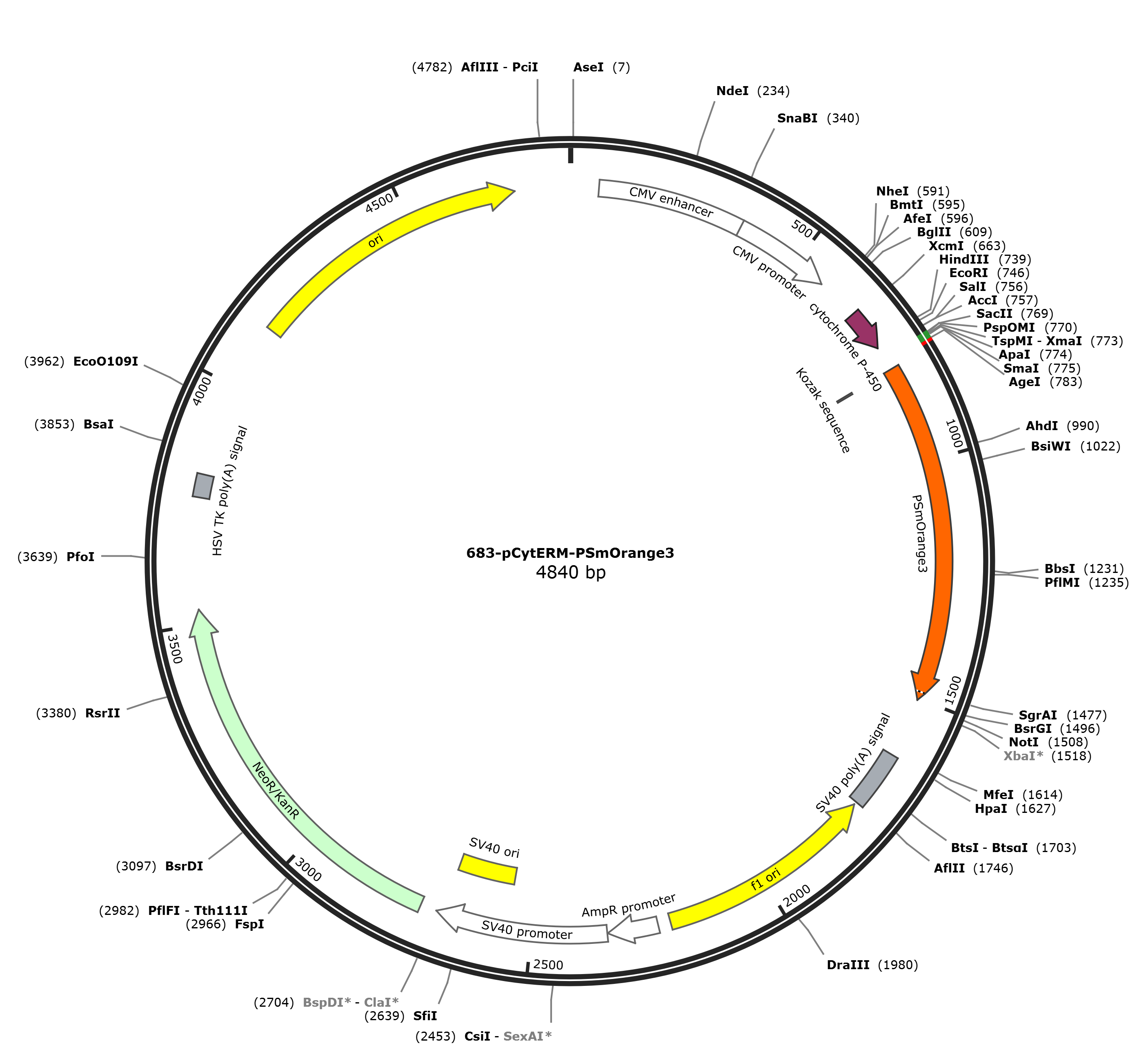

pCytERM-PSmOrange3

LOCUS      pCytERM-PSmOrange3            4840 bp DNA     circular SYN 20-NOV-2024
DEFINITION  Vector for fusing EGFP to the C-terminus of a partner protein. For
            other reading frames, use pEGFP-N2 or pEGFP-N3.
ACCESSION   U55762
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4840)
  AUTHORS   Clontech (TaKaRa)
  TITLE     Direct Submission
  JOURNAL   Exported Jul 21, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..4840
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             658..744
                     /codon_start=1
                     /product="cytochrome P-450 IIC1, partial [Oryctolagus
                     cuniculus]
                     Sequence ID: AAA31436.1Length: 56Number of Matches: 1"
                     /label=cytochrome P-450
                     /translation="MDPVVVLGLCLSCLLLLSLWKQSYGGGKL"
     primer_bind     768..798
                     /label=0830-CYT-VENUS-F1
     CDS             796..1503
                     /codon_start=1
                     /product="enhanced orange to far-red photoswitchable
                     monomeric fluorescent protein (Subach et al., 2012)"
                     /label=PSmOrange3
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEENNMAIIKEFMRFKVHMEGTVNGHEFEVEGKGEGHPYEG
                     FQTVKLKVTKGGPLPFAWDILSPLVTYGSKAYVKHPADIPDYFKLSFPEGFKWERVMNY
                     EDGGVVTVTQDSSLQDGEFIYKVKMRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEVRMRLKLKDGGHYTSEAKTTYKAKKSVLLPGAYIVGIKLDITSHNEDFTIVEQYERS
                     EARHSTGGKDELYK"
     regulatory      796..799
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     primer_bind     complement(1483..1534)
                     /label=0830-CYT-VENUS-R2
     polyA_signal    1628..1749
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1756..2211)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2238..2342
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2344..2701
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2552..2687
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2736..3530
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     misc_feature    3762..3809
                     /label=HSV TK poly(A) signal
                     /note="herpesvirus thymidine kinase polyadenylation signal"
     rep_origin      4138..4726
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggactcag atctggtacc ccttgcagct tccagttgtc aggaagagaa ggctcccatg
      661 gatcctgtgg tggtgctggg gctctgtctc tcctgtttgc ttctcctttc actctggaaa
      721 cagagctatg ggggagggaa gcttcgaatt ctgcagtcga cggtaccgcg ggcccgggat
      781 ccaccggtcg ccaccatggt gagcaagggc gaggagaata atatggccat cattaaggag
      841 ttcatgcgct tcaaggtgca catggagggc actgtgaacg gccacgagtt cgaggtcgag
      901 ggcaagggcg agggccaccc ctacgagggc tttcagaccg ttaagctgaa ggtgaccaag
      961 ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc tcgtcaccta cggctccaag
     1021 gcgtacgtga agcaccccgc cgacatcccc gactacttca agctgtcctt ccccgaggga
     1081 ttcaagtggg agcgcgtgat gaactacgag gacggcggcg tggtgaccgt gacccaggac
     1141 tcctctctgc aggacggcga gttcatctac aaggtgaaga tgcgcggcac caacttcccc
     1201 tccgacggcc ccgtaatgca gaagaagacc atgggctggg aggcctcctc cgagcggatg
     1261 taccccgagg acggcgccct gaagggcgag gtcaggatga ggctgaagct gaaggatggc
     1321 ggccactaca cctccgaggc caagactacc tacaaggcca agaagtccgt gctgctgccc
     1381 ggcgcctaca tcgtcggcat caagttggac attacctcac acaacgagga cttcaccatc
     1441 gtggaacagt atgaacgcag cgaggcccgc cactccaccg gcggcaagga cgagctgtac
     1501 aagtaagcgg ccgcgactct agatcataat cagccatacc acatttgtag aggttttact
     1561 tgctttaaaa aacctcccac acctccccct gaacctgaaa cataaaatga atgcaattgt
     1621 tgttgttaac ttgtttattg cagcttataa tggttacaaa taaagcaata gcatcacaaa
     1681 tttcacaaat aaagcatttt tttcactgca ttctagttgt ggtttgtcca aactcatcaa
     1741 tgtatcttaa ggcgtaaatt gtaagcgtta atattttgtt aaaattcgcg ttaaattttt
     1801 gttaaatcag ctcatttttt aaccaatagg ccgaaatcgg caaaatccct tataaatcaa
     1861 aagaatagac cgagataggg ttgagtgttg ttccagtttg gaacaagagt ccactattaa
     1921 agaacgtgga ctccaacgtc aaagggcgaa aaaccgtcta tcagggcgat ggcccactac
     1981 gtgaaccatc accctaatca agttttttgg ggtcgaggtg ccgtaaagca ctaaatcgga
     2041 accctaaagg gagcccccga tttagagctt gacggggaaa gccggcgaac gtggcgagaa
     2101 aggaagggaa gaaagcgaaa ggagcgggcg ctagggcgct ggcaagtgta gcggtcacgc
     2161 tgcgcgtaac caccacaccc gccgcgctta atgcgccgct acagggcgcg tcaggtggca
     2221 cttttcgggg aaatgtgcgc ggaaccccta tttgtttatt tttctaaata cattcaaata
     2281 tgtatccgct catgagacaa taaccctgat aaatgcttca ataatattga aaaaggaaga
     2341 gtcctgaggc ggaaagaacc agctgtggaa tgtgtgtcag ttagggtgtg gaaagtcccc
     2401 aggctcccca gcaggcagaa gtatgcaaag catgcatctc aattagtcag caaccaggtg
     2461 tggaaagtcc ccaggctccc cagcaggcag aagtatgcaa agcatgcatc tcaattagtc
     2521 agcaaccata gtcccgcccc taactccgcc catcccgccc ctaactccgc ccagttccgc
     2581 ccattctccg ccccatggct gactaatttt ttttatttat gcagaggccg aggccgcctc
     2641 ggcctctgag ctattccaga agtagtgagg aggctttttt ggaggcctag gcttttgcaa
     2701 agatcgatca agagacagga tgaggatcgt ttcgcatgat tgaacaagat ggattgcacg
     2761 caggttctcc ggccgcttgg gtggagaggc tattcggcta tgactgggca caacagacaa
     2821 tcggctgctc tgatgccgcc gtgttccggc tgtcagcgca ggggcgcccg gttctttttg
     2881 tcaagaccga cctgtccggt gccctgaatg aactgcaaga cgaggcagcg cggctatcgt
     2941 ggctggccac gacgggcgtt ccttgcgcag ctgtgctcga cgttgtcact gaagcgggaa
     3001 gggactggct gctattgggc gaagtgccgg ggcaggatct cctgtcatct caccttgctc
     3061 ctgccgagaa agtatccatc atggctgatg caatgcggcg gctgcatacg cttgatccgg
     3121 ctacctgccc attcgaccac caagcgaaac atcgcatcga gcgagcacgt actcggatgg
     3181 aagccggtct tgtcgatcag gatgatctgg acgaagagca tcaggggctc gcgccagccg
     3241 aactgttcgc caggctcaag gcgagcatgc ccgacggcga ggatctcgtc gtgacccatg
     3301 gcgatgcctg cttgccgaat atcatggtgg aaaatggccg cttttctgga ttcatcgact
     3361 gtggccggct gggtgtggcg gaccgctatc aggacatagc gttggctacc cgtgatattg
     3421 ctgaagagct tggcggcgaa tgggctgacc gcttcctcgt gctttacggt atcgccgctc
     3481 ccgattcgca gcgcatcgcc ttctatcgcc ttcttgacga gttcttctga gcgggactct
     3541 ggggttcgaa atgaccgacc aagcgacgcc caacctgcca tcacgagatt tcgattccac
     3601 cgccgccttc tatgaaaggt tgggcttcgg aatcgttttc cgggacgccg gctggatgat
     3661 cctccagcgc ggggatctca tgctggagtt cttcgcccac cctaggggga ggctaactga
     3721 aacacggaag gagacaatac cggaaggaac ccgcgctatg acggcaataa aaagacagaa
     3781 taaaacgcac ggtgttgggt cgtttgttca taaacgcggg gttcggtccc agggctggca
     3841 ctctgtcgat accccaccga gaccccattg gggccaatac gcccgcgttt cttccttttc
     3901 cccaccccac cccccaagtt cgggtgaagg cccagggctc gcagccaacg tcggggcggc
     3961 aggccctgcc atagcctcag gttactcata tatactttag attgatttaa aacttcattt
     4021 ttaatttaaa aggatctagg tgaagatcct ttttgataat ctcatgacca aaatccctta
     4081 acgtgagttt tcgttccact gagcgtcaga ccccgtagaa aagatcaaag gatcttcttg
     4141 agatcctttt tttctgcgcg taatctgctg cttgcaaaca aaaaaaccac cgctaccagc
     4201 ggtggtttgt ttgccggatc aagagctacc aactcttttt ccgaaggtaa ctggcttcag
     4261 cagagcgcag ataccaaata ctgttcttct agtgtagccg tagttaggcc accacttcaa
     4321 gaactctgta gcaccgccta catacctcgc tctgctaatc ctgttaccag tggctgctgc
     4381 cagtggcgat aagtcgtgtc ttaccgggtt ggactcaaga cgatagttac cggataaggc
     4441 gcagcggtcg ggctgaacgg ggggttcgtg cacacagccc agcttggagc gaacgaccta
     4501 caccgaactg agatacctac agcgtgagct atgagaaagc gccacgcttc ccgaagggag
     4561 aaaggcggac aggtatccgg taagcggcag ggtcggaaca ggagagcgca cgagggagct
     4621 tccaggggga aacgcctggt atctttatag tcctgtcggg tttcgccacc tctgacttga
     4681 gcgtcgattt ttgtgatgct cgtcaggggg gcggagccta tggaaaaacg ccagcaacgc
     4741 ggccttttta cggttcctgg ccttttgctg gccttttgct cacatgttct ttcctgcgtt
     4801 atcccctgat tctgtggata accgtattac cgccatgcat
//
