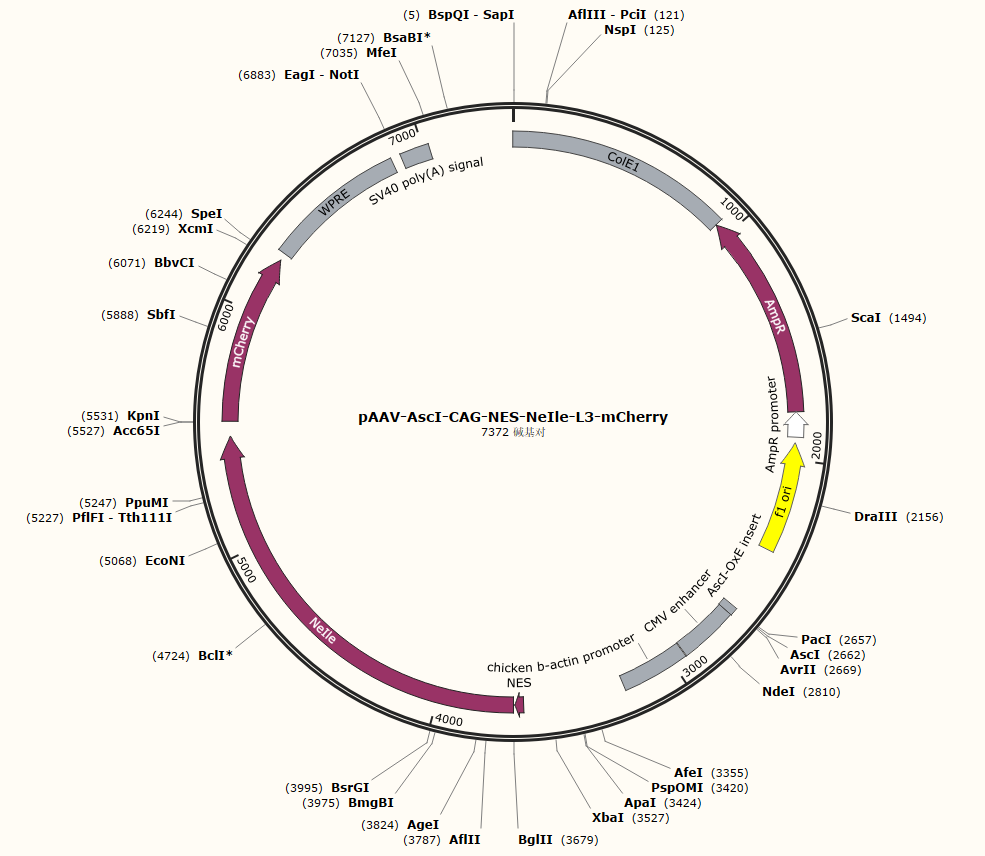

pAAV-AscI-CAG-NES-Nelle-L3-mCherry

LOCUS      pAAV-AscI-CAG-NES-Nelle-L3-mCherry              7372 bp DNA     circular SYN 15-OCT-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pAAV-AscI-CAG-NES-NeIle-L3-mCherry
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7372)
  AUTHORS   Vax
  TITLE     Direct Submission
  JOURNAL   Exported Jul 7, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7372
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     CDS             complement(941..1801)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(1802..1906)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(1932..2387)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     misc_feature    2661..2691
                     /label=AscI-OxE insert
                     /label=AscI-OxE\insert
                     /note="/vntifkey=21"
     misc_feature    2692..2935
                     /label=CMV enhancer
                     /label=CMV\enhancer
                     /note="/vntifkey=21"
     misc_feature    2942..3219
                     /label=chicken b-actin promoter
                     /label=chicken\b-actin\promoter
                     /note="/vntifkey=21"
     CDS             3643..3678
                     /codon_start=1
                     /label=NES
                     /note="/vntifkey=21"
                     /translation="LQLPPLERLTLS"
     CDS             3685..5469
                     /codon_start=1
                     /label=NeIle
                     /note="/vntifkey=21"
                     /translation="MEDIKVAVVGAMSAGADWRISKEACPNGKTLISTLKWSYTTGDGK
                     RYRSTARTTFTFAKPMAANYLKNQPMYVFRRTELKHSKTEMDFKEWQKAFTDVVGMDEL
                     YKVDGGSGGTGMVSEGEVDNMASLPATHELHIFGSINGVGFDMVGQGSGNPNVGYEELN
                     LKSTKGELQFSPWILVPHIGYGFHQYLPYPDGMSPFQAAMVDGSGYQVHRTVRFEDGAS
                     LTVNYRYTYEGSHIKGEAQVKGTGFPADGPVMTNSLTAFHIGPVTQYGDQEFTGAEQAV
                     ADINARGGIKGNKLQIVKYDDACDPKQAVAVANRVVNDGIKYVIGHLCSSSAQPASDIY
                     EDAGILMITPAATAPELTARGYQLILRTTGLDSDQGLTAAKYILEKVKPQRIAIVHDKQ
                     QYGEGLARAVQGGLKKGNANVVFFDGITAGEKDFSTLVARLKKENIDFVYYGGYHPEMG
                     QILRQARAAGLKTQFMGPEGVANVSLSNIAGESAEGLLVTKPKNYDQVPANKHIVDAVK
                     AKKQDPSGAFVWTTYAALQSLQAGLNQSDDPAEIAKYLKANSVDTVMGPLTWDEKGDLK
                     GFEFGVFDWHANGTATDAK"
     CDS             5533..6243
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     misc_feature    6274..6862
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     polyA_signal    6905..7026
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     misc_feature    join(7372,1..940)
                     /label=ColE1
                     /note="ColE1"
ORIGIN
        1 cttccgcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat
       61 cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga
      121 acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt
      181 ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt
      241 ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc
      301 gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa
      361 gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct
      421 ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta
      481 actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg
      541 gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc
      601 ctaactacgg ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta
      661 ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtg
      721 gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt
      781 tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg
      841 tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta
      901 aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg
      961 aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg
     1021 tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc
     1081 gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg
     1141 agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg
     1201 aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag
     1261 gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat
     1321 caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc
     1381 cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc
     1441 ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa
     1501 ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac
     1561 gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt
     1621 cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc
     1681 gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa
     1741 caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca
     1801 tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat
     1861 acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa
     1921 aagtgccacc taaattgtaa gcgttaatat tttgttaaaa ttcgcgttaa atttttgtta
     1981 aatcagctca ttttttaacc aataggccga aatcggcaaa atcccttata aatcaaaaga
     2041 atagaccgag atagggttga gtgttgttcc agtttggaac aagagtccac tattaaagaa
     2101 cgtggactcc aacgtcaaag ggcgaaaaac cgtctatcag ggcgatggcc cactacgtga
     2161 accatcaccc taatcaagtt ttttggggtc gaggtgccgt aaagcactaa atcggaaccc
     2221 taaagggagc ccccgattta gagcttgacg gggaaagccg gcgaacgtgg cgagaaagga
     2281 agggaagaaa gcgaaaggag cgggcgctag ggcgctggca agtgtagcgg tcacgctgcg
     2341 cgtaaccacc acacccgccg cgcttaatgc gccgctacag ggcgcgtccc attcgccatt
     2401 caggctgcgc aactgttggg aagggcgatc ggtgcgggcc tcttcgctat tacgccagct
     2461 gcgcgctcgc tcgctcactg aggccgcccg ggcaaagccc gggcgtcggg cgacctttgg
     2521 tcgcccggcc tcagtgagcg agcgagcgcg cagagaggga gtggccaact ccatcactag
     2581 gggttccttg tagttaatga ttaacccgcc atgctactta tctacgtagc catgctctag
     2641 gaagatcgta ggttaattaa ggcgcgcccc taggggagat ggccagccag cccattgacg
     2701 tcaataatga cgtatgttcc catagtaacg ccaataggga ctttccattg acgtcaatgg
     2761 gtggagtatt tacggtaaac tgcccacttg gcagtacatc aagtgtatca tatgccaagt
     2821 acgcccccta ttgacgtcaa tgacggtaaa tggcccgcct ggcattatgc ccagtacatg
     2881 accttatggg actttcctac ttggcagtac atctacgtat tagtcatcgc tattaccatg
     2941 gtcgaggtga gccccacgtt ctgcttcact ctccccatct cccccccctc cccaccccca
     3001 attttgtatt tatttatttt ttaattattt tgtgcagcga tgggggcggg gggggggggg
     3061 gggcgcgcgc caggcggggc ggggcggggc gaggggcggg gcggggcgag gcggagaggt
     3121 gcggcggcag ccaatcagag cggcgcgctc cgaaagtttc cttttatggc gaggcggcgg
     3181 cggcggcggc cctataaaaa gcgaagcgcg cggcgggcgg gagtcgctgc gcgctgcctt
     3241 cgccccgtgc cccgctccgc cgccgcctcg cgccgcccgc cccggctctg actgaccgcg
     3301 ttactcccac aggtgagcgg gcgggacggc ccttctcctc cgggctgtaa ttagcgcttg
     3361 gtttaatgac ggcttgtttc ttttctgtgg ctgcgtgaaa gccttgaggg gctccgggag
     3421 ggccctttgt gcggggggag cggctcgggg ctgtccgcgg ggggacggct gccttcgggg
     3481 gggacggggc agggcggggt tcggcttctg gcgtgtgacc ggcggctcta gagcctctgc
     3541 taaccatgtt catgccttct tctttttcct acagctcctg ggcaacgtgc tggttattgt
     3601 gctgtctcat cattttggca aagaattgga tccgacacca tgcttcaact tcctcctctt
     3661 gaacgtctta ctctttcgag atctatggaa gatattaaag tcgcggtcgt gggcgcaatg
     3721 tccgctggtg ctgactggcg tatatccaag gaggcttgcc ccaatggtaa gactcttatt
     3781 tccacactta agtggtctta taccaccggc gacggcaaac gctaccggtc tactgctcgc
     3841 accacattca cattcgccaa accaatggcc gcaaattacc tcaaaaatca gccgatgtat
     3901 gtcttccgga gaacagagct gaaacattct aagaccgaaa tggattttaa agagtggcaa
     3961 aaggccttta cggacgtggt gggcatggac gagctgtaca aggtggatgg cggcagcggt
     4021 ggcaccggca tggtctcaga gggagaggtg gacaacatgg ctagtctgcc tgctacccac
     4081 gaactgcata tttttggctc cataaatggc gtcggtttcg acatggtagg ccaaggctcc
     4141 ggtaatccaa acgtcggtta tgaggagctg aacctgaagt ccaccaaggg cgaactgcag
     4201 ttcagtccct ggatcctggt gccgcacatt gggtatgggt ttcatcagta tcttccctac
     4261 ccggacggga tgtcgccatt tcaggctgca atggtcgacg ggtccggata tcaggtgcac
     4321 cgcactgtgc ggtttgagga cggtgcttca ctgaccgtga attacagata cacctacgaa
     4381 ggatcacata tcaaagggga agctcaggtg aagggcactg ggttcccggc agacggccct
     4441 gtgatgacaa attccctgac agcctttcat attggtccgg tgacccagta cggtgaccag
     4501 gagtttaccg gcgcagagca ggcggttgcg gatatcaacg ctagaggcgg cattaagggc
     4561 aacaaactgc aaatcgtaaa atatgacgat gcctgtgacc cgaaacaggc tgttgcggtg
     4621 gcgaacagag tcgttaacga cggcattaaa tatgtgattg gtcacctctg ttcttcatca
     4681 gcgcagcctg cgtctgacat ctacgaagac gcaggcattt taatgatcac cccagcggca
     4741 accgcgccgg agctgaccgc ccgtggctat cagctgatcc tgcgcaccac cggcctggac
     4801 tccgaccagg ggctgacggc ggcgaaatat attcttgaga aagtgaaacc gcagcgtatt
     4861 gctatcgttc acgacaaaca gcagtacggc gaaggtctgg cgcgagcggt gcagggtggc
     4921 ctgaagaaag gcaatgcaaa cgtggtgttc tttgatggca tcaccgccgg ggaaaaagat
     4981 ttctcaacgc tggtggcgcg tctgaaaaaa gagaatatcg acttcgttta ctacggcggt
     5041 tatcacccgg aaatggggca aatcctgcgt caggcacgcg cggcagggct gaaaactcag
     5101 tttatggggc cggagggtgt ggctaacgtt tcgctgtcta acattgcggg cgaatcagcg
     5161 gaagggctgc tggtgaccaa gccgaagaac tacgatcagg ttccggcgaa caaacacatt
     5221 gttgacgcag tcaaagcgaa aaaacaggac ccaagtggcg cattcgtttg gaccacctac
     5281 gccgcgctgc aatctttgca ggcgggcctg aatcagtctg acgatccggc tgaaatcgcc
     5341 aaatacctga aagcgaactc cgtggatacc gtaatgggac cgctgacctg ggatgagaaa
     5401 ggcgatctga aaggctttga gttcggcgta tttgactggc acgccaacgg cacggcgacc
     5461 gatgcgaagg aattcggtgg ttctggttct ggagggagtg gcagcaagct tggtggttct
     5521 ggttctggta ccatggtgag caagggcgag gaggataaca tggccatcat caaggagttc
     5581 atgcgcttca aggtgcacat ggagggctcc gtgaacggcc acgagttcga gatcgagggc
     5641 gagggcgagg gccgccccta cgagggcacc cagaccgcca agctgaaggt gaccaagggt
     5701 ggccccctgc ccttcgcctg ggacatcctg tcccctcagt tcatgtacgg ctccaaggcc
     5761 tacgtgaagc accccgccga catccccgac tacttgaagc tgtccttccc cgagggcttc
     5821 aagtgggagc gcgtgatgaa cttcgaggac ggcggcgtgg tgaccgtgac ccaggactcc
     5881 tccctgcagg acggcgagtt catctacaag gtgaagctgc gcggcaccaa cttcccctcc
     5941 gacggccccg taatgcagaa gaagaccatg ggctgggagg cctcctccga gcggatgtac
     6001 cccgaggacg gcgccctgaa gggcgagatc aagcagaggc tgaagctgaa ggacggcggc
     6061 cactacgacg ctgaggtcaa gaccacctac aaggccaaga agcccgtgca gctgcccggc
     6121 gcctacaacg tcaacatcaa gttggacatc acctcccaca acgaggacta caccatcgtg
     6181 gaacagtacg aacgcgccga gggccgccac tccaccggcg gcatggacga gctgtataag
     6241 taaactagtg aattcgatat caagcttatc gataatcaac ctctggatta caaaatttgt
     6301 gaaagattga ctggtattct taactatgtt gctcctttta cgctatgtgg atacgctgct
     6361 ttaatgcctt tgtatcatgc tattgcttcc cgtatggctt tcattttctc ctccttgtat
     6421 aaatcctggt tgctgtctct ttatgaggag ttgtggcccg ttgtcaggca acgtggcgtg
     6481 gtgtgcactg tgtttgctga cgcaaccccc actggttggg gcattgccac cacctgtcag
     6541 ctcctttccg ggactttcgc tttccccctc cctattgcca cggcggaact catcgccgcc
     6601 tgccttgccc gctgctggac aggggctcgg ctgttgggca ctgacaattc cgtggtgttg
     6661 tcggggaaat catcgtcctt tccttggctg ctcgcctgtg ttgccacctg gattctgcgc
     6721 gggacgtcct tctgctacgt cccttcggcc ctcaatccag cggaccttcc ttcccgcggc
     6781 ctgctgccgg ctctgcggcc tcttccgcgt cttcgccttc gccctcagac gagtcggatc
     6841 tccctttggg ccgcctcccc gcatcgatac cgtcgacccg ggcggccgct tcgagcagac
     6901 atgataagat acattgatga gtttggacaa accacaacta gaatgcagtg aaaaaaatgc
     6961 tttatttgtg aaatttgtga tgctattgct ttatttgtaa ccattataag ctgcaataaa
     7021 caagttaaca acaacaattg cattcatttt atgtttcagg ttcaggggga gatgtgggag
     7081 gttttttaaa gcaagtaaaa cctctacaaa tgtggtaaaa tcgataagga tcttcctaga
     7141 gcatggctac gtagataagt agcatggcgg gttaatcatt aactacaagg aacccctagt
     7201 gatggagttg gccactccct ctctgcgcgc tcgctcgctc actgaggccg ggcgaccaaa
     7261 ggtcgcccga cgcccgggct ttgcccgggc ggcctcagtg agcgagcgag cgcgcagctg
     7321 cattaatgaa tcggccaacg cgcggggaga ggcggtttgc gtattgggcg ct
//
