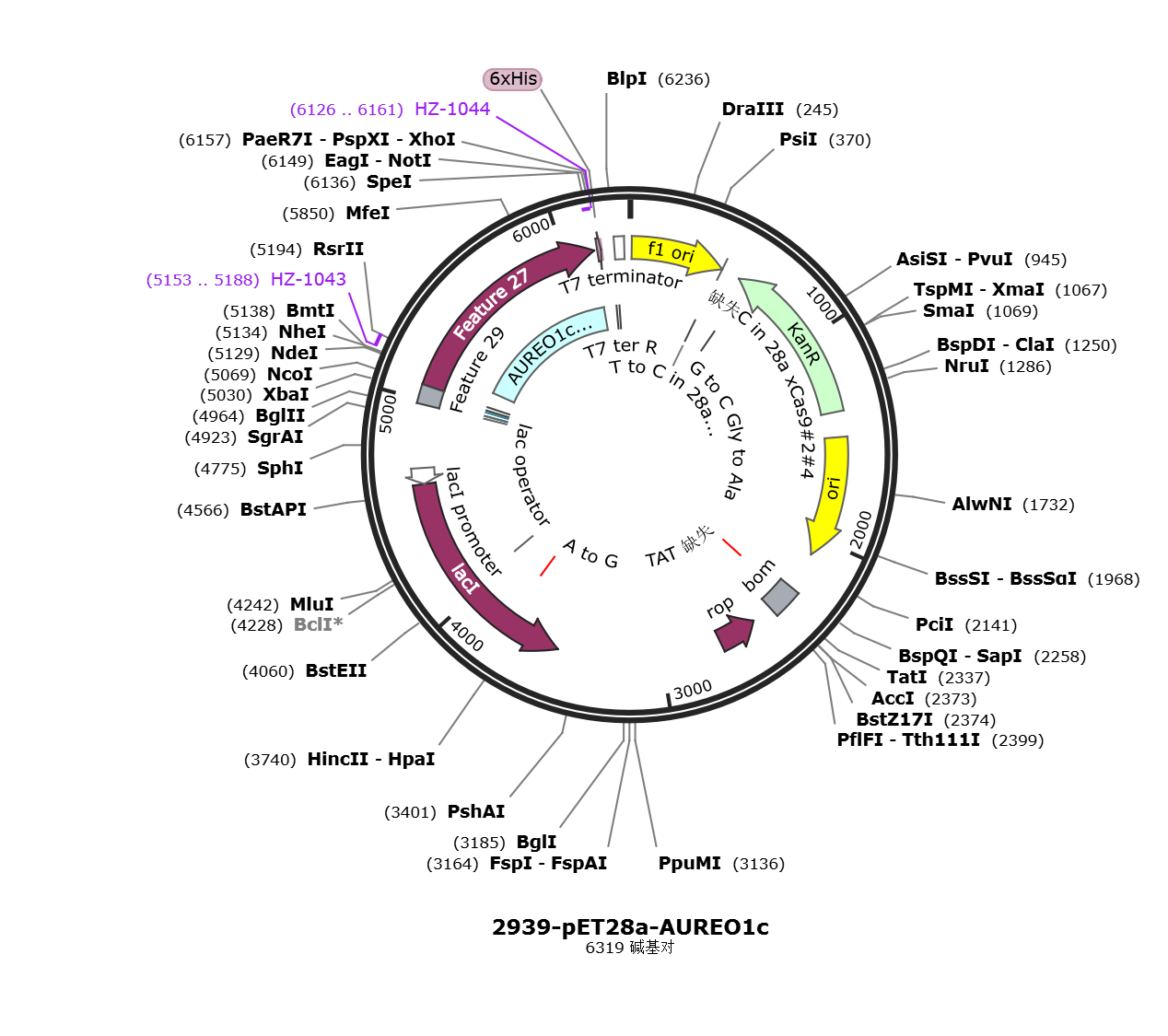

pET28a-AUREO1c

LOCUS      pET28a-AUREO1c            6319 bp DNA     circular SYN 25-OCT-2021
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6319)
  AUTHORS   Huanhuan
  TITLE     Direct Submission
  JOURNAL   Exported Sep 26, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6319
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     rep_origin      12..467
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     misc_feature    458

     misc_feature    468
                     /label=缺失C in 28a xCas9#2#4
     CDS             complement(560..1375)
                     /codon_start=1
                     /gene="aph(3')-Ia"
                     /product="aminoglycoside phosphotransferase"
                     /label=KanR
                     /note="confers resistance to kanamycin in bacteria or G418
                     (Geneticin(R)) in eukaryotes"
                     /translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYG
                     KPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGK
                     TAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVDA
                     SDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGI
                     ADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF"
     misc_feature    608..610
                     /label=G to C Gly to Ala
     misc_feature    609
                     /label=Feature 23
     rep_origin      1497..2085
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     misc_feature    2271..2413
                     /label=bom
                     /note="basis of mobility region from pBR322"
     misc_feature    2321..2323
                     /label=TAT 缺失
     CDS             complement(2515..2706)
                     /codon_start=1
                     /gene="rop"
                     /product="Rop protein, which maintains plasmids at low copy
                     number"
                     /label=rop
                     /translation="MTKQEKTALNMARFIRSQTLTLLEKLNELDADEQADICESLHDHA
                     DELYRSCLARFGDDGENL"
     CDS             complement(3515..4597)
                     /codon_start=1
                     /gene="lacI"
                     /product="lac repressor"
                     /label=lacI
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
                     /translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
                     NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
                     EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
                     EDGTRLGVEHLVALGHQQIALLARPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
                     MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
                     YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
                     ALADSLMQLARQVSRLESGQ"
     misc_feature    3797
                     /label=A to G
     misc_feature    4037..4039
                     /label=gcc to gcg, to remove ApaI
     promoter        complement(4598..4675)
                     /gene="lacI"
                     /label=lacI promoter
     misc_feature    4980..5069
                     /label=Feature 29
     misc_feature    4984..5003

     promoter        4984..5002
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     protein_bind    5003..5027
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     RBS             5042..5064
                     /note="efficient ribosome binding site from bacteriophage
                     T7 gene 10 (Olins and Rangwala, 1989)"
     CDS             5071..6147
                     /codon_start=1
                     /label=Feature 27
                     /translation="MGSSHHHHHHSSGLVPRGSHMASMTGGQQMGRADQAKANPSGPSN
                     TAPLFQMSDPANPSSTLDLDDLFNDIYYMDLPNGSNMDSDPTPVDVPSSNGNGHDGASK
                     KRSADDFDGDSLDGTGNKDLTEQQKLERRERNREHAKRSRLRKKFLLESLQEQIHGLEE
                     QLDGLKSAIKKELPQQAEQIITRICGDKEKFTPLPMPSGFGPVKTLMEPDFRLMSALSG
                     SQQNFAISDPTLPDNPIVYVSQGFLDLTGYTLDQVLGRNCRFLQGPGTDQSAVEVIRKG
                     ITEGVDTSVCLLNYKADGTPFWNQFFVASLRDAENNVVNHVGVQCEVSKAVVEKHMGEQ
                     KKAAAEAAKARPVTTTSS"
     CDS             5083..5100
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /label=6xHis
                     /translation="HHHHHH"
     CDS             5110..5127
                     /codon_start=1
                     /product="thrombin recognition and cleavage site"
                     /label=thrombin site
                     /translation="LVPRGS"
     CDS             5131..5163
                     /codon_start=1
                     /product="leader peptide from bacteriophage T7 gene 10"
                     /label=T7 tag (gene 10 leader)
                     /note="promotes efficient translation in E. coli"
                     /translation="MASMTGGQQMG"
     primer_bind     5153..5188
                     /label=HZ-1043
     misc_feature    5167..6147
                     /label=AUREO1c template P413
     CDS             5437..6054
                     /codon_start=1
                     /label=Yanlei 序列比对
                     /translation="DLTEQQKLERRERNREHAKRSRLRKKFLLESLQEQIHGLEEQLDG
                     LKSAIKKELPQQAEQIITRICGDKEKFTPLPMPSGFGPVKTLMEPDFRLMSALSGSQQN
                     FAISDPTLPDNPIVYVSQGFLDLTGYTLDQVLGRNCRFLQGPGTDQSAVEVIRKGITEG
                     VDTSVCLLNYKADGTPFWNQFFVASLRDAENNVVNHVGVQCEV"
     misc_feature    5542..5544
                     /label=I to V -site1
     CDS             5563..5565
                     /codon_start=1
                     /label=site2
                     /translation="L"
     misc_feature    5563..5565
                     /label=L to N-site2
     CDS             5698..5700
                     /codon_start=1
                     /label=M to D- site3
                     /translation="M"
     misc_feature    5707..6144
                     /label=LOV domain
     CDS             5713..5715
                     /codon_start=1
                     /label=R to S- site4
                     /translation="R"
     CDS             5731..5733
                     /codon_start=1
                     /label=S to Q -site5
                     /translation="S"
     CDS             5734..5736
                     /codon_start=1
                     /label=G to T-ste6
                     /translation="G"
     CDS             5749..6054
                     /codon_start=1
                     /label=serif 论文 LOV domain
                     /translation="FAISDPTLPDNPIVYVSQGFLDLTGYTLDQVLGRNCRFLQGPGTD
                     QSAVEVIRKGITEGVDTSVCLLNYKADGTPFWNQFFVASLRDAENNVVNHVGVQCEV"
     CDS             5752..5754
                     /codon_start=1
                     /label=A to V-site7
                     /translation="A"
     CDS             5794..5796
                     /codon_start=1
                     /label=V to A-site8
                     /translation="V"
     CDS             5884..5886
                     /codon_start=1
                     /label=Q to P-site9
                     /translation="Q"
     primer_bind     complement(6126..6161)
                     /label=HZ-1044
     CDS             6163..6180
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /label=6xHis
                     /translation="HHHHHH"
     misc_feature    complement(6233..6252)

     terminator      6247..6294
                     /label=T7 terminator
                     /note="transcription terminator for bacteriophage T7 RNA
                     polymerase"
ORIGIN
        1 tggcgaatgg gacgcgccct gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg
       61 cagcgtgacc gctacacttg ccagcgccct agcgcccgct cctttcgctt tcttcccttc
      121 ctttctcgcc acgttcgccg gctttccccg tcaagctcta aatcgggggc tccctttagg
      181 gttccgattt agtgctttac ggcacctcga ccccaaaaaa cttgattagg gtgatggttc
      241 acgtagtggg ccatcgccct gatagacggt ttttcgccct ttgacgttgg agtccacgtt
      301 ctttaatagt ggactcttgt tccaaactgg aacaacactc aaccctatct cggtctattc
      361 ttttgattta taagggattt tgccgatttc ggcctattgg ttaaaaaatg agctgattta
      421 acaaaaattt aacgcgaatt ttaacaaaat attaacgttt acaatttcag gtggcacttt
      481 tcggggaaat gtgcgcggaa cccctatttg tttatttttc taaatacatt caaatatgta
      541 tccgctcatg aattaattct tagaaaaact catcgagcat caaatgaaac tgcaatttat
      601 tcatatcagg attatcaata ccatattttt gaaaaagccg tttctgtaat gaaggagaaa
      661 actcaccgag gcagttccat aggatggcaa gatcctggta tcggtctgcg attccgactc
      721 gtccaacatc aatacaacct attaatttcc cctcgtcaaa aataaggtta tcaagtgaga
      781 aatcaccatg agtgacgact gaatccggtg agaatggcaa aagtttatgc atttctttcc
      841 agacttgttc aacaggccag ccattacgct cgtcatcaaa atcactcgca tcaaccaaac
      901 cgttattcat tcgtgattgc gcctgagcga gacgaaatac gcgatcgctg ttaaaaggac
      961 aattacaaac aggaatcgaa tgcaaccggc gcaggaacac tgccagcgca tcaacaatat
     1021 tttcacctga atcaggatat tcttctaata cctggaatgc tgttttcccg gggatcgcag
     1081 tggtgagtaa ccatgcatca tcaggagtac ggataaaatg cttgatggtc ggaagaggca
     1141 taaattccgt cagccagttt agtctgacca tctcatctgt aacatcattg gcaacgctac
     1201 ctttgccatg tttcagaaac aactctggcg catcgggctt cccatacaat cgatagattg
     1261 tcgcacctga ttgcccgaca ttatcgcgag cccatttata cccatataaa tcagcatcca
     1321 tgttggaatt taatcgcggc ctagagcaag acgtttcccg ttgaatatgg ctcataacac
     1381 cccttgtatt actgtttatg taagcagaca gttttattgt tcatgaccaa aatcccttaa
     1441 cgtgagtttt cgttccactg agcgtcagac cccgtagaaa agatcaaagg atcttcttga
     1501 gatccttttt ttctgcgcgt aatctgctgc ttgcaaacaa aaaaaccacc gctaccagcg
     1561 gtggtttgtt tgccggatca agagctacca actctttttc cgaaggtaac tggcttcagc
     1621 agagcgcaga taccaaatac tgtccttcta gtgtagccgt agttaggcca ccacttcaag
     1681 aactctgtag caccgcctac atacctcgct ctgctaatcc tgttaccagt ggctgctgcc
     1741 agtggcgata agtcgtgtct taccgggttg gactcaagac gatagttacc ggataaggcg
     1801 cagcggtcgg gctgaacggg gggttcgtgc acacagccca gcttggagcg aacgacctac
     1861 accgaactga gatacctaca gcgtgagcta tgagaaagcg ccacgcttcc cgaagggaga
     1921 aaggcggaca ggtatccggt aagcggcagg gtcggaacag gagagcgcac gagggagctt
     1981 ccagggggaa acgcctggta tctttatagt cctgtcgggt ttcgccacct ctgacttgag
     2041 cgtcgatttt tgtgatgctc gtcagggggg cggagcctat ggaaaaacgc cagcaacgcg
     2101 gcctttttac ggttcctggc cttttgctgg ccttttgctc acatgttctt tcctgcgtta
     2161 tcccctgatt ctgtggataa ccgtattacc gcctttgagt gagctgatac cgctcgccgc
     2221 agccgaacga ccgagcgcag cgagtcagtg agcgaggaag cggaagagcg cctgatgcgg
     2281 tattttctcc ttacgcatct gtgcggtatt tcacaccgca tatatggtgc actctcagta
     2341 caatctgctc tgatgccgca tagttaagcc agtatacact ccgctatcgc tacgtgactg
     2401 ggtcatggct gcgccccgac acccgccaac acccgctgac gcgccctgac gggcttgtct
     2461 gctcccggca tccgcttaca gacaagctgt gaccgtctcc gggagctgca tgtgtcagag
     2521 gttttcaccg tcatcaccga aacgcgcgag gcagctgcgg taaagctcat cagcgtggtc
     2581 gtgaagcgat tcacagatgt ctgcctgttc atccgcgtcc agctcgttga gtttctccag
     2641 aagcgttaat gtctggcttc tgataaagcg ggccatgtta agggcggttt tttcctgttt
     2701 ggtcactgat gcctccgtgt aagggggatt tctgttcatg ggggtaatga taccgatgaa
     2761 acgagagagg atgctcacga tacgggttac tgatgatgaa catgcccggt tactggaacg
     2821 ttgtgagggt aaacaactgg cggtatggat gcggcgggac cagagaaaaa tcactcaggg
     2881 tcaatgccag cgcttcgtta atacagatgt aggtgttcca cagggtagcc agcagcatcc
     2941 tgcgatgcag atccggaaca taatggtgca gggcgctgac ttccgcgttt ccagacttta
     3001 cgaaacacgg aaaccgaaga ccattcatgt tgttgctcag gtcgcagacg ttttgcagca
     3061 gcagtcgctt cacgttcgct cgcgtatcgg tgattcattc tgctaaccag taaggcaacc
     3121 ccgccagcct agccgggtcc tcaacgacag gagcacgatc atgcgcaccc gtggggccgc
     3181 catgccggcg ataatggcct gcttctcgcc gaaacgtttg gtggcgggac cagtgacgaa
     3241 ggcttgagcg agggcgtgca agattccgaa taccgcaagc gacaggccga tcatcgtcgc
     3301 gctccagcga aagcggtcct cgccgaaaat gacccagagc gctgccggca cctgtcctac
     3361 gagttgcatg ataaagaaga cagtcataag tgcggcgacg atagtcatgc cccgcgccca
     3421 ccggaaggag ctgactgggt tgaaggctct caagggcatc ggtcgagatc ccggtgccta
     3481 atgagtgagc taacttacat taattgcgtt gcgctcactg cccgctttcc agtcgggaaa
     3541 cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat
     3601 tgggcgccag ggtggttttt cttttcacca gtgagacggg caacagctga ttgcccttca
     3661 ccgcctggcc ctgagagagt tgcagcaagc ggtccacgct ggtttgcccc agcaggcgaa
     3721 aatcctgttt gatggtggtt aacggcggga tataacatga gctgtcttcg gtatcgtcgt
     3781 atcccactac cgagatatcc gcaccaacgc gcagcccgga ctcggtaatg gcgcgcattg
     3841 cgcccagcgc catctgatcg ttggcaacca gcatcgcagt gggaacgatg ccctcattca
     3901 gcatttgcat ggtttgttga aaaccggaca tggcactcca gtcgccttcc cgttccgcta
     3961 tcggctgaat ttgattgcga gtgagatatt tatgccagcc agccagacgc agacgcgccg
     4021 agacagaact taatgggcgc gctaacagcg cgatttgctg gtgacccaat gcgaccagat
     4081 gctccacgcc cagtcgcgta ccgtcttcat gggagaaaat aatactgttg atgggtgtct
     4141 ggtcagagac atcaagaaat aacgccggaa cattagtgca ggcagcttcc acagcaatgg
     4201 catcctggtc atccagcgga tagttaatga tcagcccact gacgcgttgc gcgagaagat
     4261 tgtgcaccgc cgctttacag gcttcgacgc cgcttcgttc taccatcgac accaccacgc
     4321 tggcacccag ttgatcggcg cgagatttaa tcgccgcgac aatttgcgac ggcgcgtgca
     4381 gggccagact ggaggtggca acgccaatca gcaacgactg tttgcccgcc agttgttgtg
     4441 ccacgcggtt gggaatgtaa ttcagctccg ccatcgccgc ttccactttt tcccgcgttt
     4501 tcgcagaaac gtggctggcc tggttcacca cgcgggaaac ggtctgataa gagacaccgg
     4561 catactctgc gacatcgtat aacgttactg gtttcacatt caccaccctg aattgactct
     4621 cttccgggcg ctatcatgcc ataccgcgaa aggttttgcg ccattcgatg gtgtccggga
     4681 tctcgacgct ctcccttatg cgactcctgc attaggaagc agcccagtag taggttgagg
     4741 ccgttgagca ccgccgccgc aaggaatggt gcatgcaagg agatggcgcc caacagtccc
     4801 ccggccacgg ggcctgccac catacccacg ccgaaacaag cgctcatgag cccgaagtgg
     4861 cgagcccgat cttccccatc ggtgatgtcg gcgatatagg cgccagcaac cgcacctgtg
     4921 gcgccggtga tgccggccac gatgcgtccg gcgtagagga tcgagatctc gatcccgcga
     4981 aattaatacg actcactata ggggaattgt gagcggataa caattcccct ctagaaataa
     5041 ttttgtttaa ctttaagaag gagatatacc atgggcagca gccatcatca tcatcatcac
     5101 agcagcggcc tggtgccgcg cggcagccat atggctagca tgactggtgg acagcaaatg
     5161 ggtcgcgcgg accaagccaa ggccaatcca tccggaccgt cgaatacggc acctttattt
     5221 caaatgtctg atccggcgaa tcccagttcc actctggatc tcgacgactt gttcaacgat
     5281 atctattaca tggatttacc gaacggcagc aatatggatt cggatcctac gcccgtggac
     5341 gtgcccagca gcaacgggaa cggccacgac ggtgcgagta agaaacgcag tgcggatgat
     5401 ttcgacgggg acagtttgga cgggaccggc aataaggatt tgacggagca gcagaaattg
     5461 gagcgccgtg agcgcaaccg cgaacacgcc aaacgtagcc gtctccgcaa aaagtttcta
     5521 ctcgaatcgc tgcaggaaca gattcacggg ttggaggaac agttggatgg tttgaaatcg
     5581 gcaattaaaa aggaattacc acaacaagcg gaacaaatta ttaccaggat ttgtggggat
     5641 aaggaaaagt ttacgccgct gcccatgccg agtggatttg gacccgtgaa gacgctcatg
     5701 gagccggact ttcggctcat gtcggctctt tccggttcgc agcaaaattt cgctatttcg
     5761 gatccaactc ttcccgataa tcctattgtt tatgttagtc aaggatttct ggatttgacc
     5821 ggatacacgc tggatcaggt cttgggtcgc aattgtcgat ttctgcaggg accaggaacc
     5881 gaccagagtg cagtggaagt cattcgcaag ggaattactg aaggagtgga cacgtccgtg
     5941 tgtttgctga attacaaagc cgacggcaca cccttttgga accaattctt tgtggcctct
     6001 ctacgagacg ccgaaaacaa cgtggtcaat cacgtcgggg ttcagtgtga agtgagcaag
     6061 gccgtggtcg aaaaacacat gggggaacaa aagaaggccg cagcagaagc cgccaaagcc
     6121 cgacccgtga ccactactag tagttgagcg gccgcactcg agcaccacca ccaccaccac
     6181 tgagatccgg ctgctaacaa agcccgaaag gaagctgagt tggctgctgc caccgctgag
     6241 caataactag cataacccct tggggcctct aaacgggtct tgaggggttt tttgctgaaa
     6301 ggaggaacta tatccggat
//
