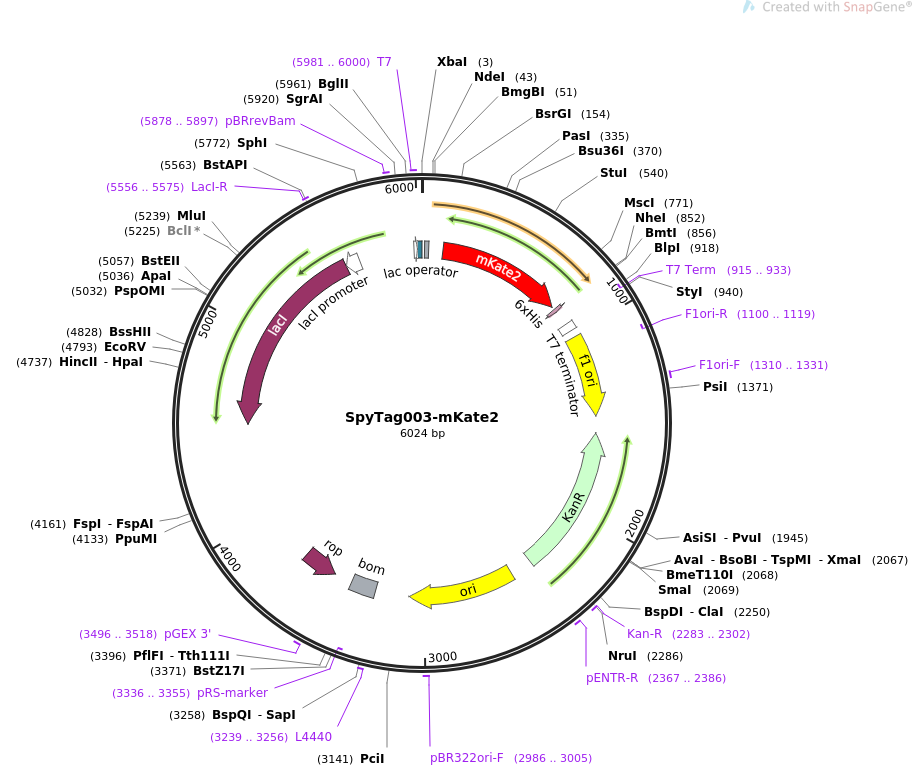

SpyTag003-mKate2

LOCUS       SpyTag003-mKate2                6024 bp ds-DNA

circular SYN 12-MAY-2021
DEFINITION  Expresses SpyTag003-mKate2 (a far-red fluorescent

protein) in
            bacterial cytoplasm.
ACCESSION   .
VERSION     .
KEYWORDS    SpyTag003-mKate2
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6024)
  AUTHORS   Keeble AH, Turkki P, Stokes S, Khairil Anuar INA,

Rahikainen R,
            Hytonen VP, Howarth M
  TITLE     Approaching infinite affinity through engineering of

peptide-protein
            interaction.
  JOURNAL   Proc Natl Acad Sci U S A. 2019 Dec 10. pii:

1909653116. doi:
            10.1073/pnas.1909653116.
  PUBMED    31822621
REFERENCE   2  (bases 1 to 6024)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6024
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     RBS             15..37
                     /note="efficient ribosome binding site from

bacteriophage
                     T7 gene 10 (Olins and Rangwala, 1989)"
     CDS             117..809
                     /codon_start=1
                     /product="monomeric far-red fluorescent

protein (Shcherbo
                     et al., 2009)"
                     /label=mKate2
                     /note="mammalian codon-optimized"


/translation="VSELIKENMHMKLYMEGTVNNHHFKCTSEGEGKPYEGTQTMRIKA


VEGGPLPFAFDILATSFMYGSKTFINHTQGIPDFFKQSFPEGFTWERVTTYEDGGVLTA


TQDTSLQDGCLIYNVKIRGVNFPSNGPVMQKKTLGWEASTETLYPADGGLEGRADMALK


LVGGGHLICNLKTTYRSKKPAKNLKMPGVYYVDRRLERIKEADKETYVEQHEVAVARYC
                     DLPSKLGHR"
     CDS             828..845
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /label=6xHis
                     /translation="HHHHHH"
     primer_bind     complement(915..933)
                     /label=T7 Term
                     /note="T7 terminator, reverse primer"
     terminator      929..976
                     /label=T7 terminator
                     /note="transcription terminator for

bacteriophage T7 RNA
                     polymerase"
     rep_origin      1013..1468
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of

replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(1100..1119)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     1310..1331
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     CDS             complement(1560..2375)
                     /codon_start=1
                     /gene="aph(3')-Ia"
                     /product="aminoglycoside phosphotransferase"
                     /label=KanR
                     /note="confers resistance to kanamycin in

bacteria or G418
                     (Geneticin(R)) in eukaryotes"


/translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYG


KPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGK


TAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVDA


SDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGI


ADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF"
     primer_bind     2283..2302
                     /label=Kan-R
                     /note="Kanamycin resistance gene, reverse

primer"
     primer_bind     2367..2386
                     /label=pENTR-R
                     /note="pENTR vectors, reverse primer"
     rep_origin      2497..3085
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC

origin of
                     replication"
     primer_bind     2986..3005
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     3239..3256
                     /label=L4440
                     /note="L4440 vector, forward primer"
     misc_feature    3271..3410
                     /label=bom
                     /note="basis of mobility region from pBR322"
     primer_bind     complement(3336..3355)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast

selectable
                     marker"
     primer_bind     3496..3518
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     CDS             complement(3512..3703)
                     /codon_start=1
                     /gene="rop"
                     /product="Rop protein, which maintains

plasmids at low copy
                     number"
                     /label=rop


/translation="MTKQEKTALNMARFIRSQTLTLLEKLNELDADEQADICESLHDHA
                     DELYRSCLARFGDDGENL"
     CDS             complement(4512..5594)
                     /codon_start=1
                     /gene="lacI"
                     /product="lac repressor"
                     /label=lacI
                     /note="The lac repressor binds to the lac

operator to
                     inhibit transcription in E. coli. This

inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside

(IPTG)."


/translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL


NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV


EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH


EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA


MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC


YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
                     ALADSLMQLARQVSRLESGQ"
     primer_bind     5556..5575
                     /label=LacI-R
                     /note="LacI, reverse primer"
     promoter        complement(5595..5672)
                     /gene="lacI"
                     /label=lacI promoter
     primer_bind     5878..5897
                     /label=pBRrevBam
                     /note="pBR322 vectors, tet region, downstream

of BamHI,
                     reverse primer"
     primer_bind     5981..6000
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        5981..5999
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA

polymerase"
     protein_bind    6000..6024
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac

operator to
                     inhibit transcription in E. coli. This

inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside

(IPTG)."
ORIGIN
        1 cctctagaaa taattttgtt taactttaag aaggagatat acatatggga

cgtggcgttc
       61 ctcatattgt tatggtggac gcctacaaac gctataaatc gggaggtggt

tcaggcgtga
      121 gcgagctgat taaggagaac atgcacatga agctgtacat ggagggcacc

gtgaacaacc
      181 accacttcaa gtgcacatcc gagggcgaag gcaagcccta cgagggcacc

cagaccatga
      241 gaatcaaggc cgtcgagggc ggccctctcc ccttcgcctt cgacatcctg

gctaccagct
      301 tcatgtacgg cagcaaaacc ttcatcaacc acacccaggg catccccgac

ttctttaagc
      361 agtccttccc tgagggcttc acatgggaga gagtcaccac atacgaagac

gggggcgtgc
      421 tgaccgctac ccaggacacc agcctccagg acggctgcct catctacaac

gtcaagatca
      481 gaggggtgaa cttcccatcc aacggccctg tgatgcagaa gaaaacactc

ggctgggagg
      541 cctccaccga gaccctgtac cccgctgacg gcggcctgga aggcagagcc

gacatggccc
      601 tgaagctcgt gggcgggggc cacctgatct gcaacttgaa gaccacatac

agatccaaga
      661 aacccgctaa gaacctcaag atgcccggcg tctactatgt ggacagaaga

ctggaaagaa
      721 tcaaggaggc cgacaaagag acctacgtcg agcagcacga ggtggctgtg

gccagatact
      781 gcgacctccc tagcaaactg gggcacagag gctccggctc cggctcccac

catcaccatc
      841 accattgata agctagcacc actgagatcc ggctgctaac aaagcccgaa

aggaagctga
      901 gttggctgct gccaccgctg agcaataact agcataaccc cttggggcct

ctaaacgggt
      961 cttgaggggt tttttgctga aaggaggaac tatatccgga ttggcgaatg

ggacgcgccc
     1021 tgtagcggcg cattaagcgc ggcgggtgtg gtggttacgc gcagcgtgac

cgctacactt
     1081 gccagcgccc tagcgcccgc tcctttcgct ttcttccctt cctttctcgc

cacgttcgcc
     1141 ggctttcccc gtcaagctct aaatcggggg ctccctttag ggttccgatt

tagtgcttta
     1201 cggcacctcg accccaaaaa acttgattag ggtgatggtt cacgtagtgg

gccatcgccc
     1261 tgatagacgg tttttcgccc tttgacgttg gagtccacgt tctttaatag

tggactcttg
     1321 ttccaaactg gaacaacact caaccctatc tcggtctatt cttttgattt

ataagggatt
     1381 ttgccgattt cggcctattg gttaaaaaat gagctgattt aacaaaaatt

taacgcgaat
     1441 tttaacaaaa tattaacgct tacaatttag gtggcacttt tcggggaaat

gtgcgcggaa
     1501 cccctatttg tttatttttc taaatacatt caaatatgta tccgctcatg

aattaattct
     1561 tagaaaaact catcgagcat caaatgaaac tgcaatttat tcatatcagg

attatcaata
     1621 ccatattttt gaaaaagccg tttctgtaat gaaggagaaa actcaccgag

gcagttccat
     1681 aggatggcaa gatcctggta tcggtctgcg attccgactc gtccaacatc

aatacaacct
     1741 attaatttcc cctcgtcaaa aataaggtta tcaagtgaga aatcaccatg

agtgacgact
     1801 gaatccggtg agaatggcaa aagtttatgc atttctttcc agacttgttc

aacaggccag
     1861 ccattacgct cgtcatcaaa atcactcgca tcaaccaaac cgttattcat

tcgtgattgc
     1921 gcctgagcga gacgaaatac gcgatcgctg ttaaaaggac aattacaaac

aggaatcgaa
     1981 tgcaaccggc gcaggaacac tgccagcgca tcaacaatat tttcacctga

atcaggatat
     2041 tcttctaata cctggaatgc tgttttcccg gggatcgcag tggtgagtaa

ccatgcatca
     2101 tcaggagtac ggataaaatg cttgatggtc ggaagaggca taaattccgt

cagccagttt
     2161 agtctgacca tctcatctgt aacatcattg gcaacgctac ctttgccatg

tttcagaaac
     2221 aactctggcg catcgggctt cccatacaat cgatagattg tcgcacctga

ttgcccgaca
     2281 ttatcgcgag cccatttata cccatataaa tcagcatcca tgttggaatt

taatcgcggc
     2341 ctagagcaag acgtttcccg ttgaatatgg ctcataacac cccttgtatt

actgtttatg
     2401 taagcagaca gttttattgt tcatgaccaa aatcccttaa cgtgagtttt

cgttccactg
     2461 agcgtcagac cccgtagaaa agatcaaagg atcttcttga gatccttttt

ttctgcgcgt
     2521 aatctgctgc ttgcaaacaa aaaaaccacc gctaccagcg gtggtttgtt

tgccggatca
     2581 agagctacca actctttttc cgaaggtaac tggcttcagc agagcgcaga

taccaaatac
     2641 tgtccttcta gtgtagccgt agttaggcca ccacttcaag aactctgtag

caccgcctac
     2701 atacctcgct ctgctaatcc tgttaccagt ggctgctgcc agtggcgata

agtcgtgtct
     2761 taccgggttg gactcaagac gatagttacc ggataaggcg cagcggtcgg

gctgaacggg
     2821 gggttcgtgc acacagccca gcttggagcg aacgacctac accgaactga

gatacctaca
     2881 gcgtgagcta tgagaaagcg ccacgcttcc cgaagggaga aaggcggaca

ggtatccggt
     2941 aagcggcagg gtcggaacag gagagcgcac gagggagctt ccagggggaa

acgcctggta
     3001 tctttatagt cctgtcgggt ttcgccacct ctgacttgag cgtcgatttt

tgtgatgctc
     3061 gtcagggggg cggagcctat ggaaaaacgc cagcaacgcg gcctttttac

ggttcctggc
     3121 cttttgctgg ccttttgctc acatgttctt tcctgcgtta tcccctgatt

ctgtggataa
     3181 ccgtattacc gcctttgagt gagctgatac cgctcgccgc agccgaacga

ccgagcgcag
     3241 cgagtcagtg agcgaggaag cggaagagcg cctgatgcgg tattttctcc

ttacgcatct
     3301 gtgcggtatt tcacaccgca atggtgcact ctcagtacaa tctgctctga

tgccgcatag
     3361 ttaagccagt atacactccg ctatcgctac gtgactgggt catggctgcg

ccccgacacc
     3421 cgccaacacc cgctgacgcg ccctgacggg cttgtctgct cccggcatcc

gcttacagac
     3481 aagctgtgac cgtctccggg agctgcatgt gtcagaggtt ttcaccgtca

tcaccgaaac
     3541 gcgcgaggca gctgcggtaa agctcatcag cgtggtcgtg aagcgattca

cagatgtctg
     3601 cctgttcatc cgcgtccagc tcgttgagtt tctccagaag cgttaatgtc

tggcttctga
     3661 taaagcgggc catgttaagg gcggtttttt cctgtttggt cactgatgcc

tccgtgtaag
     3721 ggggatttct gttcatgggg gtaatgatac cgatgaaacg agagaggatg

ctcacgatac
     3781 gggttactga tgatgaacat gcccggttac tggaacgttg tgagggtaaa

caactggcgg
     3841 tatggatgcg gcgggaccag agaaaaatca ctcagggtca atgccagcgc

ttcgttaata
     3901 cagatgtagg tgttccacag ggtagccagc agcatcctgc gatgcagatc

cggaacataa
     3961 tggtgcaggg cgctgacttc cgcgtttcca gactttacga aacacggaaa

ccgaagacca
     4021 ttcatgttgt tgctcaggtc gcagacgttt tgcagcagca gtcgcttcac

gttcgctcgc
     4081 gtatcggtga ttcattctgc taaccagtaa ggcaaccccg ccagcctagc

cgggtcctca
     4141 acgacaggag cacgatcatg cgcacccgtg gggccgccat gccggcgata

atggcctgct
     4201 tctcgccgaa acgtttggtg gcgggaccag tgacgaaggc ttgagcgagg

gcgtgcaaga
     4261 ttccgaatac cgcaagcgac aggccgatca tcgtcgcgct ccagcgaaag

cggtcctcgc
     4321 cgaaaatgac ccagagcgct gccggcacct gtcctacgag ttgcatgata

aagaagacag
     4381 tcataagtgc ggcgacgata gtcatgcccc gcgcccaccg gaaggagctg

actgggttga
     4441 aggctctcaa gggcatcggt cgagatcccg gtgcctaatg agtgagctaa

cttacattaa
     4501 ttgcgttgcg ctcactgccc gctttccagt cgggaaacct gtcgtgccag

ctgcattaat
     4561 gaatcggcca acgcgcgggg agaggcggtt tgcgtattgg gcgccagggt

ggtttttctt
     4621 ttcaccagtg agacgggcaa cagctgattg cccttcaccg cctggccctg

agagagttgc
     4681 agcaagcggt ccacgctggt ttgccccagc aggcgaaaat cctgtttgat

ggtggttaac
     4741 ggcgggatat aacatgagct gtcttcggta tcgtcgtatc ccactaccga

gatatccgca
     4801 ccaacgcgca gcccggactc ggtaatggcg cgcattgcgc ccagcgccat

ctgatcgttg
     4861 gcaaccagca tcgcagtggg aacgatgccc tcattcagca tttgcatggt

ttgttgaaaa
     4921 ccggacatgg cactccagtc gccttcccgt tccgctatcg gctgaatttg

attgcgagtg
     4981 agatatttat gccagccagc cagacgcaga cgcgccgaga cagaacttaa

tgggcccgct
     5041 aacagcgcga tttgctggtg acccaatgcg accagatgct ccacgcccag

tcgcgtaccg
     5101 tcttcatggg agaaaataat actgttgatg ggtgtctggt cagagacatc

aagaaataac
     5161 gccggaacat tagtgcaggc agcttccaca gcaatggcat cctggtcatc

cagcggatag
     5221 ttaatgatca gcccactgac gcgttgcgcg agaagattgt gcaccgccgc

tttacaggct
     5281 tcgacgccgc ttcgttctac catcgacacc accacgctgg cacccagttg

atcggcgcga
     5341 gatttaatcg ccgcgacaat ttgcgacggc gcgtgcaggg ccagactgga

ggtggcaacg
     5401 ccaatcagca acgactgttt gcccgccagt tgttgtgcca cgcggttggg

aatgtaattc
     5461 agctccgcca tcgccgcttc cactttttcc cgcgttttcg cagaaacgtg

gctggcctgg
     5521 ttcaccacgc gggaaacggt ctgataagag acaccggcat actctgcgac

atcgtataac
     5581 gttactggtt tcacattcac caccctgaat tgactctctt ccgggcgcta

tcatgccata
     5641 ccgcgaaagg ttttgcgcca ttcgatggtg tccgggatct cgacgctctc

ccttatgcga
     5701 ctcctgcatt aggaagcagc ccagtagtag gttgaggccg ttgagcaccg

ccgccgcaag
     5761 gaatggtgca tgcaaggaga tggcgcccaa cagtcccccg gccacggggc

ctgccaccat
     5821 acccacgccg aaacaagcgc tcatgagccc gaagtggcga gcccgatctt

ccccatcggt
     5881 gatgtcggcg atataggcgc cagcaaccgc acctgtggcg ccggtgatgc

cggccacgat
     5941 gcgtccggcg tagaggatcg agatctcgat cccgcgaaat taatacgact

cactataggg
     6001 gaattgtgag cggataacaa ttcc
//
