pQL113

LOCUS       pQL113               5648 bp DNA     circular SYN 08-APR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 5648)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com

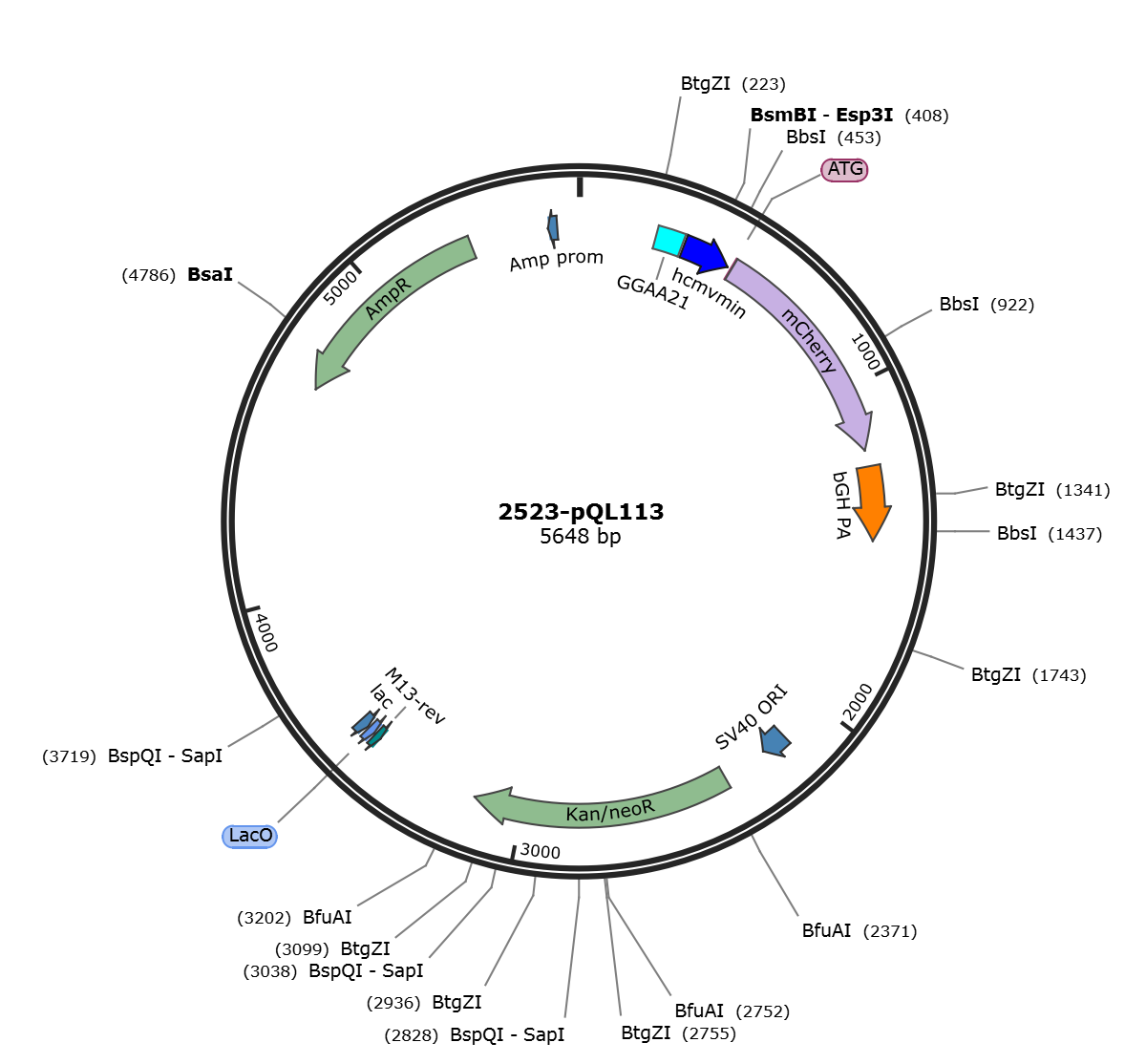

FEATURES             Location/Qualifiers
     source          1..5648
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     primer_bind     218..237
                     /label=QL143-F
     misc_feature    238..321
                     /label=GGAA21
     misc_feature    328..475
                     /label=hcmvmin
     primer_bind     complement(460..475)
                     /label=oYW11
     primer_bind     466..507
                     /label=QL137-F
     primer_bind     486..506
                     /label=QL9 mcherry-F
     CDS             487
                     /codon_start=1
                     /product="start codon"
                     /label=ATG
                     /translation=""
     CDS             490..1194
                     /codon_start=1
                     /label=mCherry
                     /translation="VSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEGT
                     QTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNFE
                     DGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALKG
                     EIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERAE
                     GRHSTGGMDELYK"
     primer_bind     complement(1174..1219)
                     /label=QL138-R
     primer_bind     complement(1175..1206)
                     /label=QL10 mCherry-R
     primer_bind     complement(1177..1198)
                     /label=QL144-R
     terminator      1245..1472
                     /label=bGH PA
     primer_bind     complement(1455..1475)
                     /label=QL153-R
     primer_bind     complement(1455..1475)
                     /label=QL224 113-R
     misc_feature    2140..2217
                     /label=SV40 ORI
     CDS             2359..3150
                     /label=Kan/neoR
     primer_bind     complement(3490..3510)
                     /label=M13-rev
     misc_binding    complement(3516..3538)
                     /label=LacO
     promoter        complement(3543..3572)
                     /label=lac
     CDS             complement(4655..5314)
                     /label=AmpR
     promoter        complement(5554..5582)
                     /label=Amp prom
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgtgtacgga
      241 aggaaggaag gaaggaagga aggaaggaag gaaggaagga aggaaggaag gaaggaagga
      301 aggaaggaag gaaggaagga agctagctcg agctcggtac ccgggtcgag taggcgtgta
      361 cggtgggagg cctatataag cagagctcgt ttagtgaacc gtcagatcgc ctggagacgc
      421 catccacgct gttttgacct ccatagaaga caccgggacc gatccagcct ccgcggcccc
      481 gaattcatgg tgagcaaggg cgaggaggat aacatggcca tcatcaagga gttcatgcgc
      541 ttcaaggtgc acatggaggg ctccgtgaac ggccacgagt tcgagatcga gggcgagggc
      601 gagggccgcc cctacgaggg cacccagacc gccaagctga aggtgaccaa gggtggcccc
      661 ctgcccttcg cctgggacat cctgtcccct cagttcatgt acggctccaa ggcctacgtg
      721 aagcaccccg ccgacatccc cgactacttg aagctgtcct tccccgaggg cttcaagtgg
      781 gagcgcgtga tgaacttcga ggacggcggc gtggtgaccg tgacccagga ctcctccctg
      841 caggacggcg agttcatcta caaggtgaag ctgcgcggca ccaacttccc ctccgacggc
      901 cccgtaatgc agaagaagac catgggctgg gaggcctcct ccgagcggat gtaccccgag
      961 gacggcgccc tgaagggcga gatcaagcag aggctgaagc tgaaggacgg cggccactac
     1021 gacgctgagg tcaagaccac ctacaaggcc aagaagcccg tgcagctgcc cggcgcctac
     1081 aacgtcaaca tcaagttgga catcacctcc cacaacgagg actacaccat cgtggaacag
     1141 tacgaacgcg ccgagggccg ccactccacc ggcggcatgg acgagctgta caagtaagcg
     1201 gccgctcgag tctagagggc ccgtttaaac ccgctgatca gcctcgactg tgccttctag
     1261 ttgccagcca tctgttgttt gcccctcccc cgtgccttcc ttgaccctgg aaggtgccac
     1321 tcccactgtc ctttcctaat aaaatgagga aattgcatcg cattgtctga gtaggtgtca
     1381 ttctattctg gggggtgggg tggggcagga cagcaagggg gaggattggg aagacaatag
     1441 caggcatgct ggggatgcgg tgggctctat ggcttctgag gcggaaagaa ccagctgggg
     1501 ctctaggggg tatccccacg cgccctgtag cggcgcatta agcgcggcgg gtgtggtggt
     1561 tacgcgcagc gtgaccgcta cacttgccag cgccctagcg cccgctcctt tcgctttctt
     1621 cccttccttt ctcgccacgt tcgccggctt tccccgtcaa gctctaaatc gggggctccc
     1681 tttagggttc cgatttagtg ctttacggca cctcgacccc aaaaaacttg attagggtga
     1741 tggttcacgt agtgggccat cgccctgata gacggttttt cgccctttga cgttggagtc
     1801 cacgttcttt aatagtggac tcttgttcca aactggaaca acactcaacc ctatctcggt
     1861 ctattctttt gatttataag ggattttgcc gatttcggcc tattggttaa aaaatgagct
     1921 gatttaacaa aaatttaacg cgaattaatt ctgtggaatg tgtgtcagtt agggtgtgga
     1981 aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca
     2041 accaggtgtg gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag catgcatctc
     2101 aattagtcag caaccatagt cccgccccta actccgccca tcccgcccct aactccgccc
     2161 agttccgccc attctccgcc ccatggctga ctaatttttt ttatttatgc agaggccgag
     2221 gccgcctctg cctctgagct attccagaag tagtgaggag gcttttttgg aggcctaggc
     2281 ttttgcaaaa agctcccggg agcttgtata tccattttcg gatctgatca agagacagga
     2341 tgaggatcgt ttcgcatgat tgaacaagat ggattgcacg caggttctcc ggccgcttgg
     2401 gtggagaggc tattcggcta tgactgggca caacagacaa tcggctgctc tgatgccgcc
     2461 gtgttccggc tgtcagcgca ggggcgcccg gttctttttg tcaagaccga cctgtccggt
     2521 gccctgaatg aactgcagga cgaggcagcg cggctatcgt ggctggccac gacgggcgtt
     2581 ccttgcgcag ctgtgctcga cgttgtcact gaagcgggaa gggactggct gctattgggc
     2641 gaagtgccgg ggcaggatct cctgtcatct caccttgctc ctgccgagaa agtatccatc
     2701 atggctgatg caatgcggcg gctgcatacg cttgatccgg ctacctgccc attcgaccac
     2761 caagcgaaac atcgcatcga gcgagcacgt actcggatgg aagccggtct tgtcgatcag
     2821 gatgatctgg acgaagagca tcaggggctc gcgccagccg aactgttcgc caggctcaag
     2881 gcgcgcatgc ccgacggcga ggatctcgtc gtgacccatg gcgatgcctg cttgccgaat
     2941 atcatggtgg aaaatggccg cttttctgga ttcatcgact gtggccggct gggtgtggcg
     3001 gaccgctatc aggacatagc gttggctacc cgtgatattg ctgaagagct tggcggcgaa
     3061 tgggctgacc gcttcctcgt gctttacggt atcgccgctc ccgattcgca gcgcatcgcc
     3121 ttctatcgcc ttcttgacga gttcttctga gcgggactct ggggttcgaa atgaccgacc
     3181 aagcgacgcc caacctgcca tcacgagatt tcgattccac cgccgccttc tatgaaaggt
     3241 tgggcttcgg aatcgttttc cgggacgccg gctggatgat cctccagcgc ggggatctca
     3301 tgctggagtt cttcgcccac cccaacttgt ttattgcagc ttataatggt tacaaataaa
     3361 gcaatagcat cacaaatttc acaaataaag catttttttc actgcattct agttgtggtt
     3421 tgtccaaact catcaatgta tcttatcatg tctgtatacc gtcgacctct agctagagct
     3481 tggcgtaatc atggtcatag ctgtttcctg tgtgaaattg ttatccgctc acaattccac
     3541 acaacatacg agccggaagc ataaagtgta aagcctgggg tgcctaatga gtgagctaac
     3601 tcacattaat tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg tcgtgccagc
     3661 tgcattaatg aatcggccaa cgcgcgggga gaggcggttt gcgtattggg cgctcttccg
     3721 cttcctcgct cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc
     3781 actcaaaggc ggtaatacgg ttatccacag aatcagggga taacgcagga aagaacatgt
     3841 gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc
     3901 ataggctccg cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa
     3961 acccgacagg actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc
     4021 ctgttccgac cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg
     4081 cgctttctca tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc
     4141 tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc
     4201 gtcttgagtc caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca
     4261 ggattagcag agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact
     4321 acggctacac tagaagaaca gtatttggta tctgcgctct gctgaagcca gttaccttcg
     4381 gaaaaagagt tggtagctct tgatccggca aacaaaccac cgctggtagc ggtttttttg
     4441 tttgcaagca gcagattacg cgcagaaaaa aaggatctca agaagatcct ttgatctttt
     4501 ctacggggtc tgacgctcag tggaacgaaa actcacgtta agggattttg gtcatgagat
     4561 tatcaaaaag gatcttcacc tagatccttt taaattaaaa atgaagtttt aaatcaatct
     4621 aaagtatata tgagtaaact tggtctgaca gttaccaatg cttaatcagt gaggcaccta
     4681 tctcagcgat ctgtctattt cgttcatcca tagttgcctg actccccgtc gtgtagataa
     4741 ctacgatacg ggagggctta ccatctggcc ccagtgctgc aatgataccg cgagacccac
     4801 gctcaccggc tccagattta tcagcaataa accagccagc cggaagggcc gagcgcagaa
     4861 gtggtcctgc aactttatcc gcctccatcc agtctattaa ttgttgccgg gaagctagag
     4921 taagtagttc gccagttaat agtttgcgca acgttgttgc cattgctaca ggcatcgtgg
     4981 tgtcacgctc gtcgtttggt atggcttcat tcagctccgg ttcccaacga tcaaggcgag
     5041 ttacatgatc ccccatgttg tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg
     5101 tcagaagtaa gttggccgca gtgttatcac tcatggttat ggcagcactg cataattctc
     5161 ttactgtcat gccatccgta agatgctttt ctgtgactgg tgagtactca accaagtcat
     5221 tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata cgggataata
     5281 ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa
     5341 aactctcaag gatcttaccg ctgttgagat ccagttcgat gtaacccact cgtgcaccca
     5401 actgatcttc agcatctttt actttcacca gcgtttctgg gtgagcaaaa acaggaaggc
     5461 aaaatgccgc aaaaaaggga ataagggcga cacggaaatg ttgaatactc atactcttcc
     5521 tttttcaata ttattgaagc atttatcagg gttattgtct catgagcgga tacatatttg
     5581 aatgtattta gaaaaataaa caaatagggg ttccgcgcac atttccccga aaagtgccac
     5641 ctgacgtc
//
