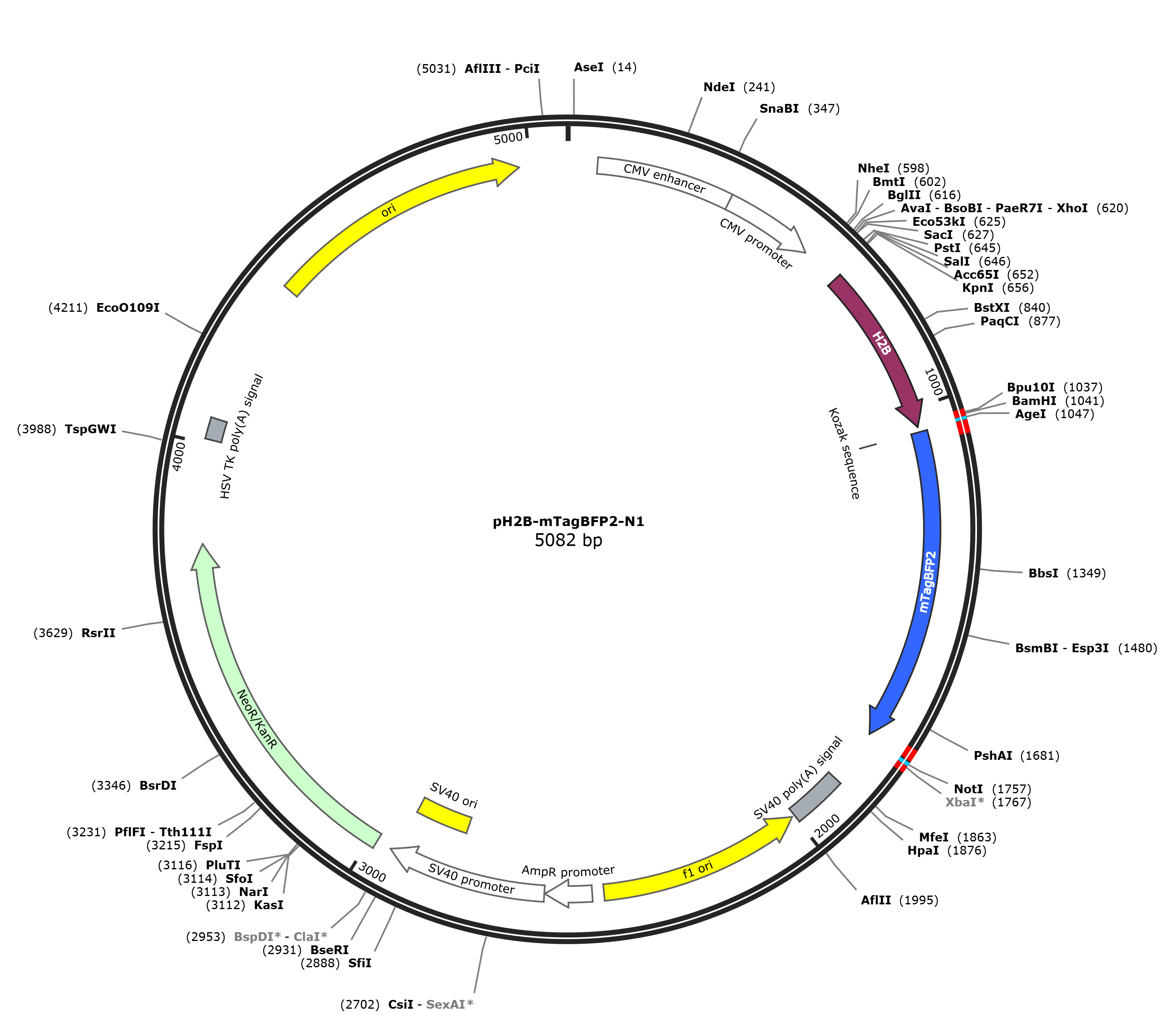

pH2B-mTagBFP2

LOCUS       pH2B-mTagBFP2                5082 bp DNA     circular SYN 18-JUL-2024
DEFINITION  Localization: Nucleus/Histones, Excitation: 383, Emission: 448.
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5082)
  TITLE     Davidson Blue Fluorescent Proteins
REFERENCE   2  (bases 1 to 5082)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 22, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"
FEATURES             Location/Qualifiers
     source          1..5082
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        68..371
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        372..575
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     526..546
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     596..611
                     /label=PM456-F
     CDS             664..1041
                     /codon_start=1
                     /gene="HIST1H2BJ"
                     /product="human histone H2B"
                     /label=H2B
                     /translation="MPEPAKSAPAPKKGSKKAVTKAQKKGGKKRKRSRKESYSIYVYKV
                     LKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLP
                     GELAKHAVSEGTKAITKYTSAK"
     primer_bind     901..921
                     /label=H2B-F
     primer_bind     1032..1056
                     /label=0416-PM643-F
     primer_bind     1053..1080
                     /label=0219-mTagBFP2-F
     CDS             1054..1752
                     /codon_start=1
                     /product="monomeric blue fluorescent protein"
                     /label=mTagBFP2
                     /note="mammalian codon-optimized"
                     /translation="MSELIKENMHMKLYMEGTVDNHHFKCTSEGEGKPYEGTQTMRIKV
                     VEGGPLPFAFDILATSFLYGSKTFINHTQGIPDFFKQSFPEGFTWERVTTYEDGGVLTA
                     TQDTSLQDGCLIYNVKIRGVNFTSNGPVMQKKTLGWEAFTETLYPADGGLEGRNDMALK
                     LVGGSHLIANAKTTYRSKKPAKNLKMPGVYYVDYRLERIKEANNETYVEQHEVAVARYC
                     DLPSKLGHKLN"
     regulatory      1054..1057
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     primer_bind     complement(1728..1752)
                     /label=0219-mTagBFP2-R
     primer_bind     complement(1753..1778)
                     /label=0416-PM643-R
     polyA_signal    1877..1998
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(1914..1933)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     1968..1987
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(2005..2460)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2142..2163)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2354..2373
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        2487..2591
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2593..2950
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(2616..2636)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      2801..2936
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2863..2882
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     complement(2886..2897)
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2985..3779
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3039..3058)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3649..3668
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(3967..3986)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    4011..4058
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4387..4975
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     4876..4895
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 catgcattag ttattaatag taatcaatta cggggtcatt agttcatagc ccatatatgg
       61 agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc aacgaccccc
      121 gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg actttccatt
      181 gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat caagtgtatc
      241 atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc tggcattatg
      301 cccagtacat gaccttatgg gactttccta cttggcagta catctacgta ttagtcatcg
      361 ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag cggtttgact
      421 cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt tggcaccaaa
      481 atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa atgggcggta
      541 ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt cagatccgct
      601 agcgctaccg gactcagatc tcgagctcaa gcttcgaatt ctgcagtcga cggtaccgcc
      661 accatgccag agccagcgaa gtctgctccc gccccgaaaa agggctccaa gaaggcggtg
      721 actaaggcgc agaagaaagg cggcaagaag cgcaagcgca gccgcaagga gagctattcc
      781 atctatgtgt acaaggttct gaagcaggtc caccctgaca ccggcatttc gtccaaggcc
      841 atgggcatca tgaattcgtt tgtgaacgac attttcgagc gcatcgcagg tgaggcttcc
      901 cgcctggcgc attacaacaa gcgctcgacc atcacctcca gggagatcca gacggccgtg
      961 cgcctgctgc tgcctgggga gttggccaag cacgccgtgt ccgagggtac taaggccatc
     1021 accaagtaca ccagcgctaa ggatccaccg gtcatgagcg agctgattaa ggagaacatg
     1081 cacatgaagc tgtacatgga gggcaccgtg gacaaccatc acttcaagtg cacatccgag
     1141 ggcgaaggca agccctacga gggcacccag accatgagaa tcaaggtggt cgagggcggc
     1201 cctctcccct tcgccttcga catcctggct actagcttcc tctacggcag caagaccttc
     1261 atcaaccaca cccagggcat ccccgacttc ttcaagcagt ccttccctga gggcttcaca
     1321 tgggagagag tcaccacata cgaagacggg ggcgtgctga ccgctaccca ggacaccagc
     1381 ctccaggacg gctgcctcat ctacaacgtc aagatcagag gggtgaactt cacatccaac
     1441 ggccctgtga tgcagaagaa aacactcggc tgggaggcct tcaccgagac gctgtacccc
     1501 gctgacggcg gcctggaagg cagaaacgac atggccctga agctcgtggg cgggagccat
     1561 ctgatcgcaa acgccaagac cacatataga tccaagaaac ccgctaagaa cctcaagatg
     1621 cctggcgtct actatgtgga ctacagactg gaaagaatca aggaggccaa caacgagacc
     1681 tacgtcgagc agcacgaggt ggcagtggcc agatactgcg acctccctag caaactgggg
     1741 cacaagctta attaggcggc cgcgactcta gatcataatc agccatacca catttgtaga
     1801 ggttttactt gctttaaaaa acctcccaca cctccccctg aacctgaaac ataaaatgaa
     1861 tgcaattgtt gttgttaact tgtttattgc agcttataat ggttacaaat aaagcaatag
     1921 catcacaaat ttcacaaata aagcattttt ttcactgcat tctagttgtg gtttgtccaa
     1981 actcatcaat gtatcttaag gcgtaaattg taagcgttaa tattttgtta aaattcgcgt
     2041 taaatttttg ttaaatcagc tcatttttta accaataggc cgaaatcggc aaaatccctt
     2101 ataaatcaaa agaatagacc gagatagggt tgagtgttgt tccagtttgg aacaagagtc
     2161 cactattaaa gaacgtggac tccaacgtca aagggcgaaa aaccgtctat cagggcgatg
     2221 gcccactacg tgaaccatca ccctaatcaa gttttttggg gtcgaggtgc cgtaaagcac
     2281 taaatcggaa ccctaaaggg agcccccgat ttagagcttg acggggaaag ccggcgaacg
     2341 tggcgagaaa ggaagggaag aaagcgaaag gagcgggcgc tagggcgctg gcaagtgtag
     2401 cggtcacgct gcgcgtaacc accacacccg ccgcgcttaa tgcgccgcta cagggcgcgt
     2461 caggtggcac ttttcgggga aatgtgcgcg gaacccctat ttgtttattt ttctaaatac
     2521 attcaaatat gtatccgctc atgagacaat aaccctgata aatgcttcaa taatattgaa
     2581 aaaggaagag tcctgaggcg gaaagaacca gctgtggaat gtgtgtcagt tagggtgtgg
     2641 aaagtcccca ggctccccag caggcagaag tatgcaaagc atgcatctca attagtcagc
     2701 aaccaggtgt ggaaagtccc caggctcccc agcaggcaga agtatgcaaa gcatgcatct
     2761 caattagtca gcaaccatag tcccgcccct aactccgccc atcccgcccc taactccgcc
     2821 cagttccgcc cattctccgc cccatggctg actaattttt tttatttatg cagaggccga
     2881 ggccgcctcg gcctctgagc tattccagaa gtagtgagga ggcttttttg gaggcctagg
     2941 cttttgcaaa gatcgatcaa gagacaggat gaggatcgtt tcgcatgatt gaacaagatg
     3001 gattgcacgc aggttctccg gccgcttggg tggagaggct attcggctat gactgggcac
     3061 aacagacaat cggctgctct gatgccgccg tgttccggct gtcagcgcag gggcgcccgg
     3121 ttctttttgt caagaccgac ctgtccggtg ccctgaatga actgcaagac gaggcagcgc
     3181 ggctatcgtg gctggccacg acgggcgttc cttgcgcagc tgtgctcgac gttgtcactg
     3241 aagcgggaag ggactggctg ctattgggcg aagtgccggg gcaggatctc ctgtcatctc
     3301 accttgctcc tgccgagaaa gtatccatca tggctgatgc aatgcggcgg ctgcatacgc
     3361 ttgatccggc tacctgccca ttcgaccacc aagcgaaaca tcgcatcgag cgagcacgta
     3421 ctcggatgga agccggtctt gtcgatcagg atgatctgga cgaagagcat caggggctcg
     3481 cgccagccga actgttcgcc aggctcaagg cgagcatgcc cgacggcgag gatctcgtcg
     3541 tgacccatgg cgatgcctgc ttgccgaata tcatggtgga aaatggccgc ttttctggat
     3601 tcatcgactg tggccggctg ggtgtggcgg accgctatca ggacatagcg ttggctaccc
     3661 gtgatattgc tgaagagctt ggcggcgaat gggctgaccg cttcctcgtg ctttacggta
     3721 tcgccgctcc cgattcgcag cgcatcgcct tctatcgcct tcttgacgag ttcttctgag
     3781 cgggactctg gggttcgaaa tgaccgacca agcgacgccc aacctgccat cacgagattt
     3841 cgattccacc gccgccttct atgaaaggtt gggcttcgga atcgttttcc gggacgccgg
     3901 ctggatgatc ctccagcgcg gggatctcat gctggagttc ttcgcccacc ctagggggag
     3961 gctaactgaa acacggaagg agacaatacc ggaaggaacc cgcgctatga cggcaataaa
     4021 aagacagaat aaaacgcacg gtgttgggtc gtttgttcat aaacgcgggg ttcggtccca
     4081 gggctggcac tctgtcgata ccccaccgag accccattgg ggccaatacg cccgcgtttc
     4141 ttccttttcc ccaccccacc ccccaagttc gggtgaaggc ccagggctcg cagccaacgt
     4201 cggggcggca ggccctgcca tagcctcagg ttactcatat atactttaga ttgatttaaa
     4261 acttcatttt taatttaaaa ggatctaggt gaagatcctt tttgataatc tcatgaccaa
     4321 aatcccttaa cgtgagtttt cgttccactg agcgtcagac cccgtagaaa agatcaaagg
     4381 atcttcttga gatccttttt ttctgcgcgt aatctgctgc ttgcaaacaa aaaaaccacc
     4441 gctaccagcg gtggtttgtt tgccggatca agagctacca actctttttc cgaaggtaac
     4501 tggcttcagc agagcgcaga taccaaatac tgttcttcta gtgtagccgt agttaggcca
     4561 ccacttcaag aactctgtag caccgcctac atacctcgct ctgctaatcc tgttaccagt
     4621 ggctgctgcc agtggcgata agtcgtgtct taccgggttg gactcaagac gatagttacc
     4681 ggataaggcg cagcggtcgg gctgaacggg gggttcgtgc acacagccca gcttggagcg
     4741 aacgacctac accgaactga gatacctaca gcgtgagcta tgagaaagcg ccacgcttcc
     4801 cgaagggaga aaggcggaca ggtatccggt aagcggcagg gtcggaacag gagagcgcac
     4861 gagggagctt ccagggggaa acgcctggta tctttatagt cctgtcgggt ttcgccacct
     4921 ctgacttgag cgtcgatttt tgtgatgctc gtcagggggg cggagcctat ggaaaaacgc
     4981 cagcaacgcg gcctttttac ggttcctggc cttttgctgg ccttttgctc acatgttctt
     5041 tcctgcgtta tcccctgatt ctgtggataa ccgtattacc gc
//
