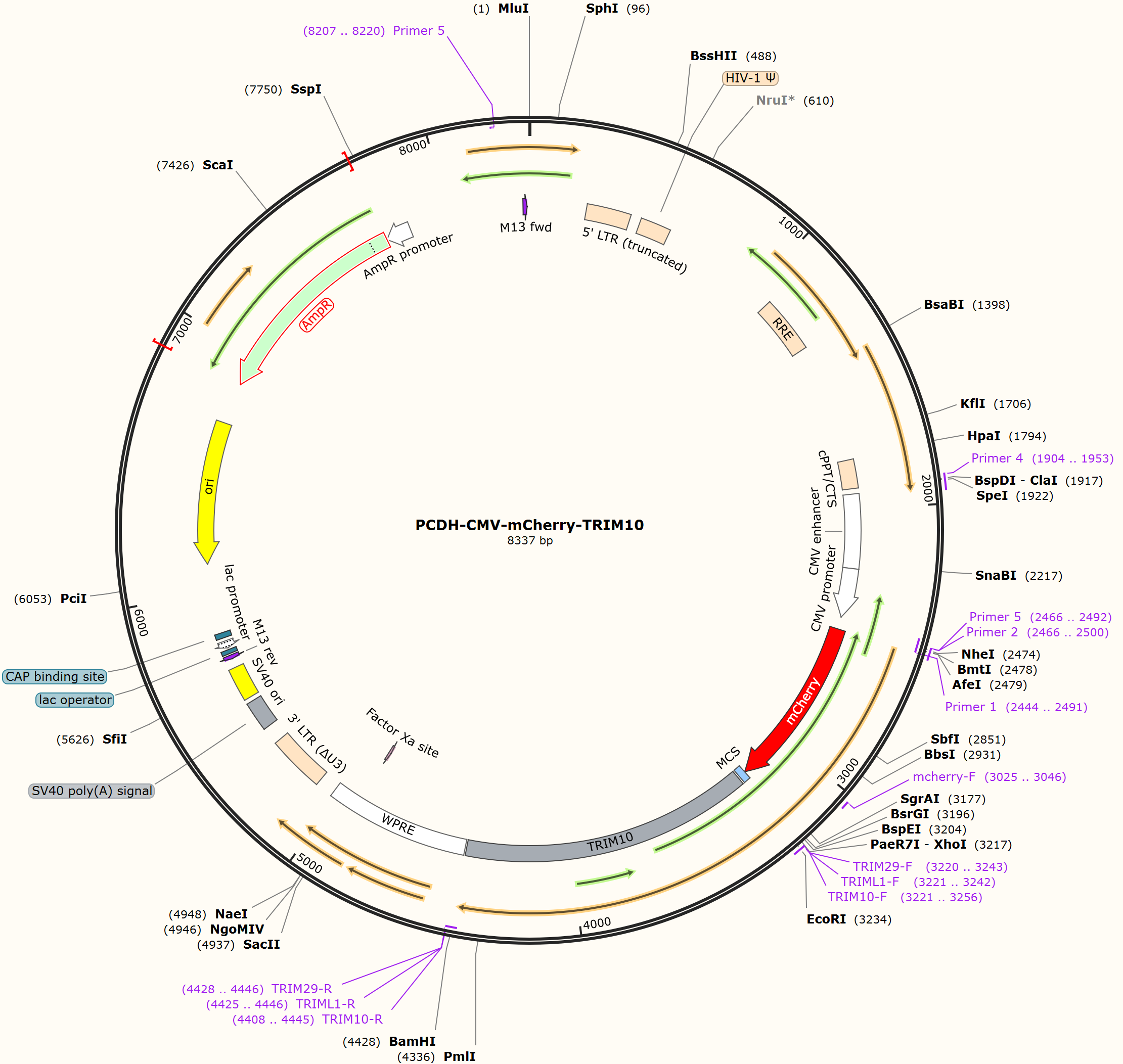

PCDH-CMV-mCherry-TRIM10

LOCUS      PCDH-CMV-mCherry-TRIM10               8337 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8337)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8337
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3220..3243
                     /label=TRIM29-F
     primer_bind     3221..3256
                     /label=TRIM10-F
     primer_bind     3221..3242
                     /label=TRIML1-F
     misc_feature    3240..4427
                     /label=TRIM10
     primer_bind     complement(4408..4445)
                     /label=TRIM10-R
     primer_bind     complement(4425..4446)
                     /label=TRIML1-R
     primer_bind     complement(4428..4446)
                     /label=TRIM29-R
     misc_feature    4434..5021
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4905..4916)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5094..5327
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5399..5520
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5539..5674
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5712..5728)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5736..5752
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5760..5790)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5805..5826
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6114..6702)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6873..7733)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7734..7838)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8207..8220)
                     /label=Primer 5
     primer_bind     8312..8328
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggcctctgc tgcctctgtg accagcctgg cagatgaagt caactgcccc atctgtcagg
     3301 gtaccctgag ggagccggtc actatcgact gcggccacaa cttctgccgg gcctgcctta
     3361 cccgctactg tgagatacca ggcccagacc tggaggagtc ccctacttgc ccactctgca
     3421 aagaaccctt ccgtcctggg agcttccggc ccaactggca gctggctaac gtggtggaga
     3481 acattgagcg cctccagctg gtgtccacac tgggtttggg agaggaggat gtctgccaag
     3541 agcacggaga gaagatctac ttcttctgtg aggatgatga gatgcagttg tgcgtggtgt
     3601 gccgggaggc tggggagcac gctacccaca ccatgcgctt cctggaggat gcagcggctc
     3661 cctataggga acaaatccat aagtgtctta aatgtctaag aaaagagaga gaggagattc
     3721 aagaaatcca gtcaagagaa aataaaagga tgcaagtcct cctgactcag gtgtccacca
     3781 agagacaaca ggtgatttct gagttcgcac acctgaggaa gtttctagag gaacagcaga
     3841 gcatcctctt agcacaattg gagagccagg atggggacat cttgaggcaa cgggatgaat
     3901 ttgatttgct ggttgctggg gagatctgcc ggtttagtgc tcttattgaa gaactggagg
     3961 agaagaatga gaggccagca agggagctcc tgacggacat cagaagcact ctaataagat
     4021 gtgaaaccag aaagtgccgg aaaccggtgg ctgtgtcgcc agagctgggc cagaggattc
     4081 gggactttcc ccagcaggcc ctcccgctgc agagggagat gaagatgttt ctggaaaaac
     4141 tatgctttga gttggactat gagccagctc acatttctct agaccctcag acttcccacc
     4201 ccaagctcct cttgtccgag gaccaccagc gagctcagtt ctcctacaaa tggcagaact
     4261 caccagacaa cccccagcgt tttgaccggg ccacctgtgt tctggcccac actggcatca
     4321 caggggggag acacacgtgg gtgtggatgg ccagggtacc tggggactca ggctgctgcc
     4381 agttctgctc accaccatcc gtgcttggca cagaagtagc tgcataggga tccaatcaac
     4441 ctctggatta caaaatttgt gaaagattga ctggtattct taactatgtt gctcctttta
     4501 cgctatgtgg atacgctgct ttaatgcctt tgtatcatgc tattgcttcc cgtatggctt
     4561 tcattttctc ctccttgtat aaatcctggt tgctgtctct ttatgaggag ttgtggcccg
     4621 ttgtcaggca acgtggcgtg gtgtgcactg tgtttgctga cgcaaccccc actggttggg
     4681 gcattgccac cacctgtcag ctcctttccg ggactttcgc tttccccctc cctattgcca
     4741 cggcggaact catcgccgcc tgccttgccc gctgctggac aggggctcgg ctgttgggca
     4801 ctgacaattc cgtggtgttg tcggggaagc tgacgtcctt tccatggctg ctcgcctgtg
     4861 ttgccacctg gattctgcgc gggacgtcct tctgctacgt cccttcggcc ctcaatccag
     4921 cggaccttcc ttcccgcggc ctgctgccgg ctctgcggcc tcttccgcgt ctccgccttc
     4981 gccctcagac gagtcggatc tccctttggc cgcctccccg ccggtacctt taagaccaat
     5041 gacttacaag gcagctgtag atcttagcca ctttttaaaa gaaaaggggg gactggaagg
     5101 gctaattcac tcccaacgaa aataagatct gctttttgct tgtactgggt ctctctggtt
     5161 agaccagatc tgagcctggg agctctctgg ctaactaggg aacccactgc ttaagcctca
     5221 ataaagcttg ccttgagtgc ttcaagtagt gtgtgcccgt ctgttgtgtg actctggtaa
     5281 ctagagatcc ctcagaccct tttagtcagt gtggaaaatc tctagcagta gtagttcatg
     5341 tcatcttatt attcagtatt tataacttgc aaagaaatga atatcagaga gtgagaggaa
     5401 cttgtttatt gcagcttata atggttacaa ataaagcaat agcatcacaa atttcacaaa
     5461 taaagcattt ttttcactgc attctagttg tggtttgtcc aaactcatca atgtatctta
     5521 tcatgtctgg ctctagctat cccgccccta actccgccca gttccgccca ttctccgccc
     5581 catggctgac taattttttt tatttatgca gaggccgagg ccgcctcggc ctctgagcta
     5641 ttccagaagt agtgaggagg cttttttgga ggcctagact tttgcagaga cggcccaaat
     5701 tcgtaatcat ggtcatagct gtttcctgtg tgaaattgtt atccgctcac aattccacac
     5761 aacatacgag ccggaagcat aaagtgtaaa gcctggggtg cctaatgagt gagctaactc
     5821 acattaattg cgttgcgctc actgcccgct ttccagtcgg gaaacctgtc gtgccagctg
     5881 cattaatgaa tcggccaacg cgcggggaga ggcggtttgc gtattgggcg ctcttccgct
     5941 tcctcgctca ctgactcgct gcgctcggtc gttcggctgc ggcgagcggt atcagctcac
     6001 tcaaaggcgg taatacggtt atccacagaa tcaggggata acgcaggaaa gaacatgtga
     6061 gcaaaaggcc agcaaaaggc caggaaccgt aaaaaggccg cgttgctggc gtttttccat
     6121 aggctccgcc cccctgacga gcatcacaaa aatcgacgct caagtcagag gtggcgaaac
     6181 ccgacaggac tataaagata ccaggcgttt ccccctggaa gctccctcgt gcgctctcct
     6241 gttccgaccc tgccgcttac cggatacctg tccgcctttc tcccttcggg aagcgtggcg
     6301 ctttctcata gctcacgctg taggtatctc agttcggtgt aggtcgttcg ctccaagctg
     6361 ggctgtgtgc acgaaccccc cgttcagccc gaccgctgcg ccttatccgg taactatcgt
     6421 cttgagtcca acccggtaag acacgactta tcgccactgg cagcagccac tggtaacagg
     6481 attagcagag cgaggtatgt aggcggtgct acagagttct tgaagtggtg gcctaactac
     6541 ggctacacta gaaggacagt atttggtatc tgcgctctgc tgaagccagt taccttcgga
     6601 aaaagagttg gtagctcttg atccggcaaa caaaccaccg ctggtagcgg tggttttttt
     6661 gtttgcaagc agcagattac gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt
     6721 tctacggggt ctgacgctca gtggaacgaa aactcacgtt aagggatttt ggtcatgaga
     6781 ttatcaaaaa ggatcttcac ctagatcctt ttaaattaaa aatgaagttt taaatcaatc
     6841 taaagtatat atgagtaaac ttggtctgac agttaccaat gcttaatcag tgaggcacct
     6901 atctcagcga tctgtctatt tcgttcatcc atagttgcct gactccccgt cgtgtagata
     6961 actacgatac gggagggctt accatctggc cccagtgctg caatgatacc gcgagaccca
     7021 cgctcaccgg ctccagattt atcagcaata aaccagccag ccggaagggc cgagcgcaga
     7081 agtggtcctg caactttatc cgcctccatc cagtctatta attgttgccg ggaagctaga
     7141 gtaagtagtt cgccagttaa tagtttgcgc aacgttgttg ccattgctac aggcatcgtg
     7201 gtgtcacgct cgtcgtttgg tatggcttca ttcagctccg gttcccaacg atcaaggcga
     7261 gttacatgat cccccatgtt gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt
     7321 gtcagaagta agttggccgc agtgttatca ctcatggtta tggcagcact gcataattct
     7381 cttactgtca tgccatccgt aagatgcttt tctgtgactg gtgagtactc aaccaagtca
     7441 ttctgagaat agtgtatgcg gcgaccgagt tgctcttgcc cggcgtcaat acgggataat
     7501 accgcgccac atagcagaac tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga
     7561 aaactctcaa ggatcttacc gctgttgaga tccagttcga tgtaacccac tcgtgcaccc
     7621 aactgatctt cagcatcttt tactttcacc agcgtttctg ggtgagcaaa aacaggaagg
     7681 caaaatgccg caaaaaaggg aataagggcg acacggaaat gttgaatact catactcttc
     7741 ctttttcaat attattgaag catttatcag ggttattgtc tcatgagcgg atacatattt
     7801 gaatgtattt agaaaaataa acaaataggg gttccgcgca catttccccg aaaagtgcca
     7861 cctgacgtct aagaaaccat tattatcatg acattaacct ataaaaatag gcgtatcacg
     7921 aggccctttc gtctcgcgcg tttcggtgat gacggtgaaa acctctgaca catgcagctc
     7981 ccggagacgg tcacagcttg tctgtaagcg gatgccggga gcagacaagc ccgtcagggc
     8041 gcgtcagcgg gtgttggcgg gtgtcggggc tggcttaact atgcggcatc agagcagatt
     8101 gtactgagag tgcaccatat gcggtgtgaa ataccgcaca gatgcgtaag gagaaaatac
     8161 cgcatcaggc gccattcgcc attcaggctg cgcaactgtt gggaagggcg atcggtgcgg
     8221 gcctcttcgc tattacgcca gctggcgaaa gggggatgtg ctgcaaggcg attaagttgg
     8281 gtaacgccag ggttttccca gtcacgacgt tgtaaaacga cggccagtgc caagctg
//
