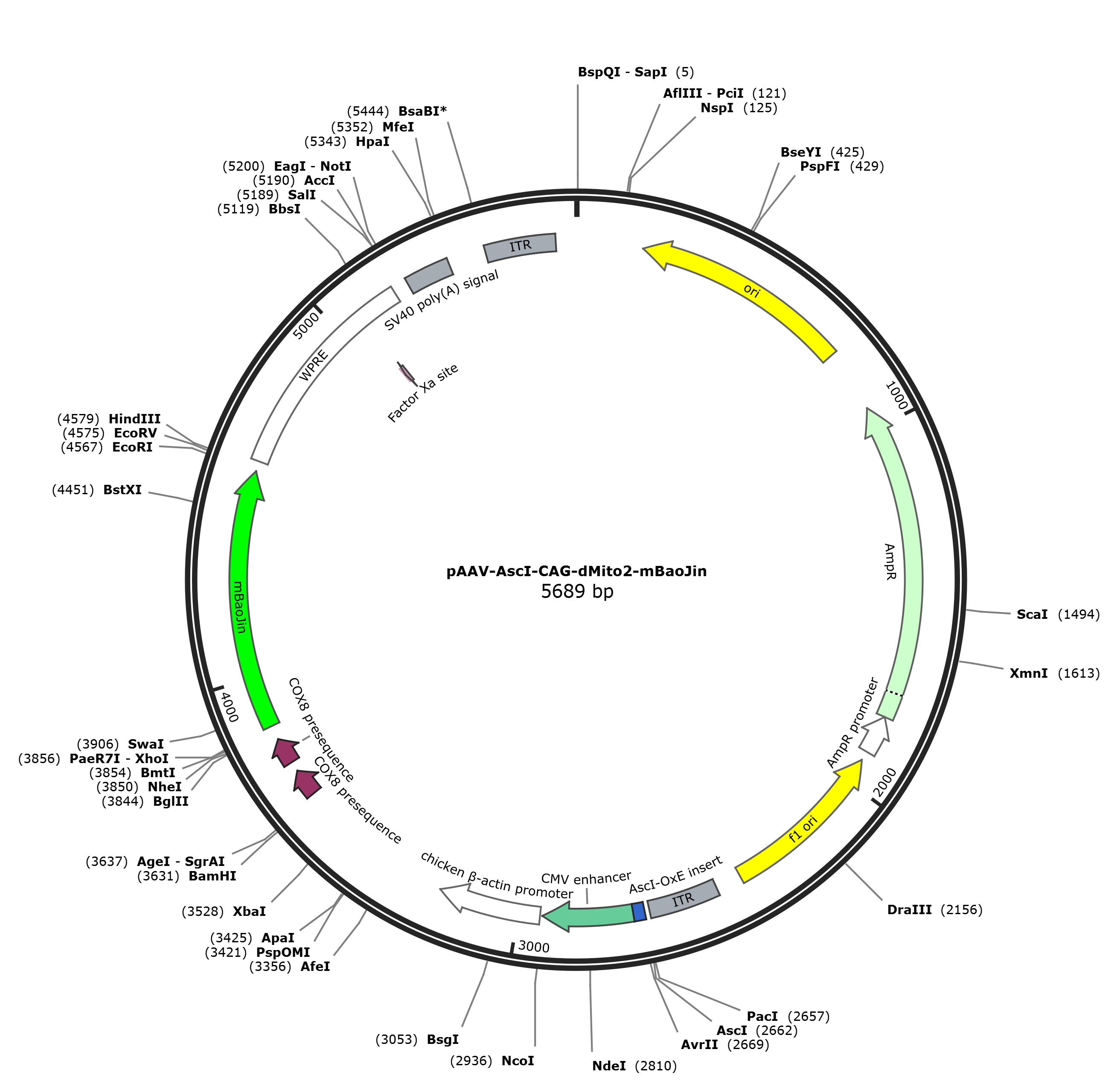

pAAV-AscI-CAG-dMito2-mBaoJin

LOCUS       pAAV-AscI-CAG-dMito2-mBaoJin            5686 bp DNA     circular SYN 17-NOV-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5686)
  AUTHORS   Vax
  TITLE     Direct Submission
  JOURNAL   Exported Jul 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5686
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     rep_origin      complement(182..770)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(941..1801)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(1802..1906)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(1932..2387)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     misc_feature    2458..2647
                     /label=ITR
     misc_feature    2661..2691
                     /label=AscI-OxE insert
                     /label=AscI-OxE\insert
                     /note="/vntifkey=21"
     misc_feature    2692..2935
                     /label=CMV enhancer
                     /label=CMV\enhancer
                     /note="/vntifkey=21"
     promoter        2942..3219
                     /label=chicken beta-actin promoter
     CDS             3646..3720
                     /codon_start=1
                     /product="mitochondrial presequence of human cytochrome c
                     oxidase subunit VIII (Rizutto et al., 1989)"
                     /label=COX8 presequence
                     /translation="MSVLTPLLLRGLTGSARRLPVPRAK"
     CDS             3748..3819
                     /codon_start=1
                     /product="mitochondrial presequence of human cytochrome c
                     oxidase subunit VIII (Rizutto et al., 1989)"
                     /label=COX8 presequence
                     /translation="SVLTPLLLRGLTGSARRLPVPRAK"
     CDS             3859..4560
                     /codon_start=1
                     /label=mBaoJin
                     /translation="MVSKGEEENMASTPFKFQLKGTINGKSFTVEGEGEGNSHEGSHKG
                     KYVCTSGKLPMSWAALGTTFGYGMKYYTKYPSGLKNWFREVMPGGFTYDRHIQYKGDGS
                     IHAKHQHFMKNGTYHNIVEFTGQDFKENSPVLTGDMNVSLPNEVPQIPRDDGVECPVTL
                     LYPLLSDKSKYVEAHQYTICKPLHNQPAPDVPYHWIRKQYTQSKDDAEERDHICQSETL
                     EAHLKGMDELYK"
     misc_feature    4588..5176
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5059..5070)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    5219..5340
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     misc_feature    5443..5632
                     /label=ITR
ORIGIN
        1 cttccgcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat
       61 cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga
      121 acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt
      181 ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt
      241 ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc
      301 gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa
      361 gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct
      421 ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta
      481 actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg
      541 gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc
      601 ctaactacgg ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta
      661 ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtg
      721 gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt
      781 tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg
      841 tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta
      901 aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg
      961 aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg
     1021 tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc
     1081 gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg
     1141 agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg
     1201 aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag
     1261 gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat
     1321 caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc
     1381 cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc
     1441 ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa
     1501 ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac
     1561 gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt
     1621 cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc
     1681 gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa
     1741 caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca
     1801 tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat
     1861 acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa
     1921 aagtgccacc taaattgtaa gcgttaatat tttgttaaaa ttcgcgttaa atttttgtta
     1981 aatcagctca ttttttaacc aataggccga aatcggcaaa atcccttata aatcaaaaga
     2041 atagaccgag atagggttga gtgttgttcc agtttggaac aagagtccac tattaaagaa
     2101 cgtggactcc aacgtcaaag ggcgaaaaac cgtctatcag ggcgatggcc cactacgtga
     2161 accatcaccc taatcaagtt ttttggggtc gaggtgccgt aaagcactaa atcggaaccc
     2221 taaagggagc ccccgattta gagcttgacg gggaaagccg gcgaacgtgg cgagaaagga
     2281 agggaagaaa gcgaaaggag cgggcgctag ggcgctggca agtgtagcgg tcacgctgcg
     2341 cgtaaccacc acacccgccg cgcttaatgc gccgctacag ggcgcgtccc attcgccatt
     2401 caggctgcgc aactgttggg aagggcgatc ggtgcgggcc tcttcgctat tacgccagct
     2461 gcgcgctcgc tcgctcactg aggccgcccg ggcaaagccc gggcgtcggg cgacctttgg
     2521 tcgcccggcc tcagtgagcg agcgagcgcg cagagaggga gtggccaact ccatcactag
     2581 gggttccttg tagttaatga ttaacccgcc atgctactta tctacgtagc catgctctag
     2641 gaagatcgta ggttaattaa ggcgcgcccc taggggagat ggccagccag cccattgacg
     2701 tcaataatga cgtatgttcc catagtaacg ccaataggga ctttccattg acgtcaatgg
     2761 gtggagtatt tacggtaaac tgcccacttg gcagtacatc aagtgtatca tatgccaagt
     2821 acgcccccta ttgacgtcaa tgacggtaaa tggcccgcct ggcattatgc ccagtacatg
     2881 accttatggg actttcctac ttggcagtac atctacgtat tagtcatcgc tattaccatg
     2941 gtcgaggtga gccccacgtt ctgcttcact ctccccatct cccccccctc cccaccccca
     3001 attttgtatt tatttatttt ttaattattt tgtgcagcga tgggggcggg gggggggggg
     3061 gggcgcgcgc caggcggggc ggggcggggc gaggggcggg gcggggcgag gcggagaggt
     3121 gcggcggcag ccaatcagag cggcgcgctc cgaaagtttc cttttatggc gaggcggcgg
     3181 cggcggcggc cctataaaaa gcgaagcgcg cggcgggcgg gagtcgctgc gcgctgcctt
     3241 cgccccgtgc cccgctccgc cgccgcctcg cgccgcccgc cccggctctg actgaccgcg
     3301 ttactcccac aggtgagcgg gcgggacggc ccttctcctc cgggctgtaa ttagcgcttg
     3361 gtttaatgac ggcttgtttc ttttctgtgg ctgcgtgaaa gccttgaggg gctccgggag
     3421 ggccctttgt gcggggggag cggctcgggg ctgtccgcgg ggggacggct gccttcgggg
     3481 gggacggggc agggcggggt tcggcttctg gcgtgtgacc ggcggctcta gagcctctgc
     3541 taaccatgtt catgccttct tctttttcct acagctcctg ggcaacgtgc tggttattgt
     3601 gctgtctcat cattttggca aagaattgga tccaccggtg acaccatgtc cgtcctgacg
     3661 ccgctgctgc tgcggggctt gacaggctcg gcccggcggc tcccagtgcc gcgcgccaag
     3721 atccattcgt tggggcctgc aagatccagt gtattaacac ccctgctgct gcggggcttg
     3781 acaggctcgg cccggcggct cccagtgccg cgcgccaaga ttcacagtct tggtccagct
     3841 agatctgcta gcctcgagat ggtctcaaag ggagaggagg aaaacatggc tagtacacca
     3901 tttaaatttc aacttaaagg aaccatcaat ggcaaatcgt ttaccgttga aggcgaaggt
     3961 gaagggaact cacatgaagg ttctcataaa ggaaaatatg tttgtacaag tggaaaacta
     4021 ccgatgtcat gggcagcact tgggacaacc tttggttatg gaatgaaata ttataccaaa
     4081 tatcctagtg gactgaagaa ctggtttcgt gaagtaatgc ccggaggctt tacctacgat
     4141 cgtcatattc aatataaagg cgatgggagt atccatgcaa aacaccaaca ctttatgaaa
     4201 aatgggactt atcacaacat tgtagaattt accggtcagg attttaaaga aaatagtcca
     4261 gtcttaactg gagatatgaa tgtctcatta ccgaatgaag tcccacaaat acccagagat
     4321 gatggagtag aatgcccagt gaccttgctt tatcctttat tatcggataa atcaaaatac
     4381 gtcgaggctc accaatatac aatctgcaag cctcttcata atcaaccagc acctgatgtc
     4441 ccatatcact ggattcgtaa acaatacaca caaagcaaag atgatgccga ggaacgcgat
     4501 catatctgtc aatcagagac tctcgaagca cacttaaagg gcatggacga gctgtataag
     4561 taggaattcg atatcaagct tatcgataat caacctctgg attacaaaat ttgtgaaaga
     4621 ttgactggta ttcttaacta tgttgctcct tttacgctat gtggatacgc tgctttaatg
     4681 cctttgtatc atgctattgc ttcccgtatg gctttcattt tctcctcctt gtataaatcc
     4741 tggttgctgt ctctttatga ggagttgtgg cccgttgtca ggcaacgtgg cgtggtgtgc
     4801 actgtgtttg ctgacgcaac ccccactggt tggggcattg ccaccacctg tcagctcctt
     4861 tccgggactt tcgctttccc cctccctatt gccacggcgg aactcatcgc cgcctgcctt
     4921 gcccgctgct ggacaggggc tcggctgttg ggcactgaca attccgtggt gttgtcgggg
     4981 aaatcatcgt cctttccttg gctgctcgcc tgtgttgcca cctggattct gcgcgggacg
     5041 tccttctgct acgtcccttc ggccctcaat ccagcggacc ttccttcccg cggcctgctg
     5101 ccggctctgc ggcctcttcc gcgtcttcgc cttcgccctc agacgagtcg gatctccctt
     5161 tgggccgcct ccccgcatcg ataccgtcga cccgggcggc cgcttcgagc agacatgata
     5221 agatacattg atgagtttgg acaaaccaca actagaatgc agtgaaaaaa atgctttatt
     5281 tgtgaaattt gtgatgctat tgctttattt gtaaccatta taagctgcaa taaacaagtt
     5341 aacaacaaca attgcattca ttttatgttt caggttcagg gggagatgtg ggaggttttt
     5401 taaagcaagt aaaacctcta caaatgtggt aaaatcgata aggatcttcc tagagcatgg
     5461 ctacgtagat aagtagcatg gcgggttaat cattaactac aaggaacccc tagtgatgga
     5521 gttggccact ccctctctgc gcgctcgctc gctcactgag gccgggcgac caaaggtcgc
     5581 ccgacgcccg ggctttgccc gggcggcctc agtgagcgag cgagcgcgca gctgcattaa
     5641 tgaatcggcc aacgcgcggg gagaggcggt ttgcgtattg ggcgct
//
