pAAV28载体基本信息

质粒名称: pAAV2/8
出品公司: 爱迪基因
目录编号: 112864
存储实验室: James M. Wilson

载体骨架基本信息
载体名称: --
载体出品公司: --
载体抗性: 氨苄青霉素
空载体大小: --
完整质粒大小: --
载体修饰: --
载体类型: AAV
筛选标记: --
高拷贝/低拷贝: --
生长条件: 37度

插入基因信息
插入基因名称: Rep2/Cap8
物种来源: AAV
插入大小: --
基因突变: --
GenBank编号 --
启动子 Truncated P5
标签/融合蛋白: --
克隆方法: --
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 KS primer
3' 测序引物 --

文献引用方法
材料和方法部分: pAAV2/8 was a gift from James M. Wilson (Addgene plasmid # 112864 ; http://n2t.net/addgene:112864 ; RRID:Addgene_112864)

pAAV28载体质粒图谱和多克隆位点信息

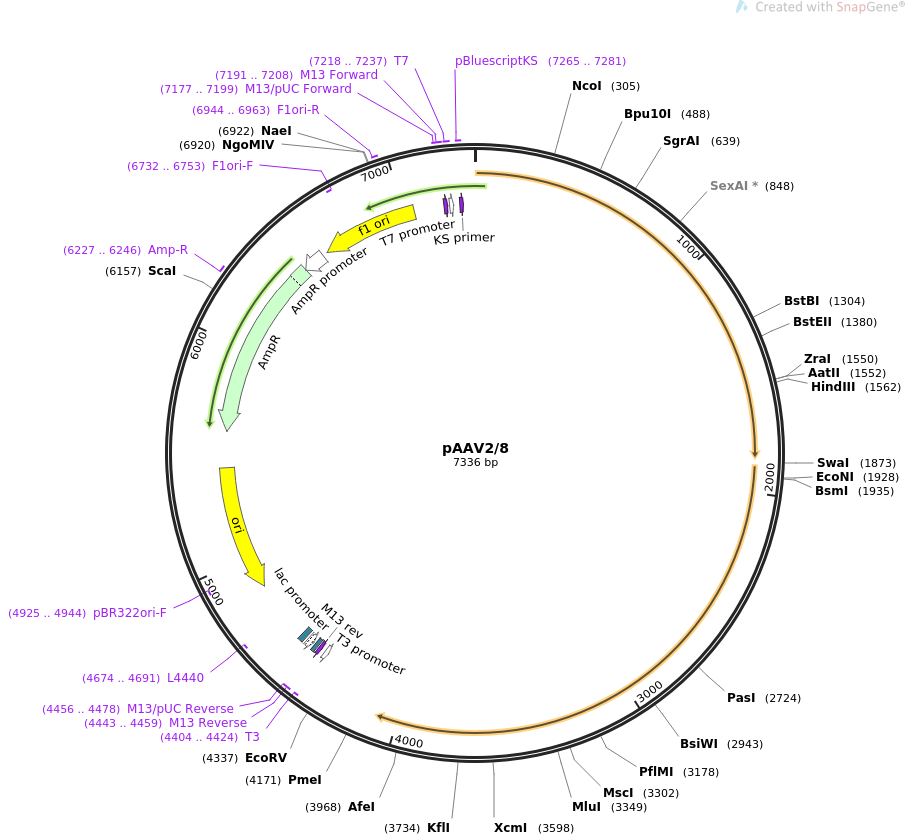

pAAV28质粒图谱

pAAV28载体简介

pAAV28载体序列

LOCUS       pAAV2/8                7336 bp ds-DNA     circular SYN 21-AUG-2019
DEFINITION  AAV packaging plasmid expressing Rep/Cap genes.
ACCESSION   .
VERSION     .
KEYWORDS    pAAV2/8
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7336)
  TITLE     AAV packaging plasmids
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 7336)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 21, 2019 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7336
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(4404..4424)
                     /label=T3
                     /note="T3 promoter, forward primer"
     promoter        complement(4404..4422)
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
     primer_bind     complement(4443..4459)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4443..4459)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(4456..4478)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    4467..4483
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4491..4521)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4536..4557
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(4674..4691)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4845..5433)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4925..4944)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5604..6464)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     6227..6246
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6465..6569)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(6595..7050)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(6732..6753)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     6944..6963
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     7177..7199
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     7191..7208
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     7192..7208
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     7218..7237
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        7218..7236
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     7265..7281
                     /label=pBluescriptKS
                     /note="For pBluescript vector"
     primer_bind     7266..7282
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 atgccggggt tttacgagat tgtgattaag gtccccagcg accttgacga gcatctgccc
       61 ggcatttctg acagctttgt gaactgggtg gccgagaagg aatgggagtt gccgccagat
      121 tctgacatgg atctgaatct gattgagcag gcacccctga ccgtggccga gaagctgcag
      181 cgcgactttc tgacggaatg gcgccgtgtg agtaaggccc cggaggctct tttctttgtg
      241 caatttgaga agggagagag ctacttccac atgcacgtgc tcgtggaaac caccggggtg
      301 aaatccatgg ttttgggacg tttcctgagt cagattcgcg aaaaactgat tcagagaatt
      361 taccgcggga tcgagccgac tttgccaaac tggttcgcgg tcacaaagac cagaaatggc
      421 gccggaggcg ggaacaaggt ggtggatgag tgctacatcc ccaattactt gctccccaaa
      481 acccagcctg agctccagtg ggcgtggact aatatggaac agtatttaag cgcctgtttg
      541 aatctcacgg agcgtaaacg gttggtggcg cagcatctga cgcacgtgtc gcagacgcag
      601 gagcagaaca aagagaatca gaatcccaat tctgatgcgc cggtgatcag atcaaaaact
      661 tcagccaggt acatggagct ggtcgggtgg ctcgtggaca aggggattac ctcggagaag
      721 cagtggatcc aggaggacca ggcctcatac atctccttca atgcggcctc caactcgcgg
      781 tcccaaatca aggctgcctt ggacaatgcg ggaaagatta tgagcctgac taaaaccgcc
      841 cccgactacc tggtgggcca gcagcccgtg gaggacattt ccagcaatcg gatttataaa
      901 attttggaac taaacgggta cgatccccaa tatgcggctt ccgtctttct gggatgggcc
      961 acgaaaaagt tcggcaagag gaacaccatc tggctgtttg ggcctgcaac taccgggaag
     1021 accaacatcg cggaggccat agcccacact gtgcccttct acgggtgcgt aaactggacc
     1081 aatgagaact ttcccttcaa cgactgtgtc gacaagatgg tgatctggtg ggaggagggg
     1141 aagatgaccg ccaaggtcgt ggagtcggcc aaagccattc tcggaggaag caaggtgcgc
     1201 gtggaccaga aatgcaagtc ctcggcccag atagacccga ctcccgtgat cgtcacctcc
     1261 aacaccaaca tgtgcgccgt gattgacggg aactcaacga ccttcgaaca ccagcagccg
     1321 ttgcaagacc ggatgttcaa atttgaactc acccgccgtc tggatcatga ctttgggaag
     1381 gtcaccaagc aggaagtcaa agactttttc cggtgggcaa aggatcacgt ggttgaggtg
     1441 gagcatgaat tctacgtcaa aaagggtgga gccaagaaaa gacccgcccc cagtgacgca
     1501 gatataagtg agcccaaacg ggtgcgcgag tcagttgcgc agccatcgac gtcagacgcg
     1561 gaagcttcga tcaactacgc agacaggtac caaaacaaat gttctcgtca cgtgggcatg
     1621 aatctgatgc tgtttccctg cagacaatgc gagagaatga atcagaattc aaatatctgc
     1681 ttcactcacg gacagaaaga ctgtttagag tgctttcccg tgtcagaatc tcaacccgtt
     1741 tctgtcgtca aaaaggcgta tcagaaactg tgctacattc atcatatcat gggaaaggtg
     1801 ccagacgctt gcactgcctg cgatctggtc aatgtggatt tggatgactg catctttgaa
     1861 caataaatga tttaaatcag gtatggctgc cgatggttat cttccagatt ggctcgagga
     1921 caacctctct gagggcattc gcgagtggtg ggcgctgaaa cctggagccc cgaagcccaa
     1981 agccaaccag caaaagcagg acgacggccg gggtctggtg cttcctggct acaagtacct
     2041 cggacccttc aacggactcg acaaggggga gcccgtcaac gcggcggacg cagcggccct
     2101 cgagcacgac aaggcctacg accagcagct gcaggcgggt gacaatccgt acctgcggta
     2161 taaccacgcc gacgccgagt ttcaggagcg tctgcaagaa gatacgtctt ttgggggcaa
     2221 cctcgggcga gcagtcttcc aggccaagaa gcgggttctc gaacctctcg gtctggttga
     2281 ggaaggcgct aagacggctc ctggaaagaa gagaccggta gagccatcac cccagcgttc
     2341 tccagactcc tctacgggca tcggcaagaa aggccaacag cccgccagaa aaagactcaa
     2401 ttttggtcag actggcgact cagagtcagt tccagaccct caacctctcg gagaacctcc
     2461 agcagcgccc tctggtgtgg gacctaatac aatggctgca ggcggtggcg caccaatggc
     2521 agacaataac gaaggcgccg acggagtggg tagttcctcg ggaaattggc attgcgattc
     2581 cacatggctg ggcgacagag tcatcaccac cagcacccga acctgggccc tgcccaccta
     2641 caacaaccac ctctacaagc aaatctccaa cgggacatcg ggaggagcca ccaacgacaa
     2701 cacctacttc ggctacagca ccccctgggg gtattttgac tttaacagat tccactgcca
     2761 cttttcacca cgtgactggc agcgactcat caacaacaac tggggattcc ggcccaagag
     2821 actcagcttc aagctcttca acatccaggt caaggaggtc acgcagaatg aaggcaccaa
     2881 gaccatcgcc aataacctca ccagcaccat ccaggtgttt acggactcgg agtaccagct
     2941 gccgtacgtt ctcggctctg cccaccaggg ctgcctgcct ccgttcccgg cggacgtgtt
     3001 catgattccc cagtacggct acctaacact caacaacggt agtcaggccg tgggacgctc
     3061 ctccttctac tgcctggaat actttccttc gcagatgctg agaaccggca acaacttcca
     3121 gtttacttac accttcgagg acgtgccttt ccacagcagc tacgcccaca gccagagctt
     3181 ggaccggctg atgaatcctc tgattgacca gtacctgtac tacttgtctc ggactcaaac
     3241 aacaggaggc acggcaaata cgcagactct gggcttcagc caaggtgggc ctaatacaat
     3301 ggccaatcag gcaaagaact ggctgccagg accctgttac cgccaacaac gcgtctcaac
     3361 gacaaccggg caaaacaaca atagcaactt tgcctggact gctgggacca aataccatct
     3421 gaatggaaga aattcattgg ctaatcctgg catcgctatg gcaacacaca aagacgacga
     3481 ggagcgtttt tttcccagta acgggatcct gatttttggc aaacaaaatg ctgccagaga
     3541 caatgcggat tacagcgatg tcatgctcac cagcgaggaa gaaatcaaaa ccactaaccc
     3601 tgtggctaca gaggaatacg gtatcgtggc agataacttg cagcagcaaa acacggctcc
     3661 tcaaattgga actgtcaaca gccagggggc cttacccggt atggtctggc agaaccggga
     3721 cgtgtacctg cagggtccca tctgggccaa gattcctcac acggacggca acttccaccc
     3781 gtctccgctg atgggcggct ttggcctgaa acatcctccg cctcagatcc tgatcaagaa
     3841 cacgcctgta cctgcggatc ctccgaccac cttcaaccag tcaaagctga actctttcat
     3901 cacgcaatac agcaccggac aggtcagcgt ggaaattgaa tgggagctgc agaaggaaaa
     3961 cagcaagcgc tggaaccccg agatccagta cacctccaac tactacaaat ctacaagtgt
     4021 ggactttgct gttaatacag aaggcgtgta ctctgaaccc cgccccattg gcacccgtta
     4081 cctcacccgt aatctgtaat tgcctgttaa tcaataaacc ggttgattcg tttcagttga
     4141 actttggtct ctgcgaaggg cgaattcgtt taaacctgca ggactagagg tcctgtatta
     4201 gaggtcacgt gagtgttttg cgacattttg cgacaccatg tggtcacgct gggtatttaa
     4261 gcccgagtga gcacgcaggg tctccatttt gaagcgggag gtttgaacgc gcagccgcca
     4321 agccgaattc tgcagatatc catcacactg gcggccgctc gactagagcg gccgccaccg
     4381 cggtggagct ccagcttttg ttccctttag tgagggttaa ttgcgcgctt ggcgtaatca
     4441 tggtcatagc tgtttcctgt gtgaaattgt tatccgctca caattccaca caacatacga
     4501 gccggaagca taaagtgtaa agcctggggt gcctaatgag tgagctaact cacattaatt
     4561 gcgttgcgct cactgcccgc tttccagtcg ggaaacctgt cgtgccagct gcattaatga
     4621 atcggccaac gcgcggggag aggcggtttg cgtattgggc gctcttccgc ttcctcgctc
     4681 actgactcgc tgcgctcggt cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg
     4741 gtaatacggt tatccacaga atcaggggat aacgcaggaa agaacatgtg agcaaaaggc
     4801 cagcaaaagg ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca taggctccgc
     4861 ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga
     4921 ctataaagat accaggcgtt tccccctgga agctccctcg tgcgctctcc tgttccgacc
     4981 ctgccgctta ccggatacct gtccgccttt ctcccttcgg gaagcgtggc gctttctcat
     5041 agctcacgct gtaggtatct cagttcggtg taggtcgttc gctccaagct gggctgtgtg
     5101 cacgaacccc ccgttcagcc cgaccgctgc gccttatccg gtaactatcg tcttgagtcc
     5161 aacccggtaa gacacgactt atcgccactg gcagcagcca ctggtaacag gattagcaga
     5221 gcgaggtatg taggcggtgc tacagagttc ttgaagtggt ggcctaacta cggctacact
     5281 agaagaacag tatttggtat ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt
     5341 ggtagctctt gatccggcaa acaaaccacc gctggtagcg gtggtttttt tgtttgcaag
     5401 cagcagatta cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg
     5461 tctgacgctc agtggaacga aaactcacgt taagggattt tggtcatgag attatcaaaa
     5521 aggatcttca cctagatcct tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata
     5581 tatgagtaaa cttggtctga cagttaccaa tgcttaatca gtgaggcacc tatctcagcg
     5641 atctgtctat ttcgttcatc catagttgcc tgactccccg tcgtgtagat aactacgata
     5701 cgggagggct taccatctgg ccccagtgct gcaatgatac cgcgagaccc acgctcaccg
     5761 gctccagatt tatcagcaat aaaccagcca gccggaaggg ccgagcgcag aagtggtcct
     5821 gcaactttat ccgcctccat ccagtctatt aattgttgcc gggaagctag agtaagtagt
     5881 tcgccagtta atagtttgcg caacgttgtt gccattgcta caggcatcgt ggtgtcacgc
     5941 tcgtcgtttg gtatggcttc attcagctcc ggttcccaac gatcaaggcg agttacatga
     6001 tcccccatgt tgtgcaaaaa agcggttagc tccttcggtc ctccgatcgt tgtcagaagt
     6061 aagttggccg cagtgttatc actcatggtt atggcagcac tgcataattc tcttactgtc
     6121 atgccatccg taagatgctt ttctgtgact ggtgagtact caaccaagtc attctgagaa
     6181 tagtgtatgc ggcgaccgag ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca
     6241 catagcagaa ctttaaaagt gctcatcatt ggaaaacgtt cttcggggcg aaaactctca
     6301 aggatcttac cgctgttgag atccagttcg atgtaaccca ctcgtgcacc caactgatct
     6361 tcagcatctt ttactttcac cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc
     6421 gcaaaaaagg gaataagggc gacacggaaa tgttgaatac tcatactctt cctttttcaa
     6481 tattattgaa gcatttatca gggttattgt ctcatgagcg gatacatatt tgaatgtatt
     6541 tagaaaaata aacaaatagg ggttccgcgc acatttcccc gaaaagtgcc acctaaattg
     6601 taagcgttaa tattttgtta aaattcgcgt taaatttttg ttaaatcagc tcatttttta
     6661 accaataggc cgaaatcggc aaaatccctt ataaatcaaa agaatagacc gagatagggt
     6721 tgagtgttgt tccagtttgg aacaagagtc cactattaaa gaacgtggac tccaacgtca
     6781 aagggcgaaa aaccgtctat cagggcgatg gcccactacg tgaaccatca ccctaatcaa
     6841 gttttttggg gtcgaggtgc cgtaaagcac taaatcggaa ccctaaaggg agcccccgat
     6901 ttagagcttg acggggaaag ccggcgaacg tggcgagaaa ggaagggaag aaagcgaaag
     6961 gagcgggcgc tagggcgctg gcaagtgtag cggtcacgct gcgcgtaacc accacacccg
     7021 ccgcgcttaa tgcgccgcta cagggcgcgt cccattcgcc attcaggctg cgcaactgtt
     7081 gggaagggcg atcggtgcgg gcctcttcgc tattacgcca gctggcgaaa gggggatgtg
     7141 ctgcaaggcg attaagttgg gtaacgccag ggttttccca gtcacgacgt tgtaaaacga
     7201 cggccagtga gcgcgcgtaa tacgactcac tatagggcga attgggtacc gggccccccc
     7261 tcgatcgagg tcgacggtat cgggggagct cgcagggtct ccattttgaa gcgggaggtt
     7321 tgaacgcgca gccgcc
//

pAAV28载体质粒图谱pdf版和相关资料下载

pAAV28载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
欢迎您的访问和咨询....
