pQZ111

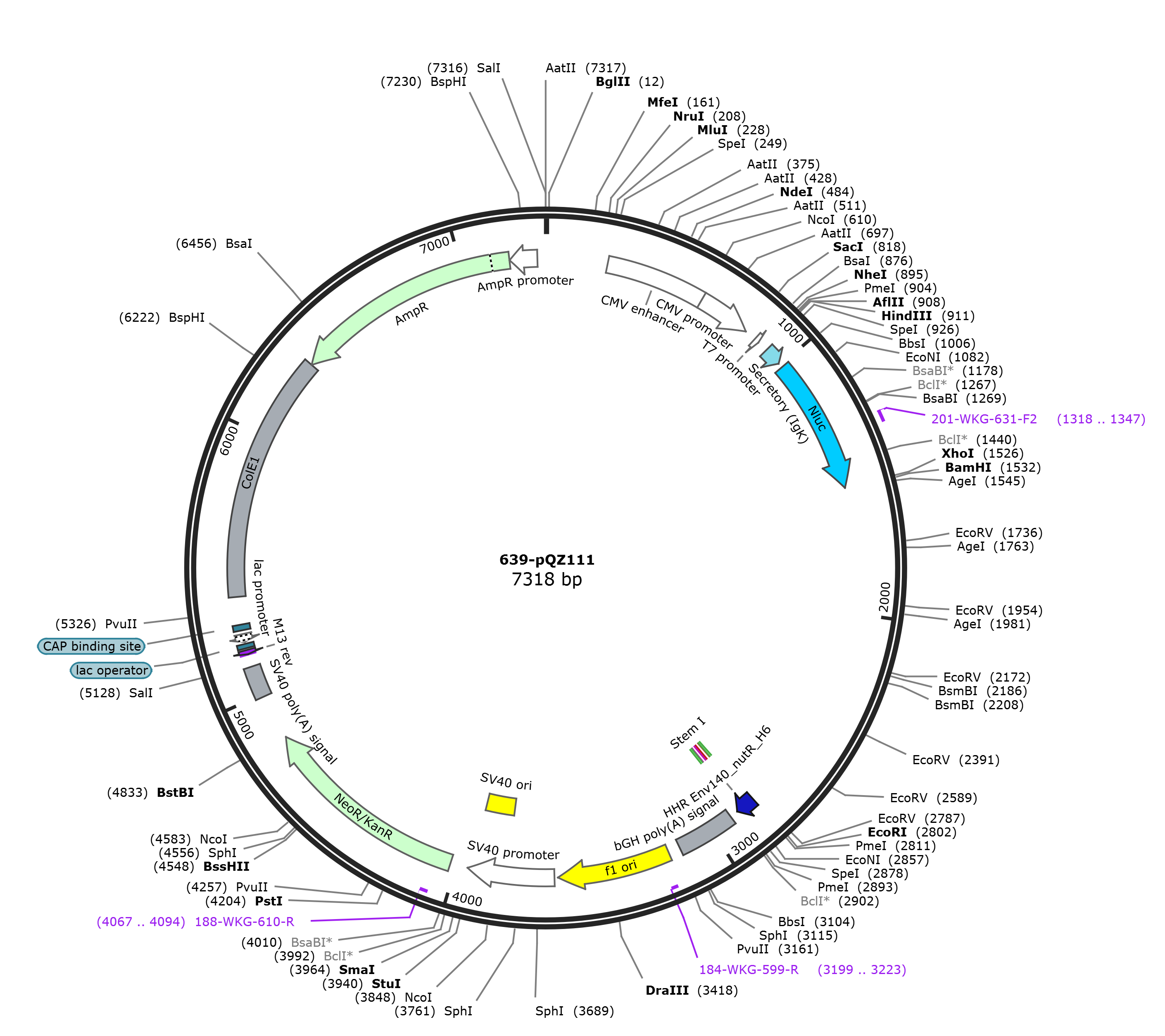

LOCUS      pQZ111             7318 bp DNA     circular SYN 14-JAN-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7318)
  AUTHORS   Liuqi Zhao
  TITLE     Direct Submission
  JOURNAL   Exported Jul 20, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7318
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             923..991
                     /codon_start=1
                     /label=Secretory (IgK)
                     /label=nonstandard type:  signal
                     /translation="MTSETDTLLLWVLLLWVPGSTGD"
     CDS             1010..1525
                     /codon_start=1
                     /product="NanoLuc(R) luciferase"
                     /label=Nluc
                     /note="human codon-optimized"
                     /translation="MVFTLEDFVGDWRQTAGYNLDQVLEQGGVSSLFQNLGVSVTPIQR
                     IVLSGENGLKIDIHVIIPYEGLSGDQMGQIEKIFKVVYPVDDHHFKVILHYGTLVIDGV
                     TPNMIDYFGRPYEGIAVFDGKKITVTGTLWNGNKIIDERLINPDGSLLFRVTINGVTGW
                     RLCERILA"
     primer_bind     1318..1347
                     /label=201-WKG-631-F2
     misc_feature    2808..2883
                     /label=HHR Env140_nutR_H6
     misc_feature    complement(2816..2824)
                     /label=Stem III
     misc_feature    2827..2842
                     /label=Stem I
     terminator      2851..2865
                     /label=nutR-boxB
     misc_feature    2869..2877
                     /label=Stem III
     polyA_signal    2915..3139
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      3185..3613
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3199..3223)
                     /label=184-WKG-599-R
     promoter        3627..3956
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3807..3942
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             4023..4817
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(4067..4094)
                     /label=188-WKG-610-R
     polyA_signal    4991..5112
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(5161..5177)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5185..5201
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5209..5239)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5254..5275
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     misc_feature    5381..6321
                     /label=ColE1
                     /note="ColE1"
     CDS             complement(6322..7182)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7183..7287)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttgcca ccatgactag tgagacagac acactcctgc tatgggtact
      961 gctgctctgg gttccaggtt ccactggtga cgctagtggt ggttctggta tggtcttcac
     1021 actcgaagat ttcgttgggg actggcgaca gacagccggc tacaacctgg accaagtcct
     1081 tgaacaggga ggtgtgtcca gtttgtttca gaatctcggg gtgtccgtaa ctccgatcca
     1141 aaggattgtc ctgagcggtg aaaatgggct gaagatcgac atccatgtca tcatcccgta
     1201 tgaaggtctg agcggcgacc aaatgggcca gatcgaaaaa atttttaagg tggtgtaccc
     1261 tgtggatgat catcacttta aggtgatcct gcactatggc acactggtaa tcgacggggt
     1321 tacgccgaac atgatcgact atttcggacg gccgtatgaa ggcatcgccg tgttcgacgg
     1381 caaaaagatc actgtaacag ggaccctgtg gaacggcaac aaaattatcg acgagcgcct
     1441 gatcaacccc gacggctccc tgctgttccg agtaaccatc aacggagtga ccggctggcg
     1501 gctgtgcgaa cgcattctgg cgtgactcga gggatccaac ttgaaccggt aagaattgca
     1561 acaaacaaat caccaccgtg aggatcaccc acggtggtga aagccttagc ctagccgtga
     1621 ggatcaccca cggtaggcac aagaaattct acccgtgagg atcacccacg ggtagaatca
     1681 caaagactac agccgtgagg atcacccacg gctgtagact caaacttaaa aaggatatct
     1741 tcagcaaact gatccaactt gaaccggtaa gaattgcaac aaacaaatca ccaccgtgag
     1801 gatcacccac ggtggtgaaa gccttagcct agccgtgagg atcacccacg gtaggcacaa
     1861 gaaattctac ccgtgaggat cacccacggg tagaatcaca aagactacag ccgtgaggat
     1921 cacccacggc tgtagactca aacttaaaaa ggatatcttc agcaaactga tccaacttga
     1981 accggtaaga attgcaacaa acaaatcacc accgtgagga tcacccacgg tggtgaaagc
     2041 cttagcctag ccgtgaggat cacccacggt aggcacaaga aattctaccc gtgaggatca
     2101 cccacgggta gaatcacaaa gactacagcc gtgaggatca cccacggctg tagactcaaa
     2161 cttaaaaagg atatcttcag caaactgatc ggagacgagt ccgtctcaaa ttgcaacaaa
     2221 caaatcacca ccgtgaggat cacccacggt ggtgaaagcc ttagcctagc cgtgaggatc
     2281 acccacggta ggcacaagaa attctacccg tgaggatcac ccacgggtag aatcacaaag
     2341 actacagccg tgaggatcac ccacggctgt agactcaaac ttaaaaagga tatcttcagc
     2401 aaactgaatt gcaacaaaca aatcaccacc gtgaggatca cccacggtgg tgaaagcctt
     2461 agcctagccg tgaggatcac ccacggtagg cacaagaaat tctacccgtg aggatcaccc
     2521 acgggtagaa tcacaaagac tacagccgtg aggatcaccc acggctgtag actcaaactt
     2581 aaaaaggata tcttcagcaa actgaattgc aacaaacaaa tcaccaccgt gaggatcacc
     2641 cacggtggtg aaagccttag cctagccgtg aggatcaccc acggtaggca caagaaattc
     2701 tacccgtgag gatcacccac gggtagaatc acaaagacta cagccgtgag gatcacccac
     2761 ggctgtagac tcaaacttaa aaaggatatc ttcagcaaac tgaattcgtt taaaccctcc
     2821 tcgtccgggg ctgtgtcgcc ccgctgacga gccctgaaaa agggcgaaac gaggaggact
     2881 agtgggcccg tttaaacccg ctgatcagcc tcgactgtgc cttctagttg ccagccatct
     2941 gttgtttgcc cctcccccgt gccttccttg accctggaag gtgccactcc cactgtcctt
     3001 tcctaataaa atgaggaaat tgcatcgcat tgtctgagta ggtgtcattc tattctgggg
     3061 ggtggggtgg ggcaggacag caagggggag gattgggaag acaatagcag gcatgctggg
     3121 gatgcggtgg gctctatggc ttctgaggcg gaaagaacca gctggggctc tagggggtat
     3181 ccccacgcgc cctgtagcgg cgcattaagc gcggcgggtg tggtggttac gcgcagcgtg
     3241 accgctacac ttgccagcgc cctagcgccc gctcctttcg ctttcttccc ttcctttctc
     3301 gccacgttcg ccggctttcc ccgtcaagct ctaaatcggg ggctcccttt agggttccga
     3361 tttagtgctt tacggcacct cgaccccaaa aaacttgatt agggtgatgg ttcacgtagt
     3421 gggccatcgc cctgatagac ggtttttcgc cctttgacgt tggagtccac gttctttaat
     3481 agtggactct tgttccaaac tggaacaaca ctcaacccta tctcggtcta ttcttttgat
     3541 ttataaggga ttttgccgat ttcggcctat tggttaaaaa atgagctgat ttaacaaaaa
     3601 tttaacgcga attaattctg tggaatgtgt gtcagttagg gtgtggaaag tccccaggct
     3661 ccccagcagg cagaagtatg caaagcatgc atctcaatta gtcagcaacc aggtgtggaa
     3721 agtccccagg ctccccagca ggcagaagta tgcaaagcat gcatctcaat tagtcagcaa
     3781 ccatagtccc gcccctaact ccgcccatcc cgcccctaac tccgcccagt tccgcccatt
     3841 ctccgcccca tggctgacta atttttttta tttatgcaga ggccgaggcc gcctctgcct
     3901 ctgagctatt ccagaagtag tgaggaggct tttttggagg cctaggcttt tgcaaaaagc
     3961 tcccgggagc ttgtatatcc attttcggat ctgatcaaga gacaggatga ggatcgtttc
     4021 gcatgattga acaagatgga ttgcacgcag gttctccggc cgcttgggtg gagaggctat
     4081 tcggctatga ctgggcacaa cagacaatcg gctgctctga tgccgccgtg ttccggctgt
     4141 cagcgcaggg gcgcccggtt ctttttgtca agaccgacct gtccggtgcc ctgaatgaac
     4201 tgcaggacga ggcagcgcgg ctatcgtggc tggccacgac gggcgttcct tgcgcagctg
     4261 tgctcgacgt tgtcactgaa gcgggaaggg actggctgct attgggcgaa gtgccggggc
     4321 aggatctcct gtcatctcac cttgctcctg ccgagaaagt atccatcatg gctgatgcaa
     4381 tgcggcggct gcatacgctt gatccggcta cctgcccatt cgaccaccaa gcgaaacatc
     4441 gcatcgagcg agcacgtact cggatggaag ccggtcttgt cgatcaggat gatctggacg
     4501 aagagcatca ggggctcgcg ccagccgaac tgttcgccag gctcaaggcg cgcatgcccg
     4561 acggcgagga tctcgtcgtg acccatggcg atgcctgctt gccgaatatc atggtggaaa
     4621 atggccgctt ttctggattc atcgactgtg gccggctggg tgtggcggac cgctatcagg
     4681 acatagcgtt ggctacccgt gatattgctg aagagcttgg cggcgaatgg gctgaccgct
     4741 tcctcgtgct ttacggtatc gccgctcccg attcgcagcg catcgccttc tatcgccttc
     4801 ttgacgagtt cttctgagcg ggactctggg gttcgaaatg accgaccaag cgacgcccaa
     4861 cctgccatca cgagatttcg attccaccgc cgccttctat gaaaggttgg gcttcggaat
     4921 cgttttccgg gacgccggct ggatgatcct ccagcgcggg gatctcatgc tggagttctt
     4981 cgcccacccc aacttgttta ttgcagctta taatggttac aaataaagca atagcatcac
     5041 aaatttcaca aataaagcat ttttttcact gcattctagt tgtggtttgt ccaaactcat
     5101 caatgtatct tatcatgtct gtataccgtc gacctctagc tagagcttgg cgtaatcatg
     5161 gtcatagctg tttcctgtgt gaaattgtta tccgctcaca attccacaca acatacgagc
     5221 cggaagcata aagtgtaaag cctggggtgc ctaatgagtg agctaactca cattaattgc
     5281 gttgcgctca ctgcccgctt tccagtcggg aaacctgtcg tgccagctgc attaatgaat
     5341 cggccaacgc gcggggagag gcggtttgcg tattgggcgc tcttccgctt cctcgctcac
     5401 tgactcgctg cgctcggtcg ttcggctgcg gcgagcggta tcagctcact caaaggcggt
     5461 aatacggtta tccacagaat caggggataa cgcaggaaag aacatgtgag caaaaggcca
     5521 gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc
     5581 ccctgacgag catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact
     5641 ataaagatac caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct
     5701 gccgcttacc ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag
     5761 ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca
     5821 cgaacccccc gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa
     5881 cccggtaaga cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc
     5941 gaggtatgta ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag
     6001 aagaacagta tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg
     6061 tagctcttga tccggcaaac aaaccaccgc tggtagcggt ggtttttttg tttgcaagca
     6121 gcagattacg cgcagaaaaa aaggatctca agaagatcct ttgatctttt ctacggggtc
     6181 tgacgctcag tggaacgaaa actcacgtta agggattttg gtcatgagat tatcaaaaag
     6241 gatcttcacc tagatccttt taaattaaaa atgaagtttt aaatcaatct aaagtatata
     6301 tgagtaaact tggtctgaca gttaccaatg cttaatcagt gaggcaccta tctcagcgat
     6361 ctgtctattt cgttcatcca tagttgcctg actccccgtc gtgtagataa ctacgatacg
     6421 ggagggctta ccatctggcc ccagtgctgc aatgataccg cgagacccac gctcaccggc
     6481 tccagattta tcagcaataa accagccagc cggaagggcc gagcgcagaa gtggtcctgc
     6541 aactttatcc gcctccatcc agtctattaa ttgttgccgg gaagctagag taagtagttc
     6601 gccagttaat agtttgcgca acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc
     6661 gtcgtttggt atggcttcat tcagctccgg ttcccaacga tcaaggcgag ttacatgatc
     6721 ccccatgttg tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg tcagaagtaa
     6781 gttggccgca gtgttatcac tcatggttat ggcagcactg cataattctc ttactgtcat
     6841 gccatccgta agatgctttt ctgtgactgg tgagtactca accaagtcat tctgagaata
     6901 gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata cgggataata ccgcgccaca
     6961 tagcagaact ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa aactctcaag
     7021 gatcttaccg ctgttgagat ccagttcgat gtaacccact cgtgcaccca actgatcttc
     7081 agcatctttt actttcacca gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc
     7141 aaaaaaggga ataagggcga cacggaaatg ttgaatactc atactcttcc tttttcaata
     7201 ttattgaagc atttatcagg gttattgtct catgagcgga tacatatttg aatgtattta
     7261 gaaaaataaa caaatagggg ttccgcgcac atttccccga aaagtgccac ctgacgtc
//
