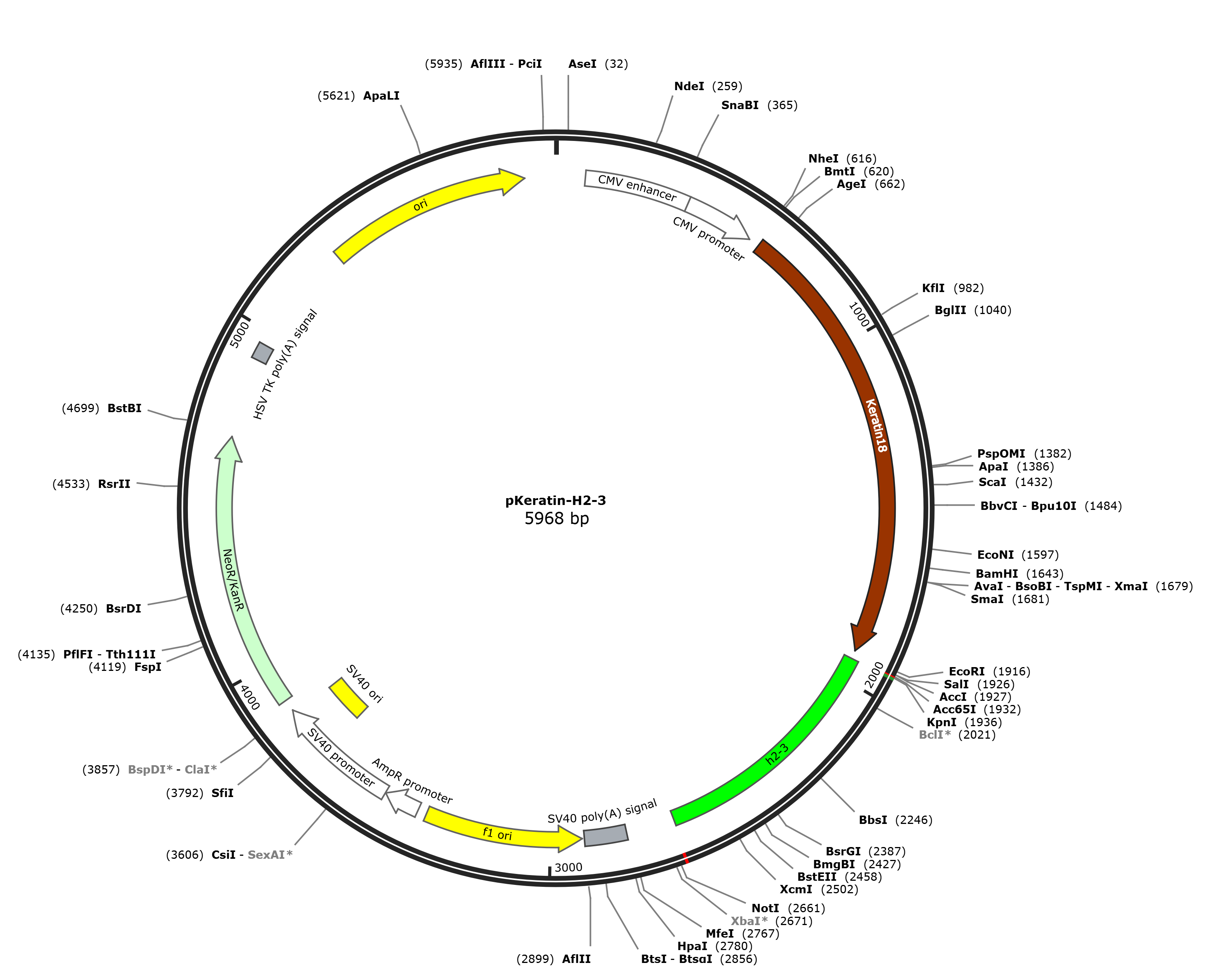

pKeratin-H2-3

LOCUS       pKeratin-H2-3              5968 bp DNA     circular SYN 18-JUL-2024
DEFINITION  Keratin labeling with near-infrared fluorescent protein
            miRFP670nano.
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5968)
  AUTHORS   Oliinyk OS, Shemetov AA, Pletnev S, Shcherbakova DM, Verkhusha VV
  TITLE     Smallest near-infrared fluorescent protein evolved from
            cyanobacteriochrome as versatile tag for spectral multiplexing.
  JOURNAL   Nat Commun. 2019 Jan 17;10(1):279. doi: 10.1038/s41467-018-08050-8.
  PUBMED    30655515
REFERENCE   2  (bases 1 to 5968)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 22, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; journalName: "Nat
            Commun."; date: "2019-01-17"; volume: "10(1):279. doi"; pages: "
            10.1038/s41467-018-08050-8"
FEATURES             Location/Qualifiers
     source          1..5968
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        86..389
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        390..593
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     544..564
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     CDS             625..1914
                     /codon_start=1
                     /label=Keratin18
                     /translation="MSFTTRSTFSTNYRSLGSVQAPSYGARPVSSAASVYAGAGGSGSR
                     ISVSRSTSFRGGMGSGGLATGIAGGLAGMGGIQNEKETMQSLNDRLASYLDRVRSLETE
                     NRRLESKIREHLEKKGPQVRDWSHYFKIIEDLRAQIFANTVDNARIVLQIDNARLAADD
                     FRVKYETELAMRQSVENDIHGLRKVIDDTNITRLQLETEIEALKEELLFMKKNHEEEVK
                     GLQAQIASSGLTVEVDAPKSQDLAKIMADIRAQYDELARKNREELDKYWSQQIEESTTV
                     LTTQSAEVGAAETTLTELRRTVQSLEIDLDSMRNLKASLENSLREVEARYALQMEQLNG
                     ILLHLESELAQTRAEGQRQAQEYEALLNIKVKLEAEIATYRRLLEDGEDFNLGDALDSS
                     NSMQTIQKTTTRRIVDGKVVSETNDTKVLRH"
     primer_bind     1319..1340
                     /label=0312Keratin-F
     misc_feature    1939..2640
                     /label=h2-3
     polyA_signal    2781..2902
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2818..2837)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     2872..2891
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(2872..2891)
                     /label=SV40-R-Universal
     rep_origin      complement(2909..3364)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3046..3067)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     3258..3277
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        3391..3495
                     /gene="bla"
                     /label=AmpR promoter
     promoter        3497..3854
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(3520..3540)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      3705..3840
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3767..3786
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     complement(3790..3801)
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             3889..4683
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3943..3962)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     4553..4572
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(4871..4890)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    4915..4962
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      5291..5879
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     5780..5799
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 ggataaccgt attaccgcca tgcattagtt attaatagta atcaattacg gggtcattag
       61 ttcatagccc atatatggag ttccgcgtta cataacttac ggtaaatggc ccgcctggct
      121 gaccgcccaa cgacccccgc ccattgacgt caataatgac gtatgttccc atagtaacgc
      181 caatagggac tttccattga cgtcaatggg tggagtattt acggtaaact gcccacttgg
      241 cagtacatca agtgtatcat atgccaagta cgccccctat tgacgtcaat gacggtaaat
      301 ggcccgcctg gcattatgcc cagtacatga ccttatggga ctttcctact tggcagtaca
      361 tctacgtatt agtcatcgct attaccatgg tgatgcggtt ttggcagtac atcaatgggc
      421 gtggatagcg gtttgactca cggggatttc caagtctcca ccccattgac gtcaatggga
      481 gtttgttttg gcaccaaaat caacgggact tttcaaaatg tcgtaacaac tccgccccat
      541 tgacgcaaat gggcggtagg cgtgtacggt gggaggtcta tataagcaga gctggtttag
      601 tgaaccgtca gatccgctag caccatgagc ttcaccactc gctccacctt ctccaccaac
      661 taccggtccc tgggctctgt ccaggcgccc agctacggcg cccggccggt cagcagcgcg
      721 gccagcgtct atgcaggcgc tgggggctct ggttcccgga tctccgtgtc ccgctccacc
      781 agcttcaggg gcggcatggg gtccgggggc ctggccaccg ggatagccgg gggtctggca
      841 ggaatgggag gcatccagaa cgagaaggag accatgcaaa gcctgaacga ccgcctggcc
      901 tcttacctgg acagagtgag gagcctggag accgagaacc ggaggctgga gagcaaaatc
      961 cgggagcact tggagaagaa gggaccccag gtcagagact ggagccatta cttcaagatc
     1021 atcgaggacc tgagggctca gatcttcgca aatactgtgg acaatgcccg catcgttctg
     1081 cagattgaca atgcccgtct tgctgctgat gactttagag tcaagtatga gacagagctg
     1141 gccatgcgcc agtctgtgga gaacgacatc catgggctcc gcaaggtcat tgatgacacc
     1201 aatatcacac gactgcagct ggagacagag atcgaggctc tcaaggagga gctgctcttc
     1261 atgaagaaga accacgaaga ggaagtaaaa ggcctacaag cccagattgc cagctctggg
     1321 ttgaccgtgg aggtagatgc ccccaaatct caggacctcg ccaagatcat ggcagacatc
     1381 cgggcccaat atgacgagct ggctcggaag aaccgagagg agctagacaa gtactggtct
     1441 cagcagattg aggagagcac cacagtgctc accacacagt ctgctgaggt tggagctgct
     1501 gagacgacgc tcacagagct gagacgtaca gtccagtcct tggagatcga cctggactcc
     1561 atgagaaatc tgaaggccag cttggagaac agcctgaggg aggtggaggc ccgctacgcc
     1621 ctacagatgg agcagctcaa cgggatcctg ctgcaccttg agtcagagct ggcacagacc
     1681 cgggcagagg gacagcgcca ggcccaggag tatgaggccc tgctgaacat caaggtcaag
     1741 ctggaggctg agatcgccac ctaccgccgc ctgctggaag atggcgagga ctttaatctt
     1801 ggtgatgcct tggacagcag caactccatg caaaccatcc aaaagaccac cacccgccgg
     1861 atagtggatg gcaaagtggt gtctgagacc aatgacacca aagttctgag gcatcgaatt
     1921 ctgcagtcga cggtacccat gagtaaactc cagaaaggtg tggagaaaga gatgaagatt
     1981 aagctcacta tgaactgcac cgtgaacgaa cggaactttg tgatcacagg gcagggggct
     2041 ggggaacctt atgatggaac tcagacactt tacctgacag tggagggcgg aaagacactg
     2101 aacttcagct tcgatgtact gaccccagcc tttcagtacg gcaatagggc gtttaccaag
     2161 taccccggta acataccaga cttcttcaaa cagaccttca gtggcggggg atacacatgg
     2221 aaaagaacaa tgacctatga agacggcggc gtctcaaccg ttgagtccga tatcagcgtt
     2281 caaggggact gcttccatta taaaatacaa ttcaacggaa agttcccccc ccacggccca
     2341 gtcatgcaaa aggaaacagt caaatgggaa ccttccaccg aggtgatgta caaggacgat
     2401 aaaaacgatg gagtgctgaa gggcgacgtg aatatggccc tgctgttgaa ggatggtggt
     2461 cacctcagag tcgatttcaa cacttcttat attcccaaaa ataaggtgga gaagatgcca
     2521 gattaccact tcgtggacca ccggatcgag atcctggaga agcccgaagg acgccctgtc
     2581 aagctctacg caggggctgt ggccaggtac agcctgctgc ctgaaaagaa cctgaataag
     2641 taagatatcc agcacagtgg cggccgcgac tctagatcat aatcagccat accacatttg
     2701 tagaggtttt acttgcttta aaaaacctcc cacacctccc cctgaacctg aaacataaaa
     2761 tgaatgcaat tgttgttgtt aacttgttta ttgcagctta taatggttac aaataaagca
     2821 atagcatcac aaatttcaca aataaagcat ttttttcact gcattctagt tgtggtttgt
     2881 ccaaactcat caatgtatct taaggcgtaa attgtaagcg ttaatatttt gttaaaattc
     2941 gcgttaaatt tttgttaaat cagctcattt tttaaccaat aggccgaaat cggcaaaatc
     3001 ccttataaat caaaagaata gaccgagata gggttgagtg ttgttccagt ttggaacaag
     3061 agtccactat taaagaacgt ggactccaac gtcaaagggc gaaaaaccgt ctatcagggc
     3121 gatggcccac tacgtgaacc atcaccctaa tcaagttttt tggggtcgag gtgccgtaaa
     3181 gcactaaatc ggaaccctaa agggagcccc cgatttagag cttgacgggg aaagccggcg
     3241 aacgtggcga gaaaggaagg gaagaaagcg aaaggagcgg gcgctagggc gctggcaagt
     3301 gtagcggtca cgctgcgcgt aaccaccaca cccgccgcgc ttaatgcgcc gctacagggc
     3361 gcgtcaggtg gcacttttcg gggaaatgtg cgcggaaccc ctatttgttt atttttctaa
     3421 atacattcaa atatgtatcc gctcatgaga caataaccct gataaatgct tcaataatat
     3481 tgaaaaagga agagtcctga ggcggaaaga accagctgtg gaatgtgtgt cagttagggt
     3541 gtggaaagtc cccaggctcc ccagcaggca gaagtatgca aagcatgcat ctcaattagt
     3601 cagcaaccag gtgtggaaag tccccaggct ccccagcagg cagaagtatg caaagcatgc
     3661 atctcaatta gtcagcaacc atagtcccgc ccctaactcc gcccatcccg cccctaactc
     3721 cgcccagttc cgcccattct ccgccccatg gctgactaat tttttttatt tatgcagagg
     3781 ccgaggccgc ctcggcctct gagctattcc agaagtagtg aggaggcttt tttggaggcc
     3841 taggcttttg caaagatcga tcaagagaca ggatgaggat cgtttcgcat gattgaacaa
     3901 gatggattgc acgcaggttc tccggccgct tgggtggaga ggctattcgg ctatgactgg
     3961 gcacaacaga caatcggctg ctctgatgcc gccgtgttcc ggctgtcagc gcaggggcgc
     4021 ccggttcttt ttgtcaagac cgacctgtcc ggtgccctga atgaactgca agacgaggca
     4081 gcgcggctat cgtggctggc cacgacgggc gttccttgcg cagctgtgct cgacgttgtc
     4141 actgaagcgg gaagggactg gctgctattg ggcgaagtgc cggggcagga tctcctgtca
     4201 tctcaccttg ctcctgccga gaaagtatcc atcatggctg atgcaatgcg gcggctgcat
     4261 acgcttgatc cggctacctg cccattcgac caccaagcga aacatcgcat cgagcgagca
     4321 cgtactcgga tggaagccgg tcttgtcgat caggatgatc tggacgaaga gcatcagggg
     4381 ctcgcgccag ccgaactgtt cgccaggctc aaggcgagca tgcccgacgg cgaggatctc
     4441 gtcgtgaccc atggcgatgc ctgcttgccg aatatcatgg tggaaaatgg ccgcttttct
     4501 ggattcatcg actgtggccg gctgggtgtg gcggaccgct atcaggacat agcgttggct
     4561 acccgtgata ttgctgaaga gcttggcggc gaatgggctg accgcttcct cgtgctttac
     4621 ggtatcgccg ctcccgattc gcagcgcatc gccttctatc gccttcttga cgagttcttc
     4681 tgagcgggac tctggggttc gaaatgaccg accaagcgac gcccaacctg ccatcacgag
     4741 atttcgattc caccgccgcc ttctatgaaa ggttgggctt cggaatcgtt ttccgggacg
     4801 ccggctggat gatcctccag cgcggggatc tcatgctgga gttcttcgcc caccctaggg
     4861 ggaggctaac tgaaacacgg aaggagacaa taccggaagg aacccgcgct atgacggcaa
     4921 taaaaagaca gaataaaacg cacggtgttg ggtcgtttgt tcataaacgc ggggttcggt
     4981 cccagggctg gcactctgtc gataccccac cgagacccca ttggggccaa tacgcccgcg
     5041 tttcttcctt ttccccaccc caccccccaa gttcgggtga aggcccaggg ctcgcagcca
     5101 acgtcggggc ggcaggccct gccatagcct caggttactc atatatactt tagattgatt
     5161 taaaacttca tttttaattt aaaaggatct aggtgaagat cctttttgat aatctcatga
     5221 ccaaaatccc ttaacgtgag ttttcgttcc actgagcgtc agaccccgta gaaaagatca
     5281 aaggatcttc ttgagatcct ttttttctgc gcgtaatctg ctgcttgcaa acaaaaaaac
     5341 caccgctacc agcggtggtt tgtttgccgg atcaagagct accaactctt tttccgaagg
     5401 taactggctt cagcagagcg cagataccaa atactgttct tctagtgtag ccgtagttag
     5461 gccaccactt caagaactct gtagcaccgc ctacatacct cgctctgcta atcctgttac
     5521 cagtggctgc tgccagtggc gataagtcgt gtcttaccgg gttggactca agacgatagt
     5581 taccggataa ggcgcagcgg tcgggctgaa cggggggttc gtgcacacag cccagcttgg
     5641 agcgaacgac ctacaccgaa ctgagatacc tacagcgtga gctatgagaa agcgccacgc
     5701 ttcccgaagg gagaaaggcg gacaggtatc cggtaagcgg cagggtcgga acaggagagc
     5761 gcacgaggga gcttccaggg ggaaacgcct ggtatcttta tagtcctgtc gggtttcgcc
     5821 acctctgact tgagcgtcga tttttgtgat gctcgtcagg ggggcggagc ctatggaaaa
     5881 acgccagcaa cgcggccttt ttacggttcc tggccttttg ctggcctttt gctcacatgt
     5941 tctttcctgc gttatcccct gattctgt
//
