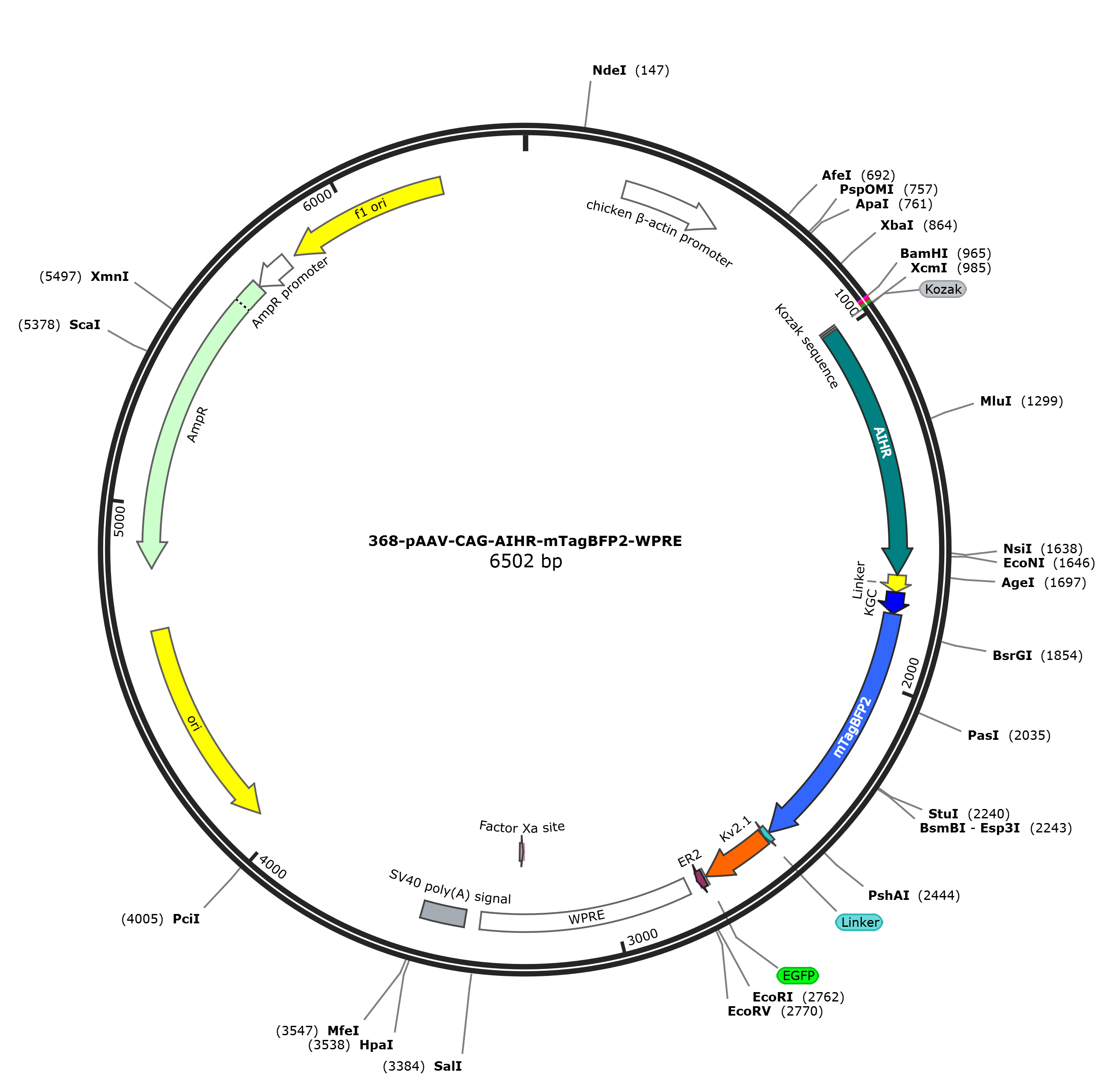

pAAV-CAG-AIHR-mTagBFP-WPRE

LOCUS       pAAV-CAG-AIHR-mTagBFP-WPRE              6499 bp DNA     circular SYN 18-MAR-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6499)
  AUTHORS   Triple Threat
  TITLE     Direct Submission
  JOURNAL   Exported Jul 7, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6499
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        279..556
                     /label=chicken beta-actin promoter
     regulatory      977..982
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     misc_feature    983..988
                     /label=Kozak
     misc_feature    989..1696
                     /label=AIHR
     CDS             1697..1744
                     /codon_start=1
                     /label=Linker
                     /translation="TGAADRPVVAVSKAAA"
     CDS             1745..1804
                     /codon_start=1
                     /label=KGC
                     /translation="KSRITSEGEYIPLDQIDINV"
     CDS             1805..2515
                     /codon_start=1
                     /product="enhanced monomeric blue fluorescent protein
                     (Subach et al., 2011)"
                     /label=mTagBFP2
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELIKENMHMKLYMEGTVDNHHFKCTSEGEGKPYEGTQTM
                     RIKVVEGGPLPFAFDILATSFLYGSKTFINHTQGIPDFFKQSFPEGFTWERVTTYEDGG
                     VLTATQDTSLQDGCLIYNVKIRGVNFTSNGPVMQKKTLGWEAFTETLYPADGGLEGRND
                     MALKLVGGSHLIANAKTTYRSKKPAKNLKMPGVYYVDYRLERIKEANNETYVEQHEVAV
                     ARYCDLPSKLGHKLN"
     CDS             2516..2532
                     /codon_start=1
                     /label=Linker
                     /translation="GGSGG"
     CDS             2534..2728
                     /codon_start=1
                     /label=Kv2.1
                     /translation="QSQPILNTKEMAPQSKPPEELEMSSMPSPVAPLPARTEGVIDMRS
                     MSSIDSFISCATDFPEATRF"
     primer_bind     complement(2709..2746)
                     /label=Kv2.1-Rv-ER2
     CDS             2729..2734
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="YK"
     CDS             2735..2755
                     /codon_start=1
                     /label=ER2
                     /translation="FCYENEV"
     misc_feature    2783..3371
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(3254..3265)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    3414..3535
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(4063..4651)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4822..5682)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5683..5787)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(5813..6268)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
ORIGIN
        1 tctacgtagc catgctctag gaagagtacc attgacgtca ataatgacgt atgttcccat
       61 agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac ggtaaactgc
      121 ccacttggca gtacatcaag tgtatcatat gccaagtacg ccccctattg acgtcaatga
      181 cggtaaatgg cccgcctggc attatgccca gtacatgacc ttatgggact ttcctacttg
      241 gcagtacatc tacgtattag tcatcgctat taccatggtc gaggtgagcc ccacgttctg
      301 cttcactctc cccatctccc ccccctcccc acccccaatt ttgtatttat ttatttttta
      361 attattttgt gcagcgatgg gggcgggggg gggggggggg cgcgcgccag gcggggcggg
      421 gcggggcgag gggcggggcg gggcgaggcg gagaggtgcg gcggcagcca atcagagcgg
      481 cgcgctccga aagtttcctt ttatggcgag gcggcggcgg cggcggccct ataaaaagcg
      541 aagcgcgcgg cgggcgggag tcgctgcgcg ctgccttcgc cccgtgcccc gctccgccgc
      601 cgcctcgcgc cgcccgcccc ggctctgact gaccgcgtta ctcccacagg tgagcgggcg
      661 ggacggccct tctcctccgg gctgtaatta gcgcttggtt taatgacggc ttgtttcttt
      721 tctgtggctg cgtgaaagcc ttgaggggct ccgggagggc cctttgtgcg gggggagcgg
      781 ctcggggctg tccgcggggg gacggctgcc ttcggggggg acggggcagg gcggggttcg
      841 gcttctggcg tgtgaccggc ggctctagag cctctgctaa ccatgttcat gccttcttct
      901 ttttcctaca gctcctgggc aacgtgctgg ttattgtgct gtctcatcat tttggcaaag
      961 aattggatcc ggtaccgcca ccgccaccat gggccagatt tggctgtgga ttggcgtgat
     1021 tagcatggcg ctgggcagcg tgttttttgg cgtgggcgcg cataacgcga aaaacgaacg
     1081 ctggcgcatt ctgtttaccc tgaacttttt tatttgcgcg attgcggcgg gcctgtatct
     1141 gagcatggcg ctgggccagg gccgcagcgt gattgaaggc cgcccgaccg tgtgggtgcg
     1201 ctatattacc tggtttctga gcaccccgct gctgctgctg gatctgacct ttctgggcaa
     1261 aaccagcctg ccgattaccg cgagcctgat tggcgcgaac gcgtatatga ttgtgaccgg
     1321 ctttgtggcg accattagcg cggatcgcac cattggccat atttggtatg tggtgagctg
     1381 ctttgcgttt ctggcgaccg tgtatctgct ggtgaaccag tatcgcaaag aagcggaacg
     1441 caaacatccg cgcagcaaaa aagtgtttcg caaactgctg gcggtgcatc tggtgctgtg
     1501 gaccctgtat ccgattgtgt ggctgctggg caacaccggc ctgaacgcga ttaaccaggg
     1561 cgtggaaacc atgttttata ccctgctgga tattaccagc aaagtgggct ttggctttct
     1621 gagcctgaac agcatgcata acctggaaca ggcgggcgaa gtgcagccgg tgcagggcta
     1681 tgaaagcagc gcgattaccg gtgccgccga ccgcccggta gtagcagtga gcaaggcggc
     1741 cgccaagagc aggatcacca gcgagggcga gtacatcccc ctggaccaga tcgacatcaa
     1801 cgtgatggtg tctaagggcg aagagctgat taaggagaac atgcacatga agctgtacat
     1861 ggagggcacc gtggacaacc atcacttcaa gtgcacatcc gagggcgaag gcaagcccta
     1921 cgagggcacc cagaccatga gaatcaaggt ggtcgagggc ggccctctcc ccttcgcctt
     1981 cgacatcctg gctactagct tcctctacgg cagcaagacc ttcatcaacc acacccaggg
     2041 catccccgac ttcttcaagc agtccttccc tgagggcttc acatgggaga gagtcaccac
     2101 atacgaagac gggggcgtgc tgaccgctac ccaggacacc agcctccagg acggctgcct
     2161 catctacaac gtcaagatca gaggggtgaa cttcacatcc aacggccctg tgatgcagaa
     2221 gaaaacactc ggctgggagg ccttcaccga gacgctgtac cccgctgacg gcggcctgga
     2281 aggcagaaac gacatggccc tgaagctcgt gggcgggagc catctgatcg caaacgccaa
     2341 gaccacatat agatccaaga aacccgctaa gaacctcaag atgcctggcg tctactatgt
     2401 ggactacaga ctggaaagaa tcaaggaggc caacaacgag acctacgtcg agcagcacga
     2461 ggtggcagtg gccagatact gcgacctccc tagcaaactg gggcacaagc ttaatggtgg
     2521 gagcggaggt acccagagcc agcctatcct gaacaccaag gagatggccc ctcagagcaa
     2581 gcctcctgag gagctggaga tgagcagcat gcctagccct gtggcccctc tgcctgccag
     2641 gaccgagggc gtgatcgaca tgaggagcat gagcagcatc gacagcttca tcagctgcgc
     2701 caccgacttc cctgaggcca ccaggttcta caagttctgc tacgagaacg aggtgtaata
     2761 attcgatatc aagcttatcg ataatcaacc tctggattac aaaatttgtg aaagattgac
     2821 tggtattctt aactatgttg ctccttttac gctatgtgga tacgctgctt taatgccttt
     2881 gtatcatgct attgcttccc gtatggcttt cattttctcc tccttgtata aatcctggtt
     2941 gctgtctctt tatgaggagt tgtggcccgt tgtcaggcaa cgtggcgtgg tgtgcactgt
     3001 gtttgctgac gcaaccccca ctggttgggg cattgccacc acctgtcagc tcctttccgg
     3061 gactttcgct ttccccctcc ctattgccac ggcggaactc atcgccgcct gccttgcccg
     3121 ctgctggaca ggggctcggc tgttgggcac tgacaattcc gtggtgttgt cggggaaatc
     3181 atcgtccttt ccttggctgc tcgcctgtgt tgccacctgg attctgcgcg ggacgtcctt
     3241 ctgctacgtc ccttcggccc tcaatccagc ggaccttcct tcccgcggcc tgctgccggc
     3301 tctgcggcct cttccgcgtc ttcgccttcg ccctcagacg agtcggatct ccctttgggc
     3361 cgcctccccg catcgatacc gtcgacccgg gcggccgctt cgagcagaca tgataagata
     3421 cattgatgag tttggacaaa ccacaactag aatgcagtga aaaaaatgct ttatttgtga
     3481 aatttgtgat gctattgctt tatttgtaac cattataagc tgcaataaac aagttaacaa
     3541 caacaattgc attcatttta tgtttcaggt tcagggggag atgtgggagg ttttttaaag
     3601 caagtaaaac ctctacaaat gtggtaaaat cgataaggat cttcctagag catggctacg
     3661 tagataagta gcatggcggg ttaatcatta actacaagga acccctagtg atggagttgg
     3721 ccactccctc tctgcgcgct cgctcgctca ctgaggccgg gcgaccaaag gtcgcccgac
     3781 gcccgggctt tgcccgggcg gcctcagtga gcgagcgagc gcgcagctgc attaatgaat
     3841 cggccaacgc gcggggagag gcggtttgcg tattgggcgc tcttccgctt cctcgctcac
     3901 tgactcgctg cgctcggtcg ttcggctgcg gcgagcggta tcagctcact caaaggcggt
     3961 aatacggtta tccacagaat caggggataa cgcaggaaag aacatgtgag caaaaggcca
     4021 gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc
     4081 ccctgacgag catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact
     4141 ataaagatac caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct
     4201 gccgcttacc ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag
     4261 ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca
     4321 cgaacccccc gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa
     4381 cccggtaaga cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc
     4441 gaggtatgta ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag
     4501 aagaacagta tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg
     4561 tagctcttga tccggcaaac aaaccaccgc tggtagcggt ggtttttttg tttgcaagca
     4621 gcagattacg cgcagaaaaa aaggatctca agaagatcct ttgatctttt ctacggggtc
     4681 tgacgctcag tggaacgaaa actcacgtta agggattttg gtcatgagat tatcaaaaag
     4741 gatcttcacc tagatccttt taaattaaaa atgaagtttt aaatcaatct aaagtatata
     4801 tgagtaaact tggtctgaca gttaccaatg cttaatcagt gaggcaccta tctcagcgat
     4861 ctgtctattt cgttcatcca tagttgcctg actccccgtc gtgtagataa ctacgatacg
     4921 ggagggctta ccatctggcc ccagtgctgc aatgataccg cgagacccac gctcaccggc
     4981 tccagattta tcagcaataa accagccagc cggaagggcc gagcgcagaa gtggtcctgc
     5041 aactttatcc gcctccatcc agtctattaa ttgttgccgg gaagctagag taagtagttc
     5101 gccagttaat agtttgcgca acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc
     5161 gtcgtttggt atggcttcat tcagctccgg ttcccaacga tcaaggcgag ttacatgatc
     5221 ccccatgttg tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg tcagaagtaa
     5281 gttggccgca gtgttatcac tcatggttat ggcagcactg cataattctc ttactgtcat
     5341 gccatccgta agatgctttt ctgtgactgg tgagtactca accaagtcat tctgagaata
     5401 gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata cgggataata ccgcgccaca
     5461 tagcagaact ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa aactctcaag
     5521 gatcttaccg ctgttgagat ccagttcgat gtaacccact cgtgcaccca actgatcttc
     5581 agcatctttt actttcacca gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc
     5641 aaaaaaggga ataagggcga cacggaaatg ttgaatactc atactcttcc tttttcaata
     5701 ttattgaagc atttatcagg gttattgtct catgagcgga tacatatttg aatgtattta
     5761 gaaaaataaa caaatagggg ttccgcgcac atttccccga aaagtgccac ctaaattgta
     5821 agcgttaata ttttgttaaa attcgcgtta aatttttgtt aaatcagctc attttttaac
     5881 caataggccg aaatcggcaa aatcccttat aaatcaaaag aatagaccga gatagggttg
     5941 agtgttgttc cagtttggaa caagagtcca ctattaaaga acgtggactc caacgtcaaa
     6001 gggcgaaaaa ccgtctatca gggcgatggc ccactacgtg aaccatcacc ctaatcaagt
     6061 tttttggggt cgaggtgccg taaagcacta aatcggaacc ctaaagggag cccccgattt
     6121 agagcttgac ggggaaagcc ggcgaacgtg gcgagaaagg aagggaagaa agcgaaagga
     6181 gcgggcgcta gggcgctggc aagtgtagcg gtcacgctgc gcgtaaccac cacacccgcc
     6241 gcgcttaatg cgccgctaca gggcgcgtcc cattcgccat tcaggctgcg caactgttgg
     6301 gaagggcgat cggtgcgggc ctcttcgcta ttacgccagc tgcgcgctcg ctcgctcact
     6361 gaggccgccc gggcaaagcc cgggcgtcgg gcgacctttg gtcgcccggc ctcagtgagc
     6421 gagcgagcgc gcagagaggg agtggccaac tccatcacta ggggttcctt gtagttaatg
     6481 attaacccgc catgctact
//
