pRI909

价格:2000元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: TAKARA
载体名称: pRI909
质粒类型: 植物载体;农杆菌双元表达载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子:
载体大小: 9168 bp
5' 测序引物及序列: M13 (-21) Forward 5’TGTAAAACGACGGCCAGT 3’
3' 测序引物及序列: M13 Reverse 5’CAGGAAACAGCTATGAC 3’
载体标签:
载体抗性: Kanamycin.html' target='_blank'>卡那霉素
筛选标记: 卡那霉素、Neomycin
克隆菌株: HB101
宿主细胞(系): 单子叶植物、双子叶植物、农杆菌
备注: pRI909载体是一种在植物细胞中表达外源基因的载体;利用发根土壤杆菌介导。
产品目录号: 3266
稳定性: 稳表达
组成型/诱导型: --
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

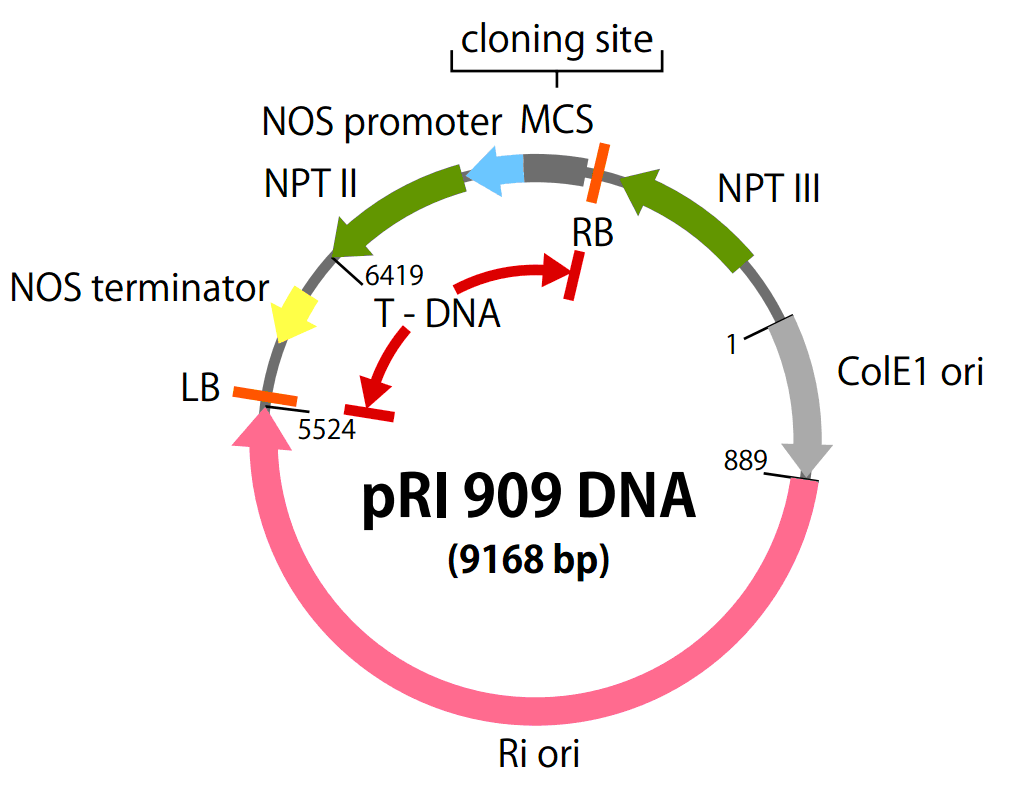

pRI909载体图谱

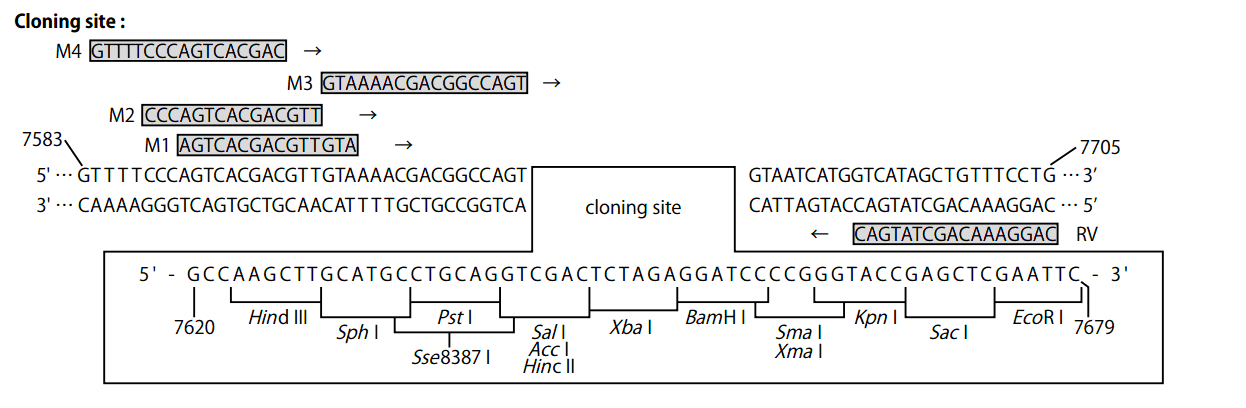

pRI909 多克隆位点

载体简介

pRI909载体简介:

Binary Vectors for Agrobacterium-mediated Plant Transformation: pRI909 and pRI910

Ri Plasmid pRI909 and pRI910 are binary vectors intended for Agrobacterium-mediated plant

transformation and contain a region of T-DNA for Arabidopsis, tomato, tobacco and rice

transformation. The origin of the T-DNA is the vir region-lacking Rhizobium (Agrobacterium)

rhizogenes Ri plasmid. Ri Plasmid pRI909 and pRI910 are also shuttle vectors and replicate

autonomously in E. coli and Rhizobium (Agrobacterium). In E. coli, these vectors are capable

of high copy number because they contain the ColE1 replication origin. The ColE1 ori, as well

as the mutant-type Ri plasmid replication of origin (Ri-ori), are each stably maintained in

Rhizobium (Agrobacterium). These vectors also contain the kanamycin resistance gene NPTIII

for selection in E. coli and Rhizobium (Agrobacterium) and a mutant-type kanamycin resistance

gene NPTII for selection in plants.

The Ri Plasmid pRI909 and pRI910 vectors are capable of plant transformation in combination

with Rhizobium (Agrobacterium) through a binary vector system. Stable plant chromosome target

gene integration is possible with the Ri Plasmid pRI909 and pRI910 because their cloning

sites are located in close proximity to the T-DNA Right Border(RB) and not the NPT II plant

selection marker. As a result, the target gene is not deleted.


pRI909载体特征:

Easy and stable plant chromosome target gene integration
Improved agrobacterium-mediated plant transformation
Versatile: Applicable to various plants such as Arabidopsis, tomato, tobacco, and rice
Applications

Rhizobium (Agrobacterium)-mediated plant transformation
Arabidopsis, tomato, tobacco, rice transformation
Purity

>70% double-stranded covalently closed circular form I (RFI) DNA.
Cloning sites verified by dideoxy DNA sequencing.
Restriction sites verified by restriction enzyme cleavage.


参考文献:

1. Nishiguchi, R. et al. (1987) Mol. Gen. Genet. 206:1-8.

2. Ooms, G. et al. (1982) Plasmid 7:15-29.

3. Ohba, T. et al. (1995) The Plant J. 7:157-164.

载体序列

TGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTC
CATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGA
AACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCT
CCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTG
GCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAG
CTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTAACTAT
CGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTGGTAAC
AGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAAC
TACGGCTACACTAGAAGAACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTC
GGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTGGTTTT
TTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATCTCAAGAAGATCCTTTGATC
TTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGGTCATG
AGATTATCAAAAAGGATCTTCACCTAGATCCTTTTAAATTAAAAATGAAGTTTTAAATCA
ATCTAAAGTATATATGAGTAAACTTGGTCTGACAGTTACCAATGCTTAATCAGTGAGGCA
CCTATCTCAGCGATCTGTCTATTTCGTTCATCCATAGTTGCCTGACTCGATCCTACAAGG
TAGAATCCGCCTGAGTCGCAAGGGTGACTTCGCCTATATTGGACGACGGCGCGCAGAGGG
CGACCTCTTTTTGGGTTACGATTGTAGGATTATCACTAAAACAATACATGAACATATTCA
AATGGCAATCTCTCTAAGGCATTGGAAATAAATACAAATAACAGTTGGGTGGAGTTTTTC
GACCTGAGGGCGTTAACCTTCTGTTAACCTAAAAGCTCTTGCCCAAACAGCAGAATCGGC
GCTAATTGCCAGCGGCGGAACTTTTCCAGTTTCGCGAAAAATATCGCCACTGGCAAGGAA
TGGGTTTGAGATGGCGAAGTCTGTCCTAAAAGCAGCGCCTGTAGTTGTAGGGTTGACGGC
CTTGATGGAGCGTCATGCCGATGCCCTCTCGAGCCAACTTCAAGCACATCATCTTAAGGT
TTTCCCGCCGCATTCCGAGAAGGGTATTCGAACATTCGGGCCATCGGAGGCGTCCAAGCT
GCTCGGCGTTGGCGAGTCATATTTACGGCAGACCGCGTCTGAGATGCCAGAGTTGAATGT
TAGCATGAGCCCAGGTGGCAGGCGAATGTTCTCAATTGAAGATATCCATGTGATTCGGAA
GTATATGGATCAGGTCGGCCGCGGGAACCGGCGCTACCTGCCACATCGTCGAGGCGGCGA
GCAGCTTCAGGTTATCTCTGTGATGAATTTCAAAGGTGGGTCGGGTAAGACCACCACCGC
CGCGCATCTGGCGCAGTACCTCGCTATGCGCGGATATCGAGTCTTGGCCATTGATCTCGA
TCCTCAAGCGAGCCTTTCTGCACTCTTTGGGAGCCAACCGGAGACGGACGTTGGCCCGAA
CGAAACGCTCTACGGCGCTATAAGGTATGATGATGAGCAGGTGGCAATCGAACGAGTCGT
CCGAGGGACTTACATTCCCGACCTCCACCTGATTCCTGGTAACCTTGAGCTGATGGAGTT
TGAACACGATACGCCACGCGCGCTGATGAACCGCAAAGAGGGCGACACGCTCTTTTATGG
TCGCATCAGCCAAGTAATTGAAGATATCGCGGATAACTATGACGTCGTGGTCATCGACTG
CCCTCCCCAGCTTGGGTATCTCACGCTATCCGCATTGACTGCGGCGACGTCCATTCTTGT
CACGGTCCATCCGCAGATGCTGGATGTGATGTCGATGAACCAGTTTCTGGCAATGACATC
GAACCTTTTGCGTGAAATCGAGAATGCTGGCGCCAAGTTCAAGTTTAATTGGATGCGCTA
TCTGATAACCCGTTTCGAACCGAGCGACGGACCACAGAACCAAATGGTAGGTTATCTGCG
GTCGATTTTTGGCGAAAATGTCCTCAATTTTCCGATGCTTAAAACCACCGCGGTTTCGGA
CGCTGGCCTGACAAACCAGACTCTATTCGAAGTGGAGCGTGGCCTGTTCACGCGCTCGAC
CTATGATCGAGCCTTGGAGGCGATGAACGCCGTCAACGACGAGATCGAAACACTGATCAA
AAAAGCATGGGGTAGGCCCACATGAGCCGGAAGCACATCCTTGGCGTCTCAACTGACGCC
CCTGAGACGTCGCCCGCCGACAATAGGACGGCAAAGAACCGCTCCATGCCGCTCCTCGGC
GTAACAAGGAAGGAGCGCGATCCGGCAACGAAGCTCACAGCGAACATTGGTAACGCACTG
CGAGAGCAAAACGATCGTCTTAGCCGTGCCGAAGAGATCGAGCGGCGTCTCGCTGAAGGT
CAGGCAGTGATAGAGTTGGATGCCTCGTCAATAGAACCGTCTTTCGTGCAGGATCGTATG
CGAGGGGACATTGACGGGCTCCTTACTTCGATCCGGGAACAAGGACAGCAAGTCCCAATC
CTTGTGCGACCGCATCCGAGCCAGCCGGGCCGATATCAGGTTGCCTTCGGCCACCGCCGG
CTACGCGCCGTTTCAGAACTCGGACTTCCGGTCAGGGCGGTCGTTCGCGAACTGACGGAC
GAGCAAGTGGTCGTAGCACAGGGTCAGGAAAACAATGTGCGCGAAGATCTTACCTTCATC
GAAAAGGCGCGCTTCGCACATCGCCTGAACAGGCAGTTTTCTCGAGAGATTGTCATCGCC
GCGATGTCGATCGACAAGAGCAATTTGTCCAAGATGCTTCTGCTCGTTGACGCCCTCCCC
TCTGAACTGACCGATGCTATTGGTGCCGCTCCTGGTGTTGGACGGCCGAGTTGGCAACAA
CTTGCCGAGCTGATTGAGAAAGTTTCTTCACCGGCCGACGTGGCTAAATATGCTATGTCG
GAGGAAGTTCAAGCGCTGCCATCGGCAGAACGATTCAAGGCGGTGATCGCTAGTCTGAAG
CCCAGTCGGGTTGCGCGTGGACTTCCCGAGGTCATGGCCACCCCAGACGGCACCAGAATT
GCACAGGTGACGCAGAGCAAGGCCAAACTGGAAATCACGATTGACAGGAAGGCGACGCCC
GATTTTGCGACCTTCGTGCTCGATCATGTGCCAGCGCTGTATCAAGCGTACCACGCTGAG
AACCAACGGAAACGGGGAGAGTAAACCGCAAAAGAAAAGAGCCCCCTCAACGTCGCCGTC
GCGGAAGCCCTTCTGTCTCTCTAGCGCGAACAGAATCGCATTTCCTCGAATCCTCGTCAA
GAGTTTTTAGCGCCGTTTTGGTGAGCTGATTTCCTTTGCCTGCTGAAAGGTGAAAGATGA
TGCAGACAGGAAGTGTAACGACGCCATTCGGGCGGCGGCCAATGACGCTTGCGCTTGTGC
GGCGCCAGACGGCGCTGGCCGATATCAAACAAGGCAAGACAGCGGACAAGTGGAAGGTCT
TTAGGGACGCGTCCGCGGCCATGGAACTACTTGGAATCCAGTCCAACAGTCTTGCCGTCC
TTGATGCGCTATTGAGCTTTCACCCGGAAACGGAGTTGCGTCAGGAGGCACAGCTGATCG
TCTTCCCGTCGAATGCTCAGCTTGCCCTTCGGGCGCATGGGATGGCTGGCGCGACTTTGC
GTAGGCACATCGCCATGCTCGTGGAGTCAGGCTTGATCGTCCGGAAGGATAGCGCCAACG
GAAAGCGTTACGCTCGTAAGGATGGCGCTGGTCAGATCGAGCGCGCGTTTGGCTTCGATT
TGTCTCCGCTTCTCGCGCGGTCCGAAGAGCTAGCGATGATGGCACAGCAGGTGATGGCCG
ATCGAGCAGCATTCAGGATGGCCAAAGAAAGTCTGACGATTTGCCGACGGGACGTTCGGA
AGCTAATTACGGCAGCTATGGAAGAGGGAGCGGAGGGCGACTGGCAAGCTGTCGAGGAAG
TCTATGTGGAACTTGTGGGTAGAATCCCACGCGCCCCGACGCTTGCTGATGTAGAGTCAA
TTCTCGAAGAGATGTGGATGCTCCAGGAAGAGATAATCAACCGGTTGGAAATTAGAGACA
ATTCAGAAAATAATAGCACCAATGCTGCCCAGAGCGAGCAGCACATACAGAACTCAAAAC
CCGAATCCGTTAATGAACTTGAACCTCGCTCTGAAAAGGAGCAGGGCGCTAAGCCGAGTG
AAATAGACCGGGCAAGGAGCGAGCCGATAAAAGCGTTCCCCCTCGGGATGATCCTGAAAG
CGTGCCCGACCATTGGCAATTATGGGCCGAGCGGTGCGGTTGCTAGCTGGCGTGACCTCA
TGTCGGCTGCGGTGGTGGTTCGGTCTATGCTGGGGGTCAGCCCGTCGGCTTACCAAGACG
CGTGTGAGGCAATGGGACCGGAGAATGCGGCAGCAGCGATGGCGTGCATTTTGGAGCGAG
CGAACTTCATCAATTCGCCTGGGGGCTATCTCCGAGATCTGACACGGCGGAGCGAACTCG
GGAAGTTTTCACTTGGCCCGATGATAATGGCGCTCTTGAAGGCTAGCGGGCAGGGGACGT
TGCGGTTTGGCTAGAATTAGCGAGTATGGAGCAGGATGGTCTGTGGTCAGCTGACCACAG
ACCTAATAGGTTGAAAACATGAGCGTTTTTTGGATGATCGACAGACCATCCGATTCCCGG
AGTACCAAGCGTGCTCTGATGGGAGCGATAACATTACTCAACAAGCACGAAGGCCCCATG
CCGATCGTTGATCGTGAAGGAGAGCCTGCTCTACATGCGGCGGTATTTTGCCGGCCGAGG
CATGTAGTCGCGGAGCACTGCCTATTTACTGCCCTAGGCACAAACGTTGACTCTTGGATC
GAGCTGGCAGACAAAGCAATAACCCACACAGAGGACGATTAATGGCTGACGAAGAGATCC
AGAATCCGCCGGACGGTACTGCTGCTGCCGAAGTTGAGCCGGCTGCTCCTAGAGGTAGAA
GAGCAAAGAAAGCACCAGCCGAAACAGCCCGCACGGGATCGTTCAAATCCGTGAAGCCGA
AAACCCGCGGCCTCAGCAACCGAGAAAAACTGGAGAAGATCGGTCAAATCGAAGCTCAGG
TCGCTGGCGGCGCAACCTTGAAGGACGCCGTTAAGATCGTGGGTATTTCCGTTCAGACCT
ATTATCAATGGAAGAGAGCTGCGGTTCAACCTGTCTCACAGAATCCGGCCGTGTCTGTTT
CAGTTGACGATGAACTCGGCGAGTTCATCCAACTCGAGGAGGAAAATCGGCGGCTCAGAA
AGCTAGCTTGTGGCAGGATATATTGTGGTGTAAACAAATTGACGCTTAGACAACTTAATA
ACACATTGCGGACGTTTTTAATGTACTGGGGTGGTTTTTCTTTTCACCAGTGAGACGGGC
AACAGCTGATTGCCCTTCACCGCCTGGCCCTGAGAGAGTTGCAGCAAGCGGTCCACGCTG
GTTTGCCCCAGCAGGCGAAAATCCTGTTTGATGGTGGTTCCGAAATCGGCAAAATCCCTT
ATAAATCAAAAGAATAGCCCGAGATAGGGTTGAGTGTTGTTCCAGTTTGGAACAAGAGTC
CACTATTAAAGAACGTGGACTCCAACGTCAAAGGGCGAAAAACCGTCTATCAGGGCGATG
GCCCAAATTCCCGATCTAGTAACATAGATGACACCGCGCGCGATAATTTATCCTAGTTTG
CGCGCTATATTTTGTTTTCTATCGCGTATTAAATGTATAATTGCGGGACTCTAATCATAA
AAACCCATCTCATAAATAACGTCATGCATTACATGTTAATTATTACATGCTTAACGTAAT
TCAACAGAAATTATATGATAATCATCGCAAGACCGGCAACAGGATTCAATCTTAAGAAAC
TTTATTGCCAAATGTTTGAACGATCGGGGCCCGATCATATTGTCGCTCAGGATCGTGGCG
TTGTGCTTGTCGGCCGTTGCTGTCGTAATGATATCGGCACCTTCGACCGCCTGTTCCGCA
GAGATCCCGTGGGCGAAGAACTCCAGCATGAGATCCCCGCGCTGGAGGATCATCCAGCCG
GCGTCCCGGAAAACGATTCCGAAGCCCAACCTTTCATAGAAGGCGGCGGTGGAATCGAAA
TCTCGTGATGGCAGGTTGGGCGTCGCTTGGTCGGTCATTTCGAACCCCAGAGTCCCGCTC
AGAAGAACTCGTCAAGAAGGCGATAGAAGGCGATGCGCTGCGAATCGGGAGCGGCGATAC
CGTAAAGCACGAGGAAGCGGTCAGCCCATTCGCCGCCAAGCTCTTCAGCAATATCACGGG
TAGCCAACGCTATGTCCTGATAGCGGTCCGCCACACCCAGCCGGCCACAGTCGATGAATC
CAGAAAAGCGGCCATTTTCCACCATGATATTCGGCAAGCAGGCATCGCCATGGGTCACGA
CGAGATCATCGCCGTCGGGCATACGCGCCTTGAGCCTGGCGAACAGTTCGGCTGGCGCGA
GCCCCTGATGCTCTTCGTCCAGATCATCCTGATCGACAAGACCGGCTTCCATCCGAGTAC
GTGCTCGCTCGATGCGATGTTTCGCTTGGTGGTCGAATGGGCAGGTAGCCGGATCAAGCG
TATGCAGCCGCCGCATTGCATCAGCCATGATGGATACTTTCTCGGCAGGAGCAAGGTGAG
ATGACAGGAGATCCTGCCCCGGCACTTCGCCCAATAGCAGCCAGTCCCTTCCCGCTTCAG
TGACAACGTCGAGCACAGCTGCGCAAGGAACGCCCGTCGTGGCCAGCCACGATAGCCGCG
CTGCCTCGTCCTGTAGTTCATTCAGGGCACCGGACAGGTCGGTCTTGACAAAAAGAACCG
GGCGCCCCTGCGCTGACAGCCGGAACACGGCGGCATCAGAGCAGCCGATTGTCTGTTGTG
CCCAGTCATAGCCGAATAGCCTCTCCACCCAAGCGGCCGGAGAACCTGCGTGCAATCCAT
CTTGTTCAATCATGCGAAACGATCCAGATCCGGTGCAGATTATTTGGATTGAGAGTGAAT
ATGAGACTCTAATTGGATACCGAGGGGAATTTATGGAACGTCAGTGGAGCATTTTTGACA
AGAAATATTTGCTAGCTGATAGTGACCTTAGGCGACTTTTGAACGCGCAATAATGGTTTC
TGACGTATGTGCTTAGCTCATTAAACTCCAGAAACCCGCGGCTGAGTGGCTCCTTCAACG
TTGCGGTTCTGTCAGTTCCAAACGTAAAACGGCTTGTCCCGCGTCATCGGCGGGGGTCAT
AACGTGACTCCCTTAATTCTCCGCTCATGATCCTGGCGAAAGGGGGATGTGCTGCAAGGC
GATTAAGTTGGGTAACGCCAGGGTTTTCCCAGTCACGACGTTGTAAAACGACGGCCAGTG
CCAAGCTTGCATGCCTGCAGGTCGACTCTAGAGGATCCCCGGGTACCGAGCTCGAATTCG
TAATCATGGTCATAGCTGTTTCCTGTGTGAAATTGTTATCCGCTCACAATTCCACACAAC
ATACGAGCCGGAAGCATAAAGTGTAAAGCCTGGGGTGCCTAATGAGTGAGCTAACTCACA
TTAATTGCGTTGCGCTCACTGCCCGCTTTCCAGTCGGGAAACCTGTCGTGCCAGGATCAG
ATTGTCGTTTCCCGCCTTCAGTTTAAACTATCAGTGTTTGACAGGATATATTGGCGGGTA
AACCTAAGAGAAAAGAGCGTTTATTAGAATAATCGGATATTTAAAAGGGCGTGAAAAGGT
TTATCCGTTCGTCCATTTGTATGTGACTAAAACAATTCATCCAGTAAAATATAATATTTT
ATTTTCTCCCAATCAGGCTTGATCCCCAGTAAGTCAAAAAATAGCTCGACATACTGTTCT
TCCCCGATATCCTCCCTGATCGACCGGACGCAGAAGGCAATGTCATACCACTTGTCCGCC
CTGCCGCTTCTCCCAAGATCAATAAAGCCACTTACTTTGCCATCTTTCACAAAGATGTTG
CTGTCTCCCAGGTCGCCGTGGGAAAAGACAAGTTCCTCTTCGGGCTTTTCCGTCTTTAAA
AAATCATACAGCTCGCGCGGATCTTTAAATGGAGTGTCTTCTTCCCAGTTTTCGCAATCC
ACATCGGCCAGATCGTTATTCAGTAAGTAATCCAATTCGGCTAAGCGGCTGTCTAAGCTA
TTCGTATAGGGACAATCCGATATGTCGATGGAGTGAAAGAGCCTGATGCACTCCGCATAC
AGCTCGATAATCTTTTCAGGGCTTTGTTCATCTTCATACTCTTCCGAGCAAAGGACGCCA
TCGGCCTCACTCATGAGCAGATTGCTCCAGCCATCATGCCGTTCAAAGTGCAGGACCTTT
GGAACAGGCAGCTTTCCTTCCAGCCATAGCATCATGTCCTTTTCCCGTTCCACATCATAG
GTGGTCCCTTTATACCGGCTGTCCGTCATTTTTAAATATAGGTTTTCATTTTCTCCCACC
AGCTTATATACCTTAGCAGGAGACATTCCTTCCGTATCTTTTACGCAGCGGTATTTTTCG
ATCAGTTTTTTCAATTCCGGTGATATTCTCATTTTAGCCATTTATTATTTCCTTCCTCTT
TTCTACAGTATTTAAAGATACCCCAAGAAGCTAATTATAACAAGACGAACTCCAATTCAC
TGTTCCTTGCATTCTAAAACCTTAAATACCAGAAAACAGCTTTTTCAAAGTTGTTTTCAA
AGTTGGCGTATAACATAGTATCGACGGAGCCGATTTTGAAACCACAATTATGGGTGATGC
TGCCAACTTACTGATTTAGTGTATGATGGTGTTTTTGAGGTGCTCCAGTGGCTTCTGTTT
CTATCAGCTGTCCCTCCTGTTCAGCTACTGACGGGGTGGTGCGTAACGGCAAAAGCACCG
CCGGACATCAGCGCTATCTCTGCTCTCACTGCCGTAAAACATGGCAAC

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
