| 出品公司: | TAKARA |
|---|---|
| 载体名称: | pRI910 |
| 质粒类型: | 植物载体；农杆菌双元表达载体 |
| 高拷贝/低拷贝: | 高拷贝 |
| 克隆方法: | 限制性内切酶，多克隆位点 |
| 启动子: | 无 |
| 载体大小: | 9168 bp |
| 5' 测序引物及序列: | M13 (-21) Forward 5’TGTAAAACGACGGCCAGT 3’ |
| 3' 测序引物及序列: | M13 Reverse 5’CAGGAAACAGCTATGAC 3’ |
| 载体标签: | 无 |
| 载体抗性: | 卡那霉素 |
| 筛选标记: | 卡那霉素、Neomycin |
| 克隆菌株: | HB101 |
| 宿主细胞（系）: | 单子叶植物、双子叶植物、农杆菌 |
| 备注: | pRI910载体是一种在植物细胞中表达外源基因的载体；利用发根土壤杆菌 介导。 |
| 产品目录号: | 3261 |
| 稳定性: | 稳表达 |
| 组成型/诱导型: | -- |
| 病毒/非病毒: | 非病毒 |
买家导航
载体基本信息

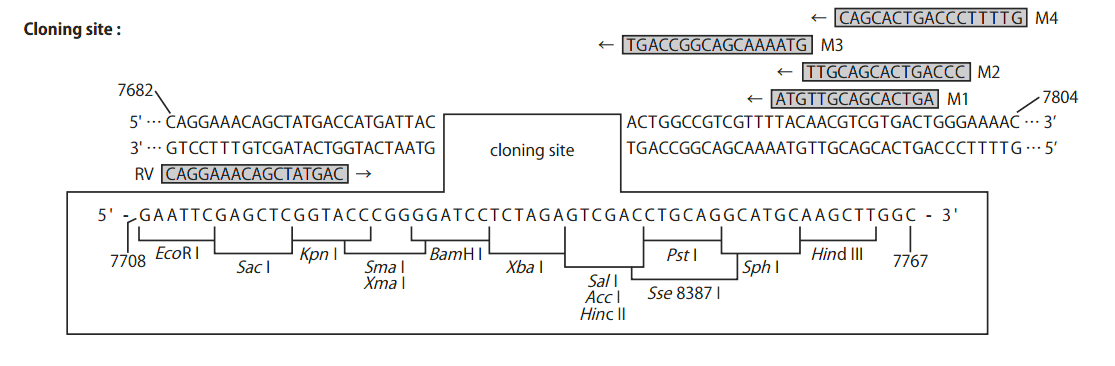

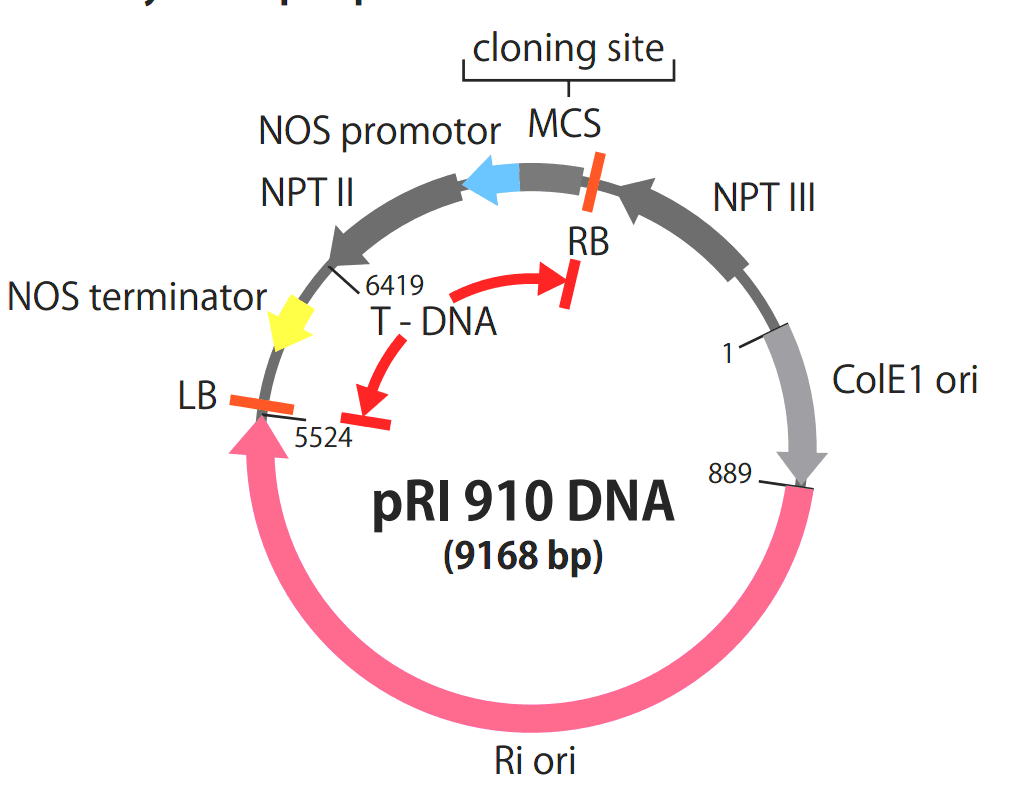

载体图谱质粒图谱和多克隆位点信息
载体简介
pRI910载体简介： Binary Vectors for Agrobacterium-mediated Plant Transformation: pRI909 and pRI910 Ri Plasmid pRI909 and pRI910 are binary vectors intended for Agrobacterium-mediated plant transformation and contain a region of T-DNA for Arabidopsis, tomato, tobacco and rice transformation. The origin of the T-DNA is the vir region-lacking Rhizobium (Agrobacterium) rhizogenes Ri plasmid. Ri Plasmid pRI909 and pRI910 are also shuttle vectors and replicate autonomously in E. coli and Rhizobium (Agrobacterium). In E. coli, these vectors are capable of high copy number because they contain the ColE1 replication origin. The ColE1 ori, as well as the mutant-type Ri plasmid replication of origin (Ri-ori), are each stably maintained in Rhizobium (Agrobacterium). These vectors also contain the kanamycin resistance gene NPTIII for selection in E. coli and Rhizobium (Agrobacterium) and a mutant-type kanamycin resistance gene NPTII for selection in plants. The Ri Plasmid pRI909 and pRI910 vectors are capable of plant transformation in combination with Rhizobium (Agrobacterium) through a binary vector system. Stable plant chromosome target gene integration is possible with the Ri Plasmid pRI909 and pRI910 because their cloning sites are located in close proximity to the T-DNA Right Border(RB) and not the NPT II plant selection marker. As a result, the target gene is not deleted. pRI910载体特征： Easy and stable plant chromosome target gene integration Improved agrobacterium-mediated plant transformation Versatile: Applicable to various plants such as Arabidopsis, tomato, tobacco, and rice Applications Rhizobium (Agrobacterium)-mediated plant transformation Arabidopsis, tomato, tobacco, rice transformation Purity >70% double-stranded covalently closed circular form I (RFI) DNA. Cloning sites verified by dideoxy DNA sequencing. Restriction sites verified by restriction enzyme cleavage. 参考文献： 1. Nishiguchi, R. et al. (1987) Mol. Gen. Genet. 206:1-8. 2. Ooms, G. et al. (1982) Plasmid 7:15-29. 3. Ohba, T. et al. (1995) The Plant J. 7:157-164.
载体序列
TGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTC CATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGA AACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCT CCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTG GCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAG CTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTAACTAT CGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTGGTAAC AGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAAC TACGGCTACACTAGAAGAACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTC GGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTGGTTTT TTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATCTCAAGAAGATCCTTTGATC TTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGGTCATG AGATTATCAAAAAGGATCTTCACCTAGATCCTTTTAAATTAAAAATGAAGTTTTAAATCA ATCTAAAGTATATATGAGTAAACTTGGTCTGACAGTTACCAATGCTTAATCAGTGAGGCA CCTATCTCAGCGATCTGTCTATTTCGTTCATCCATAGTTGCCTGACTCGATCCTACAAGG TAGAATCCGCCTGAGTCGCAAGGGTGACTTCGCCTATATTGGACGACGGCGCGCAGAGGG CGACCTCTTTTTGGGTTACGATTGTAGGATTATCACTAAAACAATACATGAACATATTCA AATGGCAATCTCTCTAAGGCATTGGAAATAAATACAAATAACAGTTGGGTGGAGTTTTTC GACCTGAGGGCGTTAACCTTCTGTTAACCTAAAAGCTCTTGCCCAAACAGCAGAATCGGC GCTAATTGCCAGCGGCGGAACTTTTCCAGTTTCGCGAAAAATATCGCCACTGGCAAGGAA TGGGTTTGAGATGGCGAAGTCTGTCCTAAAAGCAGCGCCTGTAGTTGTAGGGTTGACGGC CTTGATGGAGCGTCATGCCGATGCCCTCTCGAGCCAACTTCAAGCACATCATCTTAAGGT TTTCCCGCCGCATTCCGAGAAGGGTATTCGAACATTCGGGCCATCGGAGGCGTCCAAGCT GCTCGGCGTTGGCGAGTCATATTTACGGCAGACCGCGTCTGAGATGCCAGAGTTGAATGT TAGCATGAGCCCAGGTGGCAGGCGAATGTTCTCAATTGAAGATATCCATGTGATTCGGAA GTATATGGATCAGGTCGGCCGCGGGAACCGGCGCTACCTGCCACATCGTCGAGGCGGCGA GCAGCTTCAGGTTATCTCTGTGATGAATTTCAAAGGTGGGTCGGGTAAGACCACCACCGC CGCGCATCTGGCGCAGTACCTCGCTATGCGCGGATATCGAGTCTTGGCCATTGATCTCGA TCCTCAAGCGAGCCTTTCTGCACTCTTTGGGAGCCAACCGGAGACGGACGTTGGCCCGAA CGAAACGCTCTACGGCGCTATAAGGTATGATGATGAGCAGGTGGCAATCGAACGAGTCGT CCGAGGGACTTACATTCCCGACCTCCACCTGATTCCTGGTAACCTTGAGCTGATGGAGTT TGAACACGATACGCCACGCGCGCTGATGAACCGCAAAGAGGGCGACACGCTCTTTTATGG TCGCATCAGCCAAGTAATTGAAGATATCGCGGATAACTATGACGTCGTGGTCATCGACTG CCCTCCCCAGCTTGGGTATCTCACGCTATCCGCATTGACTGCGGCGACGTCCATTCTTGT CACGGTCCATCCGCAGATGCTGGATGTGATGTCGATGAACCAGTTTCTGGCAATGACATC GAACCTTTTGCGTGAAATCGAGAATGCTGGCGCCAAGTTCAAGTTTAATTGGATGCGCTA TCTGATAACCCGTTTCGAACCGAGCGACGGACCACAGAACCAAATGGTAGGTTATCTGCG GTCGATTTTTGGCGAAAATGTCCTCAATTTTCCGATGCTTAAAACCACCGCGGTTTCGGA CGCTGGCCTGACAAACCAGACTCTATTCGAAGTGGAGCGTGGCCTGTTCACGCGCTCGAC CTATGATCGAGCCTTGGAGGCGATGAACGCCGTCAACGACGAGATCGAAACACTGATCAA AAAAGCATGGGGTAGGCCCACATGAGCCGGAAGCACATCCTTGGCGTCTCAACTGACGCC CCTGAGACGTCGCCCGCCGACAATAGGACGGCAAAGAACCGCTCCATGCCGCTCCTCGGC GTAACAAGGAAGGAGCGCGATCCGGCAACGAAGCTCACAGCGAACATTGGTAACGCACTG CGAGAGCAAAACGATCGTCTTAGCCGTGCCGAAGAGATCGAGCGGCGTCTCGCTGAAGGT CAGGCAGTGATAGAGTTGGATGCCTCGTCAATAGAACCGTCTTTCGTGCAGGATCGTATG CGAGGGGACATTGACGGGCTCCTTACTTCGATCCGGGAACAAGGACAGCAAGTCCCAATC CTTGTGCGACCGCATCCGAGCCAGCCGGGCCGATATCAGGTTGCCTTCGGCCACCGCCGG CTACGCGCCGTTTCAGAACTCGGACTTCCGGTCAGGGCGGTCGTTCGCGAACTGACGGAC GAGCAAGTGGTCGTAGCACAGGGTCAGGAAAACAATGTGCGCGAAGATCTTACCTTCATC GAAAAGGCGCGCTTCGCACATCGCCTGAACAGGCAGTTTTCTCGAGAGATTGTCATCGCC GCGATGTCGATCGACAAGAGCAATTTGTCCAAGATGCTTCTGCTCGTTGACGCCCTCCCC TCTGAACTGACCGATGCTATTGGTGCCGCTCCTGGTGTTGGACGGCCGAGTTGGCAACAA CTTGCCGAGCTGATTGAGAAAGTTTCTTCACCGGCCGACGTGGCTAAATATGCTATGTCG GAGGAAGTTCAAGCGCTGCCATCGGCAGAACGATTCAAGGCGGTGATCGCTAGTCTGAAG CCCAGTCGGGTTGCGCGTGGACTTCCCGAGGTCATGGCCACCCCAGACGGCACCAGAATT GCACAGGTGACGCAGAGCAAGGCCAAACTGGAAATCACGATTGACAGGAAGGCGACGCCC GATTTTGCGACCTTCGTGCTCGATCATGTGCCAGCGCTGTATCAAGCGTACCACGCTGAG AACCAACGGAAACGGGGAGAGTAAACCGCAAAAGAAAAGAGCCCCCTCAACGTCGCCGTC GCGGAAGCCCTTCTGTCTCTCTAGCGCGAACAGAATCGCATTTCCTCGAATCCTCGTCAA GAGTTTTTAGCGCCGTTTTGGTGAGCTGATTTCCTTTGCCTGCTGAAAGGTGAAAGATGA TGCAGACAGGAAGTGTAACGACGCCATTCGGGCGGCGGCCAATGACGCTTGCGCTTGTGC GGCGCCAGACGGCGCTGGCCGATATCAAACAAGGCAAGACAGCGGACAAGTGGAAGGTCT TTAGGGACGCGTCCGCGGCCATGGAACTACTTGGAATCCAGTCCAACAGTCTTGCCGTCC TTGATGCGCTATTGAGCTTTCACCCGGAAACGGAGTTGCGTCAGGAGGCACAGCTGATCG TCTTCCCGTCGAATGCTCAGCTTGCCCTTCGGGCGCATGGGATGGCTGGCGCGACTTTGC GTAGGCACATCGCCATGCTCGTGGAGTCAGGCTTGATCGTCCGGAAGGATAGCGCCAACG GAAAGCGTTACGCTCGTAAGGATGGCGCTGGTCAGATCGAGCGCGCGTTTGGCTTCGATT TGTCTCCGCTTCTCGCGCGGTCCGAAGAGCTAGCGATGATGGCACAGCAGGTGATGGCCG ATCGAGCAGCATTCAGGATGGCCAAAGAAAGTCTGACGATTTGCCGACGGGACGTTCGGA AGCTAATTACGGCAGCTATGGAAGAGGGAGCGGAGGGCGACTGGCAAGCTGTCGAGGAAG TCTATGTGGAACTTGTGGGTAGAATCCCACGCGCCCCGACGCTTGCTGATGTAGAGTCAA TTCTCGAAGAGATGTGGATGCTCCAGGAAGAGATAATCAACCGGTTGGAAATTAGAGACA ATTCAGAAAATAATAGCACCAATGCTGCCCAGAGCGAGCAGCACATACAGAACTCAAAAC CCGAATCCGTTAATGAACTTGAACCTCGCTCTGAAAAGGAGCAGGGCGCTAAGCCGAGTG AAATAGACCGGGCAAGGAGCGAGCCGATAAAAGCGTTCCCCCTCGGGATGATCCTGAAAG CGTGCCCGACCATTGGCAATTATGGGCCGAGCGGTGCGGTTGCTAGCTGGCGTGACCTCA TGTCGGCTGCGGTGGTGGTTCGGTCTATGCTGGGGGTCAGCCCGTCGGCTTACCAAGACG CGTGTGAGGCAATGGGACCGGAGAATGCGGCAGCAGCGATGGCGTGCATTTTGGAGCGAG CGAACTTCATCAATTCGCCTGGGGGCTATCTCCGAGATCTGACACGGCGGAGCGAACTCG GGAAGTTTTCACTTGGCCCGATGATAATGGCGCTCTTGAAGGCTAGCGGGCAGGGGACGT TGCGGTTTGGCTAGAATTAGCGAGTATGGAGCAGGATGGTCTGTGGTCAGCTGACCACAG ACCTAATAGGTTGAAAACATGAGCGTTTTTTGGATGATCGACAGACCATCCGATTCCCGG AGTACCAAGCGTGCTCTGATGGGAGCGATAACATTACTCAACAAGCACGAAGGCCCCATG CCGATCGTTGATCGTGAAGGAGAGCCTGCTCTACATGCGGCGGTATTTTGCCGGCCGAGG CATGTAGTCGCGGAGCACTGCCTATTTACTGCCCTAGGCACAAACGTTGACTCTTGGATC GAGCTGGCAGACAAAGCAATAACCCACACAGAGGACGATTAATGGCTGACGAAGAGATCC AGAATCCGCCGGACGGTACTGCTGCTGCCGAAGTTGAGCCGGCTGCTCCTAGAGGTAGAA GAGCAAAGAAAGCACCAGCCGAAACAGCCCGCACGGGATCGTTCAAATCCGTGAAGCCGA AAACCCGCGGCCTCAGCAACCGAGAAAAACTGGAGAAGATCGGTCAAATCGAAGCTCAGG TCGCTGGCGGCGCAACCTTGAAGGACGCCGTTAAGATCGTGGGTATTTCCGTTCAGACCT ATTATCAATGGAAGAGAGCTGCGGTTCAACCTGTCTCACAGAATCCGGCCGTGTCTGTTT CAGTTGACGATGAACTCGGCGAGTTCATCCAACTCGAGGAGGAAAATCGGCGGCTCAGAA AGCTAGCTTGTGGCAGGATATATTGTGGTGTAAACAAATTGACGCTTAGACAACTTAATA ACACATTGCGGACGTTTTTAATGTACTGGGGTGGTTTTTCTTTTCACCAGTGAGACGGGC AACAGCTGATTGCCCTTCACCGCCTGGCCCTGAGAGAGTTGCAGCAAGCGGTCCACGCTG GTTTGCCCCAGCAGGCGAAAATCCTGTTTGATGGTGGTTCCGAAATCGGCAAAATCCCTT ATAAATCAAAAGAATAGCCCGAGATAGGGTTGAGTGTTGTTCCAGTTTGGAACAAGAGTC CACTATTAAAGAACGTGGACTCCAACGTCAAAGGGCGAAAAACCGTCTATCAGGGCGATG GCCCAAATTCCCGATCTAGTAACATAGATGACACCGCGCGCGATAATTTATCCTAGTTTG CGCGCTATATTTTGTTTTCTATCGCGTATTAAATGTATAATTGCGGGACTCTAATCATAA AAACCCATCTCATAAATAACGTCATGCATTACATGTTAATTATTACATGCTTAACGTAAT TCAACAGAAATTATATGATAATCATCGCAAGACCGGCAACAGGATTCAATCTTAAGAAAC TTTATTGCCAAATGTTTGAACGATCGGGGCCCGATCATATTGTCGCTCAGGATCGTGGCG TTGTGCTTGTCGGCCGTTGCTGTCGTAATGATATCGGCACCTTCGACCGCCTGTTCCGCA GAGATCCCGTGGGCGAAGAACTCCAGCATGAGATCCCCGCGCTGGAGGATCATCCAGCCG GCGTCCCGGAAAACGATTCCGAAGCCCAACCTTTCATAGAAGGCGGCGGTGGAATCGAAA TCTCGTGATGGCAGGTTGGGCGTCGCTTGGTCGGTCATTTCGAACCCCAGAGTCCCGCTC AGAAGAACTCGTCAAGAAGGCGATAGAAGGCGATGCGCTGCGAATCGGGAGCGGCGATAC CGTAAAGCACGAGGAAGCGGTCAGCCCATTCGCCGCCAAGCTCTTCAGCAATATCACGGG TAGCCAACGCTATGTCCTGATAGCGGTCCGCCACACCCAGCCGGCCACAGTCGATGAATC CAGAAAAGCGGCCATTTTCCACCATGATATTCGGCAAGCAGGCATCGCCATGGGTCACGA CGAGATCATCGCCGTCGGGCATACGCGCCTTGAGCCTGGCGAACAGTTCGGCTGGCGCGA GCCCCTGATGCTCTTCGTCCAGATCATCCTGATCGACAAGACCGGCTTCCATCCGAGTAC GTGCTCGCTCGATGCGATGTTTCGCTTGGTGGTCGAATGGGCAGGTAGCCGGATCAAGCG TATGCAGCCGCCGCATTGCATCAGCCATGATGGATACTTTCTCGGCAGGAGCAAGGTGAG ATGACAGGAGATCCTGCCCCGGCACTTCGCCCAATAGCAGCCAGTCCCTTCCCGCTTCAG TGACAACGTCGAGCACAGCTGCGCAAGGAACGCCCGTCGTGGCCAGCCACGATAGCCGCG CTGCCTCGTCCTGTAGTTCATTCAGGGCACCGGACAGGTCGGTCTTGACAAAAAGAACCG GGCGCCCCTGCGCTGACAGCCGGAACACGGCGGCATCAGAGCAGCCGATTGTCTGTTGTG CCCAGTCATAGCCGAATAGCCTCTCCACCCAAGCGGCCGGAGAACCTGCGTGCAATCCAT CTTGTTCAATCATGCGAAACGATCCAGATCCGGTGCAGATTATTTGGATTGAGAGTGAAT ATGAGACTCTAATTGGATACCGAGGGGAATTTATGGAACGTCAGTGGAGCATTTTTGACA AGAAATATTTGCTAGCTGATAGTGACCTTAGGCGACTTTTGAACGCGCAATAATGGTTTC TGACGTATGTGCTTAGCTCATTAAACTCCAGAAACCCGCGGCTGAGTGGCTCCTTCAACG TTGCGGTTCTGTCAGTTCCAAACGTAAAACGGCTTGTCCCGCGTCATCGGCGGGGGTCAT AACGTGACTCCCTTAATTCTCCGCTCATGATCCTGGCACGACAGGTTTCCCGACTGGAAA GCGGGCAGTGAGCGCAACGCAATTAATGTGAGTTAGCTCACTCATTAGGCACCCCAGGCT TTACACTTTATGCTTCCGGCTCGTATGTTGTGTGGAATTGTGAGCGGATAACAATTTCAC ACAGGAAACAGCTATGACCATGATTACGAATTCGAGCTCGGTACCCGGGGATCCTCTAGA GTCGACCTGCAGGCATGCAAGCTTGGCACTGGCCGTCGTTTTACAACGTCGTGACTGGGA AAACCCTGGCGTTACCCAACTTAATCGCCTTGCAGCACATCCCCCTTTCGCCAGGATCAG ATTGTCGTTTCCCGCCTTCAGTTTAAACTATCAGTGTTTGACAGGATATATTGGCGGGTA AACCTAAGAGAAAAGAGCGTTTATTAGAATAATCGGATATTTAAAAGGGCGTGAAAAGGT TTATCCGTTCGTCCATTTGTATGTGACTAAAACAATTCATCCAGTAAAATATAATATTTT ATTTTCTCCCAATCAGGCTTGATCCCCAGTAAGTCAAAAAATAGCTCGACATACTGTTCT TCCCCGATATCCTCCCTGATCGACCGGACGCAGAAGGCAATGTCATACCACTTGTCCGCC CTGCCGCTTCTCCCAAGATCAATAAAGCCACTTACTTTGCCATCTTTCACAAAGATGTTG CTGTCTCCCAGGTCGCCGTGGGAAAAGACAAGTTCCTCTTCGGGCTTTTCCGTCTTTAAA AAATCATACAGCTCGCGCGGATCTTTAAATGGAGTGTCTTCTTCCCAGTTTTCGCAATCC ACATCGGCCAGATCGTTATTCAGTAAGTAATCCAATTCGGCTAAGCGGCTGTCTAAGCTA TTCGTATAGGGACAATCCGATATGTCGATGGAGTGAAAGAGCCTGATGCACTCCGCATAC AGCTCGATAATCTTTTCAGGGCTTTGTTCATCTTCATACTCTTCCGAGCAAAGGACGCCA TCGGCCTCACTCATGAGCAGATTGCTCCAGCCATCATGCCGTTCAAAGTGCAGGACCTTT GGAACAGGCAGCTTTCCTTCCAGCCATAGCATCATGTCCTTTTCCCGTTCCACATCATAG GTGGTCCCTTTATACCGGCTGTCCGTCATTTTTAAATATAGGTTTTCATTTTCTCCCACC AGCTTATATACCTTAGCAGGAGACATTCCTTCCGTATCTTTTACGCAGCGGTATTTTTCG ATCAGTTTTTTCAATTCCGGTGATATTCTCATTTTAGCCATTTATTATTTCCTTCCTCTT TTCTACAGTATTTAAAGATACCCCAAGAAGCTAATTATAACAAGACGAACTCCAATTCAC TGTTCCTTGCATTCTAAAACCTTAAATACCAGAAAACAGCTTTTTCAAAGTTGTTTTCAA AGTTGGCGTATAACATAGTATCGACGGAGCCGATTTTGAAACCACAATTATGGGTGATGC TGCCAACTTACTGATTTAGTGTATGATGGTGTTTTTGAGGTGCTCCAGTGGCTTCTGTTT CTATCAGCTGTCCCTCCTGTTCAGCTACTGACGGGGTGGTGCGTAACGGCAAAAGCACCG CCGGACATCAGCGCTATCTCTGCTCTCACTGCCGTAAAACATGGCAAC
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
