pQL116

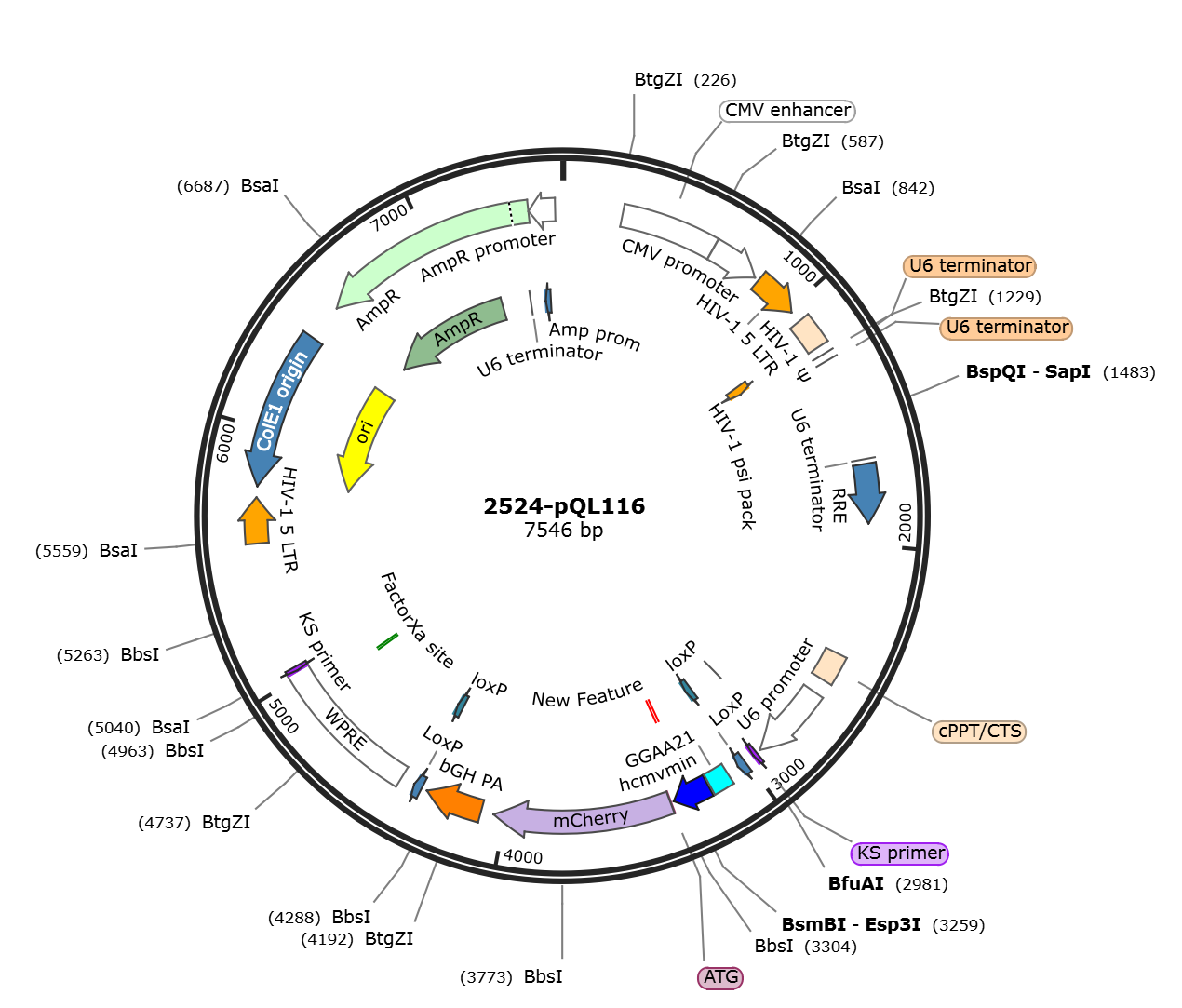

LOCUS       pQL116           7546 bp DNA     circular SYN 08-APR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 7546)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 29, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7546
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        238..617
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        619..817
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     LTR             835..1015
                     /label=HIV-1 5 LTR
     misc_feature    1062..1187
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1126..1170
                     /label=HIV-1 psi pack
     misc_feature    1222..1227
                     /label=U6 terminator
     misc_feature    1251..1256
                     /label=U6 terminator
     misc_feature    1665..1670
                     /label=U6 terminator
     misc_feature    1684..1917
                     /label=RRE
     misc_feature    2444..2561
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        2620..2932
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for mouse U6 snRNA (Das
                     et al., 1988)"
     misc_feature    2845..2850
                     /label=U6 terminator
     primer_bind     2949..2965
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(2994..3008)
                     /label=QL144-R
     primer_bind     complement(2994..3008)
                     /label=QL153-R
     misc_recomb     3007..3040
                     /label=LoxP
     protein_bind    3007..3040
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     primer_bind     3048..3088
                     /label=QL143-F
     misc_feature    3089..3172
                     /label=GGAA21
     misc_feature    3179..3326
                     /label=hcmvmin
     misc_feature    3248..3262
                     /label=New Feature
     primer_bind     complement(3311..3326)
                     /label=oYW11
     primer_bind     3317..3358
                     /label=QL137-F
     primer_bind     3337..3357
                     /label=QL9 mcherry-F
     CDS             3338
                     /codon_start=1
                     /product="start codon"
                     /label=ATG
                     /translation=""
     CDS             3341..4045
                     /codon_start=1
                     /label=mCherry
                     /translation="VSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEGT
                     QTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNFE
                     DGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALKG
                     EIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERAE
                     GRHSTGGMDELYK"
     primer_bind     complement(4025..4070)
                     /label=QL138-R
     primer_bind     complement(4026..4057)
                     /label=QL10 mCherry-R
     primer_bind     complement(4028..4049)
                     /label=QL144-R
     terminator      4096..4323
                     /label=bGH PA
     primer_bind     complement(4306..4347)
                     /label=QL153-R
     primer_bind     complement(4327..4347)
                     /label=QL144-R
     misc_recomb     4346..4379
                     /label=LoxP
     protein_bind    4346..4379
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     misc_feature    4435..5023
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4906..4917)
                     /label=FactorXa site
     primer_bind     complement(5026..5042)
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     LTR             5552..5732
                     /label=HIV-1 5 LTR
     rep_origin      complement(5776..6404)
                     /direction=LEFT
                     /label=ColE1 origin
     rep_origin      complement(5794..6382)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     misc_feature    6334..6339
                     /label=U6 terminator
     misc_feature    6335..6340
                     /label=U6 terminator
     misc_feature    6367..6372
                     /label=U6 terminator
     misc_feature    6368..6373
                     /label=U6 terminator
     primer_bind     6397..6416
                     /label=oPLL3.7-8
     CDS             complement(6553..7413)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     CDS             complement(6556..7215)
                     /label=AmpR
     misc_feature    6965..6970
                     /label=U6 terminator
     misc_feature    7372..7377
                     /label=U6 terminator
     promoter        complement(7414..7518)
                     /gene="bla"
                     /label=AmpR promoter
     promoter        complement(7455..7483)
                     /label=Amp prom
ORIGIN
        1 gtcgacggat cgggagatct cccgatcccc tatggtgcac tctcagtaca atctgctctg
       61 atgccgcata gttaagccag tatctgctcc ctgcttgtgt gttggaggtc gctgagtagt
      121 gcgcgagcaa aatttaagct acaacaaggc aaggcttgac cgacaattgc atgaagaatc
      181 tgcttagggt taggcgtttt gcgctgcttc gcgatgtacg ggccagatat acgcgttgac
      241 attgattatt gactagttat taatagtaat caattacggg gtcattagtt catagcccat
      301 atatggagtt ccgcgttaca taacttacgg taaatggccc gcctggctga ccgcccaacg
      361 acccccgccc attgacgtca ataatgacgt atgttcccat agtaacgcca atagggactt
      421 tccattgacg tcaatgggtg gagtatttac ggtaaactgc ccacttggca gtacatcaag
      481 tgtatcatat gccaagtacg ccccctattg acgtcaatga cggtaaatgg cccgcctggc
      541 attatgccca gtacatgacc ttatgggact ttcctacttg gcagtacatc tacgtattag
      601 tcatcgctat taccatggtg atgcggtttt ggcagtacat caatgggcgt ggatagcggt
      661 ttgactcacg gggatttcca agtctccacc ccattgacgt caatgggagt ttgttttggc
      721 accaaaatca acgggacttt ccaaaatgtc gtaacaactc cgccccattg acgcaaatgg
      781 gcggtaggcg tgtacggtgg gaggtctata taagcagcgc gttttgcctg tactgggtct
      841 ctctggttag accagatctg agcctgggag ctctctggct aactagggaa cccactgctt
      901 aagcctcaat aaagcttgcc ttgagtgctt caagtagtgt gtgcccgtct gttgtgtgac
      961 tctggtaact agagatccct cagacccttt tagtcagtgt ggaaaatctc tagcagtggc
     1021 gcccgaacag ggacttgaaa gcgaaaggga aaccagagga gctctctcga cgcaggactc
     1081 ggcttgctga agcgcgcacg gcaagaggcg aggggcggcg actggtgagt acgccaaaaa
     1141 ttttgactag cggaggctag aaggagagag atgggtgcga gagcgtcagt attaagcggg
     1201 ggagaattag atcgcgatgg gaaaaaattc ggttaaggcc agggggaaag aaaaaatata
     1261 aattaaaaca tatagtatgg gcaagcaggg agctagaacg attcgcagtt aatcctggcc
     1321 tgttagaaac atcagaaggc tgtagacaaa tactgggaca gctacaacca tcccttcaga
     1381 caggatcaga agaacttaga tcattatata atacagtagc aaccctctat tgtgtgcatc
     1441 aaaggataga gataaaagac accaaggaag ctttagacaa gatagaggaa gagcaaaaca
     1501 aaagtaagac caccgcacag caagcggccg gccgctgatc ttcagacctg gaggaggaga
     1561 tatgagggac aattggagaa gtgaattata taaatataaa gtagtaaaaa ttgaaccatt
     1621 aggagtagca cccaccaagg caaagagaag agtggtgcag agagaaaaaa gagcagtggg
     1681 aataggagct ttgttccttg ggttcttggg agcagcagga agcactatgg gcgcagcgtc
     1741 aatgacgctg acggtacagg ccagacaatt attgtctggt atagtgcagc agcagaacaa
     1801 tttgctgagg gctattgagg cgcaacagca tctgttgcaa ctcacagtct ggggcatcaa
     1861 gcagctccag gcaagaatcc tggctgtgga aagataccta aaggatcaac agctcctggg
     1921 gatttggggt tgctctggaa aactcatttg caccactgct gtgccttgga atgctagttg
     1981 gagtaataaa tctctggaac agatttggaa tcacacgacc tggatggagt gggacagaga
     2041 aattaacaat tacacaagct taatacactc cttaattgaa gaatcgcaaa accagcaaga
     2101 aaagaatgaa caagaattat tggaattaga taaatgggca agtttgtgga attggtttaa
     2161 cataacaaat tggctgtggt atataaaatt attcataatg atagtaggag gcttggtagg
     2221 tttaagaata gtttttgctg tactttctat agtgaataga gttaggcagg gatattcacc
     2281 attatcgttt cagacccacc tcccaacccc gaggggaccc gacaggcccg aaggaataga
     2341 agaagaaggt ggagagagag acagagacag atccattcga ttagtgaacg gatcggcact
     2401 gcgtgcgcca attctgcaga caaatggcag tattcatcca caattttaaa agaaaagggg
     2461 ggattggggg gtacagtgca ggggaaagaa tagtagacat aatagcaaca gacatacaaa
     2521 ctaaagaatt acaaaaacaa attacaaaaa ttcaaaattt tcgggtttat tacagggaca
     2581 gcagagatcc agtttggtta gtaccgggcc cgctctagag atccgacgcg ccatctctag
     2641 gcccgcgccg gccccctcgc acagacttgt gggagaagct cggctactcc cctgccccgg
     2701 ttaatttgca tataatattt cctagtaact atagaggctt aatgtgcgat aaaagacaga
     2761 taatctgttc tttttaatac tagctacatt ttacatgata ggcttggatt tctataagag
     2821 atacaaatac taaattatta ttttaaaaaa cagcacaaaa ggaaactcac cctaactgta
     2881 aagtaattgt gtgttttgag actataaata tcccttggag aaaagccttg ttaacgcgcg
     2941 gtgaccctcg aggtcgacgg tatcgataag ctcgcttcac gagattccag caggtcgagg
     3001 gacctaataa cttcgtatag catacattat acgaagttat attaagggtt ccaagcttaa
     3061 gcggccgcgg ccagatatac gcgtgtacgg aaggaaggaa ggaaggaagg aaggaaggaa
     3121 ggaaggaagg aaggaaggaa ggaaggaagg aaggaaggaa ggaaggaagg aagctagctc
     3181 gagctcggta cccgggtcga gtaggcgtgt acggtgggag gcctatataa gcagagctcg
     3241 tttagtgaac cgtcagatcg cctggagacg ccatccacgc tgttttgacc tccatagaag
     3301 acaccgggac cgatccagcc tccgcggccc cgaattcatg gtgagcaagg gcgaggagga
     3361 taacatggcc atcatcaagg agttcatgcg cttcaaggtg cacatggagg gctccgtgaa
     3421 cggccacgag ttcgagatcg agggcgaggg cgagggccgc ccctacgagg gcacccagac
     3481 cgccaagctg aaggtgacca agggtggccc cctgcccttc gcctgggaca tcctgtcccc
     3541 tcagttcatg tacggctcca aggcctacgt gaagcacccc gccgacatcc ccgactactt
     3601 gaagctgtcc ttccccgagg gcttcaagtg ggagcgcgtg atgaacttcg aggacggcgg
     3661 cgtggtgacc gtgacccagg actcctccct gcaggacggc gagttcatct acaaggtgaa
     3721 gctgcgcggc accaacttcc cctccgacgg ccccgtaatg cagaagaaga ccatgggctg
     3781 ggaggcctcc tccgagcgga tgtaccccga ggacggcgcc ctgaagggcg agatcaagca
     3841 gaggctgaag ctgaaggacg gcggccacta cgacgctgag gtcaagacca cctacaaggc
     3901 caagaagccc gtgcagctgc ccggcgccta caacgtcaac atcaagttgg acatcacctc
     3961 ccacaacgag gactacacca tcgtggaaca gtacgaacgc gccgagggcc gccactccac
     4021 cggcggcatg gacgagctgt acaagtaagc ggccgctcga gtctagaggg cccgtttaaa
     4081 cccgctgatc agcctcgact gtgccttcta gttgccagcc atctgttgtt tgcccctccc
     4141 ccgtgccttc cttgaccctg gaaggtgcca ctcccactgt cctttcctaa taaaatgagg
     4201 aaattgcatc gcattgtctg agtaggtgtc attctattct ggggggtggg gtggggcagg
     4261 acagcaaggg ggaggattgg gaagacaata gcaggcatgc tggggatgcg gtgggctcta
     4321 tggcttgaat tcgtcgaggg acctaataac ttcgtatagc atacattata cgaagttata
     4381 catgtttaag ggttccggtt ccactaggta caattcgata tcaagcttat cgataatcaa
     4441 cctctggatt acaaaatttg tgaaagattg actggtattc ttaactatgt tgctcctttt
     4501 acgctatgtg gatacgctgc tttaatgcct ttgtatcatg ctattgcttc ccgtatggct
     4561 ttcattttct cctccttgta taaatcctgg ttgctgtctc tttatgagga gttgtggccc
     4621 gttgtcaggc aacgtggcgt ggtgtgcact gtgtttgctg acgcaacccc cactggttgg
     4681 ggcattgcca ccacctgtca gctcctttcc gggactttcg ctttccccct ccctattgcc
     4741 acggcggaac tcatcgccgc ctgccttgcc cgctgctgga caggggctcg gctgttgggc
     4801 actgacaatt ccgtggtgtt gtcggggaaa tcatcgtcct ttccttggct gctcgcctgt
     4861 gttgccacct ggattctgcg cgggacgtcc ttctgctacg tcccttcggc cctcaatcca
     4921 gcggaccttc cttcccgcgg cctgctgccg gctctgcggc ctcttccgcg tcttcgcctt
     4981 cgccctcaga cgagtcggat ctccctttgg gccgcctccc cgcatcgata ccgtcgacct
     5041 cgatcgagac ctagaaaaac atggagcaat cacaagtagc aatacagcag ctaccaatgc
     5101 tgattgtgcc tggctagaag cacaagagga ggaggaggtg ggttttccag tcacacctca
     5161 ggtaccttta agaccaatga cttacaaggc agctgtagat cttagccact ttttaaaaga
     5221 aaagggggga ctggaagggc taattcactc ccaacgaaga caagatatcc ttgatctgtg
     5281 gatctaccac acacaaggct acttccctga ttggcagaac tacacaccag ggccagggat
     5341 cagatatcca ctgacctttg gatggtgcta caagctagta ccagttgagc aagagaaggt
     5401 agaagaagcc aatgaaggag agaacacccg cttgttacac cctgtgagcc tgcatgggat
     5461 ggatgacccg gagagagaag tattagagtg gaggtttgac agccgcctag catttcatca
     5521 catggcccga gagctgcatc cggactgtac tgggtctctc tggttagacc agatctgagc
     5581 ctgggagctc tctggctaac tagggaaccc actgcttaag cctcaataaa gcttgccttg
     5641 agtgcttcaa gtagtgtgtg cccgtctgtt gtgtgactct ggtaactaga gatccctcag
     5701 acccttttag tcagtgtgga aaatctctag cagcatgtga gcaaaaggcc agcaaaaggc
     5761 caggaaccgt aaaaaggccg cgttgctggc gtttttccat aggctccgcc cccctgacga
     5821 gcatcacaaa aatcgacgct caagtcagag gtggcgaaac ccgacaggac tataaagata
     5881 ccaggcgttt ccccctggaa gctccctcgt gcgctctcct gttccgaccc tgccgcttac
     5941 cggatacctg tccgcctttc tcccttcggg aagcgtggcg ctttctcata gctcacgctg
     6001 taggtatctc agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc
     6061 cgttcagccc gaccgctgcg ccttatccgg taactatcgt cttgagtcca acccggtaag
     6121 acacgactta tcgccactgg cagcagccac tggtaacagg attagcagag cgaggtatgt
     6181 aggcggtgct acagagttct tgaagtggtg gcctaactac ggctacacta gaagaacagt
     6241 atttggtatc tgcgctctgc tgaagccagt taccttcgga aaaagagttg gtagctcttg
     6301 atccggcaaa caaaccaccg ctggtagcgg tggttttttt gtttgcaagc agcagattac
     6361 gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca
     6421 gtggaacgaa aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac
     6481 ctagatcctt ttaaattaaa aatgaagttt taaatcaatc taaagtatat atgagtaaac
     6541 ttggtctgac agttaccaat gcttaatcag tgaggcacct atctcagcga tctgtctatt
     6601 tcgttcatcc atagttgcct gactccccgt cgtgtagata actacgatac gggagggctt
     6661 accatctggc cccagtgctg caatgatacc gcgagaccca cgctcaccgg ctccagattt
     6721 atcagcaata aaccagccag ccggaagggc cgagcgcaga agtggtcctg caactttatc
     6781 cgcctccatc cagtctatta attgttgccg ggaagctaga gtaagtagtt cgccagttaa
     6841 tagtttgcgc aacgttgttg ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg
     6901 tatggcttca ttcagctccg gttcccaacg atcaaggcga gttacatgat cccccatgtt
     6961 gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt gtcagaagta agttggccgc
     7021 agtgttatca ctcatggtta tggcagcact gcataattct cttactgtca tgccatccgt
     7081 aagatgcttt tctgtgactg gtgagtactc aaccaagtca ttctgagaat agtgtatgcg
     7141 gcgaccgagt tgctcttgcc cggcgtcaat acgggataat accgcgccac atagcagaac
     7201 tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga aaactctcaa ggatcttacc
     7261 gctgttgaga tccagttcga tgtaacccac tcgtgcaccc aactgatctt cagcatcttt
     7321 tactttcacc agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg
     7381 aataagggcg acacggaaat gttgaatact catactcttc ctttttcaat attattgaag
     7441 catttatcag ggttattgtc tcatgagcgg atacatattt gaatgtattt agaaaaataa
     7501 acaaataggg gttccgcgca catttccccg aaaagtgcca cctgac
//
