pYSJ18

LOCUS       pYSJ18             5843 bp DNA     circular SYN 22-SEP-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 5843)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 5, 2026 from SnapGene 6.0.2
            https://www.biofeng.com

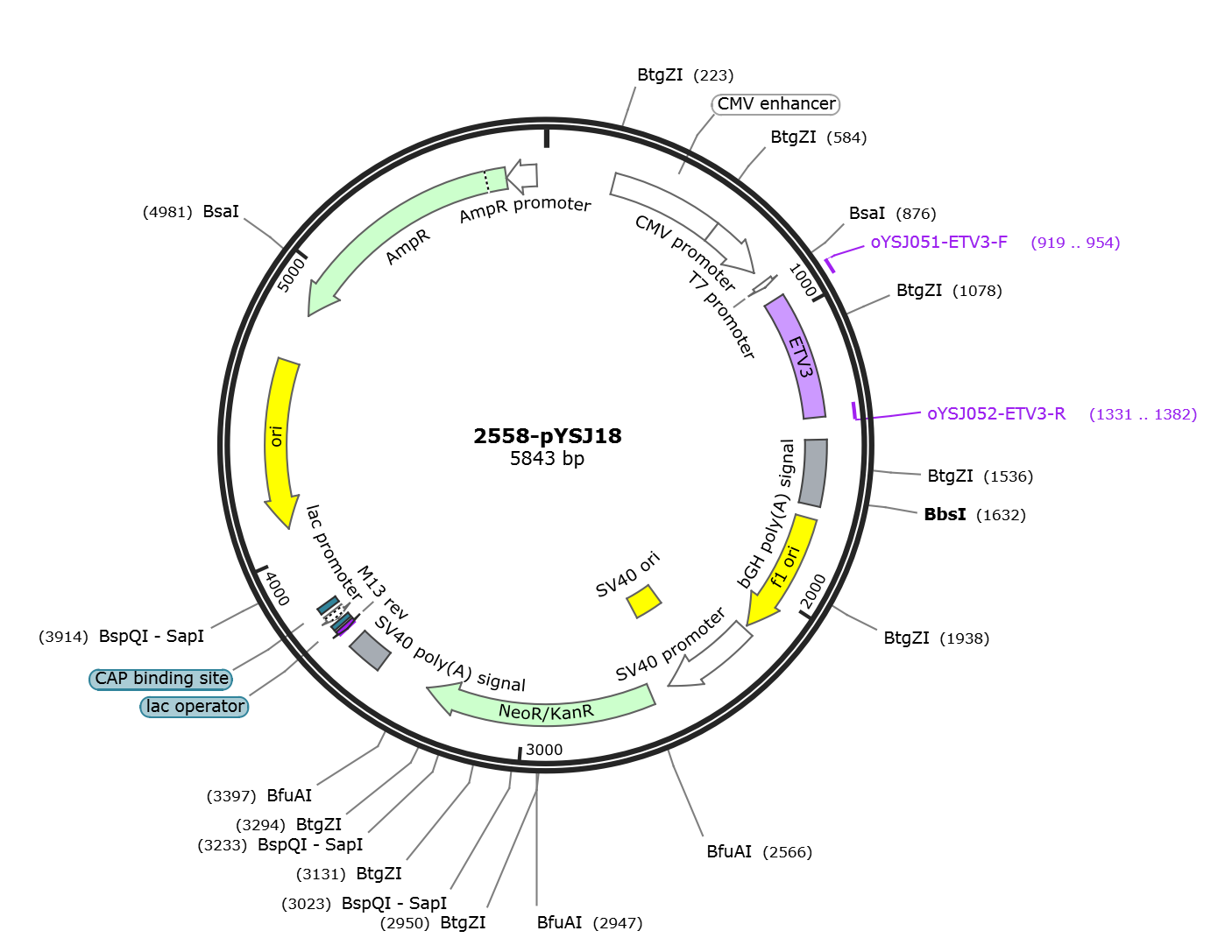

FEATURES             Location/Qualifiers
     source          1..5843
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     919..954
                     /label=oYSJ051-ETV3-F
     misc_feature    935..1366
                     /label=ETV3
     primer_bind     complement(1331..1382)
                     /label=oYSJ052-ETV3-R
     polyA_signal    1443..1667
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      1713..2141
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2155..2484
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2335..2470
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2551..3345
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3519..3640
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3689..3705)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    3713..3729
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3737..3767)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3782..3803
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4091..4676)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4847..5707)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5708..5812)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatgaaa gccggctgta gcatcgtgga
      961 aaagccagaa ggaggtggag ggtatcagtt tcctgactgg gcctacaaaa cagagtcatc
     1021 cccaggctcc cggcagatcc agctgtggca cttcatcctg gagctgctgc agaaggaaga
     1081 gttccgccat gtcatcgcct ggcagcaggg agagtacggg gaatttgtca tcaaggatcc
     1141 agatgaggtg gcccgcctct ggggccgcag gaaatgcaaa ccacagatga attatgacaa
     1201 gctgagccgg gccctcagat actattacaa caagaggatc cttcataaaa caaaagggaa
     1261 aagatttacc tataaattta acttcaacaa gctggtgatg cccaactacc cattcatcaa
     1321 cattcggtca agtggtaaga tacaaactct tttggtaggg aattaagaat tctgcagata
     1381 tccagcacag tggcggccgc tcgagtctag agggcccgtt taaacccgct gatcagcctc
     1441 gactgtgcct tctagttgcc agccatctgt tgtttgcccc tcccccgtgc cttccttgac
     1501 cctggaaggt gccactccca ctgtcctttc ctaataaaat gaggaaattg catcgcattg
     1561 tctgagtagg tgtcattcta ttctgggggg tggggtgggg caggacagca agggggagga
     1621 ttgggaagac aatagcaggc atgctgggga tgcggtgggc tctatggctt ctgaggcgga
     1681 aagaaccagc tggggctcta gggggtatcc ccacgcgccc tgtagcggcg cattaagcgc
     1741 ggcgggtgtg gtggttacgc gcagcgtgac cgctacactt gccagcgccc tagcgcccgc
     1801 tcctttcgct ttcttccctt cctttctcgc cacgttcgcc ggctttcccc gtcaagctct
     1861 aaatcggggg ctccctttag ggttccgatt tagtgcttta cggcacctcg accccaaaaa
     1921 acttgattag ggtgatggtt cacgtagtgg gccatcgccc tgatagacgg tttttcgccc
     1981 tttgacgttg gagtccacgt tctttaatag tggactcttg ttccaaactg gaacaacact
     2041 caaccctatc tcggtctatt cttttgattt ataagggatt ttgccgattt cggcctattg
     2101 gttaaaaaat gagctgattt aacaaaaatt taacgcgaat taattctgtg gaatgtgtgt
     2161 cagttagggt gtggaaagtc cccaggctcc ccagcaggca gaagtatgca aagcatgcat
     2221 ctcaattagt cagcaaccag gtgtggaaag tccccaggct ccccagcagg cagaagtatg
     2281 caaagcatgc atctcaatta gtcagcaacc atagtcccgc ccctaactcc gcccatcccg
     2341 cccctaactc cgcccagttc cgcccattct ccgccccatg gctgactaat tttttttatt
     2401 tatgcagagg ccgaggccgc ctctgcctct gagctattcc agaagtagtg aggaggcttt
     2461 tttggaggcc taggcttttg caaaaagctc ccgggagctt gtatatccat tttcggatct
     2521 gatcaagaga caggatgagg atcgtttcgc atgattgaac aagatggatt gcacgcaggt
     2581 tctccggccg cttgggtgga gaggctattc ggctatgact gggcacaaca gacaatcggc
     2641 tgctctgatg ccgccgtgtt ccggctgtca gcgcaggggc gcccggttct ttttgtcaag
     2701 accgacctgt ccggtgccct gaatgaactg caggacgagg cagcgcggct atcgtggctg
     2761 gccacgacgg gcgttccttg cgcagctgtg ctcgacgttg tcactgaagc gggaagggac
     2821 tggctgctat tgggcgaagt gccggggcag gatctcctgt catctcacct tgctcctgcc
     2881 gagaaagtat ccatcatggc tgatgcaatg cggcggctgc atacgcttga tccggctacc
     2941 tgcccattcg accaccaagc gaaacatcgc atcgagcgag cacgtactcg gatggaagcc
     3001 ggtcttgtcg atcaggatga tctggacgaa gagcatcagg ggctcgcgcc agccgaactg
     3061 ttcgccaggc tcaaggcgcg catgcccgac ggcgaggatc tcgtcgtgac ccatggcgat
     3121 gcctgcttgc cgaatatcat ggtggaaaat ggccgctttt ctggattcat cgactgtggc
     3181 cggctgggtg tggcggaccg ctatcaggac atagcgttgg ctacccgtga tattgctgaa
     3241 gagcttggcg gcgaatgggc tgaccgcttc ctcgtgcttt acggtatcgc cgctcccgat
     3301 tcgcagcgca tcgccttcta tcgccttctt gacgagttct tctgagcggg actctggggt
     3361 tcgaaatgac cgaccaagcg acgcccaacc tgccatcacg agatttcgat tccaccgccg
     3421 ccttctatga aaggttgggc ttcggaatcg ttttccggga cgccggctgg atgatcctcc
     3481 agcgcgggga tctcatgctg gagttcttcg cccaccccaa cttgtttatt gcagcttata
     3541 atggttacaa ataaagcaat agcatcacaa atttcacaaa taaagcattt ttttcactgc
     3601 attctagttg tggtttgtcc aaactcatca atgtatctta tcatgtctgt ataccgtcga
     3661 cctctagcta gagcttggcg taatcatggt catagctgtt tcctgtgtga aattgttatc
     3721 cgctcacaat tccacacaac atacgagccg gaagcataaa gtgtaaagcc tggggtgcct
     3781 aatgagtgag ctaactcaca ttaattgcgt tgcgctcact gcccgctttc cagtcgggaa
     3841 acctgtcgtg ccagctgcat taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta
     3901 ttgggcgctc ttccgcttcc tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc
     3961 gagcggtatc agctcactca aaggcggtaa tacggttatc cacagaatca ggggataacg
     4021 caggaaagaa catgtgagca aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt
     4081 tgctggcgtt tttccatagg ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa
     4141 gtcagaggtg gcgaaacccg acaggactat aaagatacca ggcgtttccc cctggaagct
     4201 ccctcgtgcg ctctcctgtt ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc
     4261 cttcgggaag cgtggcgctt tctcatagct cacgctgtag gtatctcagt tcggtgtagg
     4321 tcgttcgctc caagctgggc tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct
     4381 tatccggtaa ctatcgtctt gagtccaacc cggtaagaca cgacttatcg ccactggcag
     4441 cagccactgg taacaggatt agcagagcga ggtatgtagg cggtgctaca gagttcttga
     4501 agtggtggcc taactacggc tacactagaa gaacagtatt tggtatctgc gctctgctga
     4561 agccagttac cttcggaaaa agagttggta gctcttgatc cggcaaacaa accaccgctg
     4621 gtagcggttt ttttgtttgc aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag
     4681 atcctttgat cttttctacg gggtctgacg ctcagtggaa cgaaaactca cgttaaggga
     4741 ttttggtcat gagattatca aaaaggatct tcacctagat ccttttaaat taaaaatgaa
     4801 gttttaaatc aatctaaagt atatatgagt aaacttggtc tgacagttac caatgcttaa
     4861 tcagtgaggc acctatctca gcgatctgtc tatttcgttc atccatagtt gcctgactcc
     4921 ccgtcgtgta gataactacg atacgggagg gcttaccatc tggccccagt gctgcaatga
     4981 taccgcgaga cccacgctca ccggctccag atttatcagc aataaaccag ccagccggaa
     5041 gggccgagcg cagaagtggt cctgcaactt tatccgcctc catccagtct attaattgtt
     5101 gccgggaagc tagagtaagt agttcgccag ttaatagttt gcgcaacgtt gttgccattg
     5161 ctacaggcat cgtggtgtca cgctcgtcgt ttggtatggc ttcattcagc tccggttccc
     5221 aacgatcaag gcgagttaca tgatccccca tgttgtgcaa aaaagcggtt agctccttcg
     5281 gtcctccgat cgttgtcaga agtaagttgg ccgcagtgtt atcactcatg gttatggcag
     5341 cactgcataa ttctcttact gtcatgccat ccgtaagatg cttttctgtg actggtgagt
     5401 actcaaccaa gtcattctga gaatagtgta tgcggcgacc gagttgctct tgcccggcgt
     5461 caatacggga taataccgcg ccacatagca gaactttaaa agtgctcatc attggaaaac
     5521 gttcttcggg gcgaaaactc tcaaggatct taccgctgtt gagatccagt tcgatgtaac
     5581 ccactcgtgc acccaactga tcttcagcat cttttacttt caccagcgtt tctgggtgag
     5641 caaaaacagg aaggcaaaat gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa
     5701 tactcatact cttccttttt caatattatt gaagcattta tcagggttat tgtctcatga
     5761 gcggatacat atttgaatgt atttagaaaa ataaacaaat aggggttccg cgcacatttc
     5821 cccgaaaagt gccacctgac gtc
//
