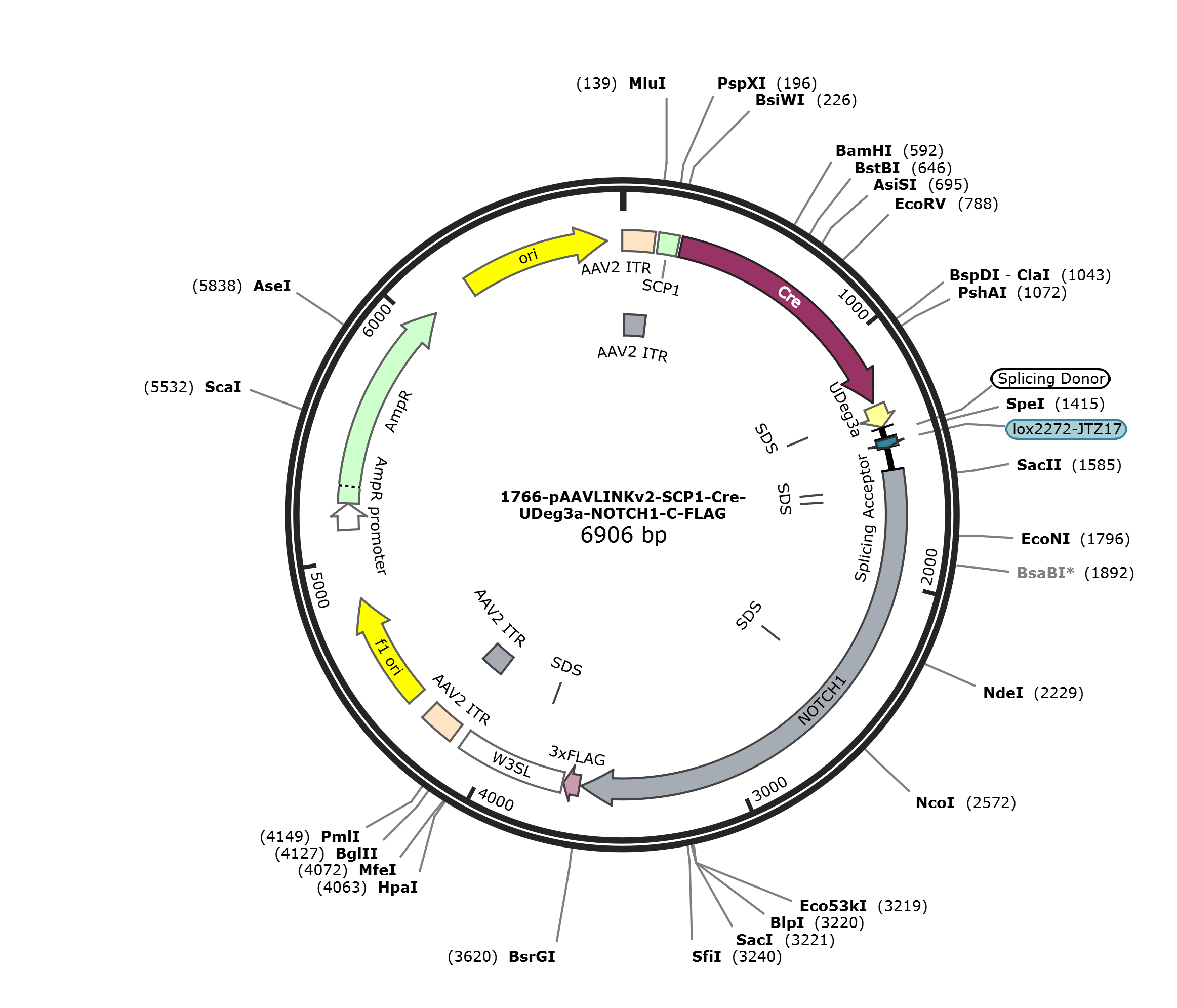

pAAVLINKv2-SCP1-Cre-UDeg3a-NOTCH1-C-FLAG

LOCUS       pAAVLINKv2-SCP1-Cre-UDeg3a-NOTCH1-C-FLAG                6906 bp DNA     circular SYN 24-NOV-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6906)
  AUTHORS   Stavrini Papadaki
  TITLE     Direct Submission
  JOURNAL   Exported Jun 8, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6906
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     repeat_region   1..130
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     misc_feature    12..130
                     /label=AAV2 ITR
     misc_feature    145..225
                     /label=SCP1
     CDS             237..1265
                     /codon_start=1
                     /product="site-specific recombinase"
                     /label=Cre
                     /note="Cre is a site-specific recombinase from
                     bacteriophage P1. Recombination occurs at loxP sequences."
                     /translation="MSNLLTVHQNLPALPVDATSDEVRKNLMDMFRDRQAFSEHTWKML
                     LSVCRSWAAWCKLNNRKWFPAEPEDVRDYLLYLQARGLAVKTIQQHLGQLNMLHRRSGL
                     PRPSDSNAVSLVMRRIRKENVDAGERAKQALAFERTDFDQVRSLMENSDRCQDIRNLAF
                     LGIAYNTLLRIAEIARIRVKDISRTDGGRMLIHIGRTKTLVSTAGVEKALSLGVTKLVE
                     RWISVSGVADDPNNYLFCRVRKNGVAAPSATSQLSTRALEGIFEATHRLIYGAKDDSGQ
                     RYLAWSGHSARVGAARDMARAGVSIPEIMQAGGWTNVNIVMNYIRNLDSETGAMVRLLE
                     DGD"
     CDS             1281..1370
                     /codon_start=1
                     /label=UDeg3a
                     /translation="LLLKLLLLGGGSGPRPRGTRGKGRRIHYKG"
     misc_feature    1295..1300
                     /label=SDS
     misc_feature    1298..1303
                     /label=SDS
     intron          1374..1414
                     /label=Splicing Donor
     protein_bind    1421..1454
                     /label=lox2272-JTZ17
                     /bound_moiety="Cre recombinase"
                     /note="Right element (RE) mutant of loxP (Araki et al.,
                     2010). Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     intron          1455..1546
                     /label=Splicing Acceptor
                     /note="Splicing acceptor"
     CDS             1547..3619
                     /codon_start=1
                     /label=NOTCH1
                     /translation="GEVDADCMDVNVRGPDGFTPLMIASCSGGGLETGNSEEEEDAPAV
                     ISDFIYQGASLHNQTDRTGETALHLAARYSRSDAAKRLLEASADANIQDNMGRTPLHAA
                     VSADAQGVFQILIRNRATDLDARMHDGTTPLILAARLAVEGMLEDLINSHADVNAVDDL
                     GKSALHWAAAVNNVDAAVVLLKNGANKDMQNNREETPLFLAAREGSYETAKVLLDHFAN
                     RDITDHMDRLPRDIAQERMHHDIVRLLDEYNLVRSPQLHGAPLGGTPTLSPPLCSPNGY
                     LGSLKPGVQGKKVRKPSSKGLACGSKEAKDLKARRKKSQDGKGCLLDSSGMLSPVDSLE
                     SPHGYLSDVASPPLLPSPFQQSPSVPLNHLPGMPDTHLGIGHLNVAAKPEMAALGGGGR
                     LAFETGPPRLSHLPVASGTSTVLGSSSGGALNFTVGGSTSLNGQCEWLSRLQSGMVPNQ
                     YNPLRGSVAPGPLSTQAPSLQHGMVGPLHSSLAASALSQMMSYQGLPSTRLATQPHLVQ
                     TQQVQPQNLQMQQQNLQPANIQQQQSLQPPPPPPQPHLGVSSAASGHLGRSFLSGEPSQ
                     ADVQPLGPSSLAVHTILPQESPALPTSLPSSLVPPVTAAQFLTPPSQHSYSSPVDNTPS
                     HQLQVPEHPFLTPSPESPDQWSSSSPHSNVSDWSEGVSSPPTSMQSQIARIPEAFK"
     misc_feature    1617..1622
                     /label=SDS
     misc_feature    1662..1667
                     /label=SDS
     misc_feature    2466..2471
                     /label=SDS
     CDS             3626..3691
                     /codon_start=1
                     /product="three tandem FLAG(R) epitope tags, followed by an
                     enterokinase cleavage site"
                     /label=3xFLAG
                     /translation="DYKDHDGDYKDHDIDYKDDDDK"
     terminator      3695..4126
                     /label=W3SL
                     /note="Short WPRE and SV40 polyA"
     misc_feature    3839..3844
                     /label=SDS
     repeat_region   4169..4309
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     misc_feature    4169..4298
                     /label=AAV2 ITR
     rep_origin      4384..4839
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        5121..5225
                     /gene="bla"
                     /label=AmpR promoter
     CDS             5226..6086
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      6257..6845
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 cctgcaggca gctgcgcgct cgctcgctca ctgaggccgc ccgggcgtcg ggcgaccttt
       61 ggtcgcccgg cctcagtgag cgagcgagcg cgcagagagg gagtggccaa ctccatcact
      121 aggggttcct gcggccgcac gcgtgtactt atataagggg gtgggggcgc gttcgtcctc
      181 agtcgcgatc gaacactcga gccgagcaga cgtgcctacg gaccgcgtac gccaccatgt
      241 ccaatttact gaccgtacac caaaatttgc ctgcattacc ggtcgatgca acgagtgatg
      301 aggttcgcaa gaacctgatg gacatgttca gggatcgcca ggcgttttct gagcatacct
      361 ggaaaatgct tctgtccgtt tgccggtcgt gggcggcatg gtgcaagttg aataaccgga
      421 aatggtttcc cgcagaacct gaagatgttc gcgattatct tctatatctt caggcgcgcg
      481 gtctggcagt aaaaaccatc cagcaacatt tgggccagct aaacatgctt catcgtcggt
      541 ccgggctgcc acgaccaagt gacagcaatg ctgtttcact ggttatgcgg cggatccgaa
      601 aagaaaacgt tgatgccggt gaacgtgcaa aacaggctct agcgttcgaa cgcactgatt
      661 tcgaccaggt tcgttcactc atggaaaata gcgatcgctg ccaggatata cgtaatctgg
      721 catttctggg gattgcttat aacaccctgt tacgtatagc cgaaattgcc aggatcaggg
      781 ttaaagatat ctcacgtact gacggtggga gaatgttaat ccatattggc agaacgaaaa
      841 cgctggttag caccgcaggt gtagagaagg cacttagcct gggggtaact aaactggtcg
      901 agcgatggat ttccgtctct ggtgtagctg atgatccgaa taactacctg ttttgccggg
      961 tcagaaaaaa tggtgttgcc gcgccatctg ccaccagcca gctatcaact cgcgccctgg
     1021 aagggatttt tgaagcaact catcgattga tttacggcgc taaggatgac tctggtcaga
     1081 gatacctggc ctggtctgga cacagtgccc gtgtcggagc cgcgcgagat atggcccgcg
     1141 ctggagtttc aataccggag atcatgcaag ctggtggctg gaccaatgta aatattgtaa
     1201 tgaactatat ccgtaacctg gatagtgaaa caggggcaat ggtgcgcctg ctggaagatg
     1261 gcgatggagg tggatctggt ctgctgctga aactcctcct cctcggtggt ggttctggtc
     1321 ctcgtccccg tggtactcgt ggtaaaggtc gccgtattca ctacaaagga taagtaagta
     1381 tcaaggttac aagacaggtt taaggagacc aataactagt ataacttcgt ataggatact
     1441 ttatagcaat ttatgaaact gggcttgtcg agacagagaa gactcttgcg tttctgatag
     1501 gcacctattg gtcttactga catccacttt gcctttctct ccacagggtg aggttgacgc
     1561 cgactgcatg gacgtcaatg tccgcgggcc tgatggcttc accccgctca tgatcgcctc
     1621 ctgcagcggg ggcggcctgg agacgggcaa cagcgaggaa gaggaggacg cgccggccgt
     1681 catctccgac ttcatctacc agggcgccag cctgcacaac cagacagacc gcacgggcga
     1741 gaccgccttg cacctggccg cccgctactc acgctctgat gccgccaagc gcctgctgga
     1801 ggccagcgca gatgccaaca tccaggacaa catgggccgc accccgctgc atgcggctgt
     1861 gtctgccgac gcacaaggtg tcttccagat cctgatccgg aaccgagcca cagacctgga
     1921 tgcccgcatg catgatggca cgacgccact gatcctggct gcccgcctgg ccgtggaggg
     1981 catgctggag gacctcatca actcacacgc cgacgtcaac gccgtagatg acctgggcaa
     2041 gtccgccctg cactgggccg ccgccgtgaa caatgtggat gccgcagttg tgctcctgaa
     2101 gaacggggct aacaaagata tgcagaacaa cagggaggag acacccctgt ttctggccgc
     2161 ccgggagggc agctacgaga ccgccaaggt gctgctggac cactttgcca accgggacat
     2221 cacggatcat atggaccgcc tgccgcgcga catcgcacag gagcgcatgc atcacgacat
     2281 cgtgaggctg ctggacgagt acaacctggt gcgcagcccg cagctgcacg gagccccgct
     2341 ggggggcacg cccaccctgt cgcccccgct ctgctcgccc aacggctacc tgggcagcct
     2401 caagcccggc gtgcagggca agaaggtccg caagcccagc agcaaaggcc tggcctgtgg
     2461 aagcaaggag gccaaggacc tcaaggcacg gaggaagaag tcccaggacg gcaagggctg
     2521 cctgctggac agctccggca tgctctcgcc cgtggactcc ctggagtcac cccatggcta
     2581 cctgtcagac gtggcctcgc cgccactgct gccctccccg ttccagcagt ctccgtccgt
     2641 gcccctcaac cacctgcctg ggatgcccga cacccacctg ggcatcgggc acctgaacgt
     2701 ggcggccaag cccgagatgg cggcgctggg tgggggcggc cggctggcct ttgagactgg
     2761 cccacctcgt ctctcccacc tgcctgtggc ctctggcacc agcaccgtcc tgggctccag
     2821 cagcggaggg gccctgaatt tcactgtggg cgggtccacc agtttgaatg gtcaatgcga
     2881 gtggctgtcc cggctgcaga gcggcatggt gccgaaccaa tacaaccctc tgcgggggag
     2941 tgtggcacca ggccccctga gcacacaggc cccctccctg cagcatggca tggtaggccc
     3001 gctgcacagt agccttgctg ccagcgccct gtcccagatg atgagctacc agggcctgcc
     3061 cagcacccgg ctggccaccc agcctcacct ggtgcagacc cagcaggtgc agccacaaaa
     3121 cttacagatg cagcagcaga acctgcagcc agcaaacatc cagcagcagc aaagcctgca
     3181 gccgccacca ccaccaccac agccgcacct tggcgtgagc tcagcagcca gcggccacct
     3241 gggccggagc ttcctgagtg gagagccgag ccaggcagac gtgcagccac tgggccccag
     3301 cagcctggcg gtgcacacta ttctgcccca ggagagcccc gccctgccca cgtcgctgcc
     3361 atcctcgctg gtcccacccg tgaccgcagc ccagttcctg acgcccccct cgcagcacag
     3421 ctactcctcg cctgtggaca acacccccag ccaccagcta caggtgcctg agcacccctt
     3481 cctcaccccg tcccctgagt cccctgacca gtggtccagc tcgtccccgc attccaacgt
     3541 ctccgactgg tccgagggcg tctccagccc tcccaccagc atgcagtccc agatcgcccg
     3601 cattccggag gccttcaagt gtacagacta caaagaccat gacggtgatt ataaagatca
     3661 tgacatcgac tacaaggatg acgatgacaa gtaactcgag ataatcaacc tctggattac
     3721 aaaatttgtg aaagattgac tggtattctt aactatgttg ctccttttac gctatgtgga
     3781 tacgctgctt taatgccttt gtatcatgct attgcttccc gtatggcttt cattttctcc
     3841 tccttgtata aatcctggtt agttcttgcc acggcggaac tcatcgccgc ctgccttgcc
     3901 cgctgctgga caggggctcg gctgttgggc actgacaatt ccgtggtgtt tatttgtgaa
     3961 atttgtgatg ctattgcttt atttgtaacc atctagcttt atttgtgaaa tttgtgatgc
     4021 tattgcttta tttgtaacca ttataagctg caataaacaa gttaacaaca acaattgcat
     4081 tcattttatg tttcaggttc agggggagat gtgggaggtt ttttaaagat ctggagaccg
     4141 gtgtggcacg tgcggaccga gcggccgcag gaacccctag tgatggagtt ggccactccc
     4201 tctctgcgcg ctcgctcgct cactgaggcc gggcgaccaa aggtcgcccg acgcccgggc
     4261 tttgcccggg cggcctcagt gagcgagcga gcgcgcagct gcctgcaggg gcgcctgatg
     4321 cggtattttc tccttacgca tctgtgcggt atttcacacc gcatacgtca aagcaaccat
     4381 agtacgcgcc ctgtagcggc gcattaagcg cggcgggtgt ggtggttacg cgcagcgtga
     4441 ccgctacact tgccagcgcc ttagcgcccg ctcctttcgc tttcttccct tcctttctcg
     4501 ccacgttcgc cggctttccc cgtcaagctc taaatcgggg gctcccttta gggttccgat
     4561 ttagtgcttt acggcacctc gaccccaaaa aacttgattt gggtgatggt tcacgtagtg
     4621 ggccatcgcc ctgatagacg gtttttcgcc ctttgacgtt ggagtccacg ttctttaata
     4681 gtggactctt gttccaaact ggaacaacac tcaactctat ctcgggctat tcttttgatt
     4741 tataagggat tttgccgatt tcggtctatt ggttaaaaaa tgagctgatt taacaaaaat
     4801 ttaacgcgaa ttttaacaaa atattaacgt ttacaatttt atggtgcact ctcagtacaa
     4861 tctgctctga tgccgcatag ttaagccagc cccgacaccc gccaacaccc gctgacgcgc
     4921 cctgacgggc ttgtctgctc ccggcatccg cttacagaca agctgtgacc gtctccggga
     4981 gctgcatgtg tcagaggttt tcaccgtcat caccgaaacg cgcgagacga aagggcctcg
     5041 tgatacgcct atttttatag gttaatgtca tgataataat ggtttcttag acgtcaggtg
     5101 gcacttttcg gggaaatgtg cgcggaaccc ctatttgttt atttttctaa atacattcaa
     5161 atatgtatcc gctcatgaga caataaccct gataaatgct tcaataatat tgaaaaagga
     5221 agagtatgag tattcaacat ttccgtgtcg cccttattcc cttttttgcg gcattttgcc
     5281 ttcctgtttt tgctcaccca gaaacgctgg tgaaagtaaa agatgctgaa gatcagttgg
     5341 gtgcacgagt gggttacatc gaactggatc tcaacagcgg taagatcctt gagagttttc
     5401 gccccgaaga acgttttcca atgatgagca cttttaaagt tctgctatgt ggcgcggtat
     5461 tatcccgtat tgacgccggg caagagcaac tcggtcgccg catacactat tctcagaatg
     5521 acttggttga gtactcacca gtcacagaaa agcatcttac ggatggcatg acagtaagag
     5581 aattatgcag tgctgccata accatgagtg ataacactgc ggccaactta cttctgacaa
     5641 cgatcggagg accgaaggag ctaaccgctt ttttgcacaa catgggggat catgtaactc
     5701 gccttgatcg ttgggaaccg gagctgaatg aagccatacc aaacgacgag cgtgacacca
     5761 cgatgcctgt agcaatggca acaacgttgc gcaaactatt aactggcgaa ctacttactc
     5821 tagcttcccg gcaacaatta atagactgga tggaggcgga taaagttgca ggaccacttc
     5881 tgcgctcggc ccttccggct ggctggttta ttgctgataa atctggagcc ggtgagcgtg
     5941 ggtctcgcgg tatcattgca gcactggggc cagatggtaa gccctcccgt atcgtagtta
     6001 tctacacgac ggggagtcag gcaactatgg atgaacgaaa tagacagatc gctgagatag
     6061 gtgcctcact gattaagcat tggtaactgt cagaccaagt ttactcatat atactttaga
     6121 ttgatttaaa acttcatttt taatttaaaa ggatctaggt gaagatcctt tttgataatc
     6181 tcatgaccaa aatcccttaa cgtgagtttt cgttccactg agcgtcagac cccgtagaaa
     6241 agatcaaagg atcttcttga gatccttttt ttctgcgcgt aatctgctgc ttgcaaacaa
     6301 aaaaaccacc gctaccagcg gtggtttgtt tgccggatca agagctacca actctttttc
     6361 cgaaggtaac tggcttcagc agagcgcaga taccaaatac tgttcttcta gtgtagccgt
     6421 agttaggcca ccacttcaag aactctgtag caccgcctac atacctcgct ctgctaatcc
     6481 tgttaccagt ggctgctgcc agtggcgata agtcgtgtct taccgggttg gactcaagac
     6541 gatagttacc ggataaggcg cagcggtcgg gctgaacggg gggttcgtgc acacagccca
     6601 gcttggagcg aacgacctac accgaactga gatacctaca gcgtgagcta tgagaaagcg
     6661 ccacgcttcc cgaagggaga aaggcggaca ggtatccggt aagcggcagg gtcggaacag
     6721 gagagcgcac gagggagctt ccagggggaa acgcctggta tctttatagt cctgtcgggt
     6781 ttcgccacct ctgacttgag cgtcgatttt tgtgatgctc gtcagggggg cggagcctat
     6841 ggaaaaacgc cagcaacgcg gcctttttac ggttcctggc cttttgctgg ccttttgctc
     6901 acatgt
//
