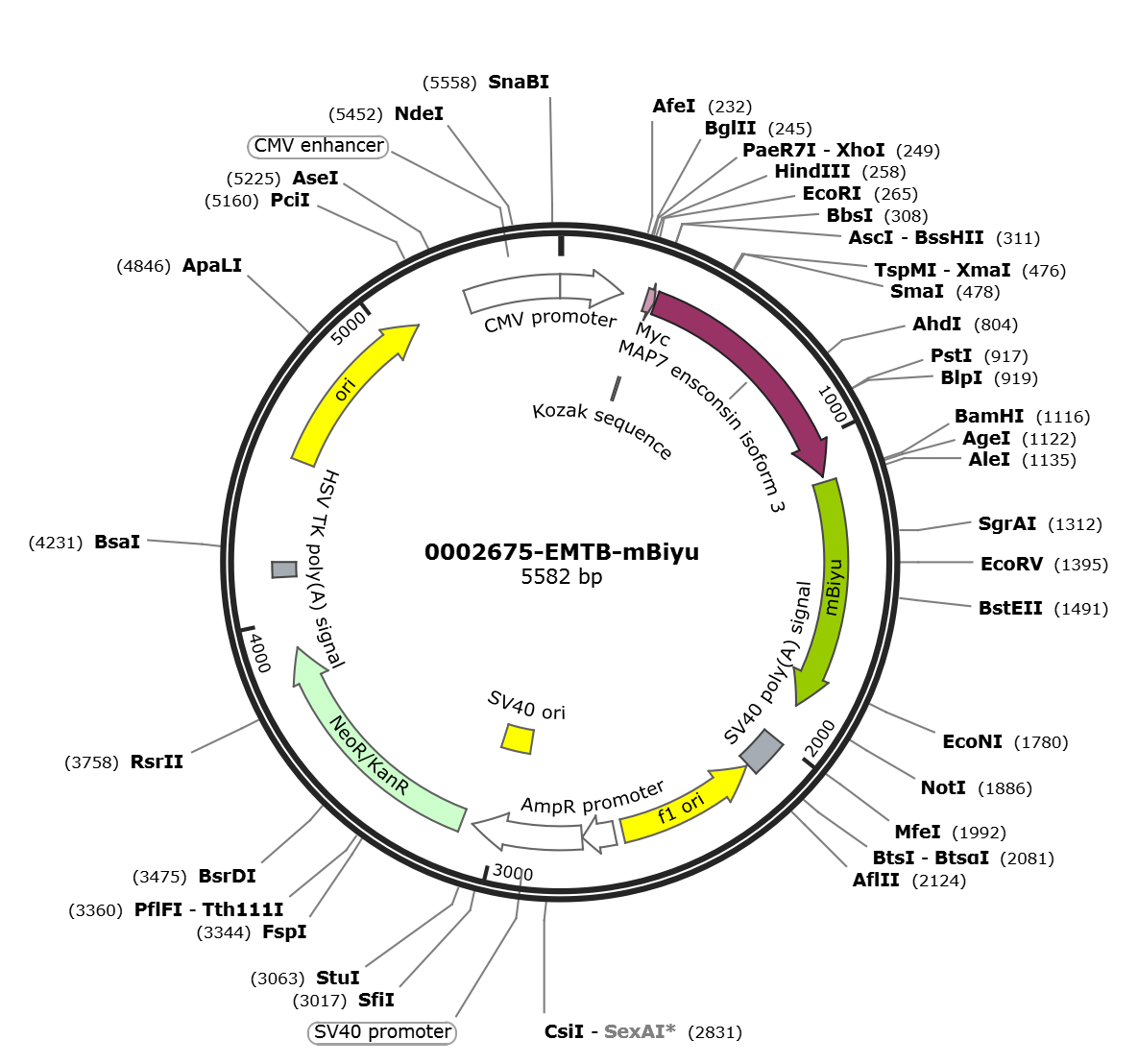

EMTB-mBiyu

LOCUS       EMTB-mBiyu              5582 bp DNA     circular SYN 12-MAY-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 5582)
  AUTHORS   ustc
  TITLE     Direct Submission
  JOURNAL   Exported Sep 16, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5582
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     promoter        1..204
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     regulatory      271..280
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             280..309
                     /codon_start=1
                     /product="Myc (human c-Myc proto-oncogene) epitope tag"
                     /label=Myc
                     /translation="EQKLISEEDL"
     CDS             313..1116
                     /codon_start=1
                     /product="microtubule binding domain of ensconsin"
                     /label=MAP7 ensconsin isoform 3
                     /translation="APVRSETAPDSYKVQDKKNASSRPASAISGQNNNHSGNKPDPPPV
                     LRVDDRQRLARERREEREKQLAAREIVWLEREERARQHYEKHLEERKKRLEEQRQKEER
                     RRAAVEEKRRQRLEEDKERHEAVVRRTMERSQKPKQKHNRWSWGGSLHGSPSIHSADPD
                     RRSVSTMNLSKYVDPVISKRLSSSSATLLNSPDRARRLQLSPWESSVVNRLLTPTHSFL
                     ARSKSTAALSGEAASCSPIIMPYKAAHSRNSMDRPKLFVTPPEGSS"
     CDS             1135..1881
                     /codon_start=1
                     /label=mBiyu
                     /translation="MVSKGEEDNMASYGALLFREKIPYVVEMEGDVEGMKFSVRGKGHG
                     DANTGKIEASFICTTGELPVPWSSILTTVTYGAQCFAKYPNDIKDYLKSTMPEGYVQER
                     TITFENDGIYKTRAEVTYEKGSVYNRVTLNGSGFKKGGNILGKKLEFNFNASRTYVLPD
                     VENNGIKCYINIRHNVIGGGQIRAEHQQLNTPLGGGPVDIPHYHAIQTHTILSKDPKET
                     RDHMNVVEVFRAIDCKTAYAGMDELYK"
     polyA_signal    2006..2127
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(2134..2589)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2616..2720
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2722..3079
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2930..3065
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3114..3908
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4140..4187
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4516..5104
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     enhancer        5279..5582
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
ORIGIN
        1 gtgatgcggt tttggcagta catcaatggg cgtggatagc ggtttgactc acggggattt
       61 ccaagtctcc accccattga cgtcaatggg agtttgtttt ggcaccaaaa tcaacgggac
      121 tttccaaaat gtcgtaacaa ctccgcccca ttgacgcaaa tgggcggtag gcgtgtacgg
      181 tgggaggtct atataagcag agctggttta gtgaaccgtc agatccgcta gcgctaccgg
      241 actcagatct cgagctcaag cttcgaattc gccaccatgg agcagaagct catctcagaa
      301 gaagacctcg gcgcgccagt gcgaagcgaa acagcacccg acagctacaa agtgcaagat
      361 aagaaaaatg cctccagccg ccctgcctct gcaatttcag gacaaaataa caaccactca
      421 ggaaataaac cagaccctcc gcctgtgtta cgtgttgatg accggcagcg gctggcccgg
      481 gagcgacgtg aggaacggga gaaacagcta gctgcaagag aaatagtgtg gttagaaaga
      541 gaagagcgag ccaggcagca ctacgagaag cacctggaag agcggaagaa gaggttggag
      601 gagcagaggc agaaggagga gcggaggagg gctgctgtgg aggagaagcg gaggcagaga
      661 cttgaggagg acaaagaacg ccacgaagct gttgtacggc gcacaatgga aaggagccag
      721 aagccaaaac agaagcataa ccgttggtcg tggggaggct ctctccatgg gagccctagc
      781 atccacagtg cagatccaga caggcggtca gtttccacca tgaatctttc gaaatatgtt
      841 gatcccgtca ttagcaagcg gctctcctct tcatctgcaa ctttactaaa ttctccagat
      901 agagctcgcc gcctgcagct cagcccatgg gagagcagcg ttgttaacag actcctgacg
      961 cccacacatt cgttcctggc cagaagtaaa agcacagctg ccttgtctgg agaagcagca
     1021 tcttgcagcc ccatcatcat gccctacaaa gctgcacact ctagaaattc gatggatcga
     1081 ccaaaactct ttgtaacacc acctgagggc tcttcggatc caccggtcgc caccatggtg
     1141 agcaagggcg aggaggacaa catggcctcc tacggagccc tgctgtttag agagaagatc
     1201 ccctacgtgg tggagatgga gggcgatgtg gagggaatga agttctccgt gagaggcaag
     1261 ggccacggcg atgctaacac cggaaagatc gaggccagct ttatctgcac caccggcgag
     1321 ctgcccgtgc cttggagcag catcctgaca accgtgacat acggcgccca gtgcttcgct
     1381 aagtacccta atgatatcaa ggactacctg aagagcacca tgcccgaggg ctacgtgcag
     1441 gaaagaacca tcacatttga gaacgatggc atctacaaga ccagggccga ggtgacctac
     1501 gagaagggaa gcgtgtacaa cagggtgaca ctgaacggca gcggcttcaa gaagggcgga
     1561 aacatcctgg gcaagaagct ggagttcaat tttaacgcct ccaggacata cgtgctgcct
     1621 gacgtggaga acaatggcat caagtgttac atcaacatca ggcacaacgt gatcggcggc
     1681 ggccaaatca gggctgaaca ccaacagctg aatacccccc tgggcggagg acctgttgac
     1741 attccacact accacgccat ccagacccac accatcctgt ccaaggaccc caaggagaca
     1801 agggaccaca tgaacgtggt ggaggtgttt agagccatcg attgcaagac agcctacgcc
     1861 ggcatggatg agctgtacaa gtaggcggcc gcgactctag atcataatca gccataccac
     1921 atttgtagag gttttacttg ctttaaaaaa cctcccacac ctccccctga acctgaaaca
     1981 taaaatgaat gcaattgttg ttgttaactt gtttattgca gcttataatg gttacaaata
     2041 aagcaatagc atcacaaatt tcacaaataa agcatttttt tcactgcatt ctagttgtgg
     2101 tttgtccaaa ctcatcaatg tatcttaagg cgtaaattgt aagcgttaat attttgttaa
     2161 aattcgcgtt aaatttttgt taaatcagct cattttttaa ccaataggcc gaaatcggca
     2221 aaatccctta taaatcaaaa gaatagaccg agatagggtt gagtgttgtt ccagtttgga
     2281 acaagagtcc actattaaag aacgtggact ccaacgtcaa agggcgaaaa accgtctatc
     2341 agggcgatgg cccactacgt gaaccatcac cctaatcaag ttttttgggg tcgaggtgcc
     2401 gtaaagcact aaatcggaac cctaaaggga gcccccgatt tagagcttga cggggaaagc
     2461 cggcgaacgt ggcgagaaag gaagggaaga aagcgaaagg agcgggcgct agggcgctgg
     2521 caagtgtagc ggtcacgctg cgcgtaacca ccacacccgc cgcgcttaat gcgccgctac
     2581 agggcgcgtc aggtggcact tttcggggaa atgtgcgcgg aacccctatt tgtttatttt
     2641 tctaaataca ttcaaatatg tatccgctca tgagacaata accctgataa atgcttcaat
     2701 aatattgaaa aaggaagagt cctgaggcgg aaagaaccag ctgtggaatg tgtgtcagtt
     2761 agggtgtgga aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa
     2821 ttagtcagca accaggtgtg gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag
     2881 catgcatctc aattagtcag caaccatagt cccgccccta actccgccca tcccgcccct
     2941 aactccgccc agttccgccc attctccgcc ccatggctga ctaatttttt ttatttatgc
     3001 agaggccgag gccgcctcgg cctctgagct attccagaag tagtgaggag gcttttttgg
     3061 aggcctaggc ttttgcaaag atcgatcaag agacaggatg aggatcgttt cgcatgattg
     3121 aacaagatgg attgcacgca ggttctccgg ccgcttgggt ggagaggcta ttcggctatg
     3181 actgggcaca acagacaatc ggctgctctg atgccgccgt gttccggctg tcagcgcagg
     3241 ggcgcccggt tctttttgtc aagaccgacc tgtccggtgc cctgaatgaa ctgcaagacg
     3301 aggcagcgcg gctatcgtgg ctggccacga cgggcgttcc ttgcgcagct gtgctcgacg
     3361 ttgtcactga agcgggaagg gactggctgc tattgggcga agtgccgggg caggatctcc
     3421 tgtcatctca ccttgctcct gccgagaaag tatccatcat ggctgatgca atgcggcggc
     3481 tgcatacgct tgatccggct acctgcccat tcgaccacca agcgaaacat cgcatcgagc
     3541 gagcacgtac tcggatggaa gccggtcttg tcgatcagga tgatctggac gaagagcatc
     3601 aggggctcgc gccagccgaa ctgttcgcca ggctcaaggc gagcatgccc gacggcgagg
     3661 atctcgtcgt gacccatggc gatgcctgct tgccgaatat catggtggaa aatggccgct
     3721 tttctggatt catcgactgt ggccggctgg gtgtggcgga ccgctatcag gacatagcgt
     3781 tggctacccg tgatattgct gaagagcttg gcggcgaatg ggctgaccgc ttcctcgtgc
     3841 tttacggtat cgccgctccc gattcgcagc gcatcgcctt ctatcgcctt cttgacgagt
     3901 tcttctgagc gggactctgg ggttcgaaat gaccgaccaa gcgacgccca acctgccatc
     3961 acgagatttc gattccaccg ccgccttcta tgaaaggttg ggcttcggaa tcgttttccg
     4021 ggacgccggc tggatgatcc tccagcgcgg ggatctcatg ctggagttct tcgcccaccc
     4081 tagggggagg ctaactgaaa cacggaagga gacaataccg gaaggaaccc gcgctatgac
     4141 ggcaataaaa agacagaata aaacgcacgg tgttgggtcg tttgttcata aacgcggggt
     4201 tcggtcccag ggctggcact ctgtcgatac cccaccgaga ccccattggg gccaatacgc
     4261 ccgcgtttct tccttttccc caccccaccc cccaagttcg ggtgaaggcc cagggctcgc
     4321 agccaacgtc ggggcggcag gccctgccat agcctcaggt tactcatata tactttagat
     4381 tgatttaaaa cttcattttt aatttaaaag gatctaggtg aagatccttt ttgataatct
     4441 catgaccaaa atcccttaac gtgagttttc gttccactga gcgtcagacc ccgtagaaaa
     4501 gatcaaagga tcttcttgag atcctttttt tctgcgcgta atctgctgct tgcaaacaaa
     4561 aaaaccaccg ctaccagcgg tggtttgttt gccggatcaa gagctaccaa ctctttttcc
     4621 gaaggtaact ggcttcagca gagcgcagat accaaatact gttcttctag tgtagccgta
     4681 gttaggccac cacttcaaga actctgtagc accgcctaca tacctcgctc tgctaatcct
     4741 gttaccagtg gctgctgcca gtggcgataa gtcgtgtctt accgggttgg actcaagacg
     4801 atagttaccg gataaggcgc agcggtcggg ctgaacgggg ggttcgtgca cacagcccag
     4861 cttggagcga acgacctaca ccgaactgag atacctacag cgtgagctat gagaaagcgc
     4921 cacgcttccc gaagggagaa aggcggacag gtatccggta agcggcaggg tcggaacagg
     4981 agagcgcacg agggagcttc cagggggaaa cgcctggtat ctttatagtc ctgtcgggtt
     5041 tcgccacctc tgacttgagc gtcgattttt gtgatgctcg tcaggggggc ggagcctatg
     5101 gaaaaacgcc agcaacgcgg cctttttacg gttcctggcc ttttgctggc cttttgctca
     5161 catgttcttt cctgcgttat cccctgattc tgtggataac cgtattaccg ccatgcatta
     5221 gttattaata gtaatcaatt acggggtcat tagttcatag cccatatatg gagttccgcg
     5281 ttacataact tacggtaaat ggcccgcctg gctgaccgcc caacgacccc cgcccattga
     5341 cgtcaataat gacgtatgtt cccatagtaa cgccaatagg gactttccat tgacgtcaat
     5401 gggtggagta tttacggtaa actgcccact tggcagtaca tcaagtgtat catatgccaa
     5461 gtacgccccc tattgacgtc aatgacggta aatggcccgc ctggcattat gcccagtaca
     5521 tgaccttatg ggactttcct acttggcagt acatctacgt attagtcatc gctattacca
     5581 tg
//
