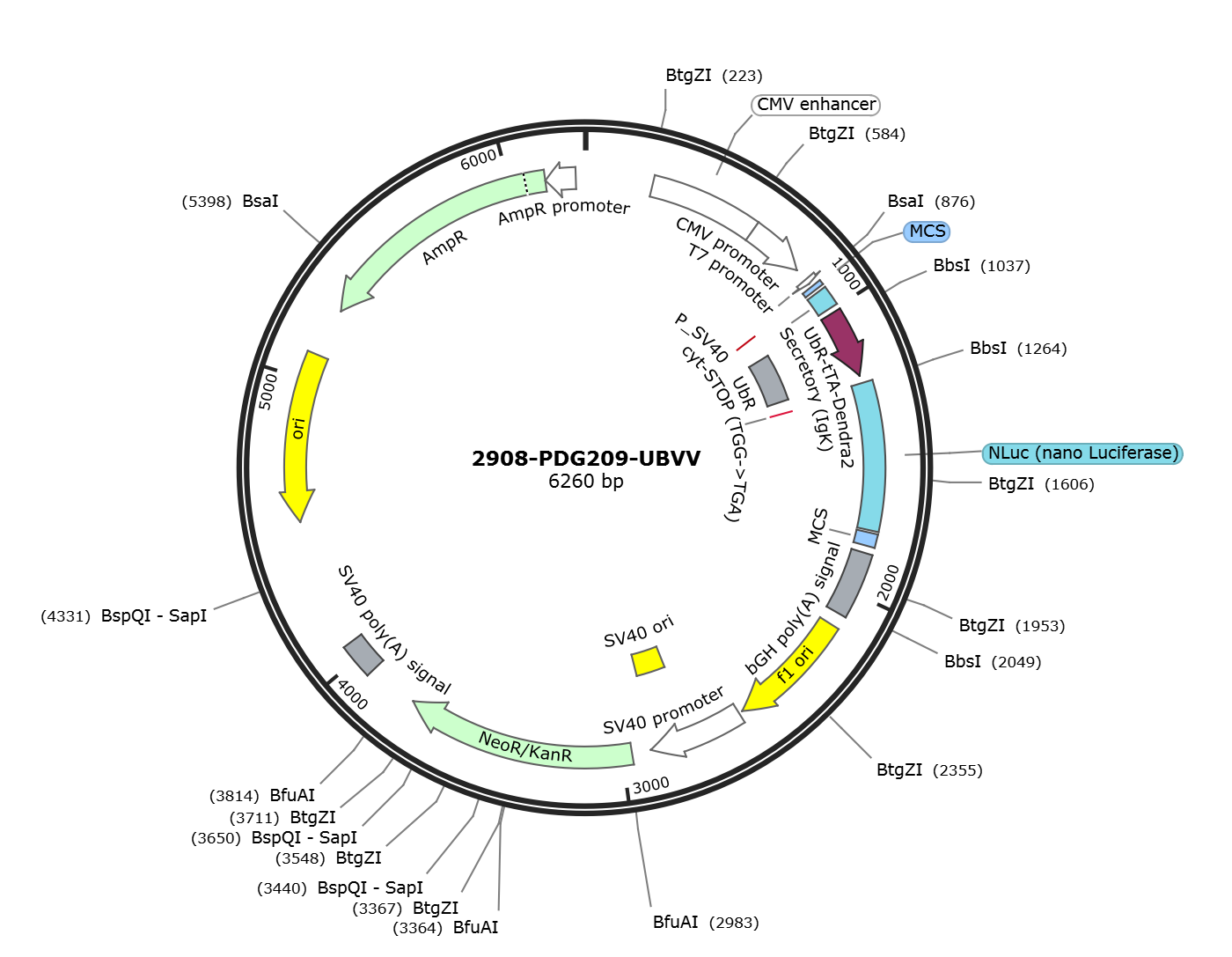

pDG209

LOCUS       pDG209               6260 bp DNA     circular SYN 21-JUL-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6260)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 12, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6260
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     826..845
                     /label=Primer 1
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     887..944
                     /label=oSCL1108
     misc_feature    895..911
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     897..944
                     /label=oSCL1314
     primer_bind     898..936
                     /label=Primer 14
     primer_bind     898..931
                     /label=Primer 7a
     primer_bind     899..936
                     /label=Primer 7
     primer_bind     899..936
                     /label=Primer 16
     primer_bind     899..936
                     /label=Primer 26
     primer_bind     complement(899..919)
                     /label=Primer 25
     primer_bind     911..936
                     /label=Primer 1a
     primer_bind     911..936
                     /label=Primer 9
     promoter        911
                     /label=P_SV40
     primer_bind     917..944
                     /label=oSCL1846
     primer_bind     917..940
                     /label=oSCL1848
     primer_bind     917..936
                     /label=Primer 3
     primer_bind     921..944
                     /label=oSCL084
     misc_feature    923..991
                     /label=Secretory (IgK)
                     /label=nonstandard type:  signal
     primer_bind     990..1030
                     /label=Primer 9a
     primer_bind     complement(990..1009)
                     /label=Primer 8
     CDS             1010..1243
                     /codon_start=1
                     /transl_table=11
                     /product="UbR-tTA-Dendra2"
                     /label=UbR-tTA-Dendra2
                     /protein_id="QCO92762.1"
                     /translation="MTSQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRL
                     IFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGG"
     primer_bind     1010..1046
                     /label=Primer 5
     primer_bind     1010..1025
                     /label=Primer 7a
     misc_feature    1019..1243
                     /label=UbR
                     /note="UbR"
     primer_bind     1027..1085
                     /label=Primer 3a
     primer_bind     1066..1124
                     /label=Primer 1`b
     primer_bind     complement(1105..1163)
                     /label=Primer 2a
     primer_bind     1126..1137
                     /label=Primer 5
     primer_bind     complement(1144..1202)
                     /label=Primer 4
     primer_bind     complement(1183..1237)
                     /label=Primer 6
     primer_bind     complement(1218..1267)
                     /label=Primer 8a
     primer_bind     complement(1218..1267)
                     /label=Primer 10
     primer_bind     complement(1224..1269)
                     /label=Primer 11
     primer_bind     complement(1224..1269)
                     /label=Primer 12
     primer_bind     complement(1224..1269)
                     /label=Primer 19
     primer_bind     complement(1224..1269)
                     /label=Primer 13
     primer_bind     complement(1224..1269)
                     /label=Primer 21
     primer_bind     complement(1224..1269)
                     /label=Primer 22
     primer_bind     complement(1224..1269)
                     /label=Fragment.FOR
     primer_bind     complement(1224..1267)
                     /label=Primer 20
     primer_bind     complement(1224..1267)
                     /label=Primer 23
     primer_bind     complement(1224..1267)
                     /label=Primer 24
     primer_bind     1250..1290
                     /label=Primer 5a
     primer_bind     1250..1287
                     /label=Primer 17
     primer_bind     complement(1250..1267)
                     /label=Primer 15
     misc_feature    1271..1780
                     /label=NLuc (nano Luciferase)
                     /label=nonstandard type:  reporter
     misc_feature    1301..1303
                     /label=cyt-STOP (TGG->TGA)
     primer_bind     complement(1760..1783)
                     /label=oSCL1849
     primer_bind     complement(1761..1828)
                     /label=Primer 10a
     primer_bind     complement(1761..1801)
                     /label=Primer 18
     primer_bind     complement(1761..1800)
                     /label=Primer 6a
     primer_bind     complement(1761..1783)
                     /label=Primer 4a
     primer_bind     complement(1761..1780)
                     /label=Primer 15
     primer_bind     complement(1761..1780)
                     /label=Primer 27
     primer_bind     complement(1770..1780)
                     /label=oSCL085
     primer_bind     complement(1770..1780)
                     /label=oSCL1109
     misc_feature    1789..1834
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     complement(1834..1853)
                     /label=Primer 2
     polyA_signal    1860..2084
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2130..2558
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2572..2901
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2752..2887
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2887..2906
                     /label=Primer 1a
     CDS             2968..3762
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3936..4057
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(4508..5093)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5264..6124)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6125..6229)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttgcca ccatgactag tgagacagac acactcctgc tatgggtact
      961 gctgctctgg gttccaggtt ccactggtga cgctagtggt ggttctggta tgactagtca
     1021 gattttcgtg aagaccctga ccggcaagac catcacccta gaggtggagc ccagtgacac
     1081 catcgagaac gtgaaggcca agatccagga taaagagggc atcccccctg accagcagag
     1141 gctgatcttt gccggcaagc agctggaaga tggccgcacc ctctctgatt acaacatcca
     1201 gaaggagtca accctgcacc tggtccttcg cctgagaggt ggcgttgtta gcggaagtgg
     1261 aagcagtatg gtcttcacac tcgaagattt cgttggggac tggcgacaga cagccggcta
     1321 caacctggac caagtccttg aacagggagg tgtgtccagt ttgtttcaga atctcggggt
     1381 gtccgtaact ccgatccaaa ggattgtcct gagcggtgaa aatgggctga agatcgacat
     1441 ccatgtcatc atcccgtatg aaggtctgag cggcgaccaa atgggccaga tcgaaaaaat
     1501 ttttaaggtg gtgtaccctg tggatgatca tcactttaag gtgatcctgc actatggcac
     1561 actggtaatc gacggggtta cgccgaacat gatcgactat ttcggacggc cgtatgaagg
     1621 catcgccgtg ttcgacggca aaaagatcac tgtaacaggg accctgtgga acggcaacaa
     1681 aattatcgac gagcgcctga tcaaccccga cggctccctg ctgttccgag taaccatcaa
     1741 cggagtgacc ggctggcggc tgtgcgaacg cattctggcg tgagaattct gcagatatcc
     1801 agcacagtgg cggccgctcg agtctagagg gcccgtttaa acccgctgat cagcctcgac
     1861 tgtgccttct agttgccagc catctgttgt ttgcccctcc cccgtgcctt ccttgaccct
     1921 ggaaggtgcc actcccactg tcctttccta ataaaatgag gaaattgcat cgcattgtct
     1981 gagtaggtgt cattctattc tggggggtgg ggtggggcag gacagcaagg gggaggattg
     2041 ggaagacaat agcaggcatg ctggggatgc ggtgggctct atggcttctg aggcggaaag
     2101 aaccagctgg ggctctaggg ggtatcccca cgcgccctgt agcggcgcat taagcgcggc
     2161 gggtgtggtg gttacgcgca gcgtgaccgc tacacttgcc agcgccctag cgcccgctcc
     2221 tttcgctttc ttcccttcct ttctcgccac gttcgccggc tttccccgtc aagctctaaa
     2281 tcgggggctc cctttagggt tccgatttag tgctttacgg cacctcgacc ccaaaaaact
     2341 tgattagggt gatggttcac gtagtgggcc atcgccctga tagacggttt ttcgcccttt
     2401 gacgttggag tccacgttct ttaatagtgg actcttgttc caaactggaa caacactcaa
     2461 ccctatctcg gtctattctt ttgatttata agggattttg ccgatttcgg cctattggtt
     2521 aaaaaatgag ctgatttaac aaaaatttaa cgcgaattaa ttctgtggaa tgtgtgtcag
     2581 ttagggtgtg gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag catgcatctc
     2641 aattagtcag caaccaggtg tggaaagtcc ccaggctccc cagcaggcag aagtatgcaa
     2701 agcatgcatc tcaattagtc agcaaccata gtcccgcccc taactccgcc catcccgccc
     2761 ctaactccgc ccagttccgc ccattctccg ccccatggct gactaatttt ttttatttat
     2821 gcagaggccg aggccgcctc tgcctctgag ctattccaga agtagtgagg aggctttttt
     2881 ggaggcctag gcttttgcaa aaagctcccg ggagcttgta tatccatttt cggatctgat
     2941 caagagacag gatgaggatc gtttcgcatg attgaacaag atggattgca cgcaggttct
     3001 ccggccgctt gggtggagag gctattcggc tatgactggg cacaacagac aatcggctgc
     3061 tctgatgccg ccgtgttccg gctgtcagcg caggggcgcc cggttctttt tgtcaagacc
     3121 gacctgtccg gtgccctgaa tgaactgcag gacgaggcag cgcggctatc gtggctggcc
     3181 acgacgggcg ttccttgcgc agctgtgctc gacgttgtca ctgaagcggg aagggactgg
     3241 ctgctattgg gcgaagtgcc ggggcaggat ctcctgtcat ctcaccttgc tcctgccgag
     3301 aaagtatcca tcatggctga tgcaatgcgg cggctgcata cgcttgatcc ggctacctgc
     3361 ccattcgacc accaagcgaa acatcgcatc gagcgagcac gtactcggat ggaagccggt
     3421 cttgtcgatc aggatgatct ggacgaagag catcaggggc tcgcgccagc cgaactgttc
     3481 gccaggctca aggcgcgcat gcccgacggc gaggatctcg tcgtgaccca tggcgatgcc
     3541 tgcttgccga atatcatggt ggaaaatggc cgcttttctg gattcatcga ctgtggccgg
     3601 ctgggtgtgg cggaccgcta tcaggacata gcgttggcta cccgtgatat tgctgaagag
     3661 cttggcggcg aatgggctga ccgcttcctc gtgctttacg gtatcgccgc tcccgattcg
     3721 cagcgcatcg ccttctatcg ccttcttgac gagttcttct gagcgggact ctggggttcg
     3781 aaatgaccga ccaagcgacg cccaacctgc catcacgaga tttcgattcc accgccgcct
     3841 tctatgaaag gttgggcttc ggaatcgttt tccgggacgc cggctggatg atcctccagc
     3901 gcggggatct catgctggag ttcttcgccc accccaactt gtttattgca gcttataatg
     3961 gttacaaata aagcaatagc atcacaaatt tcacaaataa agcatttttt tcactgcatt
     4021 ctagttgtgg tttgtccaaa ctcatcaatg tatcttatca tgtctgtata ccgtcgacct
     4081 ctagctagag cttggcgtaa tcatggtcat agctgtttcc tgtgtgaaat tgttatccgc
     4141 tcacaattcc acacaacata cgagccggaa gcataaagtg taaagcctgg ggtgcctaat
     4201 gagtgagcta actcacatta attgcgttgc gctcactgcc cgctttccag tcgggaaacc
     4261 tgtcgtgcca gctgcattaa tgaatcggcc aacgcgcggg gagaggcggt ttgcgtattg
     4321 ggcgctcttc cgcttcctcg ctcactgact cgctgcgctc ggtcgttcgg ctgcggcgag
     4381 cggtatcagc tcactcaaag gcggtaatac ggttatccac agaatcaggg gataacgcag
     4441 gaaagaacat gtgagcaaaa ggccagcaaa aggccaggaa ccgtaaaaag gccgcgttgc
     4501 tggcgttttt ccataggctc cgcccccctg acgagcatca caaaaatcga cgctcaagtc
     4561 agaggtggcg aaacccgaca ggactataaa gataccaggc gtttccccct ggaagctccc
     4621 tcgtgcgctc tcctgttccg accctgccgc ttaccggata cctgtccgcc tttctccctt
     4681 cgggaagcgt ggcgctttct catagctcac gctgtaggta tctcagttcg gtgtaggtcg
     4741 ttcgctccaa gctgggctgt gtgcacgaac cccccgttca gcccgaccgc tgcgccttat
     4801 ccggtaacta tcgtcttgag tccaacccgg taagacacga cttatcgcca ctggcagcag
     4861 ccactggtaa caggattagc agagcgaggt atgtaggcgg tgctacagag ttcttgaagt
     4921 ggtggcctaa ctacggctac actagaagaa cagtatttgg tatctgcgct ctgctgaagc
     4981 cagttacctt cggaaaaaga gttggtagct cttgatccgg caaacaaacc accgctggta
     5041 gcggtttttt tgtttgcaag cagcagatta cgcgcagaaa aaaaggatct caagaagatc
     5101 ctttgatctt ttctacgggg tctgacgctc agtggaacga aaactcacgt taagggattt
     5161 tggtcatgag attatcaaaa aggatcttca cctagatcct tttaaattaa aaatgaagtt
     5221 ttaaatcaat ctaaagtata tatgagtaaa cttggtctga cagttaccaa tgcttaatca
     5281 gtgaggcacc tatctcagcg atctgtctat ttcgttcatc catagttgcc tgactccccg
     5341 tcgtgtagat aactacgata cgggagggct taccatctgg ccccagtgct gcaatgatac
     5401 cgcgagaccc acgctcaccg gctccagatt tatcagcaat aaaccagcca gccggaaggg
     5461 ccgagcgcag aagtggtcct gcaactttat ccgcctccat ccagtctatt aattgttgcc
     5521 gggaagctag agtaagtagt tcgccagtta atagtttgcg caacgttgtt gccattgcta
     5581 caggcatcgt ggtgtcacgc tcgtcgtttg gtatggcttc attcagctcc ggttcccaac
     5641 gatcaaggcg agttacatga tcccccatgt tgtgcaaaaa agcggttagc tccttcggtc
     5701 ctccgatcgt tgtcagaagt aagttggccg cagtgttatc actcatggtt atggcagcac
     5761 tgcataattc tcttactgtc atgccatccg taagatgctt ttctgtgact ggtgagtact
     5821 caaccaagtc attctgagaa tagtgtatgc ggcgaccgag ttgctcttgc ccggcgtcaa
     5881 tacgggataa taccgcgcca catagcagaa ctttaaaagt gctcatcatt ggaaaacgtt
     5941 cttcggggcg aaaactctca aggatcttac cgctgttgag atccagttcg atgtaaccca
     6001 ctcgtgcacc caactgatct tcagcatctt ttactttcac cagcgtttct gggtgagcaa
     6061 aaacaggaag gcaaaatgcc gcaaaaaagg gaataagggc gacacggaaa tgttgaatac
     6121 tcatactctt cctttttcaa tattattgaa gcatttatca gggttattgt ctcatgagcg
     6181 gatacatatt tgaatgtatt tagaaaaata aacaaatagg ggttccgcgc acatttcccc
     6241 gaaaagtgcc acctgacgtc
//
