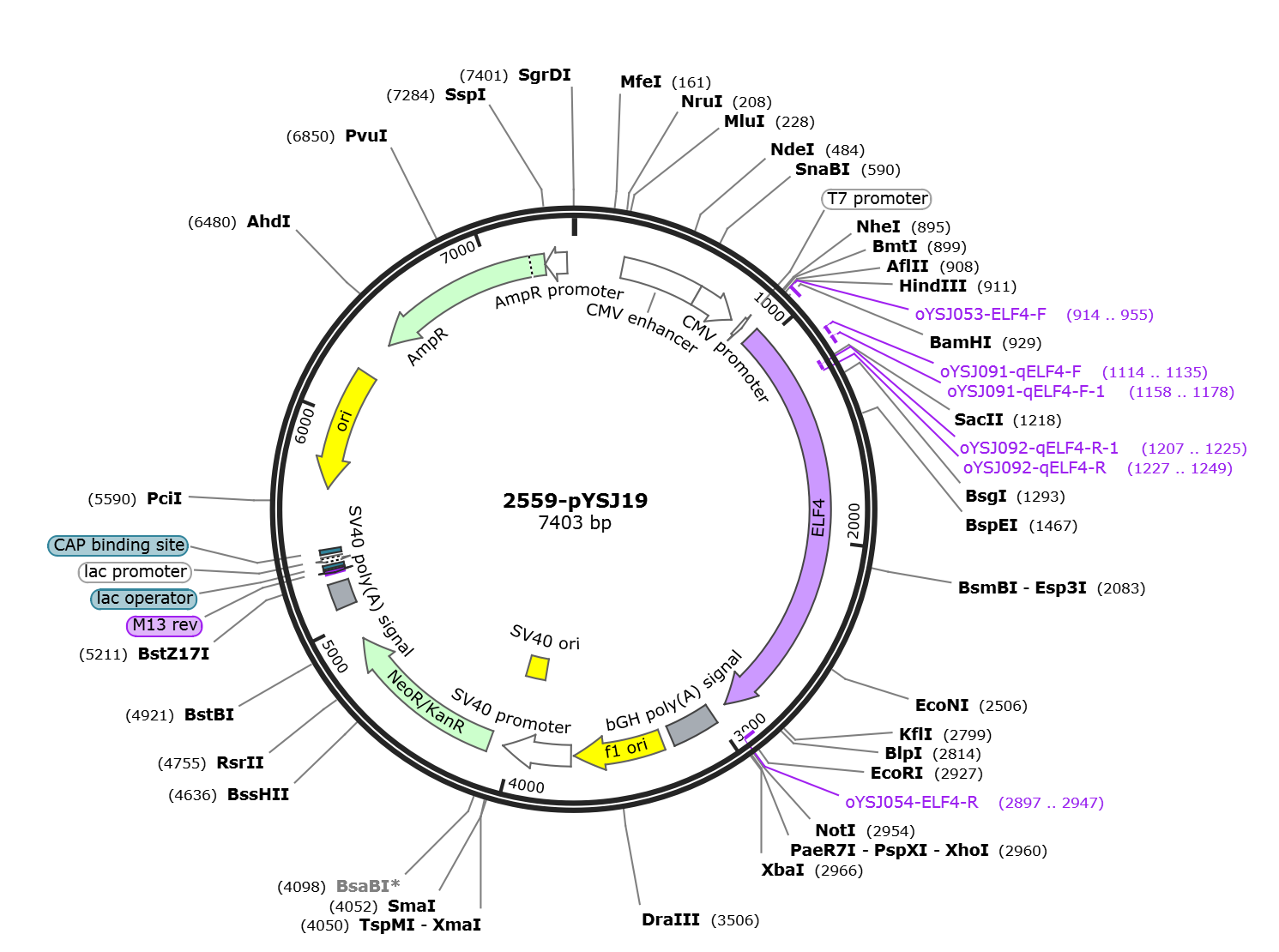

pYSJ19

LOCUS       pYSJ19              7403 bp DNA     circular SYN 21-NOV-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 7403)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 5, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7403
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..955
                     /label=oYSJ053-ELF4-F
     CDS             935..2926
                     /codon_start=1
                     /label=ELF4
                     /translation="MAITLQPSDLIFEFASNGMDDDIHQLEDPSVFPAVIVEQVPYPDL
                     LHLYSGLELDDVHNGIITDGTLCMTQDQILEGSFLLTDDNEATSHTMSTAEVLLNMESP
                     SDILDEKQIFSTSEMLPDSDPAPAVTLPNYLFPASEPDALNRAGDTSDQEGHSLEEKAS
                     REESAKKTGKSKKRIRKTKGNRSTSPVTDPSIPIRKKSKDGKGSTIYLWEFLLALLQDR
                     NTCPKYIKWTQREKGIFKLVDSKAVSKLWGKQKNKPDMNYETMGRALRYYYQRGILAKV
                     EGQRLVYQFKEMPKDLVVIEDEDESSEATAAPPQASTASVASASTTRRTSSRVSSRSAP
                     QGKGSSSWEKPKIQHVGLQPSASLELGPSLDEEIPTTSTMLVSPAEGQVKLTKAVSASS
                     VPSNIHLGVAPVGSGSALTLQTIPLTTVLTNGPPASTTAPTQLVLQSVPAASTFKDTFT
                     LQASFPLNASFQDSQVAAPGAPLILSGLPQLLAGANRPTNPAPPTVTGAGPAGPSSQPP
                     GTVIAAFIRTSGTTAAPRVKEGPLRSSSYVQGMVTGAPMEGLLVPEETLRELLRDQAHL
                     QPLPTQVVSRGSHNPSLLGNQTLSPPSRPTVGLTPVAELELSSGSGSLLMAEPSVTTSG
                     SLLTRSPTPAPFSPFNPTSLIKMEPHDI"
     primer_bind     1114..1135
                     /label=oYSJ091-qELF4-F
     primer_bind     1158..1178
                     /label=oYSJ091-qELF4-F-1
     primer_bind     complement(1207..1225)
                     /label=oYSJ092-qELF4-R-1
     primer_bind     complement(1227..1249)
                     /label=oYSJ092-qELF4-R
     primer_bind     complement(2897..2947)
                     /label=oYSJ054-ELF4-R
     polyA_signal    3003..3227
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      3273..3701
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3715..4044
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3895..4030
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             4111..4905
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    5079..5200
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(5249..5265)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5273..5289
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5297..5327)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5342..5363
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5651..6236)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6407..7267)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7268..7372)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatggct attaccctac agcccagtga
      961 cctgatcttt gagttcgcaa gcaacgggat ggatgatgat atccaccagc tggaagaccc
     1021 ctctgtgttc ccagctgtga tcgtggagca ggtaccctac cctgatttac tgcatctgta
     1081 ctcgggactg gagttggacg acgttcacaa tggcatcata acagacggga ccttgtgcat
     1141 gacgcaggat cagatcctgg aaggcagttt tttgctgaca gatgacaatg aggccacctc
     1201 gcacaccatg tcaaccgcgg aagtcttact caatatggag tctcccagcg atatcctgga
     1261 tgagaagcag atcttcagta cctccgaaat gcttccagac tcggaccctg caccagctgt
     1321 cactctgccc aactacctgt ttcctgcctc tgagcccgat gccctgaaca gggcgggtga
     1381 cactagtgac caggaggggc attctctgga ggagaaggcc tccagagagg aaagtgccaa
     1441 gaagactggg aaatcaaaga agagaatccg gaagaccaag ggcaaccgaa gtacctcacc
     1501 tgtcactgac cccagcatcc ccattaggaa gaaatcaaag gatggcaaag gcagcaccat
     1561 ctatctgtgg gagttcctcc tggctcttct gcaagacaga aacacctgtc ccaagtacat
     1621 caagtggacc cagcgagaga aaggcatctt caaactggtg gactccaaag ctgtgtccaa
     1681 gctgtggggg aagcagaaaa acaagcctga catgaactat gagacaatgg ggcgggcact
     1741 aagatactac taccaaagag gcatactggc caaagtggaa gggcagaggc tggtgtacca
     1801 gtttaaggag atgcccaagg acctggtggt cattgaagat gaggatgaga gcagcgaagc
     1861 cacagcagcc ccacctcagg cctccacggc ctctgtggcc tctgccagta ccacccggcg
     1921 aaccagctcc agggtctcat ccagatctgc cccccagggc aagggcagct cttcttggga
     1981 gaagccaaaa attcagcatg tcggtctcca gccatctgcg agtctggaat tgggaccgtc
     2041 gctagacgag gagatcccca ctacctccac catgctcgtc tctccagcag agggccaggt
     2101 caagctcacc aaagctgtga gtgcatcttc agtgcccagc aacatccacc taggagtggc
     2161 ccccgtgggg tcgggctcgg ccctgaccct gcagacgatc ccactgacca cggtgctgac
     2221 caatgggcct cctgccagta ctactgctcc cactcagctc gttctccaga gtgttccagc
     2281 ggcctctact ttcaaggaca ccttcacttt gcaggcctct ttccccctga acgccagttt
     2341 ccaagacagc caggtggcag ccccaggggc tccactgatt ctcagtggcc tcccccaact
     2401 tctggctggg gccaaccgtc cgaccaaccc ggcgccaccc acggtcacag gggctggacc
     2461 agcagggccc agctctcagc cccctgggac tgtcattgct gccttcatca ggacttctgg
     2521 cactacagca gcccctaggg tcaaggaggg gccactgagg tcctcctcct atgttcaggg
     2581 tatggtgacg ggggccccca tggaggggct gctggttcct gaagagaccc tgagggagct
     2641 cctgagagat caggctcatc ttcagccact tccaacccag gtggtttcca ggggttccca
     2701 caatccgagc cttctgggca accagacttt gtctcctccc agccgcccca ctgttgggct
     2761 gaccccagtg gctgaacttg agctctcctc aggctcaggg tccctgctga tggctgagcc
     2821 tagtgtgacc acatctggga gccttctgac aagatccccc accccagccc ctttctcccc
     2881 attcaaccct acttccctca ttaagatgga gccccatgac atataagaat tctgcagata
     2941 tccagcacag tggcggccgc tcgagtctag agggcccgtt taaacccgct gatcagcctc
     3001 gactgtgcct tctagttgcc agccatctgt tgtttgcccc tcccccgtgc cttccttgac
     3061 cctggaaggt gccactccca ctgtcctttc ctaataaaat gaggaaattg catcgcattg
     3121 tctgagtagg tgtcattcta ttctgggggg tggggtgggg caggacagca agggggagga
     3181 ttgggaagac aatagcaggc atgctgggga tgcggtgggc tctatggctt ctgaggcgga
     3241 aagaaccagc tggggctcta gggggtatcc ccacgcgccc tgtagcggcg cattaagcgc
     3301 ggcgggtgtg gtggttacgc gcagcgtgac cgctacactt gccagcgccc tagcgcccgc
     3361 tcctttcgct ttcttccctt cctttctcgc cacgttcgcc ggctttcccc gtcaagctct
     3421 aaatcggggg ctccctttag ggttccgatt tagtgcttta cggcacctcg accccaaaaa
     3481 acttgattag ggtgatggtt cacgtagtgg gccatcgccc tgatagacgg tttttcgccc
     3541 tttgacgttg gagtccacgt tctttaatag tggactcttg ttccaaactg gaacaacact
     3601 caaccctatc tcggtctatt cttttgattt ataagggatt ttgccgattt cggcctattg
     3661 gttaaaaaat gagctgattt aacaaaaatt taacgcgaat taattctgtg gaatgtgtgt
     3721 cagttagggt gtggaaagtc cccaggctcc ccagcaggca gaagtatgca aagcatgcat
     3781 ctcaattagt cagcaaccag gtgtggaaag tccccaggct ccccagcagg cagaagtatg
     3841 caaagcatgc atctcaatta gtcagcaacc atagtcccgc ccctaactcc gcccatcccg
     3901 cccctaactc cgcccagttc cgcccattct ccgccccatg gctgactaat tttttttatt
     3961 tatgcagagg ccgaggccgc ctctgcctct gagctattcc agaagtagtg aggaggcttt
     4021 tttggaggcc taggcttttg caaaaagctc ccgggagctt gtatatccat tttcggatct
     4081 gatcaagaga caggatgagg atcgtttcgc atgattgaac aagatggatt gcacgcaggt
     4141 tctccggccg cttgggtgga gaggctattc ggctatgact gggcacaaca gacaatcggc
     4201 tgctctgatg ccgccgtgtt ccggctgtca gcgcaggggc gcccggttct ttttgtcaag
     4261 accgacctgt ccggtgccct gaatgaactg caggacgagg cagcgcggct atcgtggctg
     4321 gccacgacgg gcgttccttg cgcagctgtg ctcgacgttg tcactgaagc gggaagggac
     4381 tggctgctat tgggcgaagt gccggggcag gatctcctgt catctcacct tgctcctgcc
     4441 gagaaagtat ccatcatggc tgatgcaatg cggcggctgc atacgcttga tccggctacc
     4501 tgcccattcg accaccaagc gaaacatcgc atcgagcgag cacgtactcg gatggaagcc
     4561 ggtcttgtcg atcaggatga tctggacgaa gagcatcagg ggctcgcgcc agccgaactg
     4621 ttcgccaggc tcaaggcgcg catgcccgac ggcgaggatc tcgtcgtgac ccatggcgat
     4681 gcctgcttgc cgaatatcat ggtggaaaat ggccgctttt ctggattcat cgactgtggc
     4741 cggctgggtg tggcggaccg ctatcaggac atagcgttgg ctacccgtga tattgctgaa
     4801 gagcttggcg gcgaatgggc tgaccgcttc ctcgtgcttt acggtatcgc cgctcccgat
     4861 tcgcagcgca tcgccttcta tcgccttctt gacgagttct tctgagcggg actctggggt
     4921 tcgaaatgac cgaccaagcg acgcccaacc tgccatcacg agatttcgat tccaccgccg
     4981 ccttctatga aaggttgggc ttcggaatcg ttttccggga cgccggctgg atgatcctcc
     5041 agcgcgggga tctcatgctg gagttcttcg cccaccccaa cttgtttatt gcagcttata
     5101 atggttacaa ataaagcaat agcatcacaa atttcacaaa taaagcattt ttttcactgc
     5161 attctagttg tggtttgtcc aaactcatca atgtatctta tcatgtctgt ataccgtcga
     5221 cctctagcta gagcttggcg taatcatggt catagctgtt tcctgtgtga aattgttatc
     5281 cgctcacaat tccacacaac atacgagccg gaagcataaa gtgtaaagcc tggggtgcct
     5341 aatgagtgag ctaactcaca ttaattgcgt tgcgctcact gcccgctttc cagtcgggaa
     5401 acctgtcgtg ccagctgcat taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta
     5461 ttgggcgctc ttccgcttcc tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc
     5521 gagcggtatc agctcactca aaggcggtaa tacggttatc cacagaatca ggggataacg
     5581 caggaaagaa catgtgagca aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt
     5641 tgctggcgtt tttccatagg ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa
     5701 gtcagaggtg gcgaaacccg acaggactat aaagatacca ggcgtttccc cctggaagct
     5761 ccctcgtgcg ctctcctgtt ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc
     5821 cttcgggaag cgtggcgctt tctcatagct cacgctgtag gtatctcagt tcggtgtagg
     5881 tcgttcgctc caagctgggc tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct
     5941 tatccggtaa ctatcgtctt gagtccaacc cggtaagaca cgacttatcg ccactggcag
     6001 cagccactgg taacaggatt agcagagcga ggtatgtagg cggtgctaca gagttcttga
     6061 agtggtggcc taactacggc tacactagaa gaacagtatt tggtatctgc gctctgctga
     6121 agccagttac cttcggaaaa agagttggta gctcttgatc cggcaaacaa accaccgctg
     6181 gtagcggttt ttttgtttgc aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag
     6241 atcctttgat cttttctacg gggtctgacg ctcagtggaa cgaaaactca cgttaaggga
     6301 ttttggtcat gagattatca aaaaggatct tcacctagat ccttttaaat taaaaatgaa
     6361 gttttaaatc aatctaaagt atatatgagt aaacttggtc tgacagttac caatgcttaa
     6421 tcagtgaggc acctatctca gcgatctgtc tatttcgttc atccatagtt gcctgactcc
     6481 ccgtcgtgta gataactacg atacgggagg gcttaccatc tggccccagt gctgcaatga
     6541 taccgcgaga cccacgctca ccggctccag atttatcagc aataaaccag ccagccggaa
     6601 gggccgagcg cagaagtggt cctgcaactt tatccgcctc catccagtct attaattgtt
     6661 gccgggaagc tagagtaagt agttcgccag ttaatagttt gcgcaacgtt gttgccattg
     6721 ctacaggcat cgtggtgtca cgctcgtcgt ttggtatggc ttcattcagc tccggttccc
     6781 aacgatcaag gcgagttaca tgatccccca tgttgtgcaa aaaagcggtt agctccttcg
     6841 gtcctccgat cgttgtcaga agtaagttgg ccgcagtgtt atcactcatg gttatggcag
     6901 cactgcataa ttctcttact gtcatgccat ccgtaagatg cttttctgtg actggtgagt
     6961 actcaaccaa gtcattctga gaatagtgta tgcggcgacc gagttgctct tgcccggcgt
     7021 caatacggga taataccgcg ccacatagca gaactttaaa agtgctcatc attggaaaac
     7081 gttcttcggg gcgaaaactc tcaaggatct taccgctgtt gagatccagt tcgatgtaac
     7141 ccactcgtgc acccaactga tcttcagcat cttttacttt caccagcgtt tctgggtgag
     7201 caaaaacagg aaggcaaaat gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa
     7261 tactcatact cttccttttt caatattatt gaagcattta tcagggttat tgtctcatga
     7321 gcggatacat atttgaatgt atttagaaaa ataaacaaat aggggttccg cgcacatttc
     7381 cccgaaaagt gccacctgac gtc
//
