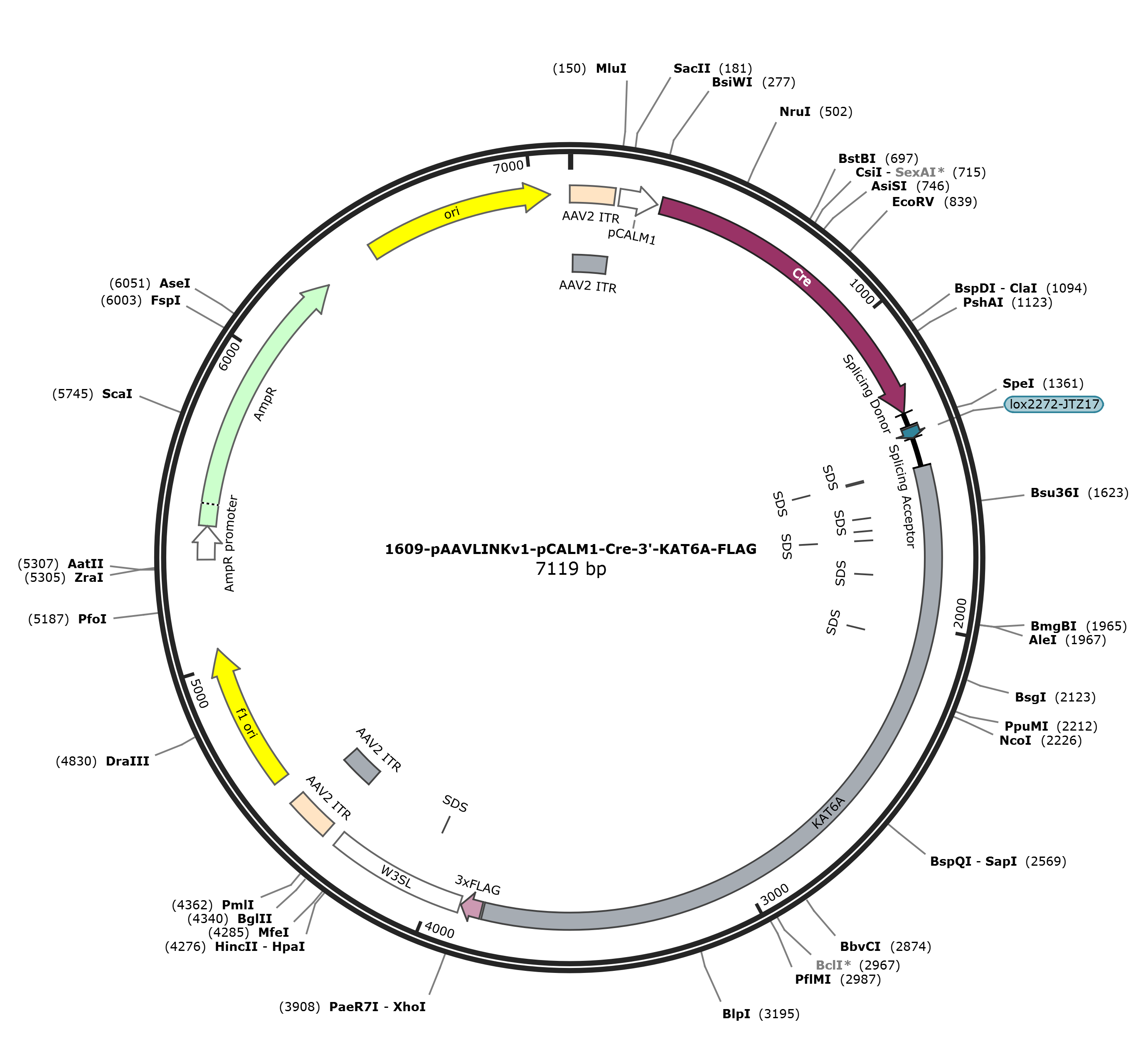

pAAVLINKv1-pCALM1-Cre-3'-KAT6A-FLAG

LOCUS       pAAVLINKv1-pCALM1-Cre-3'-KAT6A-FLAG               7108 bp DNA     circular SYN 18-NOV-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7108)
  AUTHORS   Stavrini Papadaki
  TITLE     Direct Submission
  JOURNAL   Exported May 20, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7108
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     repeat_region   1..130
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     misc_feature    12..130
                     /label=AAV2 ITR
     promoter        145..265
                     /label=pCALM1
     CDS             277..1308
                     /codon_start=1
                     /product="site-specific recombinase"
                     /label=Cre
                     /note="Cre is a site-specific recombinase from
                     bacteriophage P1. Recombination occurs at loxP sequences."
                     /translation="MSNLLTVHQNLPALPVDATSDEVRKNLMDMFRDRQAFSEHTWKML
                     LSVCRSWAAWCKLNNRKWFPAEPEDVRDYLLYLQARGLAVKTIQQHLGQLNMLHRRSGL
                     PRPSDSNAVSLVMRRIRKENVDAGERAKQALAFERTDFDQVRSLMENSDRCQDIRNLAF
                     LGIAYNTLLRIAEIARIRVKDISRTDGGRMLIHIGRTKTLVSTAGVEKALSLGVTKLVE
                     RWISVSGVADDPNNYLFCRVRKNGVAAPSATSQLSTRALEGIFEATHRLIYGAKDDSGQ
                     RYLAWSGHSARVGAARDMARAGVSIPEIMQAGGWTNVNIVMNYIRNLDSETGAMVRLLE
                     DGD"
     intron          1309..1349
                     /label=Splicing Donor
     protein_bind    1356..1389
                     /label=lox2272-JTZ17
                     /bound_moiety="Cre recombinase"
                     /note="Right element (RE) mutant of loxP (Araki et al.,
                     2010). Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     intron          1390..1481
                     /label=Splicing Acceptor
                     /note="Splicing acceptor"
     misc_feature    1480..1485
                     /label=SDS
     CDS             1482..3821
                     /codon_start=1
                     /label=KAT6A
                     /translation="EEEEMQAEAEEAEEGEEEDAASSEVPAASPADSSNSPETETKEPE
                     VEEEEEKPRVSEEQRQSEEEQQELEEPEPEEEEDAAAETAQNDDHDADDEDDGHLESTK
                     KKELEEQPTREDVKEEPGVQESFLDANMQKSREKIKDKEETELDSEEEQPSHDTSVVSE
                     QMAGSEDDHEEDSHTKEELIELKEEEEIPHSELDLETVQAVQSLTQEESSEHEGAYQDC
                     EETLAACQTLQSYTQADEDPQMSMVEDCHASEHNSPISSVQSHPSQSVRSVSSPNVPAL
                     ESGYTQISPEQGSLSAPSMQNMETSPMMDVPSVSDHSQQVVDSGFSDLGSIESTTENYE
                     NPSSYDSTMGGSICGNSSSQSSCSYGGLSSSSSLTQSSCVVTQQMASMGSSCSMMQQSS
                     VQPAANCSIKSPQSCVVERPPSNQQQQPPPPPPQQPQPPPPQPQPAPQPPPPQQQPQQQ
                     PQPQPQQPPPPPPPQQQPPLSQCSMNNSFTPAPMIMEIPESGSTGNISIYERIPGDFGA
                     GSYSQPSATFSLAKLQQLTNTIMDPHAMPYSHSPAVTSYATSVSLSNTGLAQLAPSHPL
                     AGTPQAQATMTPPPNLASTTMNLTSPLLQCNMSATNIGIPHTQRLQGQMPVKGHISIRS
                     KSAPLPSAAAHQQQLYGRSPSAVAMQAGPRALAVQRGMNMGVNLMPTPAYNVNSMNMNT
                     LNAMNSYRMTQPMMNSSYHSNPAYMNQTAQYPMQMQMGMMGSQAYTQQPMQPNPHGNMM
                     YTGPSHHSYMNAAGVPKQSLNGPYMRR"
     misc_feature    1483..1488
                     /label=SDS
     misc_feature    1486..1491
                     /label=SDS
     misc_feature    1621..1626
                     /label=SDS
     misc_feature    1669..1674
                     /label=SDS
     misc_feature    1705..1710
                     /label=SDS
     misc_feature    1708..1713
                     /label=SDS
     misc_feature    1834..1839
                     /label=SDS
     misc_feature    2041..2046
                     /label=SDS
     CDS             3828..3893
                     /codon_start=1
                     /product="three tandem FLAG(R) epitope tags, followed by an
                     enterokinase cleavage site"
                     /label=3xFLAG
                     /translation="DYKDHDGDYKDHDIDYKDDDDK"
     terminator      3897..4328
                     /label=W3SL
                     /note="Short WPRE and SV40 polyA"
     misc_feature    4041..4046
                     /label=SDS
     repeat_region   4371..4511
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     misc_feature    4371..4500
                     /label=AAV2 ITR
     rep_origin      4586..5041
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        5323..5427
                     /gene="bla"
                     /label=AmpR promoter
     CDS             5428..6288
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      6459..7047
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 cctgcaggca gctgcgcgct cgctcgctca ctgaggccgc ccgggcgtcg ggcgaccttt
       61 ggtcgcccgg cctcagtgag cgagcgagcg cgcagagagg gagtggccaa ctccatcact
      121 aggggttcct gcggccgcac gcgtcgctct gcgcgaggcg gctccgccgc ggcggaggga
      181 tacggcgcac catatatata tcgcggggcg cagactcgcg ctccggcagt ggtgctggga
      241 gtgtcgtgga cgccgtgccg ttactcgtac gccaccatgt ccaatttact gaccgtacac
      301 caaaatttgc ctgcattacc ggtcgatgca acgagtgatg aggttcgcaa gaacctgatg
      361 gacatgttca gggatcgcca ggcgttttct gagcatacct ggaaaatgct tctgtccgtt
      421 tgccggtcgt gggcggcatg gtgcaagttg aataaccgga aatggtttcc cgcagaacct
      481 gaagatgttc gcgattatct tctatatctt caggcgcgcg gtctggcagt aaaaaccatc
      541 cagcaacatt tgggccagct aaacatgctt catcgtcggt ccgggctgcc acgaccaagt
      601 gacagcaatg ctgtttcact ggttatgcgg cggatccgaa aagaaaacgt tgatgccggt
      661 gaacgtgcaa aacaggctct agcgttcgaa cgcactgatt tcgaccaggt tcgttcactc
      721 atggaaaata gcgatcgctg ccaggatata cgtaatctgg catttctggg gattgcttat
      781 aacaccctgt tacgtatagc cgaaattgcc aggatcaggg ttaaagatat ctcacgtact
      841 gacggtggga gaatgttaat ccatattggc agaacgaaaa cgctggttag caccgcaggt
      901 gtagagaagg cacttagcct gggggtaact aaactggtcg agcgatggat ttccgtctct
      961 ggtgtagctg atgatccgaa taactacctg ttttgccggg tcagaaaaaa tggtgttgcc
     1021 gcgccatctg ccaccagcca gctatcaact cgcgccctgg aagggatttt tgaagcaact
     1081 catcgattga tttacggcgc taaggatgac tctggtcaga gatacctggc ctggtctgga
     1141 cacagtgccc gtgtcggagc cgcgcgagat atggcccgcg ctggagtttc aataccggag
     1201 atcatgcaag ctggtggctg gaccaatgta aatattgtaa tgaactatat ccgtaacctg
     1261 gatagtgaaa caggggcaat ggtgcgcctg ctggaagatg gcgattaggt aagtatcaag
     1321 gttacaagac aggtttaagg agaccaataa ctagtataac ttcgtatagg atactttata
     1381 gcaatttatg aaactgggct tgtcgagaca gagaagactc ttgcgtttct gataggcacc
     1441 tattggtctt actgacatcc actttgcctt tctctccaca ggaggaggag gagatgcaag
     1501 cagaggcaga agaggctgaa gagggtgagg aagaggatgc agccagcagt gaagtcccag
     1561 cagcctctcc agcagacagc agcaatagtc ctgagaccga aaccaaggag cctgaggtgg
     1621 aggaggaaga agagaagccc cgtgtctcag aggagcagag gcagtcagag gaggagcagc
     1681 aggaattaga ggagccagag ccagaggagg aggaagatgc agctgcagag actgcccaga
     1741 atgacgacca cgacgctgat gatgaggatg atggccacct ggagtccaca aagaaaaagg
     1801 agctagagga acagcccacg agggaagatg tcaaggagga gcctggtgtt caagagtctt
     1861 ttttagatgc taatatgcag aagagtaggg aaaagataaa ggataaagag gaaaccgagc
     1921 tggattccga agaggagcag ccttcccatg acacgtccgt ggtgtcagag cagatggctg
     1981 ggtctgagga cgaccacgaa gaagactccc acactaagga agagttaatc gaattaaaag
     2041 aggaggaaga gattcctcat agtgagctgg atctggaaac tgtacaggca gtgcagtctt
     2101 tgactcaaga agaaagcagt gagcatgagg gcgcctacca ggactgtgag gaaactcttg
     2161 cggcgtgtca gaccctgcag agttacaccc aggctgacga ggaccctcag atgtccatgg
     2221 ttgaagactg tcatgcgtca gaacataata gccctatctc ctccgttcag tctcacccca
     2281 gccagtcagt ccgttcggtc agcagtccca acgtgcctgc ccttgagagt ggctacaccc
     2341 agatcagccc agaacaagga tccctgtccg caccctctat gcagaacatg gagaccagcc
     2401 ccatgatgga tgtgccttcc gtatcagacc actctcagca ggtggtggac agcggcttca
     2461 gtgacctggg cagcattgag agcaccactg aaaactatga gaacccaagc agttacgact
     2521 ccacgatggg cggcagcatc tgtgggaaca gctcttccca gagcagctgc tcctacggtg
     2581 ggctgtcgtc ctccagcagc ctcacccaga gcagctgtgt ggtcactcag cagatggcca
     2641 gcatgggcag cagctgcagc atgatgcagc agagcagcgt ccagcctgct gccaactgca
     2701 gcatcaagtc acctcagagc tgcgtggtgg agaggcctcc cagtaaccag cagcagcagc
     2761 cgccaccacc gcctccacag cagccacagc cgccgccgcc acaaccacaa ccagcaccac
     2821 agcctccacc accccagcag cagccgcaac agcagccgca gcctcagccc cagcagcctc
     2881 cacccccacc ccctccccag cagcagcccc cgctgtcaca gtgtagtatg aataacagtt
     2941 tcaccccagc tcctatgatc atggagatac cagaatctgg aagcactggg aacataagta
     3001 tctatgagag gattccaggg gattttggtg ccggcagcta ctctcaacca tcagccacct
     3061 tcagcctagc caagctgcag cagctgacca acaccattat ggaccctcat gccatgcctt
     3121 atagccattc tcctgctgtg acttcctatg caaccagtgt ttctctgtcc aatacaggac
     3181 tggctcagct ggctccatct catcccttag ctgggactcc tcaagcacaa gccaccatga
     3241 cgccaccccc aaacttggca tccactacca tgaacctcac atctcctctg cttcagtgca
     3301 acatgtctgc caccaacatt ggcattcctc acacgcagag attgcaaggg caaatgccag
     3361 tgaaggggca catttccatc cgctccaagt ctgcgccact gccctctgcg gctgctcacc
     3421 agcagcagct gtatggccgt agcccatcgg cagttgccat gcaggctggc cctcgcgcac
     3481 tggctgttca gcgtggcatg aacatggggg ttaatctgat gcctactccc gcctataatg
     3541 tcaattccat gaatatgaac accttgaatg ccatgaacag ctatcgaatg acacagccca
     3601 tgatgaacag cagttaccat agtaaccctg cctacatgaa ccagacagca cagtatccta
     3661 tgcagatgca gatgggaatg atggggagcc aggcctatac ccagcagcct atgcagccta
     3721 accctcatgg gaacatgatg tacacaggcc cctcccatca cagctacatg aacgctgctg
     3781 gcgtgcccaa gcagtcactc aacggacctt acatgagaag atgtacagac tacaaagacc
     3841 atgacggtga ttataaagat catgacatcg actacaagga tgacgatgac aagtaactcg
     3901 agataatcaa cctctggatt acaaaatttg tgaaagattg actggtattc ttaactatgt
     3961 tgctcctttt acgctatgtg gatacgctgc tttaatgcct ttgtatcatg ctattgcttc
     4021 ccgtatggct ttcattttct cctccttgta taaatcctgg ttagttcttg ccacggcgga
     4081 actcatcgcc gcctgccttg cccgctgctg gacaggggct cggctgttgg gcactgacaa
     4141 ttccgtggtg tttatttgtg aaatttgtga tgctattgct ttatttgtaa ccatctagct
     4201 ttatttgtga aatttgtgat gctattgctt tatttgtaac cattataagc tgcaataaac
     4261 aagttaacaa caacaattgc attcatttta tgtttcaggt tcagggggag atgtgggagg
     4321 ttttttaaag atctggagac cggtgtggca cgtgcggacc gagcggccgc aggaacccct
     4381 agtgatggag ttggccactc cctctctgcg cgctcgctcg ctcactgagg ccgggcgacc
     4441 aaaggtcgcc cgacgcccgg gctttgcccg ggcggcctca gtgagcgagc gagcgcgcag
     4501 ctgcctgcag gggcgcctga tgcggtattt tctccttacg catctgtgcg gtatttcaca
     4561 ccgcatacgt caaagcaacc atagtacgcg ccctgtagcg gcgcattaag cgcggcgggt
     4621 gtggtggtta cgcgcagcgt gaccgctaca cttgccagcg ccttagcgcc cgctcctttc
     4681 gctttcttcc cttcctttct cgccacgttc gccggctttc cccgtcaagc tctaaatcgg
     4741 gggctccctt tagggttccg atttagtgct ttacggcacc tcgaccccaa aaaacttgat
     4801 ttgggtgatg gttcacgtag tgggccatcg ccctgataga cggtttttcg ccctttgacg
     4861 ttggagtcca cgttctttaa tagtggactc ttgttccaaa ctggaacaac actcaactct
     4921 atctcgggct attcttttga tttataaggg attttgccga tttcggtcta ttggttaaaa
     4981 aatgagctga tttaacaaaa atttaacgcg aattttaaca aaatattaac gtttacaatt
     5041 ttatggtgca ctctcagtac aatctgctct gatgccgcat agttaagcca gccccgacac
     5101 ccgccaacac ccgctgacgc gccctgacgg gcttgtctgc tcccggcatc cgcttacaga
     5161 caagctgtga ccgtctccgg gagctgcatg tgtcagaggt tttcaccgtc atcaccgaaa
     5221 cgcgcgagac gaaagggcct cgtgatacgc ctatttttat aggttaatgt catgataata
     5281 atggtttctt agacgtcagg tggcactttt cggggaaatg tgcgcggaac ccctatttgt
     5341 ttatttttct aaatacattc aaatatgtat ccgctcatga gacaataacc ctgataaatg
     5401 cttcaataat attgaaaaag gaagagtatg agtattcaac atttccgtgt cgcccttatt
     5461 cccttttttg cggcattttg ccttcctgtt tttgctcacc cagaaacgct ggtgaaagta
     5521 aaagatgctg aagatcagtt gggtgcacga gtgggttaca tcgaactgga tctcaacagc
     5581 ggtaagatcc ttgagagttt tcgccccgaa gaacgttttc caatgatgag cacttttaaa
     5641 gttctgctat gtggcgcggt attatcccgt attgacgccg ggcaagagca actcggtcgc
     5701 cgcatacact attctcagaa tgacttggtt gagtactcac cagtcacaga aaagcatctt
     5761 acggatggca tgacagtaag agaattatgc agtgctgcca taaccatgag tgataacact
     5821 gcggccaact tacttctgac aacgatcgga ggaccgaagg agctaaccgc ttttttgcac
     5881 aacatggggg atcatgtaac tcgccttgat cgttgggaac cggagctgaa tgaagccata
     5941 ccaaacgacg agcgtgacac cacgatgcct gtagcaatgg caacaacgtt gcgcaaacta
     6001 ttaactggcg aactacttac tctagcttcc cggcaacaat taatagactg gatggaggcg
     6061 gataaagttg caggaccact tctgcgctcg gcccttccgg ctggctggtt tattgctgat
     6121 aaatctggag ccggtgagcg tgggtctcgc ggtatcattg cagcactggg gccagatggt
     6181 aagccctccc gtatcgtagt tatctacacg acggggagtc aggcaactat ggatgaacga
     6241 aatagacaga tcgctgagat aggtgcctca ctgattaagc attggtaact gtcagaccaa
     6301 gtttactcat atatacttta gattgattta aaacttcatt tttaatttaa aaggatctag
     6361 gtgaagatcc tttttgataa tctcatgacc aaaatccctt aacgtgagtt ttcgttccac
     6421 tgagcgtcag accccgtaga aaagatcaaa ggatcttctt gagatccttt ttttctgcgc
     6481 gtaatctgct gcttgcaaac aaaaaaacca ccgctaccag cggtggtttg tttgccggat
     6541 caagagctac caactctttt tccgaaggta actggcttca gcagagcgca gataccaaat
     6601 actgttcttc tagtgtagcc gtagttaggc caccacttca agaactctgt agcaccgcct
     6661 acatacctcg ctctgctaat cctgttacca gtggctgctg ccagtggcga taagtcgtgt
     6721 cttaccgggt tggactcaag acgatagtta ccggataagg cgcagcggtc gggctgaacg
     6781 gggggttcgt gcacacagcc cagcttggag cgaacgacct acaccgaact gagataccta
     6841 cagcgtgagc tatgagaaag cgccacgctt cccgaaggga gaaaggcgga caggtatccg
     6901 gtaagcggca gggtcggaac aggagagcgc acgagggagc ttccaggggg aaacgcctgg
     6961 tatctttata gtcctgtcgg gtttcgccac ctctgacttg agcgtcgatt tttgtgatgc
     7021 tcgtcagggg ggcggagcct atggaaaaac gccagcaacg cggccttttt acggttcctg
     7081 gccttttgct ggccttttgc tcacatgt
//
