RNAi-Ready pSIREN-RetroQ

价格:1000元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: RNAi-Ready pSIREN-RetroQ
质粒类型: 哺乳动物细胞自失活基因沉默逆病毒载体,shRNA
高拷贝/低拷贝: 低拷贝
启动子: Human U6
克隆方法: 多克隆位点,限制性内切酶
载体大小: 6455 bp
5' 测序引物及序列: U6-F: ATGGACTATCATATGCTTACCGTA (Clontech )
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄
筛选标记: 嘌呤霉素 (Puromycin)
备注:
产品目录号: 631526
稳定性: /
组成型: 诱导型
病毒/非病毒: 逆病毒

载体质粒图谱和多克隆位点信息

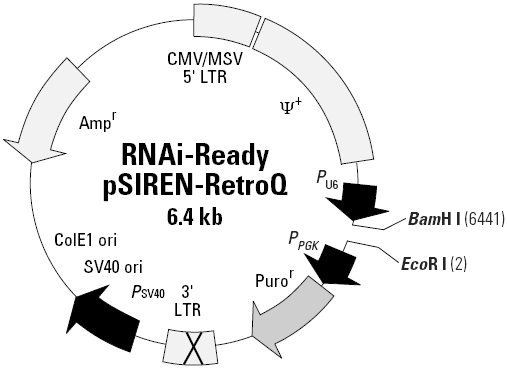

RNAi-Ready pSIREN-RetroQ载体图谱

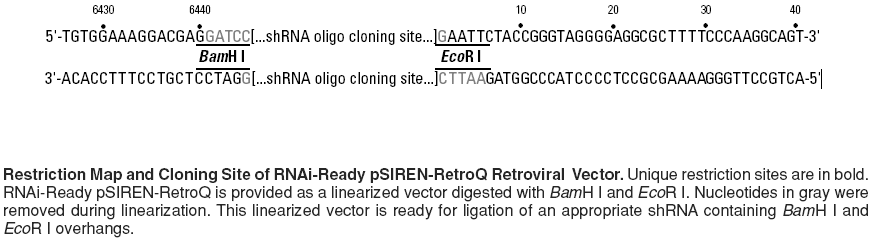

RNAi-Ready pSIREN-RetroQ多克隆位点

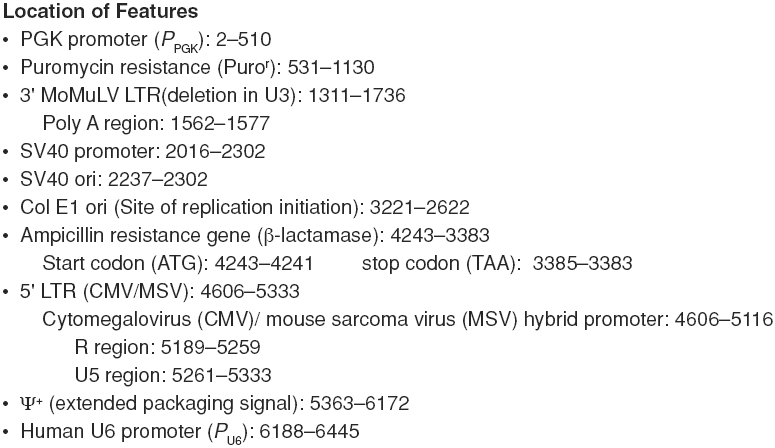

RNAi-Ready pSIREN-RetroQ载体特征

载体简介

载体序列

LOCUS       pSIREN-RetroQ   6455 bp    DNA   circular            13-NOV-2009
COMMENT     Created by Clontech Laboratories Inc.
COMMENT     Cat. No. 631526
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     misc_feature    1..727
                     /label=5'-LTR\(CMV/MSV)
     misc_feature    757..1566
                     /label=Extended\packaging\signal
     misc_feature    3161..3586
                     /label=3'\MMLV\LTR\(deletion\in\U3)
     CDS             complement(5233..6093)
                     /label=Amp(R)
     misc_feature    3866..4152
                     /label=SV40\Promoter
     promoter        1582..1839
                     /label=Human\U6\promoter
     rep_origin      complement(4472..5071)
                     /label=pUC\origin
     promoter        1852..2360
                     /label=PGK\Promoter
     CDS             2381..2980
                     /label=Puro(R)
     rep_origin      4087..4152
                     /label=SV40\origin
     misc_feature    1834..1856
                     /label=shRNA\Cloning\Site
BASE COUNT     1458 a      1810 c      1668 g      1519 t
ORIGIN
        1 tccgcgttac ataacttacg gtaaatggcc cgcctggctg accgcccaac gacccccgcc
       61 cattgacgtc aataatgacg tatgttccca tagtaacgcc aatagggact ttccattgac
      121 gtcaatgggt ggagtattta cggtaaactg cccacttggc agtacatcaa gtgtatcata
      181 tgccaagtac gccccctatt gacgtcaatg acggtaaatg gcccgcctgg cattatgccc
      241 agtacatgac cttatgggac tttcctactt ggcagtacat ctacgtatta gtcatcgcta
      301 ttaccatggt gatgcggttt tggcagtaca tcaatgggcg tggatagcgg tttgactcac
      361 ggggatttcc aagtctccac cccattgacg tcaatgggag tttgttttgg caccaaaatc
      421 aacgggactt tccaaaatgt cgtaacaact ccgccccatt gacgcaaatg ggcggtaggc
      481 gtgtacggtg ggaggtctat ataagcagag ctcaataaaa gagcccacaa cccctcactc
      541 ggcgcgccag tcttccgata gactgcgtcg cccgggtacc cgtattccca ataaagcctc
      601 ttgctgtttg catccgaatc gtggtctcgc tgttccttgg gagggtctcc tctgagtgat
      661 tgactaccca cgacgggggt ctttcatttg ggggctcgtc cgggatttgg agacccctgc
      721 ccagggacca ccgacccacc accgggaggt aagctggcca gcaacttatc tgtgtctgtc
      781 cgattgtcta gtgtctatgt ttgatgttat gcgcctgcgt ctgtactagt tagctaacta
      841 gctctgtatc tggcggaccc gtggtggaac tgacgagttc tgaacacccg gccgcaaccc
      901 tgggagacgt cccagggact ttgggggccg tttttgtggc ccgacctgag gaagggagtc
      961 gatgtggaat ccgaccccgt caggatatgt ggttctggta ggagacgaga acctaaaaca
     1021 gttcccgcct ccgtctgaat ttttgctttc ggtttggaac cgaagccgcg cgtcttgtct
     1081 gctgcagcgc tgcagcatcg ttctgtgttg tctctgtctg actgtgtttc tgtatttgtc
     1141 tgaaaattag ggccagactg ttaccactcc cttaagtttg accttaggtc actggaaaga
     1201 tgtcgagcgg atcgctcaca accagtcggt agatgtcaag aagagacgtt gggttacctt
     1261 ctgctctgca gaatggccaa cctttaacgt cggatggccg cgagacggca cctttaaccg
     1321 agacctcatc acccaggtta agatcaaggt cttttcacct ggcccgcatg gacacccaga
     1381 ccaggtcccc tacatcgtga cctgggaagc cttggctttt gacccccctc cctgggtcaa
     1441 gccctttgta caccctaagc ctccgcctcc tcttcctcca tccgccccgt ctctccccct
     1501 tgaacctcct cgttcgaccc cgcctcgatc ctccctttat ccagccctca ctccttctct
     1561 aggcgccgga attgaagatc tgggcaggaa gagggcctat ttcccatgat tccttcatat
     1621 ttgcatatac gatacaaggc tgttagagag ataattagaa ttaatttgac tgtaaacaca
     1681 aagatattag tacaaaatac gtgacgtaga aagtaataat ttcttgggta gtttgcagtt
     1741 ttaaaattat gttttaaaat ggactatcat atgcttaccg taacttgaaa gtatttcgat
     1801 ttcttggctt tatatatctt gtggaaagga cgaggatccg gacaagcttc gaattctacc
     1861 gggtagggga ggcgcttttc ccaaggcagt ctggagcatg cgctttagca gccccgctgg
     1921 gcacttggcg ctacacaagt ggcctctggc ctcgcacaca ttccacatcc accggtaggc
     1981 gccaaccggc tccgttcttt ggtggcccct tcgcgccacc ttctactcct cccctagtca
     2041 ggaagttccc ccccgccccg cagctcgcgt cgtgcaggac gtgacaaatg gaagtagcac
     2101 gtctcactag tctcgtgcag atggacagca ccgctgagca atggaagcgg gtaggccttt
     2161 ggggcagcgg ccaatagcag ctttgctcct tcgctttctg ggctcagagg ctgggaaggg
     2221 gtgggtccgg gggcgggctc aggggcgggc tcaggggcgg ggcgggcgcc cgaaggtcct
     2281 ccggaggccc ggcattctgc acgcttcaaa agcgcacgtc tgccgcgctg ttctcctctt
     2341 cctcatctcc gggcctttcg acctgcagcc caagcttacc atgaccgagt acaagcccac
     2401 ggtgcgcctc gccacccgcg acgacgtccc cagggccgta cgcaccctcg ccgccgcgtt
     2461 cgccgactac cccgccacgc gccacaccgt cgatccggac cgccacatcg agcgggtcac
     2521 cgagctgcaa gaactcttcc tcacgcgcgt cgggctcgac atcggcaagg tgtgggtcgc
     2581 ggacgacggc gccgcggtgg cggtctggac cacgccggag agcgtcgaag cgggggcggt
     2641 gttcgccgag atcggcccgc gcatggccga gttgagcggt tcccggctgg ccgcgcagca
     2701 acagatggaa ggcctcctgg cgccgcaccg gcccaaggag cccgcgtggt tcctggccac
     2761 cgtcggcgtc tcgcccgacc accagggcaa gggtctgggc agcgccgtcg tgctccccgg
     2821 agtggaggcg gccgagcgcg ccggggtgcc cgccttcctg gagacctccg cgccccgcaa
     2881 cctccccttc tacgagcggc tcggcttcac cgtcaccgcc gacgtcgagg tgcccgaagg
     2941 accgcgcacc tggtgcatga cccgcaagcc cggtgcctga cgcccgcccc acgacccgca
     3001 gcgcccgacc gaaaggagcg cacgacccca tgcatcggcg tctcgagata tcagtggtcc
     3061 aggctctagt tttgactcaa caatatcacc agctgaagcc tatagagtac gagccataga
     3121 taaaataaaa gattttattt agtctccaga aaaagggggg aatgaaagac cccacctgta
     3181 ggtttggcaa gctagcttaa gtaacgccat tttgcaaggc atggaaaaat acataactga
     3241 gaatagagaa gttcagatca aggtcaggaa cagatggaac agggtcgacc ctagagaacc
     3301 atcagatgtt tccagggtgc cccaaggacc tgaaatgacc ctgtgcctta tttgaactaa
     3361 ccaatcagtt cgcttctcgc ttctgttcgc gcgcttctgc tccccgagct caataaaaga
     3421 gcccacaacc cctcactcgg ggcgccagtc ctccgattga ctgagtcgcc cgggtacccg
     3481 tgtatccaat aaaccctctt gcagttgcat ccgacttgtg gtctcgctgt tccttgggag
     3541 ggtctcctct gagtgattga ctacccgtca gcgggggtct ttcatttggg ggctcgtccg
     3601 ggatcgggag acccctgccc agggaccacc gacccaccac cgggaggtaa gctggctgcc
     3661 tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
     3721 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
     3781 ttggcgggtg tcggggcgca gccatgaccc agtcacgtag cgatagcgga gtgtagatcc
     3841 ggctgtggaa tgtgtgtcag ttagggtgtg gaaagtcccc aggctcccca gcaggcagaa
     3901 gtatgcaaag catgcatctc aattagtcag caaccaggtg tggaaagtcc ccaggctccc
     3961 cagcaggcag aagtatgcaa agcatgcatc tcaattagtc agcaaccata gtcccgcccc
     4021 taactccgcc catcccgccc ctaactccgc ccagttccgc ccattctccg ccccatggct
     4081 gactaatttt ttttatttat gcagaggccg aggccgcctc ggcctctgag ctattccaga
     4141 agtagtgagg aggctttttt ggaggcctag gcttttgcaa aaagcttact ggcttaacta
     4201 tgcggcatca gagcagattg tactgagagt gcaccatatg cggtgtgaaa taccgcacag
     4261 atgcgtaagg agaaaatacc gcatcaggcg ctcttccgct tcctcgctca ctgactcgct
     4321 gcgctcggtc gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg taatacggtt
     4381 atccacagaa tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc
     4441 caggaaccgt aaaaaggccg cgttgctggc gtttttccat aggctccgcc cccctgacga
     4501 gcatcacaaa aatcgacgct caagtcagag gtggcgaaac ccgacaggac tataaagata
     4561 ccaggcgttt ccccctggaa gctccctcgt gcgctctcct gttccgaccc tgccgcttac
     4621 cggatacctg tccgcctttc tcccttcggg aagcgtggcg ctttctcata gctcacgctg
     4681 taggtatctc agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc
     4741 cgttcagccc gaccgctgcg ccttatccgg taactatcgt cttgagtcca acccggtaag
     4801 acacgactta tcgccactgg cagcagccac tggtaacagg attagcagag cgaggtatgt
     4861 aggcggtgct acagagttct tgaagtggtg gcctaactac ggctacacta gaaggacagt
     4921 atttggtatc tgcgctctgc tgaagccagt taccttcgga aaaagagttg gtagctcttg
     4981 atccggcaaa caaaccaccg ctggtagcgg tggttttttt gtttgcaagc agcagattac
     5041 gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca
     5101 gtggaacgaa aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac
     5161 ctagatcctt ttaaattaaa aatgaagttt taaatcaatc taaagtatat atgagtaaac
     5221 ttggtctgac agttaccaat gcttaatcag tgaggcacct atctcagcga tctgtctatt
     5281 tcgttcatcc atagttgcct gactccccgt cgtgtagata actacgatac gggagggctt
     5341 accatctggc cccagtgctg caatgatacc gcgagaccca cgctcaccgg ctccagattt
     5401 atcagcaata aaccagccag ccggaagggc cgagcgcaga agtggtcctg caactttatc
     5461 cgcctccatc cagtctatta attgttgccg ggaagctaga gtaagtagtt cgccagttaa
     5521 tagtttgcgc aacgttgttg ccattgctgc aggcatcgtg gtgtcacgct cgtcgtttgg
     5581 tatggcttca ttcagctccg gttcccaacg atcaaggcga gttacatgat cccccatgtt
     5641 gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt gtcagaagta agttggccgc
     5701 agtgttatca ctcatggtta tggcagcact gcataattct cttactgtca tgccatccgt
     5761 aagatgcttt tctgtgactg gtgagtactc aaccaagtca ttctgagaat agtgtatgcg
     5821 gcgaccgagt tgctcttgcc cggcgtcaac acgggataat accgcgccac atagcagaac
     5881 tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga aaactctcaa ggatcttacc
     5941 gctgttgaga tccagttcga tgtaacccac tcgtgcaccc aactgatctt cagcatcttt
     6001 tactttcacc agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg
     6061 aataagggcg acacggaaat gttgaatact catactcttc ctttttcaat attattgaag
     6121 catttatcag ggttattgtc tcatgagcgg atacatattt gaatgtattt agaaaaataa
     6181 acaaataggg gttccgcgca catttccccg aaaagtgcca cctgacgtct aagaaaccat
     6241 tattatcatg acattaacct ataaaaatag gcgtatcacg aggccctttc gtcttcaaga
     6301 attagcttgg ccattgcata cgttgtatcc atatcataat atgtacattt atattggctc
     6361 atgtccaaca ttaccgccat gttgacattg attattgact agttattaat agtaatcaat
     6421 tacggggtca ttagttcata gcccatatat ggagt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
