RNAi-Ready pSIREN-RetroQ-ZsGreen1

价格:900元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: RNAi-Ready pSIREN-RetroQ-ZsGreen1
质粒类型: 哺乳动物细胞自失活基因沉默逆病毒载体,shRNA
高拷贝/低拷贝: 低拷贝
启动子: Human U6
克隆方法: 多克隆位点,限制性内切酶
载体大小: 6561 bp
5' 测序引物及序列: U6-F: ATGGACTATCATATGCTTACCGTA (Clontech )
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄
筛选标记: --
备注: 载体在沉默基因 的同时表达ZsGreen1荧光蛋白。
产品目录号: 632455
稳定性: /
组成型: 诱导型
病毒/非病毒: 逆病毒

载体质粒图谱和多克隆位点信息

RNAi-Ready pSIREN-RetroQ-ZsGreen1载体图谱

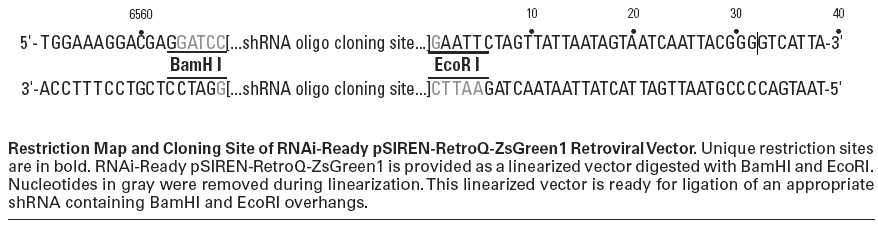

RNAi-Ready pSIREN-RetroQ-ZsGreen1多克隆位点

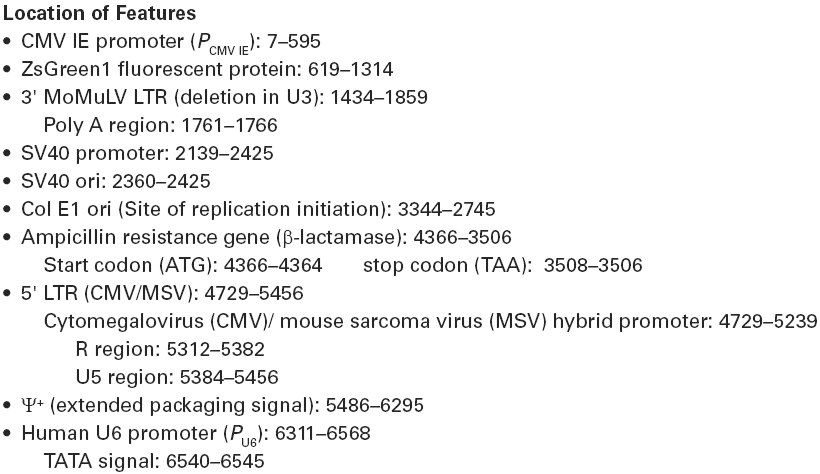

RNAi-Ready pSIREN-RetroQ-ZsGreen1载体特征

载体简介

载体序列

LOCUS     pSIREN-RetroQ-ZsGreen1_linear   6561 bp    DNA   circular                    12-NOV-2009
COMMENT     Created by Clontech Laboratories Inc.
COMMENT     Cat. No. 632455
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     misc_feature    4728..5454
                     /label=5'-LTR\(CMV/MSV)
     misc_feature    5484..6293
                     /label=Extended\packaging\signal
     misc_feature    1433..1858
                     /label=3'\MMLV\LTR\(deletion\in\U3)
     CDS             complement(3505..4365)
                     /label=Amp(R)
     misc_feature    2138..2424
                     /label=SV40\Promoter
     promoter        6309..6561
                     /label=Human\U6\promoter
     rep_origin      complement(2744..3343)
                     /label=pUC\origin
     rep_origin      2359..2424
                     /label=SV40\origin
     promoter        6..594
                     /label=CMV\IE\Promoter
     CDS             618..1313
                     /label=ZsGreen1
     misc_feature    6561..1
                     /label=shRNA\Cloning\Site
BASE COUNT     1572 a      1756 c      1626 g      1607 t
ORIGIN
        1 aattctagtt attaatagta atcaattacg gggtcattag ttcatagccc atatatggag
       61 ttccgcgtta cataacttac ggtaaatggc ccgcctggct gaccgcccaa cgacccccgc
      121 ccattgacgt caataatgac gtatgttccc atagtaacgc caatagggac tttccattga
      181 cgtcaatggg tggagtattt acggtaaact gcccacttgg cagtacatca agtgtatcat
      241 atgccaagta cgccccctat tgacgtcaat gacggtaaat ggcccgcctg gcattatgcc
      301 cagtacatga ccttatggga ctttcctact tggcagtaca tctacgtatt agtcatcgct
      361 attaccatgg tgatgcggtt ttggcagtac atcaatgggc gtggatagcg gtttgactca
      421 cggggatttc caagtctcca ccccattgac gtcaatggga gtttgttttg gcaccaaaat
      481 caacgggact ttccaaaatg tcgtaacaac tccgccccat tgacgcaaat gggcggtagg
      541 cgtgtacggt gggaggtcta tataagcaga gctggtttag tgaaccgtca gatccgctag
      601 cgctaccggt cgccaccatg gcccagtcca agcacggcct gaccaaggag atgaccatga
      661 agtaccgcat ggagggctgc gtggacggcc acaagttcgt gatcaccggc gagggcatcg
      721 gctacccctt caagggcaag caggccatca acctgtgcgt ggtggagggc ggccccttgc
      781 ccttcgccga ggacatcttg tccgccgcct tcatgtacgg caaccgcgtg ttcaccgagt
      841 acccccagga catcgtcgac tacttcaaga actcctgccc cgccggctac acctgggacc
      901 gctccttcct gttcgaggac ggcgccgtgt gcatctgcaa cgccgacatc accgtgagcg
      961 tggaggagaa ctgcatgtac cacgagtcca agttctacgg cgtgaacttc cccgccgacg
     1021 gccccgtgat gaagaagatg accgacaact gggagccctc ctgcgagaag atcatccccg
     1081 tgcccaagca gggcatcttg aagggcgacg tgagcatgta cctgctgctg aaggacggtg
     1141 gccgcttgcg ctgccagttc gacaccgtgt acaaggccaa gtccgtgccc cgcaagatgc
     1201 ccgactggca cttcatccag cacaagctga cccgcgagga ccgcagcgac gccaagaacc
     1261 agaagtggca cctgaccgag cacgccatcg cctccggctc cgccttgccc taactcgaga
     1321 tatcagtggt ccaggctcta gttttgactc aacaatatca ccagctgaag cctatagagt
     1381 acgagccata gataaaataa aagattttat ttagtctcca gaaaaagggg ggaatgaaag
     1441 accccacctg taggtttggc aagctagctt aagtaacgcc attttgcaag gcatggaaaa
     1501 atacataact gagaatagag aagttcagat caaggtcagg aacagatgga acagggtcga
     1561 ccctagagaa ccatcagatg tttccagggt gccccaagga cctgaaatga ccctgtgcct
     1621 tatttgaact aaccaatcag ttcgcttctc gcttctgttc gcgcgcttct gctccccgag
     1681 ctcaataaaa gagcccacaa cccctcactc ggggcgccag tcctccgatt gactgagtcg
     1741 cccgggtacc cgtgtatcca ataaaccctc ttgcagttgc atccgacttg tggtctcgct
     1801 gttccttggg agggtctcct ctgagtgatt gactacccgt cagcgggggt ctttcatttg
     1861 ggggctcgtc cgggatcggg agacccctgc ccagggacca ccgacccacc accgggaggt
     1921 aagctggctg cctcgcgcgt ttcggtgatg acggtgaaaa cctctgacac atgcagctcc
     1981 cggagacggt cacagcttgt ctgtaagcgg atgccgggag cagacaagcc cgtcagggcg
     2041 cgtcagcggg tgttggcggg tgtcggggcg cagccatgac ccagtcacgt agcgatagcg
     2101 gagtgtagat ccggctgtgg aatgtgtgtc agttagggtg tggaaagtcc ccaggctccc
     2161 cagcaggcag aagtatgcaa agcatgcatc tcaattagtc agcaaccagg tgtggaaagt
     2221 ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag tcagcaacca
     2281 tagtcccgcc cctaactccg cccatcccgc ccctaactcc gcccagttcc gcccattctc
     2341 cgccccatgg ctgactaatt ttttttattt atgcagaggc cgaggccgcc tcggcctctg
     2401 agctattcca gaagtagtga ggaggctttt ttggaggcct aggcttttgc aaaaagctta
     2461 ctggcttaac tatgcggcat cagagcagat tgtactgaga gtgcaccata tgcggtgtga
     2521 aataccgcac agatgcgtaa ggagaaaata ccgcatcagg cgctcttccg cttcctcgct
     2581 cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc actcaaaggc
     2641 ggtaatacgg ttatccacag aatcagggga taacgcagga aagaacatgt gagcaaaagg
     2701 ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg
     2761 cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg
     2821 actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc ctgttccgac
     2881 cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca
     2941 tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt
     3001 gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc
     3061 caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca ggattagcag
     3121 agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact acggctacac
     3181 tagaaggaca gtatttggta tctgcgctct gctgaagcca gttaccttcg gaaaaagagt
     3241 tggtagctct tgatccggca aacaaaccac cgctggtagc ggtggttttt ttgtttgcaa
     3301 gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat cctttgatct tttctacggg
     3361 gtctgacgct cagtggaacg aaaactcacg ttaagggatt ttggtcatga gattatcaaa
     3421 aaggatcttc acctagatcc ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat
     3481 atatgagtaa acttggtctg acagttacca atgcttaatc agtgaggcac ctatctcagc
     3541 gatctgtcta tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga taactacgat
     3601 acgggagggc ttaccatctg gccccagtgc tgcaatgata ccgcgagacc cacgctcacc
     3661 ggctccagat ttatcagcaa taaaccagcc agccggaagg gccgagcgca gaagtggtcc
     3721 tgcaacttta tccgcctcca tccagtctat taattgttgc cgggaagcta gagtaagtag
     3781 ttcgccagtt aatagtttgc gcaacgttgt tgccattgct gcaggcatcg tggtgtcacg
     3841 ctcgtcgttt ggtatggctt cattcagctc cggttcccaa cgatcaaggc gagttacatg
     3901 atcccccatg ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg ttgtcagaag
     3961 taagttggcc gcagtgttat cactcatggt tatggcagca ctgcataatt ctcttactgt
     4021 catgccatcc gtaagatgct tttctgtgac tggtgagtac tcaaccaagt cattctgaga
     4081 atagtgtatg cggcgaccga gttgctcttg cccggcgtca acacgggata ataccgcgcc
     4141 acatagcaga actttaaaag tgctcatcat tggaaaacgt tcttcggggc gaaaactctc
     4201 aaggatctta ccgctgttga gatccagttc gatgtaaccc actcgtgcac ccaactgatc
     4261 ttcagcatct tttactttca ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc
     4321 cgcaaaaaag ggaataaggg cgacacggaa atgttgaata ctcatactct tcctttttca
     4381 atattattga agcatttatc agggttattg tctcatgagc ggatacatat ttgaatgtat
     4441 ttagaaaaat aaacaaatag gggttccgcg cacatttccc cgaaaagtgc cacctgacgt
     4501 ctaagaaacc attattatca tgacattaac ctataaaaat aggcgtatca cgaggccctt
     4561 tcgtcttcaa gaattagctt ggccattgca tacgttgtat ccatatcata atatgtacat
     4621 ttatattggc tcatgtccaa cattaccgcc atgttgacat tgattattga ctagttatta
     4681 atagtaatca attacggggt cattagttca tagcccatat atggagttcc gcgttacata
     4741 acttacggta aatggcccgc ctggctgacc gcccaacgac ccccgcccat tgacgtcaat
     4801 aatgacgtat gttcccatag taacgccaat agggactttc cattgacgtc aatgggtgga
     4861 gtatttacgg taaactgccc acttggcagt acatcaagtg tatcatatgc caagtacgcc
     4921 ccctattgac gtcaatgacg gtaaatggcc cgcctggcat tatgcccagt acatgacctt
     4981 atgggacttt cctacttggc agtacatcta cgtattagtc atcgctatta ccatggtgat
     5041 gcggttttgg cagtacatca atgggcgtgg atagcggttt gactcacggg gatttccaag
     5101 tctccacccc attgacgtca atgggagttt gttttggcac caaaatcaac gggactttcc
     5161 aaaatgtcgt aacaactccg ccccattgac gcaaatgggc ggtaggcgtg tacggtggga
     5221 ggtctatata agcagagctc aataaaagag cccacaaccc ctcactcggc gcgccagtct
     5281 tccgatagac tgcgtcgccc gggtacccgt attcccaata aagcctcttg ctgtttgcat
     5341 ccgaatcgtg gtctcgctgt tccttgggag ggtctcctct gagtgattga ctacccacga
     5401 cgggggtctt tcatttgggg gctcgtccgg gatttggaga cccctgccca gggaccaccg
     5461 acccaccacc gggaggtaag ctggccagca acttatctgt gtctgtccga ttgtctagtg
     5521 tctatgtttg atgttatgcg cctgcgtctg tactagttag ctaactagct ctgtatctgg
     5581 cggacccgtg gtggaactga cgagttctga acacccggcc gcaaccctgg gagacgtccc
     5641 agggactttg ggggccgttt ttgtggcccg acctgaggaa gggagtcgat gtggaatccg
     5701 accccgtcag gatatgtggt tctggtagga gacgagaacc taaaacagtt cccgcctccg
     5761 tctgaatttt tgctttcggt ttggaaccga agccgcgcgt cttgtctgct gcagcgctgc
     5821 agcatcgttc tgtgttgtct ctgtctgact gtgtttctgt atttgtctga aaattagggc
     5881 cagactgtta ccactccctt aagtttgacc ttaggtcact ggaaagatgt cgagcggatc
     5941 gctcacaacc agtcggtaga tgtcaagaag agacgttggg ttaccttctg ctctgcagaa
     6001 tggccaacct ttaacgtcgg atggccgcga gacggcacct ttaaccgaga cctcatcacc
     6061 caggttaaga tcaaggtctt ttcacctggc ccgcatggac acccagacca ggtcccctac
     6121 atcgtgacct gggaagcctt ggcttttgac ccccctccct gggtcaagcc ctttgtacac
     6181 cctaagcctc cgcctcctct tcctccatcc gccccgtctc tcccccttga acctcctcgt
     6241 tcgaccccgc ctcgatcctc cctttatcca gccctcactc cttctctagg cgccggaatt
     6301 gaagatctgg gcaggaagag ggcctatttc ccatgattcc ttcatatttg catatacgat
     6361 acaaggctgt tagagagata attagaatta atttgactgt aaacacaaag atattagtac
     6421 aaaatacgtg acgtagaaag taataatttc ttgggtagtt tgcagtttta aaattatgtt
     6481 ttaaaatgga ctatcatatg cttaccgtaa cttgaaagta tttcgatttc ttggctttat
     6541 atatcttgtg gaaaggacga g
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
