pLVX-EF1α-IRES-mCherry

价格:2000元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-EF1α-IRES-mCherry, pLVX-EF1a-IRES-mCherry, pLVX-EF1alpha-IRES-mCherry
质粒类型: 慢病毒载体;哺乳细胞表达
高拷贝/低拷贝: 高拷贝
启动子: EF1α/ EF1a
克隆方法: 多克隆位点,限制性内切酶
载体大小: 8904 bp
5' 测序引物及序列: EF1a Forward: TCAAGCCTCAGACAGTGGTTC
3' 测序引物及序列: IRES-R: CCTCACATTGCCAAAAGACG
载体标签: 无标签
载体抗性: 氨苄青霉素
筛选标记: mCherry红色荧光蛋白
克隆菌株: Stbl3  E.coli
备注: 含有IRES元件;目的基因与mCherry基因共转录,独立翻译。
产品目录号: 631987
稳定性: 稳表达
组成型: 组成型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

pLVX-EF1α-IRES-mCherry载体图谱



pLVX-EF1α-IRES-mCherry多克隆位点

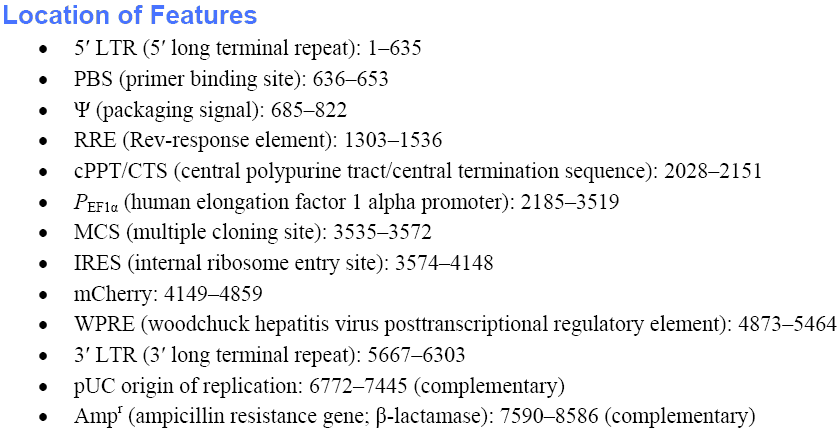

pLVX-EF1α-IRES-mCherry载体特征

载体简介

载体序列

LOCUS       pLVX-EF1a-IRES-mCherry   8904 bp    DNA   circular            12-FEB-2010
COMMENT     Created by Clontech Laboratories Inc.
COMMENT     Cat. No. 631987
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     LTR             1..635
                     /label=5'\LTR
     misc_binding    636..653
                     /label=PBS
     misc_feature    685..822
                     /label=Packaging\signal
     misc_binding    1303..1536
                     /label=RRE
     misc_feature    2028..2151
                     /label=cPPT/CTS\(DNA\flap)
     misc_feature    3535..3572
                     /label=MCS
     misc_feature    3574..4148
                     /label=IRES
     misc_feature    4873..5464
                     /label=WPRE
     LTR             5667..6303
                     /label=3'\LTR
     CDS             4149..4859
                     /label=mCherry
     rep_origin      complement(6772..7445)
                     /label=pUC\origin
     CDS             complement(7590..8586)
                     /label=Amp(R)
     promoter        2185..3519
                     /label=EF1a\Promoter
BASE COUNT     2209 a      2201 c      2385 g      2109 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga attacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgatgagtaa ttcatacaaa aggactcgcc cctgccttgg
     2221 ggaatcccag ggaccgtcgt taaactccca ctaacgtaga acccagagat cgctgcgttc
     2281 ccgccccctc acccgcccgc tctcgtcatc actgaggtgg agaagagcat gcgtgaggct
     2341 ccggtgcccg tcagtgggca gagcgcacat cgcccacagt ccccgagaag ttggggggag
     2401 gggtcggcaa ttgaaccggt gcctagagaa ggtggcgcgg ggtaaactgg gaaagtgatg
     2461 tcgtgtactg gctccgcctt tttcccgagg gtgggggaga accgtatata agtgcagtag
     2521 tcgccgtgaa cgttcttttt cgcaacgggt ttgccgccag aacacaggta agtgccgtgt
     2581 gtggttcccg cgggcctggc ctctttacgg gttatggccc ttgcgtgcct tgaattactt
     2641 ccacgcccct ggctgcagta cgtgattctt gatcccgagc ttcgggttgg aagtgggtgg
     2701 gagagttcga ggccttgcgc ttaaggagcc ccttcgcctc gtgcttgagt tgaggcctgg
     2761 cttgggcgct ggggccgccg cgtgcgaatc tggtggcacc ttcgcgcctg tctcgctgct
     2821 ttcgataagt ctctagccat ttaaaatttt tgatgacctg ctgcgacgct ttttttctgg
     2881 caagatagtc ttgtaaatgc gggccaagat ctgcacactg gtatttcggt ttttggggcc
     2941 gcgggcggcg acggggcccg tgcgtcccag cgcacatgtt cggcgaggcg gggcctgcga
     3001 gcgcggccac cgagaatcgg acgggggtag tctcaagctg gccggcctgc tctggtgcct
     3061 ggcctcgcgc cgccgtgtat cgccccgccc tgggcggcaa ggctggcccg gtcggcacca
     3121 gttgcgtgag cggaaagatg gccgcttccc ggccctgctg cagggagctc aaaatggagg
     3181 acgcggcgct cgggagagcg ggcgggtgag tcacccacac aaaggaaaag ggcctttccg
     3241 tcctcagccg tcgcttcatg tgactccacg gagtaccggg cgccgtccag gcacctcgat
     3301 tagttctcga gcttttggag tacgtcgtct ttaggttggg gggaggggtt ttatgcgatg
     3361 gagtttcccc acactgagtg ggtggagact gaagttaggc cagcttggca cttgatgtaa
     3421 ttctccttgg aatttgccct ttttgagttt ggatcttggt tcattctcaa gcctcagaca
     3481 gtggttcaaa gtttttttct tccatttcag gtgtcgtgag gatctatttc cggtgaattc
     3541 ctcgagacta gttctagagc ggccgcggat cccgcccctc tccctccccc ccccctaacg
     3601 ttactggccg aagccgcttg gaataaggcc ggtgtgcgtt tgtctatatg ttattttcca
     3661 ccatattgcc gtcttttggc aatgtgaggg cccggaaacc tggccctgtc ttcttgacga
     3721 gcattcctag gggtctttcc cctctcgcca aaggaatgca aggtctgttg aatgtcgtga
     3781 aggaagcagt tcctctggaa gcttcttgaa gacaaacaac gtctgtagcg accctttgca
     3841 ggcagcggaa ccccccacct ggcgacaggt gcctctgcgg ccaaaagcca cgtgtataag
     3901 atacacctgc aaaggcggca caaccccagt gccacgttgt gagttggata gttgtggaaa
     3961 gagtcaaatg gctcacctca agcgtattca acaaggggct gaaggatgcc cagaaggtac
     4021 cccattgtat gggatctgat ctggggcctc ggtgcacatg ctttacatgt gtttagtcga
     4081 ggttaaaaaa cgtctaggcc ccccgaacca cggggacgtg gttttccttt gaaaaacacg
     4141 atgataatat ggtgagcaag ggcgaggagg ataacatggc catcatcaag gagttcatgc
     4201 gcttcaaggt gcacatggag ggctccgtga acggccacga gttcgagatc gagggcgagg
     4261 gcgagggccg cccctacgag ggcacccaga ccgccaagct gaaggtgacc aagggtggcc
     4321 ccctgccctt cgcctgggac atcctgtccc ctcagttcat gtacggctcc aaggcctacg
     4381 tgaagcaccc cgccgacatc cccgactact tgaagctgtc cttccccgag ggcttcaagt
     4441 gggagcgcgt gatgaacttc gaggacggcg gcgtggtgac cgtgacccag gactcctccc
     4501 tgcaggacgg cgagttcatc tacaaggtga agctgcgcgg caccaacttc ccctccgacg
     4561 gccccgtaat gcagaagaag accatgggct gggaggcctc ctccgagcgg atgtaccccg
     4621 aggacggcgc cctgaagggc gagatcaagc agaggctgaa gctgaaggac ggcggccact
     4681 acgacgctga ggtcaagacc acctacaagg ccaagaagcc cgtgcagctg cccggcgcct
     4741 acaacgtcaa catcaagttg gacatcacct cccacaacga ggactacacc atcgtggaac
     4801 agtacgaacg cgccgagggc cgccactcca ccggcggcat ggacgagctg tacaagtgaa
     4861 cgcgtctgga acaatcaacc tctggattac aaaatttgtg aaagattgac tggtattctt
     4921 aactatgttg ctccttttac gctatgtgga tacgctgctt taatgccttt gtatcatgct
     4981 attgcttccc gtatggcttt cattttctcc tccttgtata aatcctggtt gctgtctctt
     5041 tatgaggagt tgtggcccgt tgtcaggcaa cgtggcgtgg tgtgcactgt gtttgctgac
     5101 gcaaccccca ctggttgggg cattgccacc acctgtcagc tcctttccgg gactttcgct
     5161 ttccccctcc ctattgccac ggcggaactc atcgccgcct gccttgcccg ctgctggaca
     5221 ggggctcggc tgttgggcac tgacaattcc gtggtgttgt cggggaagct gacgtccttt
     5281 ccatggctgc tcgcctgtgt tgccacctgg attctgcgcg ggacgtcctt ctgctacgtc
     5341 ccttcggccc tcaatccagc ggaccttcct tcccgcggcc tgctgccggc tctgcggcct
     5401 cttccgcgtc ttcgccttcg ccctcagacg agtcggatct ccctttgggc cgcctccccg
     5461 cctggaatta attctgcagt cgagacctag aaaaacatgg agcaatcaca agtagcaata
     5521 cagcagctac caatgctgat tgtgcctggc tagaagcaca agaggaggag gaggtgggtt
     5581 ttccagtcac acctcaggta cctttaagac caatgactta caaggcagct gtagatctta
     5641 gccacttttt aaaagaaaag aggggactgg aagggctaat tcactcccaa cgaagacaag
     5701 atatccttga tctgtggatc taccacacac aaggctactt ccctgattag cagaactaca
     5761 caccagggcc aggggtcaga tatccactga cctttggatg gtgctacaag ctagtaccag
     5821 ttgagccaga taaggtagaa gaggccaata aaggagagaa caccagcttg ttacaccctg
     5881 tgagcctgca tgggatggat gacccggaga gagaagtgtt agagtggagg tttgacagcc
     5941 gcctagcatt tcatcacgtg gcccgagagc tgcatccgga gtacttcaag aactgctgat
     6001 atcgagcttg ctacaaggga ctttccgctg gggactttcc agggaggcgt ggcctgggcg
     6061 ggactgggga gtggcgagcc ctcagatcct gcatataagc agctgctttt tgcctgtact
     6121 gggtctctct ggttagacca gatctgagcc tgggagctct ctggctaact agggaaccca
     6181 ctgcttaagc ctcaataaag cttgccttga gtgcttcaag tagtgtgtgc ccgtctgttg
     6241 tgtgactctg gtaactagag atccctcaga cccttttagt cagtgtggaa aatctctagc
     6301 agtagtagtt catgtcatct tattattcag tatttataac ttgcaaagaa atgaatatca
     6361 gagagtgaga ggccttgaca ttgctagcgt ttaccgtcga cctctagcta gagcttggcg
     6421 taatcatggt catagctgtt tcctgtgtga aattgttatc cgctcacaat tccacacaac
     6481 atacgagccg gaagcataaa gtgtaaagcc tggggtgcct aatgagtgag ctaactcaca
     6541 ttaattgcgt tgcgctcact gcccgctttc cagtcgggaa acctgtcgtg ccagctgcat
     6601 taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc
     6661 tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca
     6721 aaggcggtaa tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca
     6781 aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg
     6841 ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg
     6901 acaggactat aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt
     6961 ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt
     7021 tctcatagct cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc
     7081 tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt
     7141 gagtccaacc cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt
     7201 agcagagcga ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc
     7261 tacactagaa gaacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa
     7321 agagttggta gctcttgatc cggcaaacaa accaccgctg gtagcggtgg tttttttgtt
     7381 tgcaagcagc agattacgcg cagaaaaaaa ggatctcaag aagatccttt gatcttttct
     7441 acggggtctg acgctcagtg gaacgaaaac tcacgttaag ggattttggt catgagatta
     7501 tcaaaaagga tcttcaccta gatcctttta aattaaaaat gaagttttaa atcaatctaa
     7561 agtatatatg agtaaacttg gtctgacagt taccaatgct taatcagtga ggcacctatc
     7621 tcagcgatct gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact
     7681 acgatacggg agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc
     7741 tcaccggctc cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt
     7801 ggtcctgcaa ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta
     7861 agtagttcgc cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg
     7921 tcacgctcgt cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt
     7981 acatgatccc ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc
     8041 agaagtaagt tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt
     8101 actgtcatgc catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc
     8161 tgagaatagt gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc
     8221 gcgccacata gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa
     8281 ctctcaagga tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac
     8341 tgatcttcag catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa
     8401 aatgccgcaa aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt
     8461 tttcaatatt attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa
     8521 tgtatttaga aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccacct
     8581 gacgtcgacg gatcgggaga tcaacttgtt tattgcagct tataatggtt acaaataaag
     8641 caatagcatc acaaatttca caaataaagc atttttttca ctgcattcta gttgtggttt
     8701 gtccaaactc atcaatgtat cttatcatgt ctggatcaac tggataactc aagctaacca
     8761 aaatcatccc aaacttccca ccccataccc tattaccact gccaattacc tgtggtttca
     8821 tttactctaa acctgtgatt cctctgaatt attttcattt taaagaaatt gtatttgtta
     8881 aatatgtact acaaacttag tagt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
