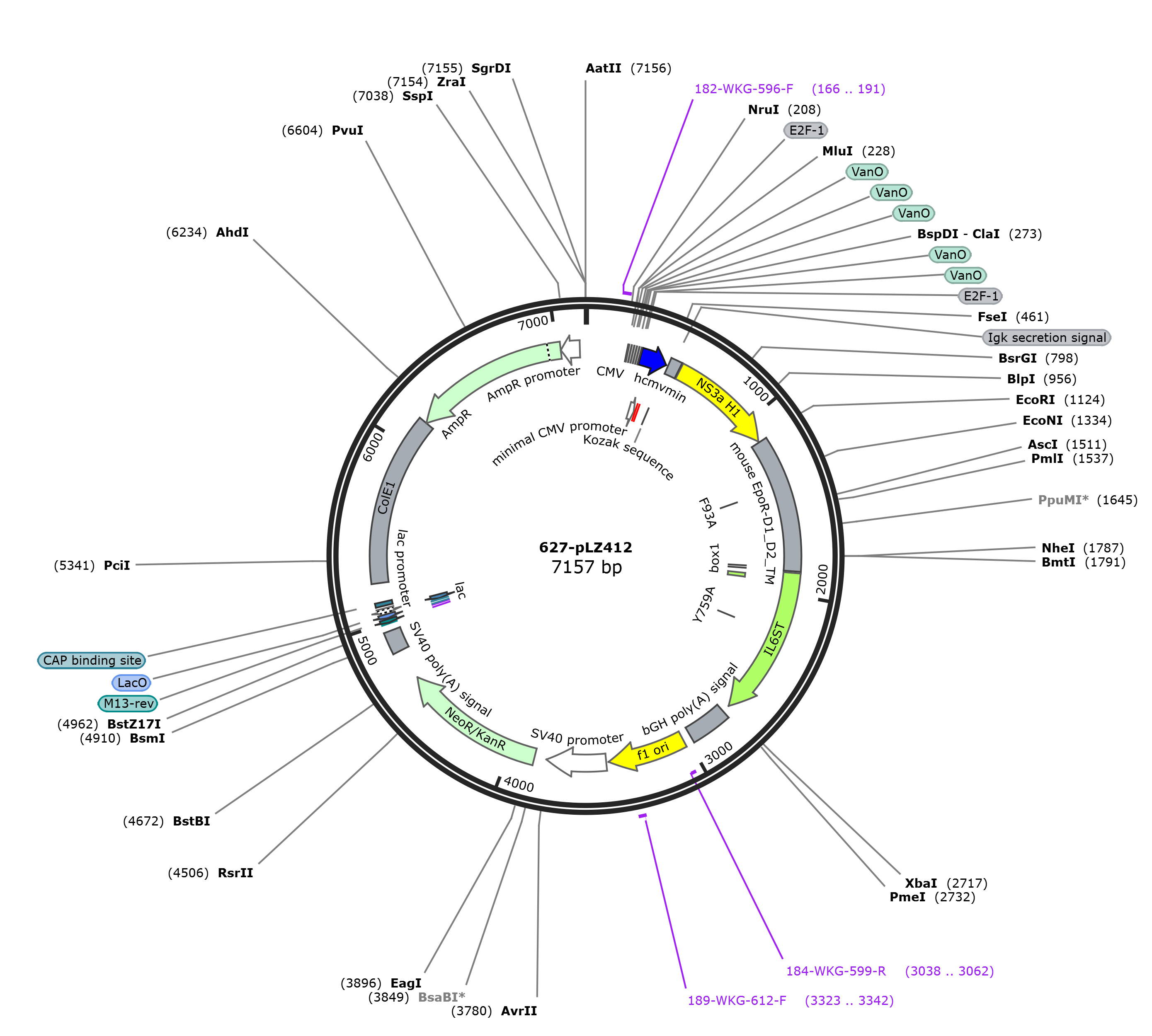

pLZ412

LOCUS       pLZ412     7157 bp DNA     circular SYN 10-DEC-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7157)
  AUTHORS   Trial User
  TITLE     Direct Submission
  JOURNAL   Exported Jul 20, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7157
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     primer_bind     166..191
                     /label=182-WKG-596-F
     misc_feature    228
                     /label=E2F-1
     misc_feature    232
                     /label=CMV
     misc_feature    234..245
                     /label=VanO
                     /label=nonstandard type:  operator
     misc_feature    248..259
                     /label=VanO
                     /label=nonstandard type:  operator
     misc_feature    262..273
                     /label=VanO
                     /label=nonstandard type:  operator
     misc_feature    276..287
                     /label=VanO
                     /label=nonstandard type:  operator
     misc_feature    290..301
                     /label=VanO
                     /label=nonstandard type:  operator
     misc_feature    302..306
                     /label=E2F-1
     misc_feature    307..455
                     /label=hcmvmin
     promoter        329..367
                     /label=minimal CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     misc_feature    377..391
                     /label=New Feature
     regulatory      461..470
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     misc_feature    467..529
                     /label=Igk secretion signal
     CDS             536..1123
                     /codon_start=1
                     /label=NS3a H1
                     /translation="KKKGSVVIVGRINLSGDTAYSQQTRGLEGCQETSQTGRDKNQVEG
                     EVQVVSTATQSFLATSINGVLWTVYHGAGTRTIASPKGPVTQMYTNVDKDLVGWQAPQG
                     SRSLTPCTCGSSDLYLVTRHADVIPVRRRGDSRGSLLSPRPISYLKGSSGGPLLCPAGH
                     AVGIFRAAVSTRGVAKAVDFIPVESLETTMRSP"
     misc_feature    1130..1873
                     /label=mouse EpoR-D1_D2_TM
                     /note="mouse EpoR-D1_D2_TM"
     misc_feature    1403..1405
                     /label=F93A
                     /note="F93A"
     misc_feature    1857..1873
                     /label=EpoR-D1_D2_TM
     CDS             1883..2711
                     /codon_start=1
                     /label=IL6ST
                     /translation="NKRDLIKKHIWPNVPDPSKSHIAQWSPHTPPRHNFNSKDQMYSDG
                     NFTDVSVVEIEANDKKPFPEDLKSLDLFKKEKINTEGHSSGIGGSSCMSSSRPSISSSD
                     ENESSQNTSSTVQASTVVHSGYRHQVPSVQVFSRSESTQPLLDSEERPEDLQLVDHVDG
                     GDGIFPRQQYFKQNCSQHESSPDISHFERSKQVSSVNEEDFVRLKQQISDHISQSCGSG
                     QMKMFQEVSAADAFGPGTEGQVERFETVGMEAATDEGMPKSYLPQTVRQGGYMP"
     misc_feature    1910..1936
                     /label=box1
     misc_feature    2234..2236
                     /label=Y759A
     polyA_signal    2754..2978
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      3024..3452
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3038..3062)
                     /label=184-WKG-599-R
     primer_bind     3323..3342
                     /label=189-WKG-612-F
     promoter        3466..3795
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     CDS             3862..4656
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4830..4951
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4996..5016)
                     /label=M13-rev
     primer_bind     complement(5000..5016)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_binding    complement(5022..5044)
                     /label=LacO
     protein_bind    5024..5040
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5048..5078)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     promoter        complement(5049..5078)
                     /label=lac
     protein_bind    5093..5114
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     misc_feature    5220..6160
                     /label=ColE1
                     /note="ColE1"
     CDS             complement(6161..7021)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7022..7126)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgtattggat
      241 ccaatgcatt ggatccaatg gattggatcc aatcgattgg atccaattga ttggatccaa
      301 tctagctcga gctcggtatc cgggtcgagg taggcgtgta cggtgggagg cctatataag
      361 cagagctcgt ttagtgaacc gtcagatcgc ctggagacgc catccacgct gttttgacct
      421 ccatagaaga caccgggacc gatccagcct ccgcgggccg gccaccatgg agaccgatac
      481 cttattactg tgggtgcttc ttctgtgggt tcccggtagc accggagacg gatccaagaa
      541 gaagggcagc gtggtgatcg tgggcagaat caacctgagc ggcgacaccg cctacagcca
      601 gcagaccaga ggcctggagg gctgccagga gaccagccag accggcagag acaagaacca
      661 ggtggagggc gaggtgcagg tggtgagcac cgccacccag agcttcctgg ccaccagcat
      721 caacggcgtg ctgtggaccg tgtaccacgg cgccggcacc agaaccatcg ccagccccaa
      781 gggccccgtg acccagatgt acacgaacgt ggacaaggac ttagtgggct ggcaggcccc
      841 ccaaggcagc agaagcctga ccccctgcac ctgcggcagc agcgacctgt acctggtgac
      901 cagacacgcc gacgtgatcc ccgtgagaag aagaggcgac agcagaggca gcctgctgag
      961 ccccagaccc atcagctatc tgaaaggctc aagcggcggc cccctgttgt gtcccgccgg
     1021 ccatgccgtg ggcatcttca gagccgccgt gagcaccaga ggcgtggcca aggccgtgga
     1081 cttcatcccc gtggagagcc tggagaccac catgagaagc cccgaattcg caccttcacc
     1141 cagcctcccg gaccccaagt ttgagagcaa agcggccctg ctggcatccc ggggctccga
     1201 agaacttctg tgcttcaccc aacgcttgga agacttggtg tgtttctggg aggaagcggc
     1261 gagctccggg atggacttca actacagctt ctcataccag ctcgagggtg agtcacgaaa
     1321 gtcatgtagc ctgcaccagg ctcccaccgt ccgcggctcc gtgcgtttct ggtgttcact
     1381 gccaacagcg gacacatcga gtgctgtgcc gctggagctg caggtgacgg aggcgtccgg
     1441 ttctcctcgc tatcaccgca tcatccatat caatgaagta gtgctcctgg acgcccccgc
     1501 ggggctgctg gcgcgccggg cagaagaggg cagccacgtg gtgctgcgct ggctgccacc
     1561 tcctggagca cctatgacca cccacatccg atatgaagtg gacgtgtcgg caggcaaccg
     1621 ggcaggaggg acacaaaggg tggaggtcct ggaaggccgc actgagtgtg ttctgagcaa
     1681 cctgcggggc gggacgcgct acaccttcgc tgttcgagcg cgcatggccg agccgagctt
     1741 cagcggattc tggagtgcct ggtctgagcc cgcgtcacta ctgaccgcta gcgacctgga
     1801 ccctctcatc ttgacgctgt ctctcattct ggtcctcatc tcgttgttgc tgacggttct
     1861 ggccctgctg tccgcagcag caaataagcg agacctaatt aaaaaacaca tctggcctaa
     1921 tgttccagat ccttcaaaga gtcatattgc ccagtggtca cctcacactc ctccaaggca
     1981 caattttaat tcaaaagatc aaatgtattc agatggcaat ttcactgatg taagtgttgt
     2041 ggaaatagaa gcaaatgaca aaaagccttt tccagaagat ctgaaatcat tggacctgtt
     2101 caaaaaggaa aaaattaata ctgaaggaca cagcagtggt attggggggt cttcatgcat
     2161 gtcatcttct aggccaagca tttctagcag tgatgaaaat gaatcttcac aaaacacttc
     2221 gagcactgtc caggcttcta ccgtggtaca cagtggctac agacaccaag ttccgtcagt
     2281 ccaagtcttc tcaagatccg agtctaccca gcccttgtta gattcagagg agcggccaga
     2341 agatctacaa ttagtagatc atgtagatgg cggtgatggt atttttccca ggcaacagta
     2401 cttcaaacag aactgcagtc agcatgaatc cagtccagat atttcacatt ttgaaaggtc
     2461 aaagcaagtt tcatcagtca atgaggaaga ttttgttaga cttaaacagc agatttcaga
     2521 tcatatttca caatcctgtg gatctgggca aatgaaaatg tttcaggaag tttctgcagc
     2581 agatgctttt ggtccaggta ctgagggaca agtagaaaga tttgaaacag ttggcatgga
     2641 ggctgcgact gatgaaggca tgcctaaaag ttacttacca cagactgtac ggcaaggcgg
     2701 ctacatgcct cagtaatcta gagggcccgt ttaaacccgc tgatcagcct cgactgtgcc
     2761 ttctagttgc cagccatctg ttgtttgccc ctcccccgtg ccttccttga ccctggaagg
     2821 tgccactccc actgtccttt cctaataaaa tgaggaaatt gcatcgcatt gtctgagtag
     2881 gtgtcattct attctggggg gtggggtggg gcaggacagc aagggggagg attgggaaga
     2941 caatagcagg catgctgggg atgcggtggg ctctatggct tctgaggcgg aaagaaccag
     3001 ctggggctct agggggtatc cccacgcgcc ctgtagcggc gcattaagcg cggcgggtgt
     3061 ggtggttacg cgcagcgtga ccgctacact tgccagcgcc ctagcgcccg ctcctttcgc
     3121 tttcttccct tcctttctcg ccacgttcgc cggctttccc cgtcaagctc taaatcgggg
     3181 gctcccttta gggttccgat ttagtgcttt acggcacctc gaccccaaaa aacttgatta
     3241 gggtgatggt tcacgtagtg ggccatcgcc ctgatagacg gtttttcgcc ctttgacgtt
     3301 ggagtccacg ttctttaata gtggactctt gttccaaact ggaacaacac tcaaccctat
     3361 ctcggtctat tcttttgatt tataagggat tttgccgatt tcggcctatt ggttaaaaaa
     3421 tgagctgatt taacaaaaat ttaacgcgaa ttaattctgt ggaatgtgtg tcagttaggg
     3481 tgtggaaagt ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag
     3541 tcagcaacca ggtgtggaaa gtccccaggc tccccagcag gcagaagtat gcaaagcatg
     3601 catctcaatt agtcagcaac catagtcccg cccctaactc cgcccatccc gcccctaact
     3661 ccgcccagtt ccgcccattc tccgccccat ggctgactaa ttttttttat ttatgcagag
     3721 gccgaggccg cctctgcctc tgagctattc cagaagtagt gaggaggctt ttttggaggc
     3781 ctaggctttt gcaaaaagct cccgggagct tgtatatcca ttttcggatc tgatcaagag
     3841 acaggatgag gatcgtttcg catgattgaa caagatggat tgcacgcagg ttctccggcc
     3901 gcttgggtgg agaggctatt cggctatgac tgggcacaac agacaatcgg ctgctctgat
     3961 gccgccgtgt tccggctgtc agcgcagggg cgcccggttc tttttgtcaa gaccgacctg
     4021 tccggtgccc tgaatgaact gcaggacgag gcagcgcggc tatcgtggct ggccacgacg
     4081 ggcgttcctt gcgcagctgt gctcgacgtt gtcactgaag cgggaaggga ctggctgcta
     4141 ttgggcgaag tgccggggca ggatctcctg tcatctcacc ttgctcctgc cgagaaagta
     4201 tccatcatgg ctgatgcaat gcggcggctg catacgcttg atccggctac ctgcccattc
     4261 gaccaccaag cgaaacatcg catcgagcga gcacgtactc ggatggaagc cggtcttgtc
     4321 gatcaggatg atctggacga agagcatcag gggctcgcgc cagccgaact gttcgccagg
     4381 ctcaaggcgc gcatgcccga cggcgaggat ctcgtcgtga cccatggcga tgcctgcttg
     4441 ccgaatatca tggtggaaaa tggccgcttt tctggattca tcgactgtgg ccggctgggt
     4501 gtggcggacc gctatcagga catagcgttg gctacccgtg atattgctga agagcttggc
     4561 ggcgaatggg ctgaccgctt cctcgtgctt tacggtatcg ccgctcccga ttcgcagcgc
     4621 atcgccttct atcgccttct tgacgagttc ttctgagcgg gactctgggg ttcgaaatga
     4681 ccgaccaagc gacgcccaac ctgccatcac gagatttcga ttccaccgcc gccttctatg
     4741 aaaggttggg cttcggaatc gttttccggg acgccggctg gatgatcctc cagcgcgggg
     4801 atctcatgct ggagttcttc gcccacccca acttgtttat tgcagcttat aatggttaca
     4861 aataaagcaa tagcatcaca aatttcacaa ataaagcatt tttttcactg cattctagtt
     4921 gtggtttgtc caaactcatc aatgtatctt atcatgtctg tataccgtcg acctctagct
     4981 agagcttggc gtaatcatgg tcatagctgt ttcctgtgtg aaattgttat ccgctcacaa
     5041 ttccacacaa catacgagcc ggaagcataa agtgtaaagc ctggggtgcc taatgagtga
     5101 gctaactcac attaattgcg ttgcgctcac tgcccgcttt ccagtcggga aacctgtcgt
     5161 gccagctgca ttaatgaatc ggccaacgcg cggggagagg cggtttgcgt attgggcgct
     5221 cttccgcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat
     5281 cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga
     5341 acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt
     5401 ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt
     5461 ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc
     5521 gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa
     5581 gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct
     5641 ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta
     5701 actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg
     5761 gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc
     5821 ctaactacgg ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta
     5881 ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtg
     5941 gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt
     6001 tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg
     6061 tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta
     6121 aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg
     6181 aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg
     6241 tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc
     6301 gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg
     6361 agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg
     6421 aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag
     6481 gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat
     6541 caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc
     6601 cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc
     6661 ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa
     6721 ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac
     6781 gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt
     6841 cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc
     6901 gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa
     6961 caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca
     7021 tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat
     7081 acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa
     7141 aagtgccacc tgacgtc
//
