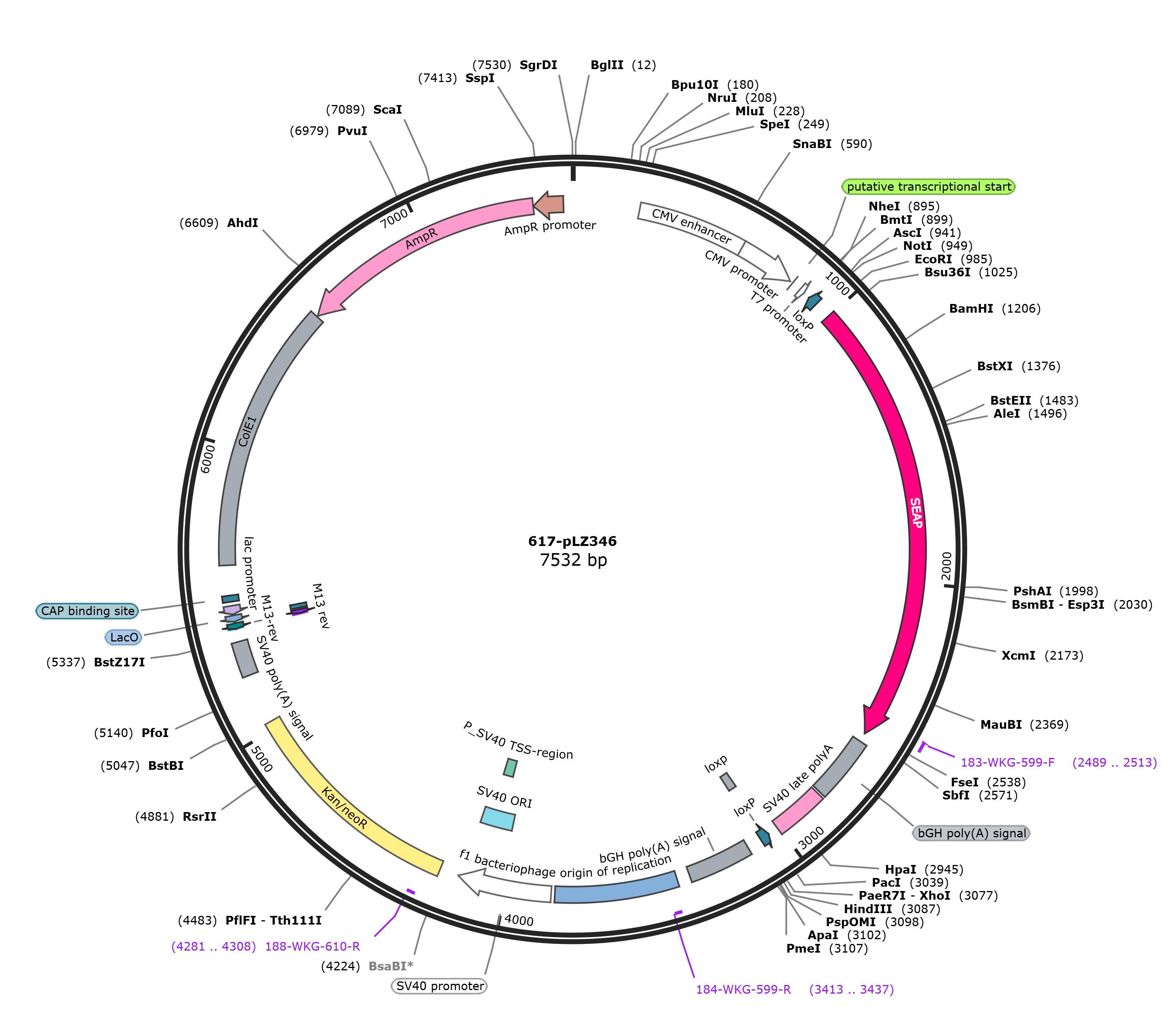

pLZ346

LOCUS       pLZ346              7532 bp DNA     circular SYN 14-JAN-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7532)
  AUTHORS   Trial User
  TITLE     Direct Submission
  JOURNAL   Exported Jul 19, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7532
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     769..789
                     /label=oMHS-CMV-F
     misc_feature    829
                     /label=putative transcriptional start
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     protein_bind    complement(905..938)
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (ATGTATGC) (Shaw et al., 2021)."
     misc_feature    998..2557
                     /label=SEAP
     primer_bind     2489..2513
                     /label=183-WKG-599-F
     polyA_signal    2589..2813
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     terminator      2822..3006
                     /label=SV40 late polyA
     misc_feature    3043..3076
                     /label=loxp
     protein_bind    complement(3043..3076)
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (ATGTATGC) (Shaw et al., 2021)."
     polyA_signal    3129..3353
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      3399..3827
                     /label=f1 bacteriophage origin of replication
                     /label=f1 bacteriophage origin of replication; arrow _f1
                     ori
     primer_bind     complement(3413..3437)
                     /label=184-WKG-599-R
     promoter        3841..4170
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      4021..4156
                     /label=SV40 ORI
     misc_feature    4073..4122
                     /label=P_SV40 TSS-region
     misc_feature    4237..5028
                     /label=Kan/neoR
                     /label=nonstandard type: resistance
     primer_bind     complement(4281..4308)
                     /label=188-WKG-610-R
     polyA_signal    5205..5326
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(5371..5391)
                     /label=M13-rev
     primer_bind     complement(5375..5391)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_binding    complement(5397..5419)
                     /label=LacO
     protein_bind    5399..5415
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5423..5453)
                     /label=lac promoter
     protein_bind    5468..5489
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     misc_feature    5595..6535
                     /label=ColE1
                     /note="ColE1"
     misc_feature    complement(6539..7396)
                     /label=AmpR
                     /label=nonstandard type: resistance
     promoter        complement(7397..7501)
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gcttataact tcgtatagca tacattatac gaagttatcg gcgcgccgcg gccgcgatca
      961 attcggtacc gaagttccta ttccgaattc gcccaccatg ctgctgctgc tgctgctgct
     1021 gggcctgagg ctacagctct ccctgggcat catcccagtt gaggaggaga acccggactt
     1081 ctggaaccgc gaggcagccg aggccctggg tgccgccaag aagctgcagc ctgcacagac
     1141 agccgccaag aacctcatca tcttcctggg cgatgggatg ggggtgtcta cggtgacagc
     1201 tgccaggatc ctaaaagggc agaagaagga caaactgggg cctgagatac ccctggccat
     1261 ggaccgcttc ccatatgtgg ctctgtccaa gacatacaat gtagacaaac atgtgccaga
     1321 cagtggagcc acagccacgg cctacctgtg cggggtcaag ggcaacttcc agaccattgg
     1381 cttgagtgca gccgcccgct ttaaccagtg caacacgaca cgcggcaacg aggtcatctc
     1441 cgtgatgaat cgggccaaga aagcagggaa gtcagtggga gtggtaacca ccacacgagt
     1501 gcagcacgcc tcgccagccg gcacctacgc ccacacggtg aaccgcaact ggtactcgga
     1561 cgccgacgtg cctgcctcgg cccgccagga ggggtgccag gacatcgcta cgcagctcat
     1621 ctccaacatg gacattgacg tgatcctagg tggaggccga aagtacatgt ttcgcatggg
     1681 aaccccagac cctgagtacc cagatgacta cagccaaggt gggaccaggc tggacgggaa
     1741 gaatctggtg caggaatggc tggcgaagcg ccagggtgcc cggtatgtgt ggaaccgcac
     1801 tgagctcatg caggcttccc tggacccgtc tgtgacccat ctcatgggtc tctttgagcc
     1861 tggagacatg aaatacgaga tccaccgaga ctccacactg gacccctccc tgatggagat
     1921 gacagaggct gccctgcgcc tgctgagcag gaacccccgc ggcttcttcc tcttcgtgga
     1981 gggtggtcgc atcgaccatg gtcatcatga aagcagggct taccgggcac tgactgagac
     2041 gatcatgttc gacgacgcca ttgagagggc gggccagctc accagcgagg aggacacgct
     2101 gagcctcgtc actgccgacc actcccacgt cttctccttc ggaggctacc ccctgcgagg
     2161 gagctccatc ttcgggctgg cccctggcaa ggcccgggac aggaaggcct acacggtcct
     2221 cctatacgga aacggtccag gctatgtgct caaggacggc gcccggccgg atgttaccga
     2281 gagcgagagc gggagccccg agtatcggca gcagtcagca gtgcccctgg acgaagagac
     2341 ccacgcaggc gaggacgtgg cggtgttcgc gcgcggcccg caggcgcacc tggttcacgg
     2401 cgtgcaggag cagaccttca tagcgcacgt catggccttc gccgcctgcc tggagcccta
     2461 caccgcctgc gacctggcgc cccccgccgg caccaccgac gccgcgcacc cgggttactc
     2521 tagagtcggg gcggccggcc gcttcgagca gacatgatct agaggcctgc agggctgatc
     2581 agcctcgact gtgccttcta gttgccagcc atctgttgtt tgcccctccc ccgtgccttc
     2641 cttgaccctg gaaggtgcca ctcccactgt cctttcctaa taaaatgagg aaattgcatc
     2701 gcattgtctg agtaggtgtc attctattct ggggggtggg gtggggcagg acagcaaggg
     2761 ggaggattgg gaagacaata gcaggcatgc tggggatgcg gtgggctcta tggcttctga
     2821 ggataagata cattgatgag tttggacaaa ccacaactag aatgcagtga aaaaaatgct
     2881 ttatttgtga aatttgtgat gctattgctt tatttgtaac cattataagc tgcaataaac
     2941 aagttaacaa caacaattgc attcatttta tgtttcaggt tcagggggag gtgtgggagg
     3001 ttttttaaag cgcttggtac cgtctttcca gtggttaatt aaataacttc gtatagcata
     3061 cattatacga agttatctcg agctagaagc ttctagaggg cccgtttaaa cccgctgatc
     3121 agcctcgact gtgccttcta gttgccagcc atctgttgtt tgcccctccc ccgtgccttc
     3181 cttgaccctg gaaggtgcca ctcccactgt cctttcctaa taaaatgagg aaattgcatc
     3241 gcattgtctg agtaggtgtc attctattct ggggggtggg gtggggcagg acagcaaggg
     3301 ggaggattgg gaagacaata gcaggcatgc tggggatgcg gtgggctcta tggcttctga
     3361 ggcggaaaga accagctggg gctctagggg gtatccccac gcgccctgta gcggcgcatt
     3421 aagcgcggcg ggtgtggtgg ttacgcgcag cgtgaccgct acacttgcca gcgccctagc
     3481 gcccgctcct ttcgctttct tcccttcctt tctcgccacg ttcgccggct ttccccgtca
     3541 agctctaaat cgggggctcc ctttagggtt ccgatttagt gctttacggc acctcgaccc
     3601 caaaaaactt gattagggtg atggttcacg tagtgggcca tcgccctgat agacggtttt
     3661 tcgccctttg acgttggagt ccacgttctt taatagtgga ctcttgttcc aaactggaac
     3721 aacactcaac cctatctcgg tctattcttt tgatttataa gggattttgc cgatttcggc
     3781 ctattggtta aaaaatgagc tgatttaaca aaaatttaac gcgaattaat tctgtggaat
     3841 gtgtgtcagt tagggtgtgg aaagtcccca ggctccccag caggcagaag tatgcaaagc
     3901 atgcatctca attagtcagc aaccaggtgt ggaaagtccc caggctcccc agcaggcaga
     3961 agtatgcaaa gcatgcatct caattagtca gcaaccatag tcccgcccct aactccgccc
     4021 atcccgcccc taactccgcc cagttccgcc cattctccgc cccatggctg actaattttt
     4081 tttatttatg cagaggccga ggccgcctct gcctctgagc tattccagaa gtagtgagga
     4141 ggcttttttg gaggcctagg cttttgcaaa aagctcccgg gagcttgtat atccattttc
     4201 ggatctgatc aagagacagg atgaggatcg tttcgcatga ttgaacaaga tggattgcac
     4261 gcaggttctc cggccgcttg ggtggagagg ctattcggct atgactgggc acaacagaca
     4321 atcggctgct ctgatgccgc cgtgttccgg ctgtcagcgc aggggcgccc ggttcttttt
     4381 gtcaagaccg acctgtccgg tgccctgaat gaactgcagg acgaggcagc gcggctatcg
     4441 tggctggcca cgacgggcgt tccttgcgca gctgtgctcg acgttgtcac tgaagcggga
     4501 agggactggc tgctattggg cgaagtgccg gggcaggatc tcctgtcatc tcaccttgct
     4561 cctgccgaga aagtatccat catggctgat gcaatgcggc ggctgcatac gcttgatccg
     4621 gctacctgcc cattcgacca ccaagcgaaa catcgcatcg agcgagcacg tactcggatg
     4681 gaagccggtc ttgtcgatca ggatgatctg gacgaagagc atcaggggct cgcgccagcc
     4741 gaactgttcg ccaggctcaa ggcgcgcatg cccgacggcg aggatctcgt cgtgacccat
     4801 ggcgatgcct gcttgccgaa tatcatggtg gaaaatggcc gcttttctgg attcatcgac
     4861 tgtggccggc tgggtgtggc ggaccgctat caggacatag cgttggctac ccgtgatatt
     4921 gctgaagagc ttggcggcga atgggctgac cgcttcctcg tgctttacgg tatcgccgct
     4981 cccgattcgc agcgcatcgc cttctatcgc cttcttgacg agttcttctg agcgggactc
     5041 tggggttcga aatgaccgac caagcgacgc ccaacctgcc atcacgagat ttcgattcca
     5101 ccgccgcctt ctatgaaagg ttgggcttcg gaatcgtttt ccgggacgcc ggctggatga
     5161 tcctccagcg cggggatctc atgctggagt tcttcgccca ccccaacttg tttattgcag
     5221 cttataatgg ttacaaataa agcaatagca tcacaaattt cacaaataaa gcattttttt
     5281 cactgcattc tagttgtggt ttgtccaaac tcatcaatgt atcttatcat gtctgtatac
     5341 cgtcgacctc tagctagagc ttggcgtaat catggtcata gctgtttcct gtgtgaaatt
     5401 gttatccgct cacaattcca cacaacatac gagccggaag cataaagtgt aaagcctggg
     5461 gtgcctaatg agtgagctaa ctcacattaa ttgcgttgcg ctcactgccc gctttccagt
     5521 cgggaaacct gtcgtgccag ctgcattaat gaatcggcca acgcgcgggg agaggcggtt
     5581 tgcgtattgg gcgctcttcc gcttcctcgc tcactgactc gctgcgctcg gtcgttcggc
     5641 tgcggcgagc ggtatcagct cactcaaagg cggtaatacg gttatccaca gaatcagggg
     5701 ataacgcagg aaagaacatg tgagcaaaag gccagcaaaa ggccaggaac cgtaaaaagg
     5761 ccgcgttgct ggcgtttttc cataggctcc gcccccctga cgagcatcac aaaaatcgac
     5821 gctcaagtca gaggtggcga aacccgacag gactataaag ataccaggcg tttccccctg
     5881 gaagctccct cgtgcgctct cctgttccga ccctgccgct taccggatac ctgtccgcct
     5941 ttctcccttc gggaagcgtg gcgctttctc atagctcacg ctgtaggtat ctcagttcgg
     6001 tgtaggtcgt tcgctccaag ctgggctgtg tgcacgaacc ccccgttcag cccgaccgct
     6061 gcgccttatc cggtaactat cgtcttgagt ccaacccggt aagacacgac ttatcgccac
     6121 tggcagcagc cactggtaac aggattagca gagcgaggta tgtaggcggt gctacagagt
     6181 tcttgaagtg gtggcctaac tacggctaca ctagaagaac agtatttggt atctgcgctc
     6241 tgctgaagcc agttaccttc ggaaaaagag ttggtagctc ttgatccggc aaacaaacca
     6301 ccgctggtag cggtggtttt tttgtttgca agcagcagat tacgcgcaga aaaaaaggat
     6361 ctcaagaaga tcctttgatc ttttctacgg ggtctgacgc tcagtggaac gaaaactcac
     6421 gttaagggat tttggtcatg agattatcaa aaaggatctt cacctagatc cttttaaatt
     6481 aaaaatgaag ttttaaatca atctaaagta tatatgagta aacttggtct gacagttacc
     6541 aatgcttaat cagtgaggca cctatctcag cgatctgtct atttcgttca tccatagttg
     6601 cctgactccc cgtcgtgtag ataactacga tacgggaggg cttaccatct ggccccagtg
     6661 ctgcaatgat accgcgagac ccacgctcac cggctccaga tttatcagca ataaaccagc
     6721 cagccggaag ggccgagcgc agaagtggtc ctgcaacttt atccgcctcc atccagtcta
     6781 ttaattgttg ccgggaagct agagtaagta gttcgccagt taatagtttg cgcaacgttg
     6841 ttgccattgc tacaggcatc gtggtgtcac gctcgtcgtt tggtatggct tcattcagct
     6901 ccggttccca acgatcaagg cgagttacat gatcccccat gttgtgcaaa aaagcggtta
     6961 gctccttcgg tcctccgatc gttgtcagaa gtaagttggc cgcagtgtta tcactcatgg
     7021 ttatggcagc actgcataat tctcttactg tcatgccatc cgtaagatgc ttttctgtga
     7081 ctggtgagta ctcaaccaag tcattctgag aatagtgtat gcggcgaccg agttgctctt
     7141 gcccggcgtc aatacgggat aataccgcgc cacatagcag aactttaaaa gtgctcatca
     7201 ttggaaaacg ttcttcgggg cgaaaactct caaggatctt accgctgttg agatccagtt
     7261 cgatgtaacc cactcgtgca cccaactgat cttcagcatc ttttactttc accagcgttt
     7321 ctgggtgagc aaaaacagga aggcaaaatg ccgcaaaaaa gggaataagg gcgacacgga
     7381 aatgttgaat actcatactc ttcctttttc aatattattg aagcatttat cagggttatt
     7441 gtctcatgag cggatacata tttgaatgta tttagaaaaa taaacaaata ggggttccgc
     7501 gcacatttcc ccgaaaagtg ccacctgacg tc
//
