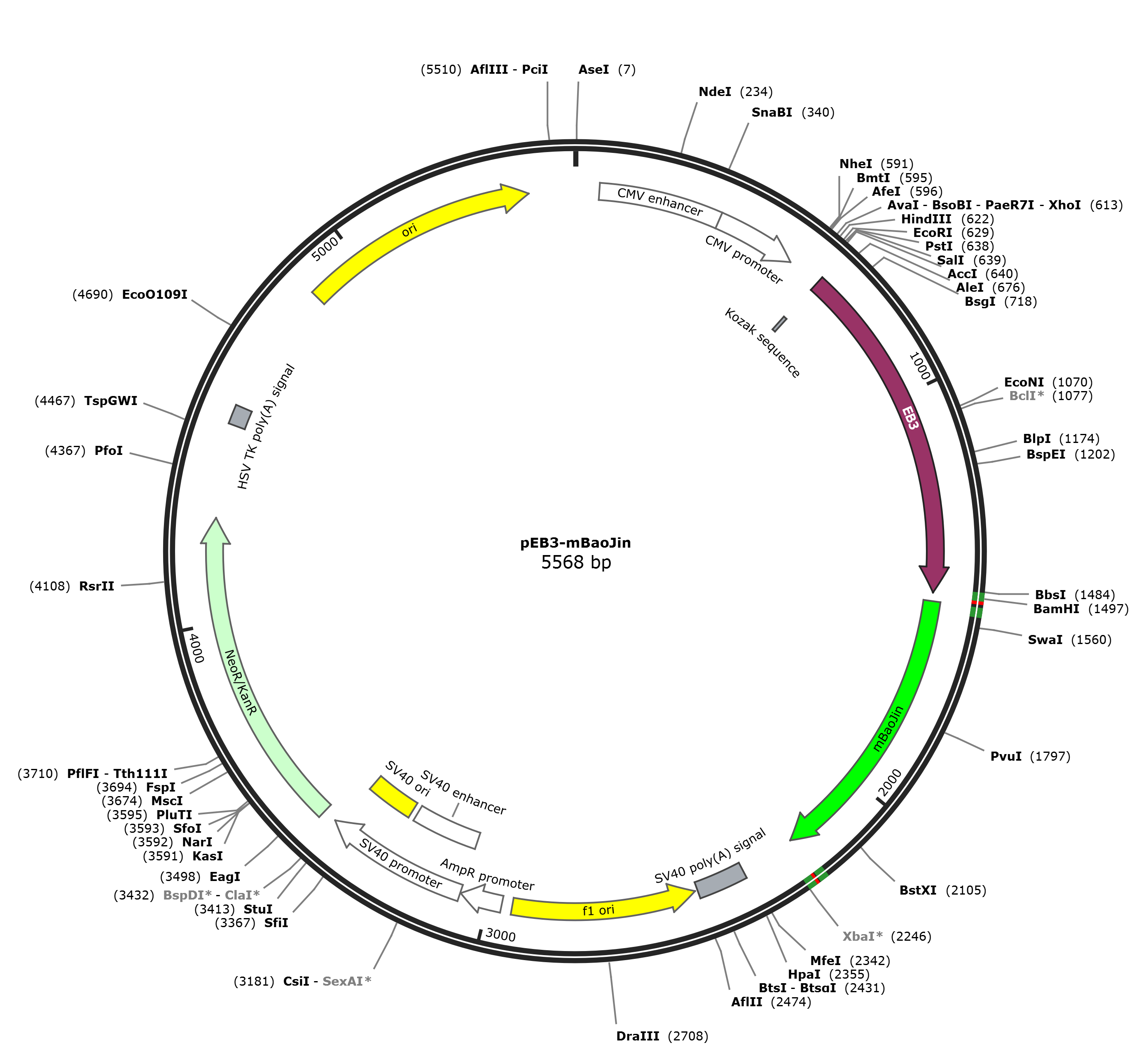

pEB3-mBaoJin

LOCUS       pEB3-mBaoJin               5568 bp DNA     circular SYN 17-NOV-2023
DEFINITION  In vivo visualization of microtuble plus ends (can be used for
            colocalization studies).
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5568)
  AUTHORS   Chertkova AO, Mastop M, Postma M, van Bommel N, van der Niet S,
            Batenburg KL, Joosen L, Gadella TWJ, Okada Y, Goedhart J
  TITLE     Robust and Bright Genetically Encoded Fluorescent Markers for
            Highlighting Structures and Compartments in Mammalian Cells
  JOURNAL   bioRxiv 160374
REFERENCE   2  (bases 1 to 5568)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; journalName: "bioRxiv
            160374"
FEATURES             Location/Qualifiers
     source          1..5568
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     519..539
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     regulatory      646..655
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             652..1494
                     /codon_start=1
                     /label=EB3
                     /translation="MAVNVYSTSVTSENLSRHDMLAWVNDSLHLNYTKIEQLCSGAAYC
                     QFMDMLFPGCVHLRKVKFQAKLEHEYIHNFKVLQAAFKKMGVDKIIPVEKLVKGKFQDN
                     FEFIQWFKKFFDANYDGKDYNPLLARQGQDVAPPPNPGDQIFNKSKKLIGTAVPQRTSP
                     TGPKNMQTSGRLSNVAPPCILRKNPPSARNGGHETDAQILELNQQLVDLKLTVDGLEKE
                     RDFYFSKLRDIELICQEHESENSPVISGIIGILYATEEGFAPPEDDEIEEHQQEDQDEY
                     "
     primer_bind     1433..1452
                     /label=EB3-F
     primer_bind     1483..1537
                     /label=0709-EB3-fmStayG-F
     CDS             1516..2217
                     /codon_start=1
                     /label=mBaoJin
                     /translation="MVSKGEEENMASTPFKFQLKGTINGKSFTVEGEGEGNSHEGSHKG
                     KYVCTSGKLPMSWAALGTTFGYGMKYYTKYPSGLKNWFREVMPGGFTYDRHIQYKGDGS
                     IHAKHQHFMKNGTYHNIVEFTGQDFKENSPVLTGDMNVSLPNEVPQIPRDDGVECPVTL
                     LYPLLSDKSKYVEAHQYTICKPLHNQPAPDVPYHWIRKQYTQSKDDAEERDHICQSETL
                     EAHLKGMDELYK"
     primer_bind     complement(2196..2246)
                     /label=0709-EB3-fmStayG-R
     polyA_signal    2356..2477
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2393..2412)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     2447..2466
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(2484..2939)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2621..2642)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2833..2852
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        2966..3070
                     /gene="bla"
                     /label=AmpR promoter
     promoter        3072..3429
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     enhancer        3072..3263
                     /label=SV40 enhancer
                     /note="enhancer for the SV40 early promoter (Herr, 1993)"
     primer_bind     complement(3095..3115)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      3280..3415
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3342..3361
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     complement(3365..3376)
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             3464..4258
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3518..3537)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     4128..4147
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(4446..4465)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    4490..4537
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4866..5454
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     5355..5374
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggactcag atctcgagct caagcttcga attctgcagt cgactgccac catggccgtc
      661 aatgtgtact ccacatctgt gaccagtgaa aatctgagtc gccatgatat gcttgcatgg
      721 gtcaacgact ccctgcacct caactatacc aagatagaac agctttgttc aggggcagcc
      781 tactgccagt tcatggacat gctcttcccc ggctgtgtgc acttgaggaa agtgaagttc
      841 caggccaaac tagagcatga atacatccac aacttcaagg tgctgcaagc agctttcaag
      901 aagatgggtg ttgacaaaat cattcctgta gagaaattag tgaaaggaaa attccaagat
      961 aattttgagt ttattcagtg gtttaagaaa ttctttgacg caaactatga tggaaaggat
     1021 tacaaccctc tgctggcgcg gcagggccag gacgtagcgc cacctcctaa cccaggtgat
     1081 cagatcttca acaaatccaa gaaactcatt ggcacagcag ttccacagag gacgtccccc
     1141 acaggcccaa aaaacatgca gacctctggc cggctgagca atgtggcccc cccctgcatt
     1201 ctccggaaga atcctccatc agcccgaaat ggcggccatg agactgatgc ccaaattctt
     1261 gaactcaacc aacagctggt ggacttgaag ctgacagtgg atgggctgga gaaggaacgt
     1321 gacttctact tcagcaaact tcgtgacatc gagctcatct gccaggagca tgaaagtgaa
     1381 aacagccctg ttatctcagg catcattggc atcctctatg ccacagagga aggattcgca
     1441 ccccctgagg acgatgagat tgaagagcat caacaagaag accaggacga gtacctggat
     1501 ccaccggtcg ccaccatggt ctcaaaggga gaggaggaaa acatggctag tacaccattt
     1561 aaatttcaac ttaaaggaac catcaatggc aaatcgttta ccgttgaagg cgaaggtgaa
     1621 gggaactcac atgaaggttc tcataaagga aaatatgttt gtacaagtgg aaaactaccg
     1681 atgtcatggg cagcacttgg gacaaccttt ggttatggaa tgaaatatta taccaaatat
     1741 cctagtggac tgaagaactg gtttcgtgaa gtaatgcccg gaggctttac ctacgatcgt
     1801 catattcaat ataaaggcga tgggagtatc catgcaaaac accaacactt tatgaaaaat
     1861 gggacttatc acaacattgt agaatttacc ggtcaggatt ttaaagaaaa tagtccagtc
     1921 ttaactggag atatgaatgt ctcattaccg aatgaagtcc cacaaatacc cagagatgat
     1981 ggagtagaat gcccagtgac cttgctttat cctttattat cggataaatc aaaatacgtc
     2041 gaggctcacc aatatacaat ctgcaagcct cttcataatc aaccagcacc tgatgtccca
     2101 tatcactgga ttcgtaaaca atacacacaa agcaaagatg atgccgagga acgcgatcat
     2161 atctgtcaat cagagactct cgaagcacac ttaaagggca tggacgagct gtataagtaa
     2221 tgtacaagta agaattggcc gcgactctag atcataatca gccataccac atttgtagag
     2281 gttttacttg ctttaaaaaa cctcccacac ctccccctga acctgaaaca taaaatgaat
     2341 gcaattgttg ttgttaactt gtttattgca gcttataatg gttacaaata aagcaatagc
     2401 atcacaaatt tcacaaataa agcatttttt tcactgcatt ctagttgtgg tttgtccaaa
     2461 ctcatcaatg tatcttaagg cgtaaattgt aagcgttaat attttgttaa aattcgcgtt
     2521 aaatttttgt taaatcagct cattttttaa ccaataggcc gaaatcggca aaatccctta
     2581 taaatcaaaa gaatagaccg agatagggtt gagtgttgtt ccagtttgga acaagagtcc
     2641 actattaaag aacgtggact ccaacgtcaa agggcgaaaa accgtctatc agggcgatgg
     2701 cccactacgt gaaccatcac cctaatcaag ttttttgggg tcgaggtgcc gtaaagcact
     2761 aaatcggaac cctaaaggga gcccccgatt tagagcttga cggggaaagc cggcgaacgt
     2821 ggcgagaaag gaagggaaga aagcgaaagg agcgggcgct agggcgctgg caagtgtagc
     2881 ggtcacgctg cgcgtaacca ccacacccgc cgcgcttaat gcgccgctac agggcgcgtc
     2941 aggtggcact tttcggggaa atgtgcgcgg aacccctatt tgtttatttt tctaaataca
     3001 ttcaaatatg tatccgctca tgagacaata accctgataa atgcttcaat aatattgaaa
     3061 aaggaagagt cctgaggcgg aaagaaccag ctgtggaatg tgtgtcagtt agggtgtgga
     3121 aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca
     3181 accaggtgtg gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag catgcatctc
     3241 aattagtcag caaccatagt cccgccccta actccgccca tcccgcccct aactccgccc
     3301 agttccgccc attctccgcc ccatggctga ctaatttttt ttatttatgc agaggccgag
     3361 gccgcctcgg cctctgagct attccagaag tagtgaggag gcttttttgg aggcctaggc
     3421 ttttgcaaag atcgatcaag agacaggatg aggatcgttt cgcatgattg aacaagatgg
     3481 attgcacgca ggttctccgg ccgcttgggt ggagaggcta ttcggctatg actgggcaca
     3541 acagacaatc ggctgctctg atgccgccgt gttccggctg tcagcgcagg ggcgcccggt
     3601 tctttttgtc aagaccgacc tgtccggtgc cctgaatgaa ctgcaagacg aggcagcgcg
     3661 gctatcgtgg ctggccacga cgggcgttcc ttgcgcagct gtgctcgacg ttgtcactga
     3721 agcgggaagg gactggctgc tattgggcga agtgccgggg caggatctcc tgtcatctca
     3781 ccttgctcct gccgagaaag tatccatcat ggctgatgca atgcggcggc tgcatacgct
     3841 tgatccggct acctgcccat tcgaccacca agcgaaacat cgcatcgagc gagcacgtac
     3901 tcggatggaa gccggtcttg tcgatcagga tgatctggac gaagagcatc aggggctcgc
     3961 gccagccgaa ctgttcgcca ggctcaaggc gagcatgccc gacggcgagg atctcgtcgt
     4021 gacccatggc gatgcctgct tgccgaatat catggtggaa aatggccgct tttctggatt
     4081 catcgactgt ggccggctgg gtgtggcgga ccgctatcag gacatagcgt tggctacccg
     4141 tgatattgct gaagagcttg gcggcgaatg ggctgaccgc ttcctcgtgc tttacggtat
     4201 cgccgctccc gattcgcagc gcatcgcctt ctatcgcctt cttgacgagt tcttctgagc
     4261 gggactctgg ggttcgaaat gaccgaccaa gcgacgccca acctgccatc acgagatttc
     4321 gattccaccg ccgccttcta tgaaaggttg ggcttcggaa tcgttttccg ggacgccggc
     4381 tggatgatcc tccagcgcgg ggatctcatg ctggagttct tcgcccaccc tagggggagg
     4441 ctaactgaaa cacggaagga gacaataccg gaaggaaccc gcgctatgac ggcaataaaa
     4501 agacagaata aaacgcacgg tgttgggtcg tttgttcata aacgcggggt tcggtcccag
     4561 ggctggcact ctgtcgatac cccaccgaga ccccattggg gccaatacgc ccgcgtttct
     4621 tccttttccc caccccaccc cccaagttcg ggtgaaggcc cagggctcgc agccaacgtc
     4681 ggggcggcag gccctgccat agcctcaggt tactcatata tactttagat tgatttaaaa
     4741 cttcattttt aatttaaaag gatctaggtg aagatccttt ttgataatct catgaccaaa
     4801 atcccttaac gtgagttttc gttccactga gcgtcagacc ccgtagaaaa gatcaaagga
     4861 tcttcttgag atcctttttt tctgcgcgta atctgctgct tgcaaacaaa aaaaccaccg
     4921 ctaccagcgg tggtttgttt gccggatcaa gagctaccaa ctctttttcc gaaggtaact
     4981 ggcttcagca gagcgcagat accaaatact gttcttctag tgtagccgta gttaggccac
     5041 cacttcaaga actctgtagc accgcctaca tacctcgctc tgctaatcct gttaccagtg
     5101 gctgctgcca gtggcgataa gtcgtgtctt accgggttgg actcaagacg atagttaccg
     5161 gataaggcgc agcggtcggg ctgaacgggg ggttcgtgca cacagcccag cttggagcga
     5221 acgacctaca ccgaactgag atacctacag cgtgagctat gagaaagcgc cacgcttccc
     5281 gaagggagaa aggcggacag gtatccggta agcggcaggg tcggaacagg agagcgcacg
     5341 agggagcttc cagggggaaa cgcctggtat ctttatagtc ctgtcgggtt tcgccacctc
     5401 tgacttgagc gtcgattttt gtgatgctcg tcaggggggc ggagcctatg gaaaaacgcc
     5461 agcaacgcgg cctttttacg gttcctggcc ttttgctggc cttttgctca catgttcttt
     5521 cctgcgttat cccctgattc tgtggataac cgtattaccg ccatgcat
//
