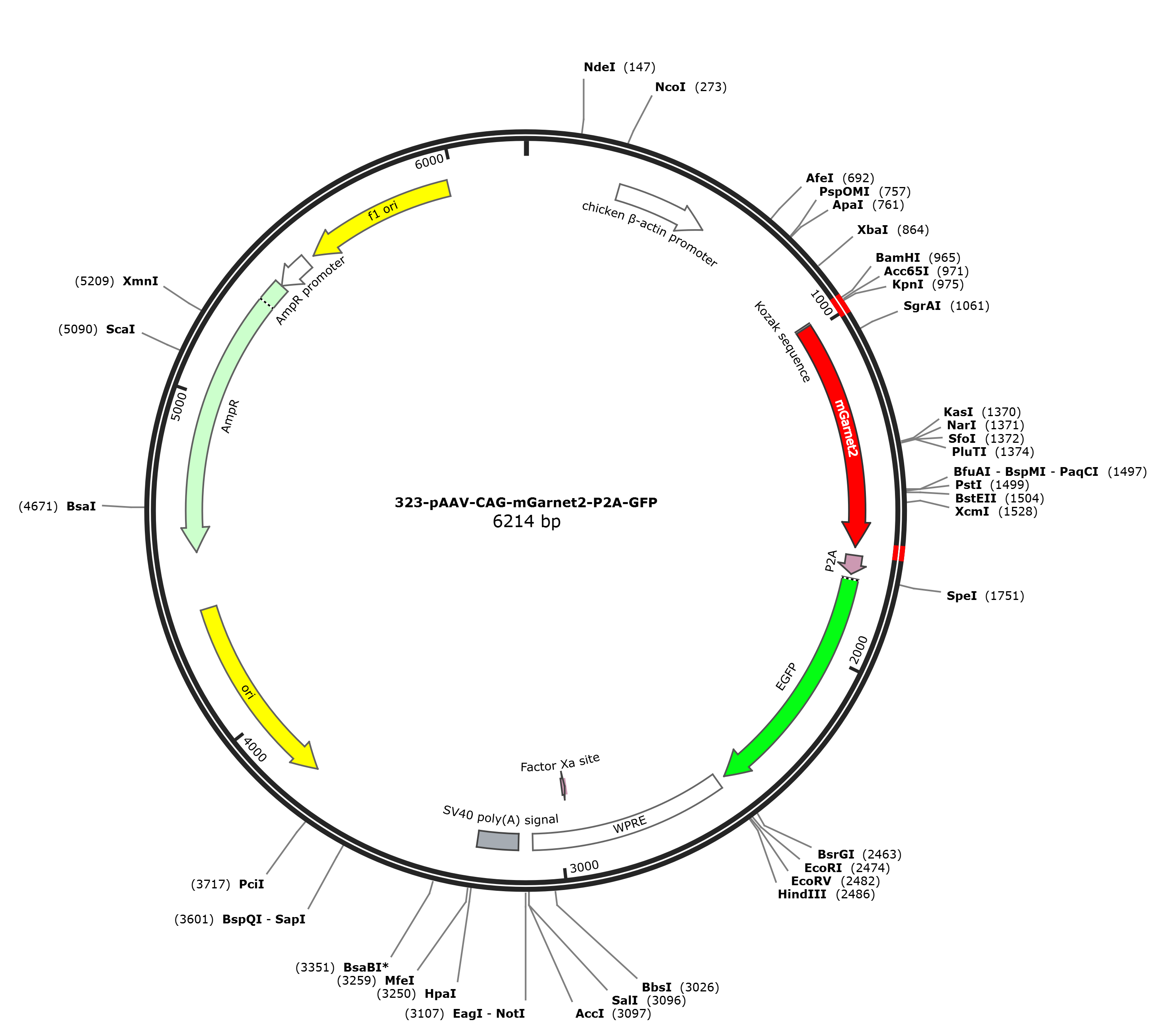

pAAV-CAG-mGarnet2-P2A-GFP

LOCUS       pAAV-CAG-mGarnet2-P2A-GFP          6214 bp DNA     circular SYN 26-DEC-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6214)
  AUTHORS   Triple Threat
  TITLE     Direct Submission
  JOURNAL   Exported Jul 6, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6214
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        279..556
                     /label=chicken beta-actin promoter
     primer_bind     956..1010
                     /label=2022.10.12 mGarnet2 F
     regulatory      977..982
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             983..1663
                     /codon_start=1
                     /label=mGarnet2
                     /translation="MNSLIKENMRMKVVLEGSVNGHQFKCTGEGEGNPYMGTQTMRIKV
                     IEGGPLPFAFDILATSFMYGSKTFIKYPKGIPDFFKQSFPEGFTWERVTRYEDGGVITV
                     MQDTSLEDGCLVYHAQLRGVNFPSNGAVMQKKTKGWEPNTEMMYPADGGLRGYNHMALK
                     VDGGGHLHCSLVTTYRSKKTVGNIKMPGIHAVDRRLERLEESDNEMFVVQREHAVAKFA
                     GLGGG"
     primer_bind     complement(1647..1686)
                     /label=2022.10.12 mGarnet2 R
     CDS             1688..1744
                     /codon_start=1
                     /product="2A peptide from porcine teschovirus-1
                     polyprotein"
                     /label=P2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="ATNFSLLKQAGDVEENPGP"
     CDS             1757..2473
                     /codon_start=1
                     /product="the original enhanced GFP (Yang et al., 1996)"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="VSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLK
                     FICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDG
                     NYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKV
                     NFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLE
                     FVTAAGITLGMDELYK"
     misc_feature    2498..3086
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(2969..2980)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    3129..3250
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(3778..4366)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4537..5397)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5398..5502)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(5528..5983)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
ORIGIN
        1 tctacgtagc catgctctag gaagagtacc attgacgtca ataatgacgt atgttcccat
       61 agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac ggtaaactgc
      121 ccacttggca gtacatcaag tgtatcatat gccaagtacg ccccctattg acgtcaatga
      181 cggtaaatgg cccgcctggc attatgccca gtacatgacc ttatgggact ttcctacttg
      241 gcagtacatc tacgtattag tcatcgctat taccatggtc gaggtgagcc ccacgttctg
      301 cttcactctc cccatctccc ccccctcccc acccccaatt ttgtatttat ttatttttta
      361 attattttgt gcagcgatgg gggcgggggg gggggggggg cgcgcgccag gcggggcggg
      421 gcggggcgag gggcggggcg gggcgaggcg gagaggtgcg gcggcagcca atcagagcgg
      481 cgcgctccga aagtttcctt ttatggcgag gcggcggcgg cggcggccct ataaaaagcg
      541 aagcgcgcgg cgggcgggag tcgctgcgcg ctgccttcgc cccgtgcccc gctccgccgc
      601 cgcctcgcgc cgcccgcccc ggctctgact gaccgcgtta ctcccacagg tgagcgggcg
      661 ggacggccct tctcctccgg gctgtaatta gcgcttggtt taatgacggc ttgtttcttt
      721 tctgtggctg cgtgaaagcc ttgaggggct ccgggagggc cctttgtgcg gggggagcgg
      781 ctcggggctg tccgcggggg gacggctgcc ttcggggggg acggggcagg gcggggttcg
      841 gcttctggcg tgtgaccggc ggctctagag cctctgctaa ccatgttcat gccttcttct
      901 ttttcctaca gctcctgggc aacgtgctgg ttattgtgct gtctcatcat tttggcaaag
      961 gattggatcc ggtaccgcca ccatgaacag cctgatcaaa gaaaacatgc ggatgaaggt
     1021 ggtgctggaa ggcagcgtga acggccacca gttcaagtgc accggcgagg gcgagggcaa
     1081 cccctacatg ggcacccaga ccatgcggat caaagtgatc gagggcggac ctctgccctt
     1141 cgccttcgac atcctggcca catccttcat gtacggcagc aagaccttca tcaagtaccc
     1201 caagggcatc cccgatttct tcaagcagag cttccccgag ggcttcacct gggagagagt
     1261 gaccagatac gaggacggcg gcgtgatcac cgtgatgcag gacaccagcc tggaagatgg
     1321 ctgcctggtg taccatgccc agctcagggg cgtgaatttt cccagcaacg gcgccgtgat
     1381 gcagaagaaa accaagggct gggagcccaa caccgagatg atgtaccccg ctgacggcgg
     1441 actgagaggc tacaaccaca tggccctgaa ggtggacggc ggagggcacc tgcactgcag
     1501 cctggtgacc acctaccggt ccaagaaaac cgtgggcaac atcaagatgc ccggcatcca
     1561 cgccgtggac cggcggctgg aaaggctgga agagtccgac aacgagatgt tcgtggtgca
     1621 gcgggagcac gccgtggcca agttcgccgg cctgggcgga gggcgaccgg ttcacgtggg
     1681 aagtggggct acaaacttct cactgctgaa acaggccggg gatgtggagg aaaacccagg
     1741 accacacgtg actagtgtga gcaagggcga ggagctgttc accggggtgg tgcccatcct
     1801 ggtcgagctg gacggcgacg taaacggcca caagttcagc gtgtccggcg agggcgaggg
     1861 cgatgccacc tacggcaagc tgaccctgaa gttcatctgc accaccggca agctgcccgt
     1921 gccctggccc accctcgtga ccaccctgac ctacggcgtg cagtgcttca gccgctaccc
     1981 cgaccacatg aagcagcacg acttcttcaa gtccgccatg cccgaaggct acgtccagga
     2041 gcgcaccatc ttcttcaagg acgacggcaa ctacaagacc cgcgccgagg tgaagttcga
     2101 gggcgacacc ctggtgaacc gcatcgagct gaagggcatc gacttcaagg aggacggcaa
     2161 catcctgggg cacaagctgg agtacaacta caacagccac aacgtctata tcatggccga
     2221 caagcagaag aacggcatca aggtgaactt caagatccgc cacaacatcg aggacggcag
     2281 cgtgcagctc gccgaccact accagcagaa cacccccatc ggcgacggcc ccgtgctgct
     2341 gcccgacaac cactacctga gcacccagtc cgccctgagc aaagacccca acgagaagcg
     2401 cgatcacatg gtcctgctgg agttcgtgac cgccgccggg atcactctcg gcatggacga
     2461 gctgtacaag taagaattcg atatcaagct tatcgataat caacctctgg attacaaaat
     2521 ttgtgaaaga ttgactggta ttcttaacta tgttgctcct tttacgctat gtggatacgc
     2581 tgctttaatg cctttgtatc atgctattgc ttcccgtatg gctttcattt tctcctcctt
     2641 gtataaatcc tggttgctgt ctctttatga ggagttgtgg cccgttgtca ggcaacgtgg
     2701 cgtggtgtgc actgtgtttg ctgacgcaac ccccactggt tggggcattg ccaccacctg
     2761 tcagctcctt tccgggactt tcgctttccc cctccctatt gccacggcgg aactcatcgc
     2821 cgcctgcctt gcccgctgct ggacaggggc tcggctgttg ggcactgaca attccgtggt
     2881 gttgtcgggg aaatcatcgt cctttccttg gctgctcgcc tgtgttgcca cctggattct
     2941 gcgcgggacg tccttctgct acgtcccttc ggccctcaat ccagcggacc ttccttcccg
     3001 cggcctgctg ccggctctgc ggcctcttcc gcgtcttcgc cttcgccctc agacgagtcg
     3061 gatctccctt tgggccgcct ccccgcatcg ataccgtcga cccgggcggc cgcttcgagc
     3121 agacatgata agatacattg atgagtttgg acaaaccaca actagaatgc agtgaaaaaa
     3181 atgctttatt tgtgaaattt gtgatgctat tgctttattt gtaaccatta taagctgcaa
     3241 taaacaagtt aacaacaaca attgcattca ttttatgttt caggttcagg gggagatgtg
     3301 ggaggttttt taaagcaagt aaaacctcta caaatgtggt aaaatcgata aggatcttcc
     3361 tagagcatgg ctacgtagat aagtagcatg gcgggttaat cattaactac aaggaacccc
     3421 tagtgatgga gttggccact ccctctctgc gcgctcgctc gctcactgag gccgggcgac
     3481 caaaggtcgc ccgacgcccg ggctttgccc gggcggcctc agtgagcgag cgagcgcgca
     3541 gctgcattaa tgaatcggcc aacgcgcggg gagaggcggt ttgcgtattg ggcgctcttc
     3601 cgcttcctcg ctcactgact cgctgcgctc ggtcgttcgg ctgcggcgag cggtatcagc
     3661 tcactcaaag gcggtaatac ggttatccac agaatcaggg gataacgcag gaaagaacat
     3721 gtgagcaaaa ggccagcaaa aggccaggaa ccgtaaaaag gccgcgttgc tggcgttttt
     3781 ccataggctc cgcccccctg acgagcatca caaaaatcga cgctcaagtc agaggtggcg
     3841 aaacccgaca ggactataaa gataccaggc gtttccccct ggaagctccc tcgtgcgctc
     3901 tcctgttccg accctgccgc ttaccggata cctgtccgcc tttctccctt cgggaagcgt
     3961 ggcgctttct catagctcac gctgtaggta tctcagttcg gtgtaggtcg ttcgctccaa
     4021 gctgggctgt gtgcacgaac cccccgttca gcccgaccgc tgcgccttat ccggtaacta
     4081 tcgtcttgag tccaacccgg taagacacga cttatcgcca ctggcagcag ccactggtaa
     4141 caggattagc agagcgaggt atgtaggcgg tgctacagag ttcttgaagt ggtggcctaa
     4201 ctacggctac actagaagaa cagtatttgg tatctgcgct ctgctgaagc cagttacctt
     4261 cggaaaaaga gttggtagct cttgatccgg caaacaaacc accgctggta gcggtggttt
     4321 ttttgtttgc aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag atcctttgat
     4381 cttttctacg gggtctgacg ctcagtggaa cgaaaactca cgttaaggga ttttggtcat
     4441 gagattatca aaaaggatct tcacctagat ccttttaaat taaaaatgaa gttttaaatc
     4501 aatctaaagt atatatgagt aaacttggtc tgacagttac caatgcttaa tcagtgaggc
     4561 acctatctca gcgatctgtc tatttcgttc atccatagtt gcctgactcc ccgtcgtgta
     4621 gataactacg atacgggagg gcttaccatc tggccccagt gctgcaatga taccgcgaga
     4681 cccacgctca ccggctccag atttatcagc aataaaccag ccagccggaa gggccgagcg
     4741 cagaagtggt cctgcaactt tatccgcctc catccagtct attaattgtt gccgggaagc
     4801 tagagtaagt agttcgccag ttaatagttt gcgcaacgtt gttgccattg ctacaggcat
     4861 cgtggtgtca cgctcgtcgt ttggtatggc ttcattcagc tccggttccc aacgatcaag
     4921 gcgagttaca tgatccccca tgttgtgcaa aaaagcggtt agctccttcg gtcctccgat
     4981 cgttgtcaga agtaagttgg ccgcagtgtt atcactcatg gttatggcag cactgcataa
     5041 ttctcttact gtcatgccat ccgtaagatg cttttctgtg actggtgagt actcaaccaa
     5101 gtcattctga gaatagtgta tgcggcgacc gagttgctct tgcccggcgt caatacggga
     5161 taataccgcg ccacatagca gaactttaaa agtgctcatc attggaaaac gttcttcggg
     5221 gcgaaaactc tcaaggatct taccgctgtt gagatccagt tcgatgtaac ccactcgtgc
     5281 acccaactga tcttcagcat cttttacttt caccagcgtt tctgggtgag caaaaacagg
     5341 aaggcaaaat gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa tactcatact
     5401 cttccttttt caatattatt gaagcattta tcagggttat tgtctcatga gcggatacat
     5461 atttgaatgt atttagaaaa ataaacaaat aggggttccg cgcacatttc cccgaaaagt
     5521 gccacctaaa ttgtaagcgt taatattttg ttaaaattcg cgttaaattt ttgttaaatc
     5581 agctcatttt ttaaccaata ggccgaaatc ggcaaaatcc cttataaatc aaaagaatag
     5641 accgagatag ggttgagtgt tgttccagtt tggaacaaga gtccactatt aaagaacgtg
     5701 gactccaacg tcaaagggcg aaaaaccgtc tatcagggcg atggcccact acgtgaacca
     5761 tcaccctaat caagtttttt ggggtcgagg tgccgtaaag cactaaatcg gaaccctaaa
     5821 gggagccccc gatttagagc ttgacgggga aagccggcga acgtggcgag aaaggaaggg
     5881 aagaaagcga aaggagcggg cgctagggcg ctggcaagtg tagcggtcac gctgcgcgta
     5941 accaccacac ccgccgcgct taatgcgccg ctacagggcg cgtcccattc gccattcagg
     6001 ctgcgcaact gttgggaagg gcgatcggtg cgggcctctt cgctattacg ccagctgcgc
     6061 gctcgctcgc tcactgaggc cgcccgggca aagcccgggc gtcgggcgac ctttggtcgc
     6121 ccggcctcag tgagcgagcg agcgcgcaga gagggagtgg ccaactccat cactaggggt
     6181 tccttgtagt taatgattaa cccgccatgc tact
//
