载体基本信息

质粒名称: pET-GST
出品公司: 爱迪基因
目录编号: 42049
存储实验室: Kumiko UiTei

载体骨架基本信息
载体名称: pET28a
载体抗性: 卡那霉素
空载体大小: 5317 bp
完整质粒大小: 6007 bp
载体类型: 细菌表达
高拷贝/低拷贝: 低拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: GST
插入大小: 690 bp
标签/融合蛋白: His (N terminal on backbone)
克隆方法: 限制性内切酶
5' 克隆位点: NheI(未破坏)
3' 克隆位点: HindIII (未破坏)
5' 测序引物 TAATACGACTCACTATAGGG

文献引用方法
材料和方法部分: pET-GST was a gift from Kumiko UiTei (爱迪基因 plasmid # 42049)
参考文献部分: Human TNRC6A is an Argonaute-navigator protein for microRNA-mediated gene silencing in the nucleus. Nishi K, Nishi A, Nagasawa T, Ui-Tei K. RNA. 2013 Jan;19(1):17-35. doi: 10.1261/rna.034769.112. Epub 2012 Nov 13. 10.1261/rna.034769.112 PubMed 23150874

载体图谱质粒图谱和多克隆位点信息

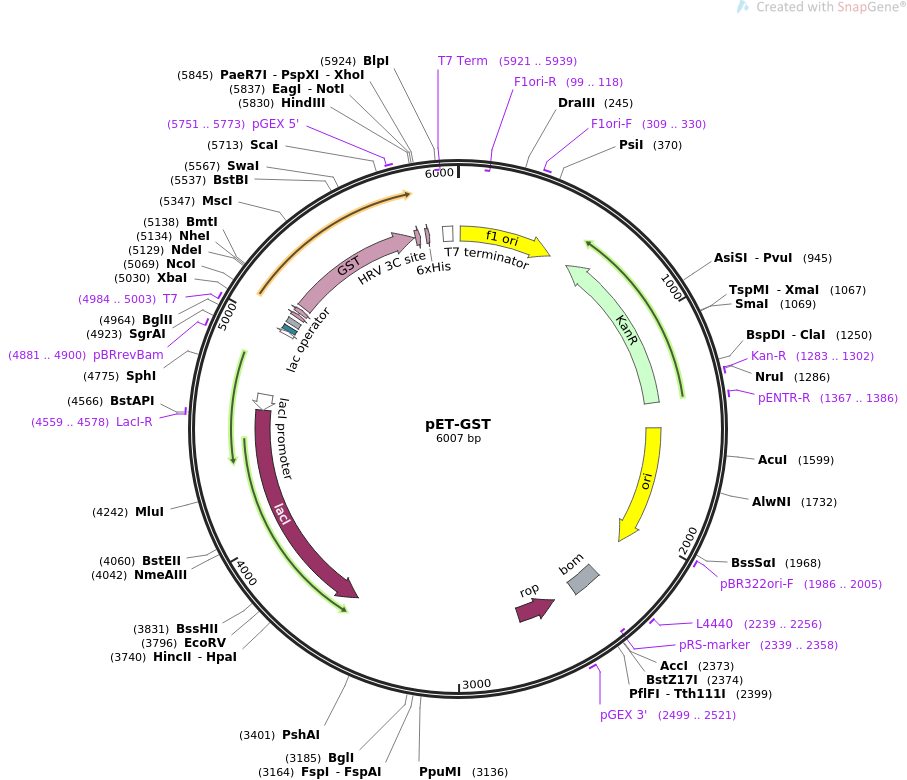

pET-GST质粒图谱

载体简介

载体序列

LOCUS       pET-GST                6007 bp ds-DNA     circular SYN 10-JAN-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pET-GST
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6007)
  AUTHORS   Nishi K, Nishi A, Nagasawa T, Ui-Tei K
  TITLE     Human TNRC6A is an Argonaute-navigator protein for microRNA-mediated
            gene silencing in the nucleus.
  JOURNAL   RNA. 2013 Jan;19(1):17-35. doi: 10.1261/rna.034769.112. Epub 2012
            Nov 13.
  PUBMED    23150874
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTNAME|pET-GST|
FEATURES             Location/Qualifiers
     source          1..6007
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     rep_origin      12..467
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(99..118)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     309..330
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     CDS             complement(560..1375)
                     /codon_start=1
                     /gene="aph(3')-Ia"
                     /product="aminoglycoside phosphotransferase"
                     /label=KanR
                     /note="confers resistance to kanamycin in bacteria or G418
                     (Geneticin(R)) in eukaryotes"
                     /translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYG
                     KPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGK
                     TAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVDA
                     SDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGI
                     ADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF"
     primer_bind     1283..1302
                     /label=Kan-R
                     /note="Kanamycin resistance gene, reverse primer"
     primer_bind     1367..1386
                     /label=pENTR-R
                     /note="pENTR vectors, reverse primer"
     rep_origin      1497..2085
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     1986..2005
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     2239..2256
                     /label=L4440
                     /note="L4440 vector, forward primer"
     misc_feature    2271..2413
                     /label=bom
                     /note="basis of mobility region from pBR322"
     primer_bind     complement(2339..2358)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     2499..2521
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     CDS             complement(2515..2706)
                     /codon_start=1
                     /gene="rop"
                     /product="Rop protein, which maintains plasmids at low copy
                     number"
                     /label=rop
                     /translation="MTKQEKTALNMARFIRSQTLTLLEKLNELDADEQADICESLHDHA
                     DELYRSCLARFGDDGENL"
     CDS             complement(3515..4597)
                     /codon_start=1
                     /gene="lacI"
                     /product="lac repressor"
                     /label=lacI
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
                     /translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
                     NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
                     EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
                     EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
                     MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
                     YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
                     ALADSLMQLARQVSRLESGQ"
     primer_bind     4559..4578
                     /label=LacI-R
                     /note="LacI, reverse primer"
     promoter        complement(4598..4675)
                     /gene="lacI"
                     /label=lacI promoter
     primer_bind     4881..4900
                     /label=pBRrevBam
                     /note="pBR322 vectors, tet region, downstream of BamHI,
                     reverse primer"
     primer_bind     4984..5003
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        4984..5002
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     protein_bind    5003..5027
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     RBS             5042..5064
                     /note="efficient ribosome binding site from bacteriophage
                     T7 gene 10 (Olins and Rangwala, 1989)"
     CDS             5083..5100
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /label=6xHis
                     /translation="HHHHHH"
     CDS             5110..5127
                     /codon_start=1
                     /product="thrombin recognition and cleavage site"
                     /label=thrombin site
                     /translation="LVPRGS"
     CDS             5140..5793
                     /codon_start=1
                     /product="glutathione S-transferase from Schistosoma
                     japonicum"
                     /label=GST
                     /translation="MSPILGYWKIKGLVQPTRLLLEYLEEKYEEHLYERDEGDKWRNKK
                     FELGLEFPNLPYYIDGDVKLTQSMAIIRYIADKHNMLGGCPKERAEISMLEGAVLDIRY
                     GVSRIAYSKDFETLKVDFLSKLPEMLKMFEDRLCHKTYLNGDHVTHPDFMLYDALDVVL
                     YMDPMCLDAFPKLVCFKKRIEAIPQIDKYLKSSKYIAWPLQGWQATFGGGDHPPK"
     primer_bind     5751..5773
                     /label=pGEX 5'
                     /note="pGEX vectors, Glutathione-S-transferase, forward
                     primer"
     CDS             5800..5823
                     /codon_start=1
                     /product="recognition and cleavage site for human
                     rhinovirus 3C and PreScission proteases"
                     /label=HRV 3C site
                     /translation="LEVLFQGP"
     CDS             5851..5868
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /label=6xHis
                     /translation="HHHHHH"
     primer_bind     complement(5921..5939)
                     /label=T7 Term
                     /note="T7 terminator, reverse primer"
     terminator      5935..5982
                     /label=T7 terminator
                     /note="transcription terminator for bacteriophage T7 RNA
                     polymerase"
ORIGIN
        1 tggcgaatgg gacgcgccct gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg
       61 cagcgtgacc gctacacttg ccagcgccct agcgcccgct cctttcgctt tcttcccttc
      121 ctttctcgcc acgttcgccg gctttccccg tcaagctcta aatcgggggc tccctttagg
      181 gttccgattt agtgctttac ggcacctcga ccccaaaaaa cttgattagg gtgatggttc
      241 acgtagtggg ccatcgccct gatagacggt ttttcgccct ttgacgttgg agtccacgtt
      301 ctttaatagt ggactcttgt tccaaactgg aacaacactc aaccctatct cggtctattc
      361 ttttgattta taagggattt tgccgatttc ggcctattgg ttaaaaaatg agctgattta
      421 acaaaaattt aacgcgaatt ttaacaaaat attaacgttt acaatttcag gtggcacttt
      481 tcggggaaat gtgcgcggaa cccctatttg tttatttttc taaatacatt caaatatgta
      541 tccgctcatg aattaattct tagaaaaact catcgagcat caaatgaaac tgcaatttat
      601 tcatatcagg attatcaata ccatattttt gaaaaagccg tttctgtaat gaaggagaaa
      661 actcaccgag gcagttccat aggatggcaa gatcctggta tcggtctgcg attccgactc
      721 gtccaacatc aatacaacct attaatttcc cctcgtcaaa aataaggtta tcaagtgaga
      781 aatcaccatg agtgacgact gaatccggtg agaatggcaa aagtttatgc atttctttcc
      841 agacttgttc aacaggccag ccattacgct cgtcatcaaa atcactcgca tcaaccaaac
      901 cgttattcat tcgtgattgc gcctgagcga gacgaaatac gcgatcgctg ttaaaaggac
      961 aattacaaac aggaatcgaa tgcaaccggc gcaggaacac tgccagcgca tcaacaatat
     1021 tttcacctga atcaggatat tcttctaata cctggaatgc tgttttcccg gggatcgcag
     1081 tggtgagtaa ccatgcatca tcaggagtac ggataaaatg cttgatggtc ggaagaggca
     1141 taaattccgt cagccagttt agtctgacca tctcatctgt aacatcattg gcaacgctac
     1201 ctttgccatg tttcagaaac aactctggcg catcgggctt cccatacaat cgatagattg
     1261 tcgcacctga ttgcccgaca ttatcgcgag cccatttata cccatataaa tcagcatcca
     1321 tgttggaatt taatcgcggc ctagagcaag acgtttcccg ttgaatatgg ctcataacac
     1381 cccttgtatt actgtttatg taagcagaca gttttattgt tcatgaccaa aatcccttaa
     1441 cgtgagtttt cgttccactg agcgtcagac cccgtagaaa agatcaaagg atcttcttga
     1501 gatccttttt ttctgcgcgt aatctgctgc ttgcaaacaa aaaaaccacc gctaccagcg
     1561 gtggtttgtt tgccggatca agagctacca actctttttc cgaaggtaac tggcttcagc
     1621 agagcgcaga taccaaatac tgtccttcta gtgtagccgt agttaggcca ccacttcaag
     1681 aactctgtag caccgcctac atacctcgct ctgctaatcc tgttaccagt ggctgctgcc
     1741 agtggcgata agtcgtgtct taccgggttg gactcaagac gatagttacc ggataaggcg
     1801 cagcggtcgg gctgaacggg gggttcgtgc acacagccca gcttggagcg aacgacctac
     1861 accgaactga gatacctaca gcgtgagcta tgagaaagcg ccacgcttcc cgaagggaga
     1921 aaggcggaca ggtatccggt aagcggcagg gtcggaacag gagagcgcac gagggagctt
     1981 ccagggggaa acgcctggta tctttatagt cctgtcgggt ttcgccacct ctgacttgag
     2041 cgtcgatttt tgtgatgctc gtcagggggg cggagcctat ggaaaaacgc cagcaacgcg
     2101 gcctttttac ggttcctggc cttttgctgg ccttttgctc acatgttctt tcctgcgtta
     2161 tcccctgatt ctgtggataa ccgtattacc gcctttgagt gagctgatac cgctcgccgc
     2221 agccgaacga ccgagcgcag cgagtcagtg agcgaggaag cggaagagcg cctgatgcgg
     2281 tattttctcc ttacgcatct gtgcggtatt tcacaccgca tatatggtgc actctcagta
     2341 caatctgctc tgatgccgca tagttaagcc agtatacact ccgctatcgc tacgtgactg
     2401 ggtcatggct gcgccccgac acccgccaac acccgctgac gcgccctgac gggcttgtct
     2461 gctcccggca tccgcttaca gacaagctgt gaccgtctcc gggagctgca tgtgtcagag
     2521 gttttcaccg tcatcaccga aacgcgcgag gcagctgcgg taaagctcat cagcgtggtc
     2581 gtgaagcgat tcacagatgt ctgcctgttc atccgcgtcc agctcgttga gtttctccag
     2641 aagcgttaat gtctggcttc tgataaagcg ggccatgtta agggcggttt tttcctgttt
     2701 ggtcactgat gcctccgtgt aagggggatt tctgttcatg ggggtaatga taccgatgaa
     2761 acgagagagg atgctcacga tacgggttac tgatgatgaa catgcccggt tactggaacg
     2821 ttgtgagggt aaacaactgg cggtatggat gcggcgggac cagagaaaaa tcactcaggg
     2881 tcaatgccag cgcttcgtta atacagatgt aggtgttcca cagggtagcc agcagcatcc
     2941 tgcgatgcag atccggaaca taatggtgca gggcgctgac ttccgcgttt ccagacttta
     3001 cgaaacacgg aaaccgaaga ccattcatgt tgttgctcag gtcgcagacg ttttgcagca
     3061 gcagtcgctt cacgttcgct cgcgtatcgg tgattcattc tgctaaccag taaggcaacc
     3121 ccgccagcct agccgggtcc tcaacgacag gagcacgatc atgcgcaccc gtggggccgc
     3181 catgccggcg ataatggcct gcttctcgcc gaaacgtttg gtggcgggac cagtgacgaa
     3241 ggcttgagcg agggcgtgca agattccgaa taccgcaagc gacaggccga tcatcgtcgc
     3301 gctccagcga aagcggtcct cgccgaaaat gacccagagc gctgccggca cctgtcctac
     3361 gagttgcatg ataaagaaga cagtcataag tgcggcgacg atagtcatgc cccgcgccca
     3421 ccggaaggag ctgactgggt tgaaggctct caagggcatc ggtcgagatc ccggtgccta
     3481 atgagtgagc taacttacat taattgcgtt gcgctcactg cccgctttcc agtcgggaaa
     3541 cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat
     3601 tgggcgccag ggtggttttt cttttcacca gtgagacggg caacagctga ttgcccttca
     3661 ccgcctggcc ctgagagagt tgcagcaagc ggtccacgct ggtttgcccc agcaggcgaa
     3721 aatcctgttt gatggtggtt aacggcggga tataacatga gctgtcttcg gtatcgtcgt
     3781 atcccactac cgagatatcc gcaccaacgc gcagcccgga ctcggtaatg gcgcgcattg
     3841 cgcccagcgc catctgatcg ttggcaacca gcatcgcagt gggaacgatg ccctcattca
     3901 gcatttgcat ggtttgttga aaaccggaca tggcactcca gtcgccttcc cgttccgcta
     3961 tcggctgaat ttgattgcga gtgagatatt tatgccagcc agccagacgc agacgcgccg
     4021 agacagaact taatgggccc gctaacagcg cgatttgctg gtgacccaat gcgaccagat
     4081 gctccacgcc cagtcgcgta ccgtcttcat gggagaaaat aatactgttg atgggtgtct
     4141 ggtcagagac atcaagaaat aacgccggaa cattagtgca ggcagcttcc acagcaatgg
     4201 catcctggtc atccagcgga tagttaatga tcagcccact gacgcgttgc gcgagaagat
     4261 tgtgcaccgc cgctttacag gcttcgacgc cgcttcgttc taccatcgac accaccacgc
     4321 tggcacccag ttgatcggcg cgagatttaa tcgccgcgac aatttgcgac ggcgcgtgca
     4381 gggccagact ggaggtggca acgccaatca gcaacgactg tttgcccgcc agttgttgtg
     4441 ccacgcggtt gggaatgtaa ttcagctccg ccatcgccgc ttccactttt tcccgcgttt
     4501 tcgcagaaac gtggctggcc tggttcacca cgcgggaaac ggtctgataa gagacaccgg
     4561 catactctgc gacatcgtat aacgttactg gtttcacatt caccaccctg aattgactct
     4621 cttccgggcg ctatcatgcc ataccgcgaa aggttttgcg ccattcgatg gtgtccggga
     4681 tctcgacgct ctcccttatg cgactcctgc attaggaagc agcccagtag taggttgagg
     4741 ccgttgagca ccgccgccgc aaggaatggt gcatgcaagg agatggcgcc caacagtccc
     4801 ccggccacgg ggcctgccac catacccacg ccgaaacaag cgctcatgag cccgaagtgg
     4861 cgagcccgat cttccccatc ggtgatgtcg gcgatatagg cgccagcaac cgcacctgtg
     4921 gcgccggtga tgccggccac gatgcgtccg gcgtagagga tcgagatctc gatcccgcga
     4981 aattaatacg actcactata ggggaattgt gagcggataa caattcccct ctagaaataa
     5041 ttttgtttaa ctttaagaag gagatatacc atgggcagca gccatcatca tcatcatcac
     5101 agcagcggcc tggtgccgcg cggcagccat atggctagca tgtcccctat actaggttat
     5161 tggaaaatta agggccttgt gcaacccact cgacttcttt tggaatatct tgaagaaaaa
     5221 tatgaagagc atttgtatga gcgcgatgaa ggtgataaat ggcgaaacaa aaagtttgaa
     5281 ttgggtttgg agtttcccaa tcttccttat tatattgatg gtgatgttaa attaacacag
     5341 tctatggcca tcatacgtta tatagctgac aagcacaaca tgttgggtgg ttgtccaaaa
     5401 gagcgtgcag agatttcaat gcttgaagga gcggttttgg atattagata cggtgtttcg
     5461 agaattgcat atagtaaaga ctttgaaact ctcaaagttg attttcttag caagctacct
     5521 gaaatgctga aaatgttcga agatcgttta tgtcataaaa catatttaaa tggtgatcat
     5581 gtaacccatc ctgacttcat gttgtatgac gctcttgatg ttgttttata catggaccca
     5641 atgtgcctgg atgcgttccc aaaattagtt tgttttaaaa aacgtattga agctatccca
     5701 caaattgata agtacttgaa atccagcaag tatatagcat ggcctttgca gggctggcaa
     5761 gccacgtttg gtggtggcga ccatcctcca aaatcggatc tggaagttct gttccagggg
     5821 cccctgtgaa agcttgcggc cgcactcgag caccaccacc accaccactg agatccggct
     5881 gctaacaaag cccgaaagga agctgagttg gctgctgcca ccgctgagca ataactagca
     5941 taaccccttg gggcctctaa acgggtcttg aggggttttt tgctgaaagg aggaactata
     6001 tccggat
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
