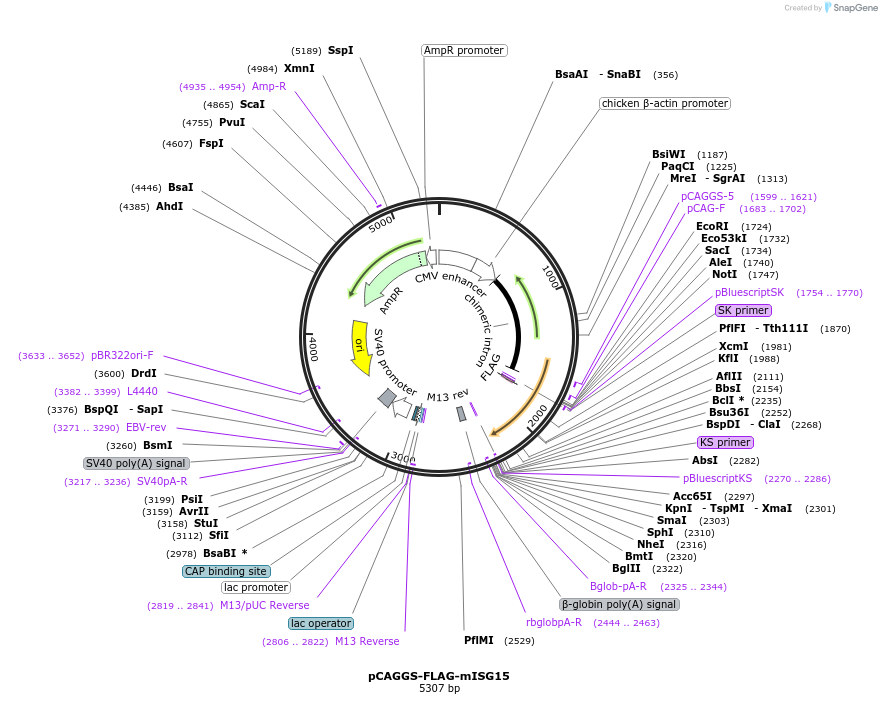

pCAGGS-FLAG-mISG15

LOCUS       pCAGGS-FLAG-mISG15        5307 bp    DNA     circular SYN 15-DEC-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5307)
  AUTHORS   Kim KI, Giannakopoulos NV, Virgin HW, Zhang DE
  TITLE     Interferon-inducible ubiquitin E2, Ubc8, is a conjugating enzyme for
            protein ISGylation.
  JOURNAL   Mol Cell Biol. 2004 Nov . 24(21):9592-600.
  PUBMED    15485925
REFERENCE   2  (bases 1 to 5307)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Dec 15, 2025 from SnapGene Server 8.0.1
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; journalName: "Mol Cell
            Biol. 2004 Nov . 24(21):9592-600."
COMMENT     Sequence Label: pCAGGS-FLAG-mISG15
FEATURES             Location/Qualifiers
     source          1..5307
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        1..380
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        382..658
                     /label=chicken beta-actin promoter
     intron          659..1675
                     /label=chimeric intron
                     /note="chimera between introns from chicken beta-actin and
                     rabbit beta-globin"
     primer_bind     1599..1621
                     /label=pCAGGS-5
                     /note="Chimeric intron in CAG promoter, forward primer"
     primer_bind     1683..1702
                     /label=pCAG-F
                     /note="Rabbit beta-globin intron, for pCAG plasmids,
                     forward primer"
     primer_bind     1754..1770
                     /label=SK primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     1754..1770
                     /label=pBluescriptSK
                     /note="For pBluescript vector"
     CDS             1775..1798
                     /codon_start=1
                     /product="FLAG(R) epitope tag, followed by an enterokinase
                     cleavage site"
                     /label=FLAG
                     /translation="DYKDDDDK"
     primer_bind     complement(2269..2285)
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(2270..2286)
                     /label=pBluescriptKS
                     /note="For pBluescript vector"
     primer_bind     complement(2325..2344)
                     /label=Bglob-pA-R
                     /note="Rabbit beta-globin polyA region, reverse primer"
     polyA_signal    2390..2445
                     /label=beta-globin poly(A) signal
                     /note="rabbit beta-globin polyadenylation signal (Gil and
                     Proudfoot, 1987)"
     primer_bind     complement(2444..2463)
                     /label=rbglobpA-R
                     /note="Rabbit beta-globin polyA, reverse primer. Also
                     called rb-glob-pA-term-R"
     primer_bind     complement(2806..2822)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(2806..2822)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(2819..2841)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    2830..2846
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(join(2854..2860,2861..2878,2879..2884))
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    2899..2920
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        2979..3174
                     /label=SV40 promoter
                     /note="SV40 early promoter"
     rep_origin      3025..3160
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     polyA_signal    3180..3314
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3217..3236)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3271..3290
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(3382..3399)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(3553..4141)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(3633..3652)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(join(4312..5103,5104..5172))
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     4935..4954
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5173..5277)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacattgatt attgactagt tattaatagt aatcaattac ggggtcatta gttcatagcc
       61 catatatgga gttccgcgtt acataactta cggtaaatgg cccgcctggc tgaccgccca
      121 acgacccccg cccattgacg tcaataatga cgtatgttcc catagtaacg ccaataggga
      181 ctttccattg acgtcaatgg gtggagtatt tacggtaaac tgcccacttg gcagtacatc
      241 aagtgtatca tatgccaagt acgcccccta ttgacgtcaa tgacggtaaa tggcccgcct
      301 ggcattatgc ccagtacatg accttatggg actttcctac ttggcagtac atctacgtat
      361 tagtcatcgc tattaccatg gtcgaggtga gccccacgtt ctgcttcact ctccccatct
      421 cccccccctc cccaccccca attttgtatt tatttatttt ttaattattt tgtgcagcga
      481 tgggggcggg gggggggggn ggcgcgcgcc aggcggggcg gggcggggcg aggggcgggg
      541 cggggcgagg cggagaggtg cggcggcagc caatcagagc ggcgcgctcc gaaagtttcc
      601 ttttatggcg aggcggcggc ggcggcggcc ctataaaaag cgaagcgcgc ggcgggcggg
      661 agtcgctgcg cgctgccttc gccccgtgcc ccgctccgcc gccgcctcgc gccgcccgcc
      721 ccggctctga ctgaccgcgt tactcccaca ggtgagcggg cgggacggcc cttctcctcc
      781 gggctgtaat tagcgcttgg tttaatgacg gcttgtttct tttctgtggc tgcgtgaaag
      841 ccttgagggg ctccgggagg gccctttgtg cggggggagc ggctcggggg gtgcgtgcgt
      901 gtgtgtgtgc gtggggagcg ccgcgtgcgg ctccgcgctg cccggcggct gtgagcgctg
      961 cgggcgcggc gcggggcttt gtgcgctccg cagtgtgcgc gaggggagcg cggccggggg
     1021 cggtgccccg cggtgcgggg ggggctgcga ggggaacaaa ggctgcgtgc ggggtgtgtg
     1081 cgtggggggg tgagcagggg gtgtgggcgc gtcggtcggg ctgcaacccc ccctgcaccc
     1141 ccctccccga gttgctgagc acggcccggc ttcgggtgcg gggctccgta cggggcgtgg
     1201 cgcggggctc gccgtgccgg gcggggggtg gcggcaggtg ggggtgccgg gcggggcggg
     1261 gccgcctcgg gccggggagg gctcggggga ggggcgcggc ggcccccgga gcgccggcgg
     1321 ctgtcgaggc gcggcgagcc gcagccattg ccttttatgg taatcgtgcg agagggcgca
     1381 gggacttcct ttgtcccaaa tctgtgcgga gccgaaatct gggaggcgcc gccgcacccc
     1441 ctctagcggg cgcggggcga agcggtgcgg cgccggcagg aaggaaatgg gcggggaggg
     1501 ccttcgtgcg tcgccgcgcc gccgtcccct tctccctctc cagcctcggg gctgtccgcg
     1561 gggggacggc tgccttcggg ggggacgggg cagggcgggg ttcggcttct ggcgtgtgac
     1621 cggcggctct agagcctctg ctaaccatgt tcatgccttc ttctttttcc tacagctcct
     1681 gggcaacgtg ctggttattg tgctgtctca tcattttggc aaagaattcg agctccaccg
     1741 cggtggcggc cgctctagaa ctagtggatc catggactac aaagacgatg acgacaagct
     1801 tgcctgggac ctaaaggtga agatgctggg gggtaacgat ttcctggtgt ccgtgactaa
     1861 ctccatgacg gtgtcagaac tgaagaagca gattgcccag aagattggtg tgccggcttt
     1921 ccagcagcgc ctggcccacc aaactgcagt gctccaggac ggtcttaccc tttccagtct
     1981 gggtctgggt cccagcagca cagtgatgct agtggtacag aactgcagcg agcctctgag
     2041 catcctggtg aggaacgaaa ggggccacag caacatctat gaggtctttc tgacgcagac
     2101 tgtagacacg cttaagaaga aggtgtccca gcgggaacaa gtccacgaag accagttctg
     2161 gctgagcttc gagggaaggc ccatggagga caaggagctg ctgggggagt atggcctaaa
     2221 gccccagtgc acagtgatca agcatttgcg cctgaggggt gggtaaatcg ataccgtcga
     2281 cctcgagggg gggcccggta cccgggcatg ctcgagctag cagatctttt tccctctgcc
     2341 aaaaattatg gggacatcat gaagcccctt gagcatctga cttctggcta ataaaggaaa
     2401 tttattttca ttgcaatagt gtgttggaat tttttgtgtc tctcactcgg aaggacatat
     2461 gggagggcaa atcatttaaa acatcagaat gagtatttgg tttagagttt ggcaacatat
     2521 gcccatatgc tggctgccat gaacaaaggt tggctataaa gaggtcatca gtatatgaaa
     2581 cagccccctg ctgtccattc cttattccat agaaaagcct tgacttgagg ttagattttt
     2641 tttatatttt gttttgtgtt atttttttct ttaacatccc taaaattttc cttacatgtt
     2701 ttactagcca gatttttcct cctctcctga ctactcccag tcatagctgt ccctcttctc
     2761 ttatggagat ccctcgacct gcagcccaag cttggcgtaa tcatggtcat agctgtttcc
     2821 tgtgtgaaat tgttatccgc tcacaattcc acacaacata cgagccggaa gcataaagtg
     2881 taaagcctgg ggtgcctaat gagtgagcta actcacatta attgcgttgc gctcactgcc
     2941 cgctttccag tcgggaaacc tgtcgtgcca gcggatccgc atctcaatta gtcagcaacc
     3001 atagtcccgc ccctaactcc gcccatcccg cccctaactc cgcccagttc cgcccattct
     3061 ccgccccatg gctgactaat tttttttatt tatgcagagg ccgaggccgc ctcggcctct
     3121 gagctattcc agaagtagtg aggaggcttt tttggaggcc taggcttttg caaaaagcta
     3181 acttgtttat tgcagcttat aatggttaca aataaagcaa tagcatcaca aatttcacaa
     3241 ataaagcatt tttttcactg cattctagtt gtggtttgtc caaactcatc aatgtatctt
     3301 atcatgtctg gatccgctgc attaatgaat cggccaacgc gcggggagag gcggtttgcg
     3361 tattgggcgc tcttccgctt cctcgctcac tgactcgctg cgctcggtcg ttcggctgcg
     3421 gcgagcggta tcagctcact caaaggcggt aatacggtta tccacagaat caggggataa
     3481 cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta aaaaggccgc
     3541 gttgctggcg tttttccata ggctccgccc ccctgacgag catcacaaaa atcgacgctc
     3601 aagtcagagg tggcgaaacc cgacaggact ataaagatac caggcgtttc cccctggaag
     3661 ctccctcgtg cgctctcctg ttccgaccct gccgcttacc ggatacctgt ccgcctttct
     3721 cccttcggga agcgtggcgc tttctcatag ctcacgctgt aggtatctca gttcggtgta
     3781 ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc gttcagcccg accgctgcgc
     3841 cttatccggt aactatcgtc ttgagtccaa cccggtaaga cacgacttat cgccactggc
     3901 agcagccact ggtaacagga ttagcagagc gaggtatgta ggcggtgcta cagagttctt
     3961 gaagtggtgg cctaactacg gctacactag aagaacagta tttggtatct gcgctctgct
     4021 gaagccagtt accttcggaa aaagagttgg tagctcttga tccggcaaac aaaccaccgc
     4081 tggtagcggt ggtttttttg tttgcaagca gcagattacg cgcagaaaaa aaggatctca
     4141 agaagatcct ttgatctttt ctacggggtc tgacgctcag tggaacgaaa actcacgtta
     4201 agggattttg gtcatgagat tatcaaaaag gatcttcacc tagatccttt taaattaaaa
     4261 atgaagtttt aaatcaatct aaagtatata tgagtaaact tggtctgaca gttaccaatg
     4321 cttaatcagt gaggcaccta tctcagcgat ctgtctattt cgttcatcca tagttgcctg
     4381 actccccgtc gtgtagataa ctacgatacg ggagggctta ccatctggcc ccagtgctgc
     4441 aatgataccg cgagacccac gctcaccggc tccagattta tcagcaataa accagccagc
     4501 cggaagggcc gagcgcagaa gtggtcctgc aactttatcc gcctccatcc agtctattaa
     4561 ttgttgccgg gaagctagag taagtagttc gccagttaat agtttgcgca acgttgttgc
     4621 cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat tcagctccgg
     4681 ttcccaacga tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag cggttagctc
     4741 cttcggtcct ccgatcgttg tcagaagtaa gttggccgca gtgttatcac tcatggttat
     4801 ggcagcactg cataattctc ttactgtcat gccatccgta agatgctttt ctgtgactgg
     4861 tgagtactca accaagtcat tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc
     4921 ggcgtcaata cgggataata ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg
     4981 aaaacgttct tcggggcgaa aactctcaag gatcttaccg ctgttgagat ccagttcgat
     5041 gtaacccact cgtgcaccca actgatcttc agcatctttt actttcacca gcgtttctgg
     5101 gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga ataagggcga cacggaaatg
     5161 ttgaatactc atactcttcc tttttcaata ttattgaagc atttatcagg gttattgtct
     5221 catgagcgga tacatatttg aatgtattta gaaaaataaa caaatagggg ttccgcgcac
     5281 atttccccga aaagtgccac ctgggtc
//
