| 出品公司: | EMD Biosciences(Novagen) |
|---|---|
| 别名: | pET20b, pet 20b |
| 质粒类型: | 大肠杆菌蛋白表达 |
| 表达水平: | 高 |
| 克隆方法: | 多克隆位点，限制性内切酶 |
| 载体大小: | 3716bp |
| 5' 测序引物: | T7 |
| 5' 测序引物序列: | 5'-TAATACGACTCACTATAGGG-3' |
| 载体标签: | N-pelB信号肽, C-His |
| 载体抗性: | Ampicillin |
| 备注: |
Hosts: E.coli. Related vectors: pBR322.
|
| 产品目录号: | 69337-3 |
| 稳定性: | 瞬时表达 Transient |
| 组成型: | 组成型 Constitutive |
| 病毒/非病毒: | 非病毒 |
| 表达宿主菌: | BL21(DE3) 、BLR(DE3)、Rosetta(DE3)、OrigamiB(DE3) |
| pET表达手册： |
pET表达手册英文版 pET表达手册中文版 |
| pET载体汇总: |
pET-3a pET-11a pET-12a pET-14b pET-15b pET-16b pET-17b pET-19b pET-20b pET-21a pET-22b pET-23a pET-24a pET-25b pET-26b pET-27b pET-28a pET-29a pET-30a pET-31b pET-32a pET-33b pET-34b pET-35b pET-37b pET-39b pET-40b pET-41a pET-42a pET-43.1a pET-44a pET-45b pET-47b pET-48b pET-49b pET-50b pET-51b pET-52b pETDuet-1 pACYCDuet-1 pCDFDuet-1 pRSFDuet-1 pColaDuet-1 |
买家导航
pET-20b(+)载体 pET20b质粒基本信息

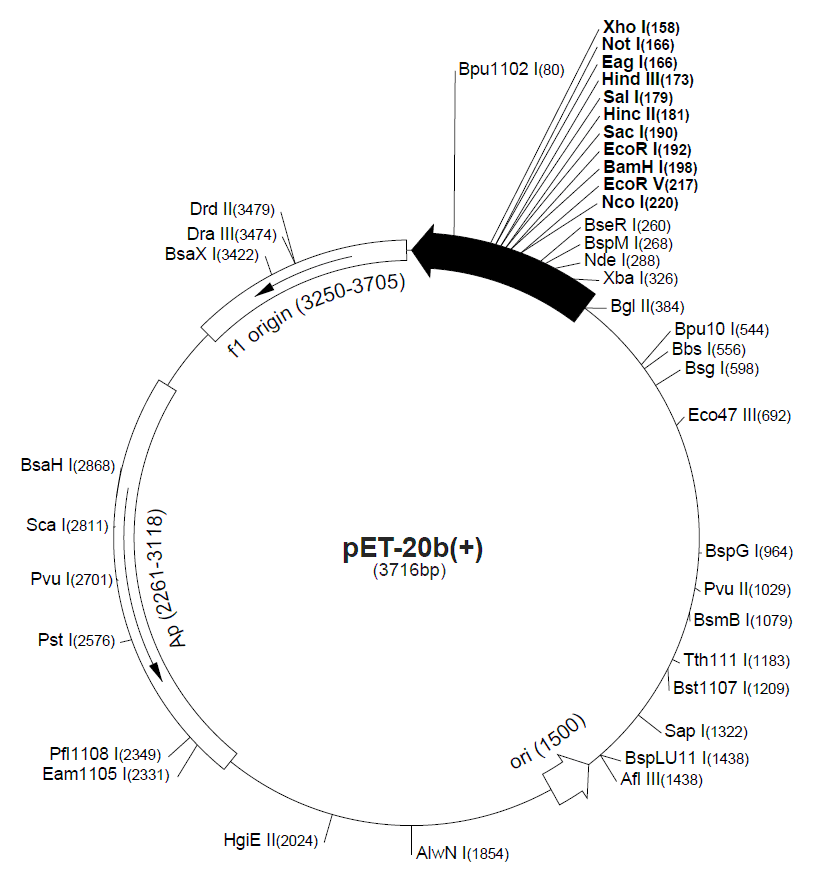

pET-20b(+)质粒图谱 pET20b载体图谱和pET-20b(+)载体序列 pET20b质粒序列多克隆位点信息
pET-20b(+)质粒 pET20b载体简介

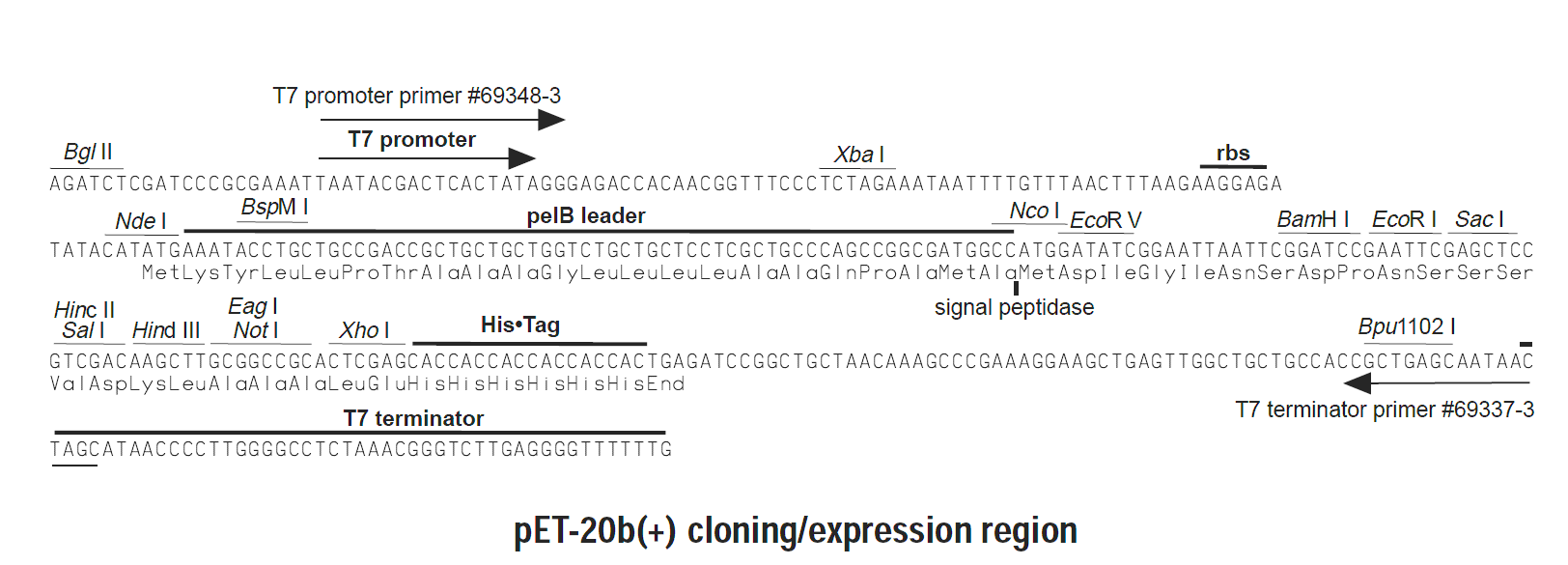

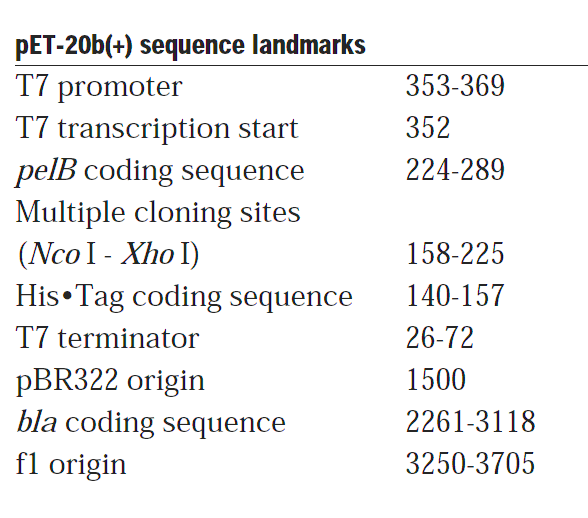

The pET-20b(+) vector (Cat. No. 69739-3) carries an N-terminal pelB signal sequence for potential periplasmic localization, plus optional C-terminal His•Tag® sequence. Unique sites are shown on the circle map. Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circular map. The cloning/expression region of the coding strand transcribed by T7 RNA polymerase is shown below. The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand. Therefore, single-stranded sequencing should be performed using the T7 terminator primer (Cat. No. 69337-3).
pET-20b(+)质粒序列 pET20b载体序列
LOCUS pET-20b(+) 3716 bp DNA circular SYN
DEFINITION pET-20b(+)
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
COMMENT This file is created by Vector NTI
http://www.biofeng.com/
COMMENT ORIGDB|GenBank|
COMMENT VNTAUTHORNAME|biofeng.com|
COMMENT VNTOAUTHORAD1|Novagen Inc.|
FEATURES Location/Qualifiers
source 1..3716
/organism="pET-20b(+)"
/mol_type="other DNA"
terminator complement(1..129)
/label="T7_terminator"
misc_feature 69..87
/label="T7_Terminal_primer"
misc_feature complement(298..314)
/label="T7_transl_en_RBS"
promoter complement(351..369)
/label="T7_promoter"
misc_feature 878..1069
/label="ROP"
misc_feature complement(1063..1085)
/label="pGEX_3_primer"
rep_origin complement(1484..2103)
/label="pBR322_origin"
gene complement(2258..3118)
/label="Ampicillin"
/gene="Ampicillin"
CDS complement(2258..3118)
/label="ORF frame 2"
promoter complement(3160..3188)
/label="AmpR_promoter"
ORIGIN
1 atccggatat agttcctcct ttcagcaaaa aacccctcaa gacccgttta gaggccccaa
61 ggggttatgc tagttattgc tcagcggtgg cagcagccaa ctcagcttcc tttcgggctt
121 tgttagcagc cggatctcag tggtggtggt ggtggtgctc gagtgcggcc gcaagcttgt
181 cgacggagct cgaattcgga tccgaattaa ttccgatatc catggccatc gccggctggg
241 cagcgaggag cagcagacca gcagcagcgg tcggcagcag gtatttcata tgtatatctc
301 cttcttaaag ttaaacaaaa ttatttctag agggaaaccg ttgtggtctc cctatagtga
361 gtcgtattaa tttcgcggga tcgagatctc gggcagcgtt gggtcctggc cacgggtgcg
421 catgatcgtg ctcctgtcgt tgaggacccg gctaggctgg cggggttgcc ttactggtta
481 gcagaatgaa tcaccgatac gcgagcgaac gtgaagcgac tgctgctgca aaacgtctgc
541 gacctgagca acaacatgaa tggtcttcgg tttccgtgtt tcgtaaagtc tggaaacgcg
601 gaagtcagcg ccctgcacca ttatgttccg gatctgcatc gcaggatgct gctggctacc
661 ctgtggaaca cctacatctg tattaacgaa gcgctggcat tgaccctgag tgatttttct
721 ctggtcccgc cgcatccata ccgccagttg tttaccctca caacgttcca gtaaccgggc
781 atgttcatca tcagtaaccc gtatcgtgag catcctctct cgtttcatcg gtatcattac
841 ccccatgaac agaaatcccc cttacacgga ggcatcagtg accaaacagg aaaaaaccgc
901 ccttaacatg gcccgcttta tcagaagcca gacattaacg cttctggaga aactcaacga
961 gctggacgcg gatgaacagg cagacatctg tgaatcgctt cacgaccacg ctgatgagct
1021 ttaccgcagc tgcctcgcgc gtttcggtga tgacggtgaa aacctctgac acatgcagct
1081 cccggagacg gtcacagctt gtctgtaagc ggatgccggg agcagacaag cccgtcaggg
1141 cgcgtcagcg ggtgttggcg ggtgtcgggg cgcagccatg acccagtcac gtagcgatag
1201 cggagtgtat actggcttaa ctatgcggca tcagagcaga ttgtactgag agtgcaccat
1261 atatgcggtg tgaaataccg cacagatgcg taaggagaaa ataccgcatc aggcgctctt
1321 ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg gctgcggcga gcggtatcag
1381 ctcactcaaa ggcggtaata cggttatcca cagaatcagg ggataacgca ggaaagaaca
1441 tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa ggccgcgttg ctggcgtttt
1501 tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt cagaggtggc
1561 gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc ctcgtgcgct
1621 ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct tcgggaagcg
1681 tggcgctttc tcatagctca cgctgtaggt atctcagttc ggtgtaggtc gttcgctcca
1741 agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta tccggtaact
1801 atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca gccactggta
1861 acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag tggtggccta
1921 actacggcta cactagaagg acagtatttg gtatctgcgc tctgctgaag ccagttacct
1981 tcggaaaaag agttggtagc tcttgatccg gcaaacaaac caccgctggt agcggtggtt
2041 tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa gatcctttga
2101 tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg attttggtca
2161 tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga agttttaaat
2221 caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta atcagtgagg
2281 cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc cccgtcgtgt
2341 agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg ataccgcgag
2401 acccacgctc accggctcca gatttatcag caataaacca gccagccgga agggccgagc
2461 gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt tgccgggaag
2521 ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt gctgcaggca
2581 tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc caacgatcaa
2641 ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc ggtcctccga
2701 tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca gcactgcata
2761 attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag tactcaacca
2821 agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg tcaatacggg
2881 ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa cgttcttcgg
2941 ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg
3001 cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga gcaaaaacag
3061 gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga atactcatac
3121 tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg agcggataca
3181 tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt ccccgaaaag
3241 tgccacctga aattgtaaac gttaatattt tgttaaaatt cgcgttaaat ttttgttaaa
3301 tcagctcatt ttttaaccaa taggccgaaa tcggcaaaat cccttataaa tcaaaagaat
3361 agaccgagat agggttgagt gttgttccag tttggaacaa gagtccacta ttaaagaacg
3421 tggactccaa cgtcaaaggg cgaaaaaccg tctatcaggg cgatggccca ctacgtgaac
3481 catcacccta atcaagtttt ttggggtcga ggtgccgtaa agcactaaat cggaacccta
3541 aagggagccc ccgatttaga gcttgacggg gaaagccggc gaacgtggcg agaaaggaag
3601 ggaagaaagc gaaaggagcg ggcgctaggg cgctggcaag tgtagcggtc acgctgcgcg
3661 taaccaccac acccgccgcg cttaatgcgc cgctacaggg cgcgtcccat tcgcca
//
pET-20b(+)载体图谱 pET20b质粒图谱pdf版和pET-20b(+)载体序列 pET20b质粒序列等相关资料下载
pET-20b(+)质粒 pET20b载体应用举例
