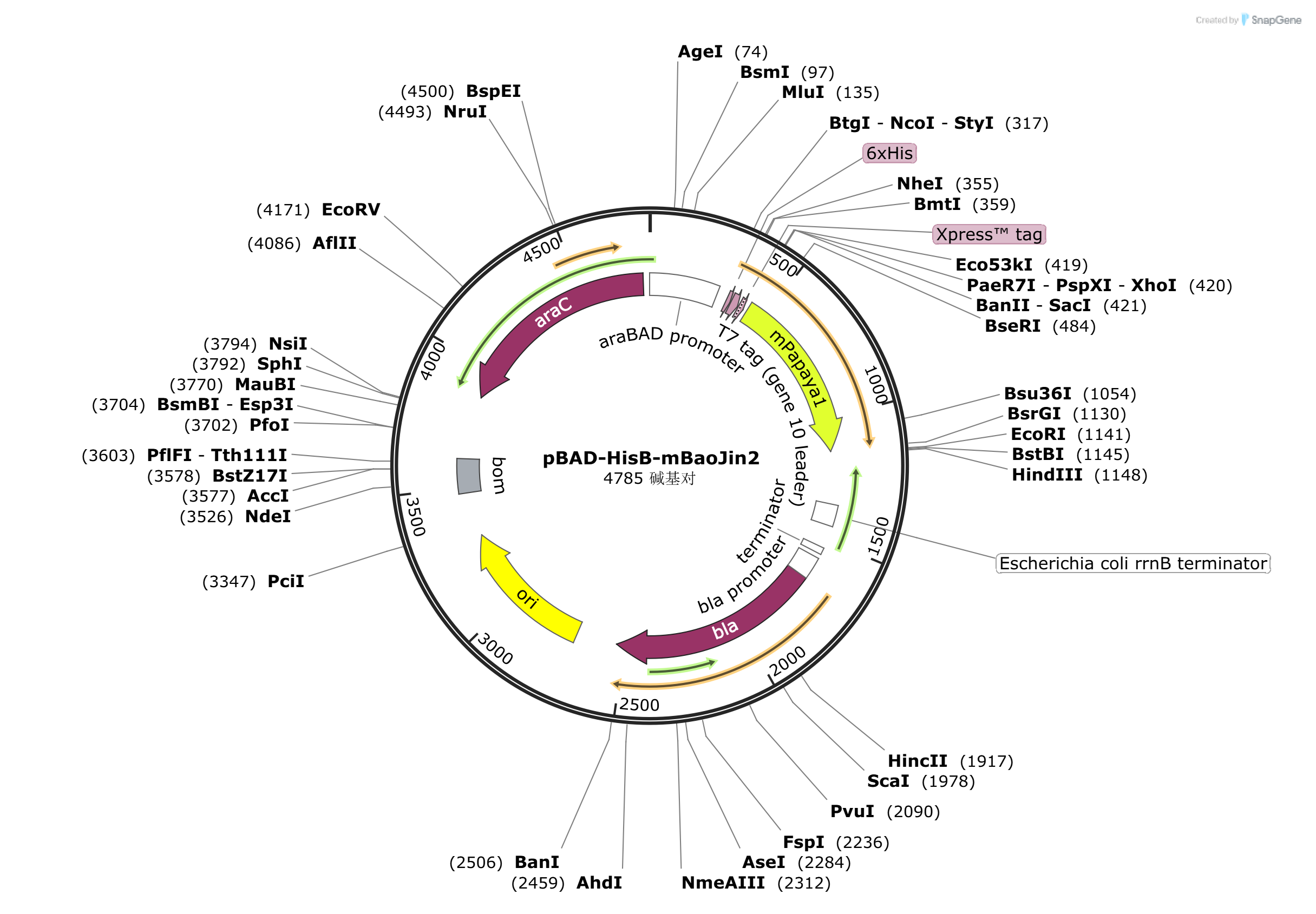

pBAD-HisB-mPapaya

LOCUS       pBAD-HisB-mPapaya               4785 bp DNA     circular SYN 17-JUN-2026
DEFINITION  synthetic circular DNA.
ACCESSION   .
VERSION     .
KEYWORDS    pBAD-HisB-mBaoJin2
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4785)
  AUTHORS   Replikant
  TITLE     Direct Submission
  JOURNAL   Exported Sep 26, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..4785
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        1..285
                     /gene="araBAD"
                     /label=araBAD promoter
                     /note="araBAD promoter"
                     /note="promoter of the L-arabinose operon of E. coli; the
                     araC regulatory gene is transcribed in the opposite
                     direction (Guzman et al., 1995)"
     CDS             331..348
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /label=6xHis
                     /translation="HHHHHH"
     CDS             352..384
                     /codon_start=1
                     /product="leader peptide from bacteriophage T7 gene 10"
                     /label=T7 tag (gene 10 leader)
                     /note="promotes efficient translation in E. coli"
                     /translation="MASMTGGQQMG"
     CDS             388..411
                     /codon_start=1
                     /product="Xpress(TM) epitope tag, including an enterokinase
                     recognition and cleavage site"
                     /label=Xpress(TM) tag
                     /translation="DLYDDDDK"
     misc_feature    420..1146
                     /label=-2
     CDS             427..1137
                     /codon_start=1
                     /product="monomeric yellow fluorescent protein derived from
                     the Zoanthus fluorescent protein zFP538"
                     /label=mPapaya1
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEGQSKHGLKEEMTVKYHMEGCVNGHKFVITGEGIGNPFKG
                     KQTANLCVIEGGPLPFSEDILSPGFKYGDRIFTEYPQDIVDYFKNSCPAGYTWERSFLF
                     EDGAVCRCNVDITVSEKENCIYHKSIFRGVNFPADGPVMKKMTTNWEASTEKIVPVPKQ
                     GILKGKVKMYLLLKDGGRYHCQFDTVYKAKSVPSKMPEWHFIQHKLLREDRSDAKNQKW
                     QLTEHAIAGMDELYK"
     terminator      1356..1442
                     /gene="Escherichia coli rrnB"
                     /label=Escherichia coli rrnB terminator
                     /note="rrnB T1 terminator"
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
     terminator      1534..1561
                     /note="rrnB T2 terminator"
                     /note="transcription terminator T2 from the E. coli rrnB
                     gene"
     promoter        1580..1671
                     /gene="bla"
                     /label=bla promoter
                     /note="AmpR promoter"
     CDS             1672..2532
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=bla
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      2703..3291
                     /direction=RIGHT
                     /label=ori
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     misc_feature    3477..3617
                     /label=bom
                     /note="bom"
                     /note="basis of mobility region from pBR322"
     CDS             complement(3881..4759)
                     /codon_start=1
                     /gene="araC"
                     /product="L-arabinose regulatory protein"
                     /label=araC
                     /note="araC"
                     /translation="MAEAQNDPLLPGYSFNAHLVAGLTPIEANGYLDFFIDRPLGMKGY
                     ILNLTIRGQGVVKNQGREFVCRPGDILLFPPGEIHHYGRHPEAREWYHQWVYFRPRAYW
                     HEWLNWPSIFANTGFFRPDEAHQPHFSDLFGQIINAGQGEGRYSELLAINLLEQLLLRR
                     MEAINESLHPPMDNRVREACQYISDHLADSNFDIASVAQHVCLSPSRLSHLFRQQLGIS
                     VLSWREDQRISQAKLLLSTTRMPIATVGRNVGFDDQLYFSRVFKKCTGASPSEFRAGCE
                     EKVNDVAVKLS"
ORIGIN
        1 aagaaaccaa ttgtccatat tgcatcagac attgccgtca ctgcgtcttt tactggctct
       61 tctcgctaac caaaccggta accccgctta ttaaaagcat tctgtaacaa agcgggacca
      121 aagccatgac aaaaacgcgt aacaaaagtg tctataatca cggcagaaaa gtccacattg
      181 attatttgca cggcgtcaca ctttgctatg ccatagcatt tttatccata agattagcgg
      241 atcctacctg acgcttttta tcgcaactct ctactgtttc tccatacccg ttttttgggc
      301 taacaggagg aattaaccat ggggggttct catcatcatc atcatcatgg tatggctagc
      361 atgactggtg gacagcaaat gggtcgggat ctgtacgacg atgacgataa ggatccgagc
      421 tcgagcatgg tgagcaaggg cgaggggcaa tcgaagcatg ggctaaagga ggagatgacg
      481 gtgaagtacc acatggaagg ttgcgttaat ggtcacaaat ttgtcattac tggagagggc
      541 attggaaacc cttttaaggg taagcaaact gcaaatttgt gtgtgataga aggaggcccg
      601 ctgccgttct cggaggacat tttaagtccg ggttttaaat atggtgaccg gattttcaca
      661 gagtacccac aggatattgt agattacttc aagaactcat gtccagcggg ctatacgtgg
      721 gaaaggagct tcctctttga ggacggagcg gtctgtcgat gcaacgtgga cataacagtc
      781 tctgaaaagg agaactgcat ctatcacaaa agtatcttca gaggggtgaa ttttcccgcc
      841 gacggccccg taatgaagaa aatgaccact aattgggaag ctagtaccga gaaaattgtg
      901 cctgttccaa agcaagggat attaaaagga aaggtcaaaa tgtacctatt gctgaaggat
      961 ggcggtcgtt atcattgcca gtttgatacg gtatataaag ctaaatcagt gccctccaag
     1021 atgccagaat ggcattttat acagcataag ctccttaggg aggaccgctc tgatgctaaa
     1081 aaccagaaat ggcaattaac agaacatgca atcgcaggca tggacgagct gtacaagtaa
     1141 gaattcgaag cttggctgtt ttggcggatg agagaagatt ttcagcctga tacagattaa
     1201 atcagaacgc agaagcggtc tgataaaaca gaatttgcct ggcggcagta gcgcggtggt
     1261 cccacctgac cccatgccga actcagaagt gaaacgccgt agcgccgatg gtagtgtggg
     1321 gtctccccat gcgagagtag ggaactgcca ggcatcaaat aaaacgaaag gctcagtcga
     1381 aagactgggc ctttcgtttt atctgttgtt tgtcggtgaa cgctctcctg agtaggacaa
     1441 atccgccggg agcggatttg aacgttgcga agcaacggcc cggagggtgg cgggcaggac
     1501 gcccgccata aactgccagg catcaaatta agcagaaggc catcctgacg gatggccttt
     1561 ttgcgtttct acaaactctt ttgtttattt ttctaaatac attcaaatat gtatccgctc
     1621 atgagacaat aaccctgata aatgcttcaa taatattgaa aaaggaagag tatgagtatt
     1681 caacatttcc gtgtcgccct tattcccttt tttgcggcat tttgccttcc tgtttttgct
     1741 cacccagaaa cgctggtgaa agtaaaagat gctgaagatc agttgggtgc acgagtgggt
     1801 tacatcgaac tggatctcaa cagcggtaag atccttgaga gttttcgccc cgaagaacgt
     1861 tttccaatga tgagcacttt taaagttctg ctatgtggcg cggtattatc ccgtgttgac
     1921 gccgggcaag agcaactcgg tcgccgcata cactattctc agaatgactt ggttgagtac
     1981 tcaccagtca cagaaaagca tcttacggat ggcatgacag taagagaatt atgcagtgct
     2041 gccataacca tgagtgataa cactgcggcc aacttacttc tgacaacgat cggaggaccg
     2101 aaggagctaa ccgctttttt gcacaacatg ggggatcatg taactcgcct tgatcgttgg
     2161 gaaccggagc tgaatgaagc cataccaaac gacgagcgtg acaccacgat gcctgtagca
     2221 atggcaacaa cgttgcgcaa actattaact ggcgaactac ttactctagc ttcccggcaa
     2281 caattaatag actggatgga ggcggataaa gttgcaggac cacttctgcg ctcggccctt
     2341 ccggctggct ggtttattgc tgataaatct ggagccggtg agcgtgggtc tcgcggtatc
     2401 attgcagcac tggggccaga tggtaagccc tcccgtatcg tagttatcta cacgacgggg
     2461 agtcaggcaa ctatggatga acgaaataga cagatcgctg agataggtgc ctcactgatt
     2521 aagcattggt aactgtcaga ccaagtttac tcatatatac tttagattga tttaaaactt
     2581 catttttaat ttaaaaggat ctaggtgaag atcctttttg ataatctcat gaccaaaatc
     2641 ccttaacgtg agttttcgtt ccactgagcg tcagaccccg tagaaaagat caaaggatct
     2701 tcttgagatc ctttttttct gcgcgtaatc tgctgcttgc aaacaaaaaa accaccgcta
     2761 ccagcggtgg tttgtttgcc ggatcaagag ctaccaactc tttttccgaa ggtaactggc
     2821 ttcagcagag cgcagatacc aaatactgtc cttctagtgt agccgtagtt aggccaccac
     2881 ttcaagaact ctgtagcacc gcctacatac ctcgctctgc taatcctgtt accagtggct
     2941 gctgccagtg gcgataagtc gtgtcttacc gggttggact caagacgata gttaccggat
     3001 aaggcgcagc ggtcgggctg aacggggggt tcgtgcacac agcccagctt ggagcgaacg
     3061 acctacaccg aactgagata cctacagcgt gagctatgag aaagcgccac gcttcccgaa
     3121 gggagaaagg cggacaggta tccggtaagc ggcagggtcg gaacaggaga gcgcacgagg
     3181 gagcttccag ggggaaacgc ctggtatctt tatagtcctg tcgggtttcg ccacctctga
     3241 cttgagcgtc gatttttgtg atgctcgtca ggggggcgga gcctatggaa aaacgccagc
     3301 aacgcggcct ttttacggtt cctggccttt tgctggcctt ttgctcacat gttctttcct
     3361 gcgttatccc ctgattctgt ggataaccgt attaccgcct ttgagtgagc tgataccgct
     3421 cgccgcagcc gaacgaccga gcgcagcgag tcagtgagcg aggaagcgga agagcgcctg
     3481 atgcggtatt ttctccttac gcatctgtgc ggtatttcac accgcatatg gtgcactctc
     3541 agtacaatct gctctgatgc cgcatagtta agccagtata cactccgcta tcgctacgtg
     3601 actgggtcat ggctgcgccc cgacacccgc caacacccgc tgacgcgccc tgacgggctt
     3661 gtctgctccc ggcatccgct tacagacaag ctgtgaccgt ctccgggagc tgcatgtgtc
     3721 agaggttttc accgtcatca ccgaaacgcg cgaggcagca gatcaattcg cgcgcgaagg
     3781 cgaagcggca tgcataatgt gcctgtcaaa tggacgaagc agggattctg caaaccctat
     3841 gctactccgt caagccgtca attgtctgat tcgttaccaa ttatgacaac ttgacggcta
     3901 catcattcac tttttcttca caaccggcac ggaactcgct cgggctggcc ccggtgcatt
     3961 ttttaaatac ccgcgagaaa tagagttgat cgtcaaaacc aacattgcga ccgacggtgg
     4021 cgataggcat ccgggtggtg ctcaaaagca gcttcgcctg gctgatacgt tggtcctcgc
     4081 gccagcttaa gacgctaatc cctaactgct ggcggaaaag atgtgacaga cgcgacggcg
     4141 acaagcaaac atgctgtgcg acgctggcga tatcaaaatt gctgtctgcc aggtgatcgc
     4201 tgatgtactg acaagcctcg cgtacccgat tatccatcgg tggatggagc gactcgttaa
     4261 tcgcttccat gcgccgcagt aacaattgct caagcagatt tatcgccagc agctccgaat
     4321 agcgcccttc cccttgcccg gcgttaatga tttgcccaaa caggtcgctg aaatgcggct
     4381 ggtgcgcttc atccgggcga aagaaccccg tattggcaaa tattgacggc cagttaagcc
     4441 attcatgcca gtaggcgcgc ggacgaaagt aaacccactg gtgataccat tcgcgagcct
     4501 ccggatgacg accgtagtga tgaatctctc ctggcgggaa cagcaaaata tcacccggtc
     4561 ggcaaacaaa ttctcgtccc tgatttttca ccaccccctg accgcgaatg gtgagattga
     4621 gaatataacc tttcattccc agcggtcggt cgataaaaaa atcgagataa ccgttggcct
     4681 caatcggcgt taaacccgcc accagatggg cattaaacga gtatcccggc agcaggggat
     4741 cattttgcgc ttcagccata cttttcatac tcccgccatt cagag
//
