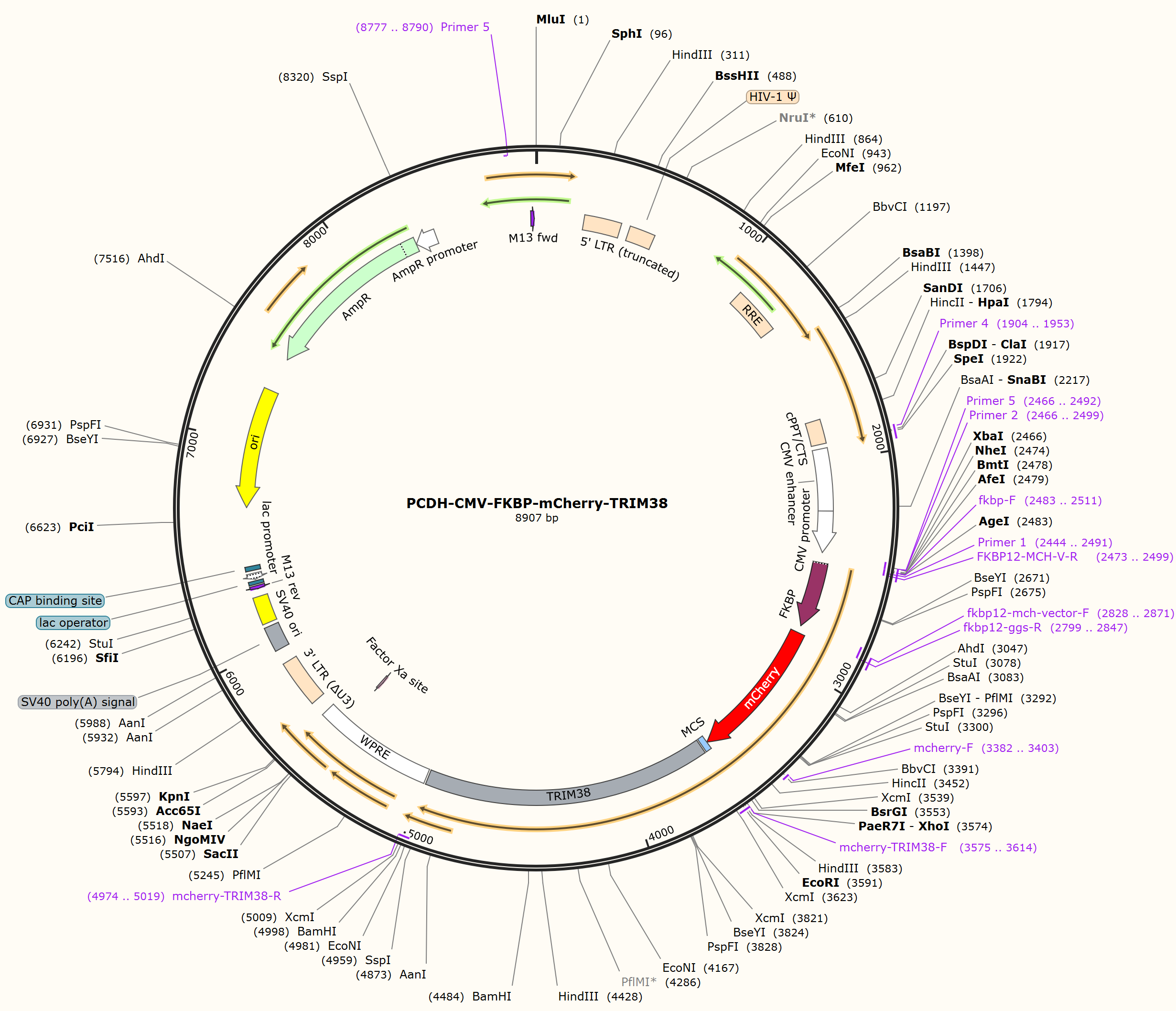

PCDH-CMV-FKBP-mCherry-TRIM38

LOCUS       PCDH-CMV-FKBP-mCherry-TRIM38                8907 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8907)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 13, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8907
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2499
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     primer_bind     complement(2473..2499)
                     /label=FKBP12-MCH-V-R
     primer_bind     2483..2511
                     /label=fkbp-F
     CDS             2496..2819
                     /codon_start=1
                     /product="human FK506-binding protein FKBP12"
                     /label=FKBP
                     /translation="MGVQVETISPGDGRTFPKRGQTCVVHYTGMLEDGKKFDSSRDRNK
                     PFKFMLGKQEVIRGWEEGVAQMSVGQRAKLTISPDYAYGATGHPGIIPPHATLVFDVEL
                     LKLE"
     primer_bind     complement(2799..2847)
                     /label=fkbp12-ggs-R
     primer_bind     2828..2871
                     /label=fkbp12-mch-vector-F
     CDS             2856..3560
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="VSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEGT
                     QTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNFE
                     DGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALKG
                     EIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERAE
                     GRHSTGGMDELYK"
     primer_bind     3382..3403
                     /label=mcherry-F
     misc_feature    3561..3589
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3575..3614
                     /label=mcherry-TRIM38-F
     misc_feature    3597..4994
                     /label=TRIM38
     primer_bind     complement(4974..5019)
                     /label=mcherry-TRIM38-R
     misc_feature    5004..5591
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5475..5486)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5664..5897
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5969..6090
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      6109..6244
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6282..6298)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6306..6322
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6330..6360)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6375..6396
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6684..7272)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7443..8303)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8304..8408)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8777..8790)
                     /label=Primer 5
     primer_bind     8882..8898
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggg agtgcaggtg gaaaccatct
     2521 ccccaggaga cgggcgcacc ttccccaagc gcggccagac ctgcgtggtg cactacaccg
     2581 ggatgcttga agatggaaag aaatttgatt cctcccggga cagaaacaag ccctttaagt
     2641 ttatgctagg caagcaggag gtgatccgag gctgggaaga aggggttgcc cagatgagtg
     2701 tgggtcagag agccaaactg actatatctc cagattatgc ctatggtgcc actgggcacc
     2761 caggcatcat cccaccacat gccactctcg tcttcgatgt ggagcttcta aaactggaag
     2821 gcggaagtgg aggatctgga ggttcaggtg gttctgtgag caagggcgag gaggataaca
     2881 tggccatcat caaggagttc atgcgcttca aggtgcacat ggagggctcc gtgaacggcc
     2941 acgagttcga gatcgagggc gagggcgagg gccgccccta cgagggcacc cagaccgcca
     3001 agctgaaggt gaccaagggt ggccccctgc ccttcgcctg ggacatcctg tcccctcagt
     3061 tcatgtacgg ctccaaggcc tacgtgaagc accccgccga catccccgac tacttgaagc
     3121 tgtccttccc cgagggcttc aagtgggagc gcgtgatgaa cttcgaggac ggcggcgtgg
     3181 tgaccgtgac ccaggactcc tccctgcagg acggcgagtt catctacaag gtgaagctgc
     3241 gcggcaccaa cttcccctcc gacggccccg taatgcagaa gaagaccatg ggctgggagg
     3301 cctcctccga gcggatgtac cccgaggacg gcgccctgaa gggcgagatc aagcagaggc
     3361 tgaagctgaa ggacggcggc cactacgacg ctgaggtcaa gaccacctac aaggccaaga
     3421 agcccgtgca gctgcccggc gcctacaacg tcaacatcaa gttggacatc acctcccaca
     3481 acgaggacta caccatcgtg gaacagtacg aacgcgccga gggccgccac tccaccggcg
     3541 gcatggacga gctgtacaag tccggactca gatctcgagc tcaagcttcg gaattcatgg
     3601 cctcaaccac cagcaccaag aagatgatgg aggaagccac ctgctccatc tgcctgagcc
     3661 tgatgacgaa cccagtaagc atcaactgtg gacacagcta ctgccacttg tgtataacag
     3721 acttctttaa aaacccaagc caaaagcaac tgaggcagga gacattctgc tgtccccagt
     3781 gtcgggctcc atttcatatg gatagcctcc gacccaacaa gcagctggga agcctcattg
     3841 aagccctcaa agagacggat caagaaatgt catgtgagga acacggagag cagttccacc
     3901 tgttctgcga agacgagggg cagctcatct gctggcgctg tgagcgggca ccacagcaca
     3961 aagggcacac cacagctctt gttgaagacg tatgccaggg ctacaaggaa aagctccaga
     4021 aagctgtgac aaaactgaag caacttgaag acagatgtac ggagcagaag ctgtccacag
     4081 caatgcgaat aactaaatgg aaagagaagg tacagattca gagacaaaaa atccggtctg
     4141 actttaagaa tctccagtgt ttcctacatg aggaagagaa gtcttatctc tggaggctgg
     4201 agaaagaaga acaacagact ctgagtagac tgagggacta tgaggctggt ctggggctga
     4261 agagcaatga actcaagagc cacatcctgg aactggagga aaaatgtcag ggctcagccc
     4321 agaaattgct gcagaatgtg aatgacactt tgagcaggag ttgggctgtg aagctggaaa
     4381 catcagaggc tgtctccttg gaacttcata ctatgtgcaa tgtttccaag ctttacttcg
     4441 atgtgaagaa aatgttaagg agtcatcaag ttagtgtgac tctggatcca gatacagctc
     4501 atcacgaact aattctctct gaggatcgga gacaagtgac tcgtggatac acccaggaga
     4561 atcaggacac atcttccagg agatttactg ccttcccctg tgtcttgggt tgtgaaggct
     4621 tcacctcagg aagacgttac tttgaagtgg atgttggcga aggaaccgga tgggatttag
     4681 gagtttgtat ggaaaatgtg cagaggggca ctggcatgaa gcaagagcct cagtctggat
     4741 tctggaccct caggctgtgc aaaaagaaag gctatgtagc acttacttct cccccaactt
     4801 cccttcatct gcatgagcag cccctgcttg tgggaatttt tctggactat gaggccggag
     4861 ttgtatcctt ttataacggg aatactggct gccacatctt tactttcccg aaggcttcct
     4921 tctctgatac tctccggccc tatttccagg tttatcaata ttctcctttg tttctgcctc
     4981 ccccaggtga ctaataggga tccaatcaac ctctggatta caaaatttgt gaaagattga
     5041 ctggtattct taactatgtt gctcctttta cgctatgtgg atacgctgct ttaatgcctt
     5101 tgtatcatgc tattgcttcc cgtatggctt tcattttctc ctccttgtat aaatcctggt
     5161 tgctgtctct ttatgaggag ttgtggcccg ttgtcaggca acgtggcgtg gtgtgcactg
     5221 tgtttgctga cgcaaccccc actggttggg gcattgccac cacctgtcag ctcctttccg
     5281 ggactttcgc tttccccctc cctattgcca cggcggaact catcgccgcc tgccttgccc
     5341 gctgctggac aggggctcgg ctgttgggca ctgacaattc cgtggtgttg tcggggaagc
     5401 tgacgtcctt tccatggctg ctcgcctgtg ttgccacctg gattctgcgc gggacgtcct
     5461 tctgctacgt cccttcggcc ctcaatccag cggaccttcc ttcccgcggc ctgctgccgg
     5521 ctctgcggcc tcttccgcgt ctccgccttc gccctcagac gagtcggatc tccctttggc
     5581 cgcctccccg ccggtacctt taagaccaat gacttacaag gcagctgtag atcttagcca
     5641 ctttttaaaa gaaaaggggg gactggaagg gctaattcac tcccaacgaa aataagatct
     5701 gctttttgct tgtactgggt ctctctggtt agaccagatc tgagcctggg agctctctgg
     5761 ctaactaggg aacccactgc ttaagcctca ataaagcttg ccttgagtgc ttcaagtagt
     5821 gtgtgcccgt ctgttgtgtg actctggtaa ctagagatcc ctcagaccct tttagtcagt
     5881 gtggaaaatc tctagcagta gtagttcatg tcatcttatt attcagtatt tataacttgc
     5941 aaagaaatga atatcagaga gtgagaggaa cttgtttatt gcagcttata atggttacaa
     6001 ataaagcaat agcatcacaa atttcacaaa taaagcattt ttttcactgc attctagttg
     6061 tggtttgtcc aaactcatca atgtatctta tcatgtctgg ctctagctat cccgccccta
     6121 actccgccca gttccgccca ttctccgccc catggctgac taattttttt tatttatgca
     6181 gaggccgagg ccgcctcggc ctctgagcta ttccagaagt agtgaggagg cttttttgga
     6241 ggcctagact tttgcagaga cggcccaaat tcgtaatcat ggtcatagct gtttcctgtg
     6301 tgaaattgtt atccgctcac aattccacac aacatacgag ccggaagcat aaagtgtaaa
     6361 gcctggggtg cctaatgagt gagctaactc acattaattg cgttgcgctc actgcccgct
     6421 ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa tcggccaacg cgcggggaga
     6481 ggcggtttgc gtattgggcg ctcttccgct tcctcgctca ctgactcgct gcgctcggtc
     6541 gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg taatacggtt atccacagaa
     6601 tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc caggaaccgt
     6661 aaaaaggccg cgttgctggc gtttttccat aggctccgcc cccctgacga gcatcacaaa
     6721 aatcgacgct caagtcagag gtggcgaaac ccgacaggac tataaagata ccaggcgttt
     6781 ccccctggaa gctccctcgt gcgctctcct gttccgaccc tgccgcttac cggatacctg
     6841 tccgcctttc tcccttcggg aagcgtggcg ctttctcata gctcacgctg taggtatctc
     6901 agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc cgttcagccc
     6961 gaccgctgcg ccttatccgg taactatcgt cttgagtcca acccggtaag acacgactta
     7021 tcgccactgg cagcagccac tggtaacagg attagcagag cgaggtatgt aggcggtgct
     7081 acagagttct tgaagtggtg gcctaactac ggctacacta gaaggacagt atttggtatc
     7141 tgcgctctgc tgaagccagt taccttcgga aaaagagttg gtagctcttg atccggcaaa
     7201 caaaccaccg ctggtagcgg tggttttttt gtttgcaagc agcagattac gcgcagaaaa
     7261 aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca gtggaacgaa
     7321 aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac ctagatcctt
     7381 ttaaattaaa aatgaagttt taaatcaatc taaagtatat atgagtaaac ttggtctgac
     7441 agttaccaat gcttaatcag tgaggcacct atctcagcga tctgtctatt tcgttcatcc
     7501 atagttgcct gactccccgt cgtgtagata actacgatac gggagggctt accatctggc
     7561 cccagtgctg caatgatacc gcgagaccca cgctcaccgg ctccagattt atcagcaata
     7621 aaccagccag ccggaagggc cgagcgcaga agtggtcctg caactttatc cgcctccatc
     7681 cagtctatta attgttgccg ggaagctaga gtaagtagtt cgccagttaa tagtttgcgc
     7741 aacgttgttg ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg tatggcttca
     7801 ttcagctccg gttcccaacg atcaaggcga gttacatgat cccccatgtt gtgcaaaaaa
     7861 gcggttagct ccttcggtcc tccgatcgtt gtcagaagta agttggccgc agtgttatca
     7921 ctcatggtta tggcagcact gcataattct cttactgtca tgccatccgt aagatgcttt
     7981 tctgtgactg gtgagtactc aaccaagtca ttctgagaat agtgtatgcg gcgaccgagt
     8041 tgctcttgcc cggcgtcaat acgggataat accgcgccac atagcagaac tttaaaagtg
     8101 ctcatcattg gaaaacgttc ttcggggcga aaactctcaa ggatcttacc gctgttgaga
     8161 tccagttcga tgtaacccac tcgtgcaccc aactgatctt cagcatcttt tactttcacc
     8221 agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg aataagggcg
     8281 acacggaaat gttgaatact catactcttc ctttttcaat attattgaag catttatcag
     8341 ggttattgtc tcatgagcgg atacatattt gaatgtattt agaaaaataa acaaataggg
     8401 gttccgcgca catttccccg aaaagtgcca cctgacgtct aagaaaccat tattatcatg
     8461 acattaacct ataaaaatag gcgtatcacg aggccctttc gtctcgcgcg tttcggtgat
     8521 gacggtgaaa acctctgaca catgcagctc ccggagacgg tcacagcttg tctgtaagcg
     8581 gatgccggga gcagacaagc ccgtcagggc gcgtcagcgg gtgttggcgg gtgtcggggc
     8641 tggcttaact atgcggcatc agagcagatt gtactgagag tgcaccatat gcggtgtgaa
     8701 ataccgcaca gatgcgtaag gagaaaatac cgcatcaggc gccattcgcc attcaggctg
     8761 cgcaactgtt gggaagggcg atcggtgcgg gcctcttcgc tattacgcca gctggcgaaa
     8821 gggggatgtg ctgcaaggcg attaagttgg gtaacgccag ggttttccca gtcacgacgt
     8881 tgtaaaacga cggccagtgc caagctg
//
