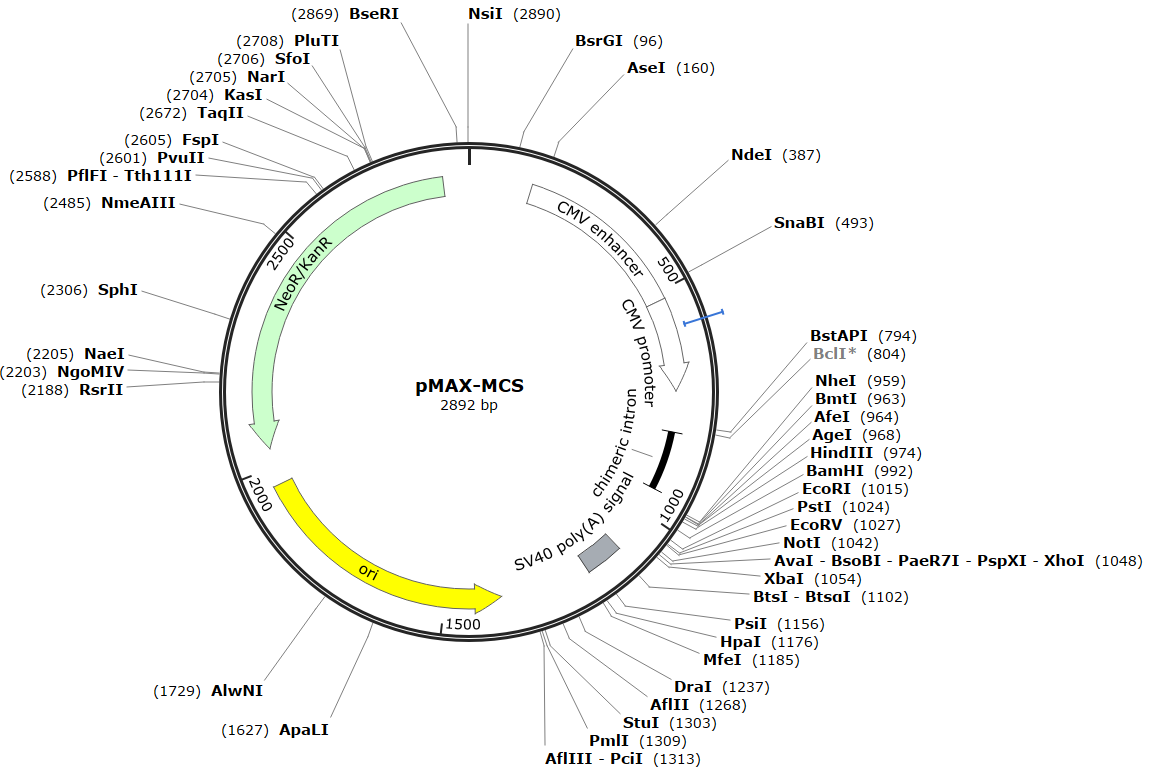

pMAX-MCS

LOCUS       pMAX-MCS                2892 bp    DNA     circular SYN 31-JUL-2025
DEFINITION  .
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 2892)
  AUTHORS   DotmaticsRD
  TITLE     Direct Submission
  JOURNAL   Exported Jul 31, 2025 from SnapGene 8.1.0
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..2892
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        138..517
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
                     /note="color: #ffffff"
     promoter        518..721
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
                     /note="color: #ffffff; direction: RIGHT"
     intron          813..945
                     /label=chimeric intron
                     /note="chimera between introns from human beta-globin and
                     immunoglobulin heavy chain genes"
                     /note="color: #------"
     polyA_signal    1095..1176
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
                     /note="color: #a6acb3"
     rep_origin      complement(1374..1961)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
                     /note="color: #ffff00"
     CDS             complement(2042..2836)
                     /codon_start=1
                     /product="aminoglycoside phosphotransferase"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /note="color: #ccffcc"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
ORIGIN
        1 tcaatattgg ccattagcca tattattcat tggttatata gcataaatca atattggcta
       61 ttggccattg catacgttgt atctatatca taatatgtac atttatattg gctcatgtcc
      121 aatatgaccg ccatgttggc attgattatt gactagttat taatagtaat caattacggg
      181 gtcattagtt catagcccat atatggagtt ccgcgttaca taacttacgg taaatggccc
      241 gcctggctga ccgcccaacg acccccgccc attgacgtca ataatgacgt atgttcccat
      301 agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac ggtaaactgc
      361 ccacttggca gtacatcaag tgtatcatat gccaagtccg ccccctattg acgtcaatga
      421 cggtaaatgg cccgcctggc attatgccca gtacatgacc ttacgggact ttcctacttg
      481 gcagtacatc tacgtattag tcatcgctat taccatggtg atgcggtttt ggcagtacac
      541 caatgggcgt ggatagcggt ttgactcacg gggatttcca agtctccacc ccattgacgt
      601 caatgggagt ttgttttggc accaaaatca acgggacttt ccaaaatgtc gtaataaccc
      661 cgccccgttg acgcaaatgg gcggtaggcg tgtacggtgg gaggtctata taagcagagg
      721 tcgtttagtg aaccgtcaga tcactagtag ctttattgcg gtagtttatc acagttaaat
      781 tgctaacgca gtcagtgctc gactgatcac aggtaagtat caaggttaca agacaggttt
      841 aaggaggcca atagaaactg ggcttgtcga gacagagaag attcttgcgt ttctgatagg
      901 cacctattgg tcttactgac atccactttg cctttctctc cacaggggta ccgaagccgc
      961 tagcgctacc ggtaagcttg gtaccgagct cggatccact agtccagtgt ggtggaattc
     1021 tgcagatatc cagcacagtg gcggccgctc gagtctagag agctcgatga gtttggacaa
     1081 accacaacta gaatgcagtg aaaaaaatgc tttatttgtg aaatttgtga tgctattgct
     1141 ttatttgtaa ccattataag ctgcaataaa caagttaaca acaacaattg cattcatttt
     1201 atgtttcagg ttcaggggga ggtgtgggag gttttttaaa gcaagtaaaa cctctacaaa
     1261 tgtggtactt aagaggggga gaccaaaggg cgagacgtta aggcctcacg tgacatgtga
     1321 gcaaaaggcc agcaaaaggc caggaaccgt aaaaaggccg cgttgctggc gtttttccat
     1381 aggctccgcc cccctgacga gcatcacaaa aatcgacgct caagtcagag gtggcgaaac
     1441 ccgacaggac tataaagata ccaggcgttt ccccctggaa gctccctcgt gcgctctcct
     1501 gttccgaccc tgccgcttac cggatacctg tccgcctttc tcccttcggg aagcgtggcg
     1561 ctttctcata gctcacgctg taggtatctc agttcggtgt aggtcgttcg ctccaagctg
     1621 ggctgtgtgc acgaaccccc cgttcagccc gaccgctgcg ccttatccgg taactatcgt
     1681 cttgagtcca acccggtaag acacgactta tcgccactgg cagcagccac tggtaacagg
     1741 attagcagag cgaggtatgt aggcggtgct acagagttct tgaagtggtg gcctaactac
     1801 ggctacacta gaaggacagt atttggtatc tgcgctctgc tgaagccagt taccttcgga
     1861 aaaagagttg gtagctcttg atccggcaaa caaaccacgc tggtagcggt ggtttttttg
     1921 tttgcaagca gcagattacg cgcagaaaaa aaggatctca agaagatcct ttgatctttt
     1981 ctacggggtc tgacgctcag tggaacgaaa actcacgtta agggattttg gtcatgccgt
     2041 ctcagaagaa ctcgtcaaga aggcgataga aggcgatgcg ctgcgaatcg ggagcggcga
     2101 taccgtaaag cacgaggaag cggtcagccc attcgccgcc aagctcttca gcaatatcac
     2161 gggtagccaa cgctatgtcc tgatagcggt ccgccacacc cagccggcca cagtcgatga
     2221 atccagaaaa gcggccattt tccaccatga tattcggcaa gcaggcatcg ccatgggtca
     2281 cgacgagatc ctcgccgtcg ggcatgctcg ccttgagcct ggcgaacagt tcggctggcg
     2341 cgagcccctg atgctcttcg tccagatcat cctgatcgac aagaccggct tccatccgag
     2401 tacgtgctcg ctcgatgcga tgtttcgctt ggtggtcgaa tgggcaggta gccggatcaa
     2461 gcgtatgcag ccgccgcatt gcatcagcca tgatggatac tttctcggca ggagcaaggt
     2521 gagatgacag gagatcctgc cccggcactt cgcccaatag cagccagtcc cttcccgctt
     2581 cagtgacaac gtcgagcaca gctgcgcaag gaacgcccgt cgtggccagc cacgatagcc
     2641 gcgctgcctc gtcttgcagt tcattcaggg caccggacag gtcggtcttg acaaaaagaa
     2701 ccgggcgccc ctgcgctgac agccggaaca cggcggcatc agagcagccg attgtctgtt
     2761 gtgcccagtc atagccgaat agcctctcca cccaagcggc cggagaacct gcgtgcaatc
     2821 catcttgttc aatcataata ttattgaagc atttatcagg gttcgtctcg tcccggtctc
     2881 ctcccatgca tg
//
