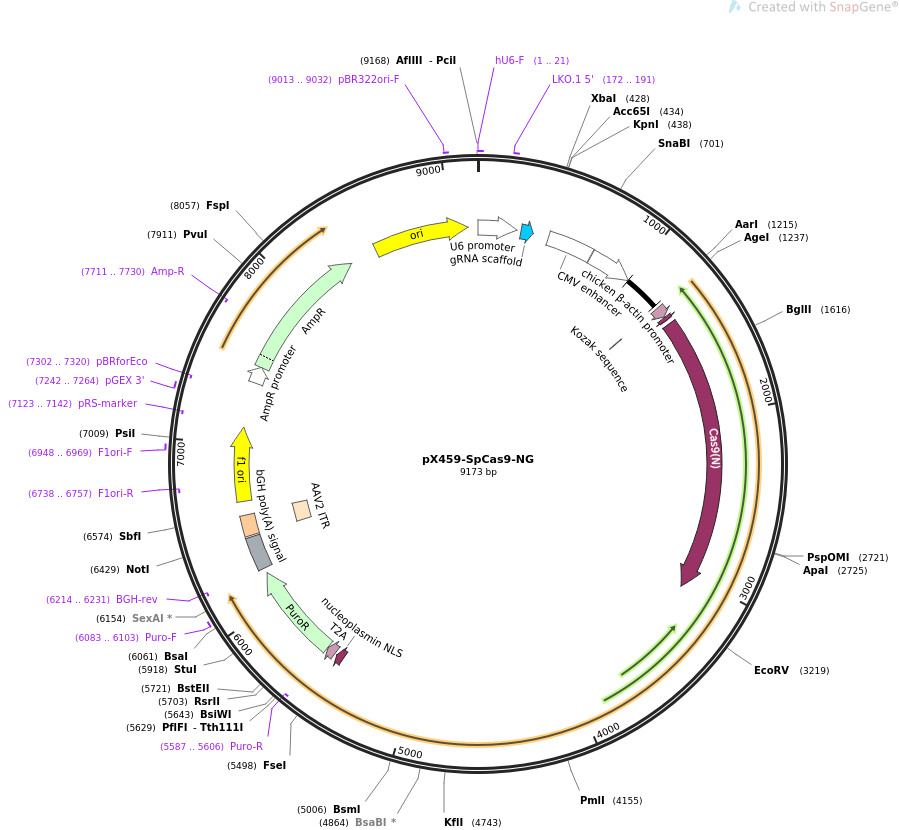

pX459-SpCas9-NG

LOCUS       pX459-SpCas9-NG              9173 bp ds-DNA     circular SYN 22-JUL-2021
DEFINITION  SpCas9-NG-mediated genome editing..
ACCESSION   .
VERSION     .
KEYWORDS    pX459-SpCas9-NG
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9173)
  AUTHORS   Oura S, Noda T, Morimura N, Hitoshi S, Nishimasu H, Nagai Y, Nureki
            O, Ikawa M
  TITLE     Precise CAG repeat contraction in a Huntington's Disease mouse model
            is enabled by gene editing with SpCas9-NG.
  JOURNAL   Commun Biol. 2021 Jun 23;4(1):771. doi: 10.1038/s42003-021-02304-w.
  PUBMED    34163001
REFERENCE   2  (bases 1 to 9173)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 22, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..9173
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        1..241
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     primer_bind     1..21
                     /label=hU6-F
                     /note="Human U6 promoter, forward primer"
     primer_bind     172..191
                     /label=LKO.1 5'
                     /note="Human U6 promoter, forward primer"
     misc_RNA        268..343
                     /label=gRNA scaffold
                     /note="guide RNA scaffold for the Streptococcus pyogenes
                     CRISPR/Cas9 system"
     enhancer        440..725
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer;
                     contains an 18-bp deletion relative to the standard CMV
                     enhancer"
     promoter        727..1003
                     /label=chicken beta-actin promoter
     intron          1004..1231
                     /label=hybrid intron
                     /note="hybrid between chicken beta-actin (CBA) and minute
                     virus of mice (MMV) introns (Gray et al., 2011)"
     regulatory      1243..1252
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             1252..1317
                     /codon_start=1
                     /product="three tandem FLAG(R) epitope tags, followed by an
                     enterokinase cleavage site"
                     /label=3xFLAG
                     /translation="DYKDHDGDYKDHDIDYKDDDDK"
     CDS             1324..1344
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     CDS             1369..3084
                     /codon_start=1
                     /product="N-terminal portion of Streptococcus pyogenes Cas9
                     (Zetsche et al., 2015)"
                     /label=Cas9(N)
                     /translation="DKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKN
                     LIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESF
                     LVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKF
                     RGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLE
                     NLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQI
                     GDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQ
                     QLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLR
                     KQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGN
                     SRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYF
                     TVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIE"
     CDS             5470..5517
                     /codon_start=1
                     /product="bipartite nuclear localization signal from
                     nucleoplasmin"
                     /label=nucleoplasmin NLS
                     /translation="KRPAATKKAGQAKKKK"
     CDS             5533..5586
                     /codon_start=1
                     /product="2A peptide from Thosea asigna virus capsid
                     protein"
                     /label=T2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="EGRGSLLTCGDVEENPGP"
     CDS             5587..6186
                     /codon_start=1
                     /gene="pac from Streptomyces alboniger"
                     /product="puromycin N-acetyltransferase"
                     /label=PuroR
                     /note="confers resistance to puromycin"
                     /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER
                     VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA
                     AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS
                     APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA"
     primer_bind     complement(5587..5606)
                     /label=Puro-R
                     /note="Puromycin resistance gene, reverse primer. Also
                     called puro-variant-R"
     primer_bind     6083..6103
                     /label=Puro-F
                     /note="Puromycin resistance gene, forward primer"
     primer_bind     complement(6214..6231)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    6220..6427
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     repeat_region   6436..6576
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     repeat_region   6436..6565
                     /label=AAV2 ITR
     rep_origin      6651..7106
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(6738..6757)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     6948..6969
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(7123..7142)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     7242..7264
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(7302..7320)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        7388..7492
                     /gene="bla"
                     /label=AmpR promoter
     CDS             7493..8353
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(7711..7730)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      8524..9112
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     9013..9032
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 gagggcctat ttcccatgat tccttcatat ttgcatatac gatacaaggc tgttagagag
       61 ataattggaa ttaatttgac tgtaaacaca aagatattag tacaaaatac gtgacgtaga
      121 aagtaataat ttcttgggta gtttgcagtt ttaaaattat gttttaaaat ggactatcat
      181 atgcttaccg taacttgaaa gtatttcgat ttcttggctt tatatatctt gtggaaagga
      241 cgaaacaccg ggtcttcgag aagacctgtt ttagagctag aaatagcaag ttaaaataag
      301 gctagtccgt tatcaacttg aaaaagtggc accgagtcgg tgcttttttg ttttagagct
      361 agaaatagca agttaaaata aggctagtcc gtttttagcg cgtgcgccaa ttctgcagac
      421 aaatggctct agaggtaccc gttacataac ttacggtaaa tggcccgcct ggctgaccgc
      481 ccaacgaccc ccgcccattg acgtcaatag taacgccaat agggactttc cattgacgtc
      541 aatgggtgga gtatttacgg taaactgccc acttggcagt acatcaagtg tatcatatgc
      601 caagtacgcc ccctattgac gtcaatgacg gtaaatggcc cgcctggcat tgtgcccagt
      661 acatgacctt atgggacttt cctacttggc agtacatcta cgtattagtc atcgctatta
      721 ccatggtcga ggtgagcccc acgttctgct tcactctccc catctccccc ccctccccac
      781 ccccaatttt gtatttattt attttttaat tattttgtgc agcgatgggg gcgggggggg
      841 gggggggcgc gcgccrggsg gggcggggsg gggsgrgggg sggggsgggg sgaggcggag
      901 aggtgcggcg gcagccaatc agagcggcgc gctccgaaag tttcctttta tggcgaggcg
      961 gcggcggcgg cggccctata aaaagcgaag cgcgcggcgg gcgggagtcg ctgcgcgctg
     1021 ccttcgcccc gtgccccgct ccgccgccgc ctcgcgccgc ccgccccggc tctgactgac
     1081 cgcgttactc ccacaggtga gcgggcggga cggcccttct cctccgggct gtaattagct
     1141 gagcaagagg taagggttta agggatggtt ggttggtggg gtattaatgt ttaattacct
     1201 ggagcacctg cctgaaatca ctttttttca ggttggaccg gtgccaccat ggactataag
     1261 gaccacgacg gagactacaa ggatcatgat attgattaca aagacgatga cgataagatg
     1321 gccccaaaga agaagcggaa ggtcggtatc cacggagtcc cagcagccga caagaagtac
     1381 agcatcggcc tggacatcgg caccaactct gtgggctggg ccgtgatcac cgacgagtac
     1441 aaggtgccca gcaagaaatt caaggtgctg ggcaacaccg accggcacag catcaagaag
     1501 aacctgatcg gagccctgct gttcgacagc ggcgaaacag ccgaggccac ccggctgaag
     1561 agaaccgcca gaagaagata caccagacgg aagaaccgga tctgctatct gcaagagatc
     1621 ttcagcaacg agatggccaa ggtggacgac agcttcttcc acagactgga agagtccttc
     1681 ctggtggaag aggataagaa gcacgagcgg caccccatct tcggcaacat cgtggacgag
     1741 gtggcctacc acgagaagta ccccaccatc taccacctga gaaagaaact ggtggacagc
     1801 accgacaagg ccgacctgcg gctgatctat ctggccctgg cccacatgat caagttccgg
     1861 ggccacttcc tgatcgaggg cgacctgaac cccgacaaca gcgacgtgga caagctgttc
     1921 atccagctgg tgcagaccta caaccagctg ttcgaggaaa accccatcaa cgccagcggc
     1981 gtggacgcca aggccatcct gtctgccaga ctgagcaaga gcagacggct ggaaaatctg
     2041 atcgcccagc tgcccggcga gaagaagaat ggcctgttcg gaaacctgat tgccctgagc
     2101 ctgggcctga cccccaactt caagagcaac ttcgacctgg ccgaggatgc caaactgcag
     2161 ctgagcaagg acacctacga cgacgacctg gacaacctgc tggcccagat cggcgaccag
     2221 tacgccgacc tgtttctggc cgccaagaac ctgtccgacg ccatcctgct gagcgacatc
     2281 ctgagagtga acaccgagat caccaaggcc cccctgagcg cctctatgat caagagatac
     2341 gacgagcacc accaggacct gaccctgctg aaagctctcg tgcggcagca gctgcctgag
     2401 aagtacaaag agattttctt cgaccagagc aagaacggct acgccggcta cattgacggc
     2461 ggagccagcc aggaagagtt ctacaagttc atcaagccca tcctggaaaa gatggacggc
     2521 accgaggaac tgctcgtgaa gctgaacaga gaggacctgc tgcggaagca gcggaccttc
     2581 gacaacggca gcatccccca ccagatccac ctgggagagc tgcacgccat tctgcggcgg
     2641 caggaagatt tttacccatt cctgaaggac aaccgggaaa agatcgagaa gatcctgacc
     2701 ttccgcatcc cctactacgt gggccctctg gccaggggaa acagcagatt cgcctggatg
     2761 accagaaaga gcgaggaaac catcaccccc tggaacttcg aggaagtggt ggacaagggc
     2821 gcttccgccc agagcttcat cgagcggatg accaacttcg ataagaacct gcccaacgag
     2881 aaggtgctgc ccaagcacag cctgctgtac gagtacttca ccgtgtataa cgagctgacc
     2941 aaagtgaaat acgtgaccga gggaatgaga aagcccgcct tcctgagcgg cgagcagaaa
     3001 aaggccatcg tggacctgct gttcaagacc aaccggaaag tgaccgtgaa gcagctgaaa
     3061 gaggactact tcaagaaaat cgagtgcttc gactccgtgg aaatctccgg cgtggaagat
     3121 cggttcaacg cctccctggg cacataccac gatctgctga aaattatcaa ggacaaggac
     3181 ttcctggaca atgaggaaaa cgaggacatt ctggaagata tcgtgctgac cctgacactg
     3241 tttgaggaca gagagatgat cgaggaacgg ctgaaaacct atgcccacct gttcgacgac
     3301 aaagtgatga agcagctgaa gcggcggaga tacaccggct ggggcaggct gagccggaag
     3361 ctgatcaacg gcatccggga caagcagtcc ggcaagacaa tcctggattt cctgaagtcc
     3421 gacggcttcg ccaacagaaa cttcatgcag ctgatccacg acgacagcct gacctttaaa
     3481 gaggacatcc agaaagccca ggtgtccggc cagggcgata gcctgcacga gcacattgcc
     3541 aatctggccg gcagccccgc cattaagaag ggcatcctgc agacagtgaa ggtggtggac
     3601 gagctcgtga aagtgatggg ccggcacaag cccgagaaca tcgtgatcga aatggccaga
     3661 gagaaccaga ccacccagaa gggacagaag aacagccgcg agagaatgaa gcggatcgaa
     3721 gagggcatca aagagctggg cagccagatc ctgaaagaac accccgtgga aaacacccag
     3781 ctgcagaacg agaagctgta cctgtactac ctgcagaatg ggcgggatat gtacgtggac
     3841 caggaactgg acatcaaccg gctgtccgac tacgatgtgg accatatcgt gcctcagagc
     3901 tttctgaagg acgactccat cgacaacaag gtgctgacca gaagcgacaa gaaccggggc
     3961 aagagcgaca acgtgccctc cgaagaggtc gtgaagaaga tgaagaacta ctggcggcag
     4021 ctgctgaacg ccaagctgat tacccagaga aagttcgaca atctgaccaa ggccgagaga
     4081 ggcggcctga gcgaactgga taaggccggc ttcatcaaga gacagctggt ggaaacccgg
     4141 cagatcacaa agcacgtggc acagatcctg gactcccgga tgaacactaa gtacgacgag
     4201 aatgacaagc tgatccggga agtgaaagtg atcaccctga agtccaagct ggtgtccgat
     4261 ttccggaagg atttccagtt ttacaaagtg cgcgagatca acaactacca ccacgcccac
     4321 gacgcctacc tgaacgccgt cgtgggaacc gccctgatca aaaagtaccc taagctggaa
     4381 agcgagttcg tgtacggcga ctacaaggtg tacgacgtgc ggaagatgat cgccaagagc
     4441 gagcaggaaa tcggcaaggc taccgccaag tacttcttct acagcaacat catgaacttt
     4501 ttcaagaccg agattaccct ggccaacggc gagatccgga agcggcctct gatcgagaca
     4561 aacggcgaaa ccggggagat cgtgtgggat aagggccggg attttgccac cgtgcggaaa
     4621 gtgctgagca tgccccaagt gaatatcgtg aaaaagaccg aggtgcagac aggcggcttc
     4681 agcaaagagt ctatccggcc caagaggaac agcgataagc tgatcgccag aaagaaggac
     4741 tgggacccta agaagtacgg cggcttcgtt agccccaccg tggcctattc tgtgctggtg
     4801 gtggccaaag tggaaaaggg caagtccaag aaactgaaga gtgtgaaaga gctgctgggg
     4861 atcaccatca tggaaagaag cagcttcgag aagaatccca tcgactttct ggaagccaag
     4921 ggctacaaag aagtgaaaaa ggacctgatc atcaagctgc ctaagtactc cctgttcgag
     4981 ctggaaaacg gccggaagag aatgctggcc tctgcccggt tcctgcagaa gggaaacgaa
     5041 ctggccctgc cctccaaata tgtgaacttc ctgtacctgg ccagccacta tgagaagctg
     5101 aagggctccc ccgaggataa tgagcagaaa cagctgtttg tggaacagca caagcactac
     5161 ctggacgaga tcatcgagca gatcagcgag ttctccaaga gagtgatcct ggccgacgct
     5221 aatctggaca aagtgctgtc cgcctacaac aagcaccggg ataagcccat cagagagcag
     5281 gccgagaata tcatccacct gtttaccctg accaatctgg gagcccctcg ggccttcaag
     5341 tactttgaca ccaccatcga ccggaaggtg taccggagca ccaaagaggt gctggacgcc
     5401 accctgatcc accagagcat caccggcctg tacgagacac ggatcgacct gtctcagctg
     5461 ggaggcgaca aaaggccggc ggccacgaaa aaggccggcc aggcaaaaaa gaaaaaggaa
     5521 ttcggcagtg gagagggcag aggaagtctg ctaacatgcg gtgacgtcga ggagaatcct
     5581 ggcccaatga ccgagtacaa gcccacggtg cgcctcgcca cccgcgacga cgtccccagg
     5641 gccgtacgca ccctcgccgc cgcgttcgcc gactaccccg ccacgcgcca caccgtcgat
     5701 ccggaccgcc acatcgagcg ggtcaccgag ctgcaagaac tcttcctcac gcgcgtcggg
     5761 ctcgacatcg gcaaggtgtg ggtcgcggac gacggcgccg cggtggcggt ctggaccacg
     5821 ccggagagcg tcgaagcggg ggcggtgttc gccgagatcg gcccgcgcat ggccgagttg
     5881 agcggttccc ggctggccgc gcagcaacag atggaaggcc tcctggcgcc gcaccggccc
     5941 aaggagcccg cgtggttcct ggccaccgtc ggagtctcgc ccgaccacca gggcaagggt
     6001 ctgggcagcg ccgtcgtgct ccccggagtg gaggcggccg agcgcgccgg ggtgcccgcc
     6061 ttcctggaga cctccgcgcc ccgcaacctc cccttctacg agcggctcgg cttcaccgtc
     6121 accgccgacg tcgaggtgcc cgaaggaccg cgcacctggt gcatgacccg caagcccggt
     6181 gcctgagaat tctaactaga gctcgctgat cagcctcgac tgtgccttct agttgccagc
     6241 catctgttgt ttgcccctcc cccgtgcctt ccttgaccct ggaaggtgcc actcccactg
     6301 tcctttccta ataaaatgag gaaattgcat cgcattgtct gagtaggtgt cattctattc
     6361 tggggggtgg ggtggggcag gacagcaagg gggaggattg ggaagagaat agcaggcatg
     6421 ctggggagcg gccgcaggaa cccctagtga tggagttggc cactccctct ctgcgcgctc
     6481 gctcgctcac tgaggccggg cgaccaaagg tcgcccgacg cccgggcttt gcccgggcgg
     6541 cctcagtgag cgagcgagcg cgcagctgcc tgcaggggcg cctgatgcgg tattttctcc
     6601 ttacgcatct gtgcggtatt tcacaccgca tacgtcaaag caaccatagt acgcgccctg
     6661 tagcggcgca ttaagcgcgg cgggtgtggt ggttacgcgc agcgtgaccg ctacacttgc
     6721 cagcgcctta gcgcccgctc ctttcgcttt cttcccttcc tttctcgcca cgttcgccgg
     6781 ctttccccgt caagctctaa atcgggggct ccctttaggg ttccgattta gtgctttacg
     6841 gcacctcgac cccaaaaaac ttgatttggg tgatggttca cgtagtgggc catcgccctg
     6901 atagacggtt tttcgccctt tgacgttgga gtccacgttc tttaatagtg gactcttgtt
     6961 ccaaactgga acaacactca actctatctc gggctattct tttgatttat aagggatttt
     7021 gccgatttcg gtctattggt taaaaaatga gctgatttaa caaaaattta acgcgaattt
     7081 taacaaaata ttaacgttta caattttatg gtgcactctc agtacaatct gctctgatgc
     7141 cgcatagtta agccagcccc gacacccgcc aacacccgct gacgcgccct gacgggcttg
     7201 tctgctcccg gcatccgctt acagacaagc tgtgaccgtc tccgggagct gcatgtgtca
     7261 gaggttttca ccgtcatcac cgaaacgcgc gagacgaaag ggcctcgtga tacgcctatt
     7321 tttataggtt aatgtcatga taataatggt ttcttagacg tcaggtggca cttttcgggg
     7381 aaatgtgcgc ggaaccccta tttgtttatt tttctaaata cattcaaata tgtatccgct
     7441 catgagacaa taaccctgat aaatgcttca ataatattga aaaaggaaga gtatgagtat
     7501 tcaacatttc cgtgtcgccc ttattccctt ttttgcggca ttttgccttc ctgtttttgc
     7561 tcacccagaa acgctggtga aagtaaaaga tgctgaagat cagttgggtg cacgagtggg
     7621 ttacatcgaa ctggatctca acagcggtaa gatccttgag agttttcgcc ccgaagaacg
     7681 ttttccaatg atgagcactt ttaaagttct gctatgtggc gcggtattat cccgtattga
     7741 cgccgggcaa gagcaactcg gtcgccgcat acactattct cagaatgact tggttgagta
     7801 ctcaccagtc acagaaaagc atcttacgga tggcatgaca gtaagagaat tatgcagtgc
     7861 tgccataacc atgagtgata acactgcggc caacttactt ctgacaacga tcggaggacc
     7921 gaaggagcta accgcttttt tgcacaacat gggggatcat gtaactcgcc ttgatcgttg
     7981 ggaaccggag ctgaatgaag ccataccaaa cgacgagcgt gacaccacga tgcctgtagc
     8041 aatggcaaca acgttgcgca aactattaac tggcgaacta cttactctag cttcccggca
     8101 acaattaata gactggatgg aggcggataa agttgcagga ccacttctgc gctcggccct
     8161 tccggctggc tggtttattg ctgataaatc tggagccggt gagcgtggaa gccgcggtat
     8221 cattgcagca ctggggccag atggtaagcc ctcccgtatc gtagttatct acacgacggg
     8281 gagtcaggca actatggatg aacgaaatag acagatcgct gagataggtg cctcactgat
     8341 taagcattgg taactgtcag accaagttta ctcatatata ctttagattg atttaaaact
     8401 tcatttttaa tttaaaagga tctaggtgaa gatccttttt gataatctca tgaccaaaat
     8461 cccttaacgt gagttttcgt tccactgagc gtcagacccc gtagaaaaga tcaaaggatc
     8521 ttcttgagat cctttttttc tgcgcgtaat ctgctgcttg caaacaaaaa aaccaccgct
     8581 accagcggtg gtttgtttgc cggatcaaga gctaccaact ctttttccga aggtaactgg
     8641 cttcagcaga gcgcagatac caaatactgt tcttctagtg tagccgtagt taggccacca
     8701 cttcaagaac tctgtagcac cgcctacata cctcgctctg ctaatcctgt taccagtggc
     8761 tgctgccagt ggcgataagt cgtgtcttac cgggttggac tcaagacgat agttaccgga
     8821 taaggcgcag cggtcgggct gaacgggggg ttcgtgcaca cagcccagct tggagcgaac
     8881 gacctacacc gaactgagat acctacagcg tgagctatga gaaagcgcca cgcttcccga
     8941 agggagaaag gcggacaggt atccggtaag cggcagggtc ggaacaggag agcgcacgag
     9001 ggagcttcca gggggaaacg cctggtatct ttatagtcct gtcgggtttc gccacctctg
     9061 acttgagcgt cgatttttgt gatgctcgtc aggggggcgg agcctatgga aaaacgccag
     9121 caacgcggcc tttttacggt tcctggcctt ttgctggcct tttgctcaca tgt
//
