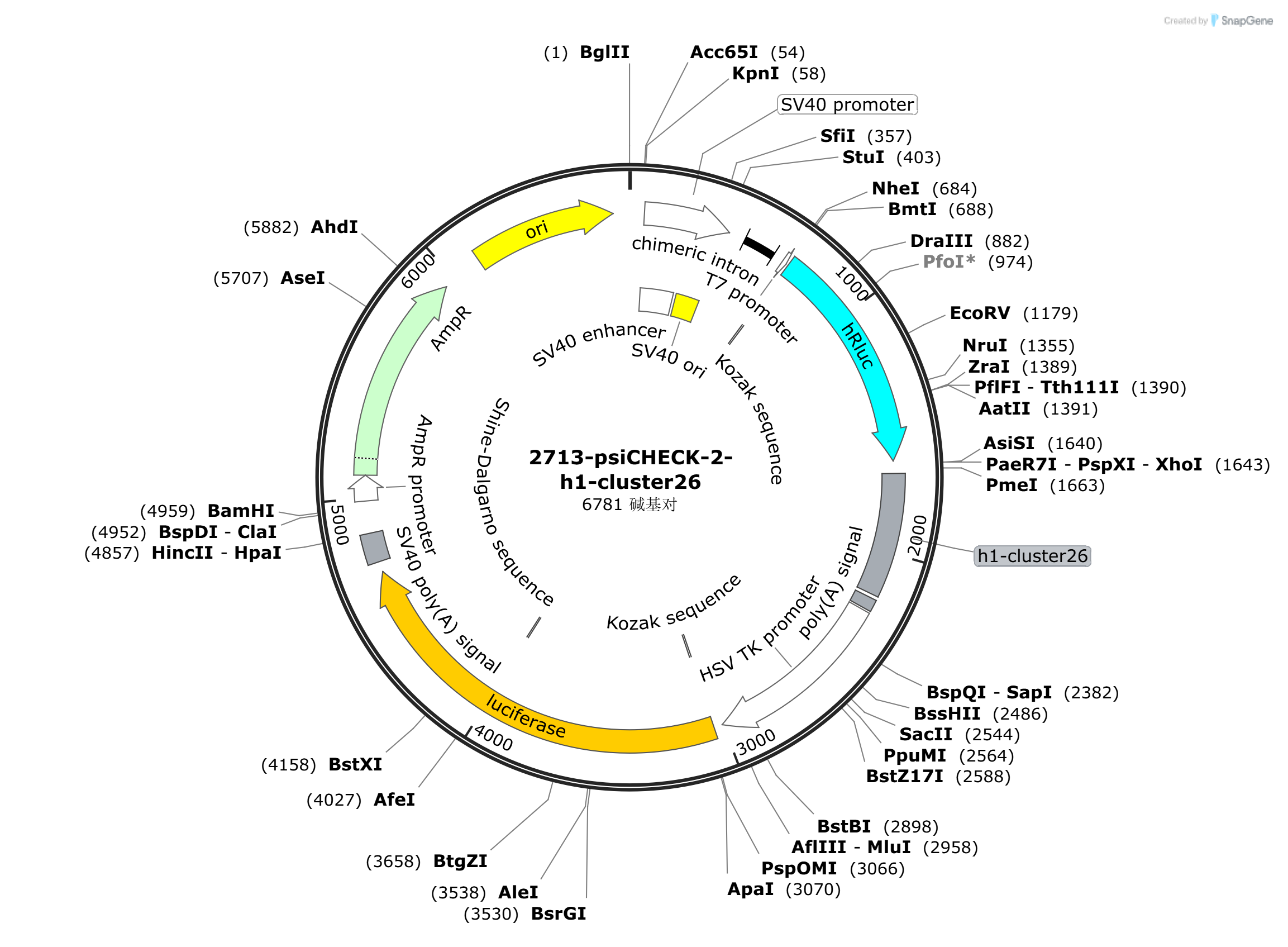

psiCHECK-2-h1-cluster26

LOCUS      psiCHECK-2-h1-cluster26               6781 bp DNA     circular SYN 02-JUN-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6781)
  AUTHORS   SnapGene License
  TITLE     Direct Submission
  JOURNAL   Exported Sep 14, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6781
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        62..419
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     enhancer        62..253
                     /label=SV40 enhancer
                     /note="enhancer for the SV40 early promoter (Herr, 1993)"
     rep_origin      270..405
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     intron          489..621
                     /label=chimeric intron
                     /note="chimera between introns from human beta-globin and
                     immunoglobulin heavy chain genes"
     promoter        666..684
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     regulatory      688..697
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             694..1629
                     /codon_start=1
                     /product="Renilla luciferase"
                     /label=hRluc
                     /note="human codon-optimized"
                     /translation="MASKVYDPEQRKRMITGPQWWARCKQMNVLDSFINYYDSEKHAEN
                     AVIFLHGNAASSYLWRHVVPHIEPVARCIIPDLIGMGKSGKSGNGSYRLLDHYKYLTAW
                     FELLNLPKKIIFVGHDWGACLAFHYSYEHQDKIKAIVHAESVVDVIESWDEWPDIEEDI
                     ALIKSEEGEKMVLENNFFVETMLPSKIMRKLEPEEFAAYLEPFKEKGEVRRPTLSWPRE
                     IPLVKGGKPDVVQIVRNYNAYLRASDDLPKMFIESDPGFFSNAIVEGAKKFPNTEFVKV
                     KGLHFSQEDAPDEMGKYIKSFVERVLKNEQ"
     misc_feature    1681..2180
                     /label=h1-cluster26
     polyA_signal    2196..2244
                     /note="synthetic polyadenylation signal"
     promoter        2253..3004
                     /label=HSV TK promoter
                     /note="herpes simplex virus thymidine kinase promoter"
     regulatory      3034..3043
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             3040..4692
                     /codon_start=1
                     /gene="luc+"
                     /product="firefly luciferase"
                     /label=luciferase
                     /note="enhanced luc+ version of the luciferase gene"
                     /db_xref="GI:42718124"
                     /protein_id="AAS38485.1"
                     /translation="MADAKNIKKGPAPFYPLEDGTAGEQLHKAMKRYALVPGTIAFTDA
                     HIEVDITYAEYFEMSVRLAEAMKRYGLNTNHRIVVCSENSLQFFMPVLGALFIGVAVAP
                     ANDIYNERELLNSMGISQPTVVFVSKKGLQKILNVQKKLPIIQKIIIMDSKTDYQGFQS
                     MYTFVTSHLPPGFNEYDFVPESFDRDKTIALIMNSSGSTGLPKGVALPHRTACVRFSHA
                     RDPIFGNQIIPDTAILSVVPFHHGFGMFTTLGYLICGFRVVLMYRFEEELFLRSLQDYK
                     IQSALLVPTLFSFFAKSTLIDKYDLSNLHEIASGGAPLSKEVGEAVAKRFHLPGIRQGY
                     GLTETTSAILITPEGDDKPGAVGKVVPFFEAKVVDLDTGKTLGVNQRGELCVRGPMIMS
                     GYVNNPEATNALIDKDGWLHSGDIAYWDEDEHFFIVDRLKSLIKYKGYQVAPAELESIL
                     LQHPNIFDAGVAGLPDDDAGELPAAVVVLEHGKTMTEKEIVDYVASQVTTAKKLRGGVV
                     FVDEVPKGLTGKLDARKIREILIKAKKGGKIAV"
     RBS             3999..4007
                     /label=Shine-Dalgarno sequence
                     /note="full consensus sequence for ribosome-binding sites
                     upstream of start codons in E. coli; complementary to a
                     region in the 3' end of the 16S rRNA (Chen et al., 1994)"
     polyA_signal    4736..4857
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     promoter        4990..5094
                     /gene="bla"
                     /label=AmpR promoter
     CDS             5095..5955
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      6126..6714
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 agatctgcgc agcaccatgg cctgaaataa cctctgaaag aggaacttgg ttaggtacct
       61 tctgaggcgg aaagaaccag ctgtggaatg tgtgtcagtt agggtgtgga aagtccccag
      121 gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca accaggtgtg
      181 gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag catgcatctc aattagtcag
      241 caaccatagt cccgccccta actccgccca tcccgcccct aactccgccc agttccgccc
      301 attctccgcc ccatggctga ctaatttttt ttatttatgc agaggccgag gccgcctcgg
      361 cctctgagct attccagaag tagtgaggag gcttttttgg aggcctaggc ttttgcaaaa
      421 agcttgattc ttctgacaca acagtctcga acttaagctg cagaagttgg tcgtgaggca
      481 ctgggcaggt aagtatcaag gttacaagac aggtttaagg agaccaatag aaactgggct
      541 tgtcgagaca gagaagactc ttgcgtttct gataggcacc tattggtctt actgacatcc
      601 actttgcctt tctctccaca ggtgtccact cccagttcaa ttacagctct taaggctaga
      661 gtacttaata cgactcacta taggctagcc accatggctt ccaaggtgta cgaccccgag
      721 caacgcaaac gcatgatcac tgggcctcag tggtgggctc gctgcaagca aatgaacgtg
      781 ctggactcct tcatcaacta ctatgattcc gagaagcacg ccgagaacgc cgtgattttt
      841 ctgcatggta acgctgcctc cagctacctg tggaggcacg tcgtgcctca catcgagccc
      901 gtggctagat gcatcatccc tgatctgatc ggaatgggta agtccggcaa gagcgggaat
      961 ggctcatatc gcctcctgga tcactacaag tacctcaccg cttggttcga gctgctgaac
     1021 cttccaaaga aaatcatctt tgtgggccac gactgggggg cttgtctggc ctttcactac
     1081 tcctacgagc accaagacaa gatcaaggcc atcgtccatg ctgagagtgt cgtggacgtg
     1141 atcgagtcct gggacgagtg gcctgacatc gaggaggata tcgccctgat caagagcgaa
     1201 gagggcgaga aaatggtgct tgagaataac ttcttcgtcg agaccatgct cccaagcaag
     1261 atcatgcgga aactggagcc tgaggagttc gctgcctacc tggagccatt caaggagaag
     1321 ggcgaggtta gacggcctac cctctcctgg cctcgcgaga tccctctcgt taagggaggc
     1381 aagcccgacg tcgtccagat tgtccgcaac tacaacgcct accttcgggc cagcgacgat
     1441 ctgcctaaga tgttcatcga gtccgaccct gggttctttt ccaacgctat tgtcgaggga
     1501 gctaagaagt tccctaacac cgagttcgtg aaggtgaagg gcctccactt cagccaggag
     1561 gacgctccag atgaaatggg taagtacatc aagagcttcg tggagcgcgt gctgaagaac
     1621 gagcagtaat tctaggcgat cgctcgagcc cgggaattcg tttaaaccta gagcggccgc
     1681 ttggattcca ttattttgcc aaatcattta tttataaggt aaattcctag aagtaacatt
     1741 tctgggtcaa acgacgttag taatattgat aggtacaaag gctttttgtt attgtttgtt
     1801 ttcattttta ttaaagttat gcatacaagc acatagattt aagaatcaaa caattctaca
     1861 atttttttaa aaggataaga aaagcagaca ctcccctcac agtgcttgca ggcacctctt
     1921 ttagcttttt ttttattttc aatttaccct cttgtctcta gatgatacgc tgcttggtga
     1981 attttgtttc agcgttaccc actgactccc cgccatgaaa aatgagggtt tagctctttt
     2041 ctatgcacac acatatttcc aatatagtta tgccataatt ttgtctagct caatattcaa
     2101 ttcacattat tgggattatg tggaaactgc acaattgagc cctatagtaa cctttcaaca
     2161 cttttccttt ctcatctagc gcggccgctg gccgcaataa aatatcttta ttttcattac
     2221 atctgtgtgt tggttttttg tgtgaggatc taaatgagtc ttcggacctc gcgggggccg
     2281 cttaagcggt ggttagggtt tgtctgacgc ggggggaggg ggaaggaacg aaacactctc
     2341 attcggaggc ggctcggggt ttggtcttgg tggccacggg cacgcagaag agcgccgcga
     2401 tcctcttaag cacccccccg ccctccgtgg aggcgggggt ttggtcggcg ggtggtaact
     2461 ggcgggccgc tgactcgggc gggtcgcgcg ccccagagtg tgaccttttc ggtctgctcg
     2521 cagacccccg ggcggcgccg ccgcggcggc gacgggctcg ctgggtccta ggctccatgg
     2581 ggaccgtata cgtggacagg ctctggagca tccgcacgac tgcggtgata ttaccggaga
     2641 ccttctgcgg gacgagccgg gtcacgcggc tgacgcggag cgtccgttgg gcgacaaaca
     2701 ccaggacggg gcacaggtac actatcttgt cacccggagg cgcgagggac tgcaggagct
     2761 tcagggagtg gcgcagctgc ttcatccccg tggcccgttg ctcgcgtttg ctggcggtgt
     2821 ccccggaaga aatatatttg catgtcttta gttctatgat gacacaaacc ccgcccagcg
     2881 tcttgtcatt ggcgaattcg aacacgcaga tgcagtcggg gcggcgcggt cccaggtcca
     2941 cttcgcatat taaggtgacg cgtgtggcct cgaacaccga gcgaccctgc agcgacccgc
     3001 ttaaaagctt ggcattccgg tactgttggt aaagccacca tggccgatgc taagaacatt
     3061 aagaagggcc ctgctccctt ctaccctctg gaggatggca ccgctggcga gcagctgcac
     3121 aaggccatga agaggtatgc cctggtgcct ggcaccattg ccttcaccga tgcccacatt
     3181 gaggtggaca tcacctatgc cgagtacttc gagatgtctg tgcgcctggc cgaggccatg
     3241 aagaggtacg gcctgaacac caaccaccgc atcgtggtgt gctctgagaa ctctctgcag
     3301 ttcttcatgc cagtgctggg cgccctgttc atcggagtgg ccgtggcccc tgctaacgac
     3361 atttacaacg agcgcgagct gctgaacagc atgggcattt ctcagcctac cgtggtgttc
     3421 gtgtctaaga agggcctgca gaagatcctg aacgtgcaga agaagctgcc tatcatccag
     3481 aagatcatca tcatggactc taagaccgac taccagggct tccagagcat gtacacattc
     3541 gtgacatctc atctgcctcc tggcttcaac gagtacgact tcgtgccaga gtctttcgac
     3601 agggacaaaa ccattgccct gatcatgaac agctctgggt ctaccggcct gcctaagggc
     3661 gtggccctgc ctcatcgcac cgcctgtgtg cgcttctctc acgcccgcga ccctattttc
     3721 ggcaaccaga tcatccccga caccgctatt ctgagcgtgg tgccattcca ccacggcttc
     3781 ggcatgttca ccaccctggg ctacctgatt tgcggctttc gggtggtgct gatgtaccgc
     3841 ttcgaggagg agctgttcct gcgcagcctg caagactaca aaattcagtc tgccctgctg
     3901 gtgccaaccc tgttcagctt cttcgctaag agcaccctga tcgacaagta cgacctgtct
     3961 aacctgcacg agattgcctc tggcggcgcc ccactgtcta aggaggtggg cgaagccgtg
     4021 gccaagcgct ttcatctgcc aggcatccgc cagggctacg gcctgaccga gacaaccagc
     4081 gccattctga ttaccccaga gggcgacgac aagcctggcg ccgtgggcaa ggtggtgcca
     4141 ttcttcgagg ccaaggtggt ggacctggac accggcaaga ccctgggagt gaaccagcgc
     4201 ggcgagctgt gtgtgcgcgg ccctatgatt atgtccggct acgtgaataa ccctgaggcc
     4261 acaaacgccc tgatcgacaa ggacggctgg ctgcactctg gcgacattgc ctactgggac
     4321 gaggacgagc acttcttcat cgtggaccgc ctgaagtctc tgatcaagta caagggctac
     4381 caggtggccc cagccgagct ggagtctatc ctgctgcagc accctaacat tttcgacgcc
     4441 ggagtggccg gcctgcccga cgacgatgcc ggcgagctgc ctgccgccgt cgtcgtgctg
     4501 gaacacggca agaccatgac cgagaaggag atcgtggact atgtggccag ccaggtgaca
     4561 accgccaaga agctgcgcgg cggagtggtg ttcgtggacg aggtgcccaa gggcctgacc
     4621 ggcaagctgg acgcccgcaa gatccgcgag atcctgatca aggctaagaa aggcggcaag
     4681 atcgccgtgt aataattcta gagtcggggc ggccggccgc ttcgagcaga catgataaga
     4741 tacattgatg agtttggaca aaccacaact agaatgcagt gaaaaaaatg ctttatttgt
     4801 gaaatttgtg atgctattgc tttatttgta accattataa gctgcaataa acaagttaac
     4861 aacaacaatt gcattcattt tatgtttcag gttcaggggg aggtgtggga ggttttttaa
     4921 agcaagtaaa acctctacaa atgtggtaaa atcgataagg atccaggtgg cacttttcgg
     4981 ggaaatgtgc gcggaacccc tatttgttta tttttctaaa tacattcaaa tatgtatccg
     5041 ctcatgagac aataaccctg ataaatgctt caataatatt gaaaaaggaa gagtatgagt
     5101 attcaacatt tccgtgtcgc ccttattccc ttttttgcgg cattttgcct tcctgttttt
     5161 gctcacccag aaacgctggt gaaagtaaaa gatgctgaag atcagttggg tgcacgagtg
     5221 ggttacatcg aactggatct caacagcggt aagatccttg agagttttcg ccccgaagaa
     5281 cgttttccaa tgatgagcac ttttaaagtt ctgctatgtg gcgcggtatt atcccgtatt
     5341 gacgccgggc aagagcaact cggtcgccgc atacactatt ctcagaatga cttggttgag
     5401 tactcaccag tcacagaaaa gcatcttacg gatggcatga cagtaagaga attatgcagt
     5461 gctgccataa ccatgagtga taacactgcg gccaacttac ttctgacaac gatcggagga
     5521 ccgaaggagc taaccgcttt tttgcacaac atgggggatc atgtaactcg ccttgatcgt
     5581 tgggaaccgg agctgaatga agccatacca aacgacgagc gtgacaccac gatgcctgta
     5641 gcaatggcaa caacgttgcg caaactatta actggcgaac tacttactct agcttcccgg
     5701 caacaattaa tagactggat ggaggcggat aaagttgcag gaccacttct gcgctcggcc
     5761 cttccggctg gctggtttat tgctgataaa tctggagccg gtgagcgtgg gtctcgcggt
     5821 atcattgcag cactggggcc agatggtaag ccctcccgta tcgtagttat ctacacgacg
     5881 gggagtcagg caactatgga tgaacgaaat agacagatcg ctgagatagg tgcctcactg
     5941 attaagcatt ggtaactgtc agaccaagtt tactcatata tactttagat tgatttaaaa
     6001 cttcattttt aatttaaaag gatctaggtg aagatccttt ttgataatct catgaccaaa
     6061 atcccttaac gtgagttttc gttccactga gcgtcagacc ccgtagaaaa gatcaaagga
     6121 tcttcttgag atcctttttt tctgcgcgta atctgctgct tgcaaacaaa aaaaccaccg
     6181 ctaccagcgg tggtttgttt gccggatcaa gagctaccaa ctctttttcc gaaggtaact
     6241 ggcttcagca gagcgcagat accaaatact gttcttctag tgtagccgta gttaggccac
     6301 cacttcaaga actctgtagc accgcctaca tacctcgctc tgctaatcct gttaccagtg
     6361 gctgctgcca gtggcgataa gtcgtgtctt accgggttgg actcaagacg atagttaccg
     6421 gataaggcgc agcggtcggg ctgaacgggg ggttcgtgca cacagcccag cttggagcga
     6481 acgacctaca ccgaactgag atacctacag cgtgagctat gagaaagcgc cacgcttccc
     6541 gaagggagaa aggcggacag gtatccggta agcggcaggg tcggaacagg agagcgcacg
     6601 agggagcttc cagggggaaa cgcctggtat ctttatagtc ctgtcgggtt tcgccacctc
     6661 tgacttgagc gtcgattttt gtgatgctcg tcaggggggc ggagcctatg gaaaaacgcc
     6721 agcaacgcgg cctttttacg gttcctggcc ttttgctggc cttttgctca catggctcga
     6781 c
//
